Whirlpool

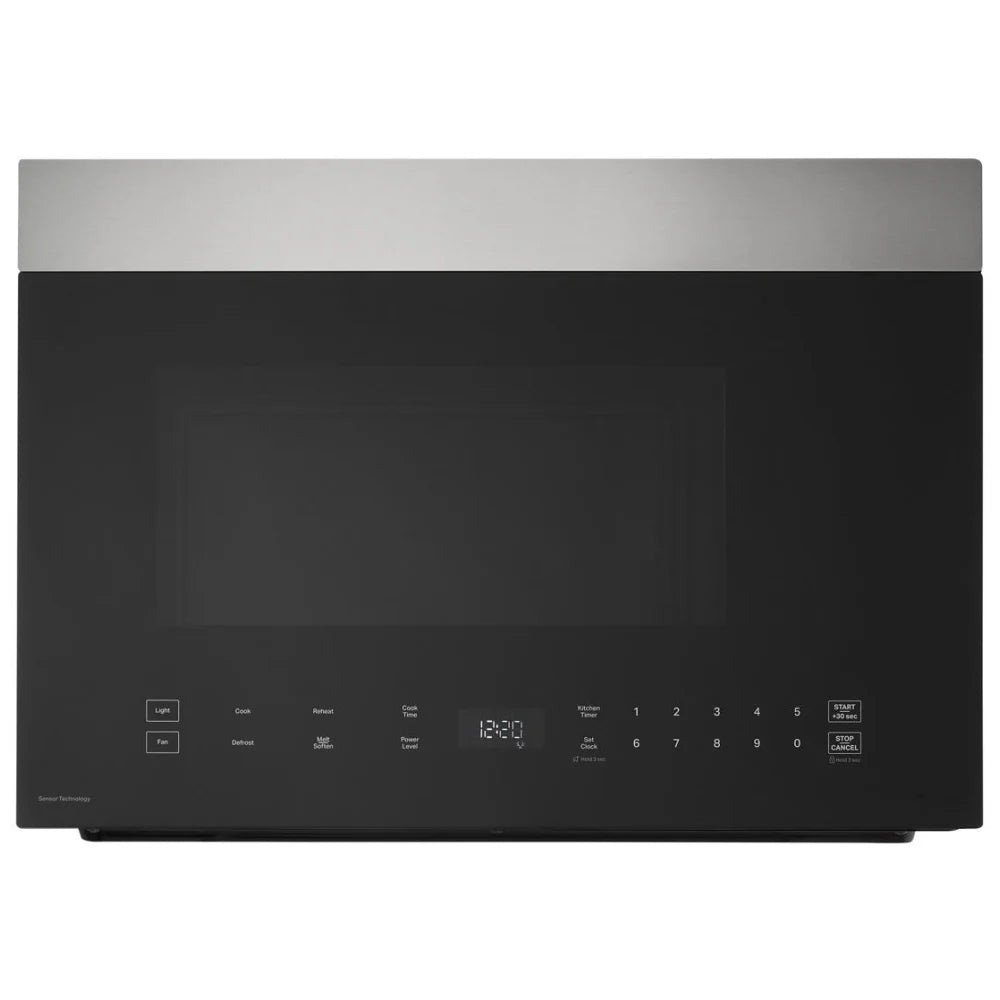

Whirlpool UMMS5024SS Over the Range Microwave, 24 inch Exterior Width, 1.4 cu. ft. Capacity, 300 CFM, 1,500 W Watts, LED, Stainless Steel colour

Whirlpool UMMS5024SS Over the Range Microwave, 24 inch Exterior Width, 1.4 cu. ft. Capacity, 300 CFM, 1,500 W Watts, LED, Stainless Steel colour

Just 3-5 Days*
Regular price $699.00 CAD
Regular price $999.00 CAD Sale price $699.00 CAD
View full details
  • color-pattern:
    Black, Silver
  • brand:
    Whirlpool
  • capacity cu ft :
    1.4
  • cfm:
    300
  • depth:
    17
  • height inch :
    17
  • power type:
    1500 Watts
  • prices:
    $599 - $799
  • sub categories:
    Over-the-Range Microwave
  • width:
    24
  • wifi enabled:
    Yes

The Whirlpool UMMS5024SS over‑the‑range microwave is a smart space‑saving solution designed for compact kitchens that don’t want to compromise on performance or style. With a streamlined 24" width, it tucks neatly above your range where a full‑size hood would normally go, freeing up valuable counter space while still offering a generous 1.4 cu. ft. capacity that easily handles dinner plates, bowls and small casserole dishes. The sleek full‑width glass front and electronic touch controls give this microwave a clean, modern look that blends seamlessly with contemporary stainless steel appliances, while the dark interior helps splatters stay less noticeable between cleanings. Beyond its compact footprint, this model stands out with its integrated 2‑speed, 300 CFM motor class venting system, which works like a true range hood to help clear smoke, steam and cooking odours from your kitchen, making it ideal for open‑concept spaces or condos where air circulation matters. Everyday cooking is simplified with built‑in sensor cooking programs that automatically adjust time and power for popular foods, so reheating leftovers, popping popcorn or steaming vegetables comes out more consistent and hands‑off than with basic microwaves that rely only on manual settings. A convenient Add 30 Seconds option lets you bump up cook time without stopping the cycle, while 10 power levels give you the flexibility to gently soften or melt ingredients or power through quick weeknight meals. Inside, bright LED interior lighting keeps your food clearly visible from start to finish, and the recessed, dishwasher‑safe turntable plate and dishwasher‑safe grease filter make cleanup fast and low‑maintenance. Thoughtful details like the work surface light to illuminate your cooktop, a fan speed indicator, and a stainless steel filter cover that adds a premium touch all contribute to a more polished, built‑in look than many standard over‑the‑range models. Whether you’re outfitting a smaller kitchen or upgrading from a basic hood, the Whirlpool UMMS5024SS delivers a rare combination of compact width, full‑featured ventilation, and intuitive sensor‑driven cooking performance in one stylish, space‑saving appliance.

 1.4 Cu. Ft. Capacity – accommodates dinner plates, bowls and small casserole dishes while maintaining a compact 24" width for space‑saving installations.

 24-inch over-the-range design – fits smaller 24" cabinet openings, ideal for condos, apartments and galley kitchens where a standard 30" microwave won’t fit.

 Space-saving microwave hood combination – combines microwave cooking and ventilation in one appliance to free up valuable counter space.

 Full-width glass front – edge‑to‑edge glass door creates a sleek, modern look that coordinates easily with other stainless steel appliances.

 Stainless steel exterior – durable, easy‑to‑clean finish resists everyday fingerprints and smudges for a premium appearance.

 LED interior lighting – brightly illuminates the cavity so you can easily monitor food as it cooks.

 Work surface light – provides task lighting over the cooktop below for better visibility while cooking on the range.

 Dark grey interior – helps make splatters and stains less visible between cleanings for a cleaner look.

 Electronic touch controls – flat, touch‑sensitive control panel is simple to operate and easy to wipe clean.

 Digital clock and kitchen timer – displays time of day and allows precise timing for recipes or non‑cooking tasks.

 Sensor cooking – automatically adjusts time and power based on humidity levels to help prevent under‑ or over‑cooking.

 10 power levels – lets you tailor microwave intensity for tasks like softening butter, reheating leftovers or cooking full meals.

 1500-watt input power (TBD cooking power) – delivers strong performance for fast reheating, defrosting and cooking.

 Add 30 Seconds option – instantly starts or extends cooking in 30‑second increments with a single touch.

 Auto Cook programs – pre‑set options simplify cooking common foods without needing to manually set time and power.

 Popcorn preset – optimizes time and power for popping microwave popcorn bags.

 Pizza preset – reheats leftover pizza to help maintain a crispier crust and melty cheese.

 Potato preset – automatically cooks baked potatoes based on typical size and density.

 Beverage preset – reheats coffee, tea or other drinks to a comfortable serving temperature.

 Soup preset – warms soups and broths evenly without boiling over.

 Dinner Plate preset – reheats a full plate of leftovers for even results across different foods.

 Fresh Vegetable preset – steams or cooks fresh vegetables with appropriate time and power for tender‑crisp results.

 Frozen Vegetable preset – adjusts for frozen produce to thaw and cook in one step.

 Reheat function – automatically selects settings to gently reheat a variety of foods without drying them out.

 Defrost function – thaws frozen foods by time or weight to prepare them for cooking.

 Soften/Melt function – gently softens butter, cream cheese or melts chocolate without scorching.

 Cook Time and Time Cook options – allow manual entry of exact cooking durations for recipes.

 Cook Power adjustment – lets you change power level during or before cooking for more control over results.

 Pause function – temporarily stops cooking so you can stir, check or rotate food, then resume with the same settings.

 End-of-cycle signal – audible alert notifies you when cooking is complete.

 Sound On/Off option – enables you to mute keypad and end‑of‑cycle tones for quiet operation.

 Control Lock (Child Lock) function – disables the control panel to help prevent accidental or unsupervised use.

 2-speed, 300 CFM motor class ventilation – helps remove smoke, steam and cooking odours from the cooktop area.

 Two exhaust fan speeds – choose lower or higher fan settings depending on what you’re cooking.

 Updraft ventilation system – pulls air up from the cooktop into the hood to improve air circulation.

 Exterior or recirculating venting – supports ducted installation to the outside or recirculating setup with filters when exterior venting isn’t possible.

 Centrifugal blower – efficient fan design moves air effectively through the vent system.

 Fan speed indicator – shows which ventilation speed is currently selected for quick confirmation.

 Charcoal odour‑removing filter – helps capture and reduce cooking smells when using recirculating mode.

 Dishwasher-safe grease filter with stainless steel cover – traps grease from cooktop vapours and can be removed and cleaned in the dishwasher.

 Recessed glass turntable – 12.8" diameter turntable rotates food for more even heating while sitting slightly lower for easier loading.

 Dishwasher-safe turntable plate – removable glass tray can be placed in the dishwasher for quick cleanup.

 Interior LED light – illuminates the cavity whenever the door is open or the microwave is running.

 Left-hinge door with pocket handle – side‑hinged door and integrated handle provide a clean look and easy access.

 Compact depth and height – 16.7" depth and 16.8" height help the unit fit under cabinets in tighter spaces.

 Depth with door open 90°: 38.78" – provides clearance information for planning installations near walls or adjacent cabinets.

 UL listed – tested to meet recognized safety standards for household appliances.

 120V, 60 Hz, 15A electrical requirement – compatible with standard North American household circuits.

 1-year manufacturer’s warranty – provides coverage against defects in materials and workmanship for added peace of mind.

Top Features

LED Interior Lighting

LED Interior Lighting Easily check on food with bright LED Interior Lighting that illuminates the inside of your microwave the entire time you're cooking.

2-Speed, 300 CFM Motor Class

2-Speed, 300 CFM Motor Class* hood venting helps remove smoke, odor and moisture to keep your kitchen clean.

*Performance varies based on installation. Resources available at aham.org.

Add 30 Seconds Option

Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.

Additional Features

Dishwasher-Safe Turntable Plate

Clean up spills on the turntable by simply putting it in the dishwasher.

TBD-Watt Cooking Power

Get quick cooking with TBD watts of cooking power.

Electronic Touch Controls

The electronic touch controls provide a smooth panel that's as easy to use as it is to clean.

Dark Interior

The dark grey interior helps make splatters less visible.

10 Power Levels

Select from 10 Power Levels to adjust to the kind of food you’re cooking or your recipe’s instructions.

1.4 Cu. Ft. Capacity

Easily fit a variety of dishes with 1.4 Cu. Ft. Capacity.

Full Glass Front

Full-width door with edge-to-edge glass provides a sleek and stylish look to complement any kitchen.

Dishwasher-Safe Grease Filter

Help trap unwanted grease with a large filter that can easily be removed for cleaning in the dishwasher. A stainless steel filter cover provides a premium look.

Specification Value
Capacity 1.4 Cu Ft
Appliance Type Over-the-Range Microwave Hood Combination
Brand Whirlpool
Model UMMS5024SS
Color / Finish Stainless Steel
Door Style / Front Full-width door with edge-to-edge glass
Door Hinge Left
Control Type Electronic touch controls
Control Location Bottom
Display Color White
Microwave Type Over the Range
Microwave Configuration Microwave hood combination
Width 23.9 inches
Height 16.8 inches
Depth 16.7 inches
Depth With Door Open 90° 38.78 inches
Net Weight Approx. 54–64 lb (varies by listing; manufacturer dimensional guide supports ~150 lb support requirement)
Shipping Width 27.4 inches
Shipping Height 20.7 inches
Shipping Depth 22.2 inches
Shipping Weight Approx. 61.7 lb
Interior Width 15.31 inches
Interior Height 10.81 inches
Interior Depth 14.41 inches
Turntable Diameter 12.8 inches
Turntable Type Recessed glass turntable
Interior Finish Dark grey interior
Interior Light LED interior light
Work Surface Light Yes
Microwave Cooking Power TBD watts (not consistently specified on retailer sites)
Number of Power Levels 10
Sensor Cooking Yes
Convection No
Grill No
Air Fryer Function No
Clock Yes
Timer Yes
Control Lock Yes
Programs / Presets Add 30 Seconds; Auto Cook; Beverage; Control Lock; Cook; Cook Power; Cook Time; Defrost; Dinner Plate; End of Cycle Signal; Fresh Vegetable; Frozen Vegetable; Off/Cancel; Pause; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; Time Cook; Timer
Ventilation Integrated hood ventilation
Ventilation Type Updraft
Venting Options Exterior or recirculating
Exhaust Fan Speeds 2 speeds
Maximum CFM 300 CFM
Fan Speed Indicator Yes
Blower Type Centrifugal
Vent Fan Location Back
Duct Direction Vertical or Horizontal
Duct Outlet Size 3.25" W x 10" H (rectangular)
Duct Type Rectangular
Filters Charcoal odor removing filter; dishwasher-safe grease filter with stainless steel filter cover
Venting Configuration (factory) Recirculating by default (convertible to exterior)
Electrical Requirements 120 V, 60 Hz AC, 15 A (or 15–20 A fused dedicated circuit recommended)
Rated Input Power Approx. 1500 W (per several retailer spec sheets)
Country of Origin China
Certifications UL listed
ADA Compliant No
Door Release Pocket handle
Minimum Cabinet Opening Width 24 inches
Recommended Support Structure Capacity Must support at least 150 lb including microwave and upper cabinet contents
Typical Installation Height Based on 36" countertops; refer to dimension guide for exact clearances
UPC 883049706900
