Features and Specifications

General

Appliance Width (in) 23 9/16

Height 32 1/16

Installation Type Built-under

Number of Place Settings 13

List of Programs Favorite, Heavy, Normal, Rinse

Special Functions Delicate, Extra Dry, Machine Care, Remote Start, Sanitize

Display Yes

Silence Level 46 dB(A) re 1pW

3rd rack None

Interior Light No

Removable top No

Power Cord Length 67"

Connectivity

Home Connect™ Yes

Home Connect Features Remote Monitoring and Control

Power consumption standby/network: Please check the user manual for how to switch off the WiFi module. 2.0 W

Time auto-standby/network 2.0 minSize and weight

Overall Appliance Dimensions (HxWxD) (in) 32 1/16'' x 23 9/16'' x 22 9/16''

Adjustable plinth No

Net Weight 81.000 lbs

Programmes

Status Indicator Time remaining indicator front, Water inlet

List of Programs Favorite, Heavy, Normal, Rinse

Program 1 Heavy

Program 2 Auto

Program 3 Normal

Program 4 Rinse

Program 5 Favorite

Reference program Eco

Number of different wash temperatures 6

Temperature program 1 151-160 °F

Temperature program 2 127-131 °F

Temperature program 3 113-131 °F

Safety

ChildLock Button suspension

Consumption values

Glass protection Yes

Water consumption program 1 4.9-6.4 gal

Water consumption program 2 2.5-5.4 gal

Water consumption program 3 2.3-5.6 gal

Water consumption program 4 1.2 gal

Total Annual Water Consumption 494 gal

Maximum temperature for water intake (°C) 60 °C

Connection

Watts 1,440 W

Power Cord Length 67"

Fuse protection12 A

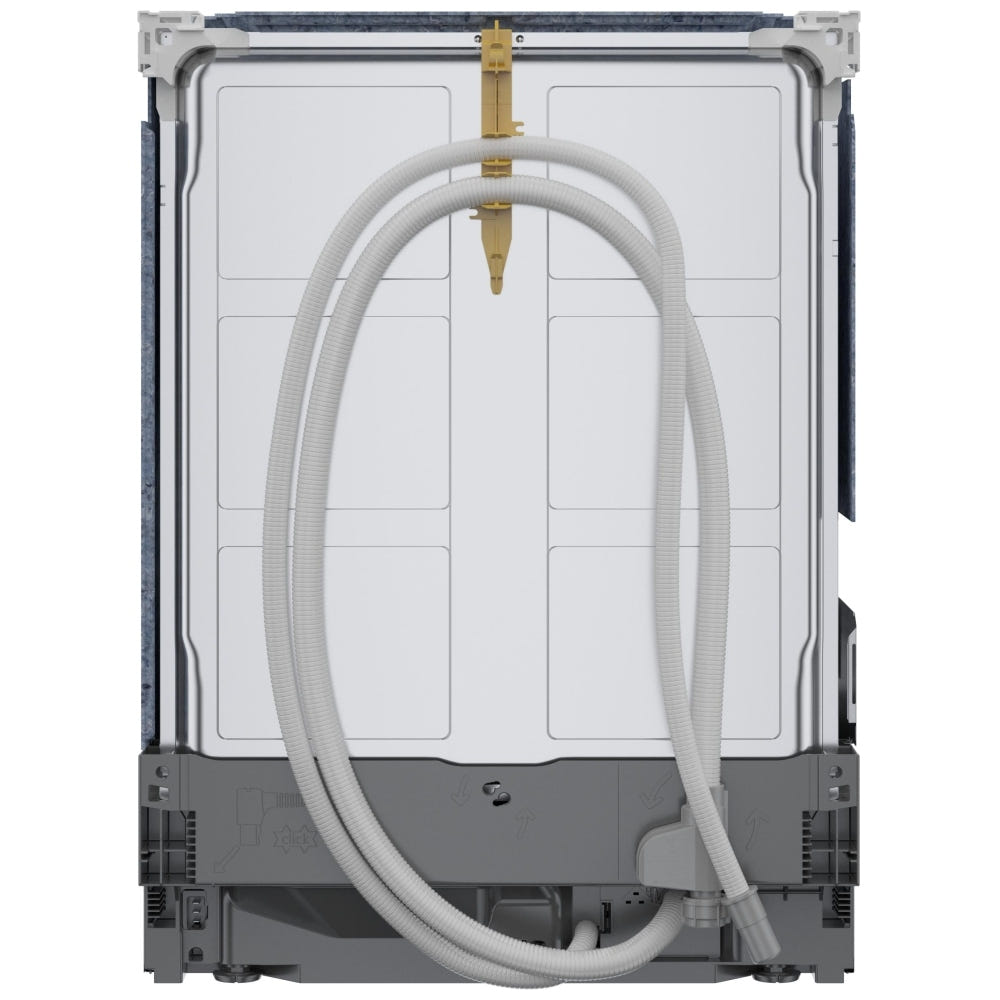

Length inlet hose 165 cm

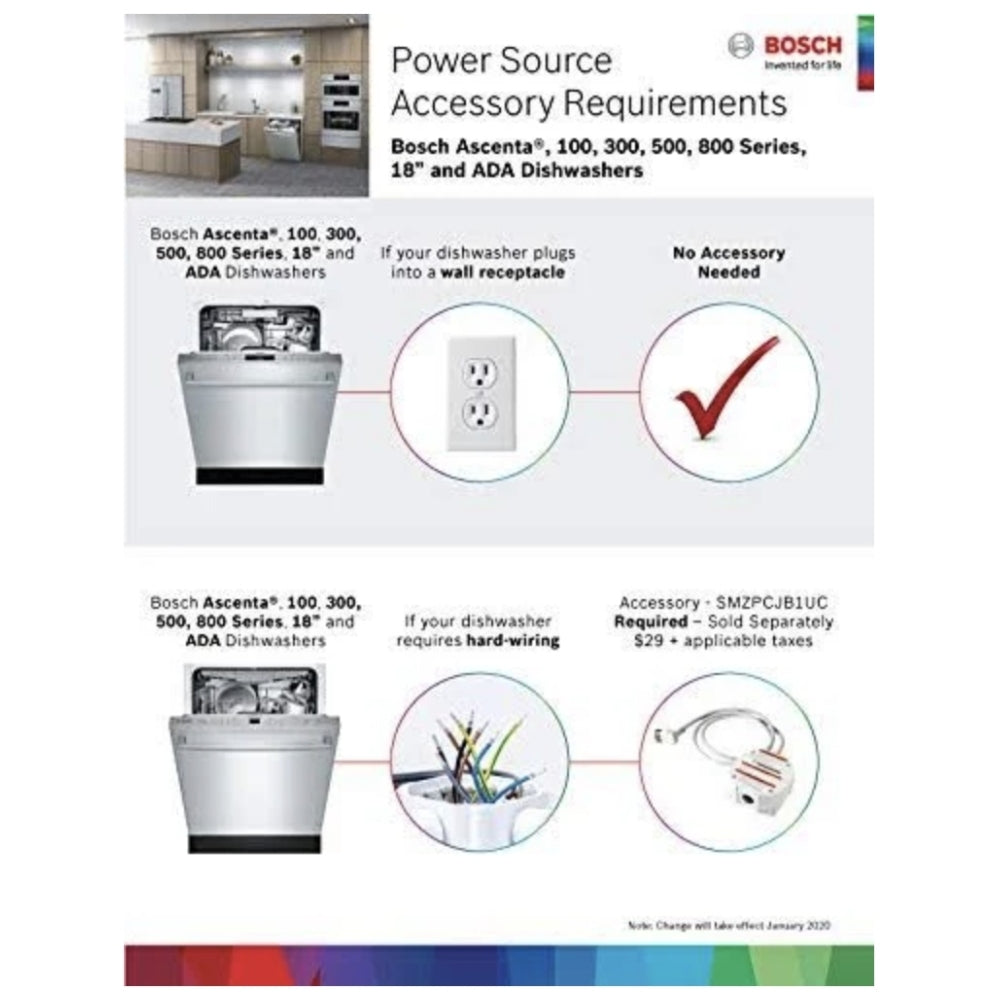

Plug Type Nema5-15P

Construction type

Color / Material Housing Lacquered

Color / Control Panel White

Design Built-in

Drying System PureDry®

Height 32 1/16

Concealed heating element Yes

Installation Type Built-under

Tub Material Stainless Steel

Water Softener Yes

Appliance Width (in) 23 9/16
