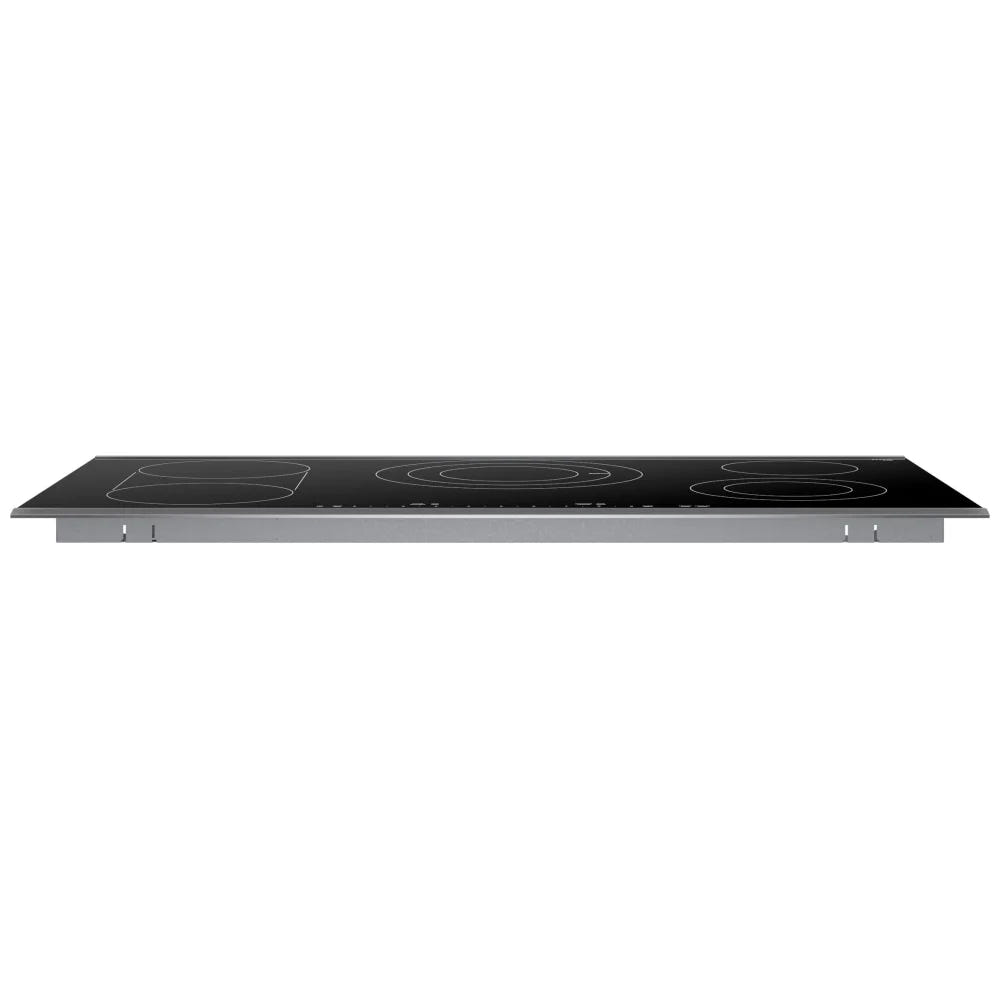

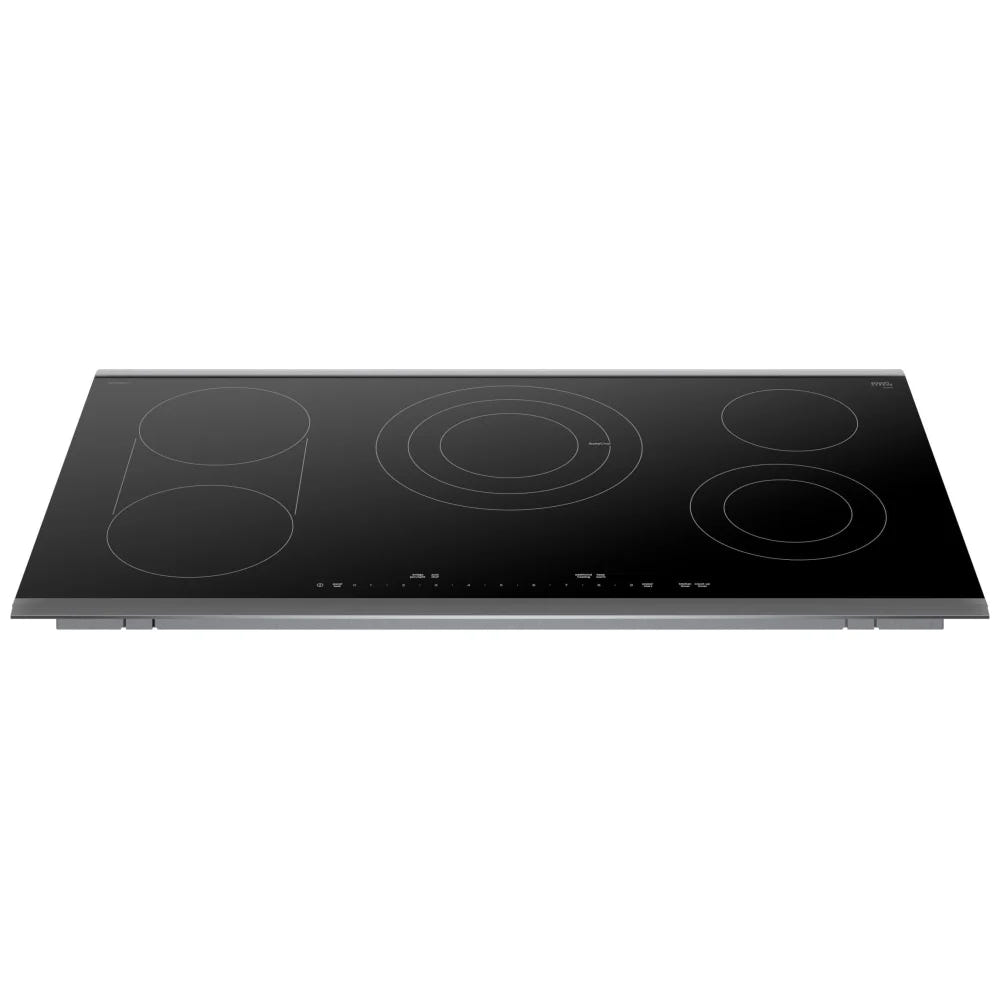

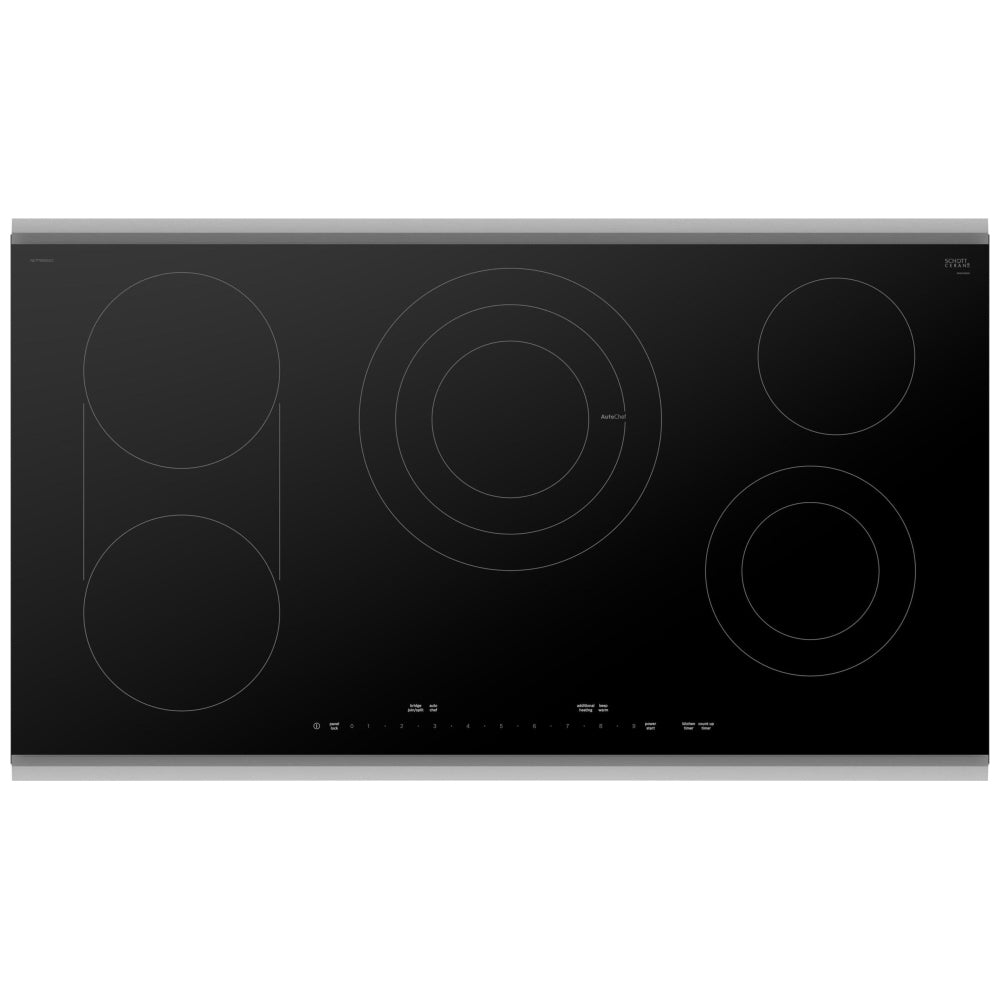

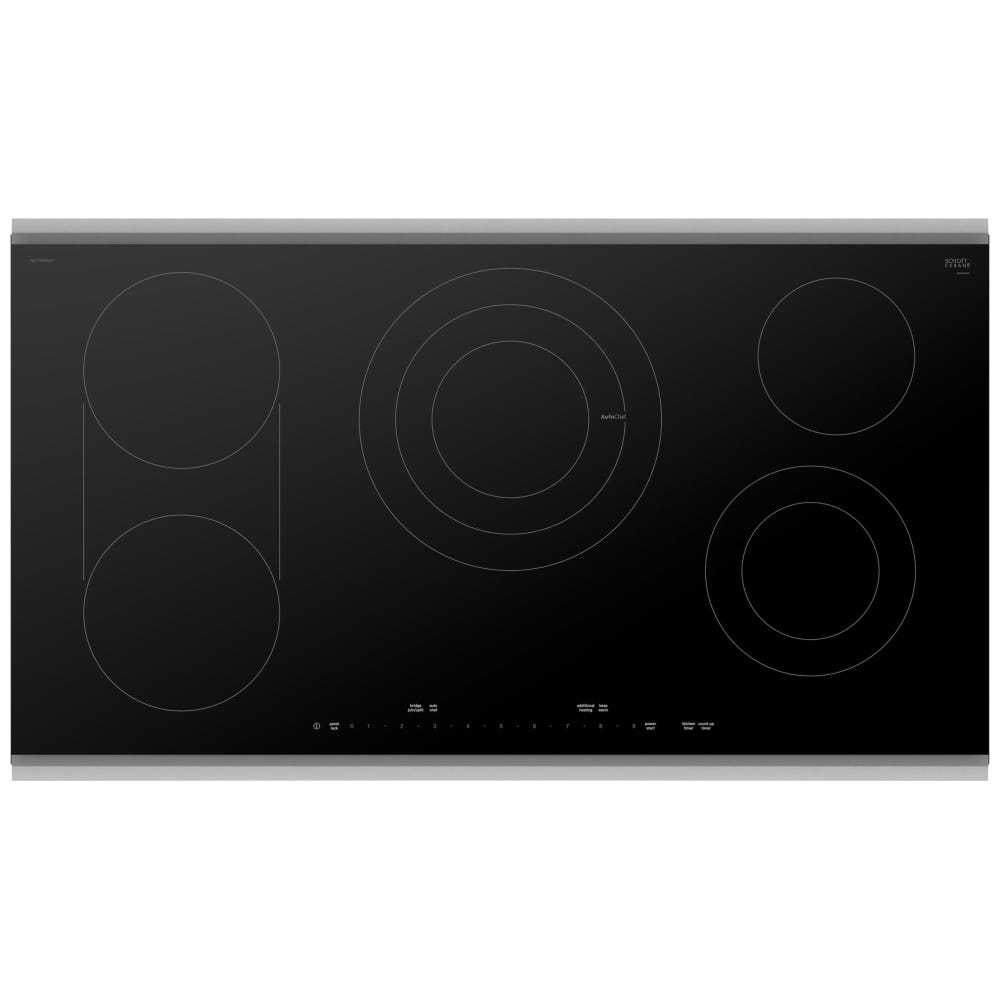

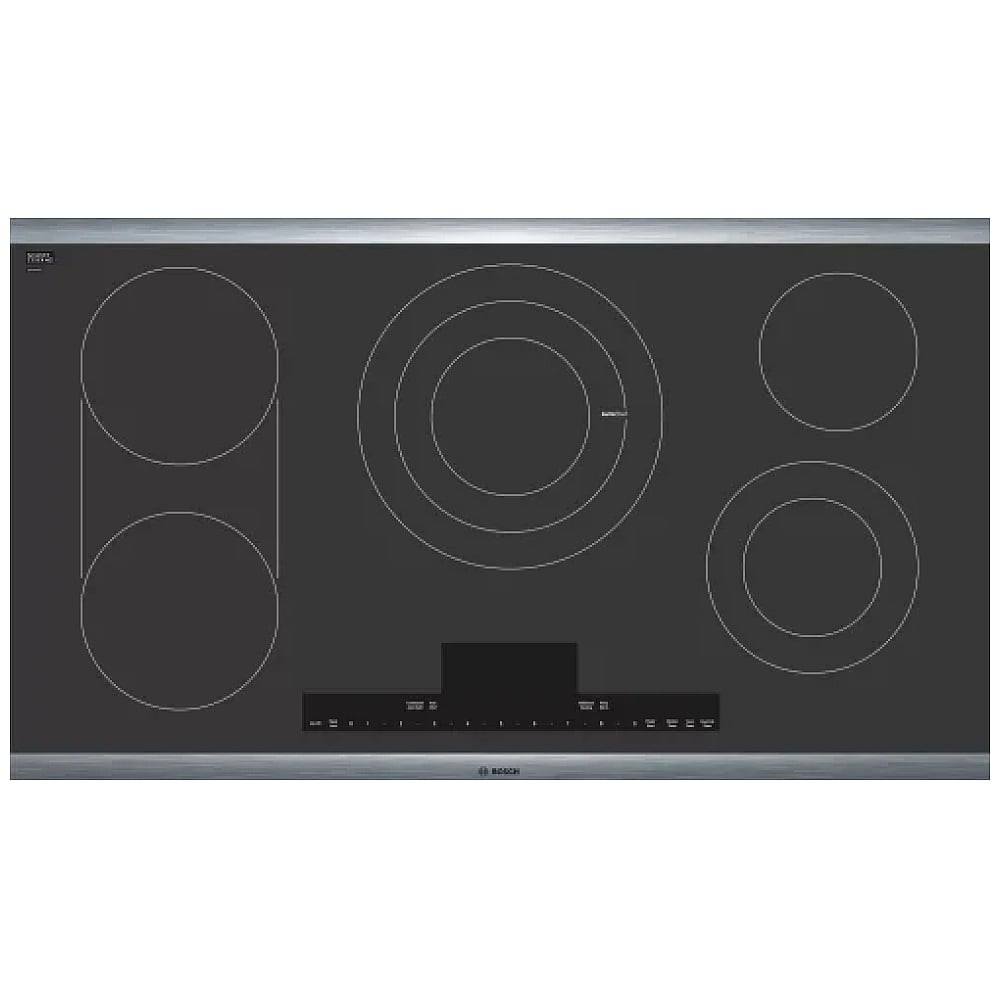

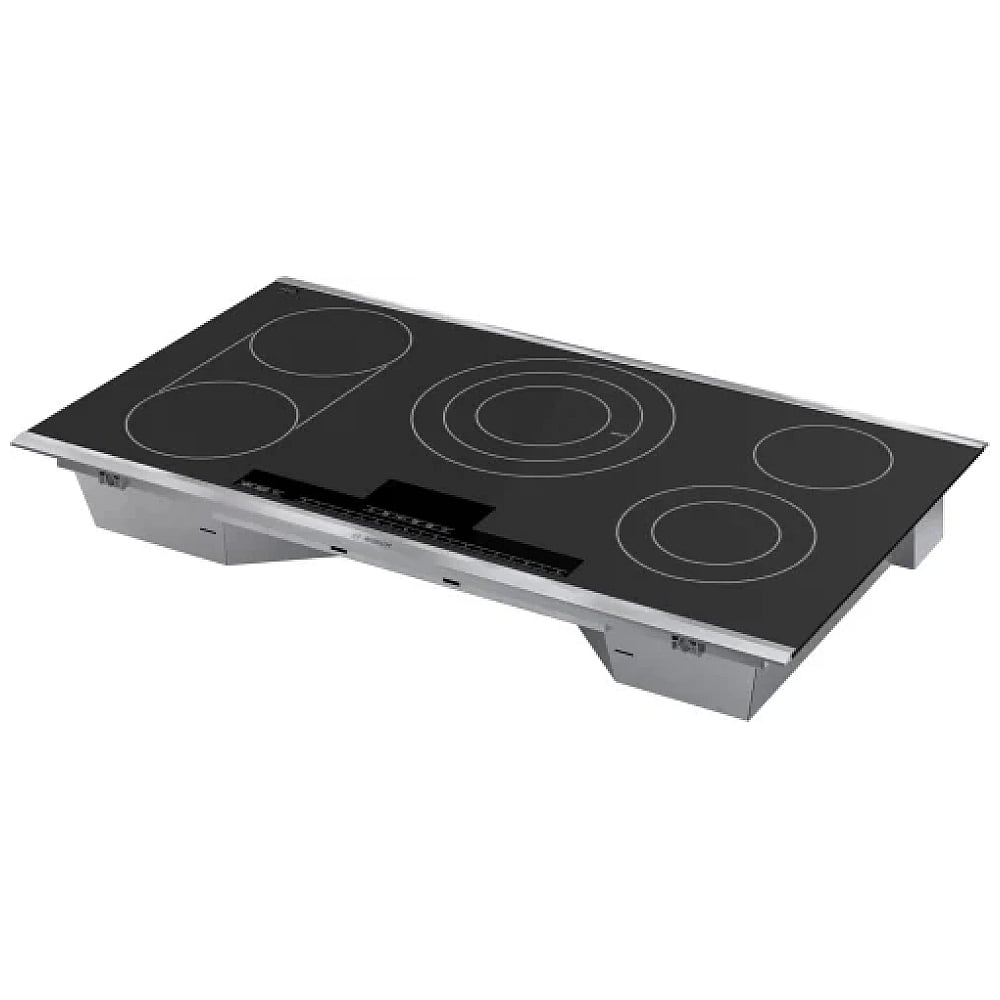

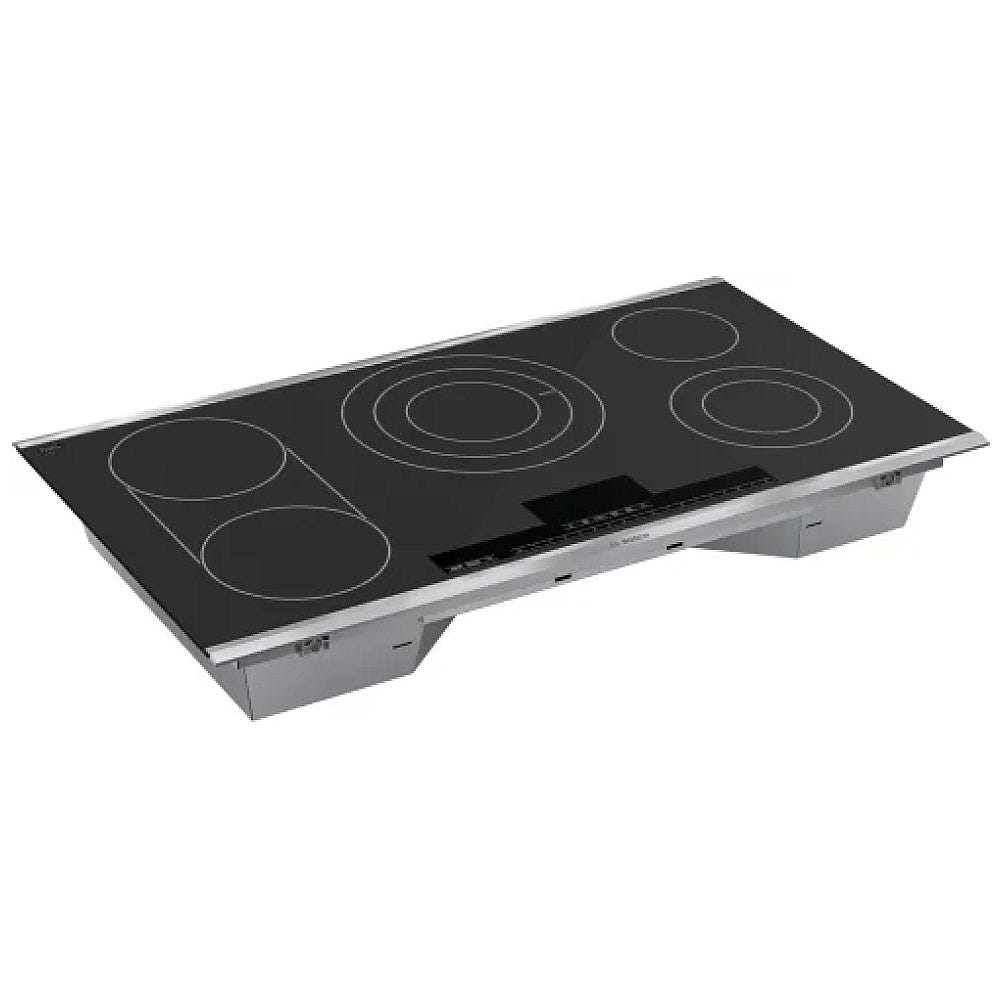

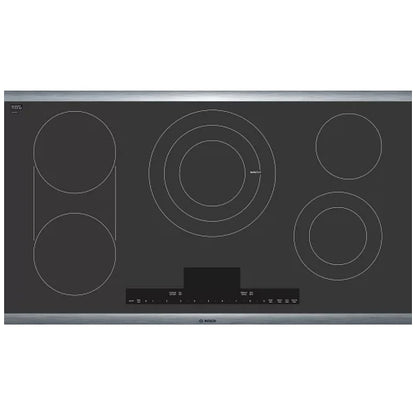

36" Electric Cooktop, 5 burner NETP669SUC

General

Cooktop type Radiant cooktop

Self-sufficient cooker control Self-sufficient electro hobs

Type of appliance width 90 cm

Total number of cooktop burners 5

Dimensions of the heating elements 1 x 14,0 cm , 1 x 19,5 cm , 1 x 27,0 cm , 2 x 18,0 cm

Power of the heating elements (maximum values shown, depending on gas type) 1 x 1.2 KW, 1 x 1.9 KW, 1 x 3.08 KW, 2 x 1.8 KW

Basic surface material Ceramic

Frame type Standard design

Color Black

Connectivity

Home Connect™

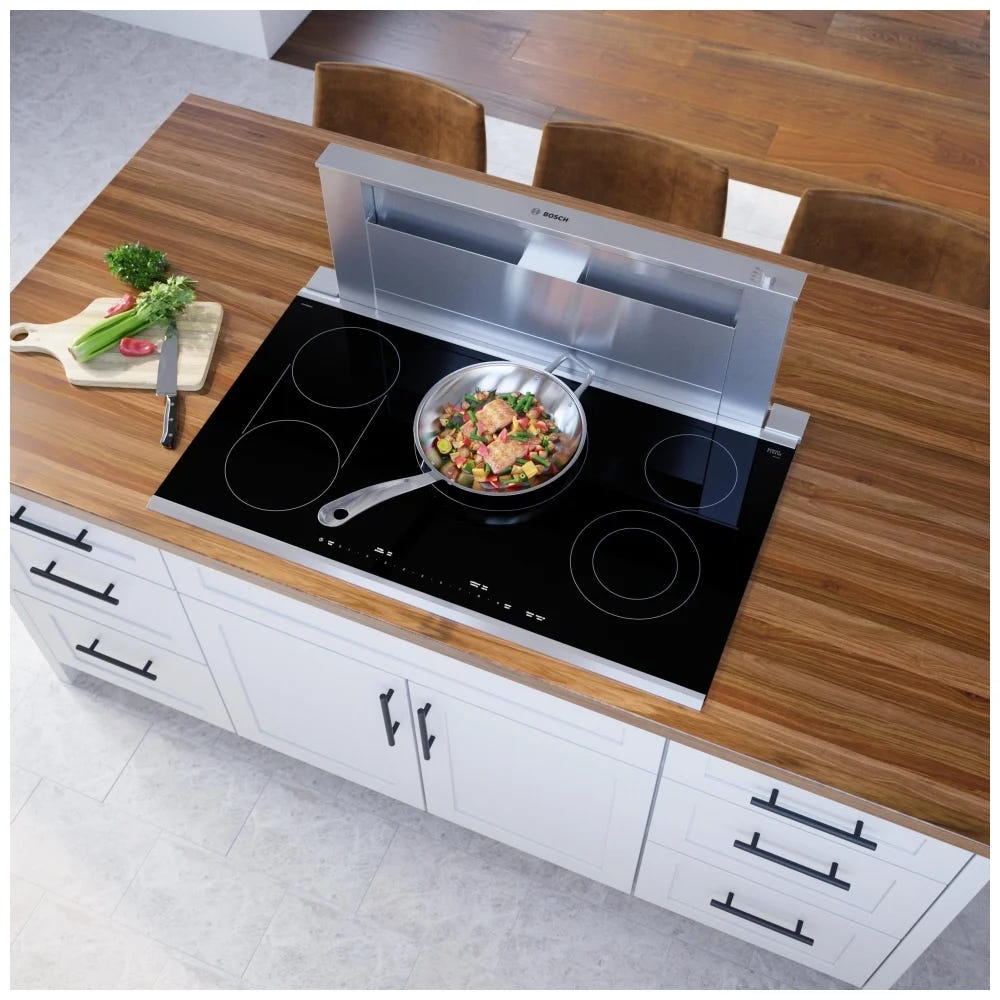

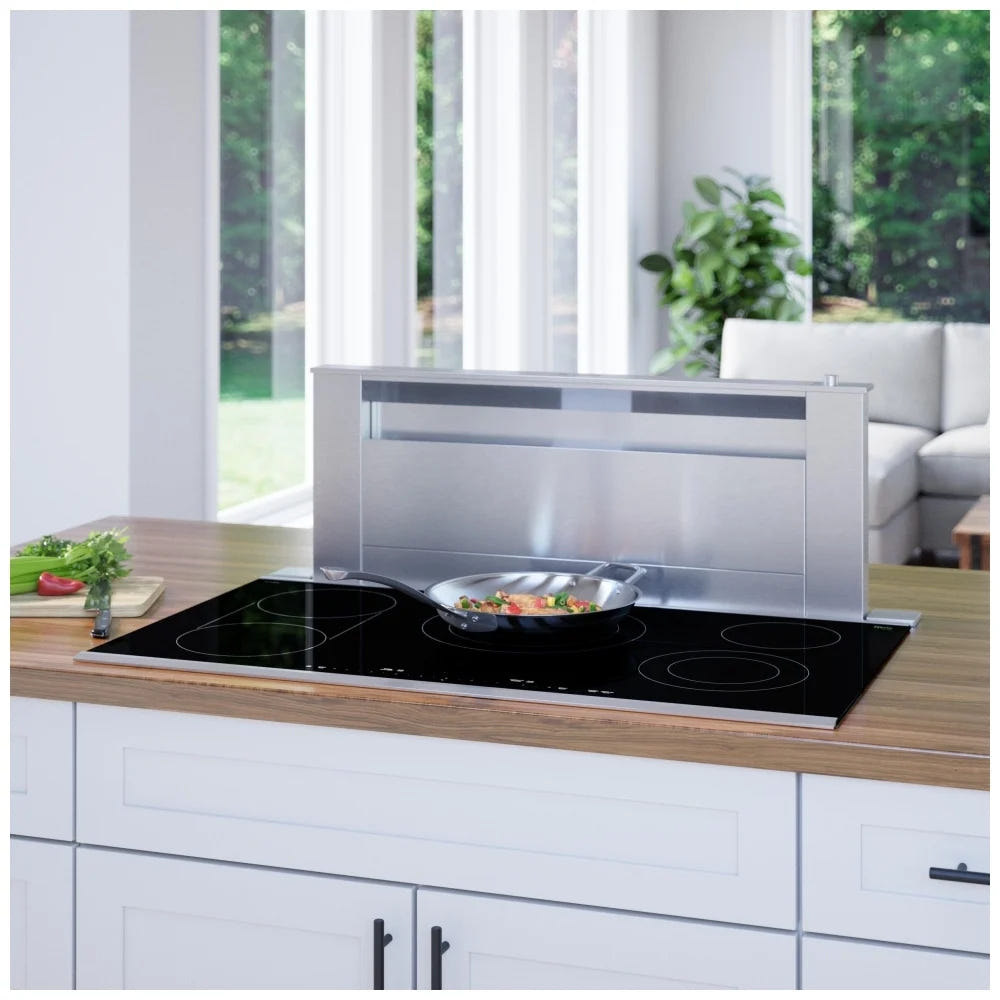

Hob-based hood contro

lSize and weight

Dimensions 100 x 940 x 540 mm

Overall Appliance Dimensions (HxWxD) (in) 1/4" + 4 " x 37" x 21 1/4"

Net weight 14.6 kg

Net Weight 32.000 lbs

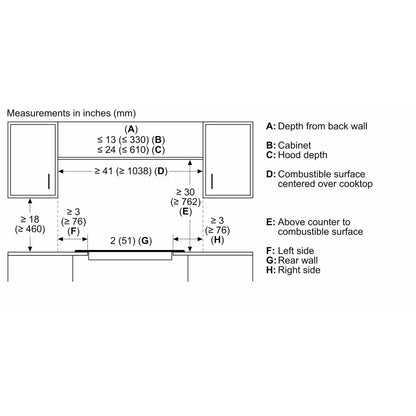

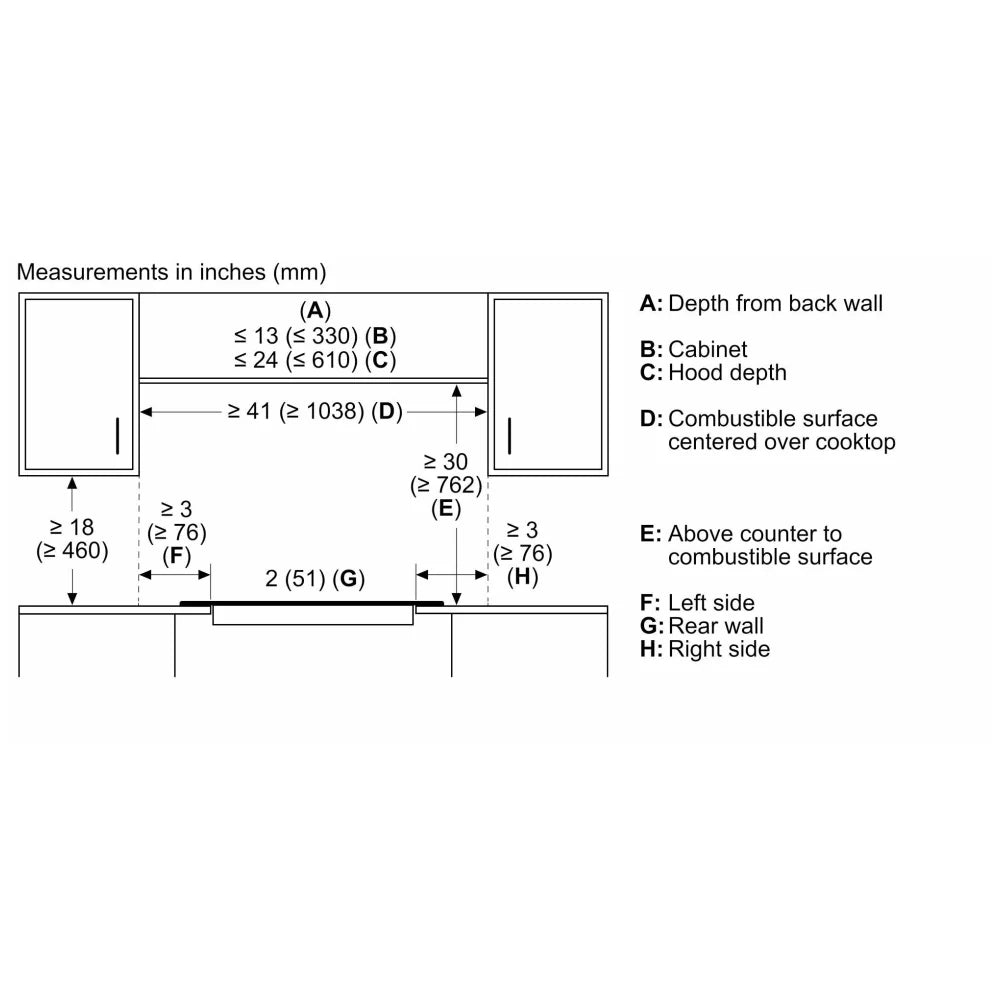

Minimum distance from counter front (in) 2 1/4

Minimum distance from rear wall (in) 2

Cooking zone 1

Dimension of 1st heating element (in) 7"

Location of heating element front left

Power of heating element (W) 1.8 kW

Type of heating element Radiant heating

Cooking zone 2

Location of 2nd heating element center left

Cooking zone 3

Dimension of 3rd heating element 180 mm

Dimension of 3rd heating element (in) 7"

Location of 3rd heating element back left

Power of 3rd heating element (W) 1.8 kW

Type of 3rd heating element Radiant heating

Cooking zone 4

Location of 4th heating element middle back

Cooking zone 5

Dimension of 5th heating element 140 mm

Dimension of 5th heating element (in) 6"

Location of 5th heating element back right

Power of 5th heating element (W) 1.2 kW

Type of 5th heating element Radiant heating

Cooking zone 6

Location of 6th heating element center right

Cooking zone 7

Dimension of 7th heating element 120 ; 195 mm

Dimension of 7th heating element (in) 5" ; 8"

Location of 7th heating element front right

Power of 7th heating element (kW) 0.8 ; 1.9 kW

Type of 7th heating element Radiant heating

Cooking zone 8

Location of 8th heating element front middle / central

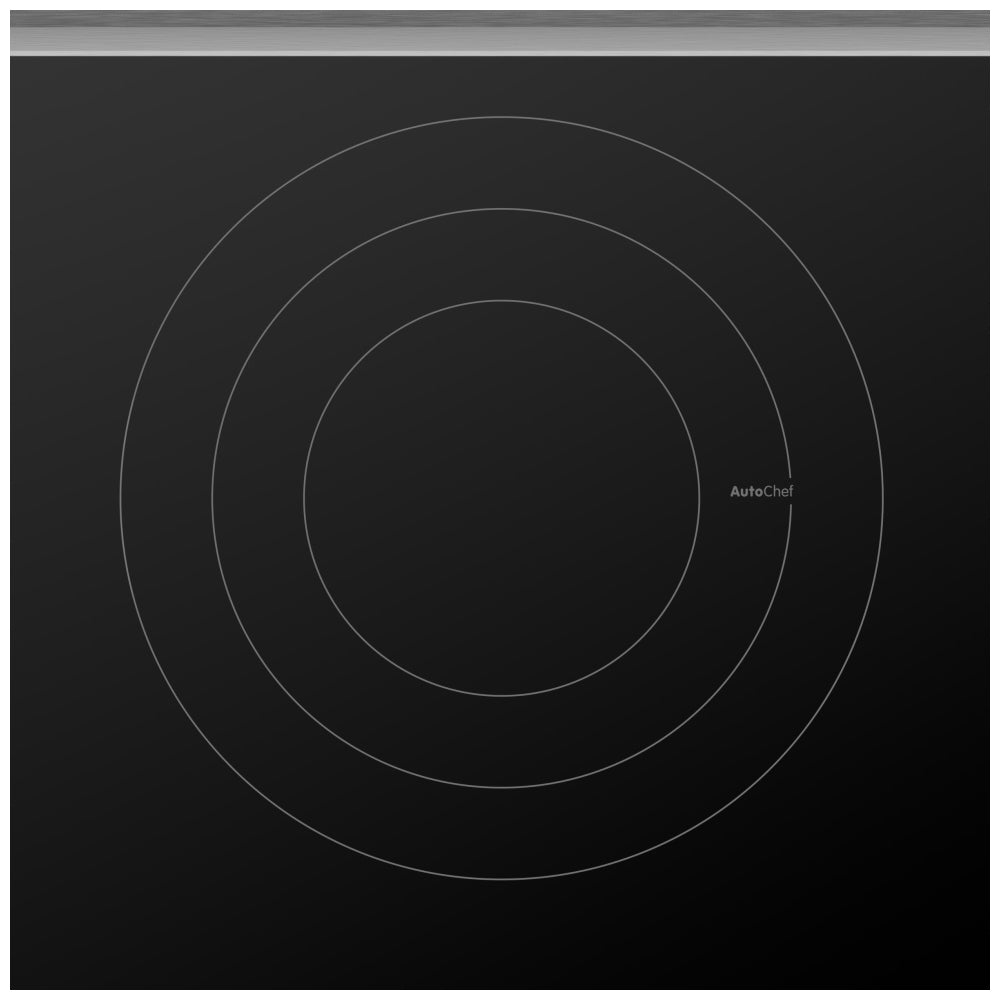

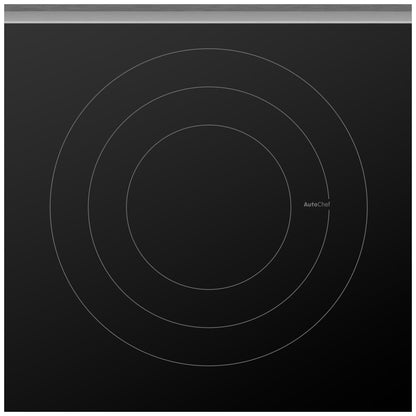

Cooking zone 9

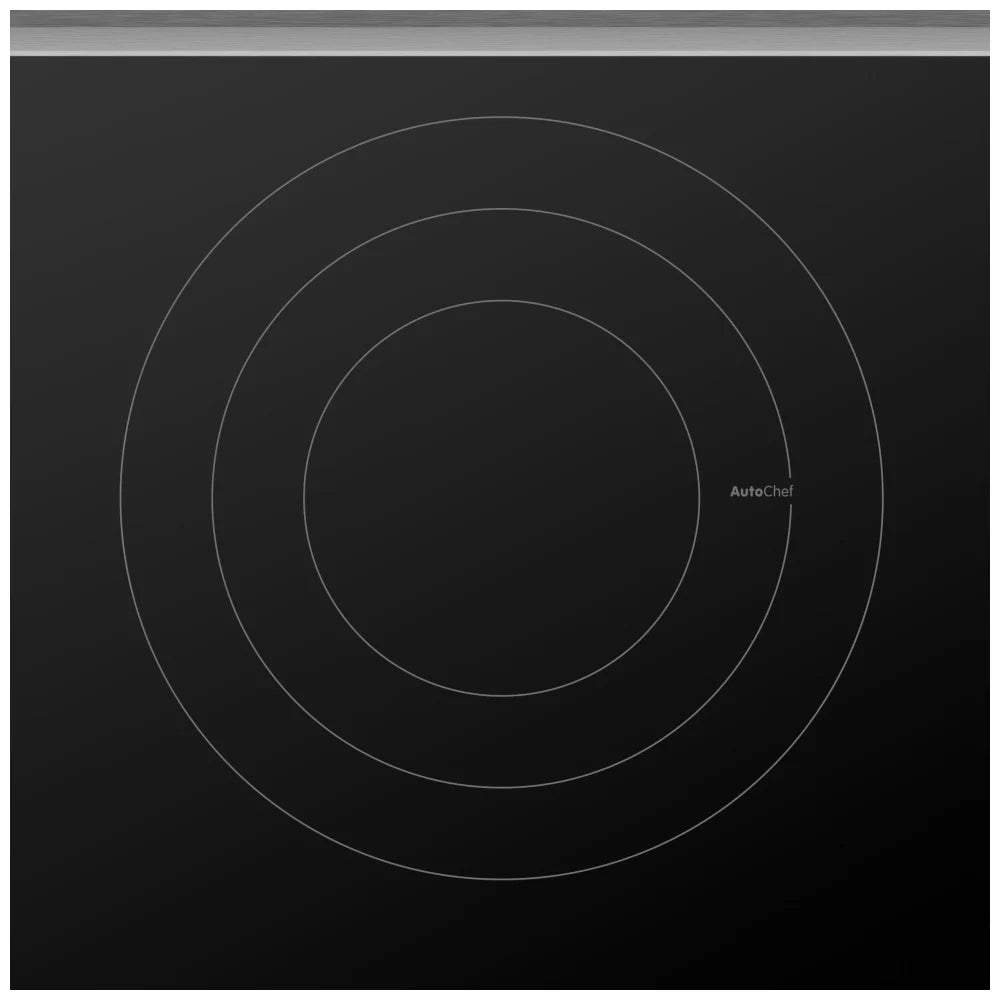

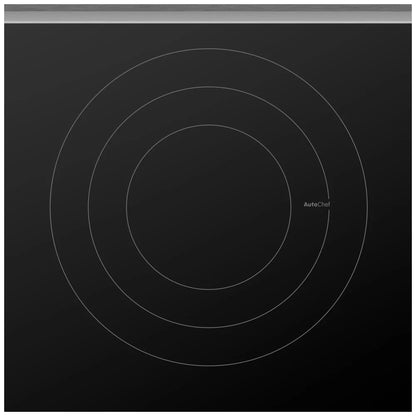

Dimension of 9th heating element 140 ; 210 ; 270 mm

Dimension of 9th heating element (in) 11" ; 6" ; 8"

Location of 9th heating element front centre/cent

Power of 9th heating element (kW) 1.05 ; 2.2 ; 3.08 kW

Type of 9th heating element Radiant heating

Construction type

Color of frame Stainless steel

Color of Surface Black, Stainless steel

Construction Type Built-in

Number of electric elements 0

Number of electric cooking zones 5

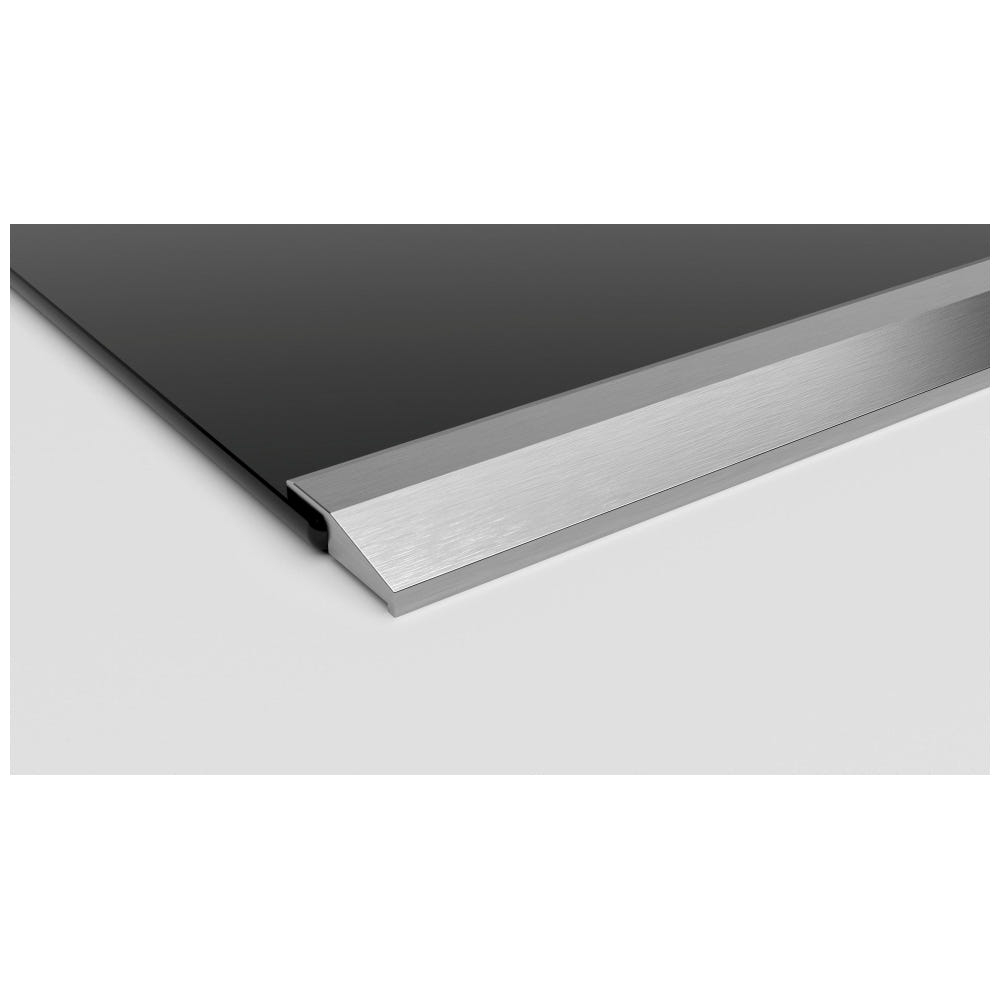

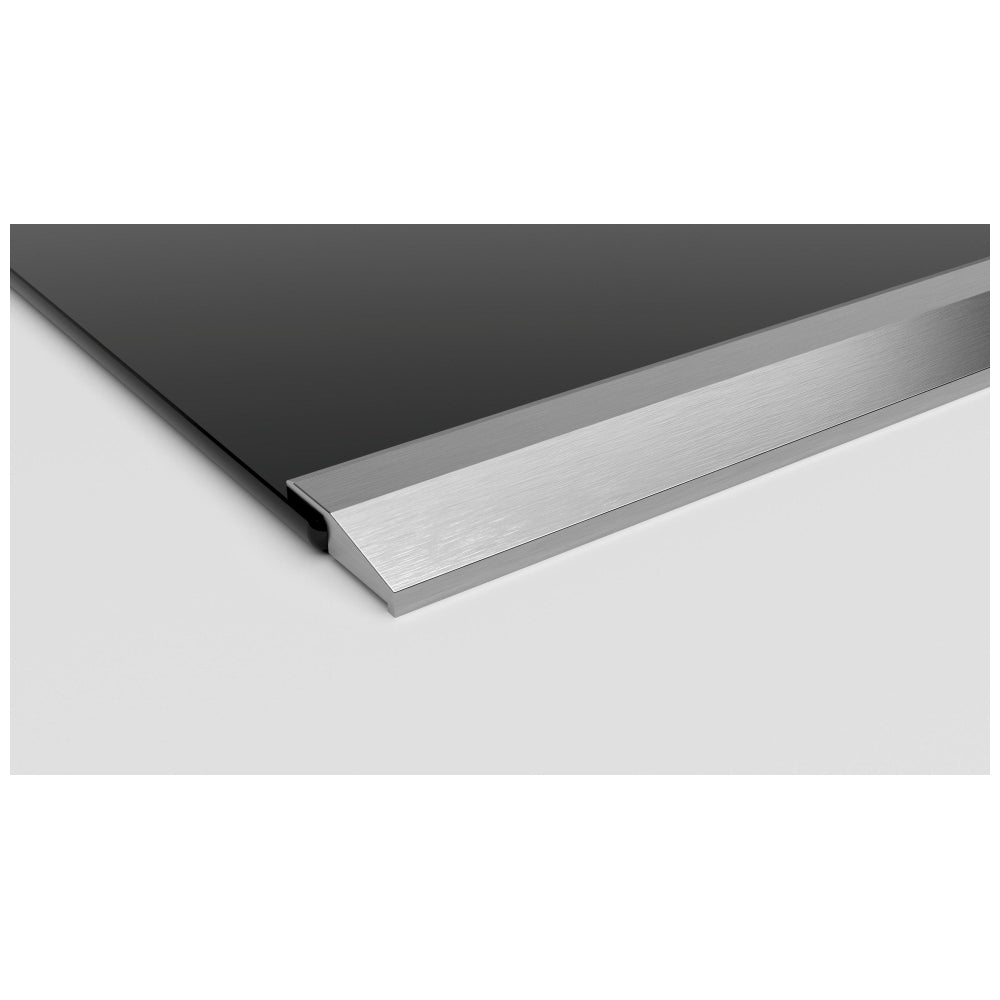

Type of frame Profiles front+rear

Number of gas burners 0

Number of halogen elements 0

Installation Type Built-in

Total number of cooktop burners 5

Number of radiant elements 5

Number of electric warming zones 0

Safety

Residual heat indicator Separate

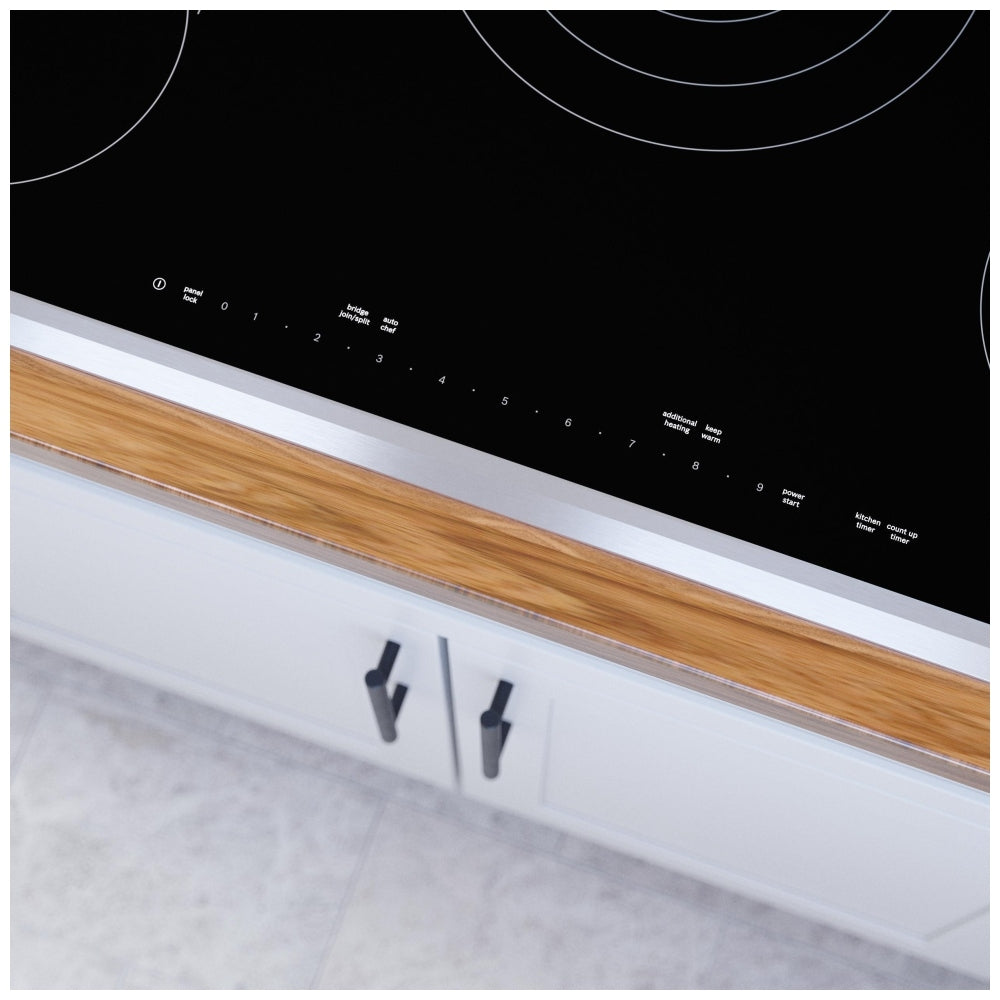

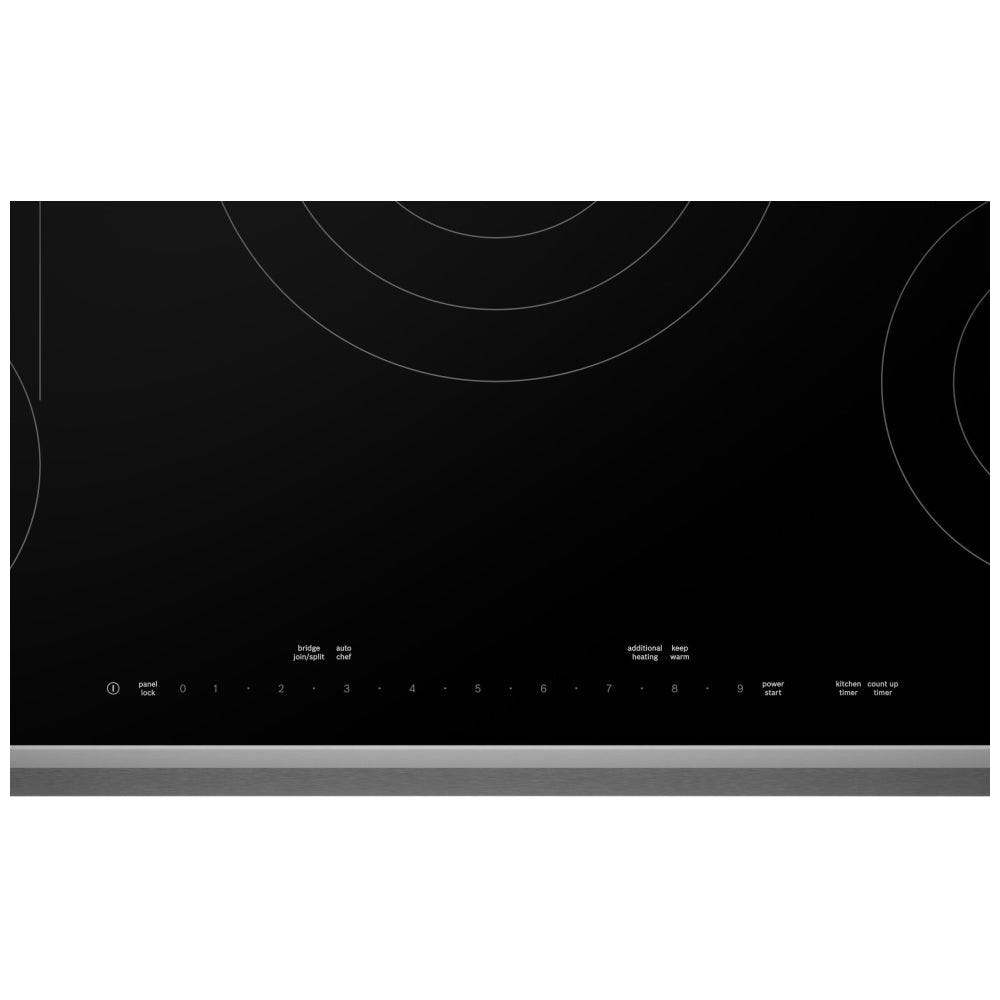

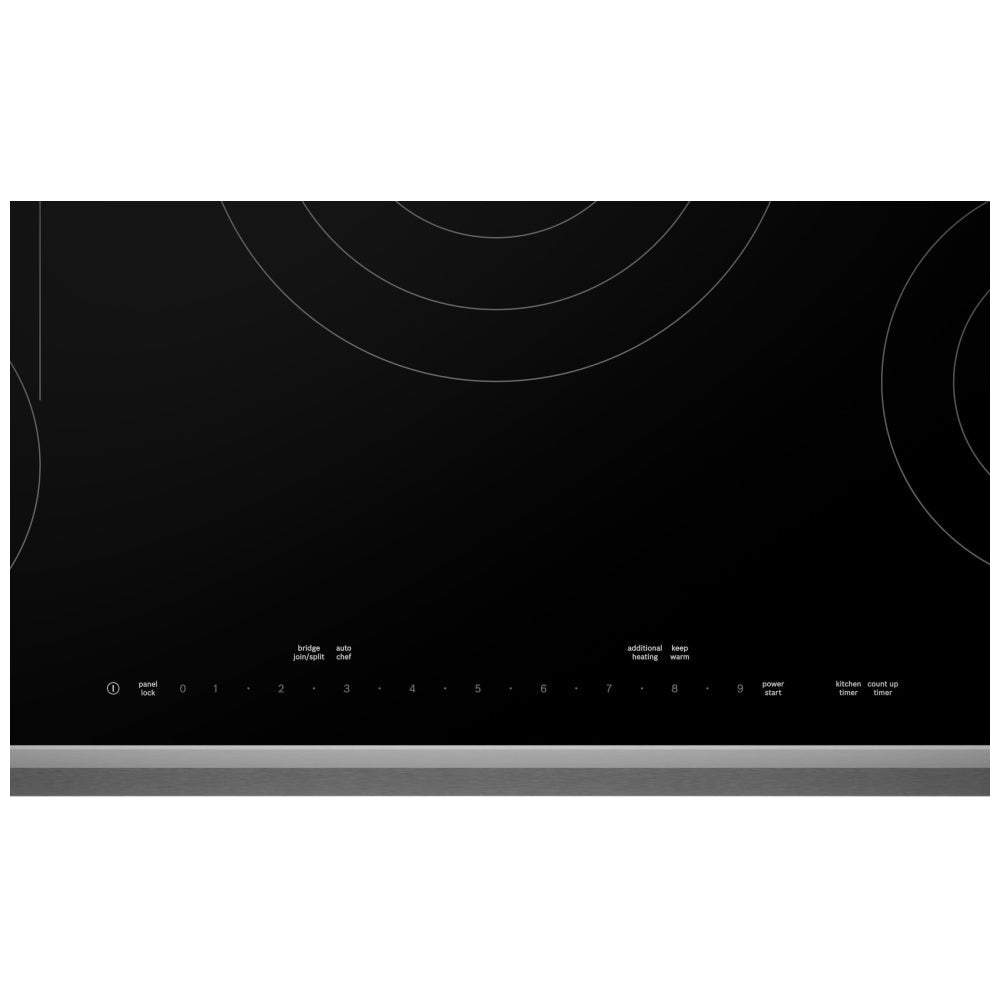

Safety device childproof lock, Key Lock, Safety time-switch-off

Connection

Frequency 60 Hz

Energy source Electric

Power cord length 96.0 cm

Watts 9,700 W
