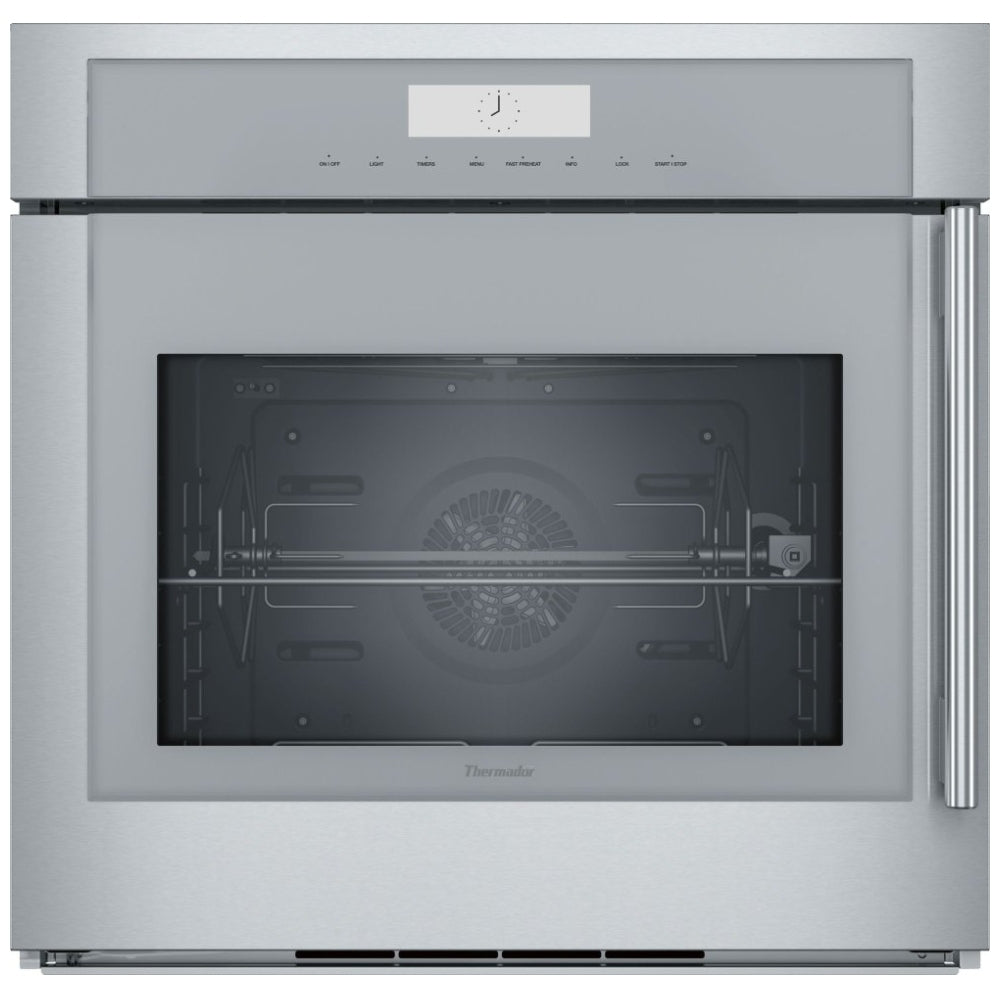

The Thermador MED301LWS single wall oven brings professional‑grade performance and refined design together in a 30‑inch built‑in package that’s ideal for serious home cooks. With a generous 4.5 cu. ft. capacity and a sleek stainless steel finish accented by metallic gray glass, it’s designed to handle everything from weeknight sheet‑pan dinners to multi‑course entertaining, all while elevating the look of your kitchen. The left side‑opening door is a standout convenience feature, giving you ergonomic, closer access to the oven cavity—especially helpful when lifting heavy roasts or large bakeware in and out, and a rarity among premium wall ovens in this class. Inside, True Convection with a powerful third heating element circulates hot air evenly, so you can bake multiple trays at once with consistent results, whether you’re roasting vegetables, proofing artisan bread, or finishing a crisp pizza. Three Full Access® telescopic racks glide smoothly on ball bearings and fully extend while safely supporting heavy cookware, making it easy to baste, check doneness, or rearrange dishes without reaching into a hot oven. A removable commercial‑style rotisserie lets you roast up to about 12 pounds of poultry or meat, delivering juicy interiors and beautifully browned, restaurant‑quality finishes. The MED301LWS also offers 16 versatile cooking modes, including specialized options like Speed Convection, Dehydrate, and Proof, giving you precise control over virtually any recipe. When you’re done cooking, the fast 2‑hour Self‑Clean cycle helps restore the interior with minimal effort, so you spend more time enjoying your meal and less time scrubbing. Thoughtful touches such as bright halogen lighting, flush or standard installation flexibility, and compatibility with smart connectivity features round out a wall oven that’s as intuitive as it is powerful. For homeowners seeking a premium, left‑hinge convection wall oven that combines capacity, innovation, and sophisticated style, the Thermador MED301LWS is engineered to be the centerpiece of a modern culinary space.
• Masterpiece® Series design – coordinates with other Thermador® Masterpiece® appliances for a cohesive, premium built‑in kitchen look.
• True Convection Oven – uses a third heating element and fan to circulate hot air for faster, more even multi‑rack baking and roasting.
• Full Access® telescopic racks (3) – ball‑bearing racks fully extend smoothly while safely supporting heavy cookware up to about 45 lb for easier loading and basting.
• Home Connect® WiFi-enabled – allows remote monitoring and control, plus access to recipes and notifications via compatible smart devices.
• Maxbroil® high‑power broil element – delivers up to 4,800 watts with a 12‑pass element for intense, even broiling over large pans.
• Side opening left‑hinge door – swings open to the left for ergonomic access, ideal for installation next to a wall or in tall cabinets.
• 4.5 cu. ft. large-capacity oven – accommodates multiple dishes or large roasts, making it suitable for family meals and entertaining.
• 16 specialized cooking modes – includes bake, convection bake, convection roast, broil, convection broil, rotisserie, pizza, dehydrate, proof, warming and more for versatile cooking.
• Multi-point meat probe – measures internal temperature at multiple points in roasts or poultry for more accurate doneness and reduced risk of overcooking.
• Rotisserie function – removable rotisserie accessory turns meats for evenly browned, restaurant‑style roasting up to about 12 lb.
• Fast 2‑hour Self‑Clean cycle – burns off baked‑on residue on interior walls and rack supports, reducing the need for manual scrubbing.
• Fast preheat (around 7 minutes) – quickly brings the oven to temperature to shorten overall cooking time.
• Halogen interior lighting – bright halogen lights illuminate the cavity so you can check food through the window without opening the door.
• Specially crafted gray glass on stainless steel – modern glass and steel styling provides a sleek, luxurious appearance.
• Large viewing window – oversized glass door window offers clear visibility of dishes while they cook.
• Standard or flush installation options – designed for flexible installation either proud or flush with surrounding cabinetry for a custom look.
• Electronic TFT control panel – clear digital display and touch controls simplify selecting modes, temperatures, and timers.
• Electronic door lock – automatically secures the door during self‑clean and helps prevent accidental opening during high‑heat cycles.
• Safety switch‑off function – automatically turns the oven off after a set period to enhance safety and energy efficiency.
• Kitchen and oven timers – dual timers allow you to track overall cooking time and additional tasks simultaneously.
• Sabbath Mode – modifies certain functions and disables automatic shut‑off to support observance requirements.
• Air Fry capable (with accessory) – supports air‑fry style cooking when used with an optional air‑fry tray accessory.
• Multi-language display – interface supports English, French, and Spanish for easier operation in multilingual homes.
• Three oven racks included – multiple rack positions support flexible placement for different pan sizes and cooking methods.
• Removable rack supports – side rack rails can be removed to make cleaning the oven interior easier.
• Electric convection system – 2,400 W bake, 3,800/1,000 W broil, and 2,000 W convection elements provide powerful, consistent heat.
• Even multi‑rack performance – convection multi‑rack mode is optimized to bake on all three racks at once with uniform results.
• Temperature offset adjustment – allows fine‑tuning of displayed temperature in 1° increments to match your cooking preferences.
• Left‑swing door clearance – door design and dimensions are optimized for comfortable reach into the cavity without leaning over a hot door.
• Sturdy, durable construction – high‑quality materials and robust hinges are engineered for long‑term, frequent use.
• Self‑clean compatible rack supports – rack supports are designed to remain in place during self‑clean, simplifying setup.
• Integrated easy‑grip rack handles – built‑in handles on telescopic racks improve control when sliding heavy dishes in and out.
• 240/208 V, 30 A electrical connection – standard electric wall‑oven power requirements for straightforward installation by an electrician.
• Approx. 30" built‑in width – fits most 30‑inch wall‑oven cutouts, easing replacement of existing units.
• Proposition 65 compliant – includes required safety information for California residents.
Manufacturer's Warranty: 2 years
Canadian model: MED301LWS
Canadian UPC: 825225936794
EAN: 0825225936794
Cook precisely with the Multi-Point Temperature Meat Probe
MED301LWS - Cook precisely with the Multi-Point Temperature Meat Probe
Use the Multi-point Temperature Meat Probe to measure the temperature of your dish from three different points in real time for added precision and consistency. All you have to do is insert the probe while cooking.
Connect to your Oven with Home Connect®
MED301LWS - Connect to your Oven with Home Connect®
This appliance is Wi-Fi Enabled, and allows for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services like Amazon Alexa for hands-free voice control.
One of the largest oven capacities in its class with 4.5 cu. ft.
MED301LWS - One of the largest oven capacities in its class with 4.5 cu. ft.
Offering a capacity of 4.5 cubic feet of cooking space, 30" Thermador Ovens are one of the largest in their class*, capable of handling dinner parties large and small. *According to AHAM Standard"
Cook up to 12 pounds on the Rotisserie
MED301LWS - Cook up to 12 pounds on the Rotisserie
Heavy-duty, removable rotisserie, cooks up to 12-pound roasts and poultry evenly on all sides. Following your meal, simply place the rotisserie in the dishwasher.
Maxbroil® for even broiling features 4,800 Watts
MED301LWS - Maxbroil® for even broiling features 4,800 Watts
Maxbroil® is an exclusive option perfect or cooking thin, tender cuts of meat, poultry and fish. Featuring 4,800 Watts and 12-pass broil elements enabling you to broil large dishes evenly.
Achieve crispy perfection with Air Fry Mode
MED301LWS - Achieve crispy perfection with Air Fry Mode
Air Fry Mode lets you create irresistibly crispy dishes while promoting a healthier lifestyle with reduced oil usage. Plus, enjoy the convenience of quick and efficient meal preparation. Air Fry is available once you connect your oven to Wi-Fi..
Save time with Fast Pre-Heat
MED301LWS - Save time with Fast Pre-Heat
Use the Fast Pre-Heat option to quickly heat your oven when you are in a hurry. Available for Bake, Convection Bake, Roast, Convection Roast and True Convection modes.
Theater Lighting
MED301LWS - Theater Lighting
Theater Lighting dims on and off each time you open and close the oven door, bringing light to your culinary masterpiece.
Star-K Sabbath Compliant
MED301LWS - Star-K Sabbath Compliant
This appliance is Star-K certified and has a Sabbath mode that enables those of particular faiths to use their ovens on the Sabbath and holidays.
Specifications
| Brand | Thermador |
|---|---|
| Model | MED301LWS |
| Series | Masterpiece® Series |
| Product Type | Single Built-In Wall Oven |
| Fuel Type | Electric |
| Capacity | 4.5 Cu Ft |
| Width | 29 3/4 inches |
| Height | 29 inches |
| Depth | 24 1/2 inches |
| Cutout Width | 28 1/2 inches |
| Cutout Height | 27 to 28 5/8 inches |
| Cutout Depth | 23 1/2 inches |
| Flush Cutout Width | 30 3/4 inches |
| Flush Cutout Height | 29 1/8 inches |
| Flush Cutout Depth | 24 1/2 inches |
| Overall Oven Interior Width | 24 inches |
| Overall Oven Interior Height | 17 3/4 inches |
| Overall Oven Interior Depth | 17 7/8 inches |
| Usable Oven Interior Width | 21 5/8 inches |
| Usable Oven Interior Height | 13 1/2 inches |
| Usable Oven Interior Depth | 16 1/4 inches |
| Trim Overlap Top | 3/8 to 2 inches |
| Trim Overlap Sides | 9/16 inch |
| Trim Overlap Bottom | 0 inches |
| Appliance Fit Width | 30 inches |
| Net Weight | 185.000 lbs |
| Shipping Height | 32 1/2 inches |
| Shipping Width | 31 1/2 inches |
| Shipping Depth | 34 inches |
| Door Opening | Side Opening Door |
| Door Hinge | Left Hinge |
| Finish | Stainless Steel with Grey Glass |
| Door Material | Stainless Steel and Grey Glass |
| Door Panel Type | Glass |
| Handle Color | Stainless Steel |
| Handle Type | Masterpiece® Series |
| Control Type | TFT Touch Control |
| Smart Connectivity | Home Connect® Wi-Fi Enabled |
| Wi-Fi | Yes |
| Remote Monitoring and Control | Yes |
| Cooking System | True Convection |
| Total Cooking Modes | 16 |
| Heating Modes | Bake, Broil, Max Broil, Roast, Convection Bake, Convection Broil, Max Convection Broil, Convection Roast, Proof, Warm, Pizza, True Convection, Dehydrate, Speed Convection, Slow Roast, Rotisserie |
| Air Fry Capable | Yes |
| Dehydrate Mode | Yes |
| Proof Mode | Yes |
| Keep Warm Mode | Yes |
| Pizza Mode | Yes |
| Slow Roast Mode | Yes |
| Rotisserie | Yes |
| Rotisserie Capacity | 12 lbs |
| Cleaning Type | Self Clean / Easy Clean |
| Self-Clean Cycle | Fast 2-hour self-clean mode |
| Interior Light Type | Halogen |
| Interior Lights | 2 |
| Theater Lighting | Theater Lighting dims on and off each time you open and close the oven door, bringing light to your culinary masterpiece. |
| Meat Probe | Multi-Point Meat Probe |
| Number of Racks | 3 |
| Rack Type | Telescopic Racks |
| Included Telescopic Racks | 3 |
| Rack Capacity | Up to 45 lbs per rack |
| Included Accessories | 1 x rotary spit, 1 x temperature probe /upper, 3 x telescopic rack |
| Optional Accessory | SDCLNRCK30 30-Inch Oven Self-Clean Standard Rack |
| Bake Element | 2,400 W |
| Broil Element | 3,800 W / 1,000 W |
| Convection Element | 2,000 W |
| Total Wattage | 6,400 W |
| Voltage | 240 / 208 Volts |
| Amperage | 30 Amps |
| Frequency | 60 Hz |
| Plug type | no plug, fixed connection |
| Conduit | 60 inch 4-Wire |
| Power Cord Length | 60 |
| Energy Star Rated | No |
| Sabbath Mode | Yes |
| Star-K Certified | Yes |
| ADA Compliant | No |
| Commercial Use Approved | No |
| Outdoor Use Approved | No |
| Undercounter Installable | Yes |
| Installation Options | Standard or Flush Installation |
| Warranty | 2 Year Parts and Labor |
| UPC | 825225936794 |
| EAN | 0825225936794 |
| Country of Manufacture | No |
| Also Available | MED301RWS Right Side Opening Door |
| Where can the appliance be installed | Base cabinet, high cupboard installation |
| Are some hobs controls integrated? | No |
| Which kind of hobs can be controlled | Not applicable |
| Color | Stainless Steel |
| Door Color Material | Stainless Steel, Grey Glass |
| Color / Control Panel | Stainless Steel |
| Number of Cooking Modes | 16 |
| Cooking Modes | Air Fry, Dehydrate, Max Broil, Rôtisserie, Proof, Speed Convection, Roast, Convection Roast, Bake, Convection Bake, Pizza, Slow Roast, True Convection, Max Convection Broil, Convection Broil, Broil, Keep Warm |
| Cooking Modes Combinable with Steam Function | Not applicable |
| Range of temperature (°C) | 38-288 °C |
| Steam Technology | Not applicable |
| Water Intake | Not applicable |
| Cleaning System | Self Clean |
| Overall Appliance Dimensions (HxWxD) (in) | 29 x 29 3/4 x 24 1/2 |
| Dimensions | 737x755x622 mm |
| Required Cutout Size (HxWxD) (in) | 27 x 28 1/2 x 23 1/2 |
| Required cutout size (HxWxD) | 686-727 x 724-724 x 597 mm |
| Cavity Capacity | 4.5 Cu Ft |
| Connecting Cable Type | 1-phase |
| Volts | 240/208 V |
| Watts | 6400 W |
| Amps | 30 A |
| Telescopic rails | Yes |
| Air Fry Function | Yes (Special accessory available separately) |
| Fast Pre-Heat | Yes |
| SoftClose® Door | No |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Diagnostics, Remote Monitoring and Control |
| Cook precisely with the Multi-Point Temperature Meat Probe | Use the Multi-point Temperature Meat Probe to measure the temperature of your dish from three different points in real time for added precision and consistency. All you have to do is insert the probe while cooking. |
| Connect to your Oven with Home Connect® | This appliance is Wi-Fi Enabled, and allows for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services like Amazon Alexa for hands-free voice control. |
| One of the largest oven capacities in its class with 4.5 cu. ft. | Offering a capacity of 4.5 cubic feet of cooking space, 30" Thermador Ovens are one of the largest in their class*, capable of handling dinner parties large and small. *According to AHAM Standard |
| Cook up to 12 pounds on the Rotisserie | Heavy-duty, removable rotisserie, cooks up to 12-pound roasts and poultry evenly on all sides. Following your meal, simply place the rotisserie in the dishwasher. |
| Maxbroil® for even broiling features 4,800 Watts | Maxbroil® is an exclusive option perfect or cooking thin, tender cuts of meat, poultry and fish. Featuring 4,800 Watts and 12-pass broil elements enabling you to broil large dishes evenly. |
| Achieve crispy perfection with Air Fry Mode | Air Fry Mode lets you create irresistibly crispy dishes while promoting a healthier lifestyle with reduced oil usage. Plus, enjoy the convenience of quick and efficient meal preparation. Air Fry is available once you connect your oven to Wi-Fi.. |
| Save time with Fast Pre-Heat | Use the Fast Pre-Heat option to quickly heat your oven when you are in a hurry. Available for Bake, Convection Bake, Roast, Convection Roast and True Convection modes. |
| Star-K Sabbath Compliant | This appliance is Star-K certified and has a Sabbath mode that enables those of particular faiths to use their ovens on the Sabbath and holidays. |
| 2-Hour Self-Clean | Ensures interior walls and rack supports become clean, thanks to the leading self-cleaning cycle on the market. |
| True Convection gives you maximum cooking efficiency | True Third Element Convection means you can cook multiple dishes - with multiple levels of sheet pans - with even baking results. |
| Telescopic racks glide smoothly for easy use | Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access. Additionally, robust construction safely supports the heaviest dishes while integrated easy-grip handles make them easy to use. |
| Ergonomically designed with side opening doors | This ergonomically designed oven features a side opening door for better access to the oven cavity and more options for your kitchen design. |
| Specially Crafted Gray Glass | A Specially Crafted Gray Glass combines with stainless steel for a luxurious look and finish. |
| Flexible Installation | Installs in a horizontal or vertical configuration for standard or flush installation into kitchen cabinets. Horizontal configration requires accessory kit sold separately. |
| Conventional Ovens* | Steam Ovens |
| ME301WS | MEDS301WS |
| MED301WS | PODS301WS |
| MED301LWS | MEDS301WS w/ SDS30WC |
| MED301RWS | PODS301WS w/ SDS30WC |
Manuals and documents
- Product Specs (MED301LWS-product-specs-canada.pdf)
- click here (MED301LWS-click-here-canada.pdf)
- Instruction manual (MED301LWS-instruction-manual-3.pdf)
- Instructions for Use (MED301LWS-instructions-for-use-canada.pdf)
- Instructions for Use (MED301LWS-instructions-for-use-1.pdf)
- User manual
- Product Specification Sheet
- Installation instructions
- Home Connect
- Open Source
- Supplement
- Supplement
- Supplement
Warranty support and documents in one place.
Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.
Brochure and warranty documents
Reviews will appear here once your reviews app is connected.
The Thermador MED301LWS single wall oven brings professional‑grade performance and refined design together in a 30‑inch built‑in package that’s ideal for serious home cooks. With a generous 4.5 cu. ft. capacity and a sleek stainless steel finish accented by metallic gray glass, it’s designed to handle everything from weeknight sheet‑pan dinners to multi‑course entertaining, all while elevating the look of your kitchen. The left side‑opening door is a standout convenience feature, giving you ergonomic, closer access to the oven cavity—especially helpful when lifting heavy roasts or large bakeware in and out, and a rarity among premium wall ovens in this class. Inside, True Convection with a powerful third heating element circulates hot air evenly, so you can bake multiple trays at once with consistent results, whether you’re roasting vegetables, proofing artisan bread, or finishing a crisp pizza. Three Full Access® telescopic racks glide smoothly on ball bearings and fully extend while safely supporting heavy cookware, making it easy to baste, check doneness, or rearrange dishes without reaching into a hot oven. A removable commercial‑style rotisserie lets you roast up to about 12 pounds of poultry or meat, delivering juicy interiors and beautifully browned, restaurant‑quality finishes. The MED301LWS also offers 16 versatile cooking modes, including specialized options like Speed Convection, Dehydrate, and Proof, giving you precise control over virtually any recipe. When you’re done cooking, the fast 2‑hour Self‑Clean cycle helps restore the interior with minimal effort, so you spend more time enjoying your meal and less time scrubbing. Thoughtful touches such as bright halogen lighting, flush or standard installation flexibility, and compatibility with smart connectivity features round out a wall oven that’s as intuitive as it is powerful. For homeowners seeking a premium, left‑hinge convection wall oven that combines capacity, innovation, and sophisticated style, the Thermador MED301LWS is engineered to be the centerpiece of a modern culinary space.
• Masterpiece® Series design – coordinates with other Thermador® Masterpiece® appliances for a cohesive, premium built‑in kitchen look.
• True Convection Oven – uses a third heating element and fan to circulate hot air for faster, more even multi‑rack baking and roasting.
• Full Access® telescopic racks (3) – ball‑bearing racks fully extend smoothly while safely supporting heavy cookware up to about 45 lb for easier loading and basting.
• Home Connect® WiFi-enabled – allows remote monitoring and control, plus access to recipes and notifications via compatible smart devices.
• Maxbroil® high‑power broil element – delivers up to 4,800 watts with a 12‑pass element for intense, even broiling over large pans.
• Side opening left‑hinge door – swings open to the left for ergonomic access, ideal for installation next to a wall or in tall cabinets.
• 4.5 cu. ft. large-capacity oven – accommodates multiple dishes or large roasts, making it suitable for family meals and entertaining.
• 16 specialized cooking modes – includes bake, convection bake, convection roast, broil, convection broil, rotisserie, pizza, dehydrate, proof, warming and more for versatile cooking.
• Multi-point meat probe – measures internal temperature at multiple points in roasts or poultry for more accurate doneness and reduced risk of overcooking.
• Rotisserie function – removable rotisserie accessory turns meats for evenly browned, restaurant‑style roasting up to about 12 lb.
• Fast 2‑hour Self‑Clean cycle – burns off baked‑on residue on interior walls and rack supports, reducing the need for manual scrubbing.
• Fast preheat (around 7 minutes) – quickly brings the oven to temperature to shorten overall cooking time.
• Halogen interior lighting – bright halogen lights illuminate the cavity so you can check food through the window without opening the door.
• Specially crafted gray glass on stainless steel – modern glass and steel styling provides a sleek, luxurious appearance.
• Large viewing window – oversized glass door window offers clear visibility of dishes while they cook.
• Standard or flush installation options – designed for flexible installation either proud or flush with surrounding cabinetry for a custom look.
• Electronic TFT control panel – clear digital display and touch controls simplify selecting modes, temperatures, and timers.
• Electronic door lock – automatically secures the door during self‑clean and helps prevent accidental opening during high‑heat cycles.
• Safety switch‑off function – automatically turns the oven off after a set period to enhance safety and energy efficiency.
• Kitchen and oven timers – dual timers allow you to track overall cooking time and additional tasks simultaneously.
• Sabbath Mode – modifies certain functions and disables automatic shut‑off to support observance requirements.
• Air Fry capable (with accessory) – supports air‑fry style cooking when used with an optional air‑fry tray accessory.
• Multi-language display – interface supports English, French, and Spanish for easier operation in multilingual homes.
• Three oven racks included – multiple rack positions support flexible placement for different pan sizes and cooking methods.
• Removable rack supports – side rack rails can be removed to make cleaning the oven interior easier.
• Electric convection system – 2,400 W bake, 3,800/1,000 W broil, and 2,000 W convection elements provide powerful, consistent heat.
• Even multi‑rack performance – convection multi‑rack mode is optimized to bake on all three racks at once with uniform results.
• Temperature offset adjustment – allows fine‑tuning of displayed temperature in 1° increments to match your cooking preferences.
• Left‑swing door clearance – door design and dimensions are optimized for comfortable reach into the cavity without leaning over a hot door.
• Sturdy, durable construction – high‑quality materials and robust hinges are engineered for long‑term, frequent use.
• Self‑clean compatible rack supports – rack supports are designed to remain in place during self‑clean, simplifying setup.
• Integrated easy‑grip rack handles – built‑in handles on telescopic racks improve control when sliding heavy dishes in and out.
• 240/208 V, 30 A electrical connection – standard electric wall‑oven power requirements for straightforward installation by an electrician.
• Approx. 30" built‑in width – fits most 30‑inch wall‑oven cutouts, easing replacement of existing units.
• Proposition 65 compliant – includes required safety information for California residents.
Manufacturer's Warranty: 2 years
Canadian model: MED301LWS
Canadian UPC: 825225936794
EAN: 0825225936794
Cook precisely with the Multi-Point Temperature Meat Probe
MED301LWS - Cook precisely with the Multi-Point Temperature Meat Probe
Use the Multi-point Temperature Meat Probe to measure the temperature of your dish from three different points in real time for added precision and consistency. All you have to do is insert the probe while cooking.
Connect to your Oven with Home Connect®
MED301LWS - Connect to your Oven with Home Connect®
This appliance is Wi-Fi Enabled, and allows for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services like Amazon Alexa for hands-free voice control.
One of the largest oven capacities in its class with 4.5 cu. ft.
MED301LWS - One of the largest oven capacities in its class with 4.5 cu. ft.
Offering a capacity of 4.5 cubic feet of cooking space, 30" Thermador Ovens are one of the largest in their class*, capable of handling dinner parties large and small. *According to AHAM Standard"
Cook up to 12 pounds on the Rotisserie
MED301LWS - Cook up to 12 pounds on the Rotisserie
Heavy-duty, removable rotisserie, cooks up to 12-pound roasts and poultry evenly on all sides. Following your meal, simply place the rotisserie in the dishwasher.
Maxbroil® for even broiling features 4,800 Watts
MED301LWS - Maxbroil® for even broiling features 4,800 Watts
Maxbroil® is an exclusive option perfect or cooking thin, tender cuts of meat, poultry and fish. Featuring 4,800 Watts and 12-pass broil elements enabling you to broil large dishes evenly.
Achieve crispy perfection with Air Fry Mode
MED301LWS - Achieve crispy perfection with Air Fry Mode
Air Fry Mode lets you create irresistibly crispy dishes while promoting a healthier lifestyle with reduced oil usage. Plus, enjoy the convenience of quick and efficient meal preparation. Air Fry is available once you connect your oven to Wi-Fi..
Save time with Fast Pre-Heat
MED301LWS - Save time with Fast Pre-Heat
Use the Fast Pre-Heat option to quickly heat your oven when you are in a hurry. Available for Bake, Convection Bake, Roast, Convection Roast and True Convection modes.
Theater Lighting
MED301LWS - Theater Lighting
Theater Lighting dims on and off each time you open and close the oven door, bringing light to your culinary masterpiece.
Star-K Sabbath Compliant
MED301LWS - Star-K Sabbath Compliant
This appliance is Star-K certified and has a Sabbath mode that enables those of particular faiths to use their ovens on the Sabbath and holidays.
Specifications
| Brand | Thermador |
|---|---|
| Model | MED301LWS |
| Series | Masterpiece® Series |
| Product Type | Single Built-In Wall Oven |
| Fuel Type | Electric |
| Capacity | 4.5 Cu Ft |
| Width | 29 3/4 inches |
| Height | 29 inches |
| Depth | 24 1/2 inches |
| Cutout Width | 28 1/2 inches |
| Cutout Height | 27 to 28 5/8 inches |
| Cutout Depth | 23 1/2 inches |
| Flush Cutout Width | 30 3/4 inches |
| Flush Cutout Height | 29 1/8 inches |
| Flush Cutout Depth | 24 1/2 inches |
| Overall Oven Interior Width | 24 inches |
| Overall Oven Interior Height | 17 3/4 inches |
| Overall Oven Interior Depth | 17 7/8 inches |
| Usable Oven Interior Width | 21 5/8 inches |
| Usable Oven Interior Height | 13 1/2 inches |
| Usable Oven Interior Depth | 16 1/4 inches |
| Trim Overlap Top | 3/8 to 2 inches |
| Trim Overlap Sides | 9/16 inch |
| Trim Overlap Bottom | 0 inches |
| Appliance Fit Width | 30 inches |
| Net Weight | 185.000 lbs |
| Shipping Height | 32 1/2 inches |
| Shipping Width | 31 1/2 inches |
| Shipping Depth | 34 inches |
| Door Opening | Side Opening Door |
| Door Hinge | Left Hinge |
| Finish | Stainless Steel with Grey Glass |
| Door Material | Stainless Steel and Grey Glass |
| Door Panel Type | Glass |
| Handle Color | Stainless Steel |
| Handle Type | Masterpiece® Series |
| Control Type | TFT Touch Control |
| Smart Connectivity | Home Connect® Wi-Fi Enabled |
| Wi-Fi | Yes |
| Remote Monitoring and Control | Yes |
| Cooking System | True Convection |
| Total Cooking Modes | 16 |
| Heating Modes | Bake, Broil, Max Broil, Roast, Convection Bake, Convection Broil, Max Convection Broil, Convection Roast, Proof, Warm, Pizza, True Convection, Dehydrate, Speed Convection, Slow Roast, Rotisserie |
| Air Fry Capable | Yes |
| Dehydrate Mode | Yes |
| Proof Mode | Yes |
| Keep Warm Mode | Yes |
| Pizza Mode | Yes |
| Slow Roast Mode | Yes |
| Rotisserie | Yes |
| Rotisserie Capacity | 12 lbs |
| Cleaning Type | Self Clean / Easy Clean |
| Self-Clean Cycle | Fast 2-hour self-clean mode |
| Interior Light Type | Halogen |
| Interior Lights | 2 |
| Theater Lighting | Theater Lighting dims on and off each time you open and close the oven door, bringing light to your culinary masterpiece. |
| Meat Probe | Multi-Point Meat Probe |
| Number of Racks | 3 |
| Rack Type | Telescopic Racks |
| Included Telescopic Racks | 3 |
| Rack Capacity | Up to 45 lbs per rack |
| Included Accessories | 1 x rotary spit, 1 x temperature probe /upper, 3 x telescopic rack |
| Optional Accessory | SDCLNRCK30 30-Inch Oven Self-Clean Standard Rack |
| Bake Element | 2,400 W |
| Broil Element | 3,800 W / 1,000 W |
| Convection Element | 2,000 W |
| Total Wattage | 6,400 W |
| Voltage | 240 / 208 Volts |
| Amperage | 30 Amps |
| Frequency | 60 Hz |
| Plug type | no plug, fixed connection |
| Conduit | 60 inch 4-Wire |
| Power Cord Length | 60 |
| Energy Star Rated | No |
| Sabbath Mode | Yes |
| Star-K Certified | Yes |
| ADA Compliant | No |
| Commercial Use Approved | No |
| Outdoor Use Approved | No |
| Undercounter Installable | Yes |
| Installation Options | Standard or Flush Installation |
| Warranty | 2 Year Parts and Labor |
| UPC | 825225936794 |
| EAN | 0825225936794 |
| Country of Manufacture | No |
| Also Available | MED301RWS Right Side Opening Door |
| Where can the appliance be installed | Base cabinet, high cupboard installation |
| Are some hobs controls integrated? | No |
| Which kind of hobs can be controlled | Not applicable |
| Color | Stainless Steel |
| Door Color Material | Stainless Steel, Grey Glass |
| Color / Control Panel | Stainless Steel |
| Number of Cooking Modes | 16 |
| Cooking Modes | Air Fry, Dehydrate, Max Broil, Rôtisserie, Proof, Speed Convection, Roast, Convection Roast, Bake, Convection Bake, Pizza, Slow Roast, True Convection, Max Convection Broil, Convection Broil, Broil, Keep Warm |
| Cooking Modes Combinable with Steam Function | Not applicable |
| Range of temperature (°C) | 38-288 °C |
| Steam Technology | Not applicable |
| Water Intake | Not applicable |
| Cleaning System | Self Clean |
| Overall Appliance Dimensions (HxWxD) (in) | 29 x 29 3/4 x 24 1/2 |
| Dimensions | 737x755x622 mm |
| Required Cutout Size (HxWxD) (in) | 27 x 28 1/2 x 23 1/2 |
| Required cutout size (HxWxD) | 686-727 x 724-724 x 597 mm |
| Cavity Capacity | 4.5 Cu Ft |
| Connecting Cable Type | 1-phase |
| Volts | 240/208 V |
| Watts | 6400 W |
| Amps | 30 A |
| Telescopic rails | Yes |
| Air Fry Function | Yes (Special accessory available separately) |
| Fast Pre-Heat | Yes |
| SoftClose® Door | No |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Diagnostics, Remote Monitoring and Control |
| Cook precisely with the Multi-Point Temperature Meat Probe | Use the Multi-point Temperature Meat Probe to measure the temperature of your dish from three different points in real time for added precision and consistency. All you have to do is insert the probe while cooking. |
| Connect to your Oven with Home Connect® | This appliance is Wi-Fi Enabled, and allows for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services like Amazon Alexa for hands-free voice control. |
| One of the largest oven capacities in its class with 4.5 cu. ft. | Offering a capacity of 4.5 cubic feet of cooking space, 30" Thermador Ovens are one of the largest in their class*, capable of handling dinner parties large and small. *According to AHAM Standard |
| Cook up to 12 pounds on the Rotisserie | Heavy-duty, removable rotisserie, cooks up to 12-pound roasts and poultry evenly on all sides. Following your meal, simply place the rotisserie in the dishwasher. |
| Maxbroil® for even broiling features 4,800 Watts | Maxbroil® is an exclusive option perfect or cooking thin, tender cuts of meat, poultry and fish. Featuring 4,800 Watts and 12-pass broil elements enabling you to broil large dishes evenly. |
| Achieve crispy perfection with Air Fry Mode | Air Fry Mode lets you create irresistibly crispy dishes while promoting a healthier lifestyle with reduced oil usage. Plus, enjoy the convenience of quick and efficient meal preparation. Air Fry is available once you connect your oven to Wi-Fi.. |
| Save time with Fast Pre-Heat | Use the Fast Pre-Heat option to quickly heat your oven when you are in a hurry. Available for Bake, Convection Bake, Roast, Convection Roast and True Convection modes. |
| Star-K Sabbath Compliant | This appliance is Star-K certified and has a Sabbath mode that enables those of particular faiths to use their ovens on the Sabbath and holidays. |
| 2-Hour Self-Clean | Ensures interior walls and rack supports become clean, thanks to the leading self-cleaning cycle on the market. |
| True Convection gives you maximum cooking efficiency | True Third Element Convection means you can cook multiple dishes - with multiple levels of sheet pans - with even baking results. |
| Telescopic racks glide smoothly for easy use | Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access. Additionally, robust construction safely supports the heaviest dishes while integrated easy-grip handles make them easy to use. |
| Ergonomically designed with side opening doors | This ergonomically designed oven features a side opening door for better access to the oven cavity and more options for your kitchen design. |
| Specially Crafted Gray Glass | A Specially Crafted Gray Glass combines with stainless steel for a luxurious look and finish. |
| Flexible Installation | Installs in a horizontal or vertical configuration for standard or flush installation into kitchen cabinets. Horizontal configration requires accessory kit sold separately. |
| Conventional Ovens* | Steam Ovens |
| ME301WS | MEDS301WS |
| MED301WS | PODS301WS |
| MED301LWS | MEDS301WS w/ SDS30WC |
| MED301RWS | PODS301WS w/ SDS30WC |
Manuals and documents
- Product Specs (MED301LWS-product-specs-canada.pdf)
- click here (MED301LWS-click-here-canada.pdf)
- Instruction manual (MED301LWS-instruction-manual-3.pdf)
- Instructions for Use (MED301LWS-instructions-for-use-canada.pdf)
- Instructions for Use (MED301LWS-instructions-for-use-1.pdf)
- User manual
- Product Specification Sheet
- Installation instructions
- Home Connect
- Open Source
- Supplement
- Supplement
- Supplement
Warranty support and documents in one place.
Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.
