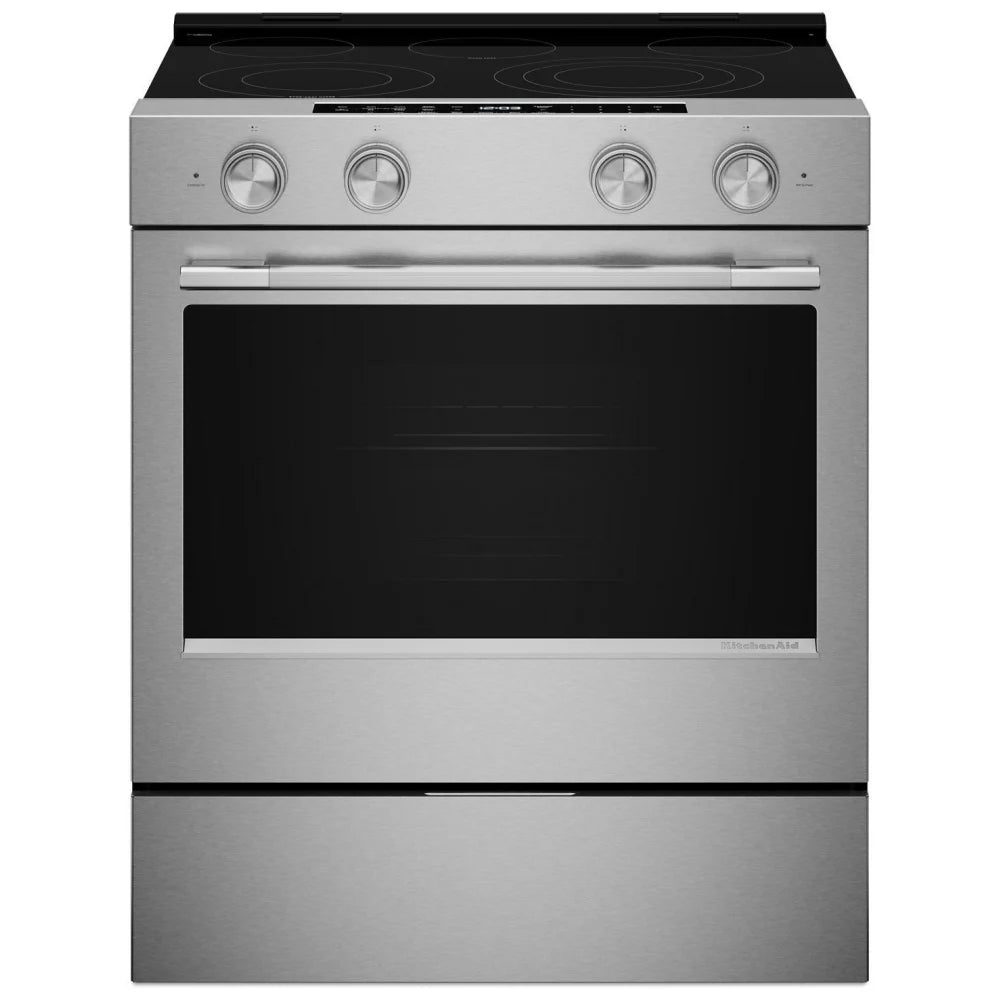

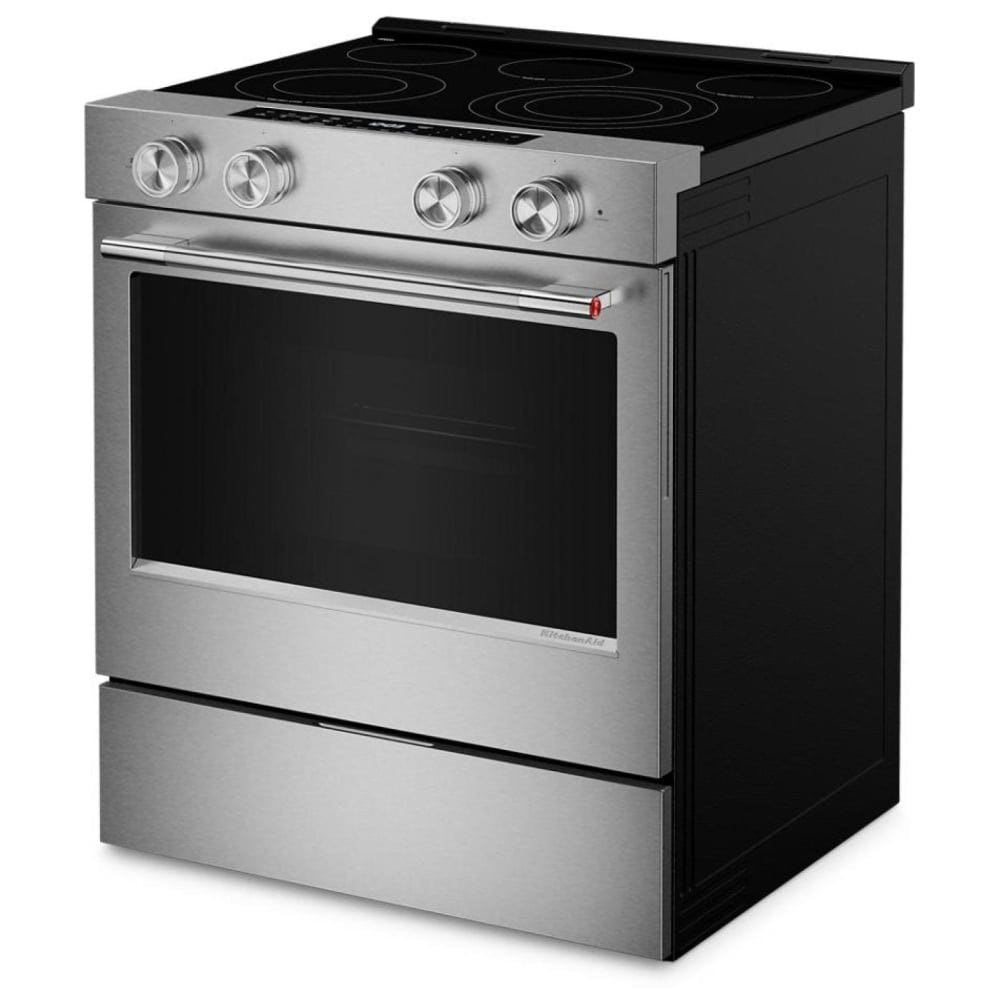

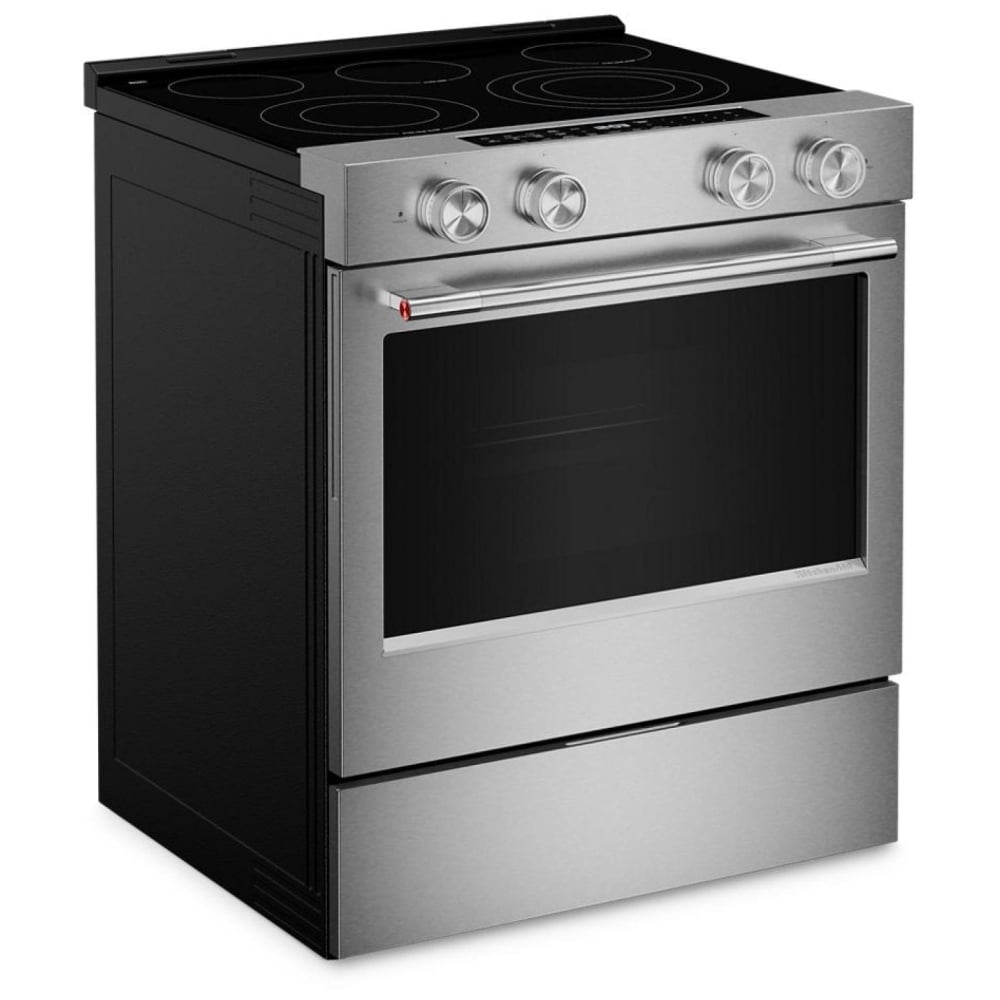

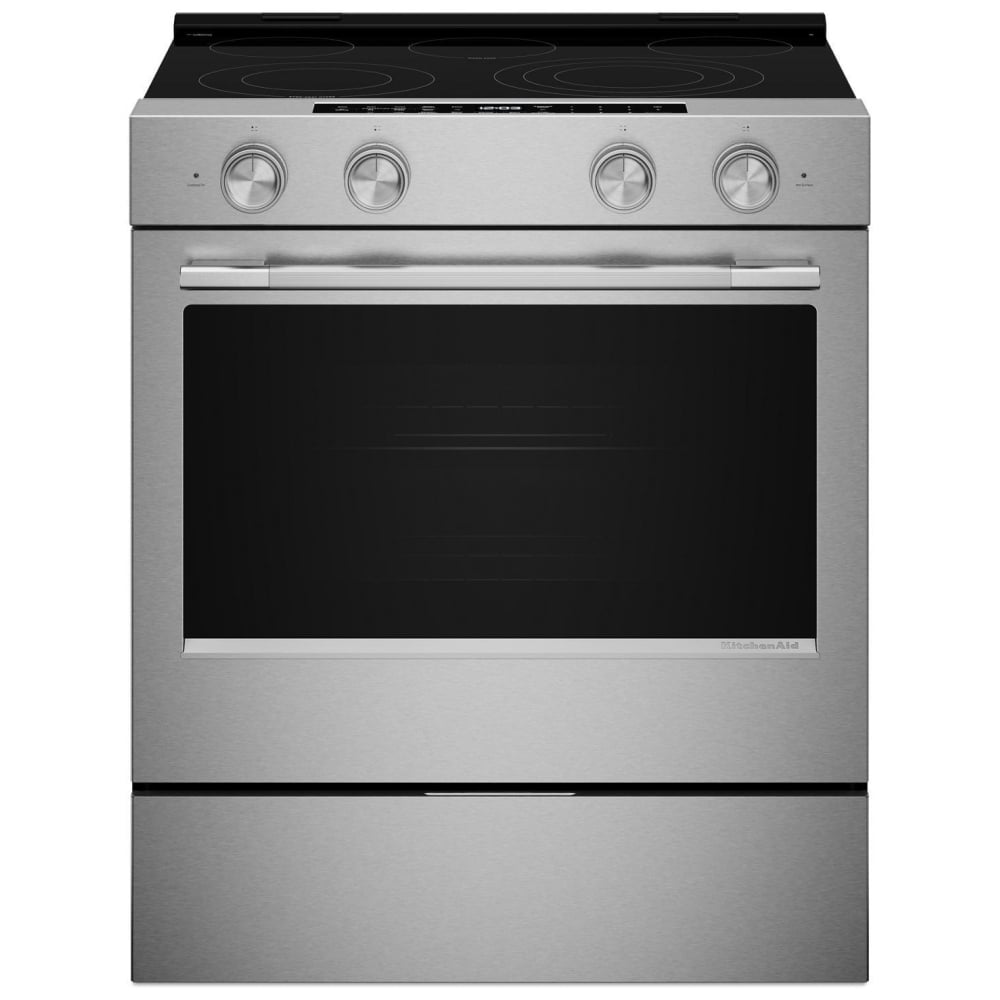

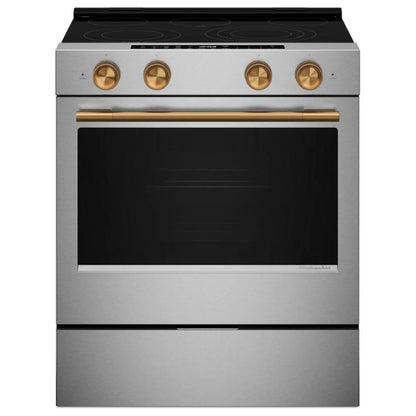

KitchenAid YKSES530SPS Electric Range, 5.3 cu. ft. Capacity, 30 inch Exterior Width, True Convection, 5 Burners, Storage Drawer, Air Fry, Self Clean

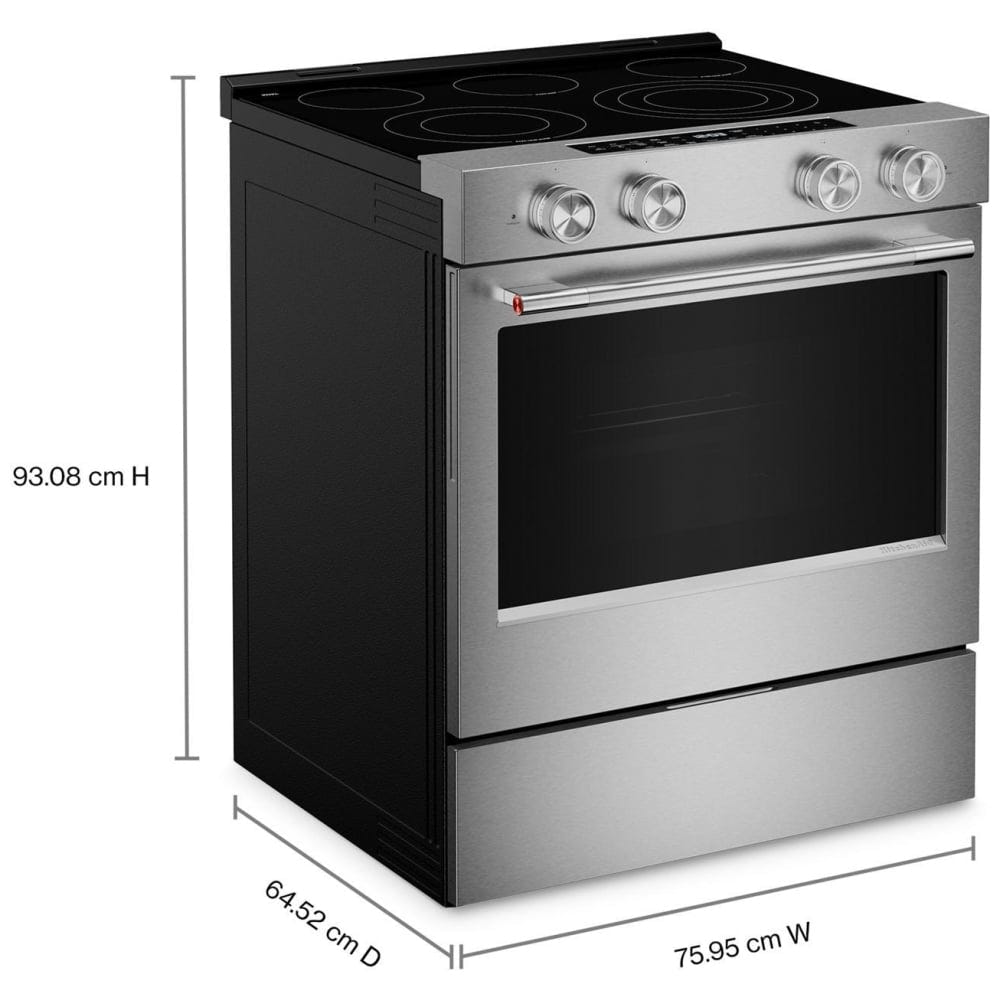

Dimensions
Depth 25.4 "
Width 29.9 "
Height 36.6 "
Carton Depth 31.0 "
Carton Height 43.0 "
Carton Width 32.0 "
Gross Weight 185.0 lbs
Depth With Door Open 90 Degree 47.9 "
Cutout Depth 24.0 "
Cutout Height 36.0 "
Cutout Width 30.0 "
Depth Closed Excluding Handles 27.4 "
Depth Closed Including Handles 29.2 "
Maximum Height 42.1 "
Minimum Height 36.6 "
Capacity FT3 (cubic feet) 5.3

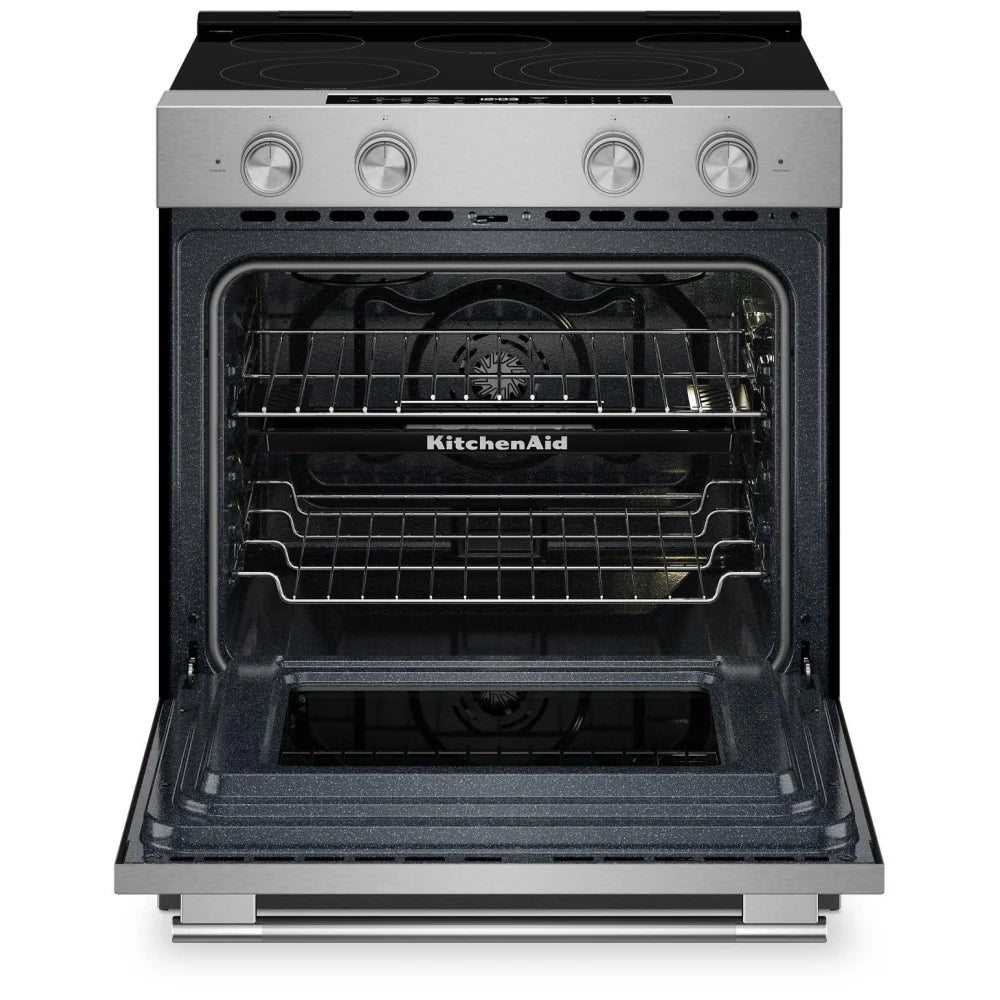

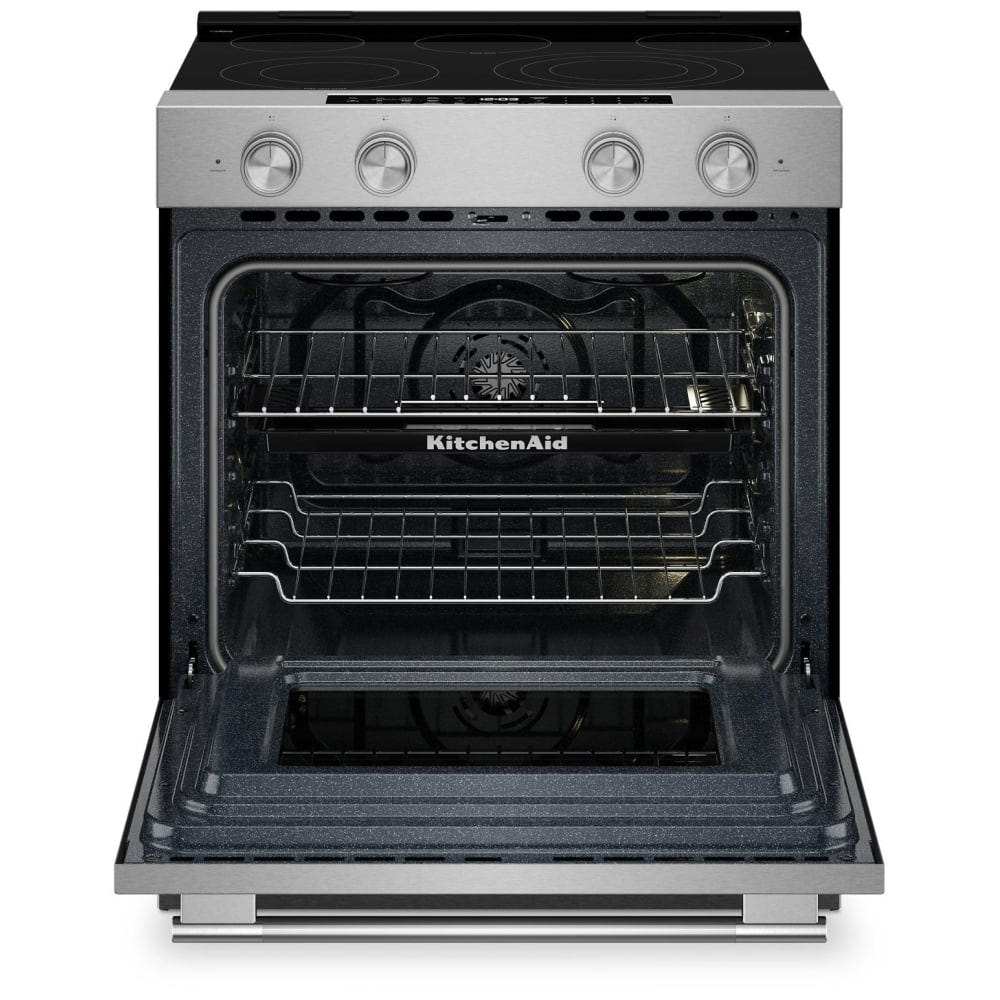

Details
Oven Control Location Front Control
Rack Guide Type Embossed
Oven Rack Type Max Capacity; Standard
Oven Light Type Halogen
Oven Light Switch Location Oven Control
Oven Interior Width In Inches 24.2
Oven Interior Depth In Inches 19.0
Oven Cooking System Convection
Oven Control Type Electronic Touch
Oven Control Knob Type N/A
Oven Cleaning Type Steam Clean
Number Of Rack Guides 5
Number Of Oven Racks 2
Number Of Oven Lights 1
Interior Color Blue
Hidden Bake Element Hidden
Cooktop Surface Material Glass
Convection Functions No
Convection Element Type Fan
Broiler Location Top Center
Broiler Element Power 3400W
Bake Element Power 2400W

Electrical
Amps 40
Hz 60
Watts 12100
Volts 208
Power Cord Included Yes

Exterior
Handle Type Reach-Through Handle
Handle Material Metal
Handle Color Stainless Steel
Drawer Type Storage Drawer
Door Removable Yes

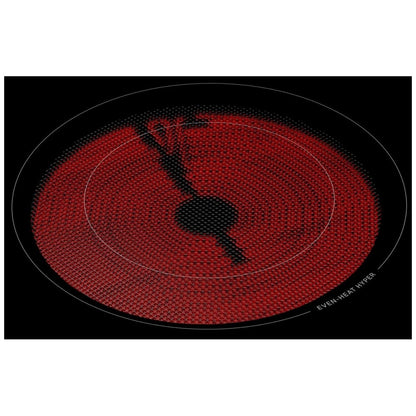

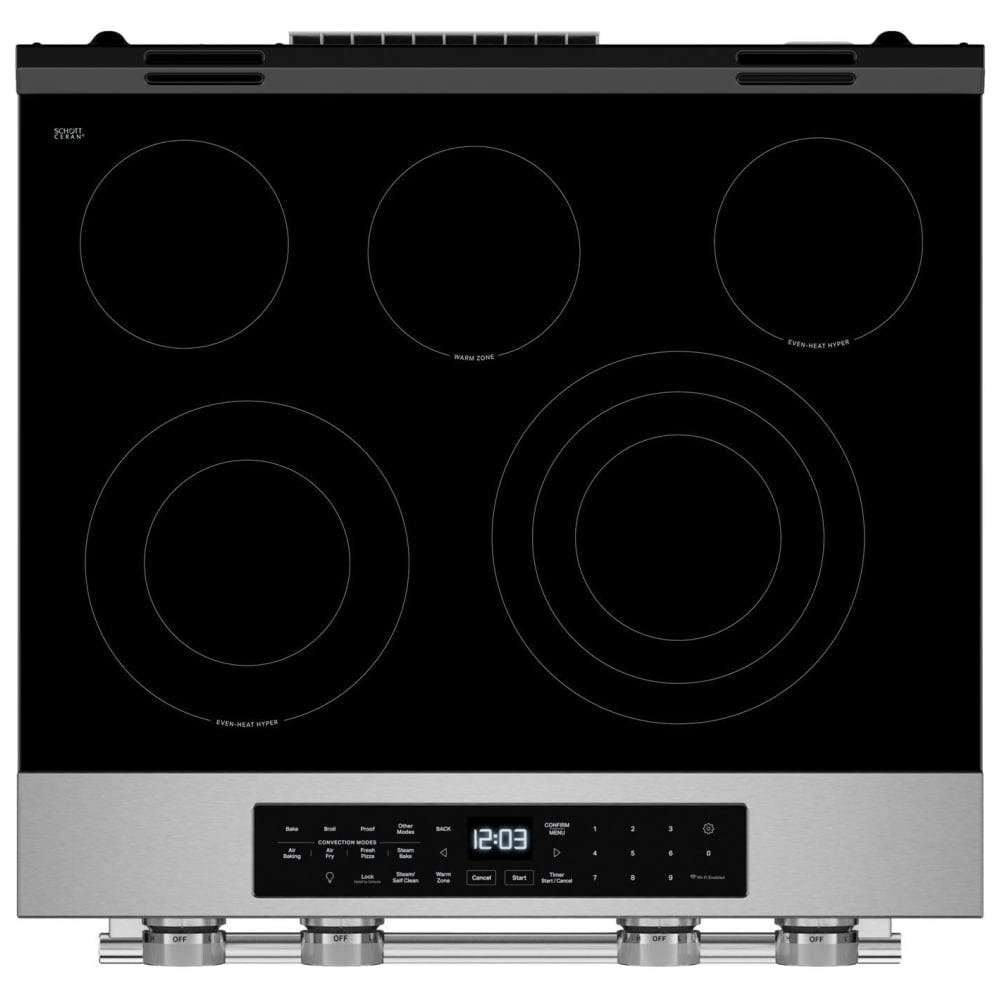

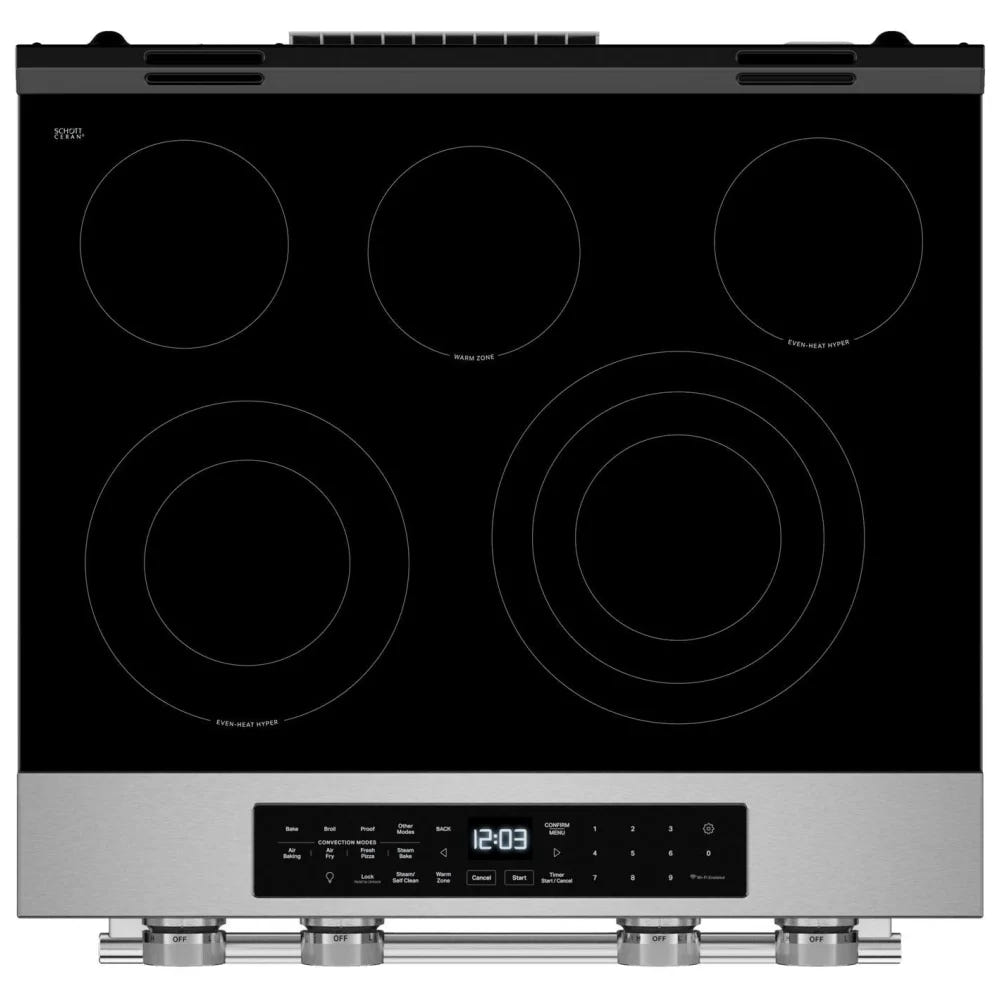

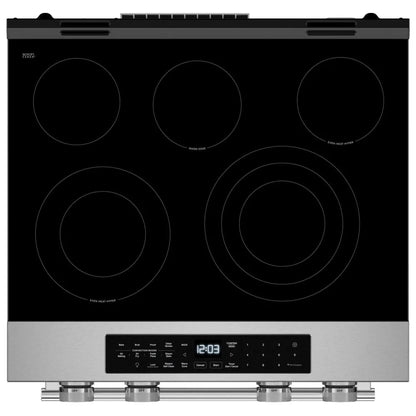

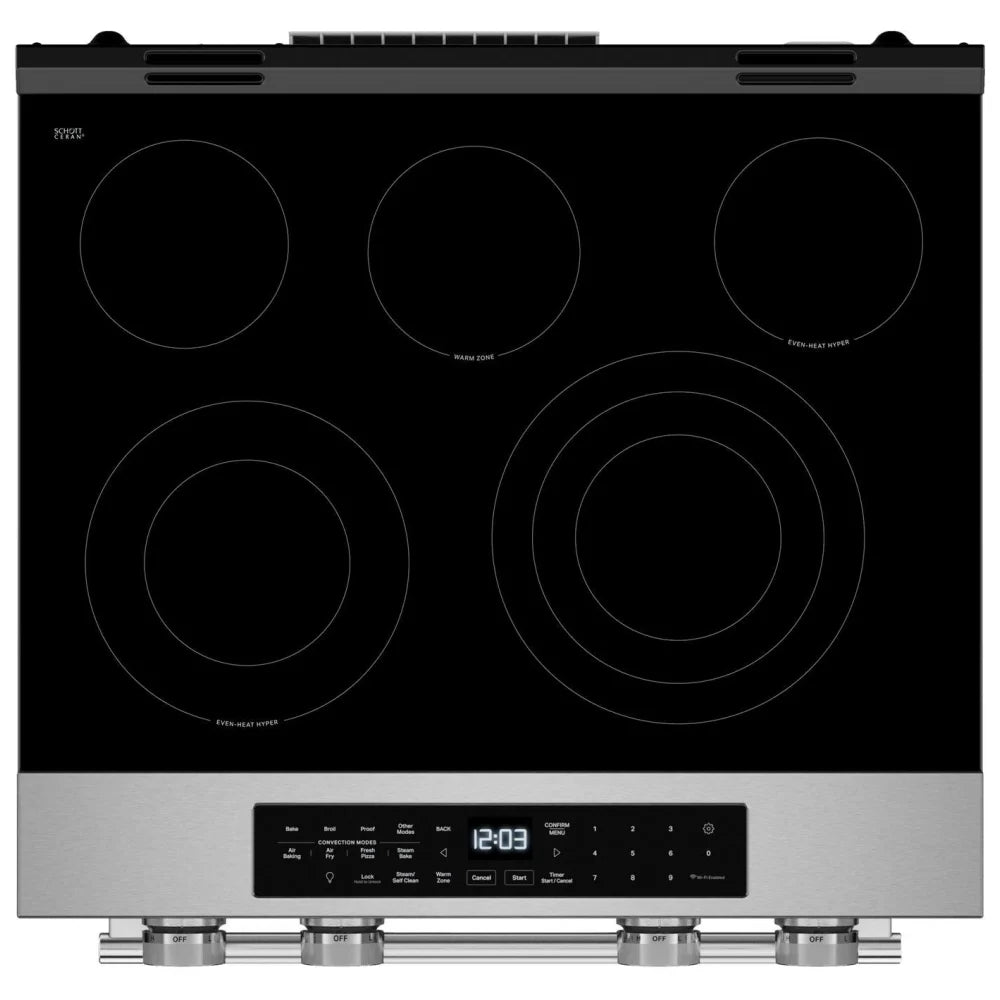

Cooktop Details
Center Rear Element Burner Size 6in.
Cooktop Element Style Ceran
Cooktop Control Type Knobs
Cooktop Control Location Front
Cooktop Configuration All Burners
Center Rear Element Burner Type Warming
Center Rear Element Burner Power 100W
Left Front Element Burner Power 3000W
Right Front Element Burner Type Triple
Right Rear Element Burner Type Standard
Right Rear Element Burner Size 6in.
Right Rear Element Burner Power 1200W
Right Front Element Burner Size 12in./9in./6in.
Right Front Element Burner Power 3000W
Number Of Cooking Element Burners 5
Left Rear Element Burner Type Standard
Left Rear Element Burner Size 6in.
Left Rear Element Burner Power 1200W
Left Front Element Burner Type Dual
Left Front Element Burner Size 10in./6in.

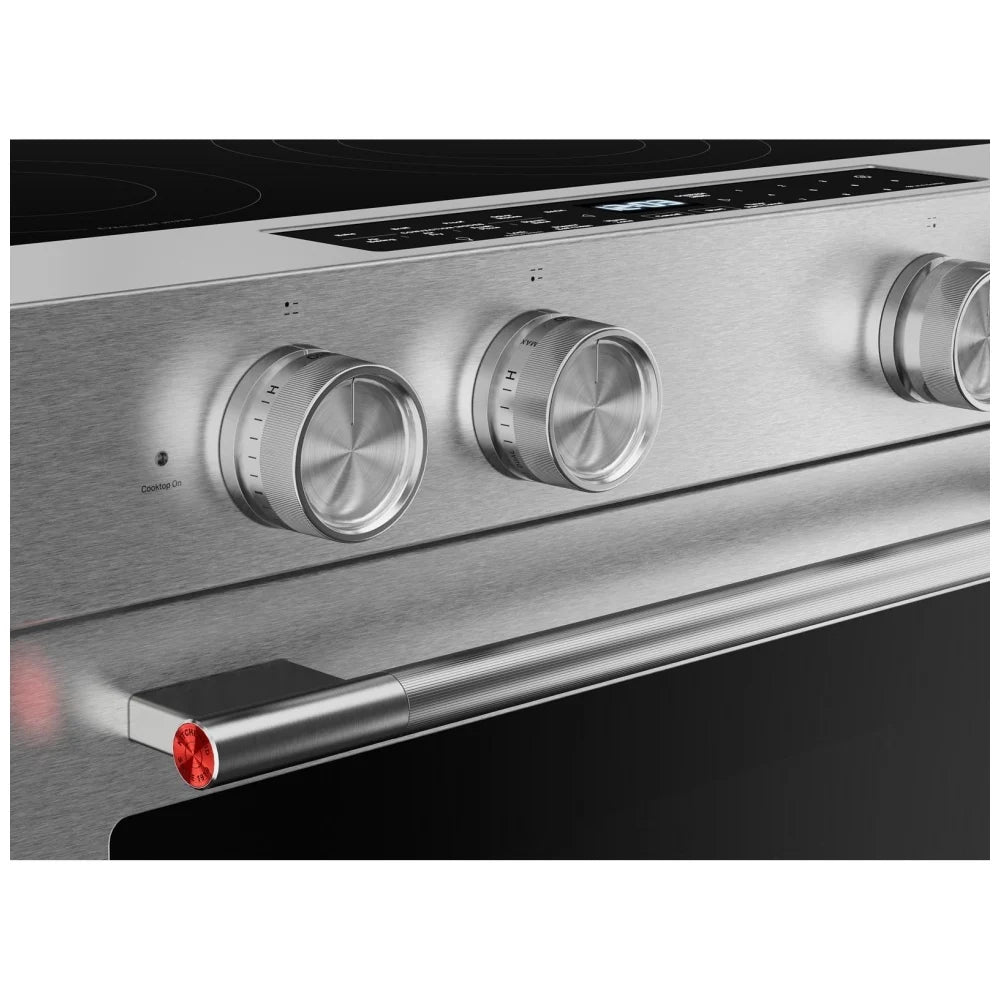

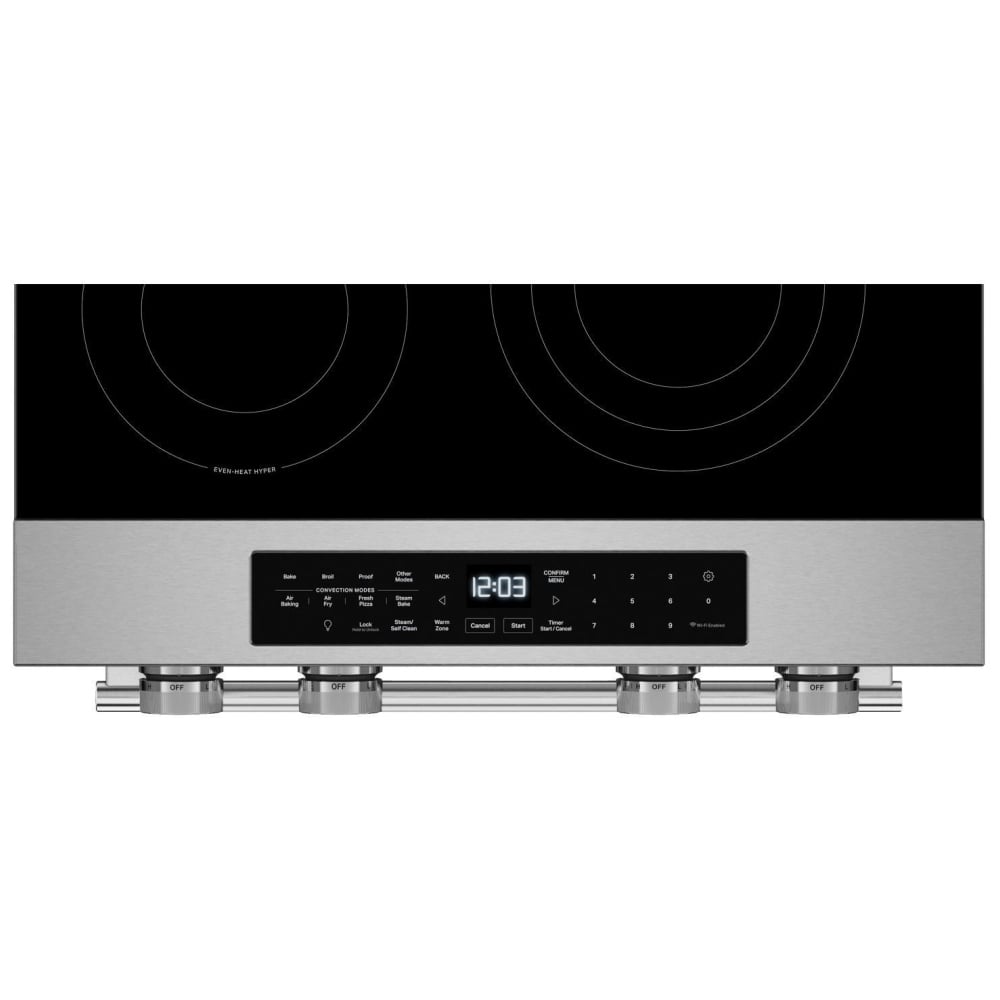

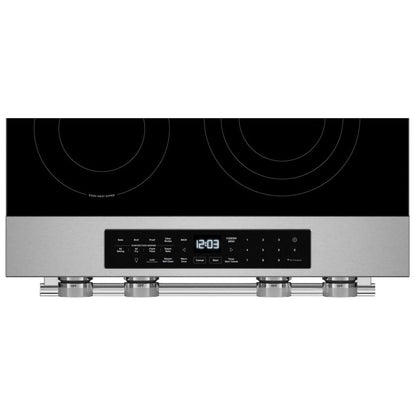

Controls
Control Type Knobs
Knob Type Weighted
Knob Color Stainless Steel

Specifications
Extended Service Plan Parent EW07IW1Y, EW07IW2Y, EW07IW4Y
Optional Accessories 4396096RB, W11692811
Dishwasher Safe No
Country Of Origin USA

Features
Power Outage Compatible Yes
Hot Surface Indicator Light Yes
Heating Element On Indicator Light Yes
Griddle No
Automatic Convection Conversion Temperature Adjust No

Energy
Annual Energy Usage Kwh 558

Configuration
Range Configuration Slide-In
Oven Configuration Single Oven

Configuration and Overview
Fuel Type Electric

Compatibility
Works With Amazon Alexa; Android; Google Assistant; Nest; iOS
Connectivity App; Bluetooth; Remote Access; Voice Controlled; WiFi

Certifications
UL Yes
Star K Certified Star K Certified
Energy Rating Kwh Year 558
CUL Yes
ADA Compliant No

Description
Size In 30
Range Type Slide-in
