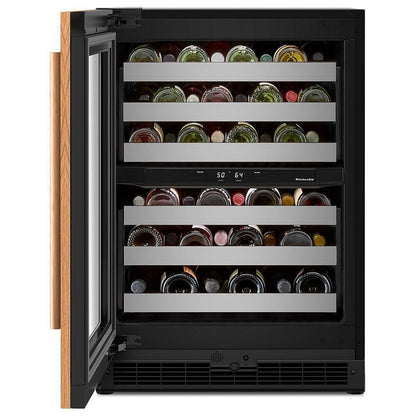

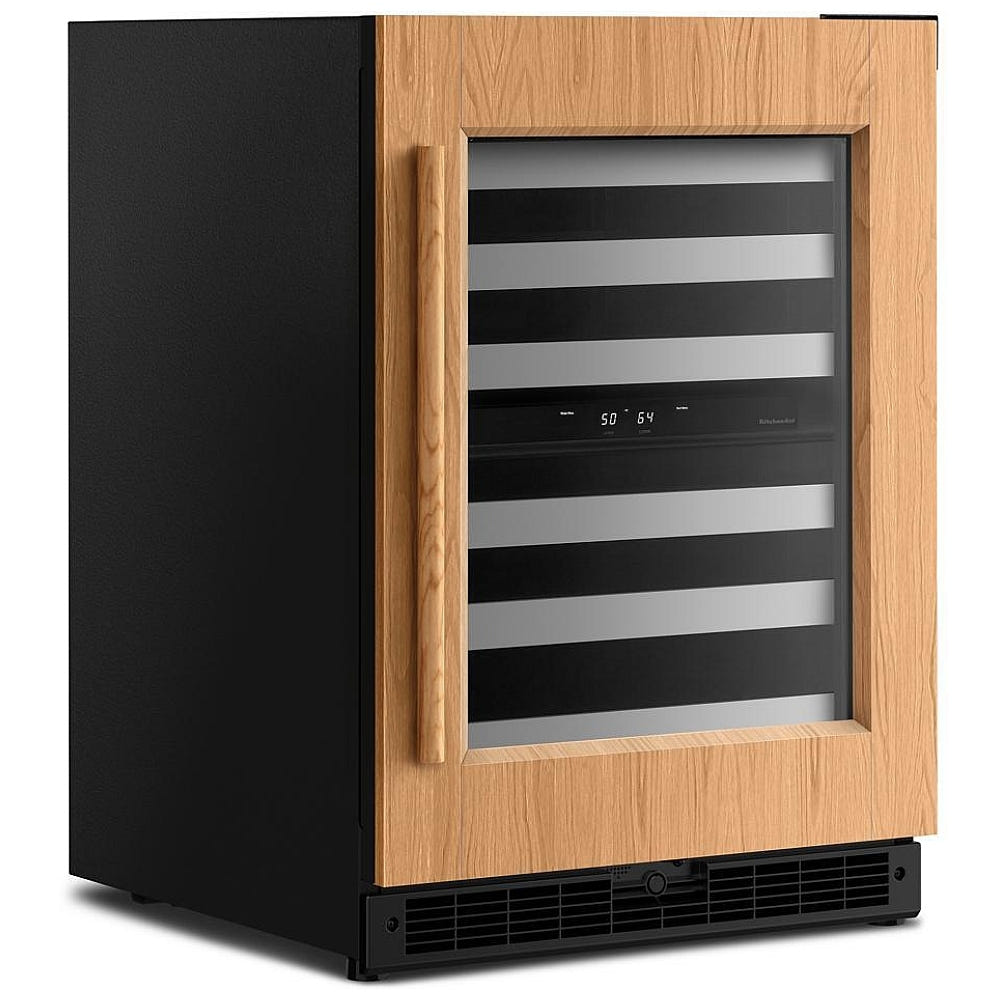

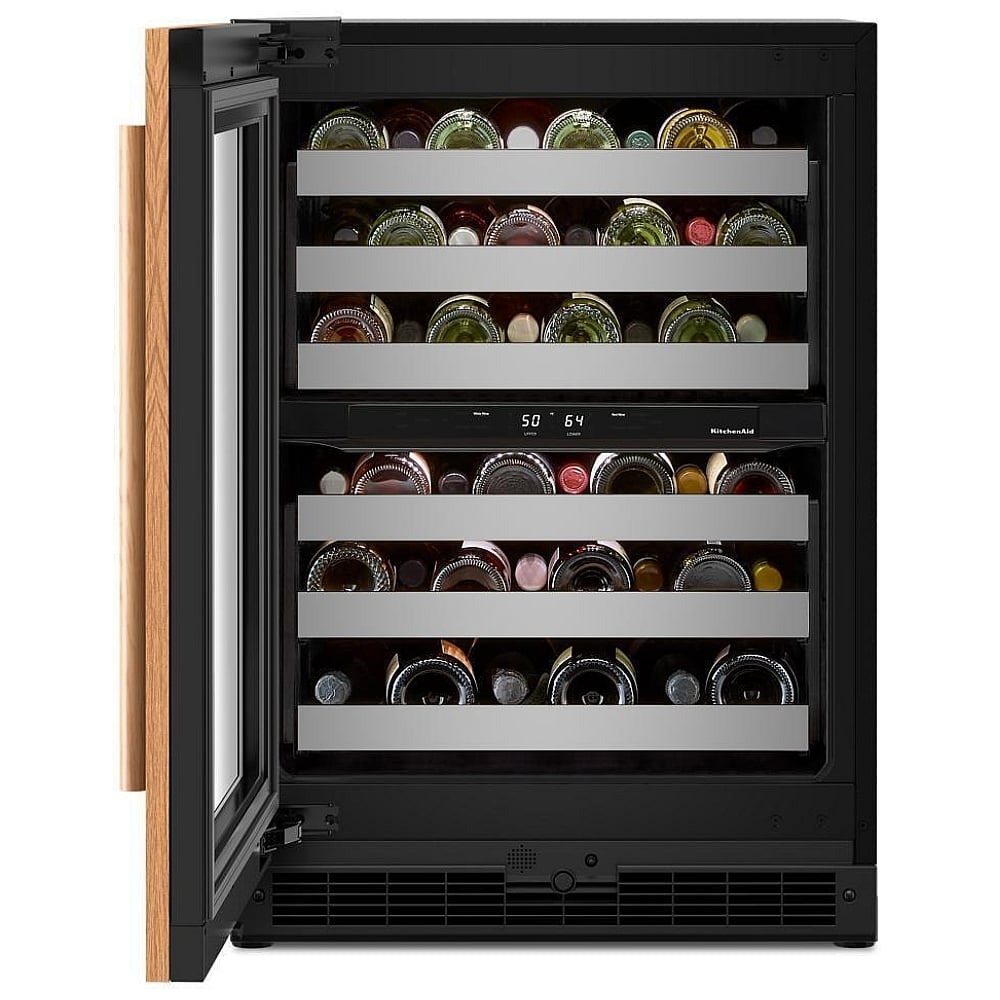

KitchenAid KUWR324SPA Under Counter Wine Refrigeration, 24 inch Width, Custom Panel Ready, Panel Ready
KitchenAid
KUWR324SPA
KitchenAid KUWR324SPA Under Counter Wine Refrigeration, 24 inch Width, Custom Panel Ready, Panel Ready
MSRP: $3,299.99
MAP Price MAP Price $2,899.99
Quick Specs
  • Capacity: 5.0 cu ft
  • Counter Depth: Yes
  • Reversible Doors: No
  • WiFi Enabled: No

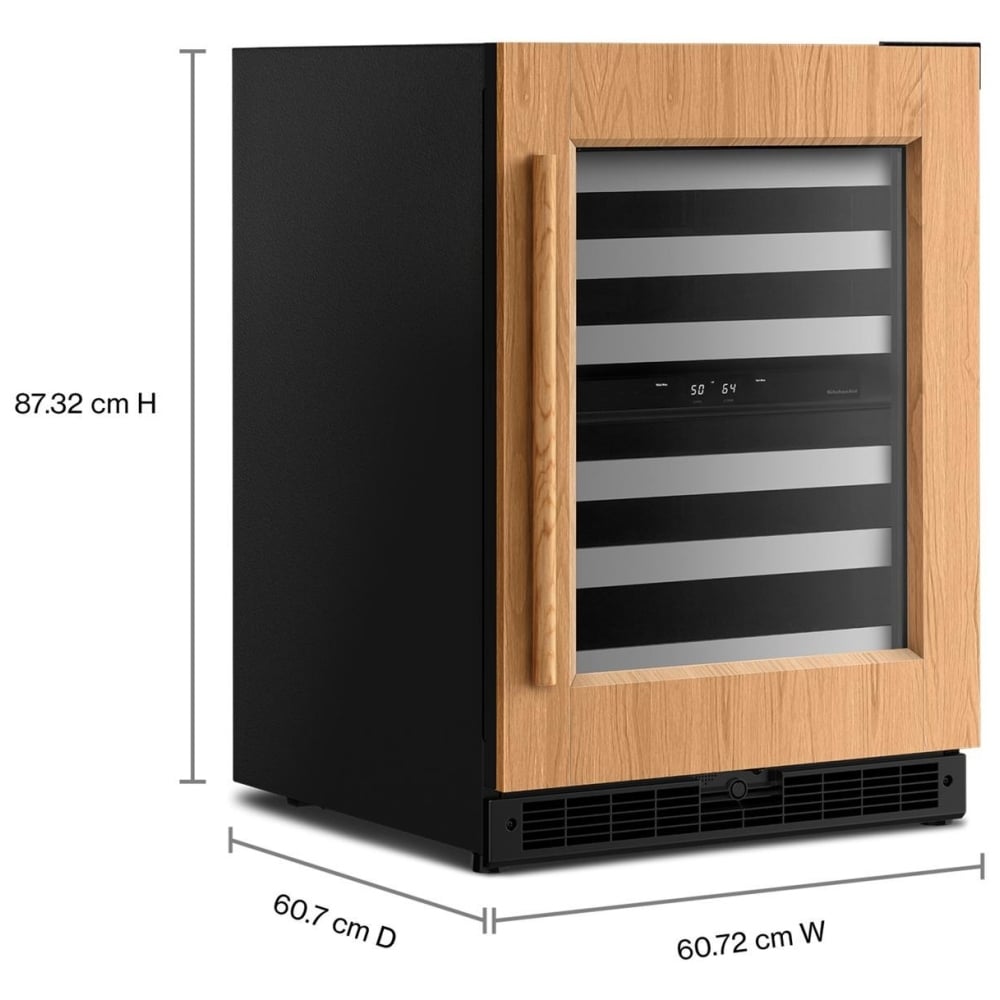

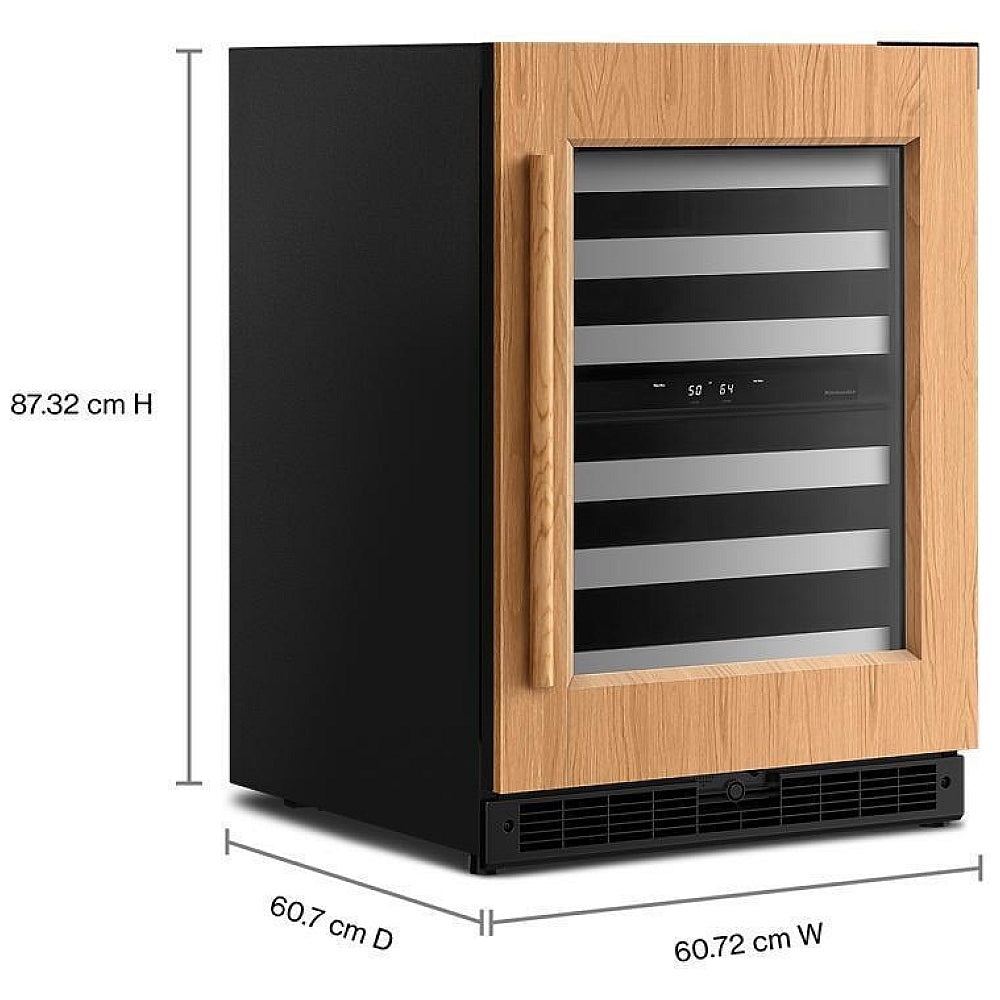

Dimensions
W 24in
H 34.5in
D 24in
 SatinGlide® Full-Extension Metal-Front Racks – glide out fully on smooth guides so you can easily load, organize and access wine bottles without disturbing neighboring bottles.

 Star-K Certified Sabbath Mode – disables interior lights and audible alarms to meet kosher requirements for use on the Jewish Sabbath and religious holidays.

 Fully Flush Installation with Hidden Hinges – allows the door to sit flush with surrounding 24" base cabinets for a built-in, integrated look while still opening a full 115°.

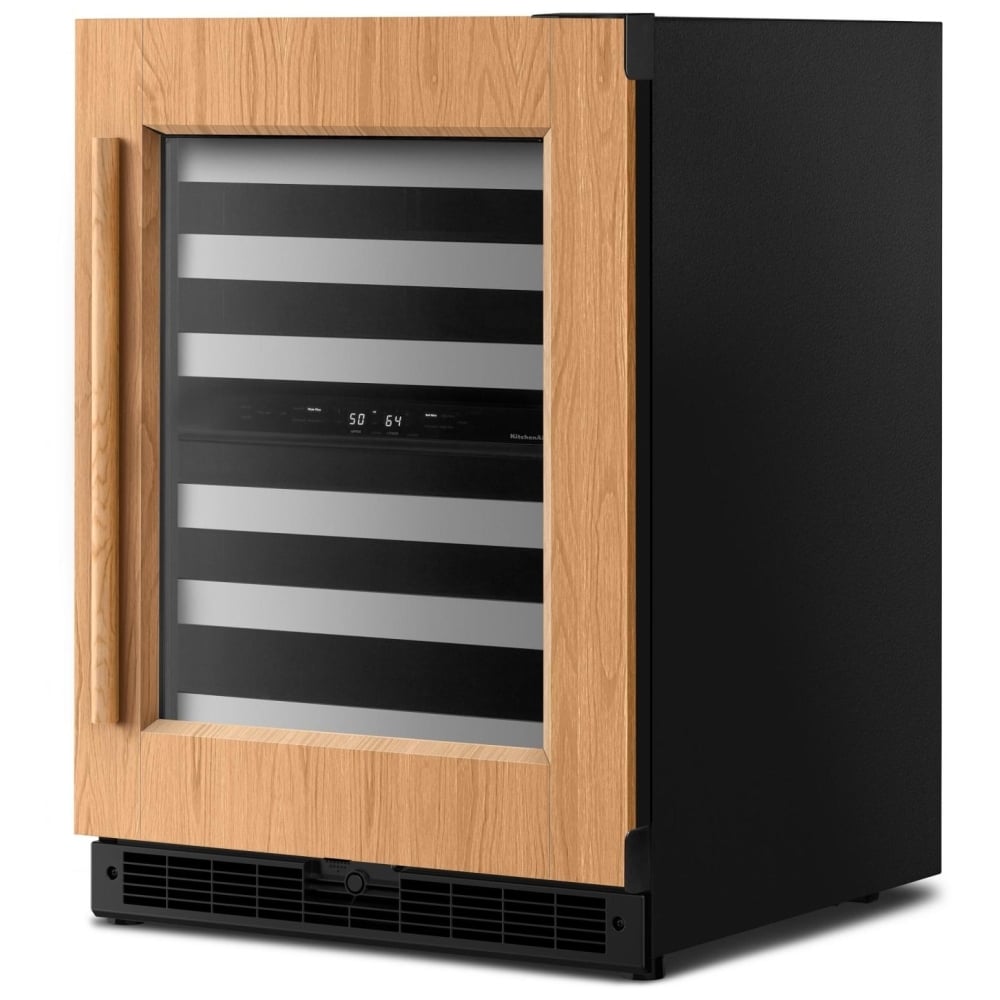

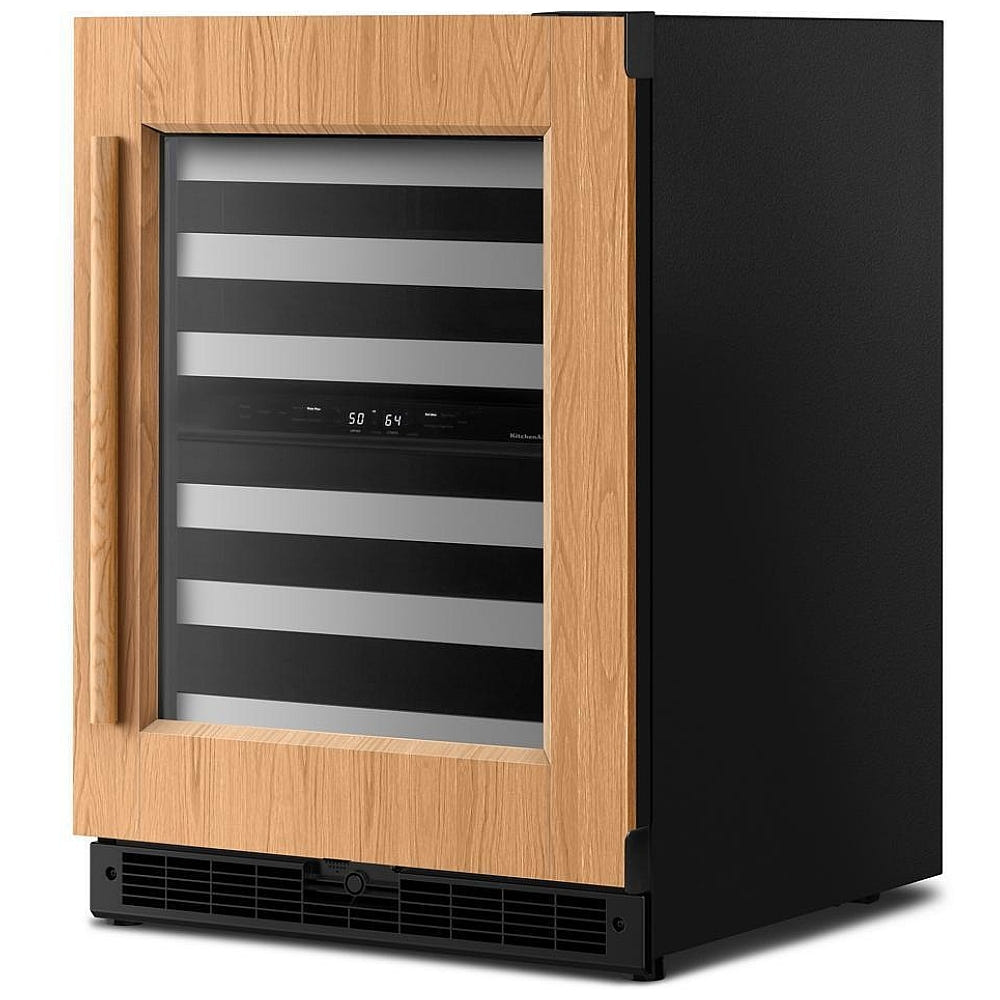

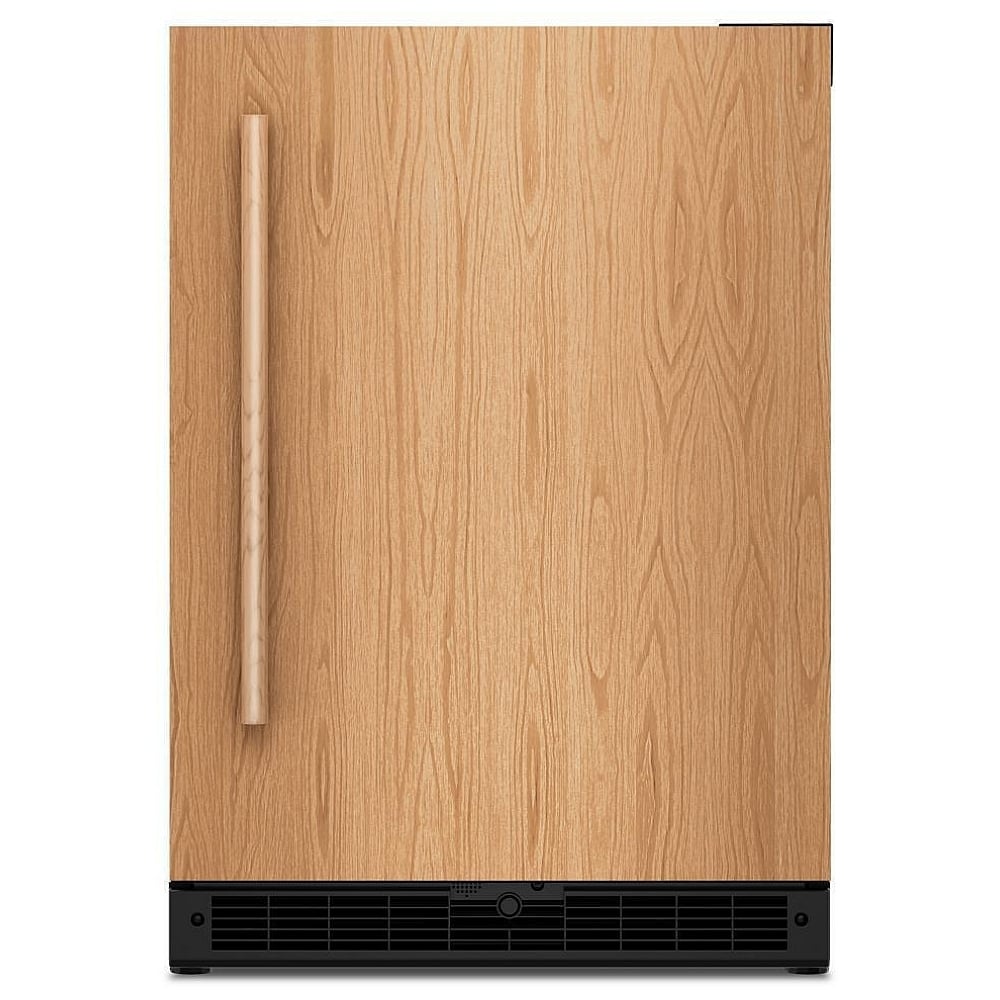

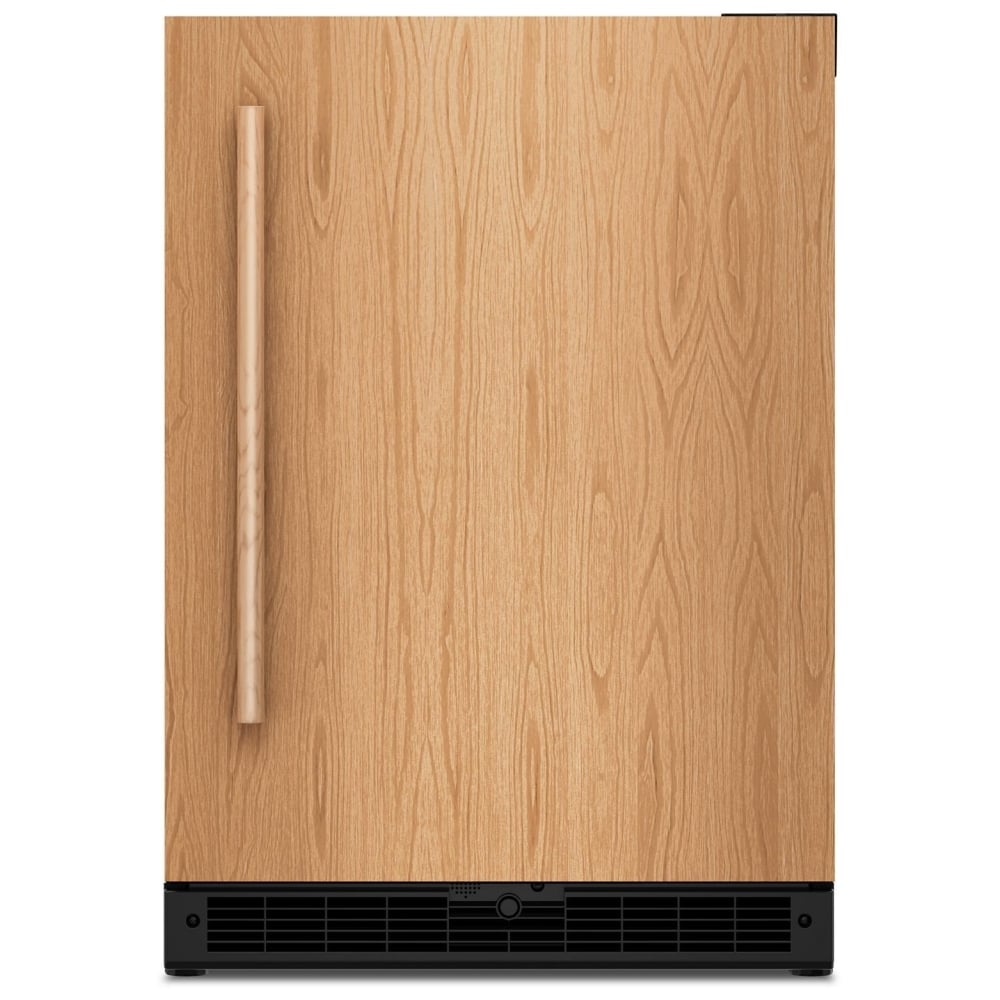

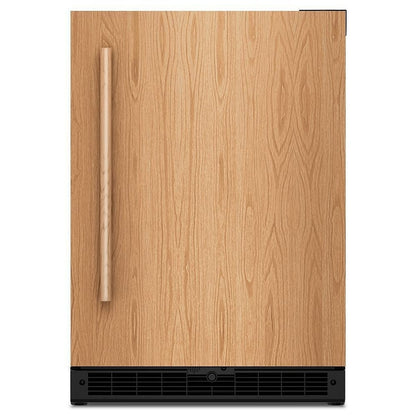

 Panel-Ready Design – accepts a custom cabinet panel and handle (sold separately) so the wine cellar blends seamlessly with surrounding kitchen cabinetry.

 24" Undercounter Built-In Configuration – designed to fit under standard-height counters and into a 24" wide cutout for flexible placement in kitchens, bars or entertainment areas.

 4.97 cu. ft. total capacity – provides generous storage space for wine collections in a compact undercounter footprint.

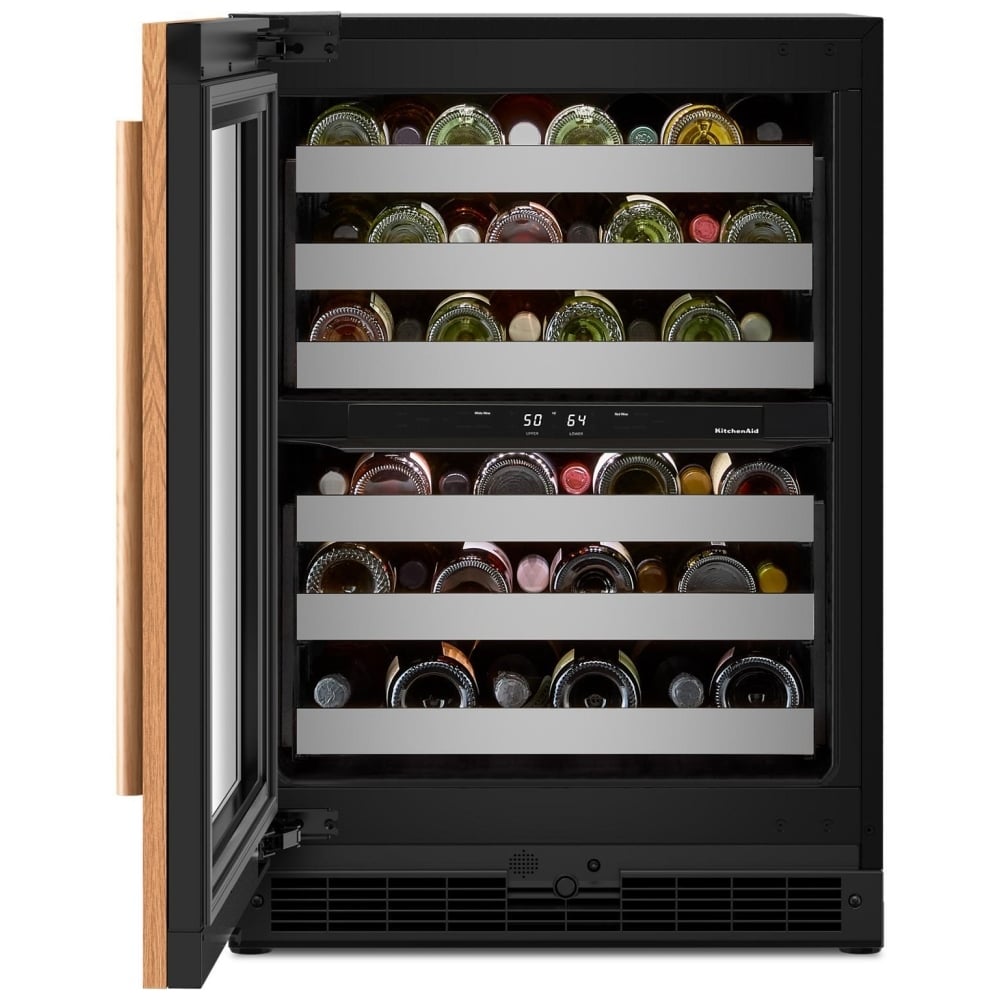

 46 standard wine bottle capacity – holds up to 46 Bordeaux-style bottles across six racks, ideal for medium-sized collections.

 Dedicated Champagne storage on lower rack – accommodates up to 6 larger Champagne-style bottles on the bottom rack without sacrificing overall capacity.

 Two temperature-controlled zones – separates reds and whites with independent upper and lower zone settings for optimal serving and storage conditions.

 Upper zone 42–54°F range – ideal for chilling white wines, rosés and sparkling wines to crisp serving temperatures.

 Lower zone 42–64°F range – supports slightly warmer settings suited to red wines while still allowing cooling for mixed storage.

 Temperature Monitoring System – uses internal sensors to track cabinet temperature and alerts you if temperatures rise above safe levels for an extended period.

 Over-temperature alarm and indicator light – notifies you if the interior exceeds 70°F for more than four hours so you can protect your wine collection.

 Motion-Activated LED lighting – automatically illuminates the interior as you approach, letting you see labels without opening the door and then gently dims when you walk away.

 Cool, energy-efficient LED interior lights – provide bright, even illumination with minimal heat output to help preserve wine quality.

 Backlit touch controls – offer an easy-to-read, lighted control panel between the zones so you can view and adjust temperatures and status at a glance.

 Control lockout function – prevents unintended changes to temperature or settings by disabling the control panel when activated.

 Max Cool function – temporarily boosts cooling performance to quickly pull down temperatures after restocking or frequent door openings.

 Automatic defrost system – manages frost buildup without manual intervention, helping maintain consistent performance and reducing maintenance.

 UV-protected thermal glass door – filters damaging ultraviolet rays and helps insulate the interior to protect wine from light and temperature fluctuations.

 Double-pane insulated door construction – enhances temperature stability and energy efficiency while showcasing your collection.

 Door alarm – sounds and repeats if the door is left open for five minutes or more, helping prevent temperature loss and energy waste.

 Cooling On/Off control – lets you power the cooling system down without unplugging the appliance, useful for cleaning or extended non-use.

 Right-swing door configuration – factory-hinged on the right for standard installations where the handle is on the left side.

 Panel-ready exterior finish – black textured cabinet with customizable front panel to coordinate with a wide range of kitchen styles.

 Vertical handle mounting – supports a tall, vertical handle (not included) for a premium built-in appearance and comfortable grip.

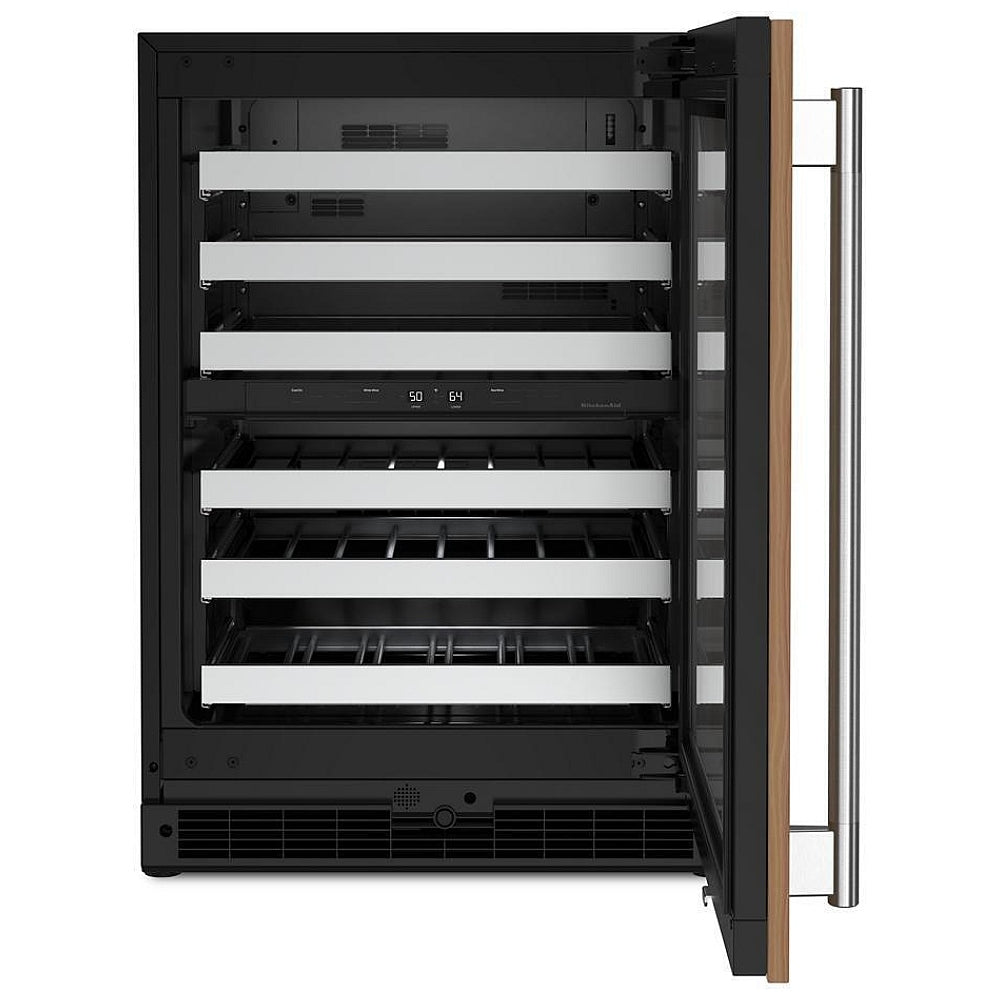

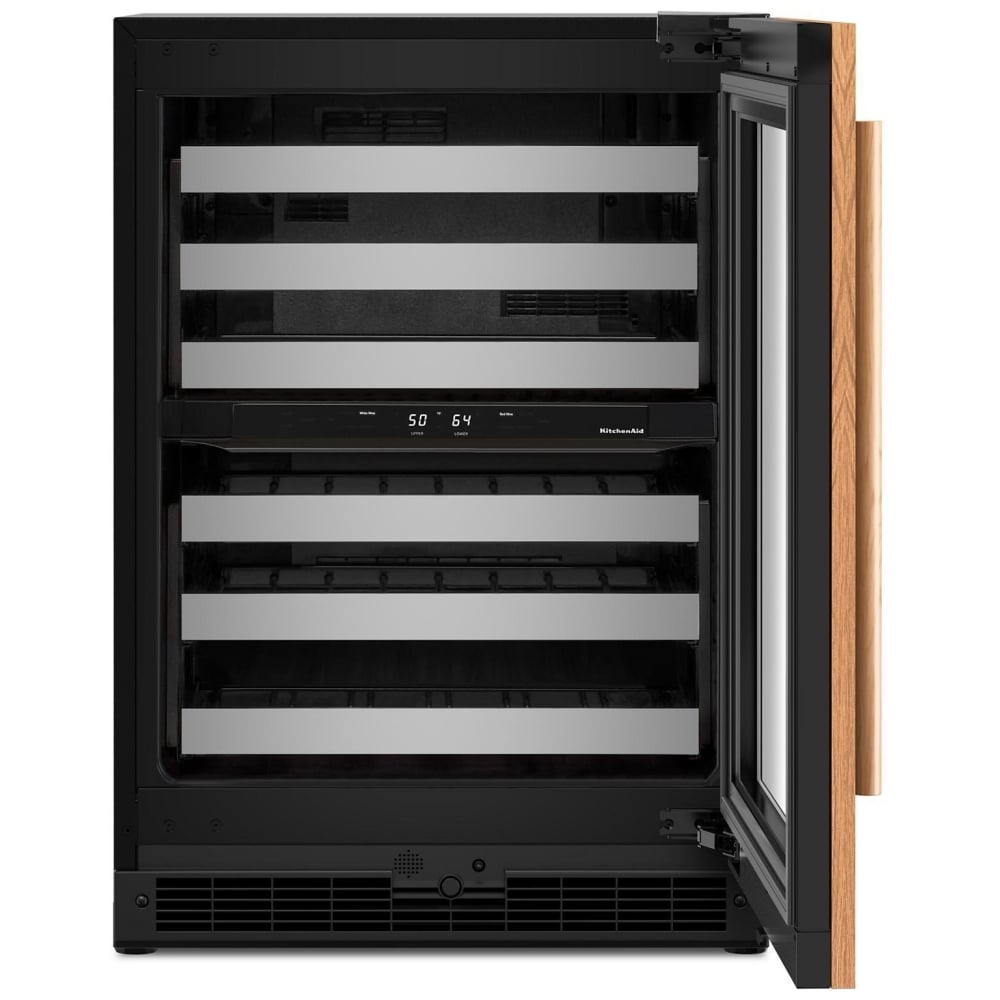

 Six dedicated wine racks – organize bottles across multiple levels for easy grouping by varietal, region or vintage.

 Metal-front rack design – provides a durable, upscale look that coordinates with other premium appliances and cabinetry hardware.

 Full-extension rack travel – allows racks to pull out completely so you can read labels and access bottles at the back without reaching in.

 Plastic interior liner – smooth, easy-to-clean interior surfaces simplify routine maintenance and wipe-downs.

 Under-counter capable cabinet height – approximately 34 3/8" overall height fits beneath most standard countertops.

 Counter-depth profile – 23 5/8" cabinet depth (excluding handles) aligns closely with standard counters for a streamlined look.

 Depth with door open 90° of 48" – provides clearance information for planning adjacent cabinetry and traffic space.

 Panel-ready door panel type – accepts custom wood or decorative panels to match or contrast with surrounding doors and drawers.

 Built-in installation type – designed for permanent installation with proper ventilation in a 24" wide, 24" deep, 34.5" high cutout.

 4.97 cu. ft. total capacity rating – clearly indicates interior volume for planning storage relative to your collection size.

 115V, 15-amp electrical requirement – connects to a standard household outlet for straightforward installation.

 Automatic interior light operation – turns interior lighting on when the door is opened and off when closed for convenience.

 Two-zone temperature display – shows current temperatures for both upper and lower zones on the control panel for quick status checks.

 No-icemaker design – dedicates the full interior to wine storage without sacrificing space to ice production components.

 Non-reversible door – fixed hinge orientation simplifies sealing and alignment for flush installations.

 4.97 cu. ft. wine-specific design – interior layout, racks and temperature ranges are optimized specifically for wine rather than mixed beverages.

 LED status indicators – provide visual feedback for active modes such as Sabbath Mode, over-temperature alerts and control lock.

 Garage and outdoor use not approved – intended for indoor, climate-controlled environments to ensure proper performance and wine protection.

 Non-WiFi, non-smart operation – simple, reliable controls without the need for network setup or app connectivity.

Specification Value
Capacity 4.97 Cu Ft
Bottle Capacity 46 standard Bordeaux-size bottles
Width 23 7/8 inches (23.87")
Height 34 3/8 inches (34.37")
Depth (overall) 23 5/8 inches (23.62")
Depth Closed Excluding Handles 23 5/8 inches (23.62")
Depth Closed Including Handles 26 7/16 inches (26.43")
Depth Excluding Doors 21 11/16 inches (21.68")
Depth With Door Open 90° 48 inches
Cutout Width 24 inches
Cutout Height 34 1/2 inches
Cutout Depth 24 inches
Net Weight 93.7 lbs
Gross Weight 104.7 lbs
Type Built-in undercounter wine cellar / wine cooler
Installation Type Fully flush installation, undercounter
Door Style / Color Panel-ready door, accepts custom cabinet panel
Cabinet Color / Finish Black, textured finish
Base Grille Color Black
Door Hinge Right hinge (model KUWR324SPA)
Reversible Door No
Glass Door UV-protected thermal glass
Handle Location Vertical
Panel Ready Yes (custom panel & handle sold separately)
Number of Temperature Zones 2 (dual zone)
Zone 1 (Upper) Capacity 24 bottles
Zone 1 Temperature Range 42°F to 54°F
Zone 2 (Lower) Capacity 22 bottles
Zone 2 Temperature Range 42°F to 64°F
Overall Temperature Range 42°F to 64°F
Number of Racks 6 wine racks
Rack Type Wine racks, SatinGlide full-extension metal-front racks
Rack Front Material Metal
Upper Racks Configuration Five upper racks, each holding up to 8 Bordeaux-size bottles
Lower Rack Configuration One lower rack holding up to 6 Champagne-style bottles
Interior Light LED
Lighting Features Motion-activated LED lighting, gradually dims and turns off when not in use
Controls Backlit touch controls on divider between zones
Control Features Temperature adjustment, Max Cool, control lockout, cooling on/off
Automatic Defrost Yes
Door Ajar / Open Alarm Yes, sounds if door left open more than 5 minutes
Temperature Monitoring System Sensors monitor internal temperature; over-temp alarm and indicator if above 70°F for more than 4 hours
Temperature Control Type Electronic touchpad
Sabbath Mode Yes, Star-K certified
Star-K Certified Yes
ADA Compliant No
Energy Star Rated No
WiFi Connected No
Ice Maker No
Water Dispenser No
Drain Required No
Interior Liner Finish Plastic
Beverage/Wine Center Features LED lighting, dual temperature zones, temperature monitoring system
Electrical Requirements 115 Volts, 60 Hz
Amps 15 A
Refrigerator Type Wine cellar
Purpose Wine storage
Soft Close Yes (door / racks designed for smooth closing)
Water Filter Indicator / Reset No
Prop 65 Standard (where applicable)

Standard manufacturer warranty applies. Contact support for details.
