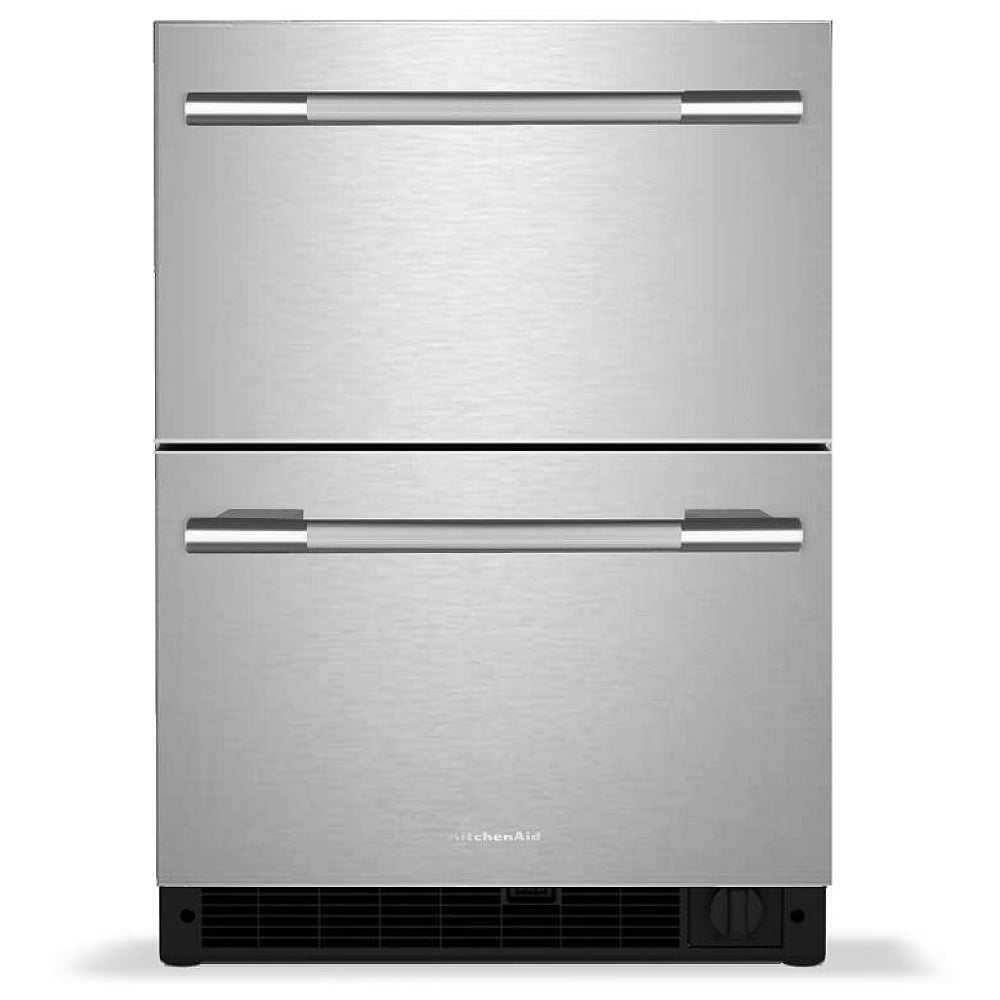

KitchenAid KUCT524SSB Under Counter Refrigeration, 24 inch Width, Custom Panel Ready, ENERGY STAR Certified, Panel Ready
KitchenAid
KUCT524SSB
KitchenAid KUCT524SSB Under Counter Refrigeration, 24 inch Width, Custom Panel Ready, ENERGY STAR Certified, Panel Ready
MSRP: $3,899.99
MAP Price MAP Price $3,499.99
Quick Specs
  • Capacity: 4.2 cu ft
  • Water Dispenser: No
  • Reversible Doors: No
  • WiFi Enabled: No
Dimensions
W 24in
H 34in
D 24in
Panel-Ready Design – allows installation of custom drawer fronts and handles (not included) so the refrigerator/freezer blends seamlessly with surrounding cabinetry.

 Star-K Certified Sabbath Mode – disables automatic lights and alarm tones to support observance of the Jewish Sabbath and religious holidays.

 Temperature Monitoring System with sensor alert – continuously checks internal temperatures and triggers an over‑temperature alarm and indicator light if safe ranges are exceeded for an extended period.

 Automatic Ice Maker with removable ice bin – located in the lower freezer drawer, produces a steady supply of filtered crescent‑shaped ice and lets you lift out the bin to fill pitchers, coolers or ice buckets.

 Ultra-Bright LED Lighting – illuminates both drawers when opened so you can quickly see and access stored items, even in low‑light kitchens or bars.

 Backlit Touch Controls – intuitive, lighted control panel in the upper drawer displays current temperatures for each drawer and status alerts, and lets you adjust settings with a simple touch.

 4.2 Cu. Ft. total capacity (approx. 4.3 cu. ft. AHAM) – two deep drawers provide flexible storage for beverages, side dishes, frozen snacks and ingredients in a compact 24" undercounter footprint.

 Dual temperature-controlled drawers – upper drawer operates as a refrigerator (approx. 32°F–42°F) and lower drawer as a freezer (approx. -8°F–6°F) to store fresh and frozen items in one unit.

 Max Cool function – temporarily boosts cooling performance to quickly pull down temperatures after loading groceries or frequent drawer openings.

 Door Ajar / Drawer Open Alarm – sounds and repeats if a drawer is left open for several minutes, helping prevent temperature loss and food spoilage.

 Control Lockout – locks the electronic controls to prevent accidental or unauthorized changes to temperature and settings.

 Automatic Defrost system – reduces frost buildup in the freezer drawer, minimizing the need for manual defrosting and helping maintain efficiency.

 Built-in or freestanding installation – designed primarily for built‑in undercounter use, but can also be installed freestanding where cabinetry cutouts are not available.

 24" undercounter double-drawer configuration – two pull‑out drawers provide easy, top‑down visibility and access, ideal for islands, bar areas and secondary refrigeration zones.

 Counter-depth design – shallow depth aligns closely with standard cabinetry for a flush, integrated look in finished kitchens.

 Interior LED lighting in both drawers – energy‑efficient lighting turns on automatically when drawers open, enhancing visibility without adding much heat.

 Refrigerator and freezer zone indicators – clearly labeled zones and temperature ranges help you organize items appropriately between fresh and frozen storage.

 Electronic temperature controls – precise digital control of each drawer’s temperature range for better food preservation than mechanical dials.

 Two deep storage drawers – tall, spacious drawer boxes accommodate bottles, cartons, pans and bulk frozen items more efficiently than shallow shelves.

 Crescent ice shape – ice maker produces compact crescent cubes that fit easily into glasses and scoop smoothly for entertaining.

 Quiet undercounter operation – compressor and fan system are engineered for low‑profile, unobtrusive sound levels suitable for open‑plan kitchens and living spaces.

 Automatic cooling on/off control – lets you power cooling off during extended absences or cleaning without unplugging the appliance.

 LED status indicators – visual alerts on the control panel provide quick confirmation of modes such as Max Cool, Sabbath Mode and over‑temperature alarms.

 Star-K certification listing – third‑party verification that Sabbath Mode operation meets specific kosher requirements.

 Textured cabinet finish – durable exterior cabinet surface resists minor scuffs and blends behind custom panels in built‑in applications.

 Panel-ready drawer fronts – accept custom wood or decorative panels to match or contrast with existing cabinetry styles and finishes.

 Vertical handle location – ergonomic handle placement on drawer fronts provides comfortable grip and smooth opening motion.

 Automatic interior light shutoff – lights turn off when drawers close or when Sabbath Mode is active, helping conserve energy and meet religious-use requirements.

 Two temperature-controlled zones – independent control of refrigerator and freezer drawers allows tailored storage for different food types.

 Compact 24" width – fits standard 24" undercounter cutouts, making it suitable for condos, small kitchens, wet bars and entertainment areas.

 Energy-efficient LED lighting – reduces energy consumption compared with traditional incandescent bulbs while providing bright, even illumination.

 Automatic ice production pause via drawer position – ice maker operation is coordinated with freezer drawer status to help prevent spills and overfilling.

 Integrated temperature range labeling – printed or displayed ranges guide users to set appropriate temperatures for beverages, fresh foods and frozen goods.

 Sturdy drawer glides – engineered slides support the weight of fully loaded drawers and allow smooth opening and closing.

 Pull-out freezer drawer design – top‑down view of frozen items reduces digging and helps you find foods quickly, minimizing warm air infiltration.

 Automatic restart after power loss – unit resumes operation at previous settings when power is restored, helping protect stored items.

 15-amp, 115V standard electrical requirement – plugs into a typical household outlet without special wiring in most installations.

 Garage-ready exclusion – designed for conditioned indoor spaces rather than unheated or uncooled garages, ensuring optimal performance within specified ambient temperatures.

Manufacturer's Warranty: 1 year

UPC: 883049932804

Specification Value
Brand KitchenAid
Model KUCT524SSB
Product Type Undercounter Double-Drawer Refrigerator/Freezer
Configuration / Style Refrigerator Drawer; Double Drawer; Undercounter; Specialty Refrigeration
Installation Type Built-In or Freestanding / Undercounter
Cabinet Color Black
Door Color / Finish Stainless Steel
Handle Color Stainless Steel
Door Panel Type Solid
Accepts Custom Panels No
Glass Door No
Cabinet Finish Textured
Door Opening Direction Drawer (not hinged)
Number of Doors / Drawers 2 Drawers (Upper Refrigerator / Lower Freezer)
Freezer Drawer Type Pull-Out Drawer
Capacity: Total 4.2 Cu Ft (some retailers list 4.3 Cu Ft; manufacturer lists 4.2 Cu Ft)
Capacity: Refrigerator Approximately 2.1 Cu Ft
Capacity: Freezer Approximately 2.1 Cu Ft
Width 23 87/100 inches (23.87 in)
Depth 23 5/8 inches (23.63 in)
Height 34 1/8 inches (34.13 in)
Cutout Width 24 inches
Cutout Depth 24 inches
Cutout Height 34 1/2 inches
Depth Type Counter Depth
Net Product Weight 93.7 lbs
Gross Weight (Shipping) 104.7 lbs
Refrigerator Type Double Drawer, Under-the-Counter Refrigerator/Freezer
Number of Temperature-Controlled Zones 2 (Upper Refrigerator Zone, Lower Freezer Zone)
Zone 1 Description Refrigerator
Zone 1 Temperature Range 32°F to 42°F
Zone 2 Description Freezer
Zone 2 Temperature Range -8°F to 6°F
Overall Temperature Range -8°F to 42°F
Automatic Defrost Yes
Defrost Type Auto Defrost
Cooling On/Off Control Yes
Max Cool / Fast Cool Yes (Refrigerator Max Cool)
Control Type Backlit Electronic Touch Controls
Control Location Upper Drawer
Control Lockout Yes
Digital Temperature Control Yes
Interior Lighting Ultra-Bright LED Lighting
Interior Light Type LED
Ice Maker Yes (Automatic Ice Maker in Freezer Drawer)
Ice Maker Type Single Automatic Ice Maker
Ice Type Crescent-Shaped Ice
Ice Dispenser No (ice in removable bin inside freezer drawer)
Water Filter Indicator / Reset No
Water Filter Location Exterior (where applicable)
Door / Drawer Alarm Yes (sounds after 5 minutes, repeats every 2 minutes)
Temperature Monitoring System Yes (with sensor alert and over-temp alarm)
Over-Temperature Alarm Yes (alerts if above 45°F for more than 4 hours)
Sabbath Mode Yes (Star-K Certified)
Star-K Certified Yes
ADA Compliant No
ENERGY STAR Certified No (some retailers may mis-list; manufacturer shows not Energy Star)
Garage Ready No
Approved for Outdoor Use No
Approved for Commercial Use No
Approved for Medical Use No
Usage Residential
Smart / WiFi Connectivity No
Remote Access No
Soft-Close Drawers Yes (both refrigerator and freezer drawers)
Push-to-Open No
Recessed Handles No
Fingerprint Resistant Finish No
Number of Racks / Shelves Not specified; deep drawer storage configuration
Humidity-Controlled Crispers None
Refrigeration General Features Door Alarm, Interior LED Lighting, Freezer Light, Sabbath Mode, Temperature Monitoring System, Automatic Defrost
Amps 15 A
Voltage 120 V
Frequency 60 Hz (typical North American)
Prop 65 Standard (for applicable U.S. regions)
UPC 883049930718
