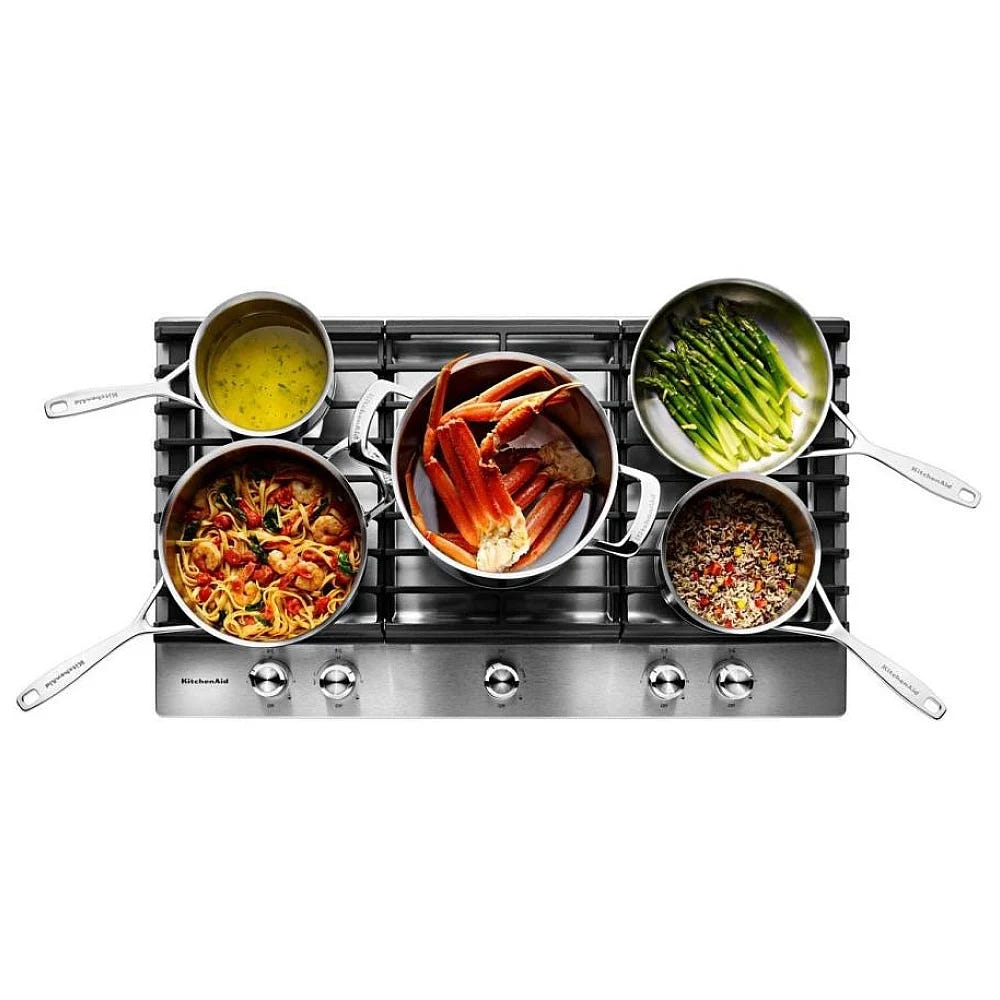

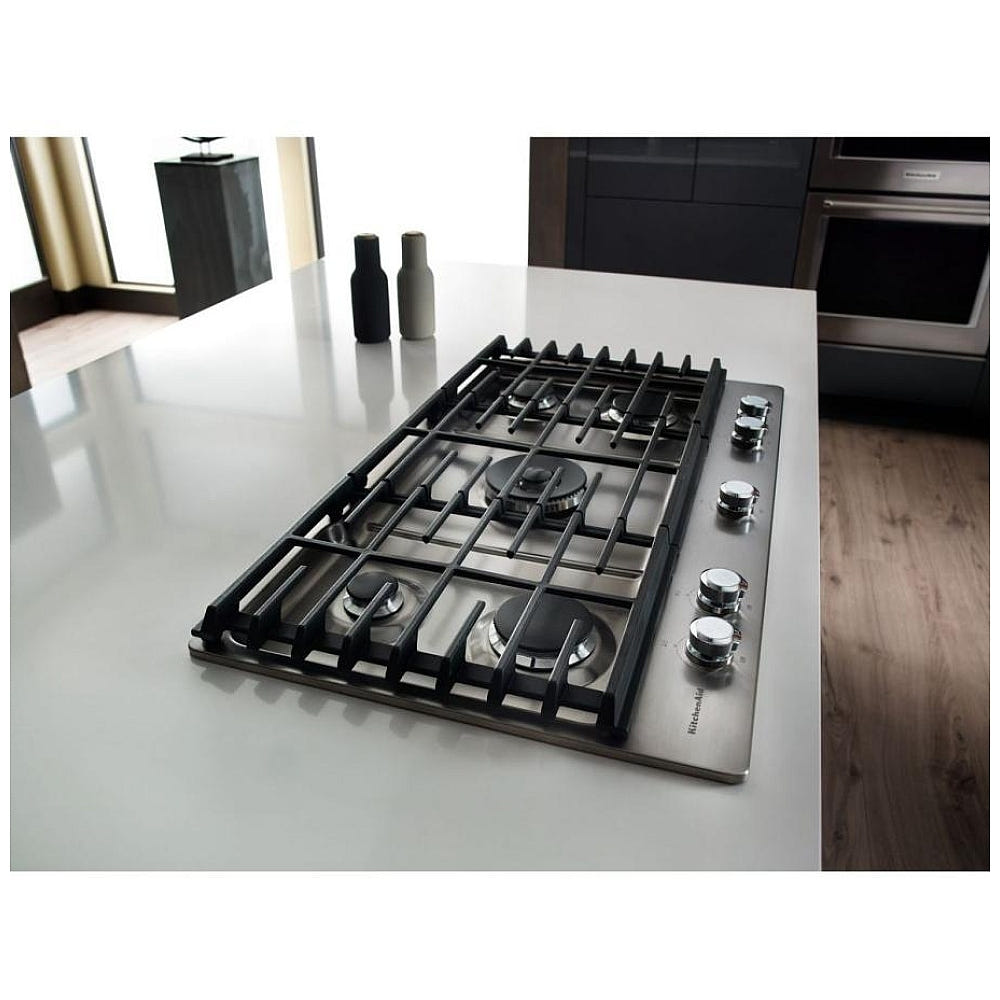

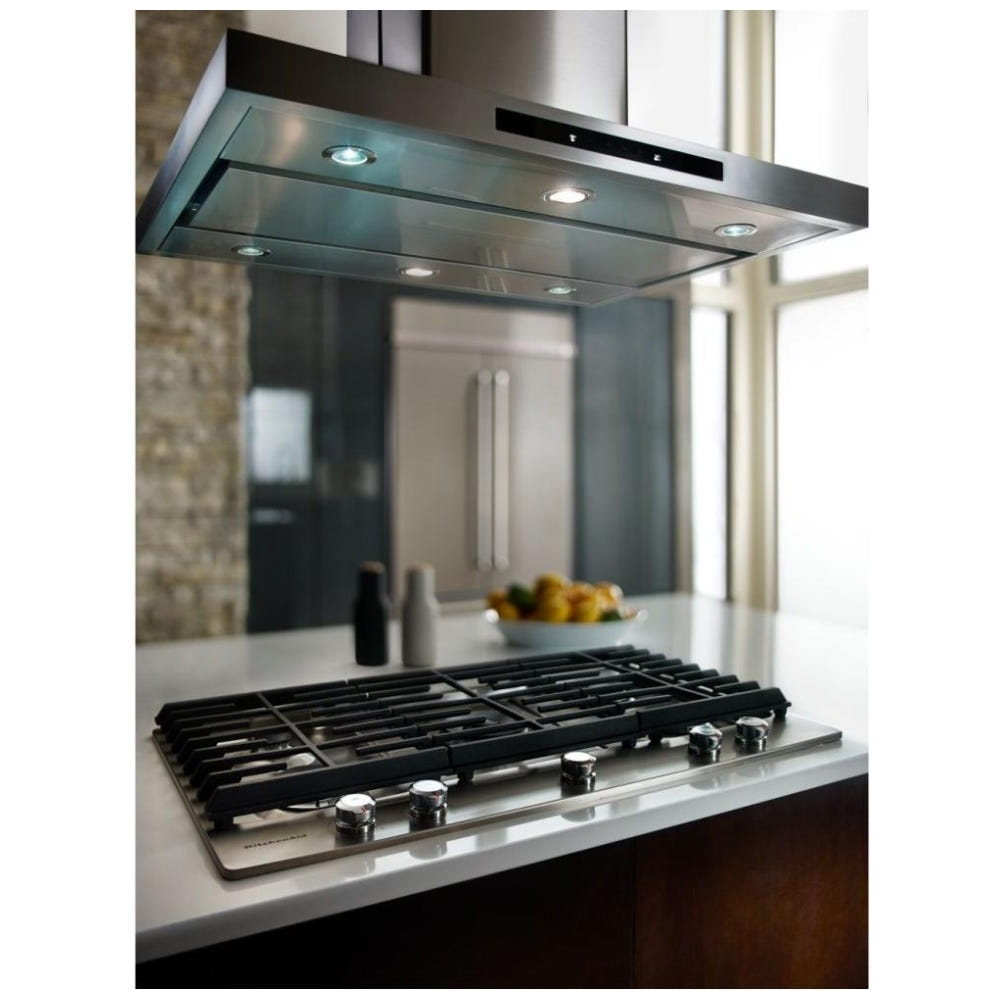

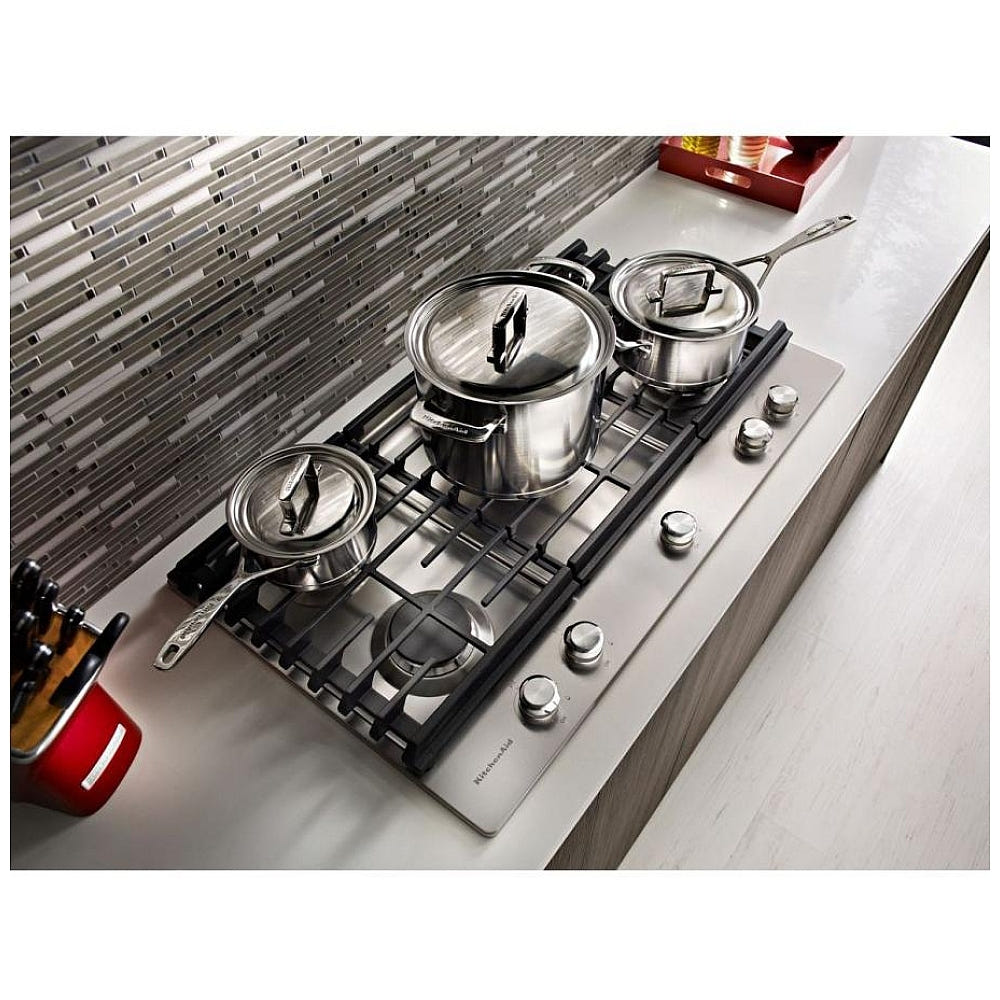

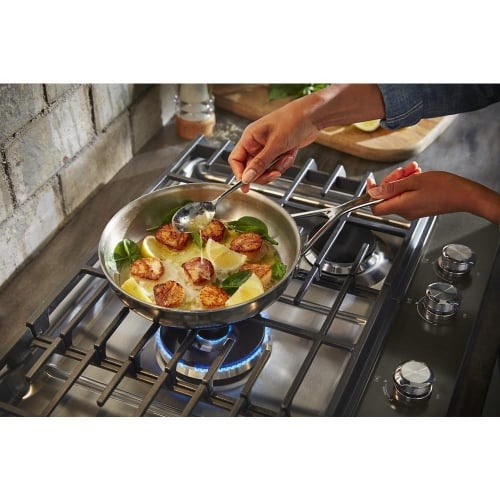

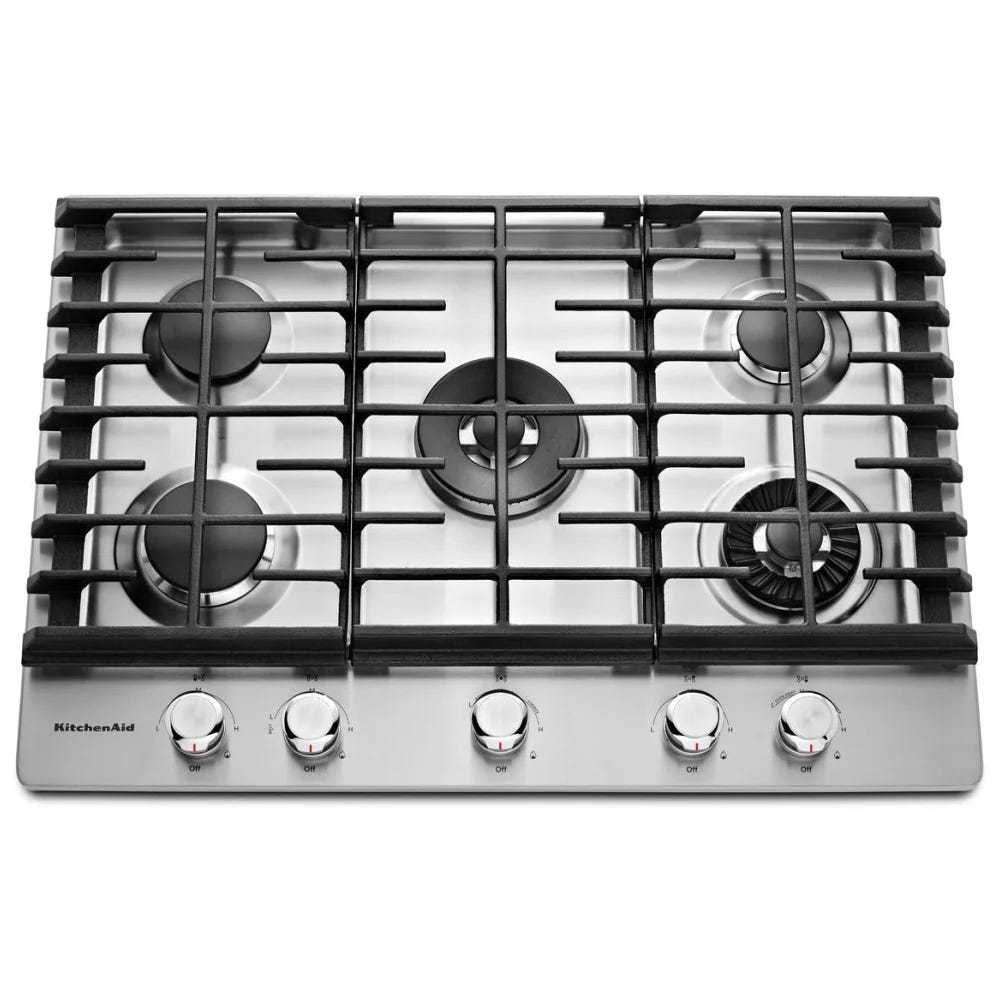

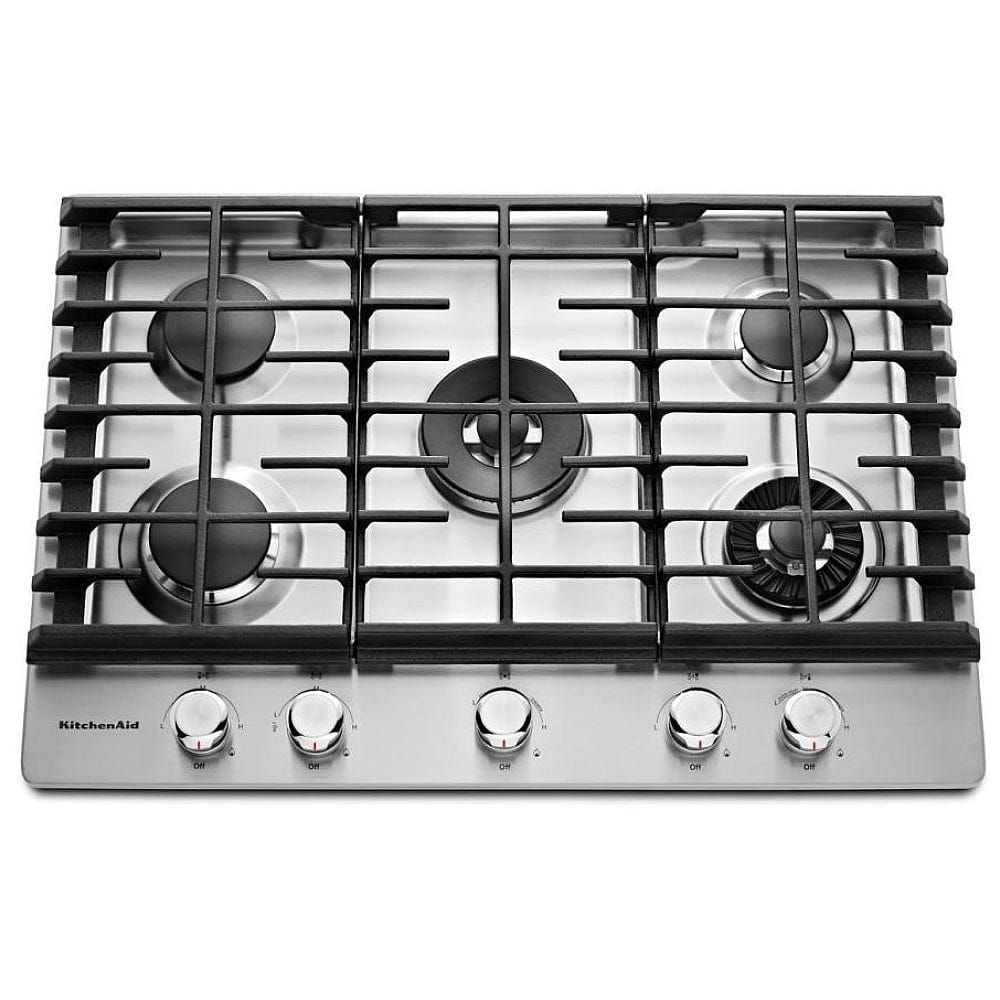

KitchenAid KCGS950ESS Gas Cooktop

Cooktop Details

Cooktop Surface Color Color Coordinated

Cooktop Surface Material Stainless Steel

Digital Display No

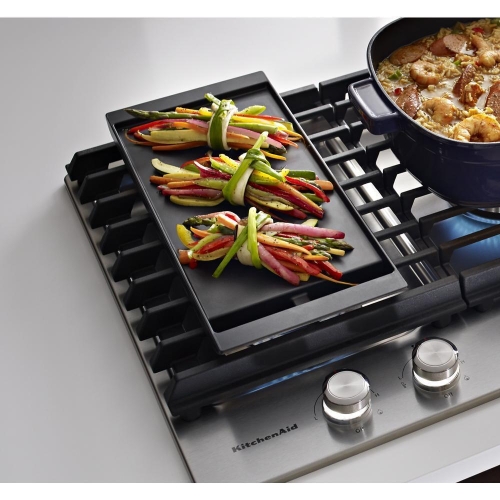

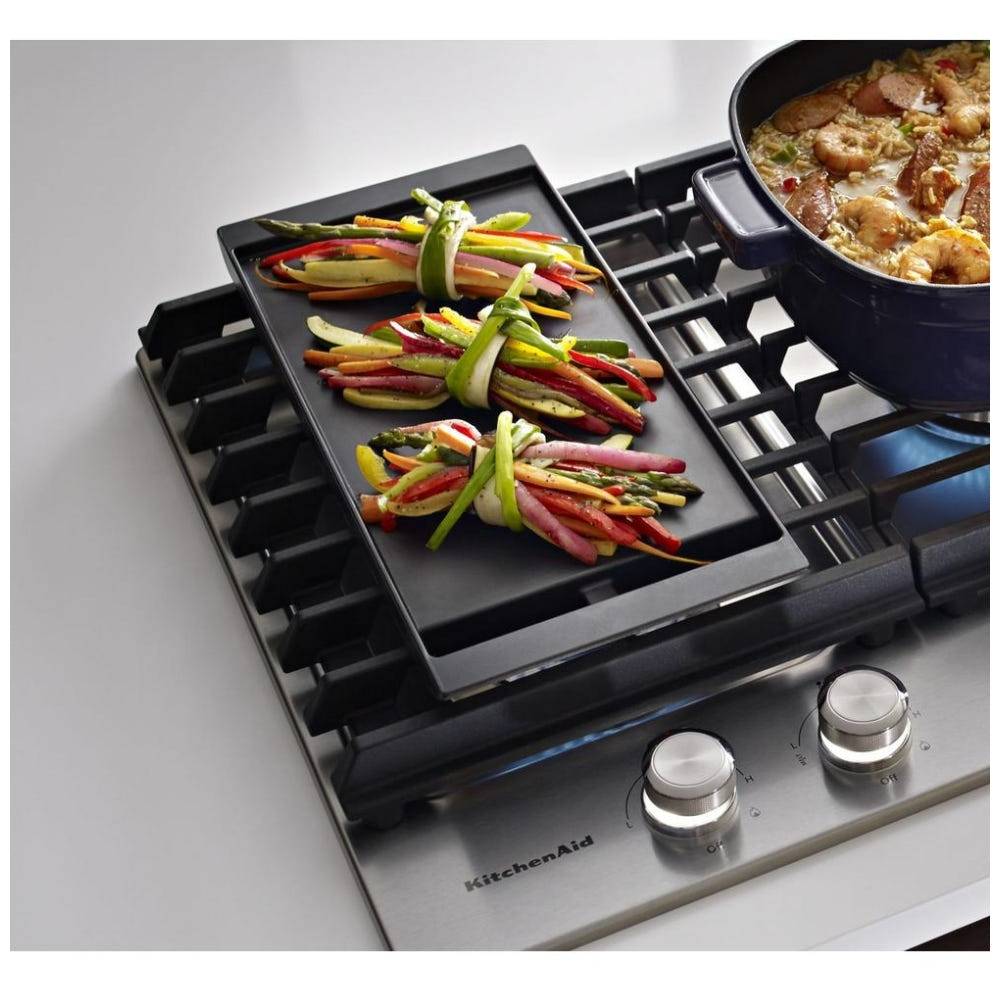

Griddle Included Included

Heating Element On Indicator Light Yes

Hot Surface Indicator Light No

Ignition Type Direct Spark Ignition

Number of Open Bays N/A

Details

Automatic Pan Detection No

Combinations With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Cooktop Selections Automatic Reignition; Simmer

Fuel Type Gas

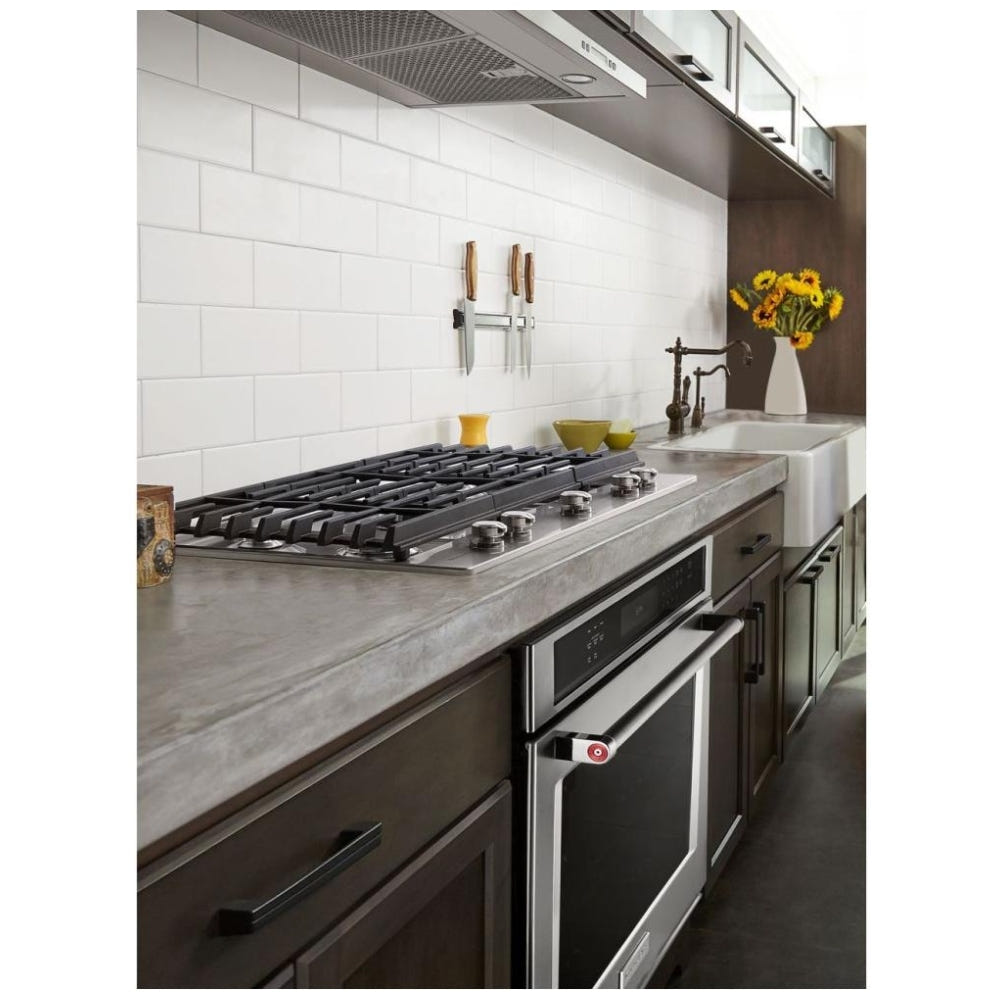

Installs Over Built-in Oven Yes

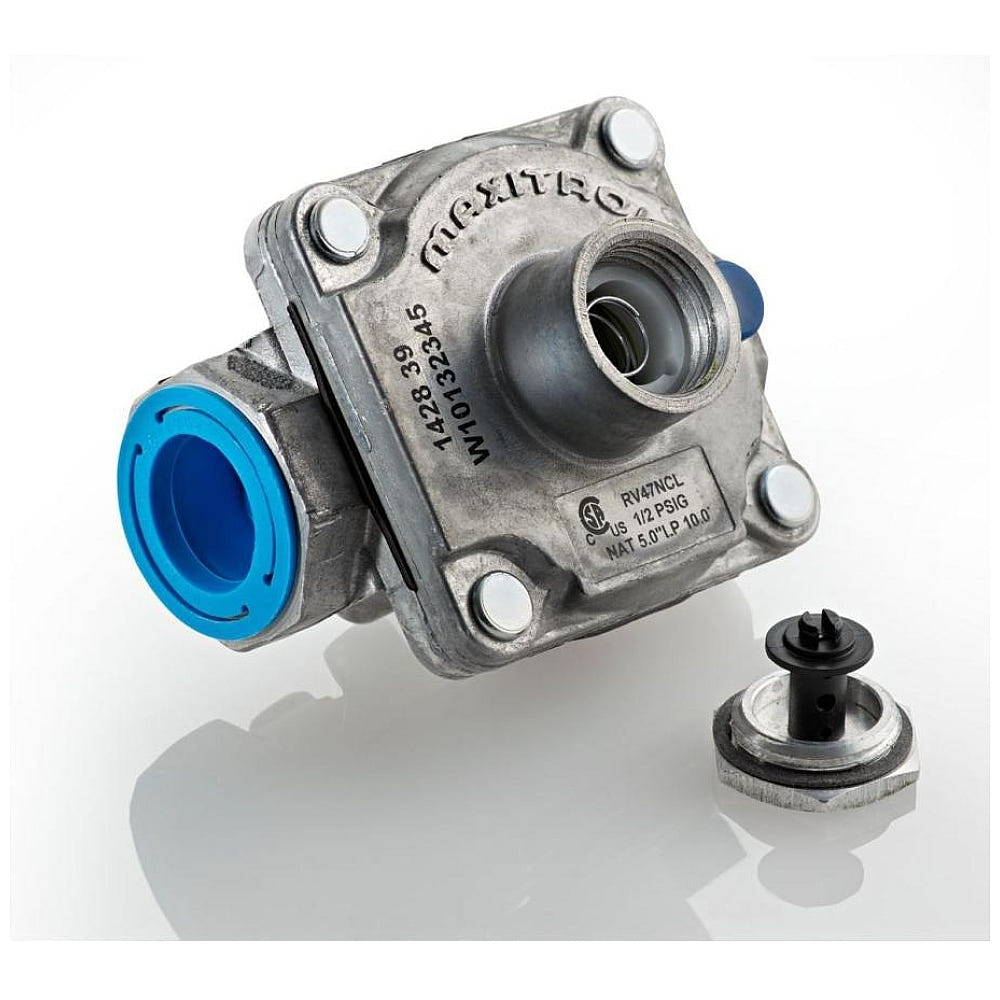

Lp Convertible Yes - Kit Included

Power Outage Compatible Yes

Dimensions

Product Height 3.6875

Carton Height 12.04

Gross Weight 66

Carton Width 34.76

Product Depth 21.0

Cutout Depth Max 20

Cutout Width Min 28.5

Cutout Depth 19.813

Cutout Height 5.25

Carton Depth 25

Cutout Width 28.875

Cutout Depth Min 19.5

Cutout Width Max 29.313

Net Weight 0

Product Width 30.0

Electrical

Power Cord Included Yes

Element/burner Details

Center Rear Element-burner Power 17,000 BTU

Center Rear Element-burner Type Professional Dual Tier

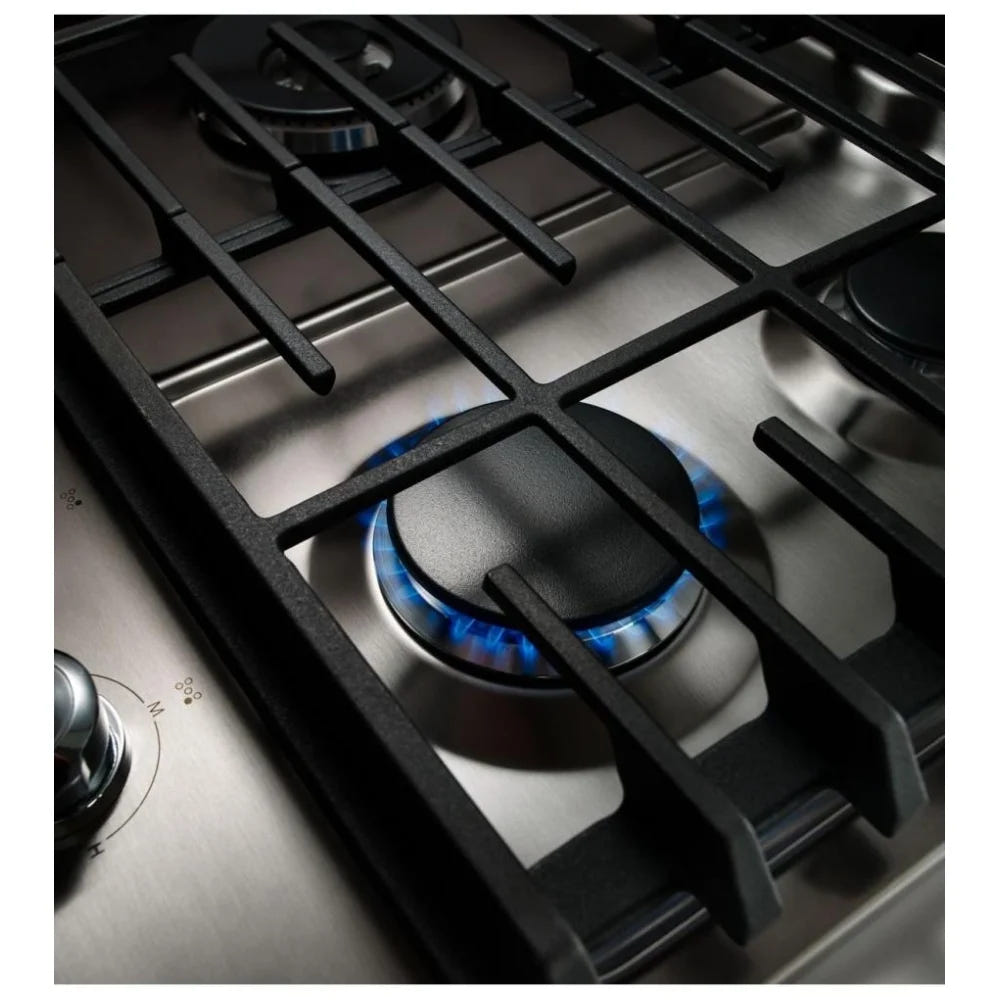

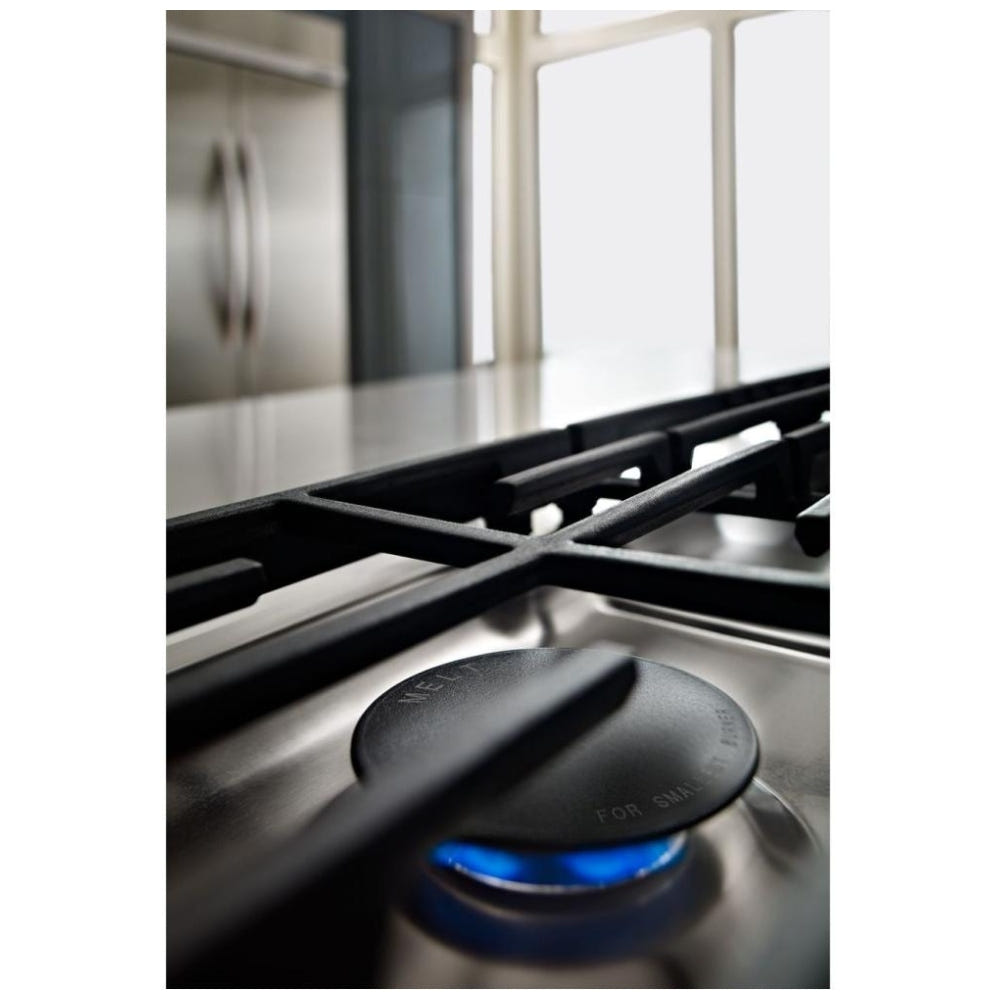

Cooktop Element Style Sealed Burner

Cooktop Type Standard

Left Front Element-burner Power 12,000 BTU

Left Front Element-burner Type Burner

Left Rear Element-burner Power 6,000 BTU

Left Rear Element-burner Type Simmer

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 10,000 BTU

Right Front Element-burner Type Even-Heat™

Right Rear Element-burner Power 7,000 BTU

Right Rear Element-burner Type Burner

Exterior Details

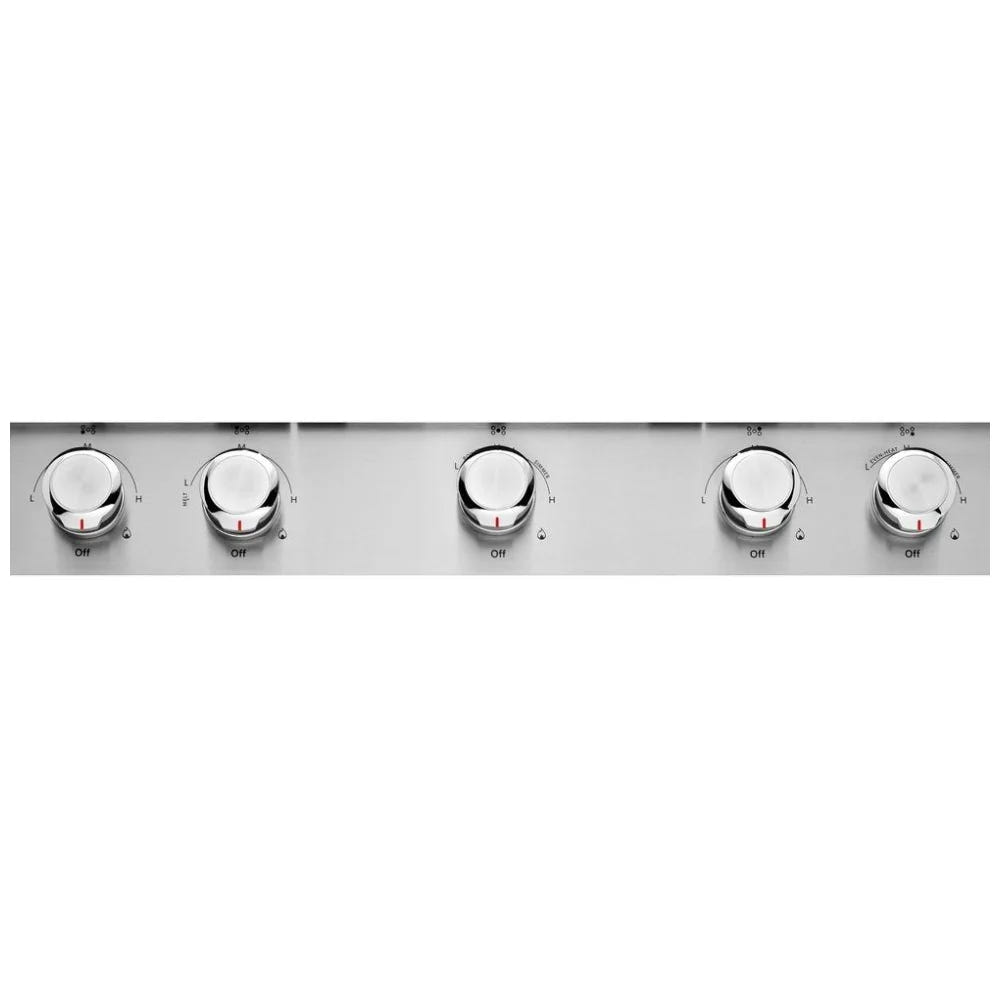

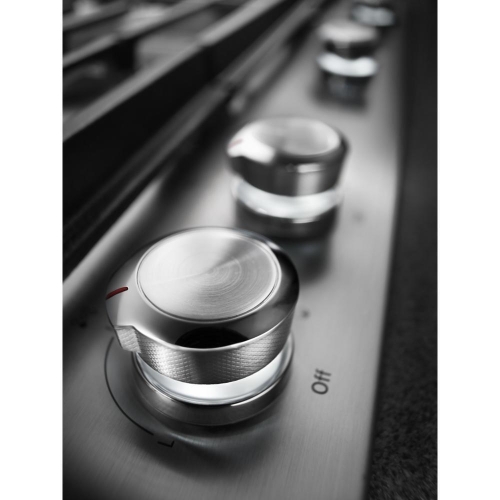

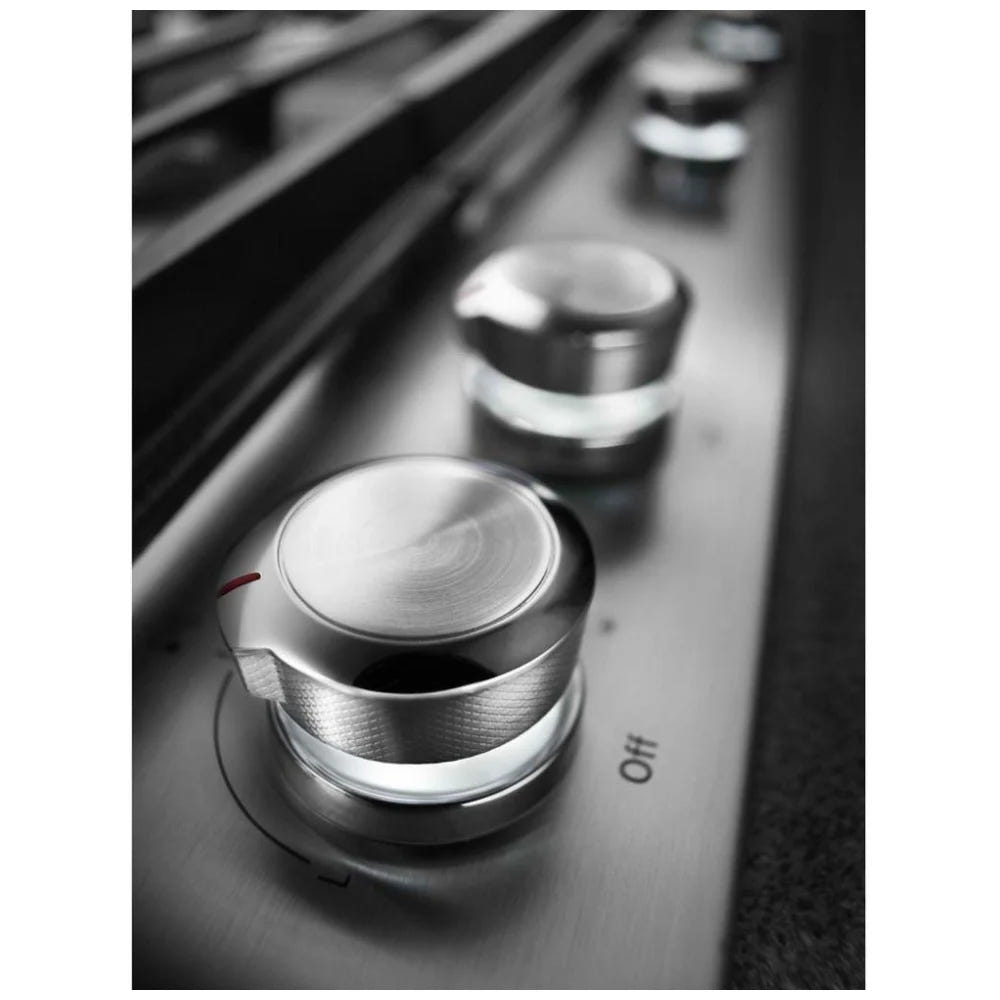

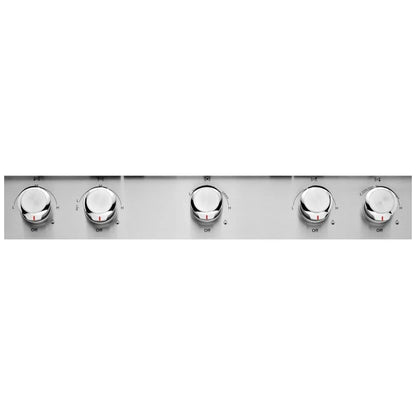

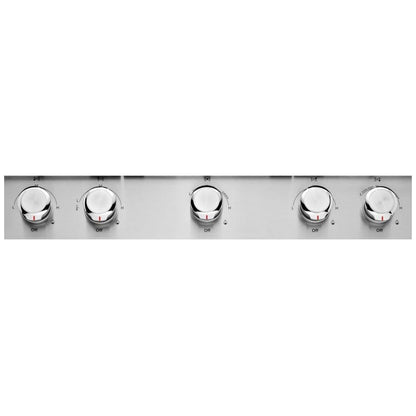

Knob Color Stainless Steel - Lighted Knobs

Knob Type Metal

General

Combination Match With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Grate Details

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates 3

Ventilation Details

Downdraft Vent No
