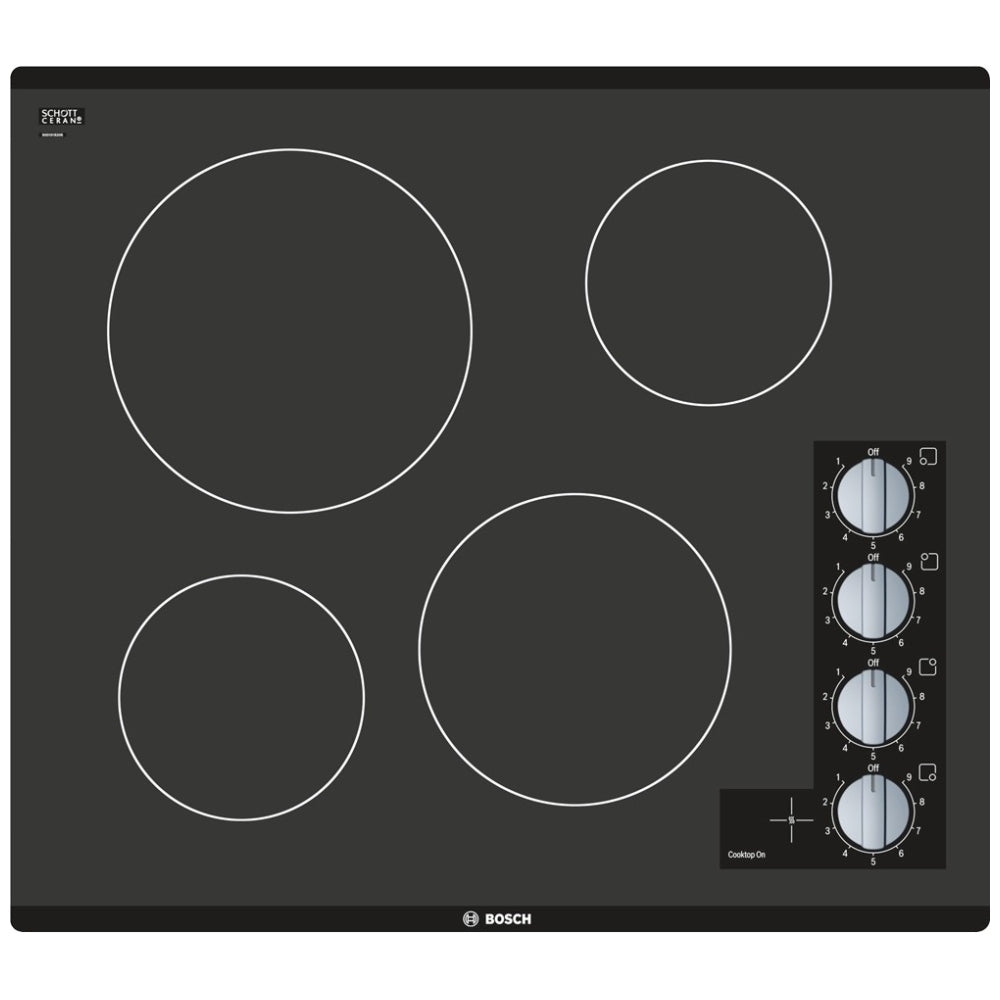

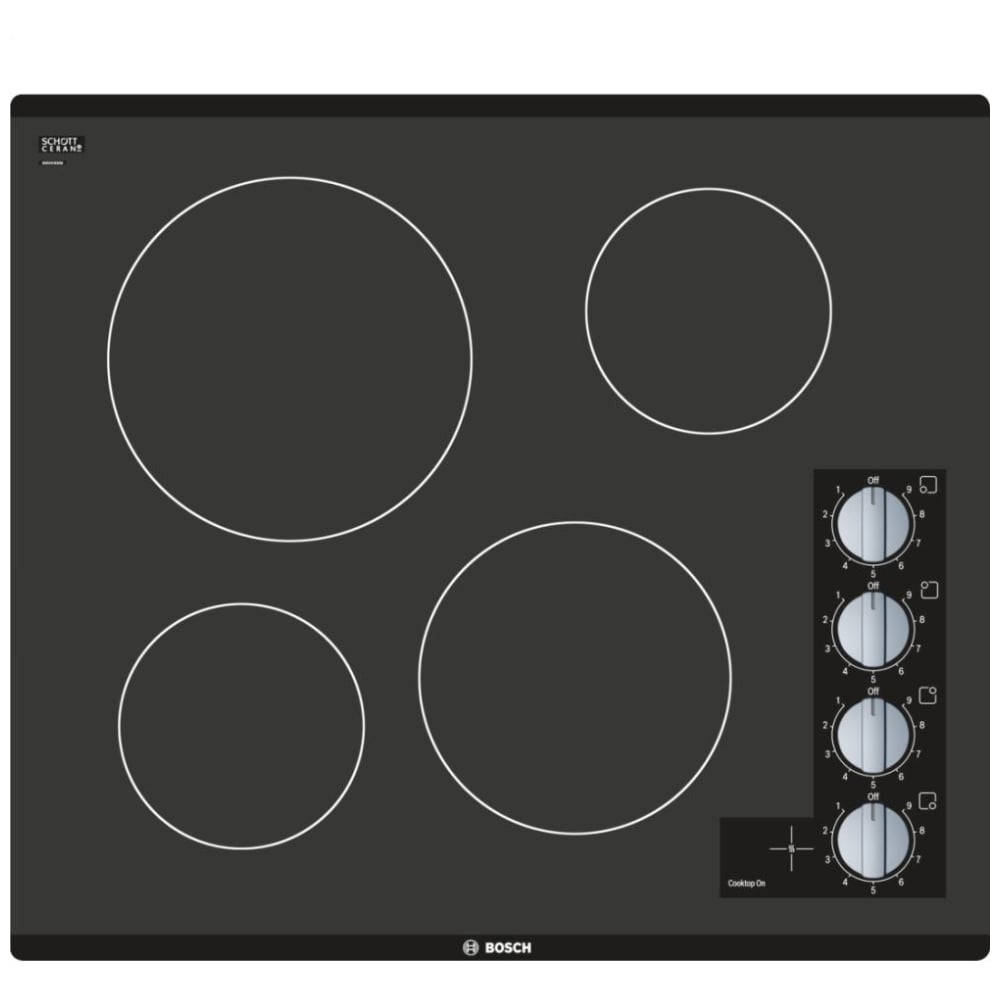

500 Series, Electric Cooktop, 24'', Black, NEM5466UC

General

Energy source Electric

Type of Control Fixed, Metal Knobs, Push-to-turn, Right

Construction type

Color of Surface Black

Design Built-in

Design - line Frameless

Number of electric elements 0

Number of electric cooking zones 4

Type of frame Frameless

Number of gas burners 0

Number of halogen elements 0

Installation Type Built-in

Total Number of Heating Elements 4

Number of radiant elements 4

Number of electric warming zones 0

Size and weight

Overall Appliance Dimensions (HxWxD) (in) 1/8" + 4 x 23" x 20 1/5"

Net Weight 19.000 lbs

Minimum distance from counter front (in)2 1/4

Minimum distance from rear wall (in)2

Cooking zone 1

Dimension of 1st heating element (in)6"

Location of heating element front left

Power of heating element (kW)1.85 kW

Type of heating element Radiant heating

Cooking zone 2

Location of 2nd heating element center left

Cooking zone 3

Dimension of 3rd heating element (in)8"

Location of 3rd heating element back left

Power of 3rd heating element (kW)2.2 kW

Type of 3rd heating element Radiant heating

Cooking zone 4

Location of 4th heating element middle back

Cooking zone 5

Dimension of 5th heating element (in)6"

Location of 5th heating element back right

Power of 5th heating element (kW)1.2 kW

Type of 5th heating element Radiant heating

Cooking zone 6

Location of 6th heating element center right

Cooking zone 7

Dimension of 7th heating element (in)7"

Location of 7th heating element front right

Power of 7th heating element (kW)1.8 kW

Type of 7th heating element Radiant heating

Cooking zone 8

Location of 8th heating element front middle / central

Cooking zone 9

Location of 9th heating element front centre/cent

Safety

Residual Heat Indicator SeparateConnection

Frequency 60 Hz

Energy source Electric

Watts7,100 W
