30" Electric Cooktop, 4 burner NET8069UC

General

Energy source Electric

Type of Control DirectSelect 1.0 (Timer), Front

Safety Auto Safety Shutoff, Childproof Lock, Panel Lock

Features 17 power levelsConstruction type

Color of Surface Black

Design Built-in

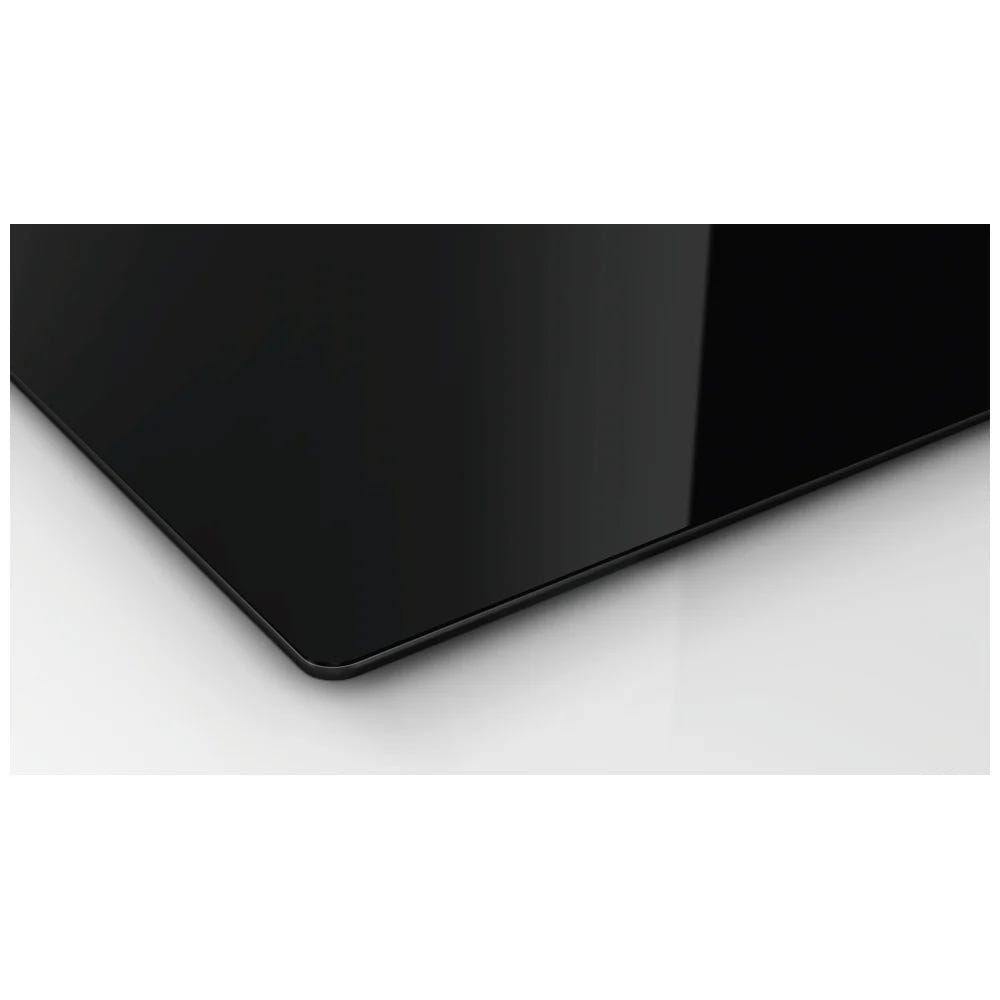

Design - line Frameless

Number of electric elements 0

Number of electric cooking zones 4

Type of frame Frameless

Number of Gas Burners 0

Number of halogen elements 0

Installation Type Built-in

Total Number of Heating Elements 4

Number of radiant elements 4

Number of electric warming zones 0

Size and weight

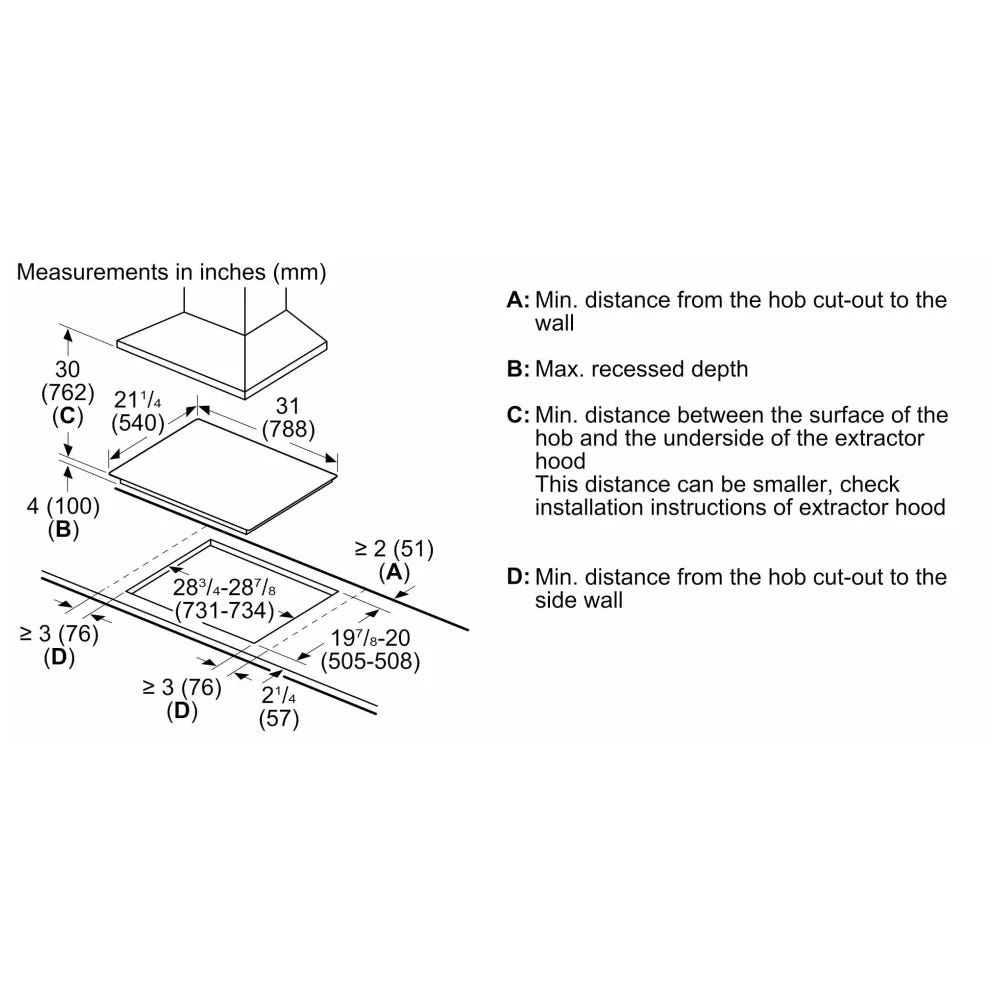

Overall Appliance Dimensions (HxWxD) (in) 1/4" + 4 " x 31" x 21 1/4"

Net Weight 26.000 lbs

Minimum distance from counter front (in) 2 1/4

Minimum distance from rear wall (in) 2

Cooking zone 1

Dimension of 1st heating element (in) 7"

Location of heating element front left

Type of heating element Radiant heating

Cooking zone 2

Location of 2nd heating element center left

Cooking zone 3

Dimension of 3rd heating element (in) 7"

Location of 3rd heating element back left

Type of 3rd heating element Radiant heating

Cooking zone 4

Location of 4th heating element middle back

Cooking zone 5

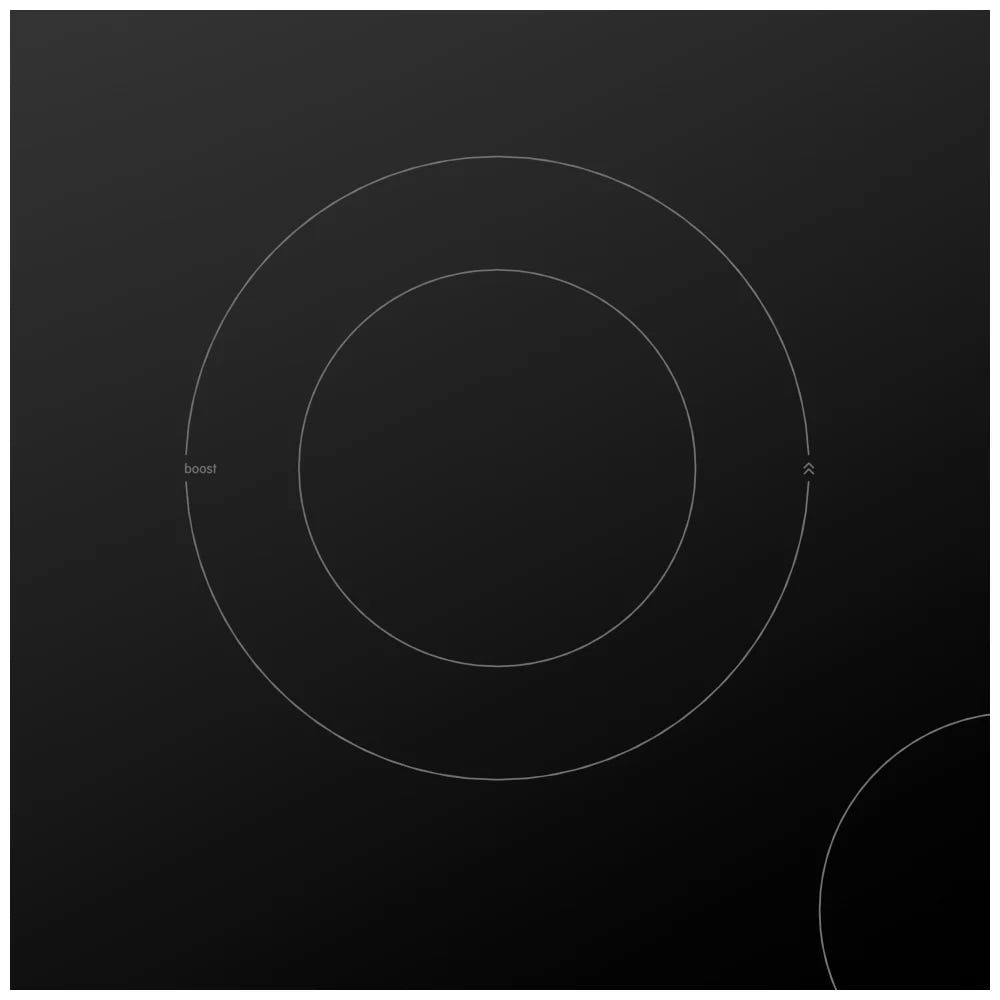

Dimension of 5th heating element (in) 6" ; 9"

Location of 5th heating element back right

Type of 5th heating element Radiant heating

Cooking zone 6

Location of 6th heating element center right

Cooking zone 7

Dimension of 7th heating element (in) 6"

Location of 7th heating element front right

Type of 7th heating element Radiant heating

Cooking zone 8

Location of 8th heating element front middle / central

Cooking zone 9

Location of 9th heating element front centre/cent
