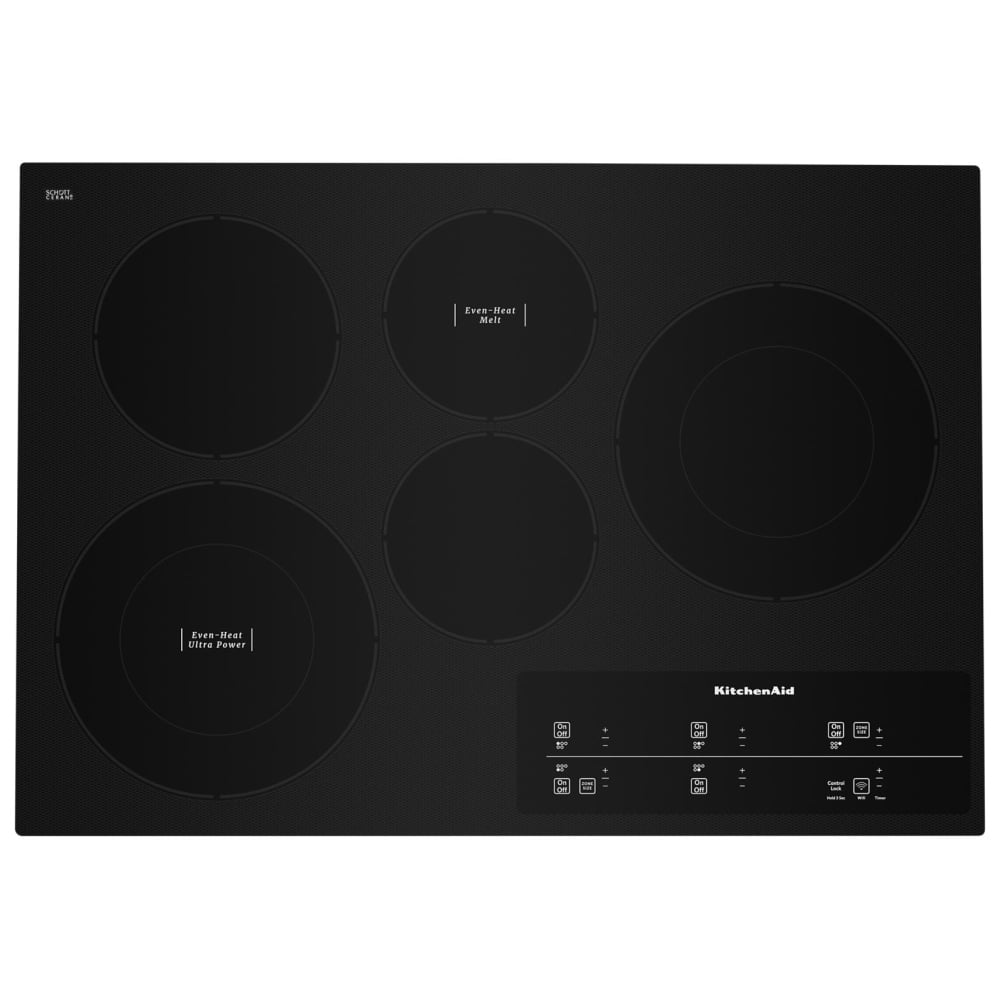

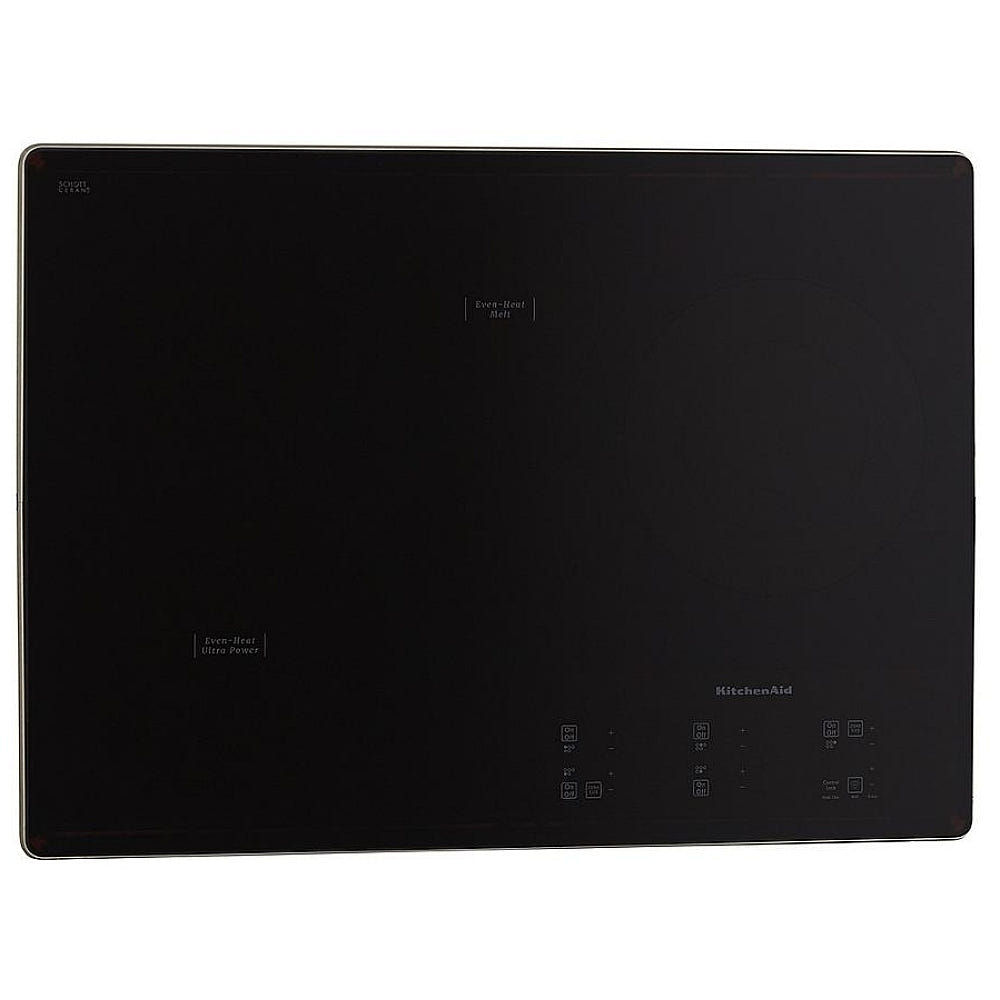

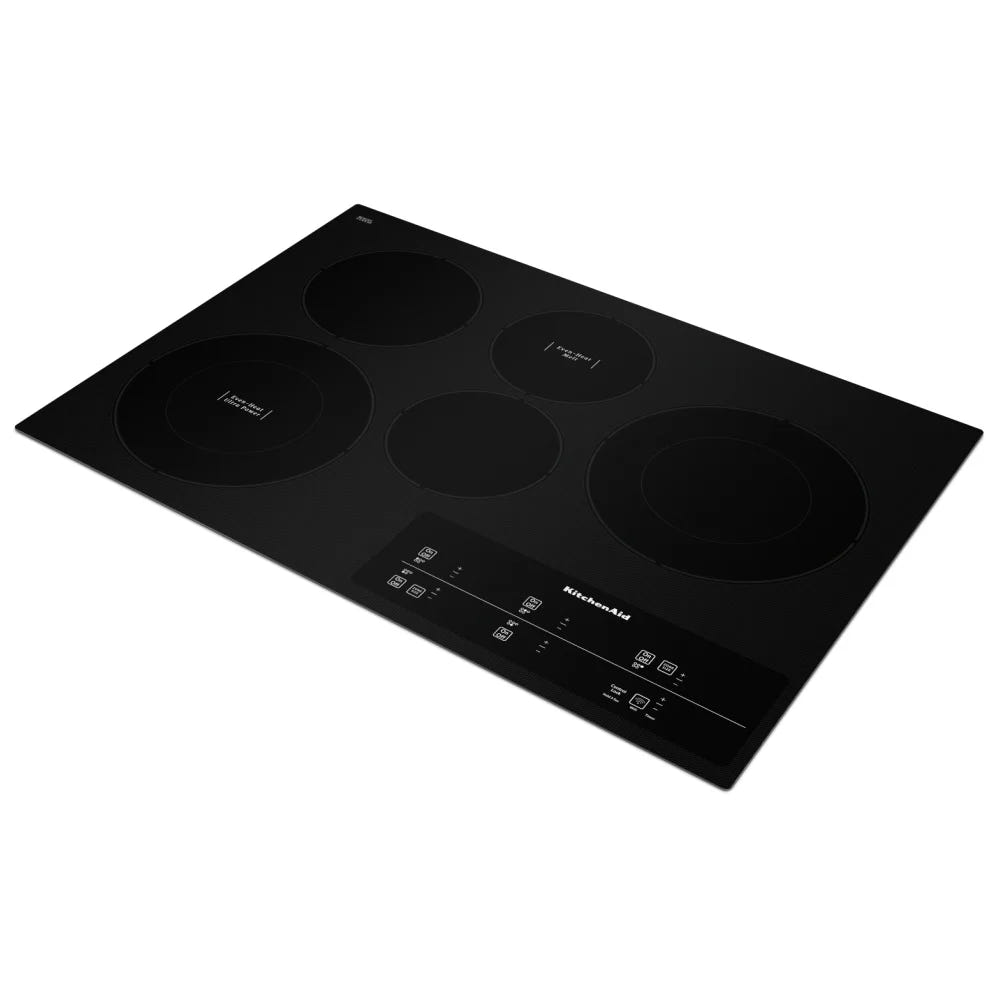

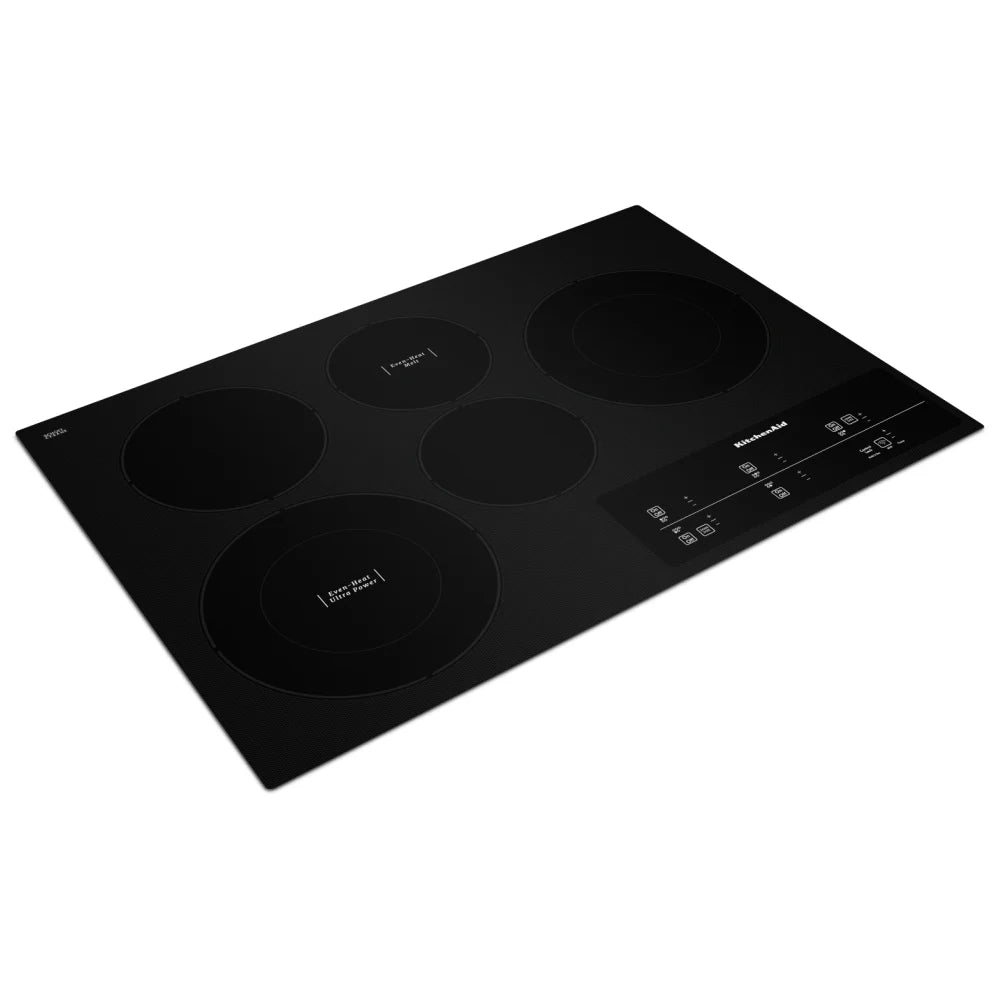

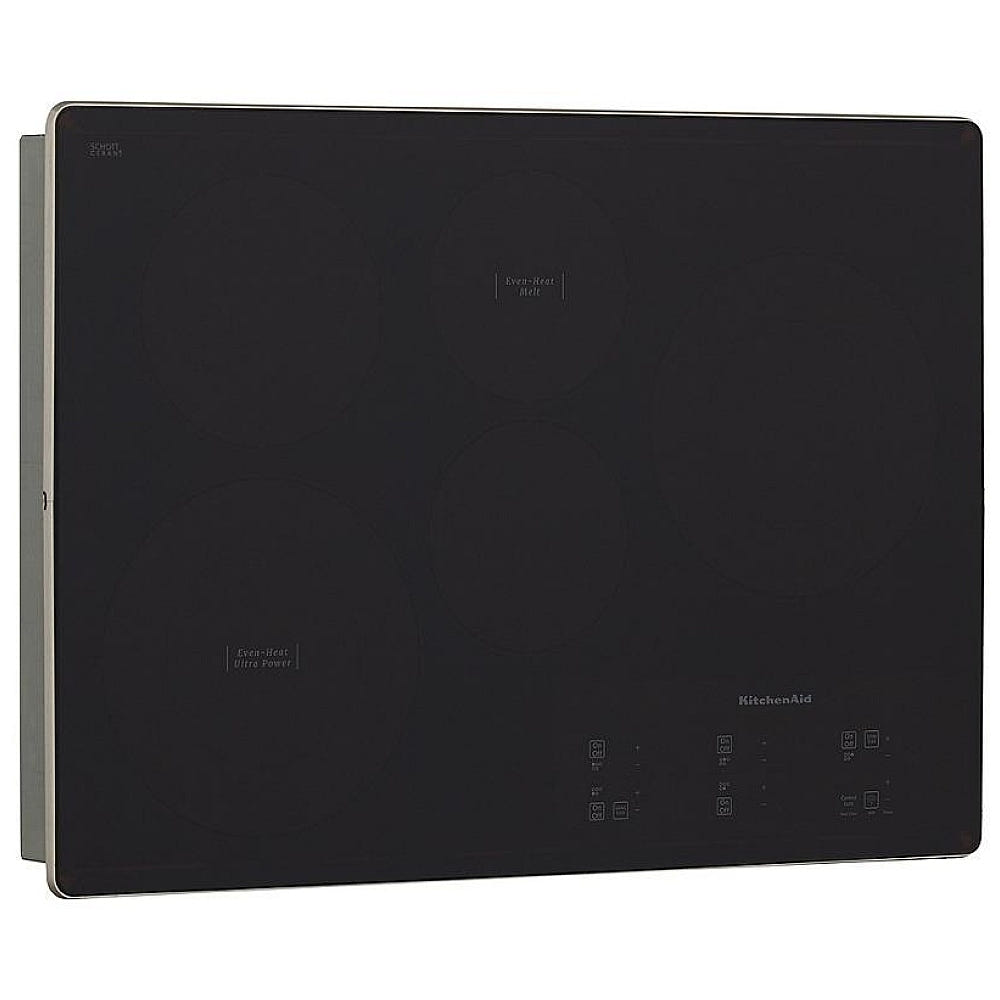

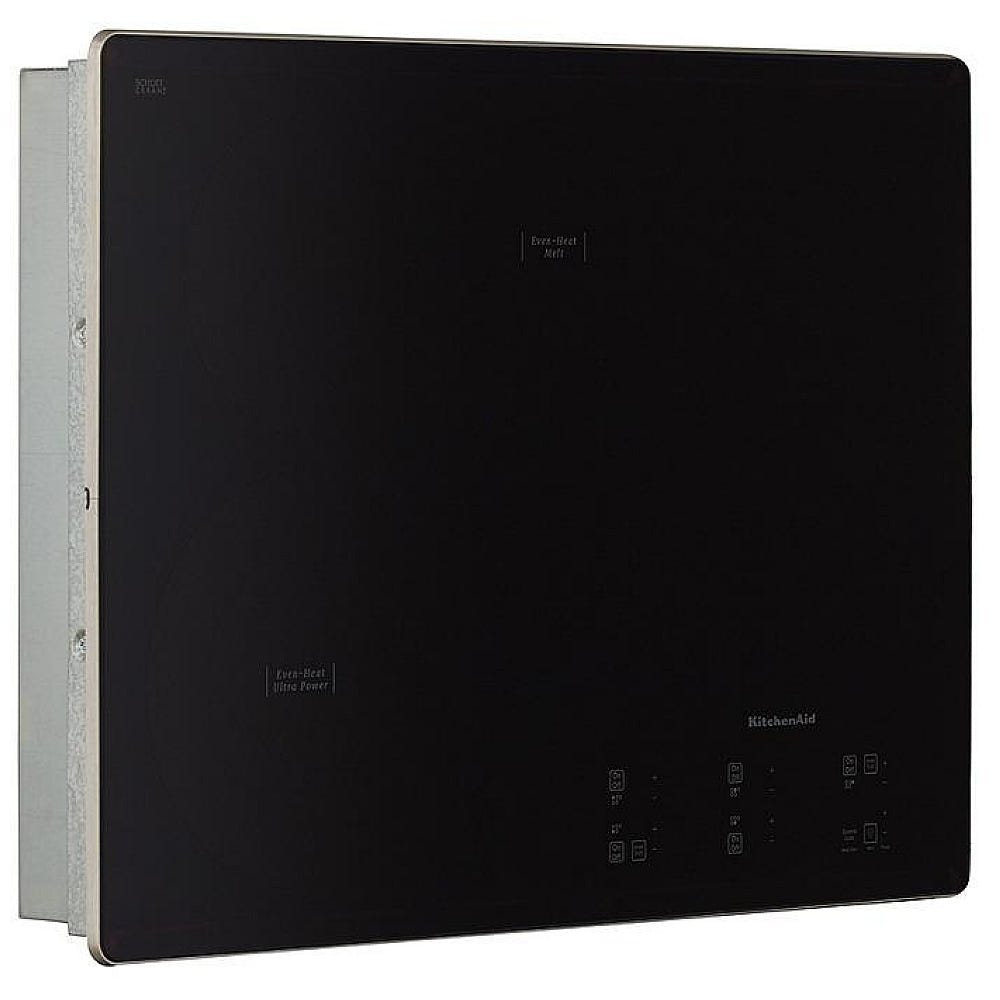

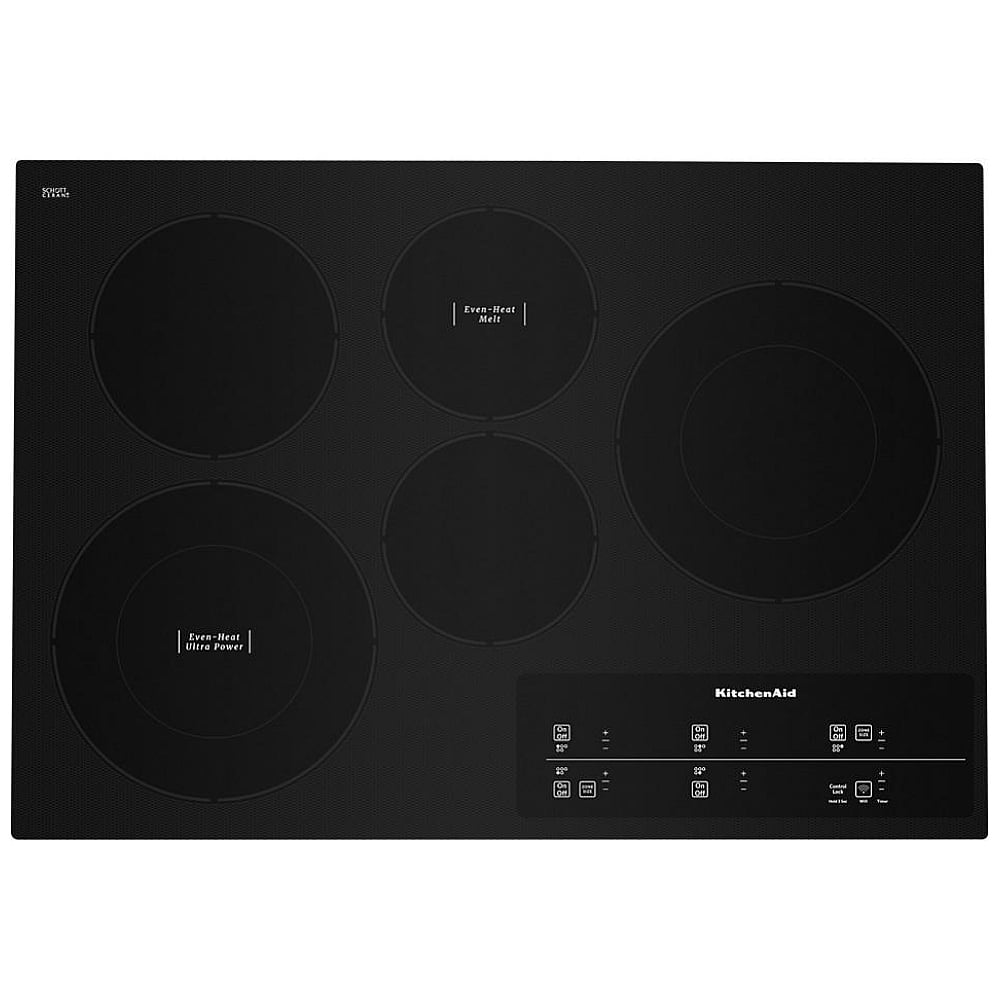

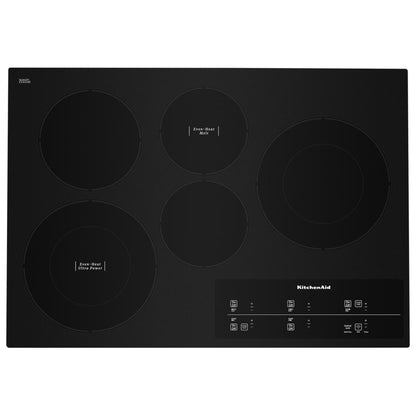

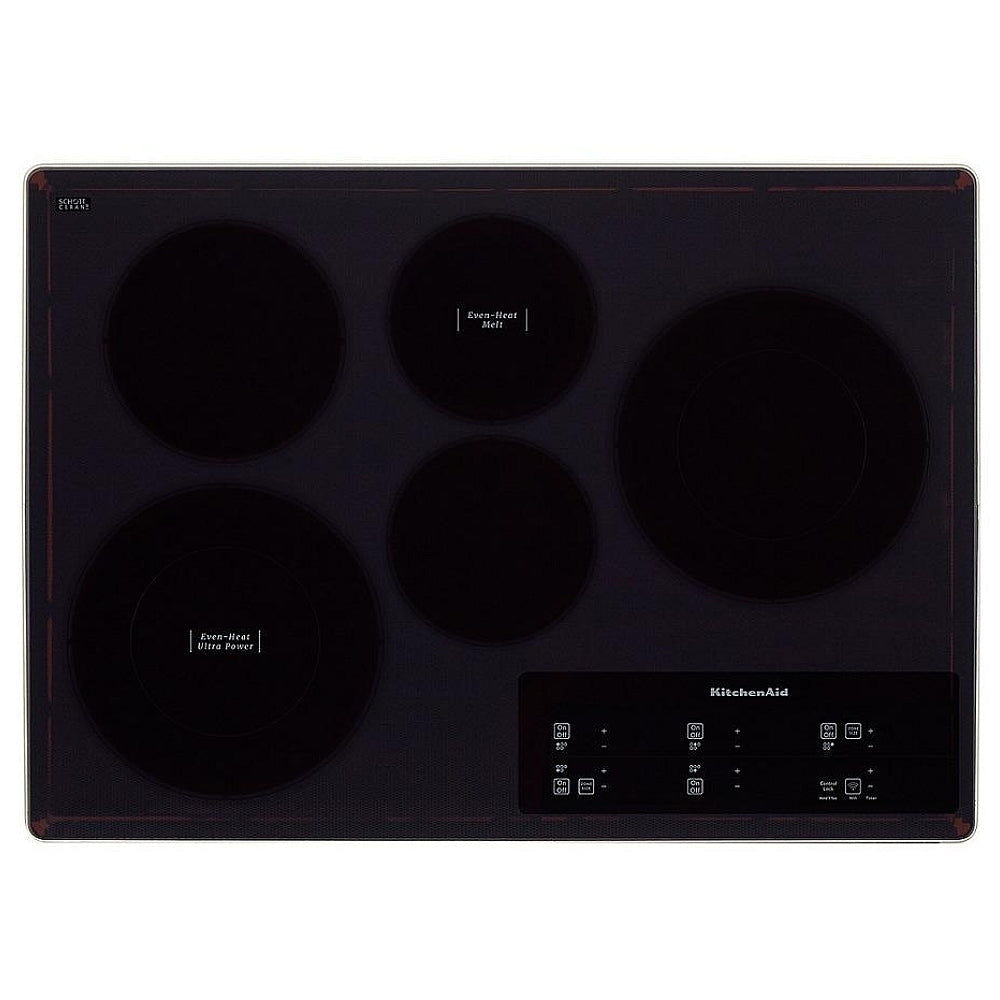

KitchenAid KCES950KBL Electric Cooktop, 30 inch Exterior Width, 5 Burners, Black colour

Cooktop Details

Cooktop Surface Color Black

Cooktop Surface Material Glass

Digital Display No

Griddle Included N/A

Heating Element On Indicator Light Yes

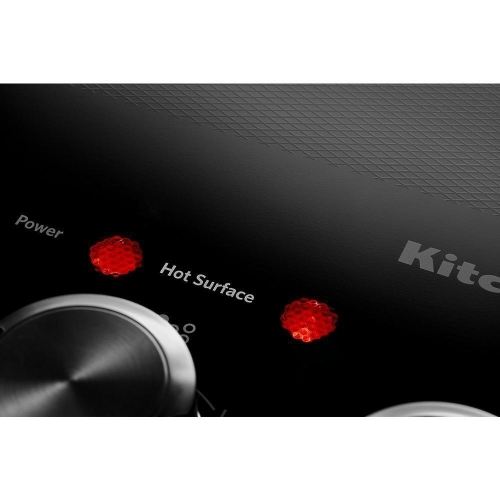

Hot Surface Indicator Light Yes

Details

Automatic Pan Detection No

Automatic Pan Size Adjustment No

Combinations With Oven KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Cooktop Configuration All Burners

Fuel Type Electric

Installs Over Built-in Oven Yes

Lp Convertible No

Power Outage Compatible No

Dimensions

Product Height 3.625

Carton Height 9.25

Gross Weight 46

Carton Depth 25

Carton Width 35

Product Depth 20.25

Cutout Depth Min 20.375

Cutout Width Max 29.563

Net Weight 41

Product Width 29.0

Cutout Depth Max 20.563

Cutout Width Min 29.063

Electrical

208v Compatible Yes

Power Cord Included No

Element/burner Details

Center Front Element-burner Power 1,200W

Center Front Element-burner Size 6in.

Center Front Element-burner Type Standard

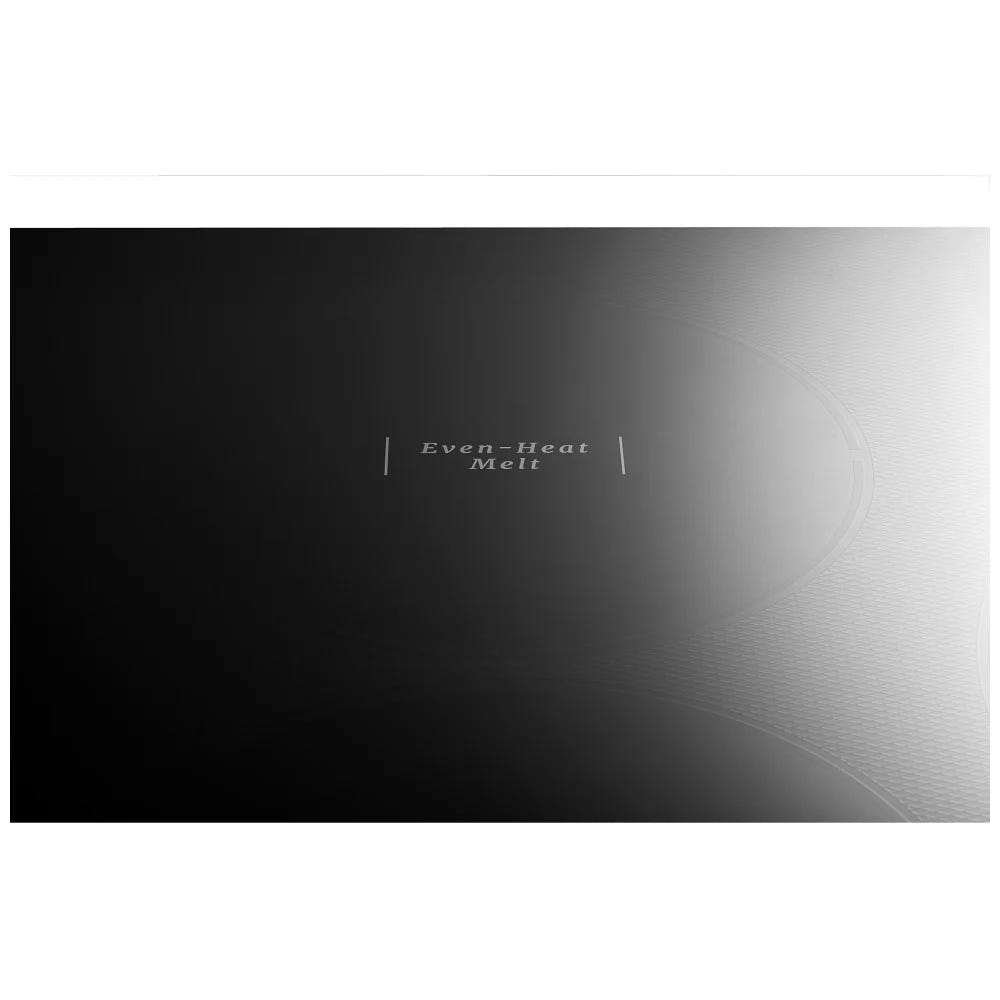

Center Rear Element-burner Power 1,300W

Center Rear Element-burner Size6in.

Center Rear Element-burner Type Even Heat

Cooktop Element Style Radiant

Cooktop Type Standard

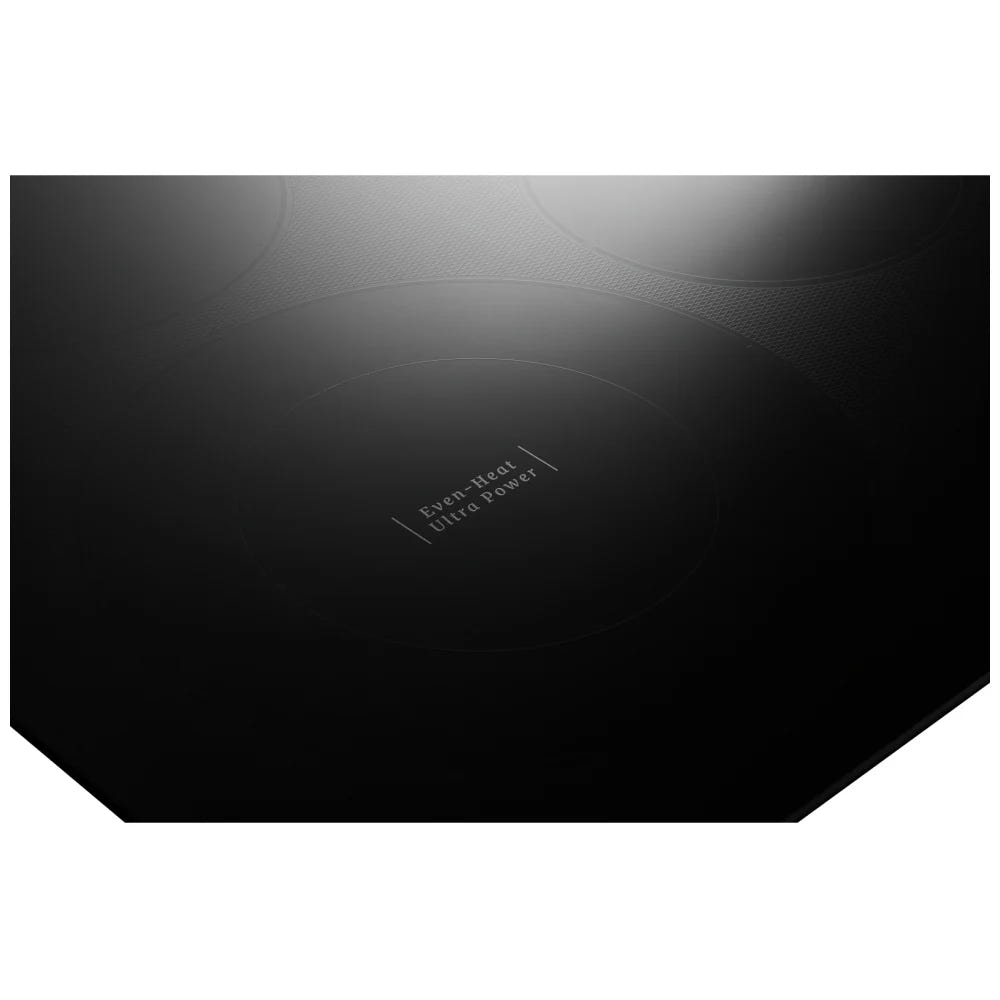

Left Front Element-burner Power 3200/2300W

Left Front Element-burner Size 10in./6in.

Left Front Element-burner Type Even Heat Dual

Left Rear Element-burner Power 1,800W

Left Rear Element-burner Size 8in.

Left Rear Element-burner Type Standard

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 3000W/1900W

Right Front Element-burner Size 10in./6in.

Right Front Element-burner Type Dual

General

Combination Match With Oven KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Ventilation Details

Downdraft Vent No
