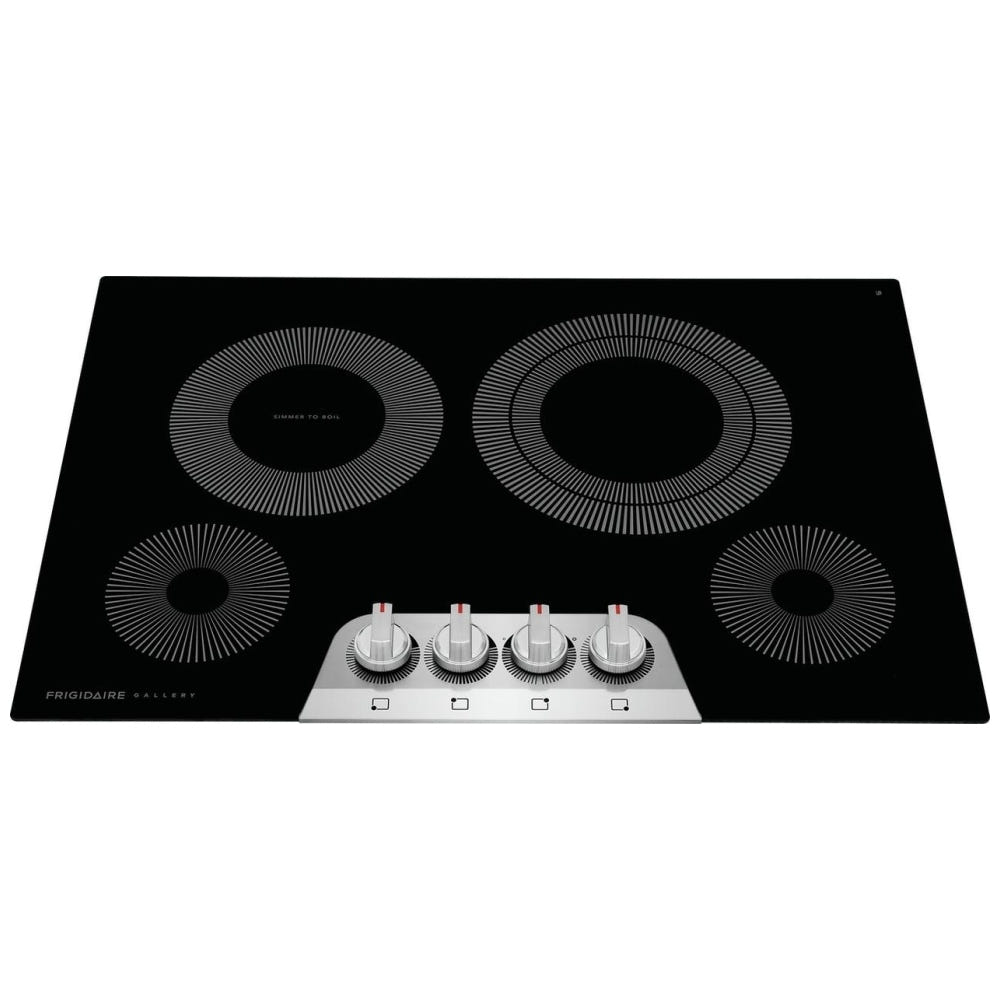

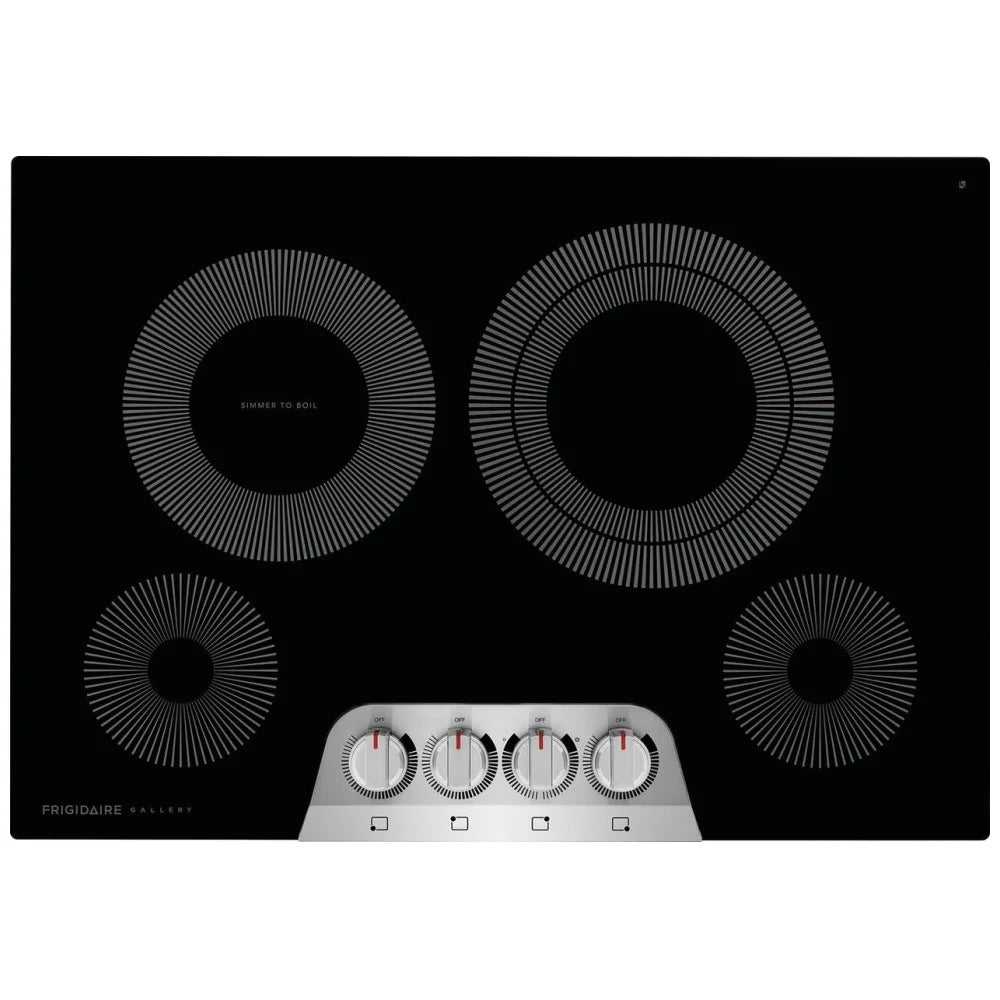

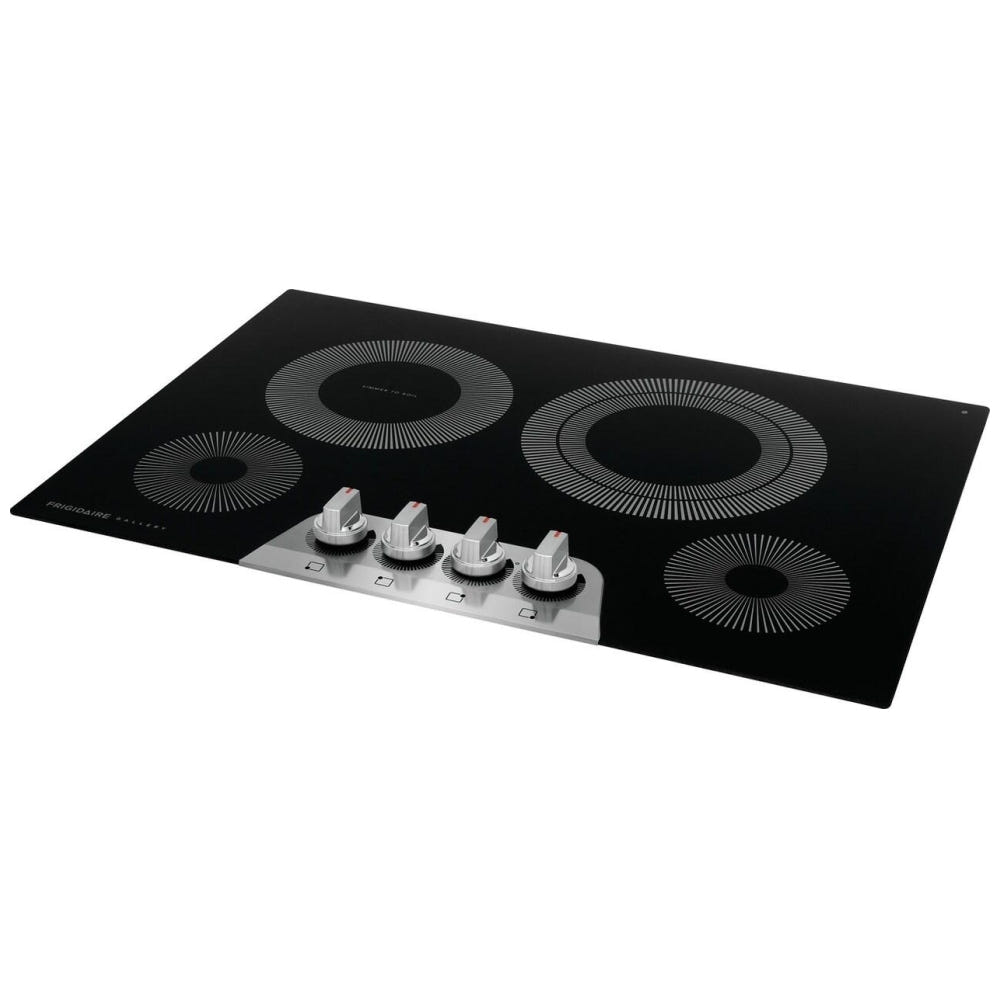

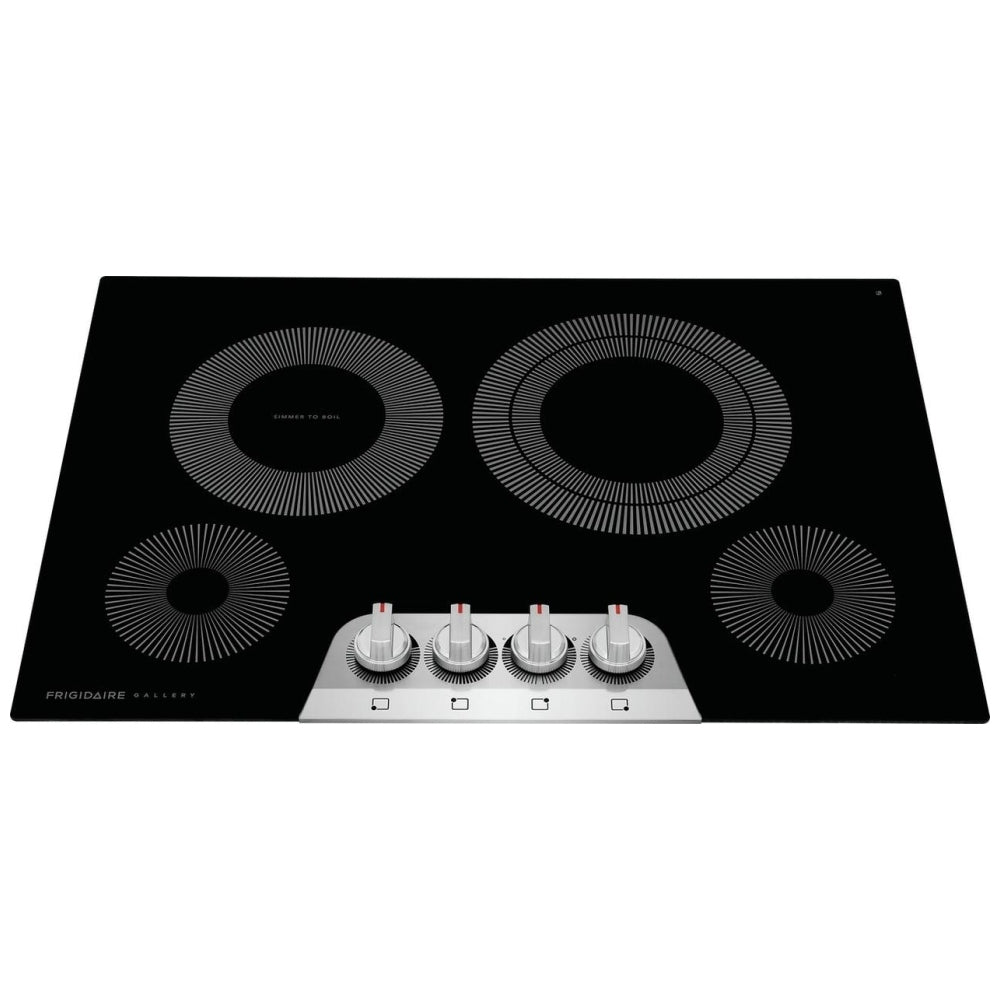

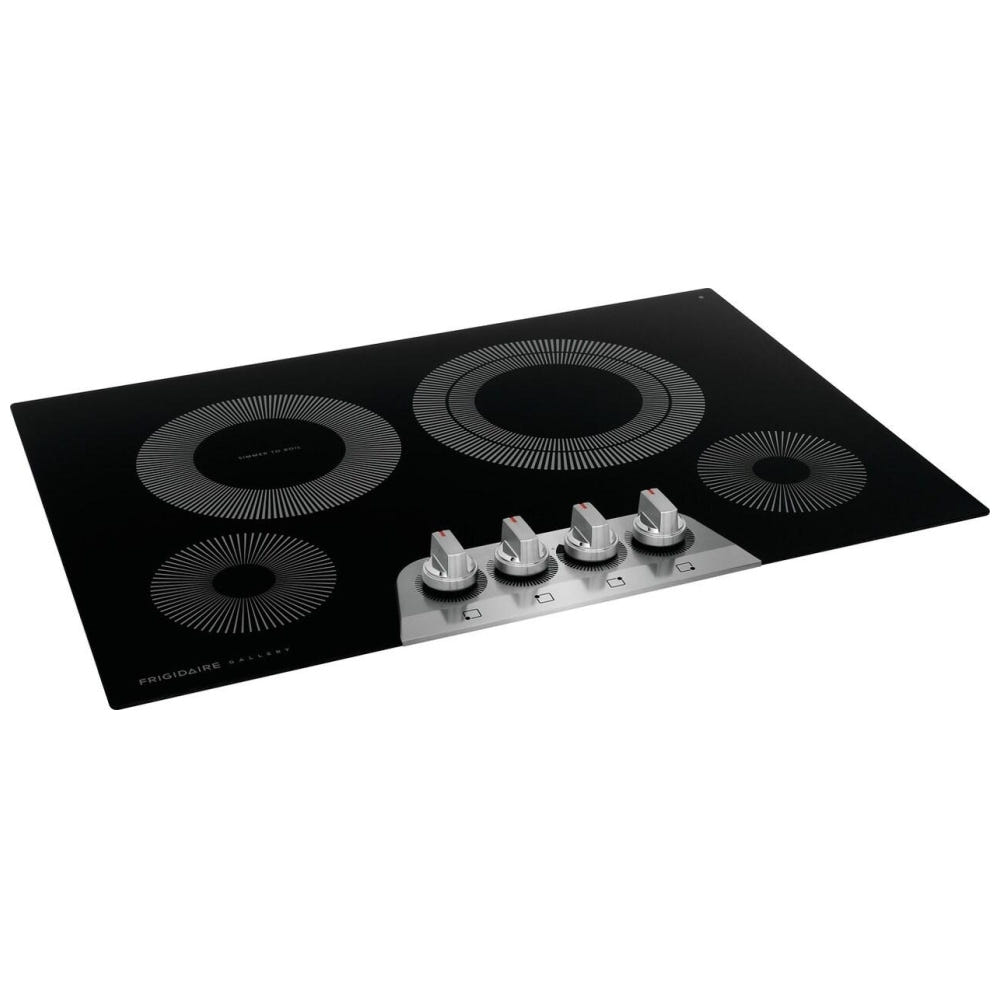

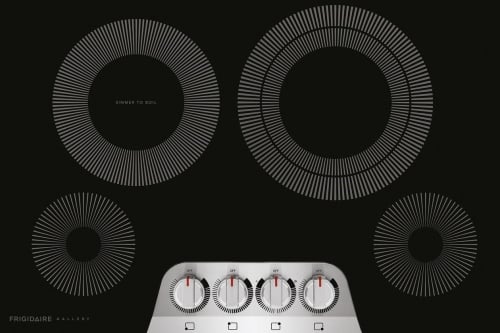

Frigidaire Gallery GCCE3049AS Electric Cooktop, 30 inch Exterior Width, 3,000 W Highest Element, Stainless Steel colour
Frigidaire
GCCE3049AS
Frigidaire Gallery GCCE3049AS Electric Cooktop, 30 inch Exterior Width, 3,000 W Highest Element, Stainless Steel colour
MSRP: $1,199.00
MAP Price MAP Price $899.00
Quick Specs
  • WiFi Enabled: No
  • Power Type: Electric Cooktop
  • Burners: 4 burners
Dimensions
W 30in
H 3in
D 22in

Key Features

  • EvenTemp™ Element for consistent heat

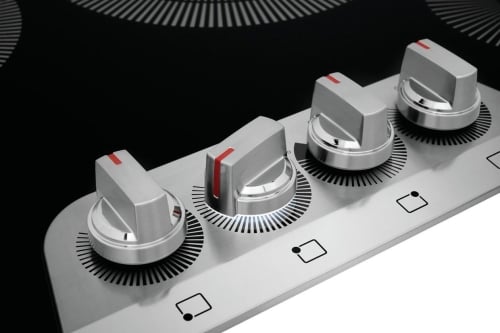

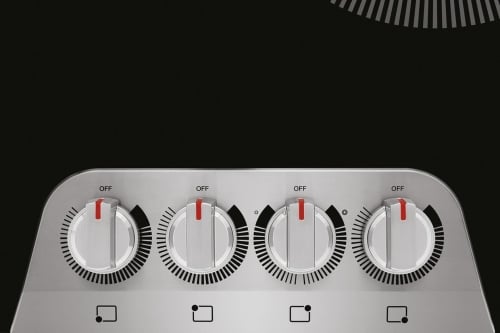

  • Backlit LED knobs for easy control
  • Frigidaire Fit Promise for a perfect fit

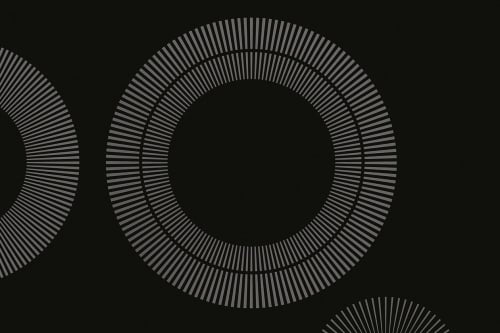

  • SpaceWise® Dual Expandable Element for flexibility
  • Cooktop Keep Warm Zone for keeping food warm

Cooktop

Cooking Surface Type Smooth

Hot-Surface Indicator Light Yes

Cooktop Performance

Right Front Element Burner Size 6"

Right Rear Element Burner Size (Small) 9"

Right Rear Element Burner Size (Large) 12"

Left Front Element Burner Size 6"

Left Rear Element Burner Size 9"

Right Front Element Burner 1200 Watts

Right Rear Element Burner (Small) 1800 Watts

Right Rear Element Burner (Large) 3000 Watts

Left Front Element Burner 1200 Watts

Left Rear Element Burner 3200 Watts

Controls

Sabbath Mode No

Display

Control LocationFront

Display TypeMechanical

Dimensions and Volume

Height2 5/8"

Width30 5/8"

Depth 21 3/8"

Cutout Height 5"

Minimum Cutout Width 28 1/2"

Minimum Cutout Depth 19 5/8"

Maximum Cutout Width 29 7/8"

Maximum Cutout Depth 20 1/2"

Electrical Specifications

Amps @ 240 Volts 35.8 Amps

Connected Load @ 240V 8.6 kW

Minimum Circuit Required 40 Amps

Voltage Rating 240 V

General Specifications

Frigidaire Fit Promise Yes

Product Weight 31 lbs

Prop 65 Label Yes

Warranty - Labor 1 Year

Warranty - Parts 1 Year

Installation

Installed Over a Wall Oven Yes

Power Supply Connection Location Right Center

Warranty Support

Warranty support and documents in one place.

Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.

Files

Brochure and warranty documents

1 file

Reviews will appear here once your reviews app is connected.

Key Features

  • EvenTemp™ Element for consistent heat

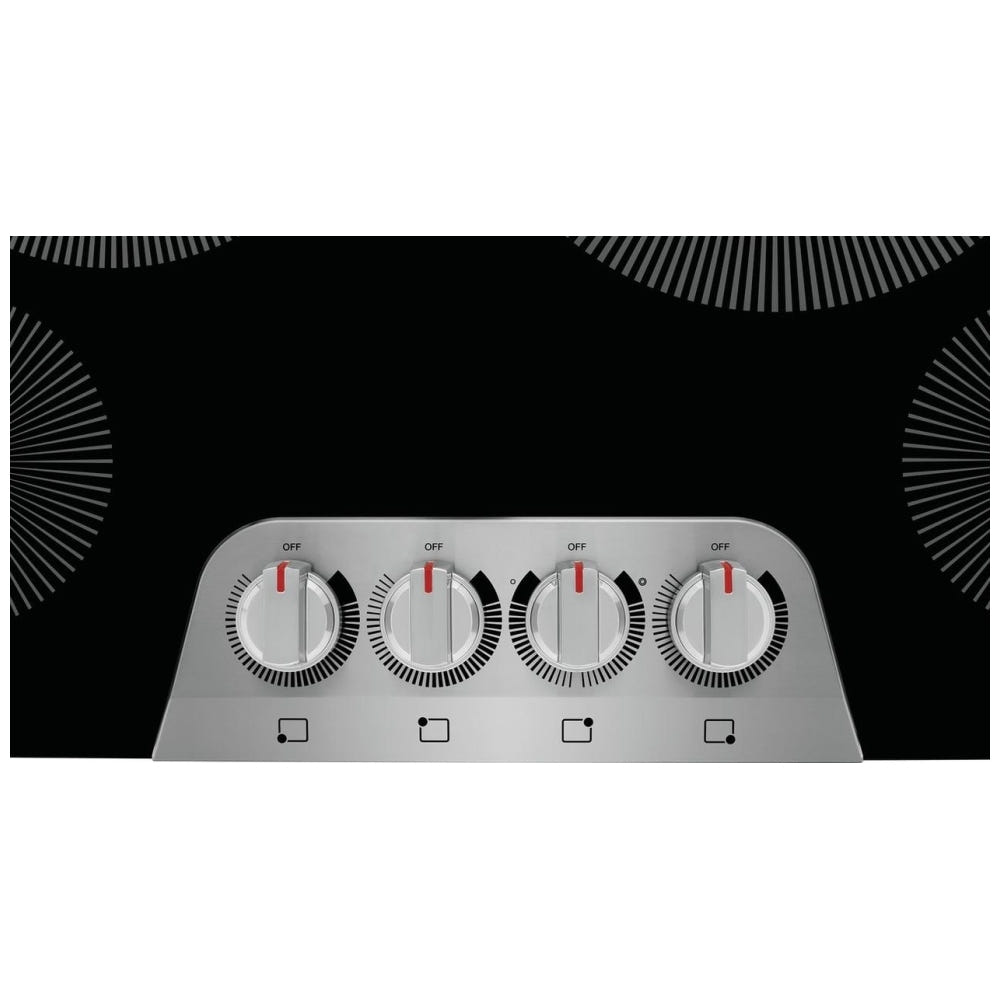

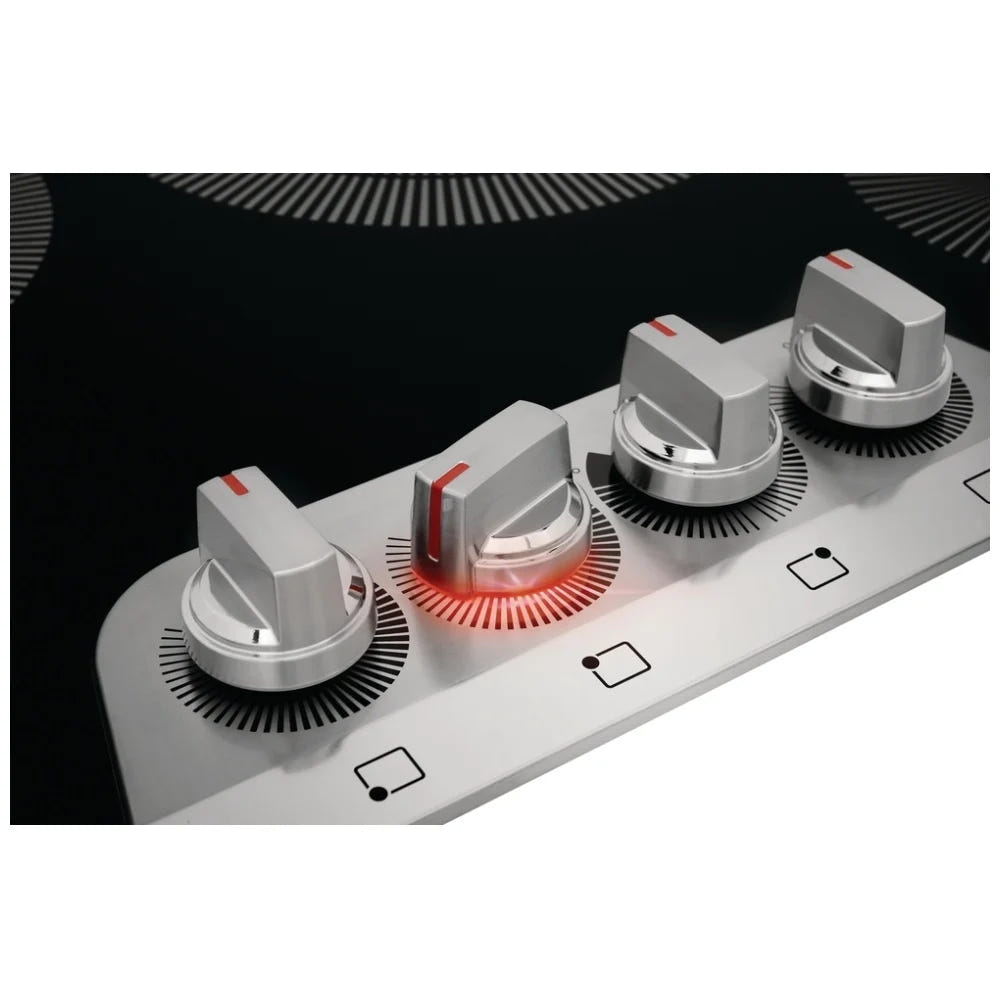

  • Backlit LED knobs for easy control
