Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Glass
Digital Display No
Griddle Included N/A

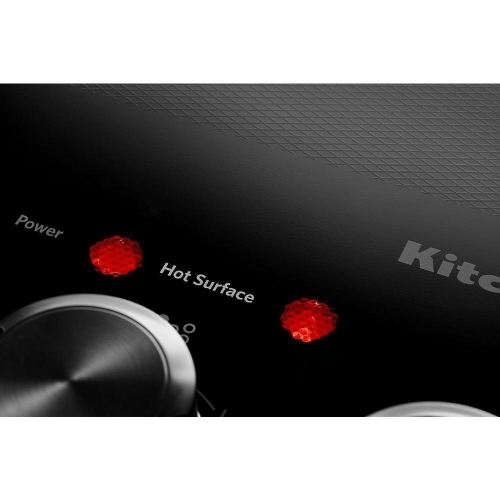

Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Number of Open Bays N/A
Details
Automatic Pan Detection No
Combinations With Oven KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Configuration All Burners
Fuel Type Electric
Installs Over Built-in Oven Yes
Lp Convertible No
Power Outage Compatible No
Dimensions
Product Height 5.25
Carton Height 9.25
Gross Weight 52
Carton Width 35
Product Depth 21.625
Cutout Depth Max 20.563
Cutout Width Min 29.063
Cutout Depth 20.375
Carton Depth 25
Cutout Width 29.063
Cutout Depth Min 20.375
Cutout Width Max 29.563
Net Weight 47
Product Width 30.375
Electrical
208v Compatible Yes
Power Cord Included No
Element/burner Details
Center Rear Element-burner Power 1,800W
Center Rear Element-burner Size 8in.
Center Rear Element-burner Type Standard
Cooktop Element Style Radiant
Cooktop Type Standard
Left Front Element-burner Power 3000W/1900W
Left Front Element-burner Size 10in./6in.
Left Front Element-burner Type Dual
Left Rear Element-burner Power 1,200W
Left Rear Element-burner Size 6in.
Left Rear Element-burner Type Standard
Number of Cooking Element-burners 5
Power Boost No
Right Front Element-burner Power 3200/2300W
Right Front Element-burner Size 10in./6in.
Right Front Element-burner Type Dual
Right Rear Element-burner Power 1,300W
Right Rear Element-burner Size 6in.
Right Rear Element-burner Type Single
Exterior Details

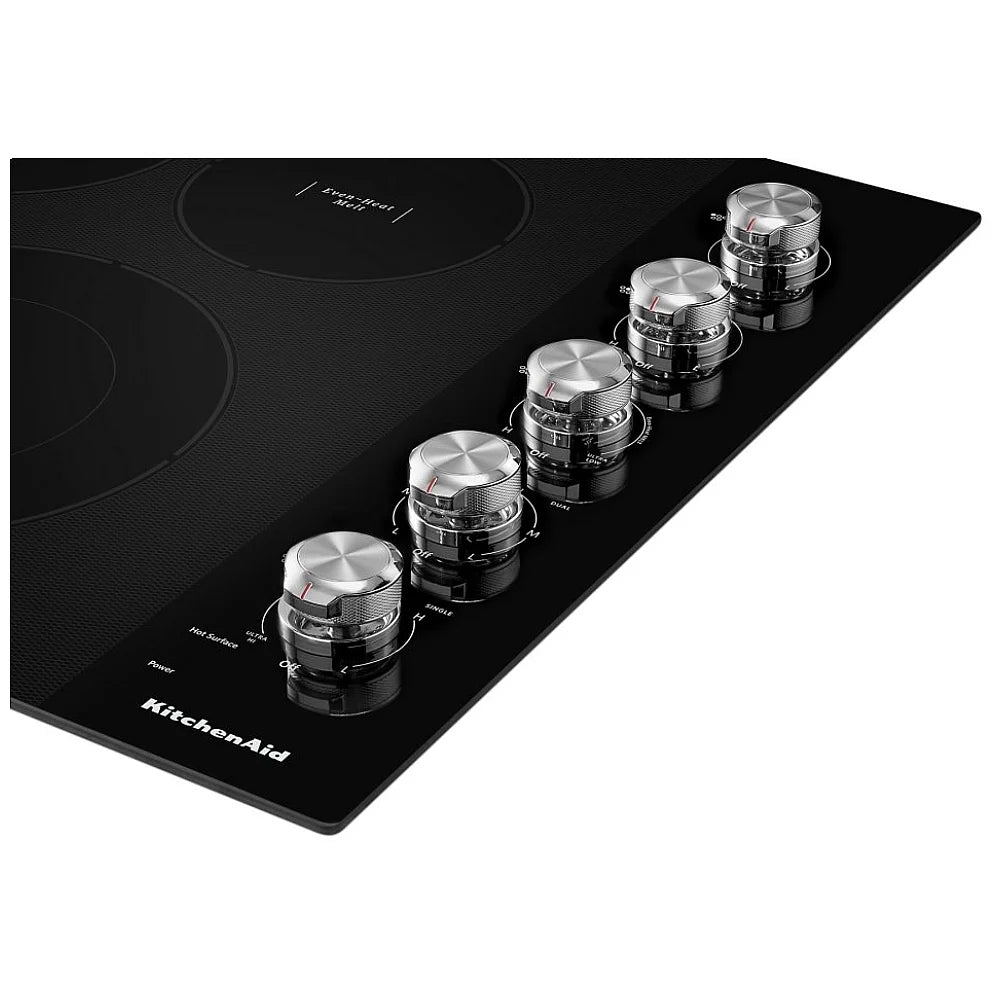

Knob Type Metal
General
Combination Match With Oven KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Ventilation Details
Downdraft Vent No
