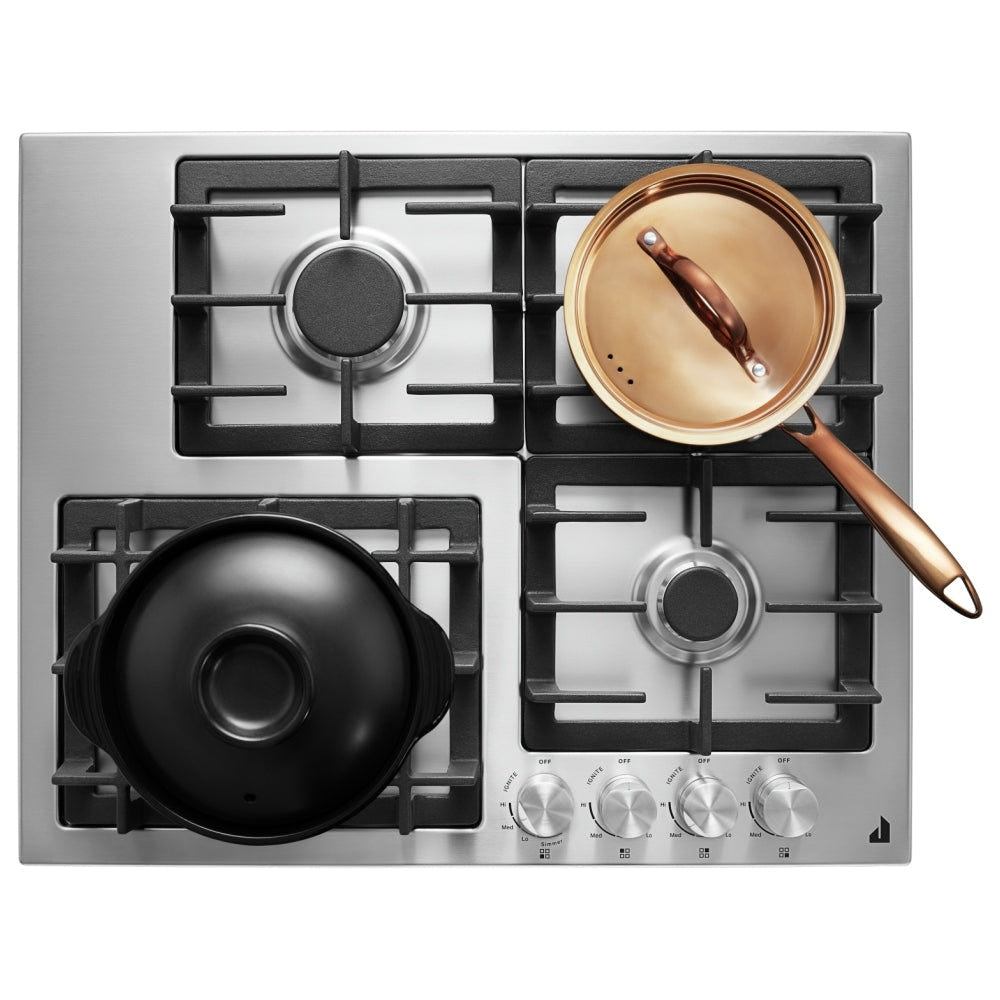

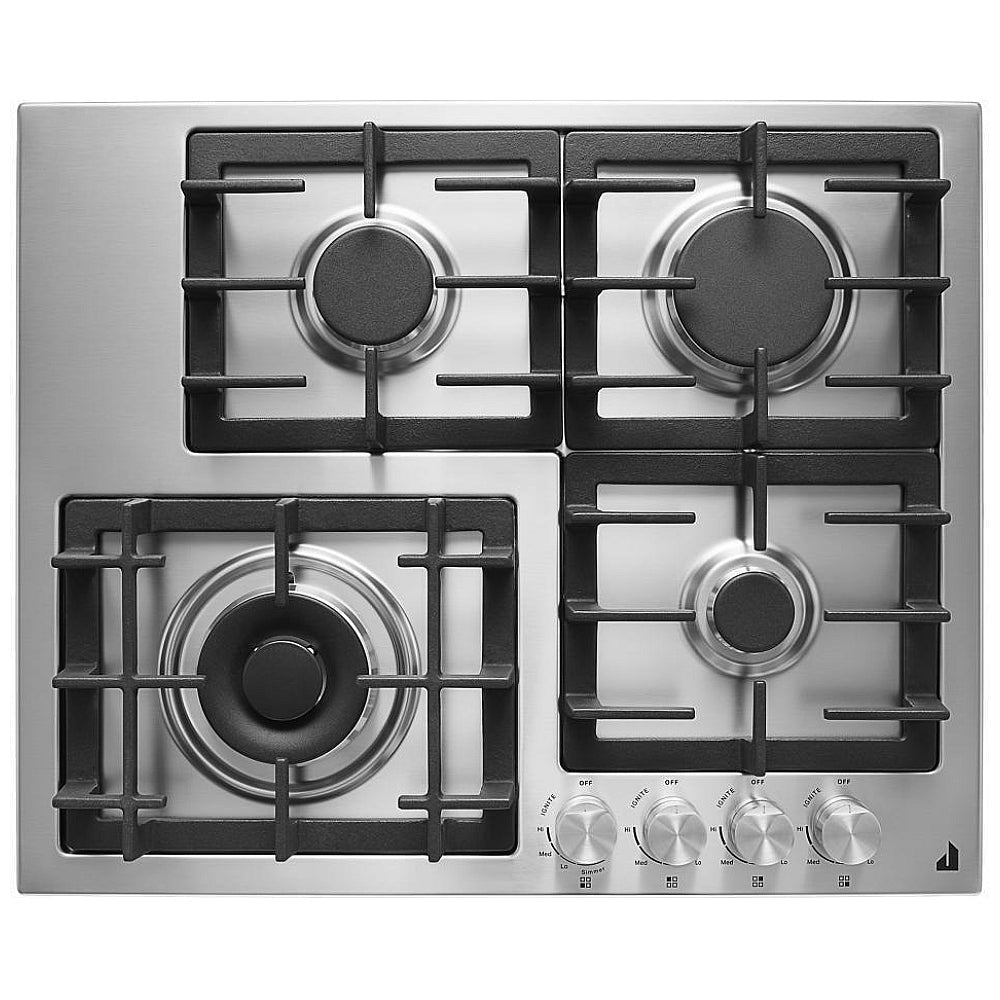

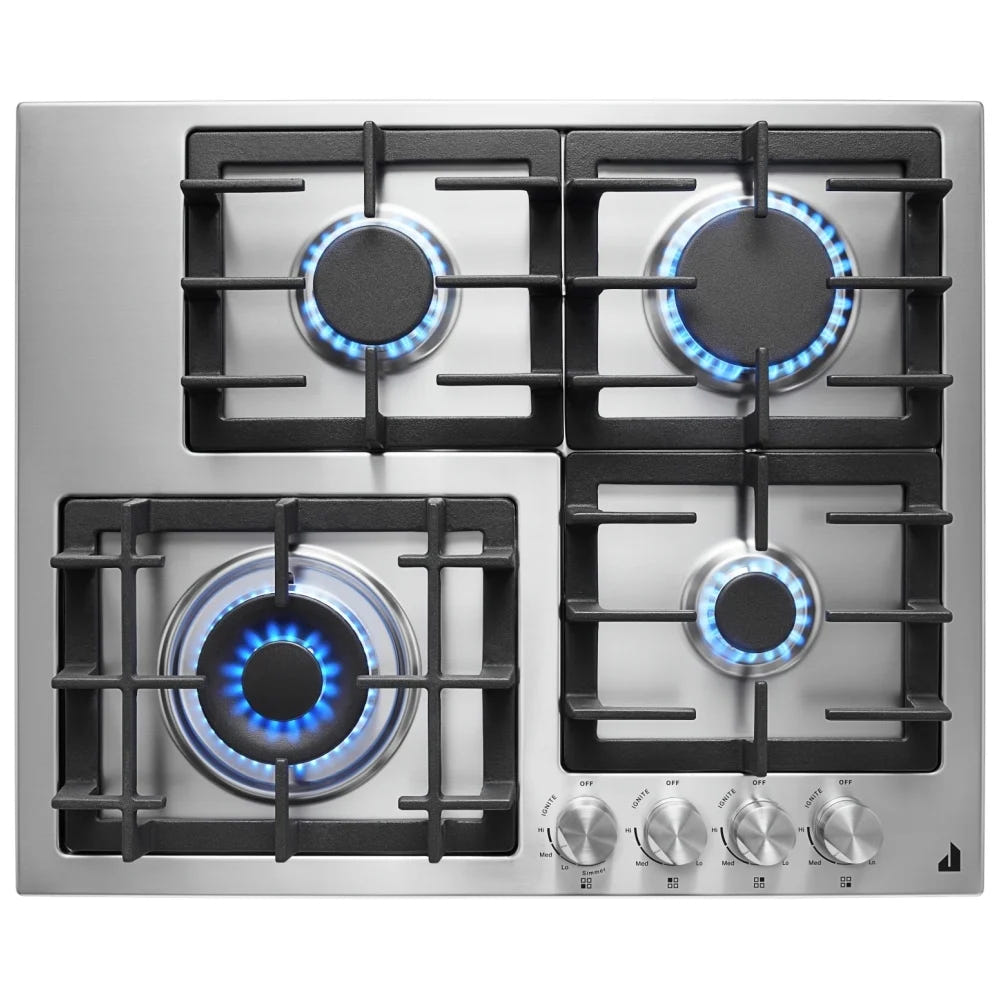

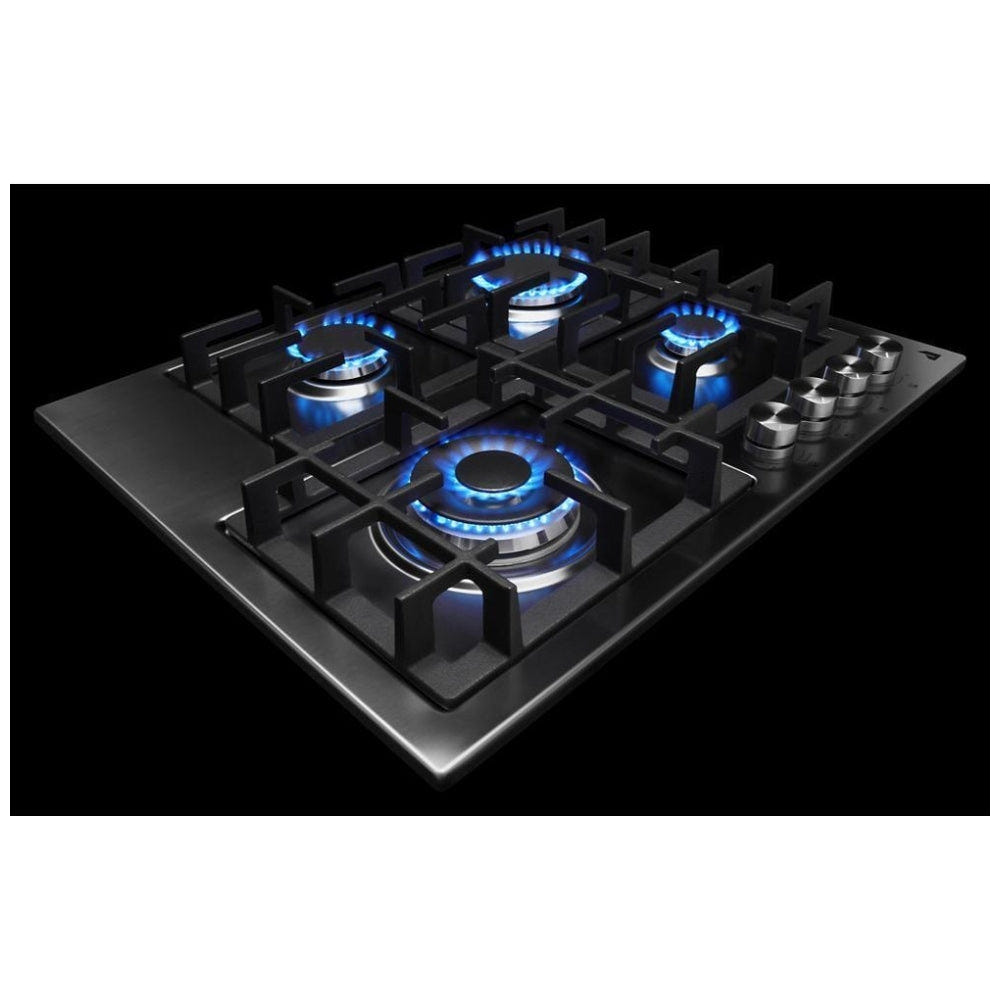

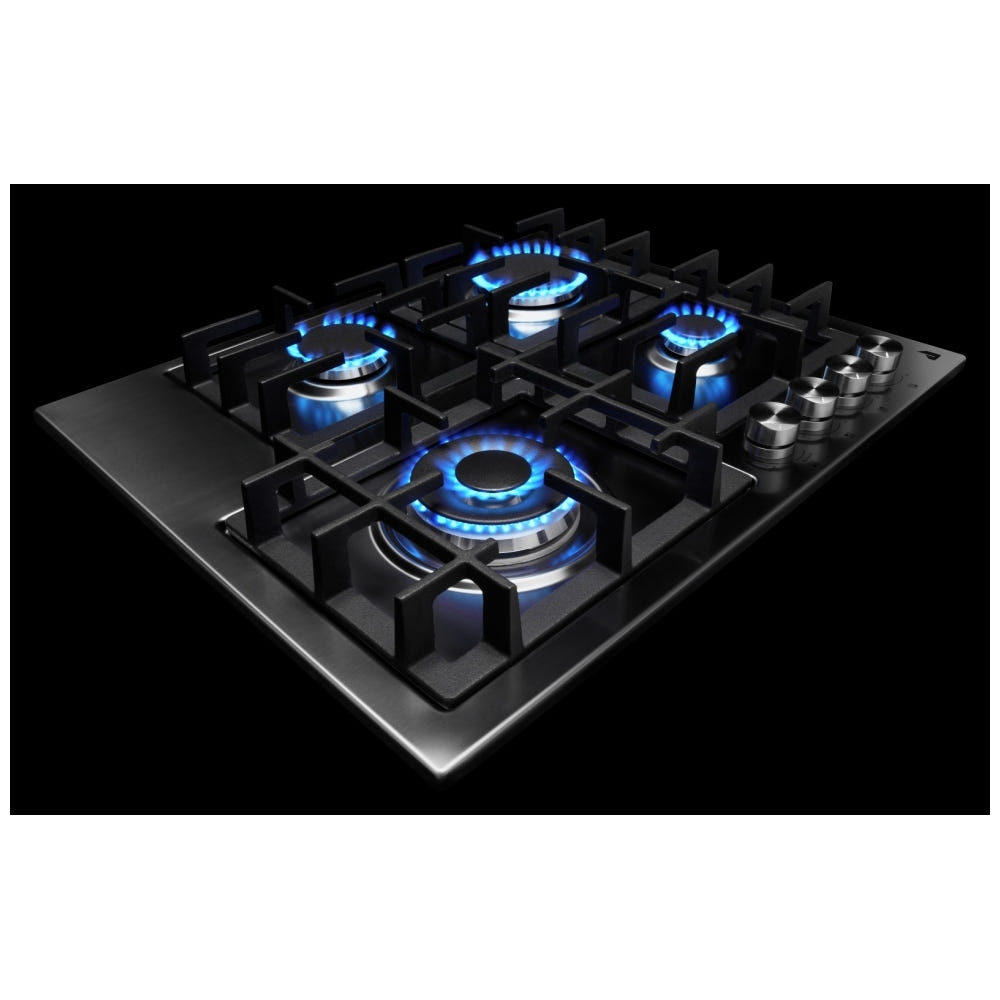

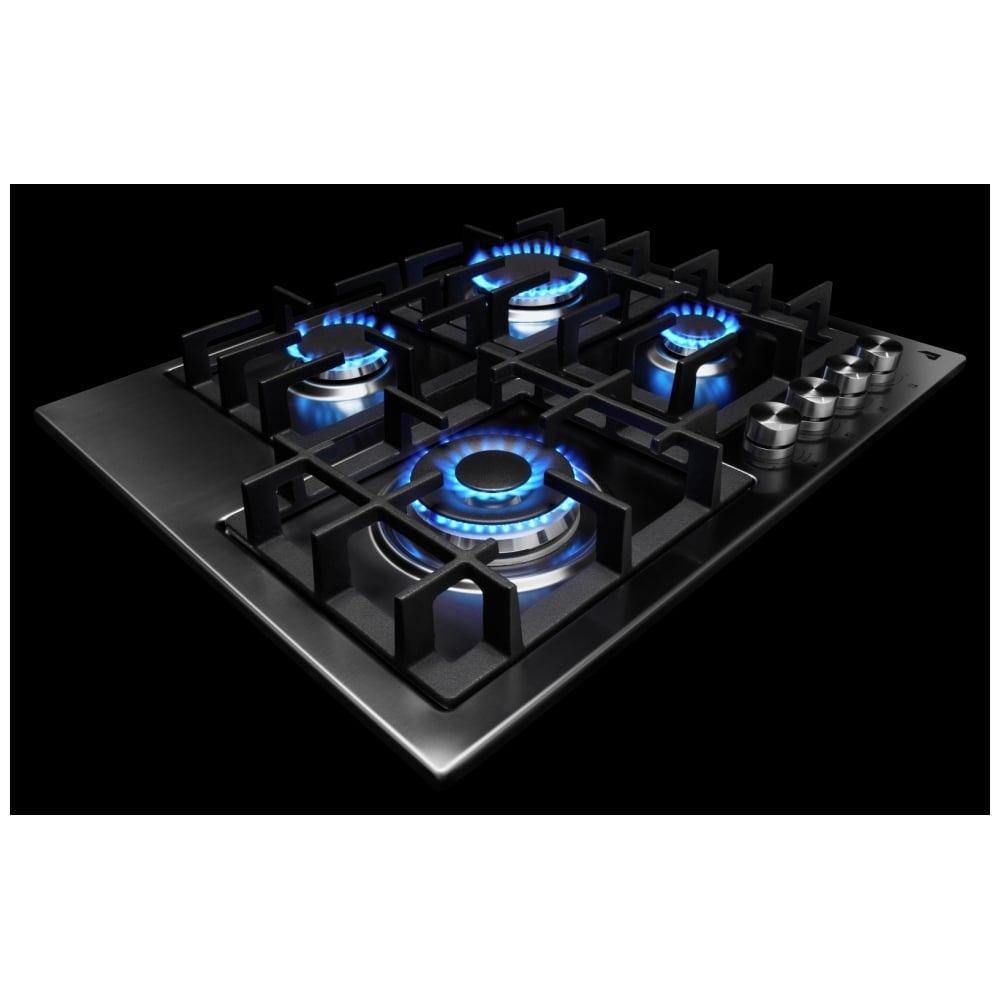

JennAir JGCK424PS Gas Cooktop, 24 inch Exterior Width, 4 Burners, 18,000 BTU

Certifications
Ada Compliant ADA Height and Operation Compliant
Prop65 Standard
Ul Yes

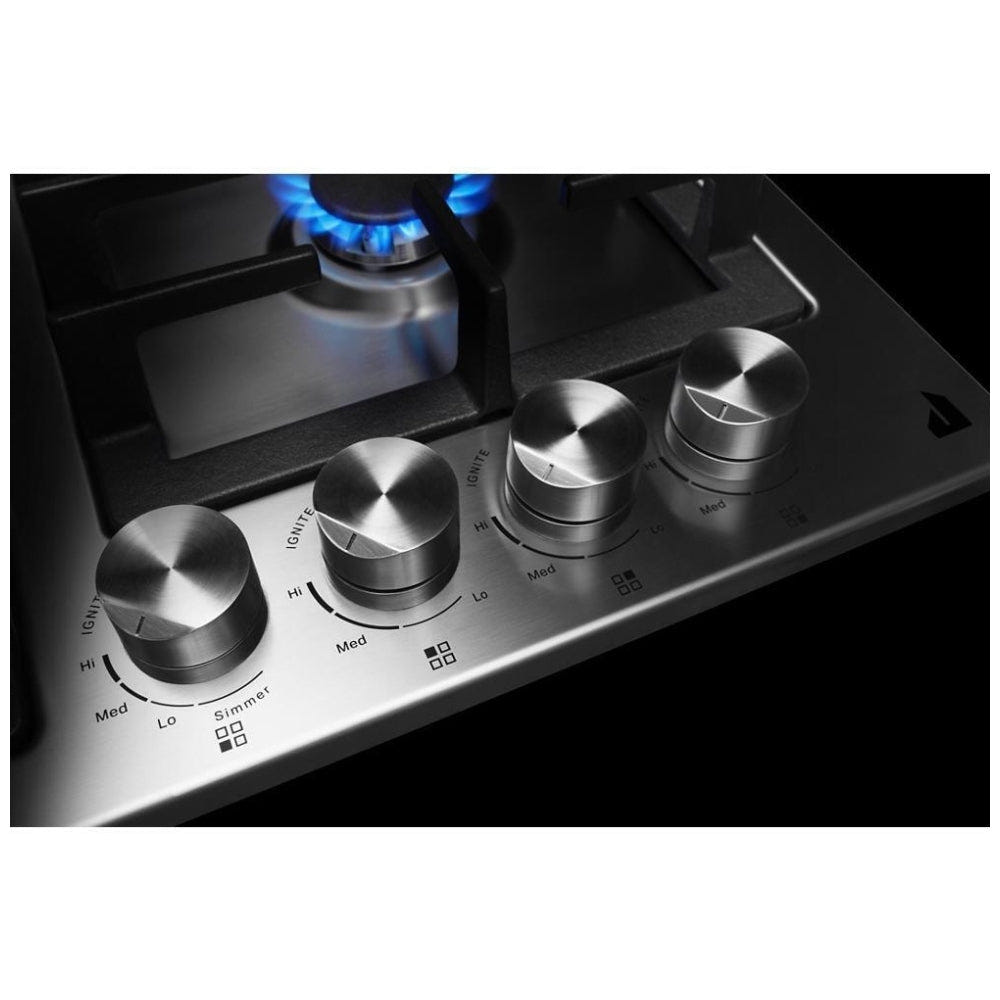

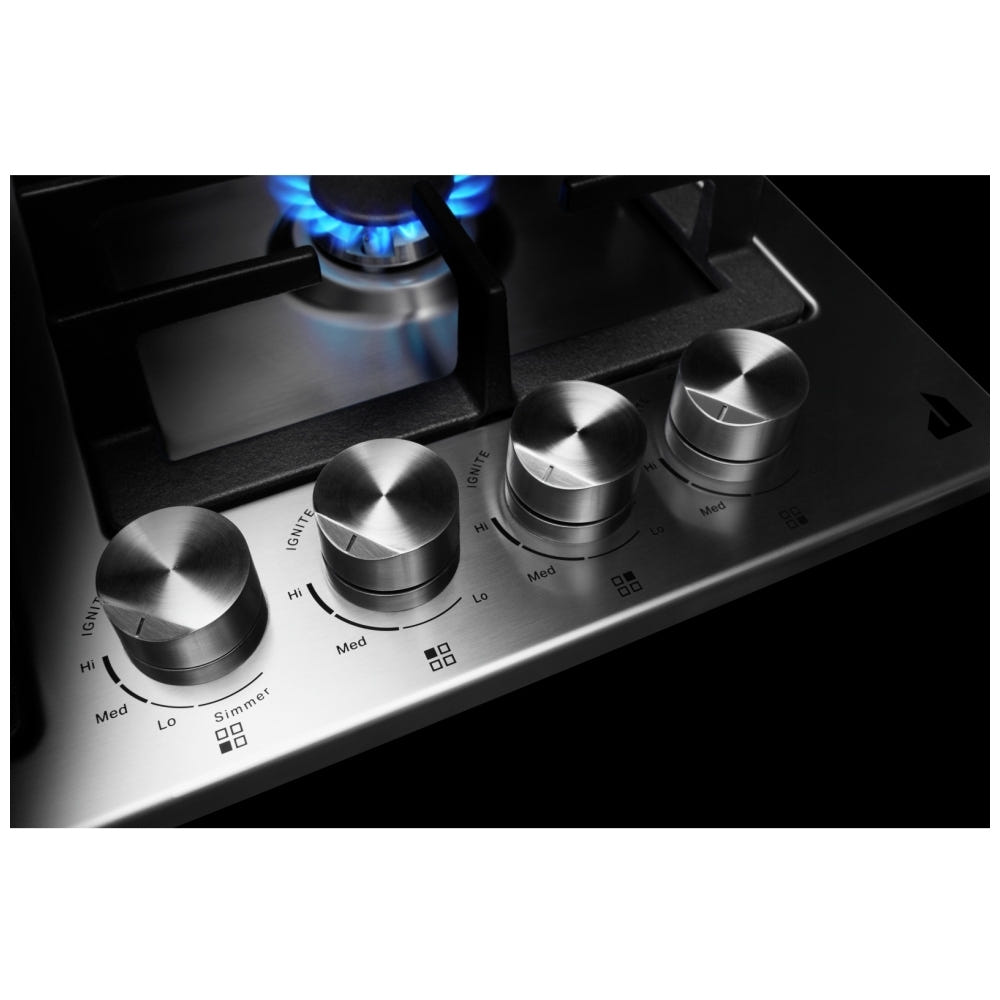

Controls
Control Location Front
Control Type Knobs
Infinite Heat Controls Yes
Cooktop Details
Cooktop Surface Color Stainless
Cooktop Surface Material Stainless Steel
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light No
Hot Surface Indicator Light No

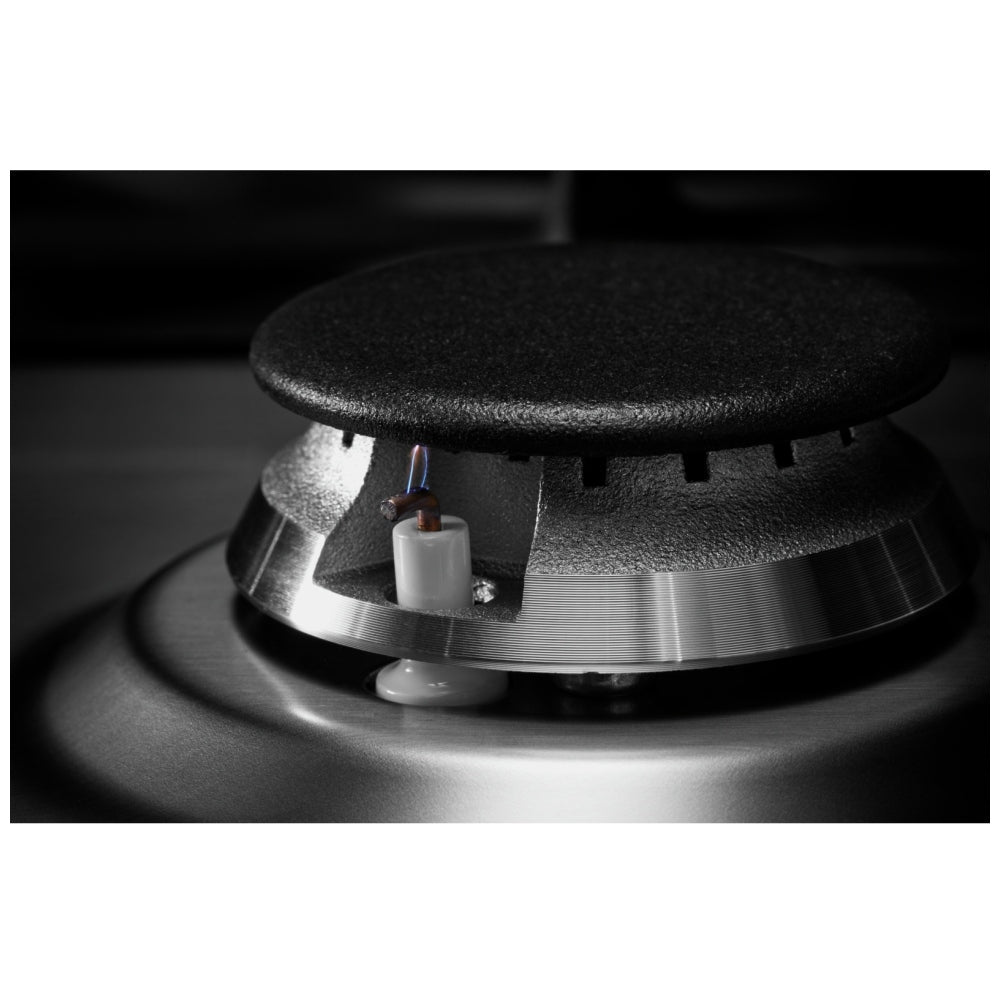

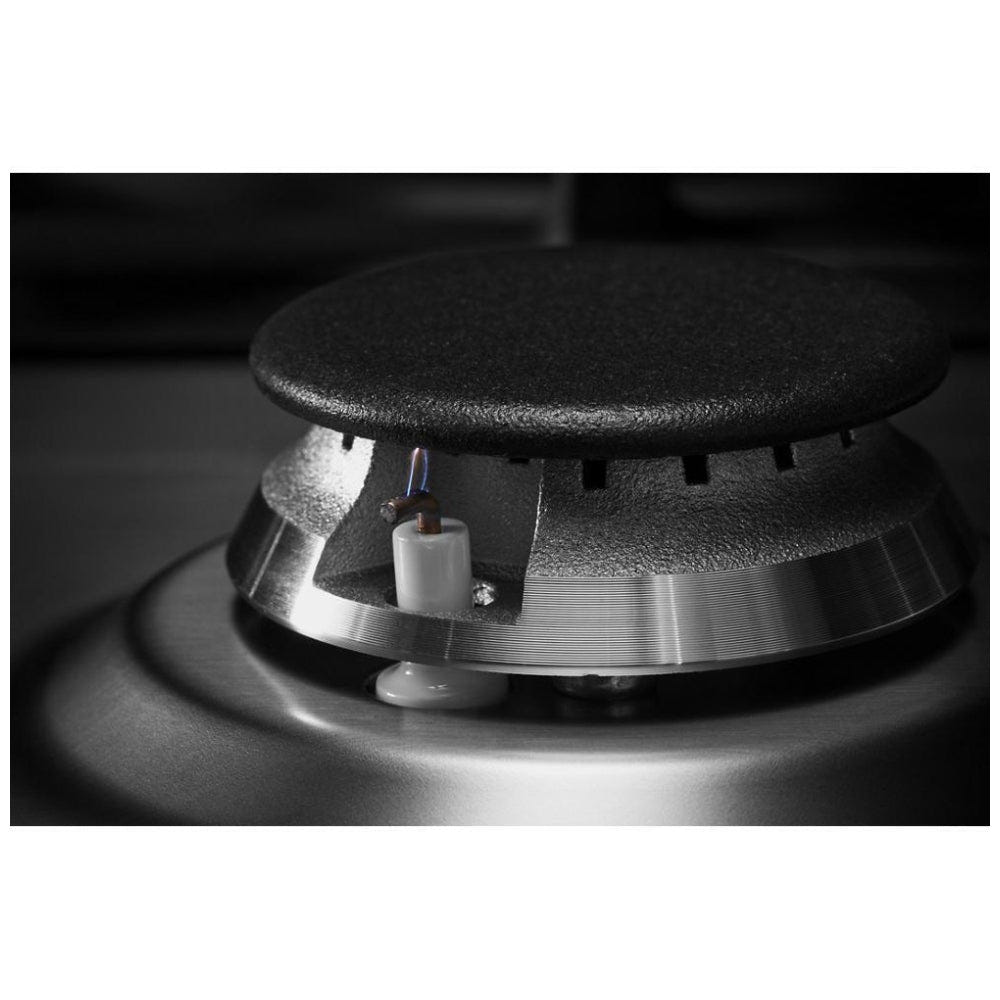

Ignition Type Flame-Sensing™ Re-ignition
Number of Open Bays N/A
Details
Automatic Pan Detection No
Automatic Pan Size Adjustment No
Combinations With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Configuration All Burners
Fuel Type Gas
Installs Over Built-in Oven Yes
Lp Convertible Yes - Kit Included
Power Outage Compatible Yes
Dimensions
Product Height 5.1875
Carton Height 8.25
Gross Weight 41
Carton Width 23.63
Product Depth 20.0625
Cutout Depth Max 19.375
Cutout Width Min 23.5
Cutout Height 3.333
Carton Depth 28.38
Cutout Depth Min 19.313
Cutout Width Max 23.625
Net Weight 37.4
Product Width 24.5
Electrical
208v Compatible No
Power Cord Included Yes
Element/burner Details

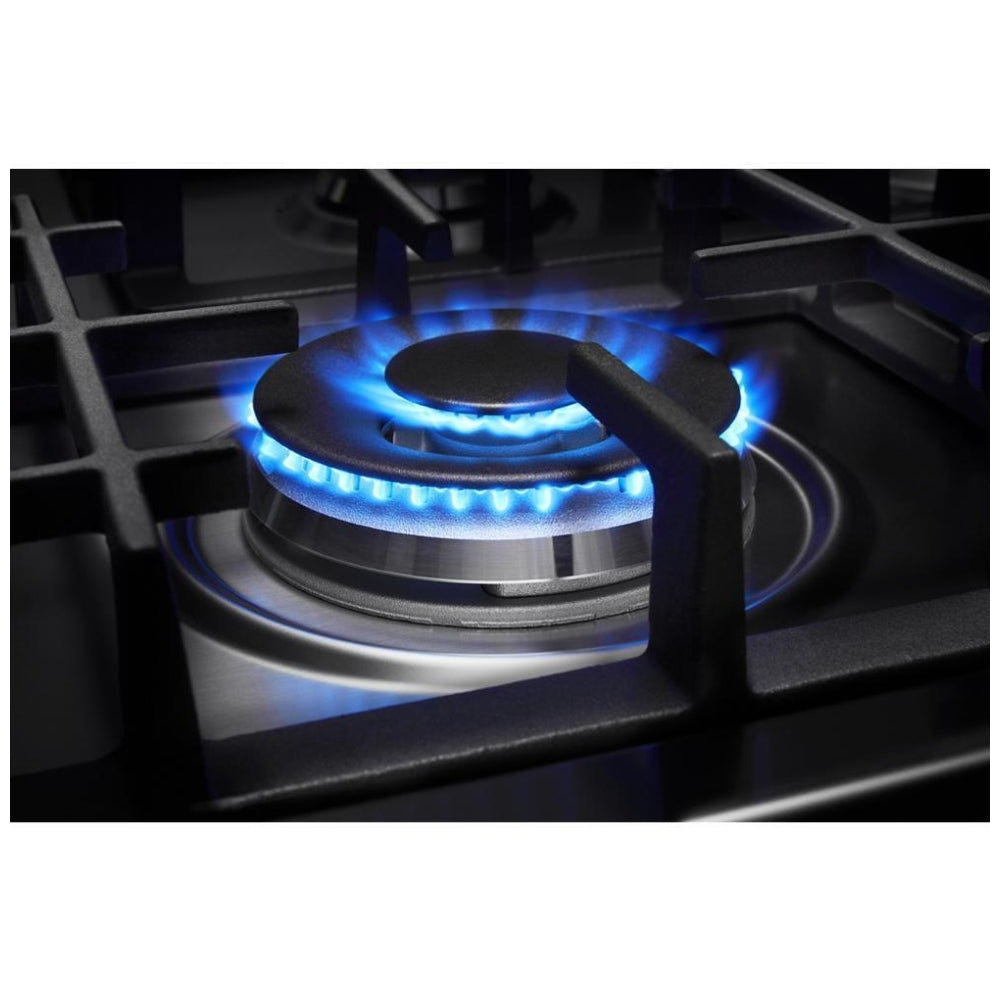

Cooktop Element Style Sealed Burners
Cooktop Type Standard

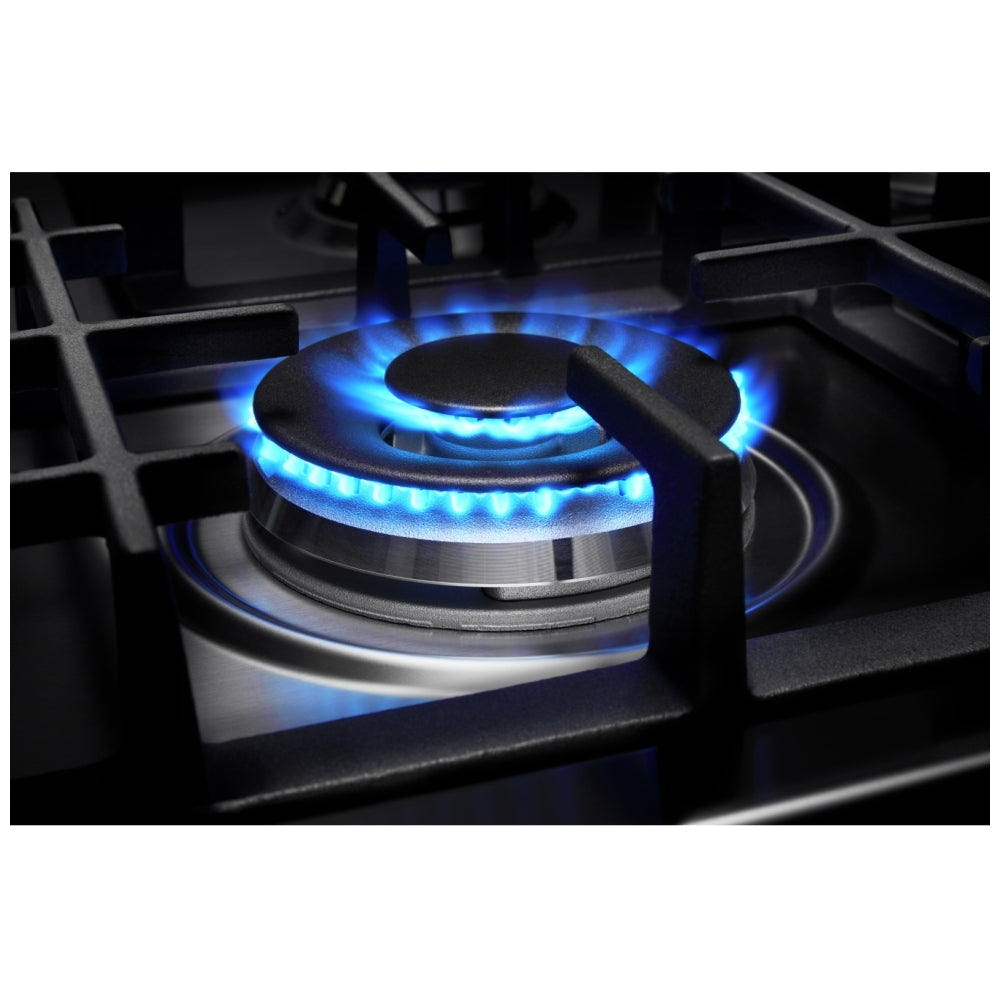

Left Front Element-burner Power 18,000 BTU
Left Front Element-burner Size 4.5in.
Left Front Element-burner Type Dual
Left Rear Element-burner Power 6,300 BTU
Left Rear Element-burner Size 3in.
Left Rear Element-burner Type Standard
Number of Cooking Element-burners 4
Power Boost No
Right Front Element-burner Power 4,000 BTU
Right Front Element-burner Size 2in.
Right Front Element-burner Type Standard
Right Rear Element-burner Power 12,000 BTU
Right Rear Element-burner Size 4in.
Right Rear Element-burner Type Standard
Exterior Details

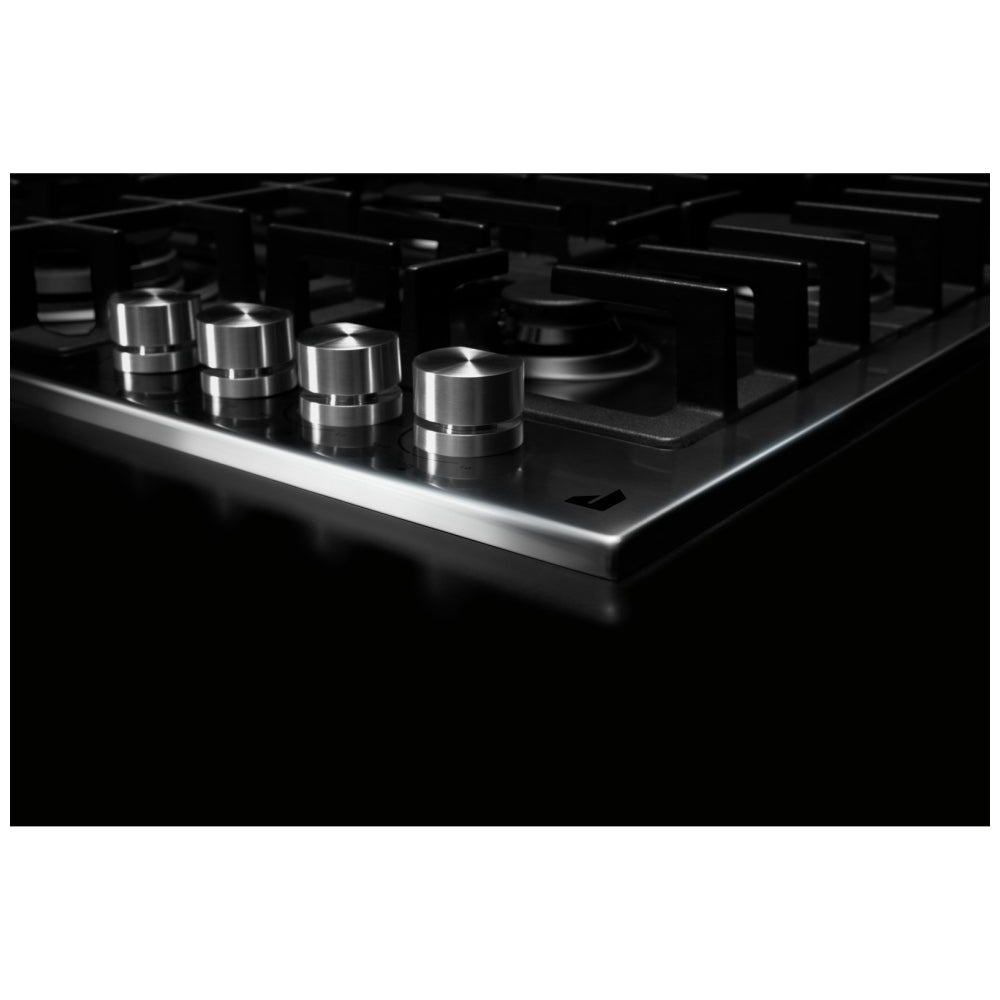

Knob Color Stainless Steel
Knob Type Metal
General
Combination Match With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Grate Details
Grate Details Cast Iron Grates; Individual
Number of Grates 4
Ventilation Details
Downdraft Vent No
Ventilation Type Updraft
Dimensions
Depth 20.06 "
Width 24.5 "
Height 5.19 "
Net Weight 37.4 lbs
Carton Depth Inch 28.38 "
Carton Height Inch 8.25 "
Carton Width Inch 23.63 "
Cutout Height 3.33 "

Specifications
Country Of Origin Italy
Extended Service Plan Parent EW07IW1Y

Description
Size In 24
Cooktop Type Traditional
Combinations With Oven JJW6024; JJW2424; JJW2427; JJW2430; JJW3430

Cooktop Details
Left Front Element Burner Power 18000BTU
Cooktop Configuration All Burners
Left Rear Element Burner Type Standard
Number Of Cooking Element Burners 4
Right Rear Element Burner Type Standard
Right Rear Element Burner Size 4in.
Cooktop Element Style Sealed Burners
Left Front Element Burner Type Dual
Right Front Element Burner Type Standard
Left Front Element Burner Size 4.5in.
Left Rear Element Burner Power 6300BTU
Left Rear Element Burner Size 3in.
Right Front Element Burner Power 4000BTU
Right Front Element Burner Size 2in.
Right Rear Element Burner Power 12000BTU

Electrical
Hz 60
Amps 15
Power Cord Included Yes
208v Compatible No

Certifications
UL Yes
ADA Compliant Yes

Features
Automatic Pan Size Adjustment No
Griddle N/A
Hot Surface Indicator Light No
Automatic Pan Detection No
Digital Display No
Downdraft Vent No
Installs Over Built In Oven Yes
LP Convertible Yes - Kit Included
Power Boost No
Power Outage Compatible Yes
Heating Element On Indicator Light No

Controls
Control Type Manual
Control Location Front
Knob Type Metal

Configuration and Overview
Fuel Type Gas
