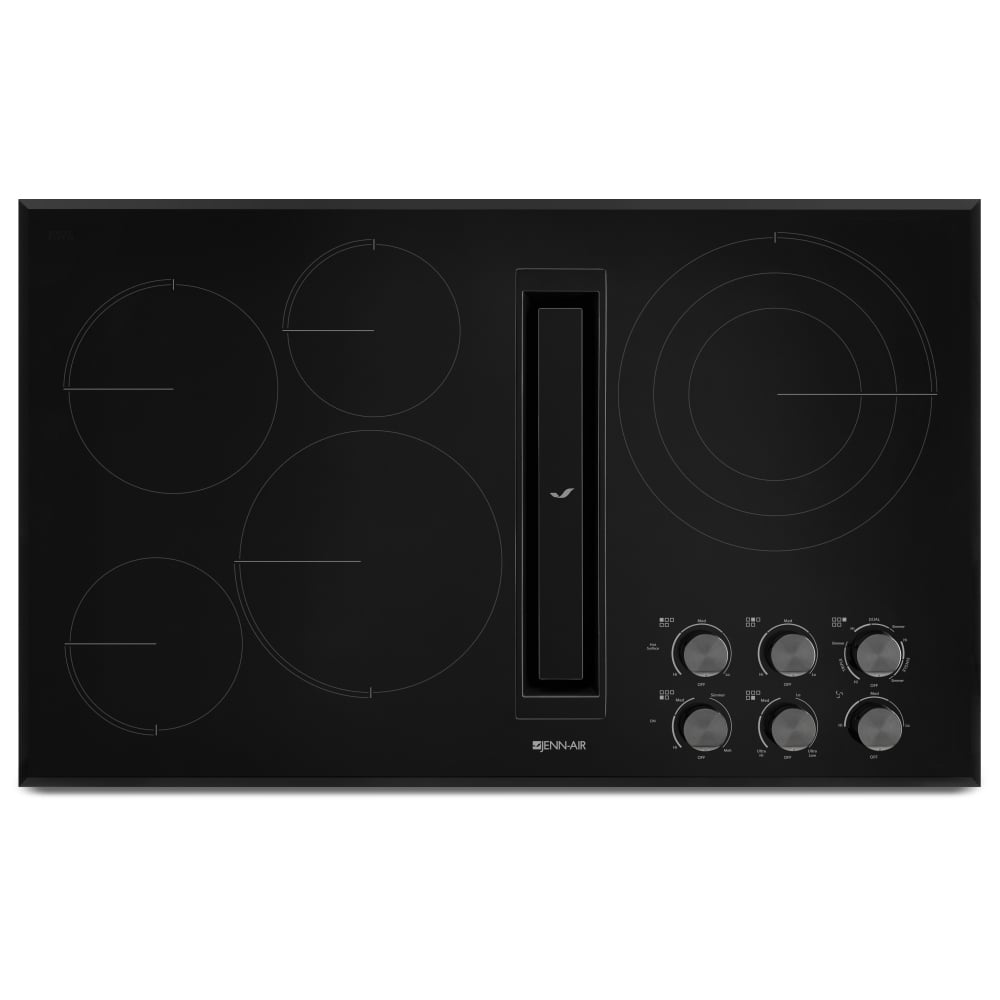

JennAir JED3536GB 36" Electric Cooktop 4500W

JennAir JED3536GB 36" Electric Cooktop 4500W

Just 3-5 Days*
$3,199.99 CAD
$3,199.99 CAD
View full details
  • color-pattern:
    Black
  • mounting-type:
    Counter
  • stove-top-type:
    Ceramic
  • top-surface-material:
    Glass-ceramic
  • brand:
    JennAir
  • brand series:
    JennAir
  • number of burners:
    4 burners
  • power type:
    4500 Watts
  • prices:
    $2999 - $3999
  • sub categories:
    Electric Cooktop
  • width:
    30

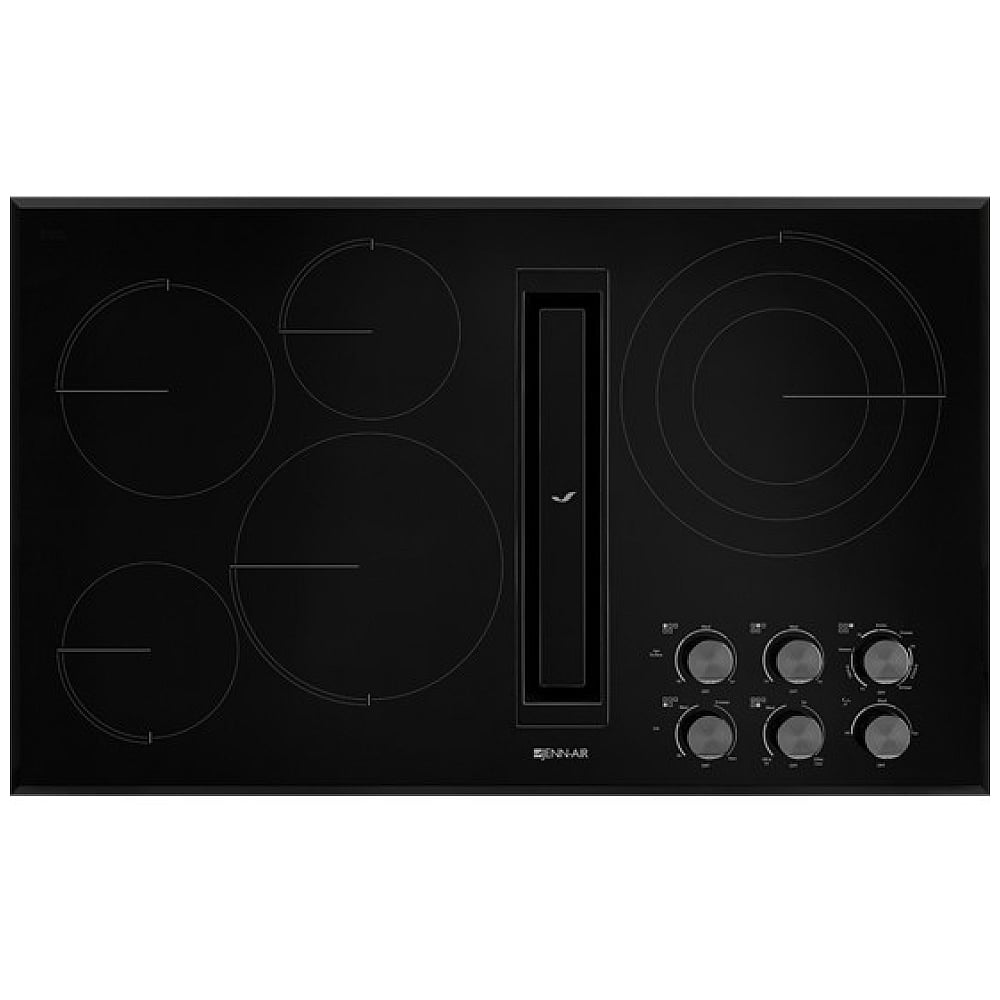

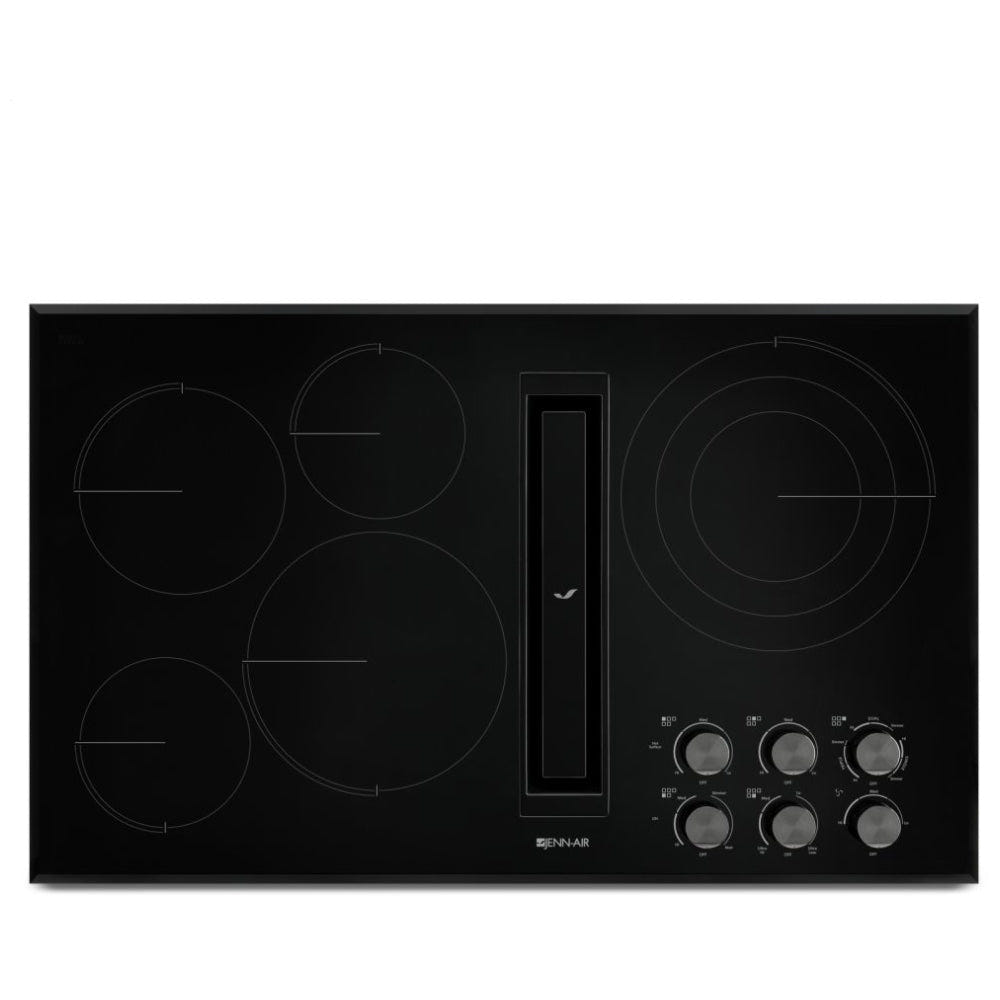

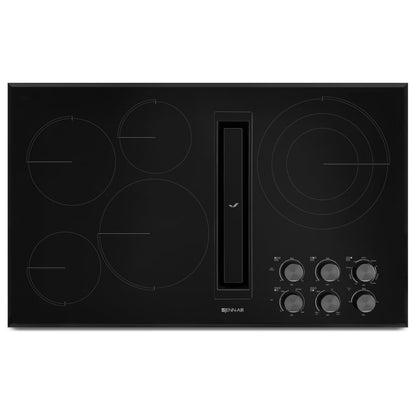

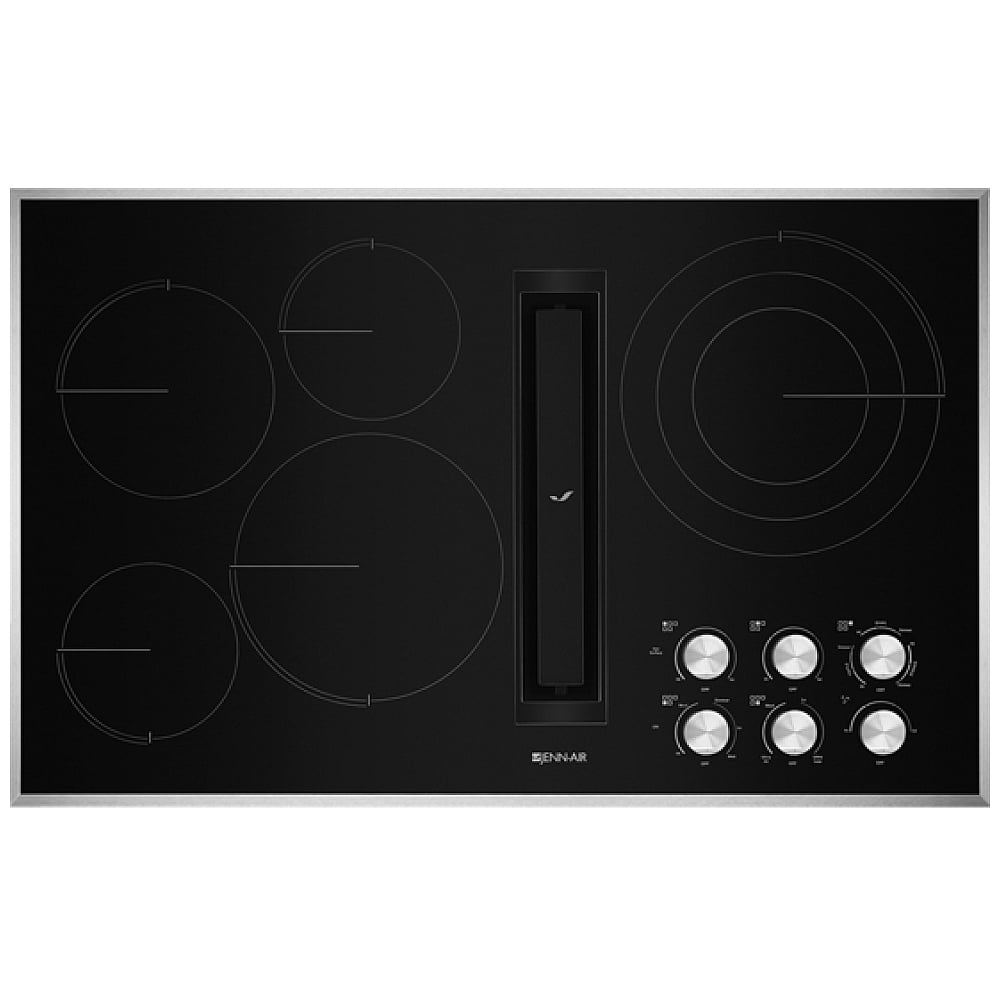

This Jenn-Air® luxury electric radiant downdraft cooktop offers a sleek cooking surface with five radiant elements, which offer responsive performance. It also features the impressive JX3™ downdraft ventilation system, which quickly and efficiently clears the air without a hood.
  • 12"/9"/6" Triple-Choice™ Element
Reaching a powerful 4,500 watts, this three-tiered element allows you to experience the ultimate versatility in power levels and heating efficiency, accommodating various-sized cookware.
  • Color-Coordinating Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
  • Convertible to Duct-Free Ventilation
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
  • DuraFinish® Glass Protection
DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

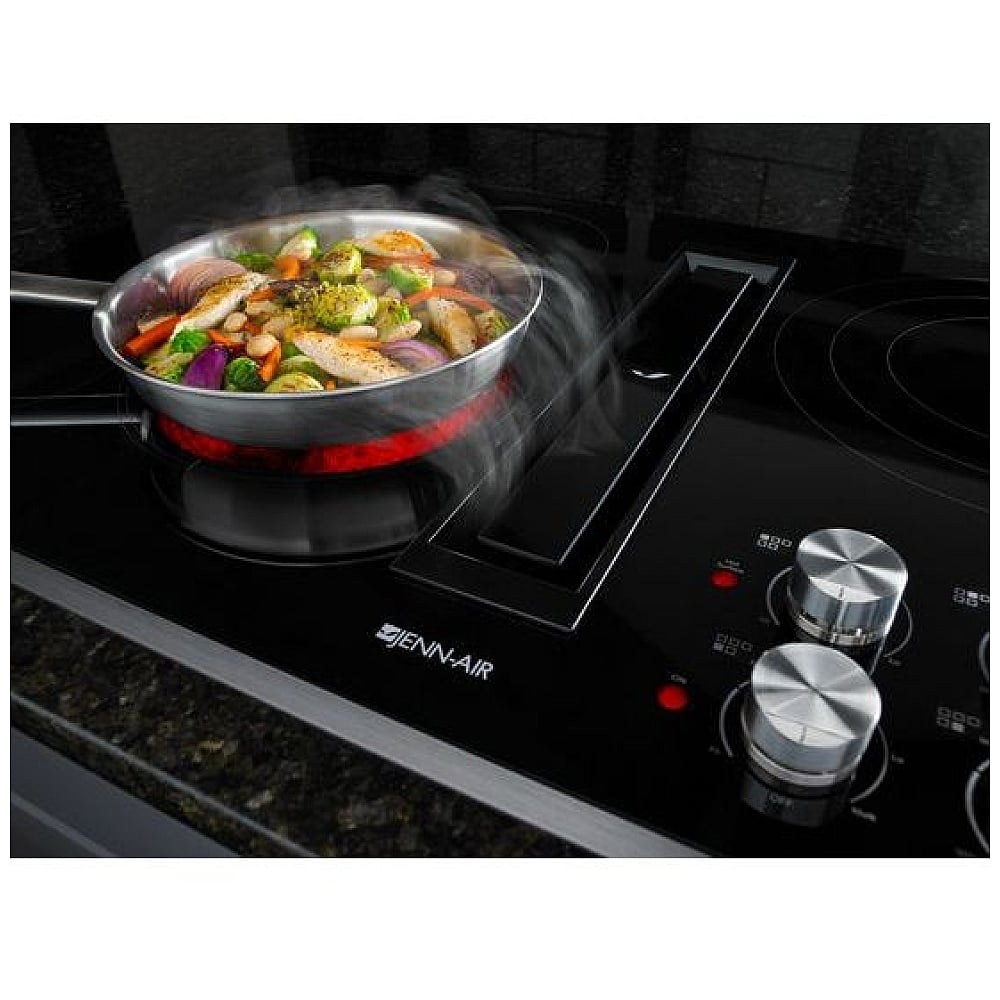

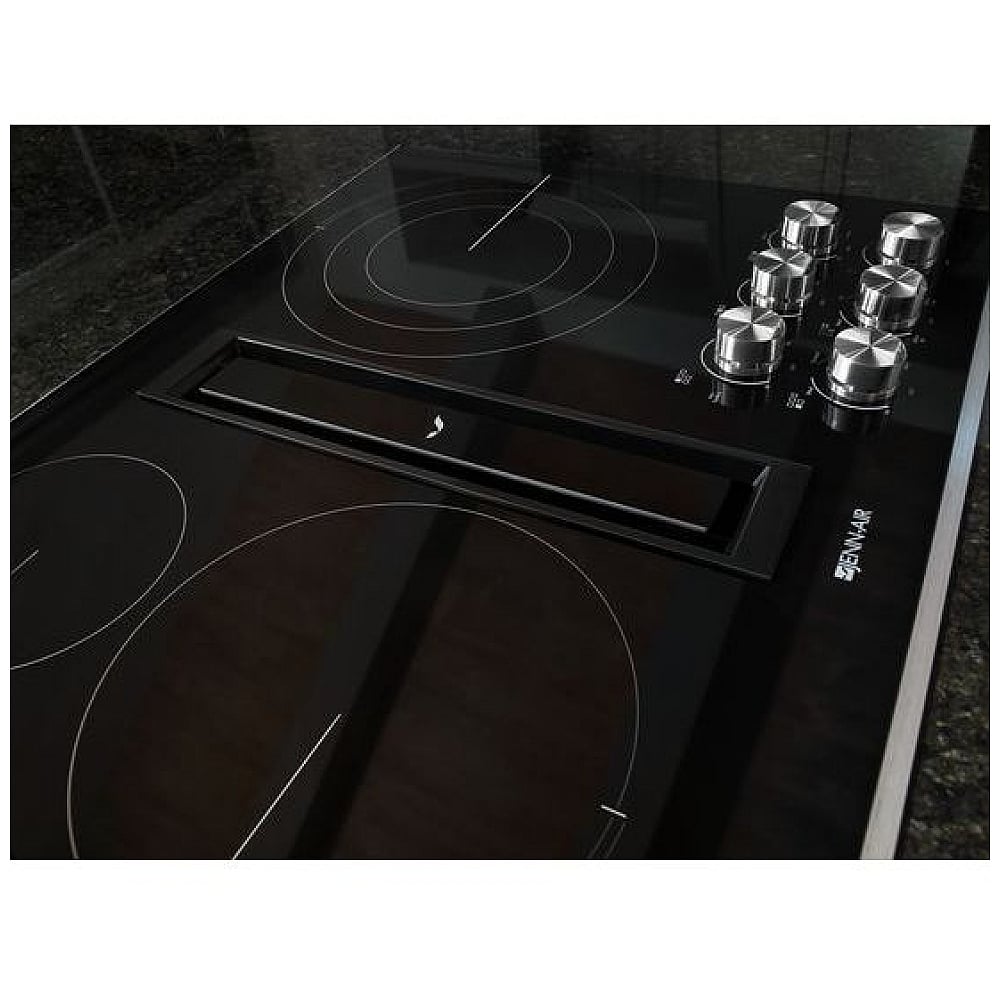

  • JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
  • Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
  • Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

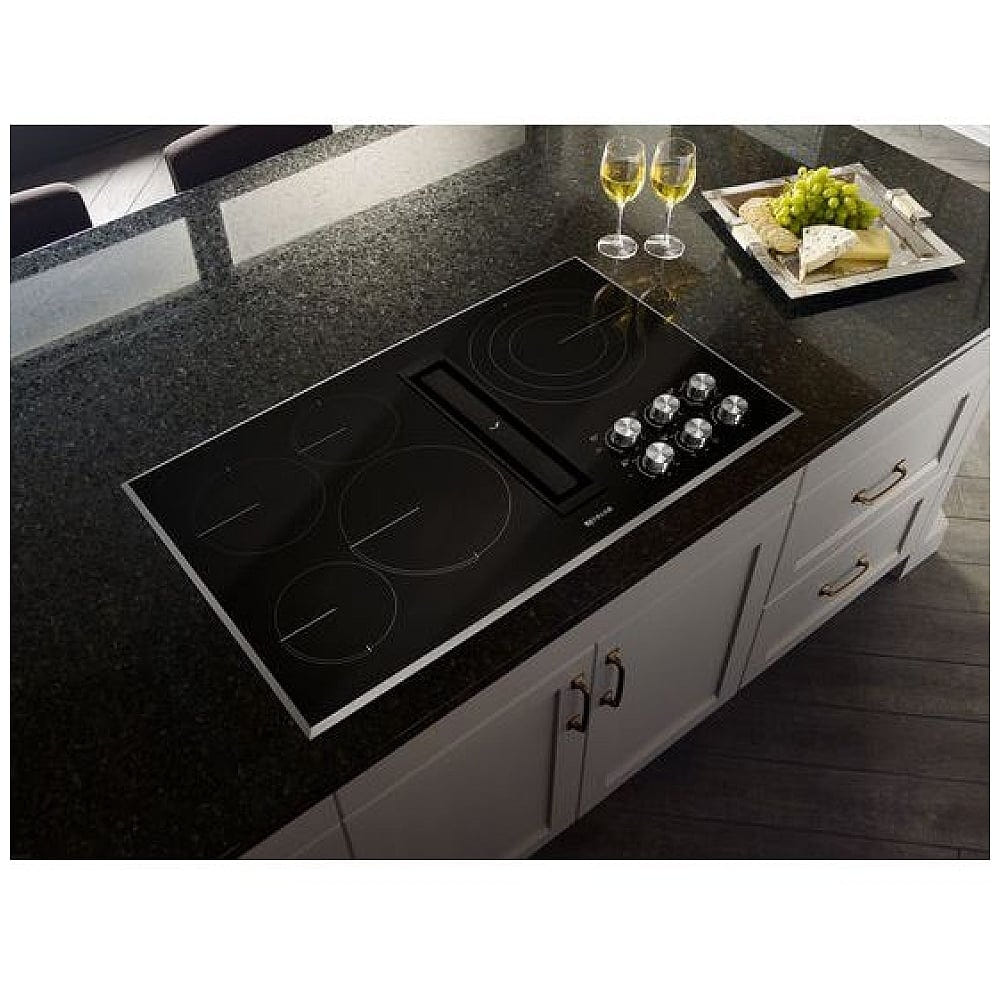

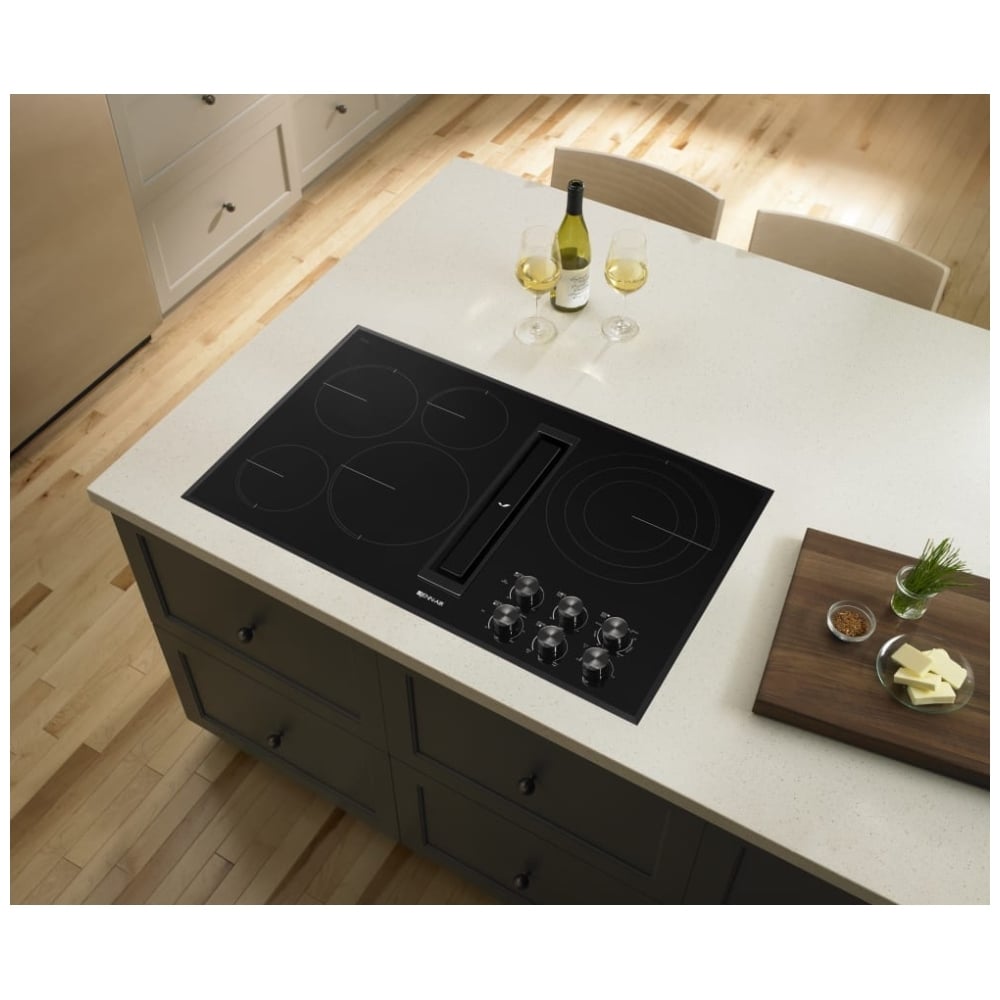

  • Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

Manufacturer's Warranty: 2 years

UPC: 883049412788

EAN: 0883049412788

JED3536GB-warranty-1.pdf
JED3536GB-dimension-guide-canada.pdf
JED3536GB-use-and-care-1.pdf
JED3536GB-installation-instruction-1.pdf

Certifications
Ada Compliant Yes
Prop65 Standard
Ul Yes
Controls
Control Location Right Front
Control Type Knobs
Infinite Heat Controls Yes
Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Ceramic Glass
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Number of Open Bays N/A
Details
Automatic Pan Detection No
Cooktop Selections Convertible to Duct Free Ventilation; DownDraft
Design Expression Black Glass
Fuel Type Electric Radiant
Installs Over Built-in Oven No
Lp Convertible No
Number of Vent Speeds 3
Power Outage Compatible No
Dimensions
Product Height 3.6875
Cutout Depth 21.125
Carton Height 23.78
Gross Weight 82
Carton Depth 26.38
Carton Width 41.5
Cutout Width 34.563
Product Depth 22.0625
Net Weight 69
Product Width 36.3125
Electrical
Power Cord Included No
Element/burner Details
Center Front Element-burner Power 3,200W
Center Front Element-burner Size 10in.
Center Front Element-burner Type Single
Center Rear Element-burner Power 1,200W
Center Rear Element-burner Size 6in.
Center Rear Element-burner Type Single
Cooktop Element Style Radiant
Cooktop Type Downdraft
Left Front Element-burner Power 1,300W
Left Front Element-burner Size 6in.
Left Front Element-burner Type Hyper
Left Rear Element-burner Power 1,800W
Left Rear Element-burner Size 8in.
Left Rear Element-burner Type Single
Number of Cooking Element-burners 5
Power Boost No
Right Rear Element-burner Power 3000W/1950W/1050W
Right Rear Element-burner Size 12in./9in./6in.
Right Rear Element-burner Type Triple
Exterior Details
Knob Color Black
Knob Type Metal
Ventilation Details
Cfm Motor Class 310
Downdraft Vent Yes
Ventilation Type Downdraft
Dimensions
Depth 22 1/16
Width 36 5/16
Height 3 11/16
Carton Depth 26 7/16
Carton Height 23 13/16
Carton Width 41 1/2
Cutout Depth 21 1/8
Cutout Width 34 9/16
Gross Weight 82
Net Weight 69.0

Certifications
Prop 65 Standard
ADA Compliant Yes
UL UL

Configuration and Overview
Cooktop Type Downdraft
Fuel Type Electric Radiant
Size (IN,inches) 36
Installs Over Built-In Oven No
LP Convertible No
Power Boost No

Cooktop Details
Hot Surface Indicator Light Yes
Cooktop Element Style Radiant
Cooktop Surface Material Ceramic Glass
Automatic Pan Detection No
Downdraft Vent Yes
Heating Element On Indicator Light Yes
Cooktop Surface Color Black
Number of Cooking Element-Burners 5
Center Rear Element-Burner Power 1200W
Left Front Element-Burner Size 6"
Center Rear Element-Burner Size 6"
Left Rear Element-Burner Size 8"
Number of Open Bays NA
Left Front Element-Burner Power 1300W
Center Front Element-Burner Power 3200W
Center Front Element-Burner Size 10"
Left Front Element-Burner Type Hyper
Center Front Element-Burner Type Single
Center Rear Element-Burner Type Single
Left Rear Element-Burner Power 1800W
Left Rear Element-Burner Type Single
Right Rear Element-Burner Power 3000W/1950W/1050W
Right Rear Element-Burner Size 12"/9"/6"
Right Rear Element-Burner Type Triple

Controls
Control Type Knobs
Infinite Heat Controls Yes
Knob Color Black
Knob Type Metal
Control Location Right Front

Appearance
Digital Display No

Features
Griddle NA
Power Outage Compatible No
Selection Convertible to Duct Free Ventilation,JX3™ Downdraft Ventilation System with 3-Speed Fan

Electrical
Amps 40
Power Cord Included No
Volts 220

Refinement
Style Cooktops

Ventilation System
CFM Motor Class 310
Number of Speeds 3

Energy
Annual Energy Usage [kWh] 258

Design Type
Design Expression Black Glass
