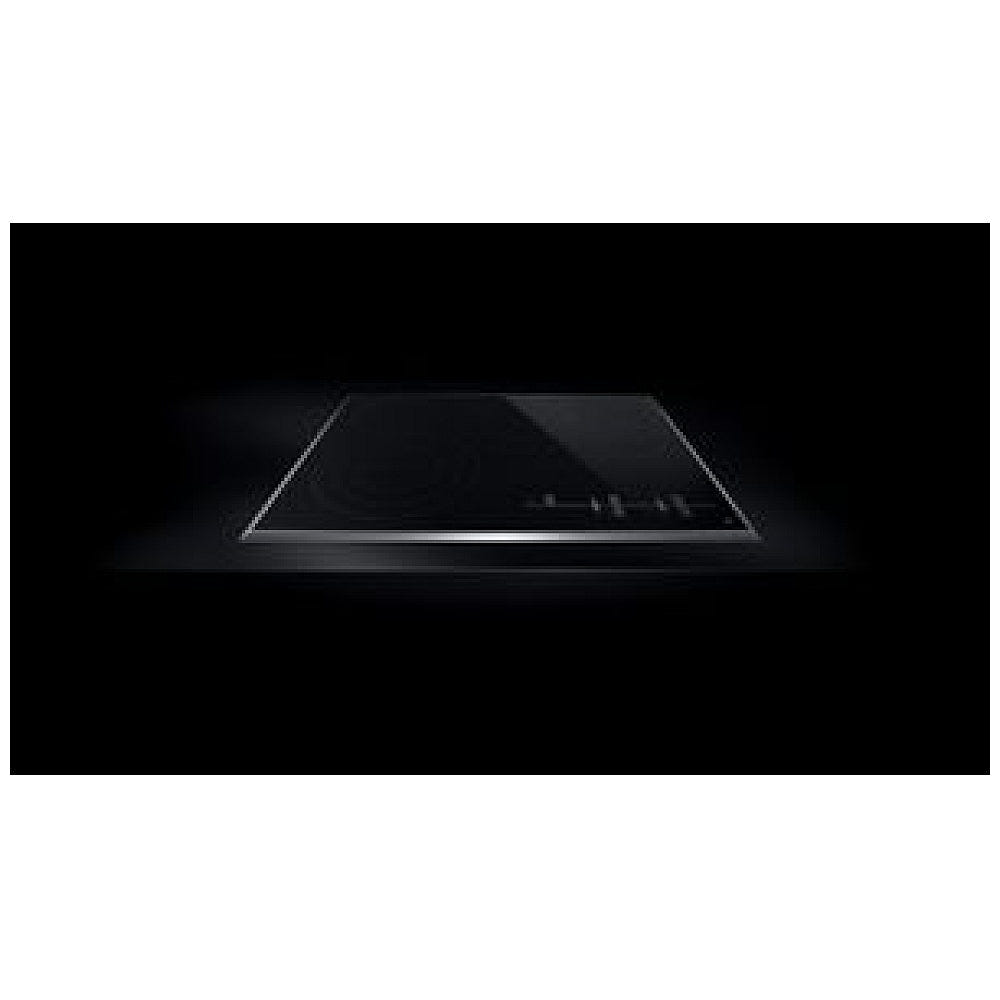

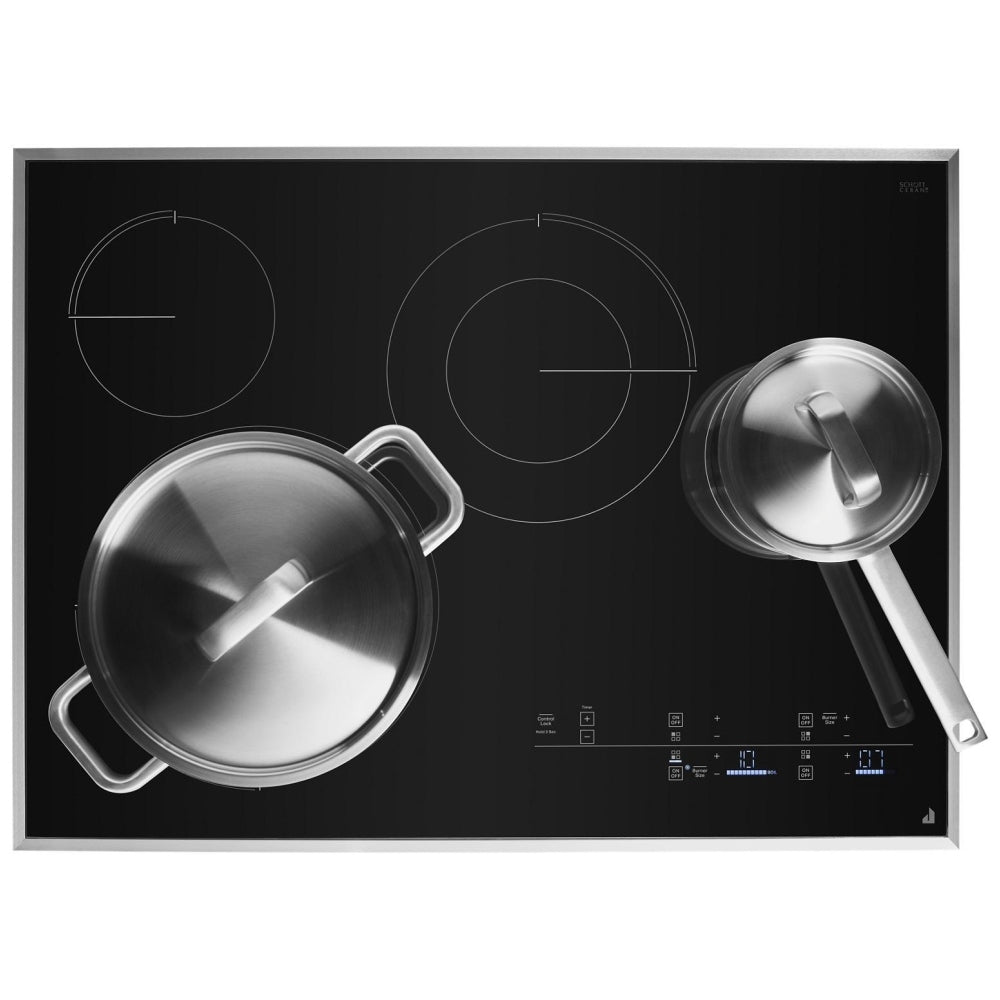

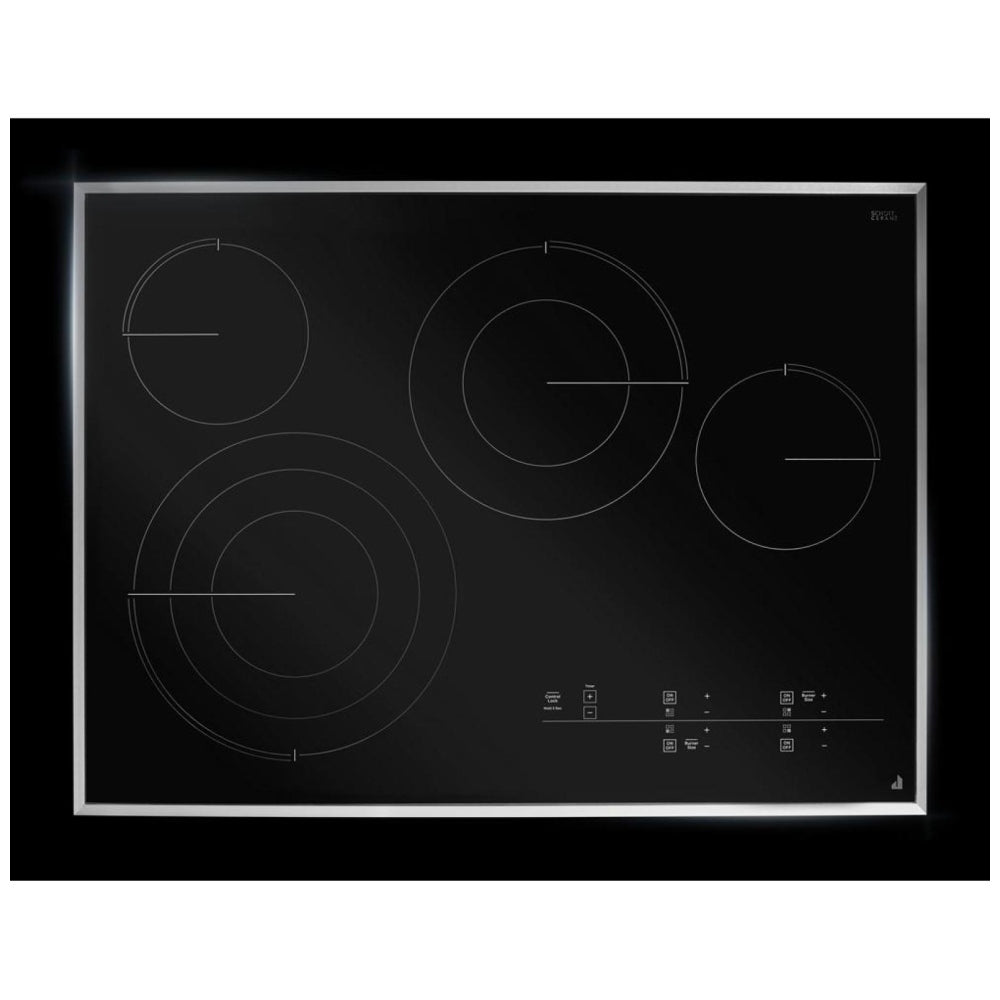

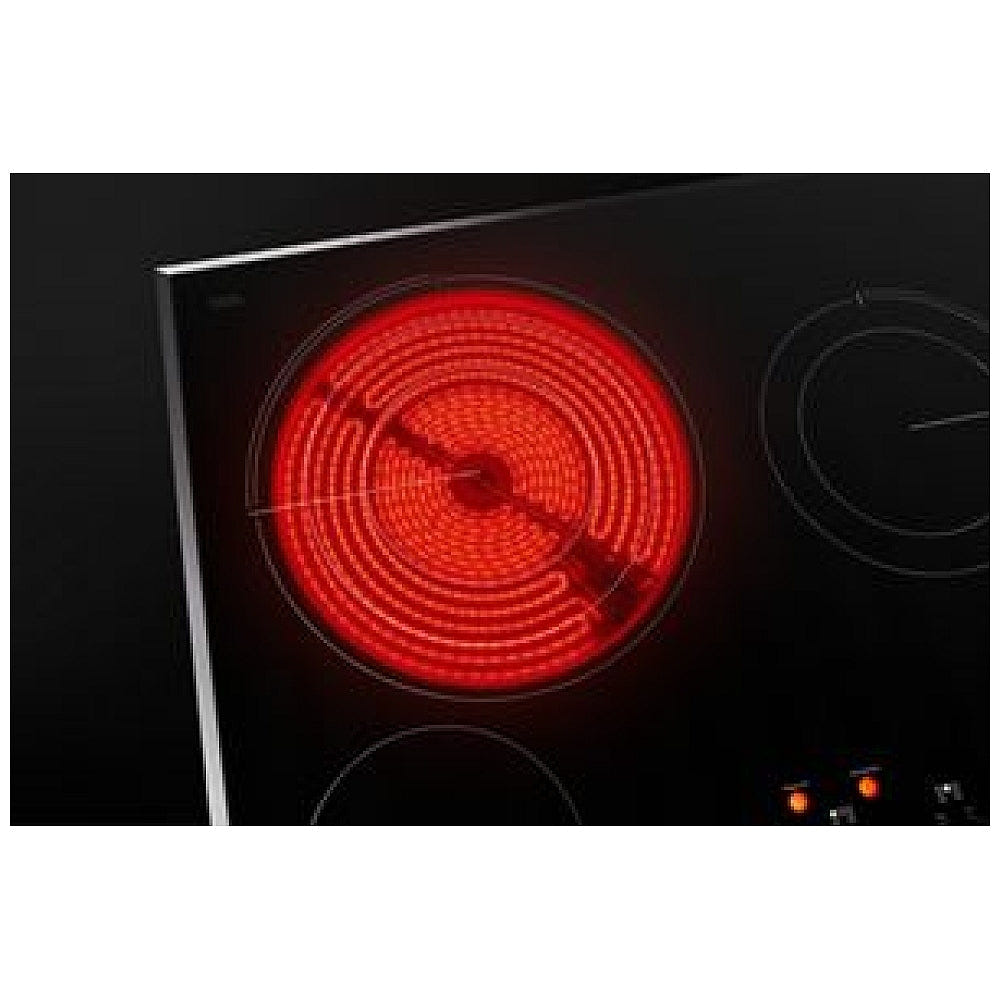

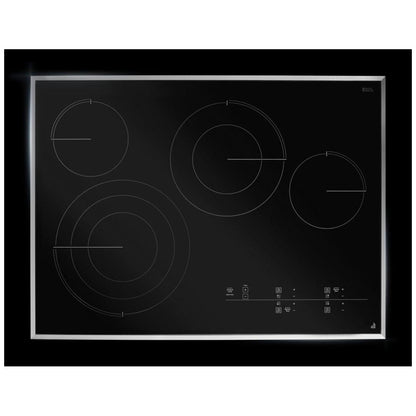

JennAir JEC4430KS Electric Cooktop, 30 inch Exterior Width, 4 Burners, 4,500 W Highest Element, Black colour
JennAir
JEC4430KS
JennAir JEC4430KS Electric Cooktop, 30 inch Exterior Width, 4 Burners, 4,500 W Highest Element, Black colour
MAP Price MAP Price $2,449.99
Quick Specs
  • Power Type: 4500 Watts
  • Burners: 4 burners
Dimensions
W 30in
H 5.25in
D 22in

Key Features

  • Most Powerful Radiant Cooktop In Its Class
  • Versatile Installation
  • 10”/6” Dual-Choice™ Element

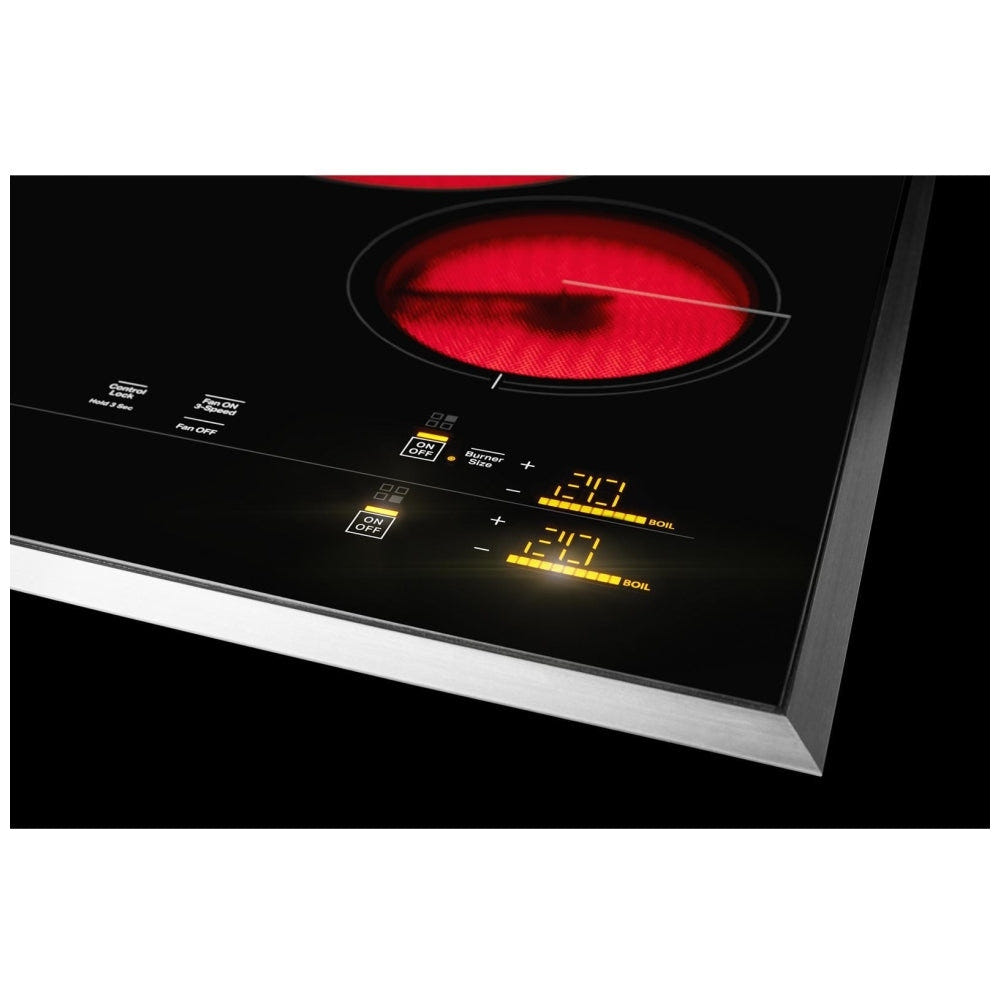

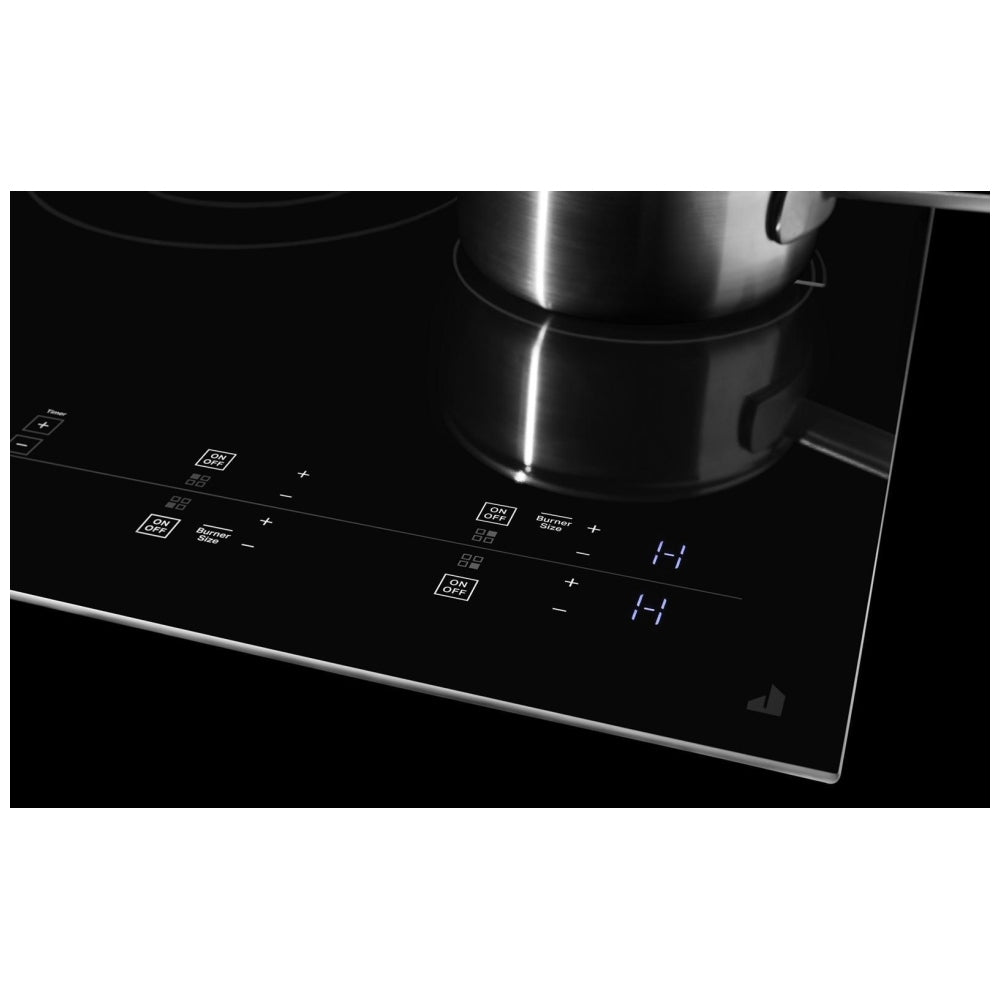

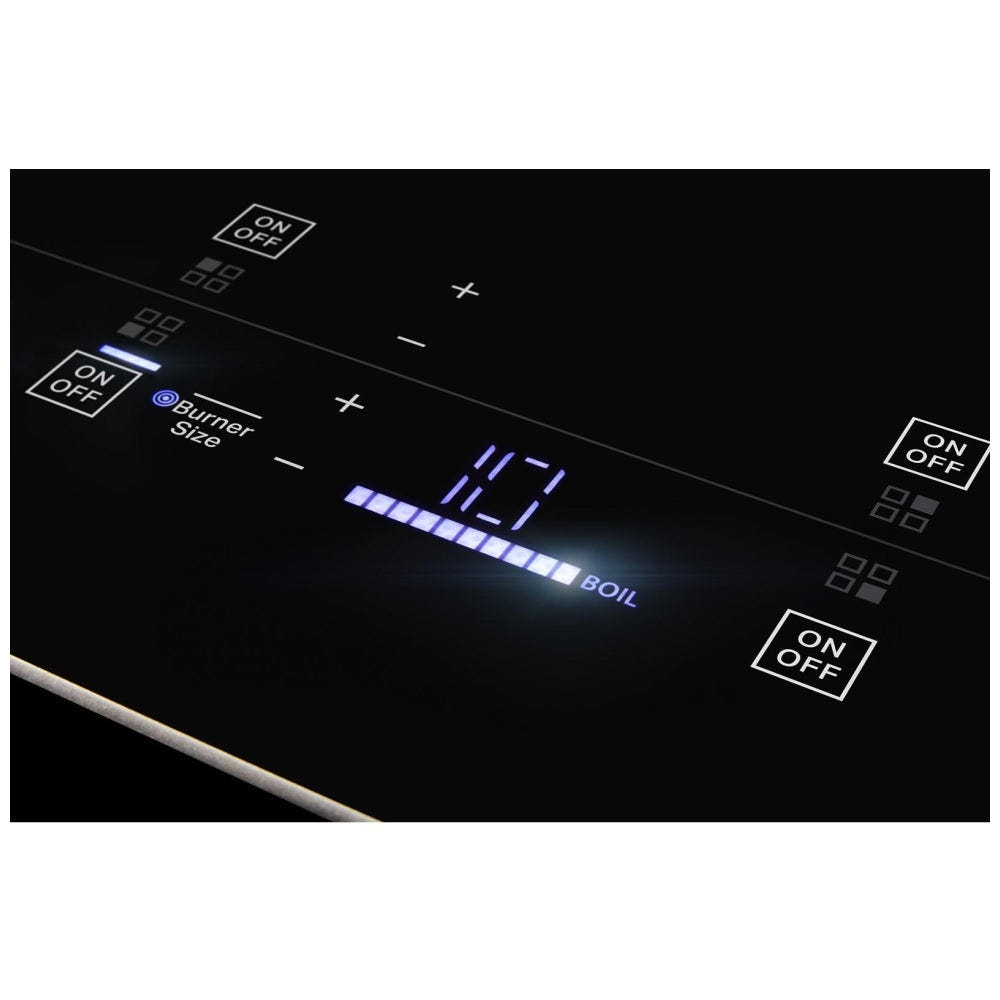

  • Emotive Controls
  • Install Over Single Wall Oven
  • Oblivion Glass Design
  • Radiant Elements
  • 8" 1,800-Watt Single Element
  • 6” 1,300-Watt Single Element
  • 6” 1,200-Watt Single Element

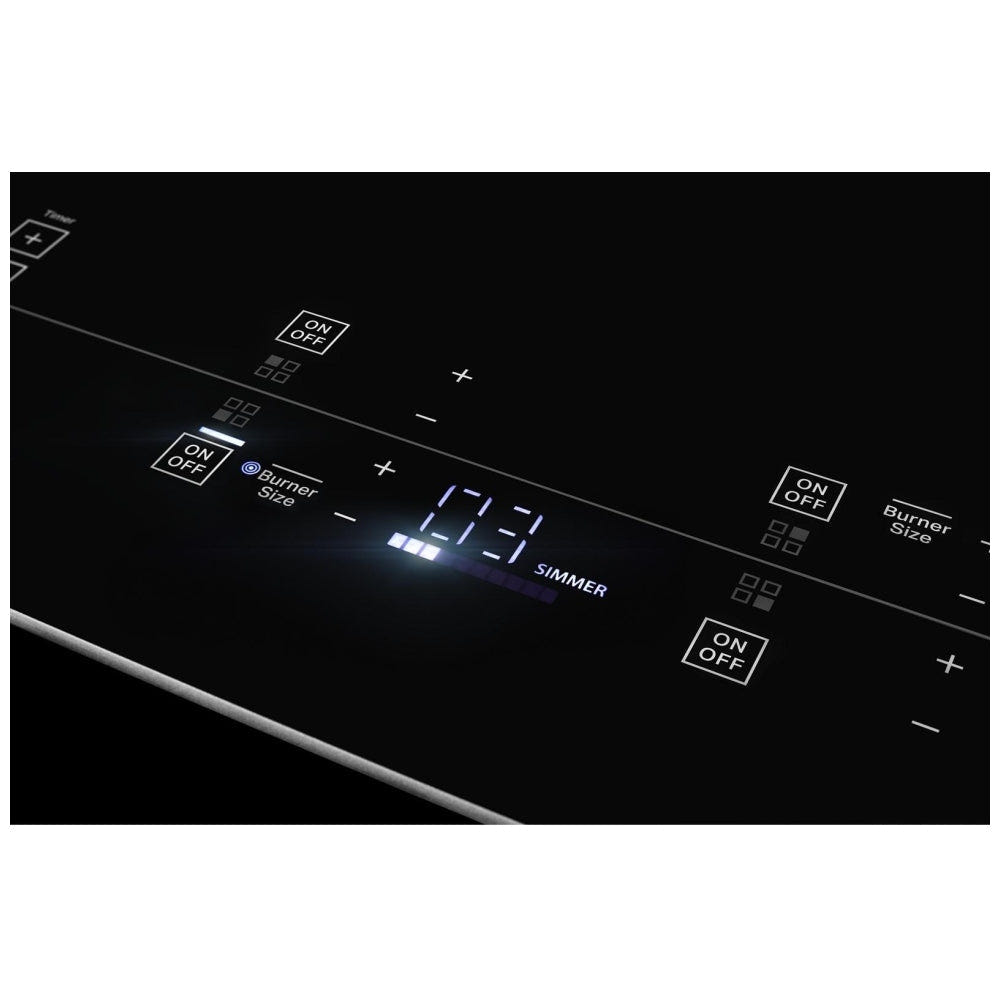

  • Simmer Function on All Elements
  • Keep Warm™ Function on All Elements
  • Hot Surface Indicators
  • Kitchen Timer
  • Power On Indicator Light
  • Control Lock
  • Cooktop Power Off Function
  • ADA Compliant
  • Serviced by a Select Few

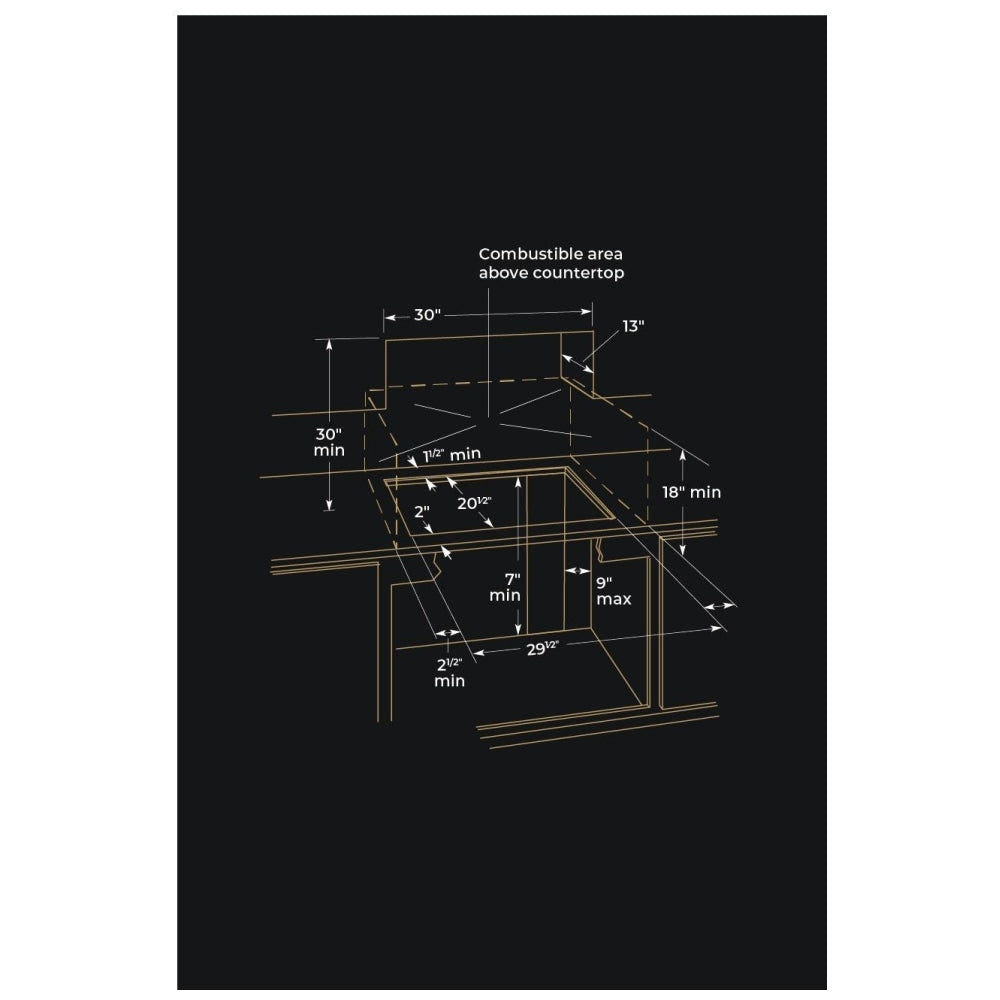

Dimensions|Cutout Depth Max(IN,inches)
20 9/16
Dimensions|Cutout Depth Min(IN,inches)
20 3/8
Dimensions|Cutout Width Max(IN,inches)
22 9/16
Dimensions|Cutout Width Min(IN,inches)
22 1/16
Dimensions|Depth(IN,inches)
21 3/4
Dimensions|Height(IN,inches)
5 1/4
Dimensions|Maximum Height(IN,inches)
5 1/4
Dimensions|Net Weight(LB,pounds)
42
Dimensions|Width(IN,inches)
23 13/16
Description|Combinations with Oven
JJW2424,JJW2427,JJW2430,JJW3430,JJW6024
Description|Cooktop Type
Traditional
Description|Fuel Type
Electric Radiant
Description|Size (in.)
24
Controls|Control Location
Front
Controls|Control Type
Electronic Touch
Controls|Infinite Heat Controls
No
Features|Automatic Pan Detection
No
Features|Digital Display
Yes
Features|Downdraft Vent
No
Features|Griddle
NA
Features|Heating Element On Indicator Light
Yes
Features|Hot Surface Indicator Light
Yes
Features|Installs Over Built-In Oven
Yes
Features|LP Convertible
No
Features|Power Boost
No
Features|Power Outage Compatible
No
Cooktop Details|Cooktop Configuration
All Burners
Cooktop Details|Cooktop Element Style
Radiant
Cooktop Details|Cooktop Surface Color
Black
Cooktop Details|Number of Cooking Element-Burners
4
Details|Cooktop Surface Material
Glass
Cooktop Details|Number of Open Bays
NA
Cooktop Details|Left Front Element-Burner Power
1200W
Cooktop Details|Left Front Element-Burner Size
6in.
Cooktop Details|Left Front Element-Burner Type
Standard
Cooktop Details|Left Rear Element-Burner Power
1800W
Cooktop Details|Left Rear Element-Burner Size
8in.
Cooktop Details|Left Rear Element-Burner Type
Standard
Cooktop Details|Right Front Element-Burner Power
1300W
Cooktop Details|Right Front Element-Burner Size
6in.
Cooktop Details|Right Front Element-Burner Type
Standard
Cooktop Details|Right Rear Element-Burner Power
3000W/1900W
Cooktop Details|Right Rear Element-Burner Size
10in./6in.
Cooktop Details|Right Rear Element-Burner Type
Dual-Stacked Burner
Certifications|ADA Compliant
ADA Height and Operation Compliant
Certifications|Prop 65
Standard
Certifications|UL
Yes
Design Type|Design Expression
Oblivian Glass
Dimensions|Gross Weight(LB,pounds)
46
Energy|Annual Energy Usage [kWh]
258
Electrical|Amps
40
Electrical|Hz
60
Electrical|Power Cord Included
No
Electrical|Volts
240
Electrical|208V Compatible
Yes
EndecaProps|ProductOutletCategories
Cooking
Home Delivery
Yes
Will Call
Yes
Carton Depth
25
Carton Height
9 1/4
Carton Width
27 3/4
Cutout Depth (in)
20 3/8
Cutout Width (in)
22 1/16
Depth
21 3/4
Height
5 1/4
Width
23 13/16
Gross Weight
46
Net Weight
42.3

Warranty Support

Warranty support and documents in one place.

Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.

Files

Brochure and warranty documents

1 file

Reviews will appear here once your reviews app is connected.
