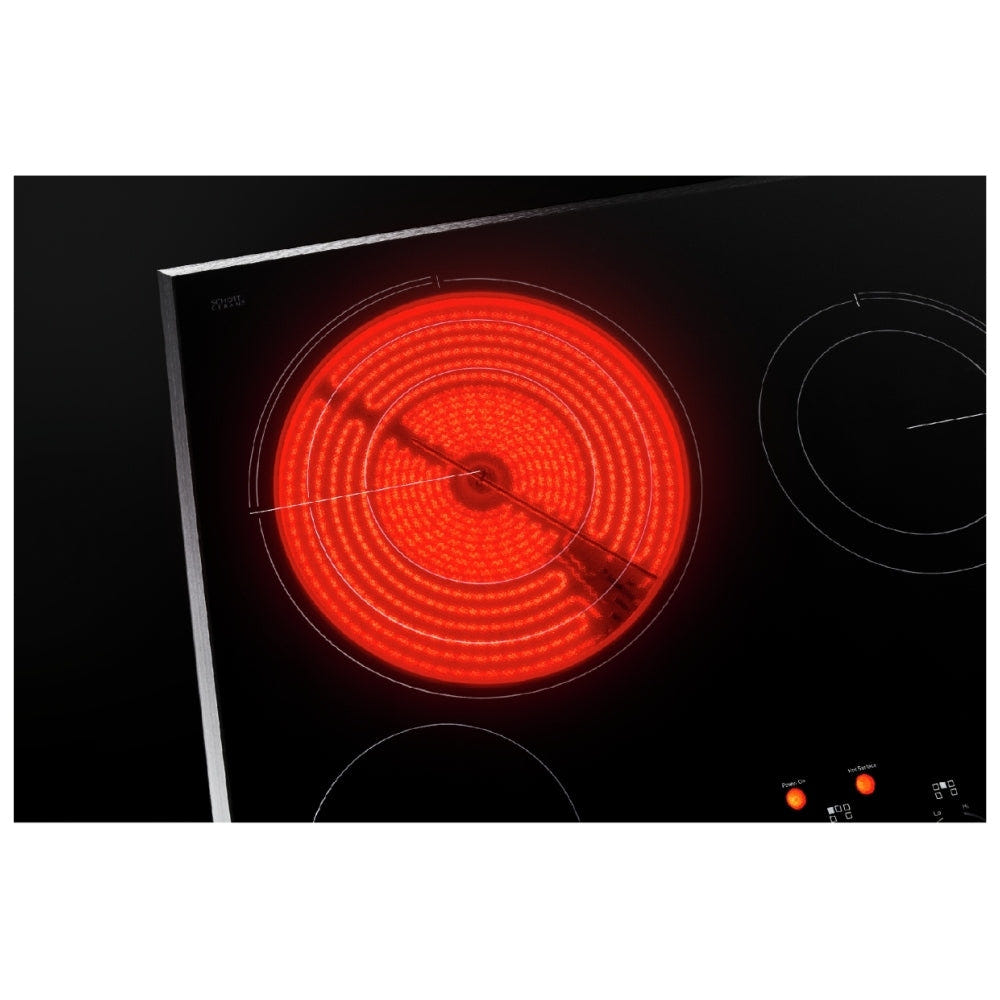

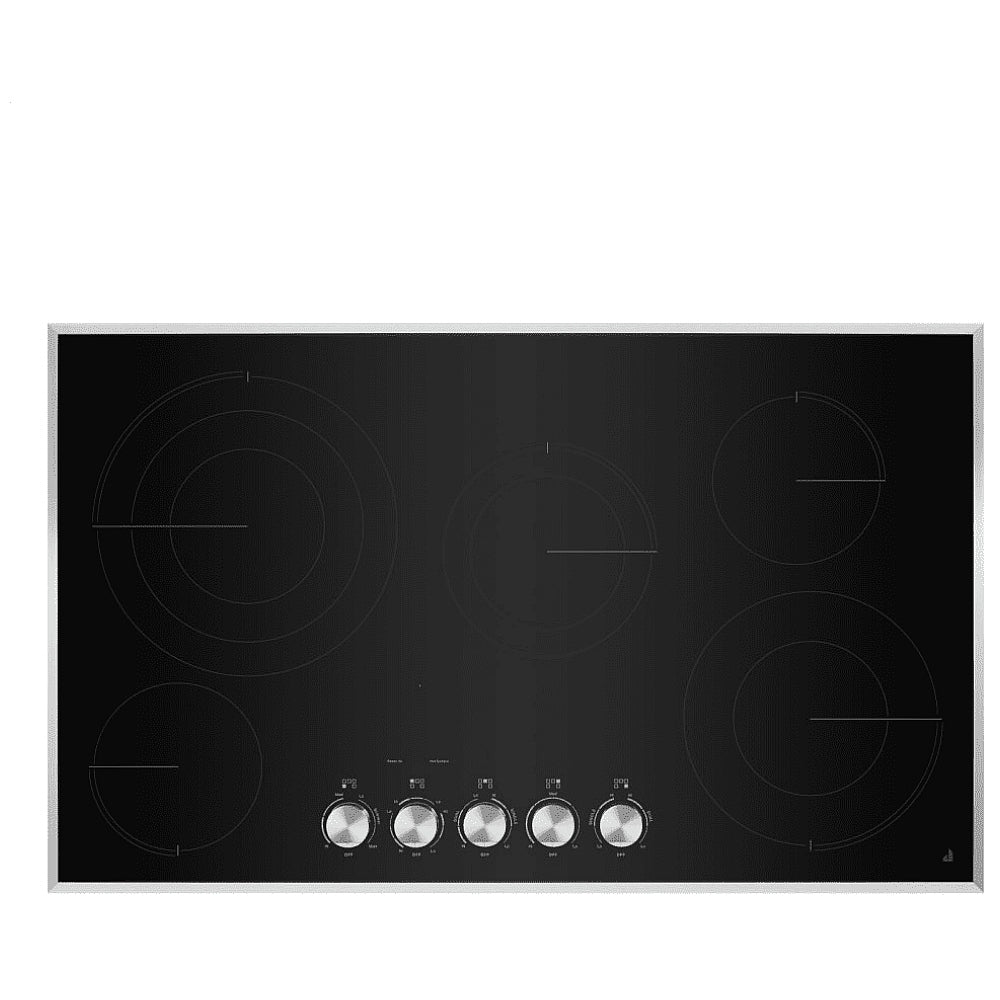

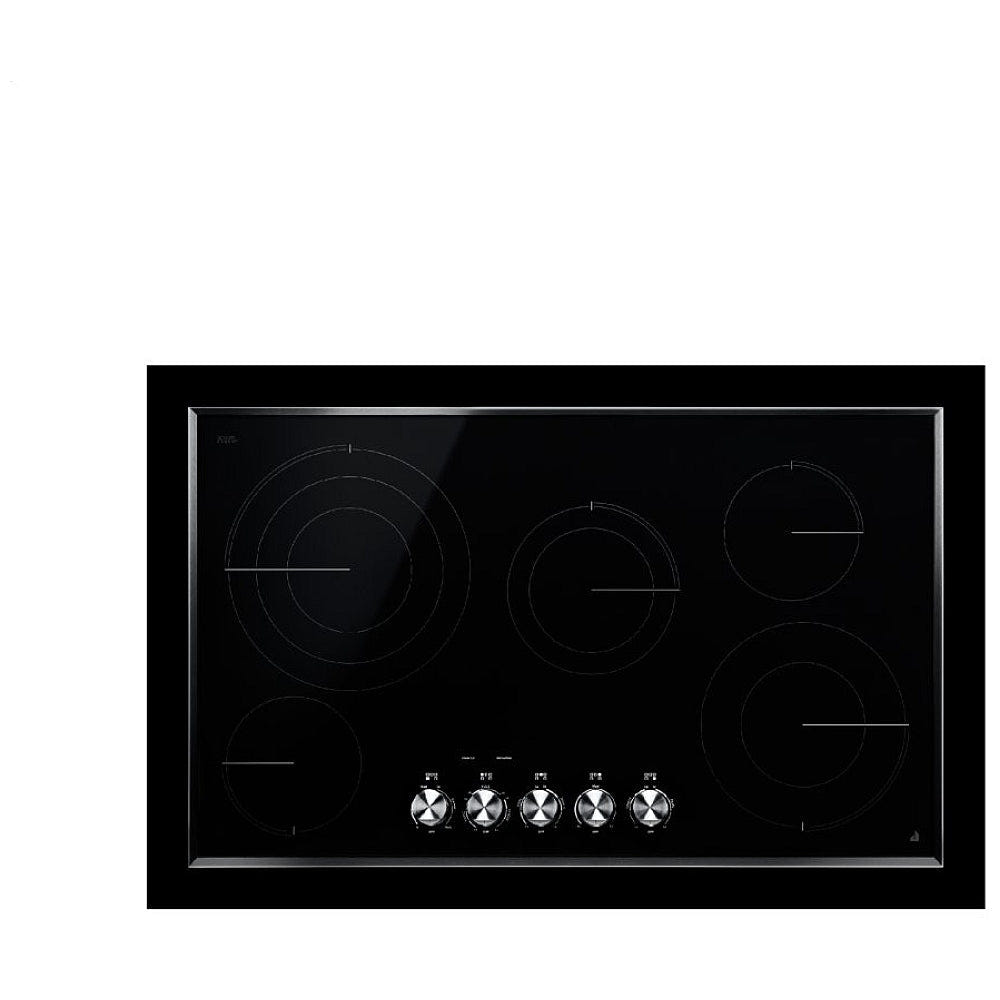

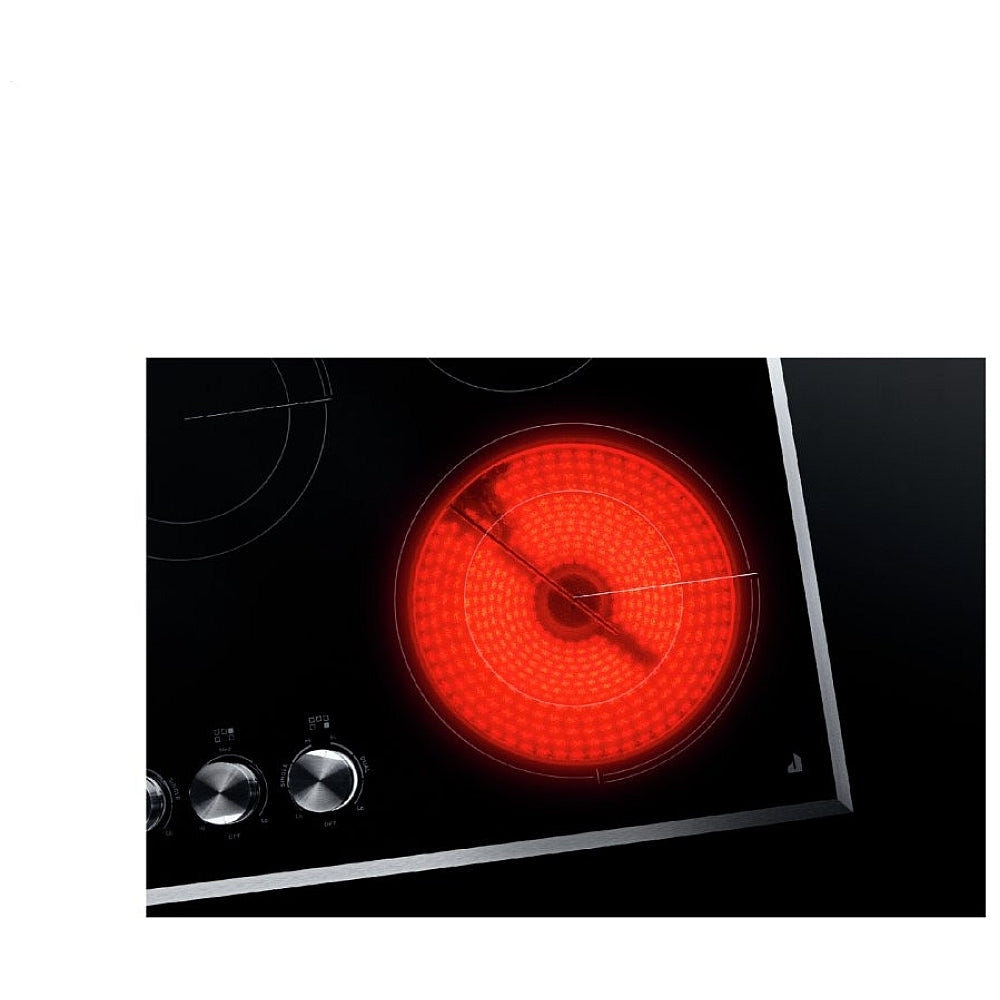

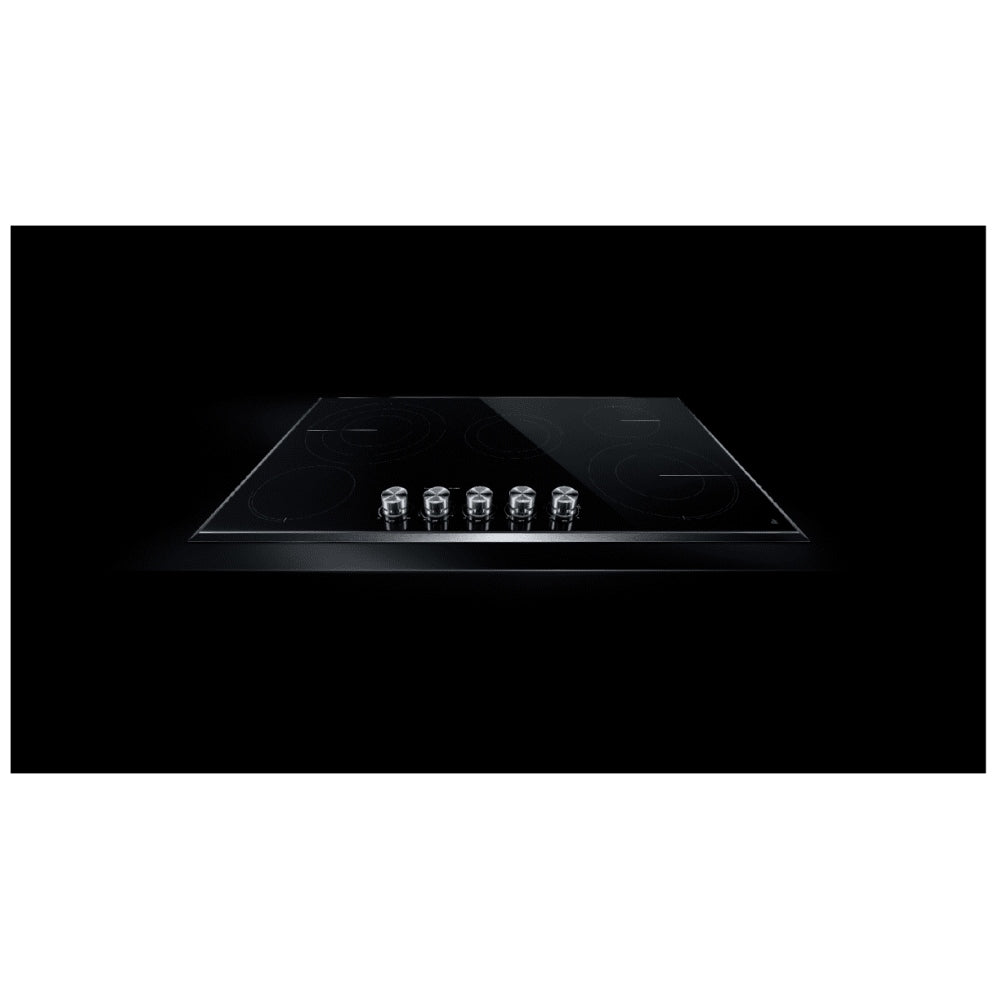

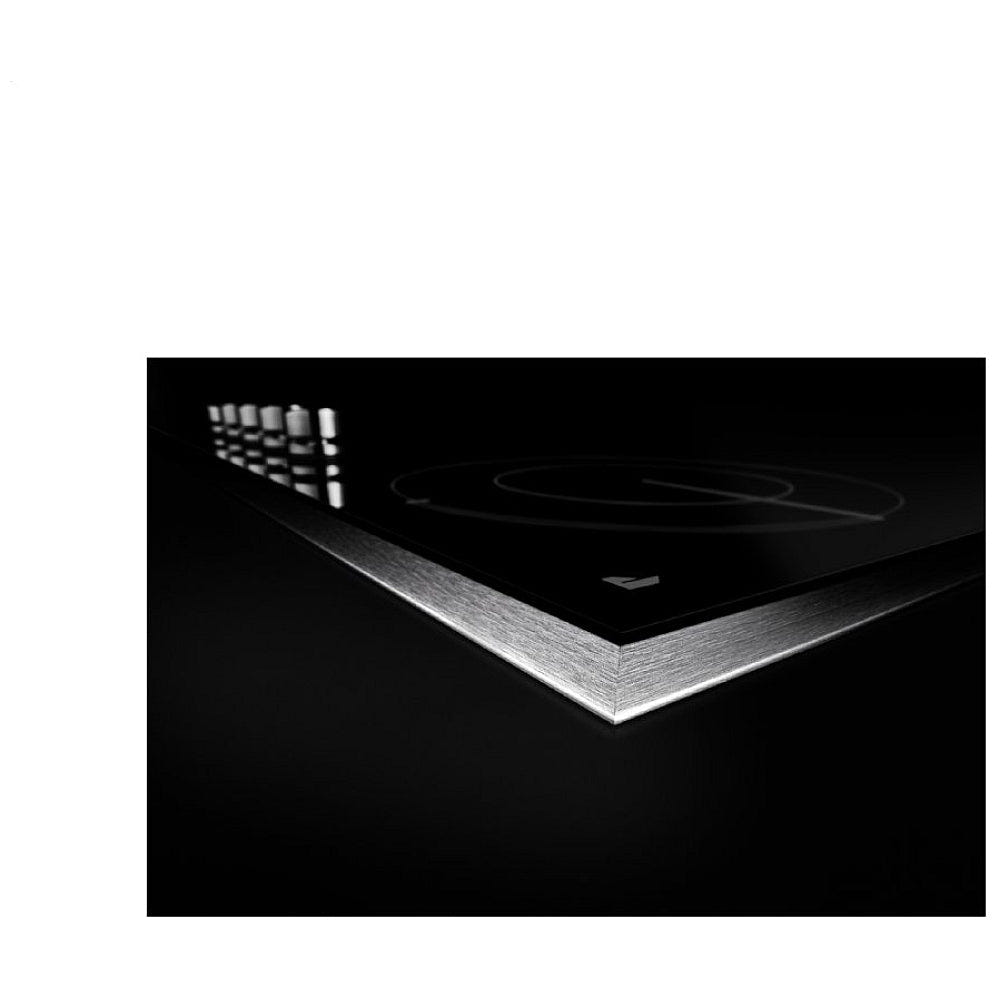

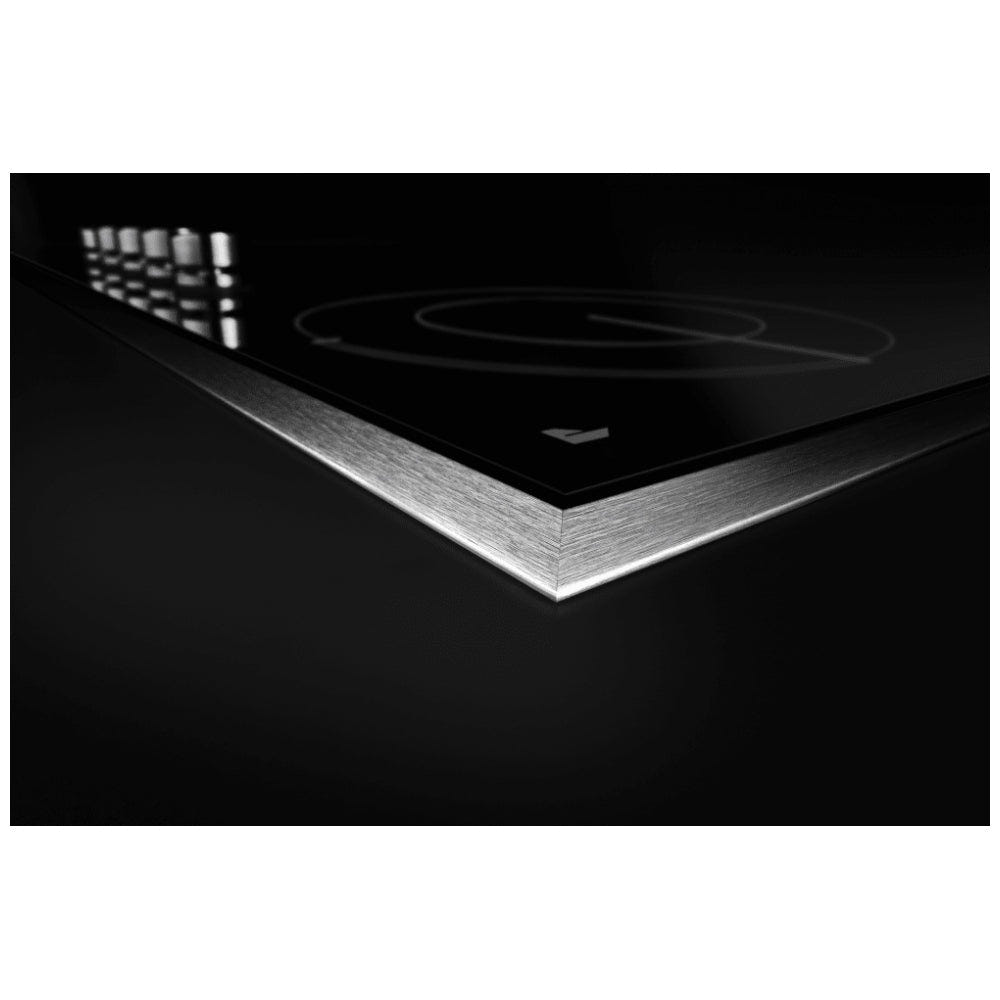

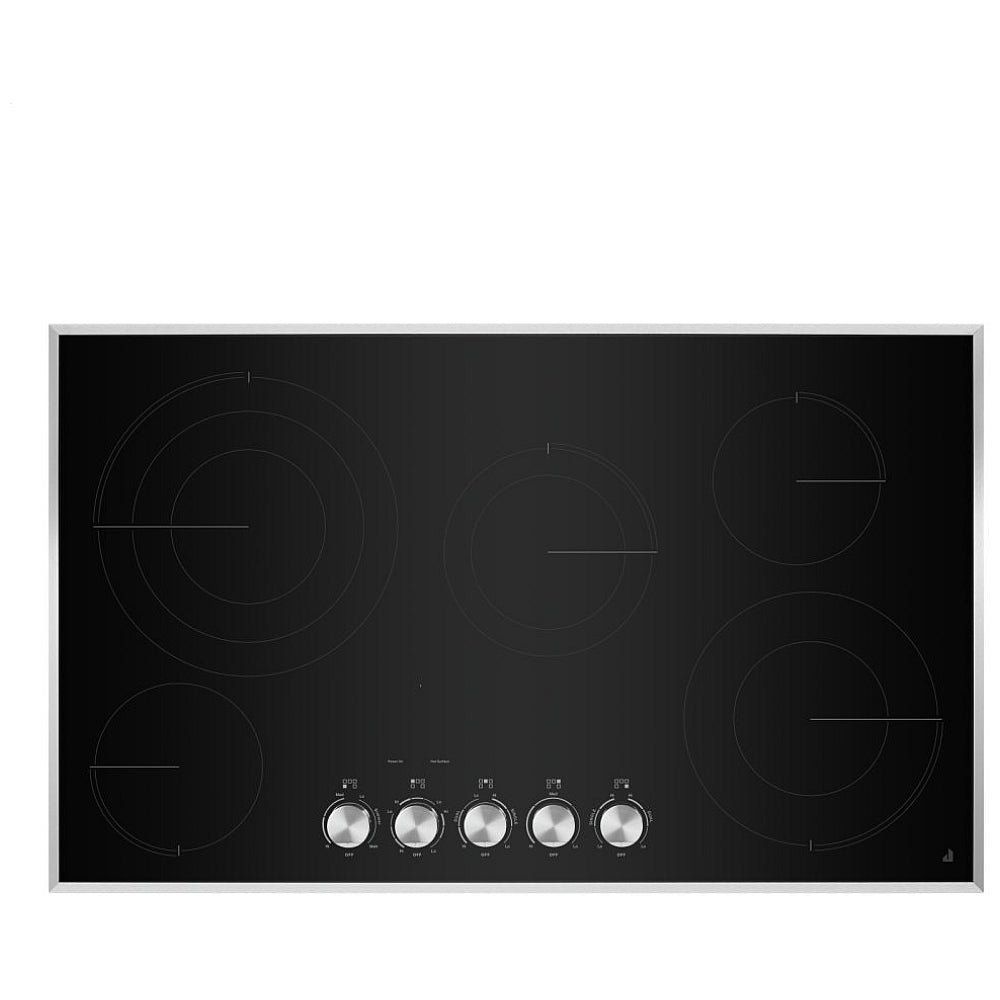

JennAir JEC3536HS Electric Cooktop, 36 inch Exterior Width, 5 Burners, 3,000 Watts Highest Burner Element, Black colour

Certifications
Ada Compliant ADA Height and Operation Compliant
Prop65 Standard
Ul Yes
Controls
Control Location Front
Control Type Knobs
Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Glass
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Number of Open Bays N/A
Details
Automatic Pan Detection No
Combinations With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Configuration All Burners
Design Expression Lustre Stainless
Fuel Type Electric Radiant
Installation Configuration True Flush
Installs Over Built-in Oven Yes
Lp Convertible No
Power Outage Compatible No
True Flush Installation Yes
Dimensions
Product Height 6.0625
Carton Height 10.25
Gross Weight 50
Carton Width 40.75
Product Depth 21.75
Cutout Depth Max 20.563
Cutout Width Min 34.563
Cutout Depth 20.375
Carton Depth 25
Cutout Width 34.563
Cutout Depth Min 20.375
Cutout Width Max 35.563
Net Weight 44
Product Width 36.3125
Electrical
208v Compatible Yes
Power Cord Included No
Element/burner Details
Center Rear Element-burner Power 2000/1000W
Center Rear Element-burner Size 9in./6in.
Cooktop Element Style Radiant
Cooktop Type Traditional
Left Front Element-burner Power 1,300W
Left Front Element-burner Size 6in.
Left Front Element-burner Type Standard
Left Rear Element-burner Power 3000W/2200W/1100W
Left Rear Element-burner Size 12in./9in./6in.
Left Rear Element-burner Type Triple
Number of Cooking Element-burners 5
Power Boost No
Right Front Element-burner Power 3000W/1900W
Right Front Element-burner Size 10in./6in.
Right Front Element-burner Type Dual
Right Rear Element-burner Power 1,200W
Right Rear Element-burner Size 6in.
Right Rear Element-burner Type Standard
Exterior Details

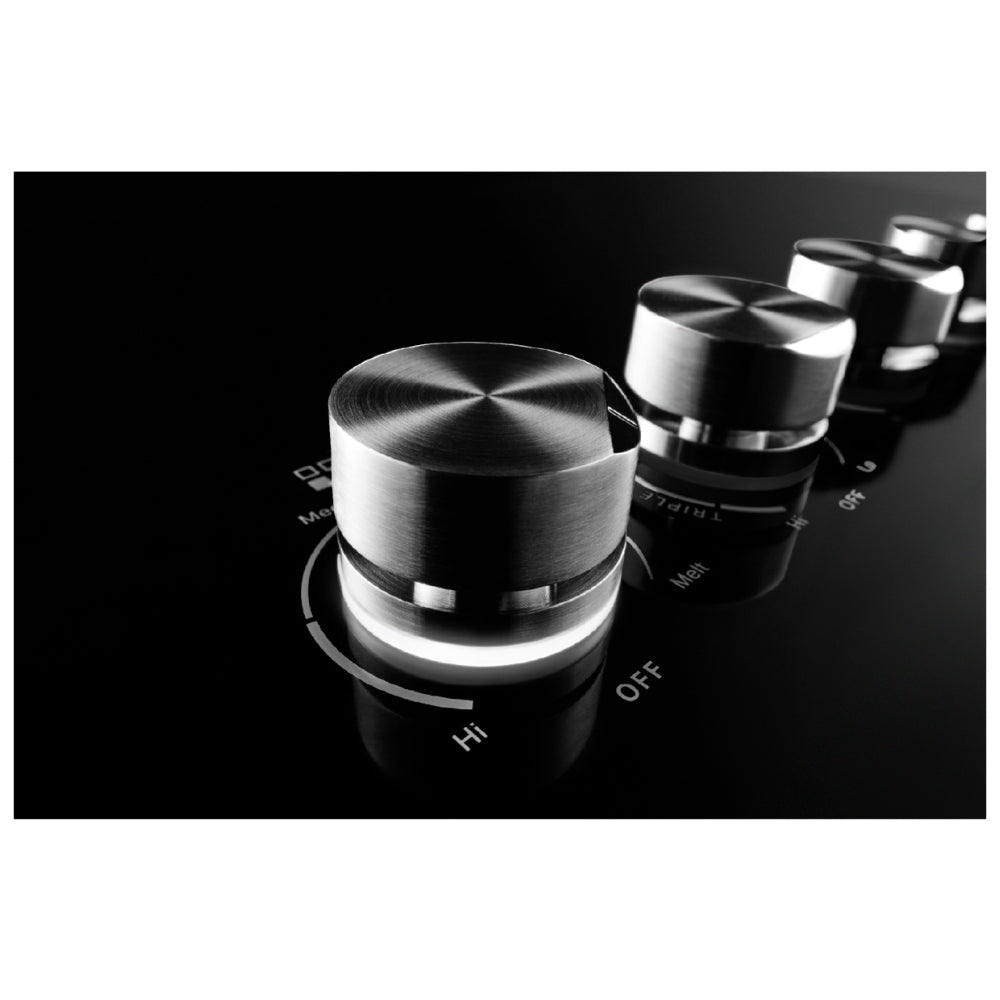

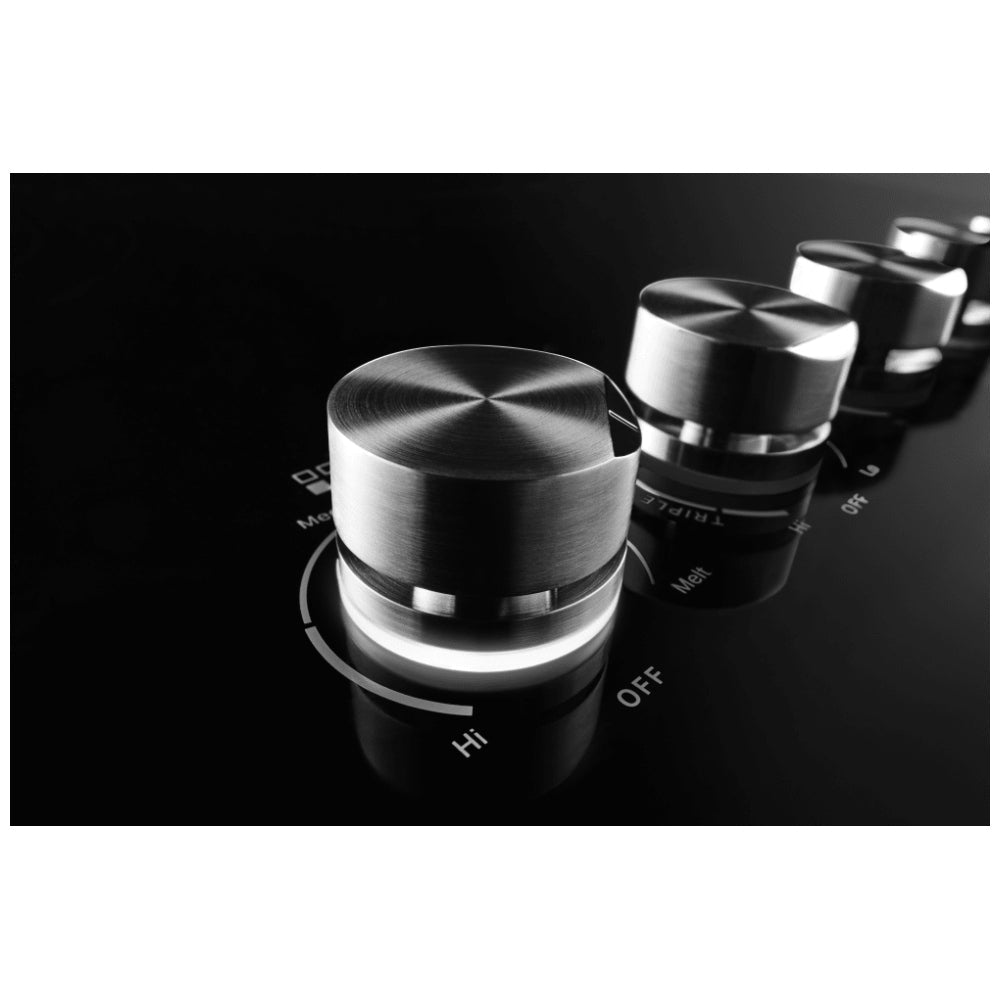

Knob Color Stainless Steel
Knob Type Metal
General
Combination Match With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Ventilation Details
Downdraft Vent No
Ventilation Type Updraft
Dimensions
Depth 21 3/4
Width 36 5/16
Height 6 1/16
Carton Depth 25
Carton Height 10 1/4
Carton Width 40 3/4
Cutout Depth 20 3/8
Cutout Width 34 9/16
Gross Weight 50
Maximum Height 6 1/16
Net Weight 44.0

Certifications
Prop 65 Standard
ADA Compliant ADA Height and Operation Compliant
UL UL

Description
Combinations with Oven JJW2427,JJW2430,JJW3430

Configuration and Overview
Cooktop Type Traditional
Fuel Type Electric Radiant
Size (IN,inches) 36
Installs Over Built-In Oven Yes
LP Convertible No
Power Boost No

Controls
Control Location Front
Control Type Knobs
Knob Color Stainless Steel
Knob Type Metal

Cooktop Details
Hot Surface Indicator Light Yes
Cooktop Element Style Radiant
Automatic Pan Detection No
Downdraft Vent No
Heating Element On Indicator Light Yes
Cooktop Surface Color Black
Number of Cooking Element-Burners 5
Left Front Element-Burner Size 6"
Cooktop Surface Material Glass
Number of Open Bays NA
Left Front Element-Burner Power 1300W
Center Rear Element-Burner Power 2000/1000W
Center Rear Element-Burner Size 9"/6"
Left Front Element-Burner Type Standard
Right Rear Element-Burner Size 6"
Left Rear Element-Burner Power 3000W/2200W/1100W
Left Rear Element-Burner Size 12"/9"/6"
Left Rear Element-Burner Type Triple
Right Front Element-Burner Power 3000W/1900W
Right Front Element-Burner Size 10"/6"
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Standard
Cooktop Configuration All Burners
Right Front Element-Burner Type Dual

Appearance
Digital Display No

Features
Griddle NA
Power Outage Compatible No

Electrical
Amps 40
Power Cord Included No
Volts 240
208V Compatible Yes
Hz 60

Refinement
Style Cooktops

Energy
Annual Energy Usage [kWh] 258

Design Type
Design Expression Lustre Stainless
