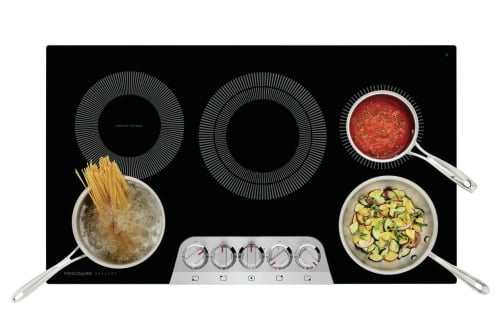

Cooktop
Cooking Surface Type Smooth
Hot-Surface Indicator Light Yes
Cooktop Performance
Right Front Element Burner Size 6"
Right Rear Element Burner Size 7"
Left Front Element Burner Size 6"
Left Rear Element Burner Size 9"
Center Rear Element Burner Size (Small) 9"
Center Rear Element Burner Size (Large) 12"
Right Front Element Burner 1200 Watts
Right Rear Element Burner 1800 Watts
Left Front Element Burner 1200 Watts
Left Rear Element Burner 3200 Watts
Center Rear Element Burner (Small) 1800 Watts
Center Rear Element Burner (Large) 3000 Watts

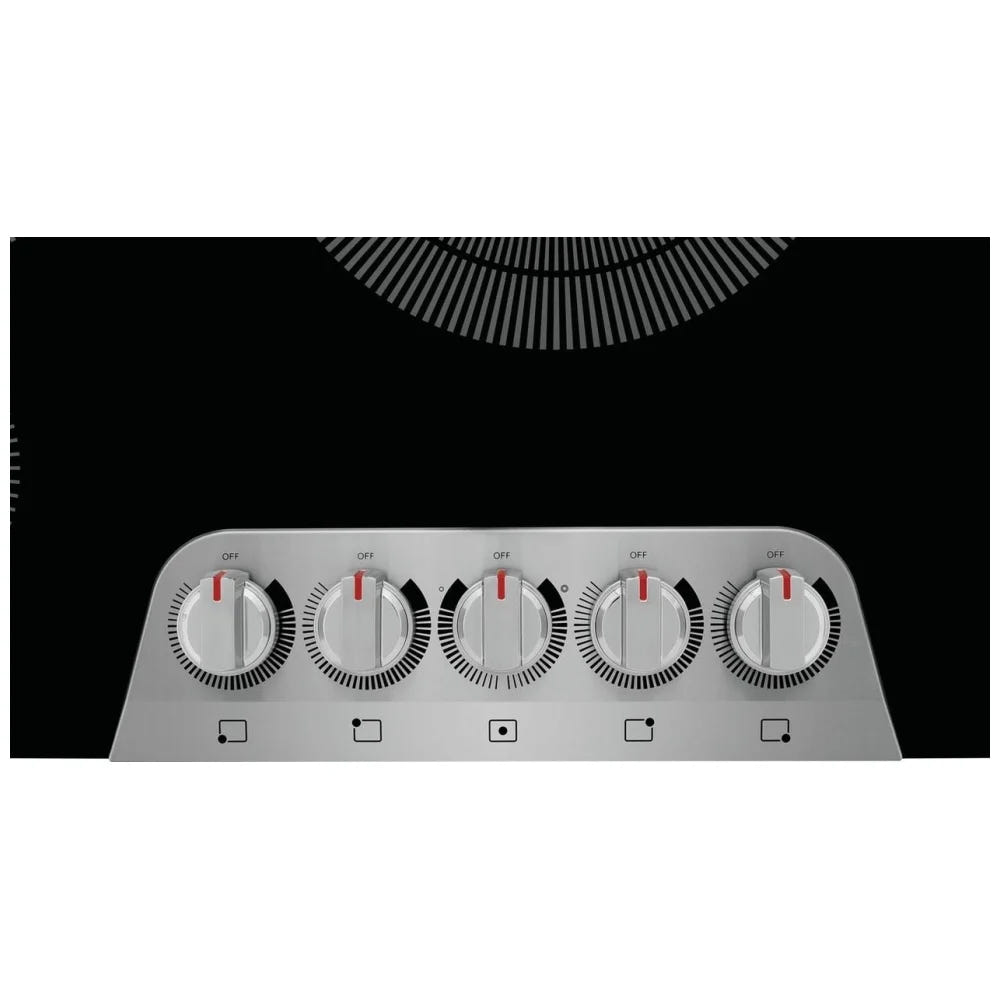

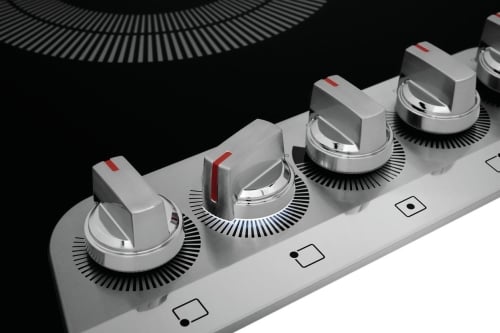

Controls
Sabbath Mode No
Display

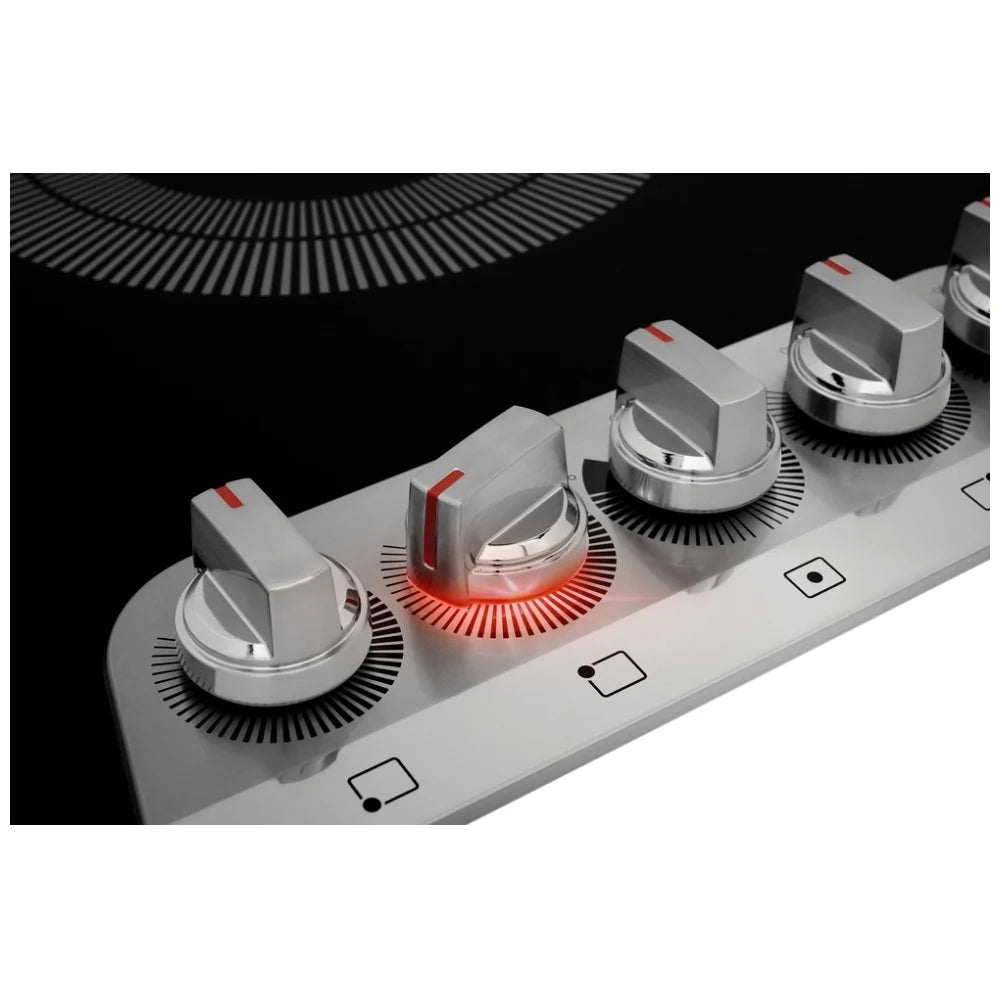

Control Location Front
Display Type Mechanical
Dimensions and Volume
Height 2 5/8"
Width 36 3/4"
Depth 21 3/8"
Cutout Height 5"
Minimum Cutout Width 33 7/8"
Minimum Cutout Depth 19 1/8"
Maximum Cutout Width 36 1/8"
Maximum Cutout Depth 20 1/2"
Electrical Specifications
Amps @ 240 Volts 43.3 Amps
Connected Load @ 240V 10.4 kW
Minimum Circuit Required 50 Amps
Voltage Rating 240 V
General Specifications
Frigidaire Fit Promise Yes
Product Weight 35 lbs
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Installed Over a Wall Oven Yes
Power Supply Connection Location Right Center
