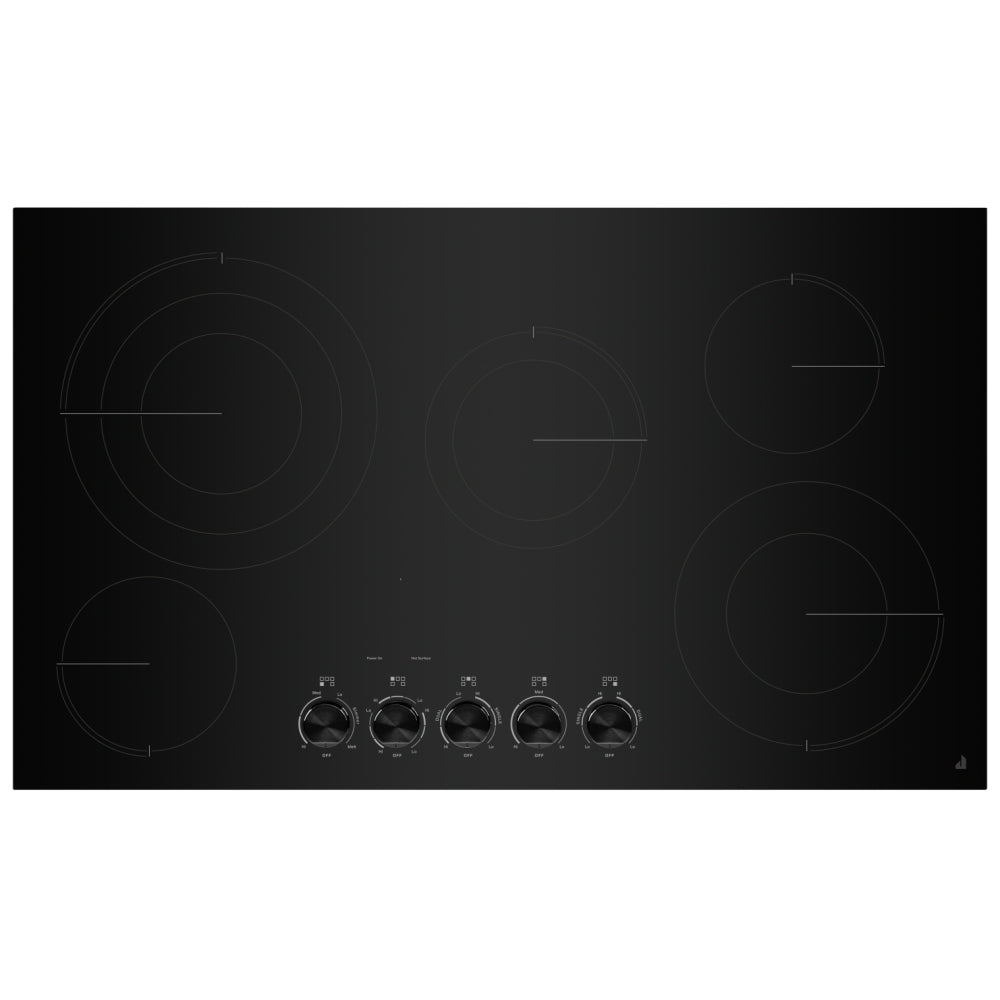

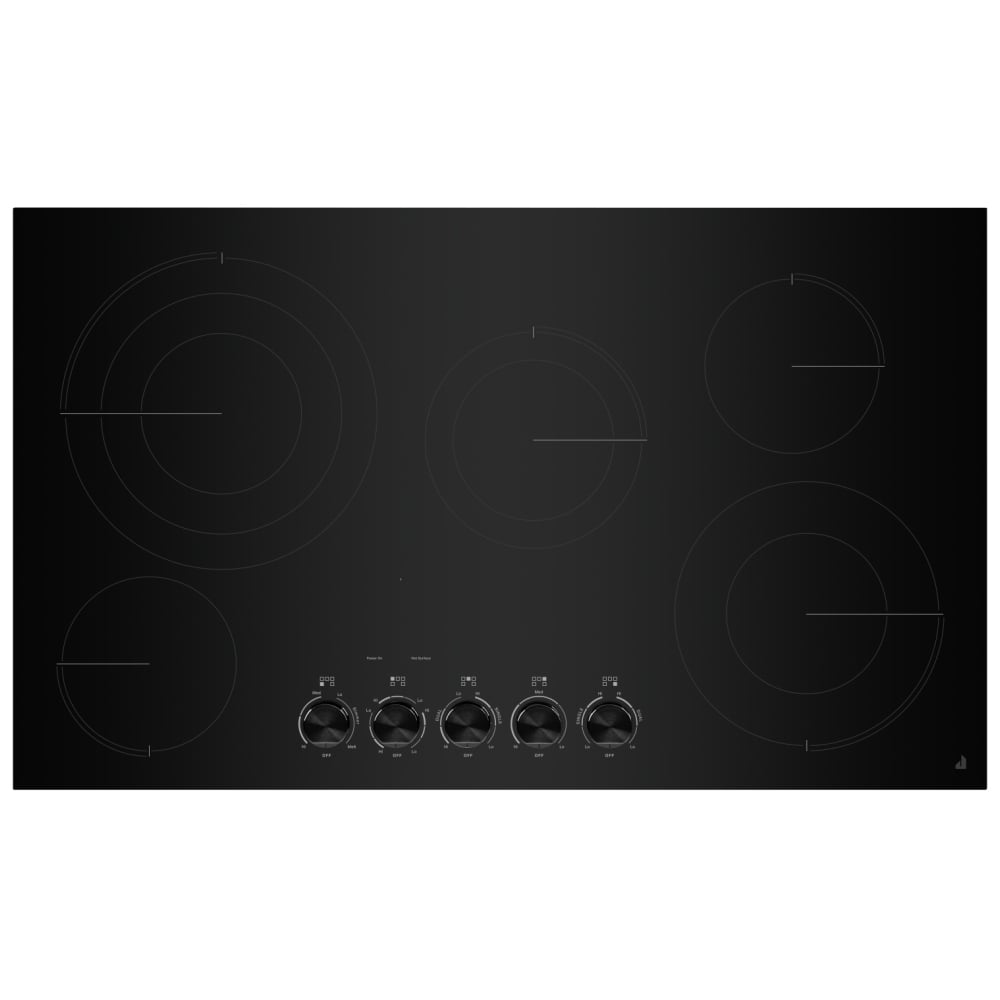

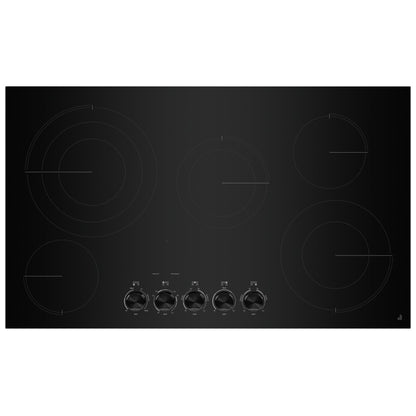

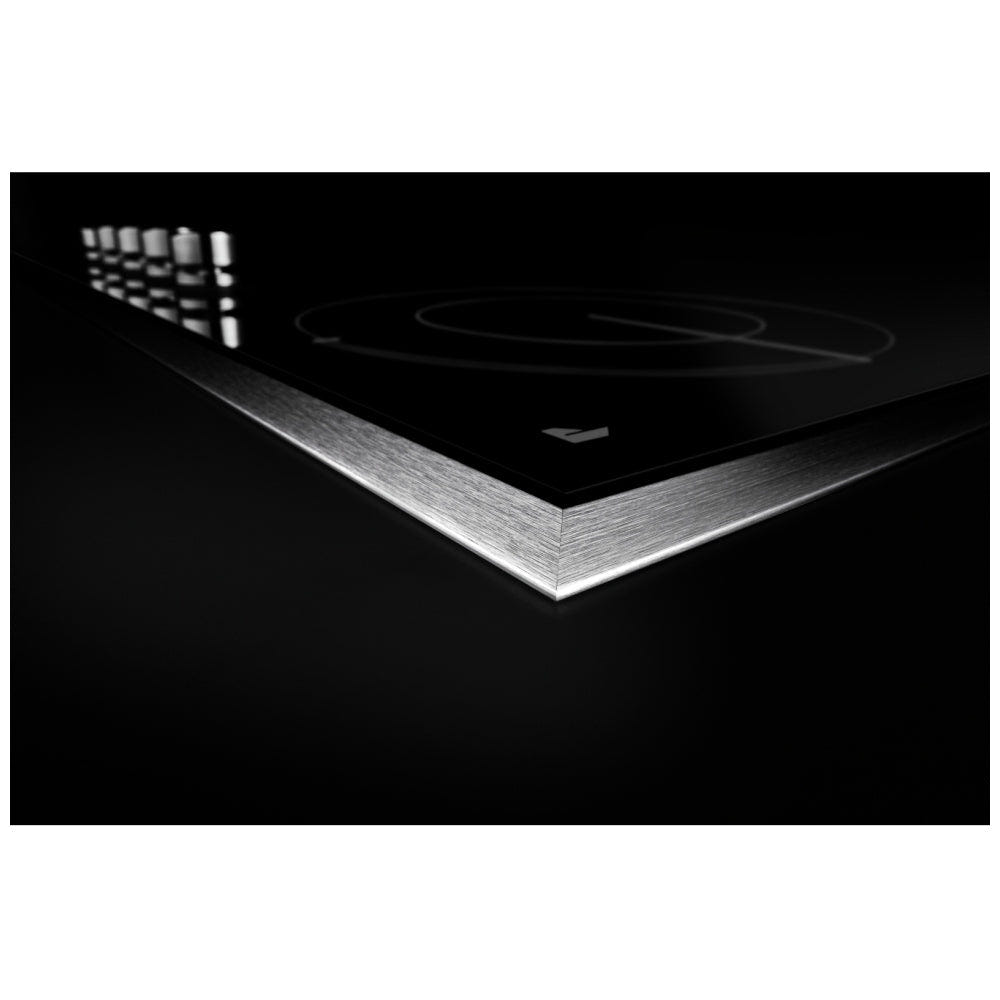

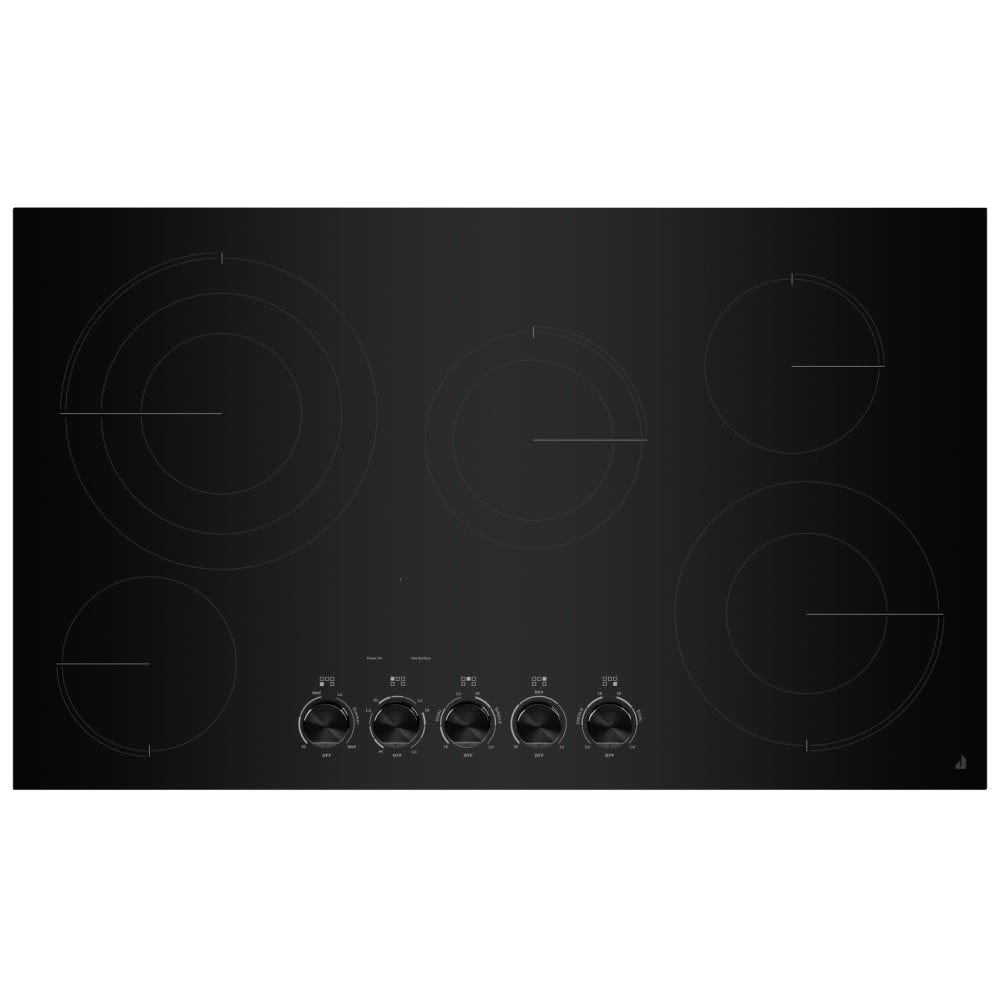

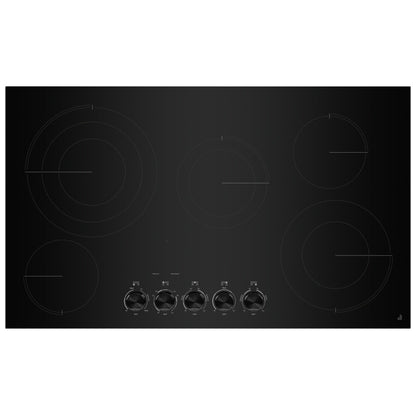

JennAir JEC3536HB Electric Cooktop 36" 3000W Oblivion Glass Cooktop

Dimensions
Depth 21 3/4
Width 36 5/16
Height 6 1/16
Carton Depth 25
Carton Height 10 1/4
Carton Width 40 3/4
Cutout Depth 20 3/8
Cutout Width 34 9/16
Gross Weight 50
Maximum Height 6 1/16
Net Weight 44.0

Certifications
Prop 65 Standard
ADA Compliant ADA Height and Operation Compliant
UL UL

Description
Combinations with Oven JJW2427,JJW2430,JJW3430

Configuration and Overview
Cooktop Type Traditional
Fuel Type Electric Radiant
Size (IN,inches) 36
Installs Over Built-In Oven Yes
LP Convertible No
Power Boost No

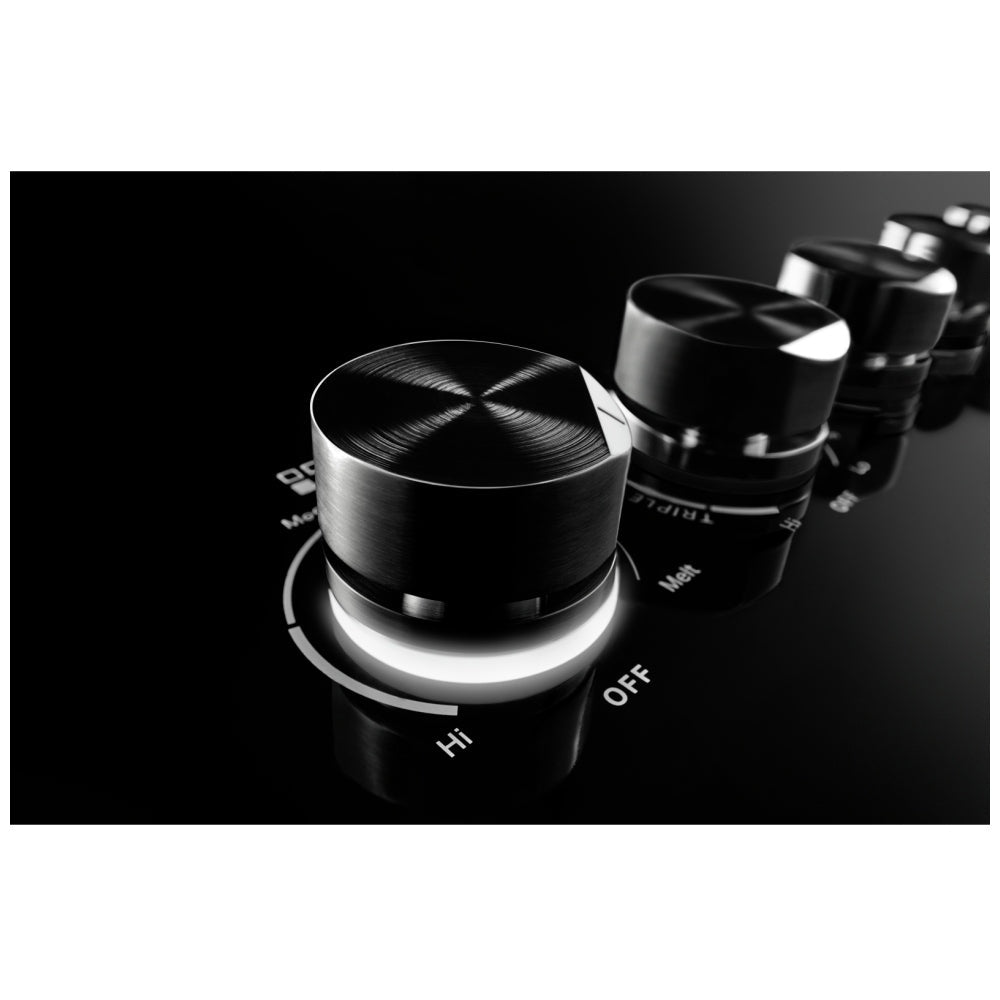

Controls
Control Location Front

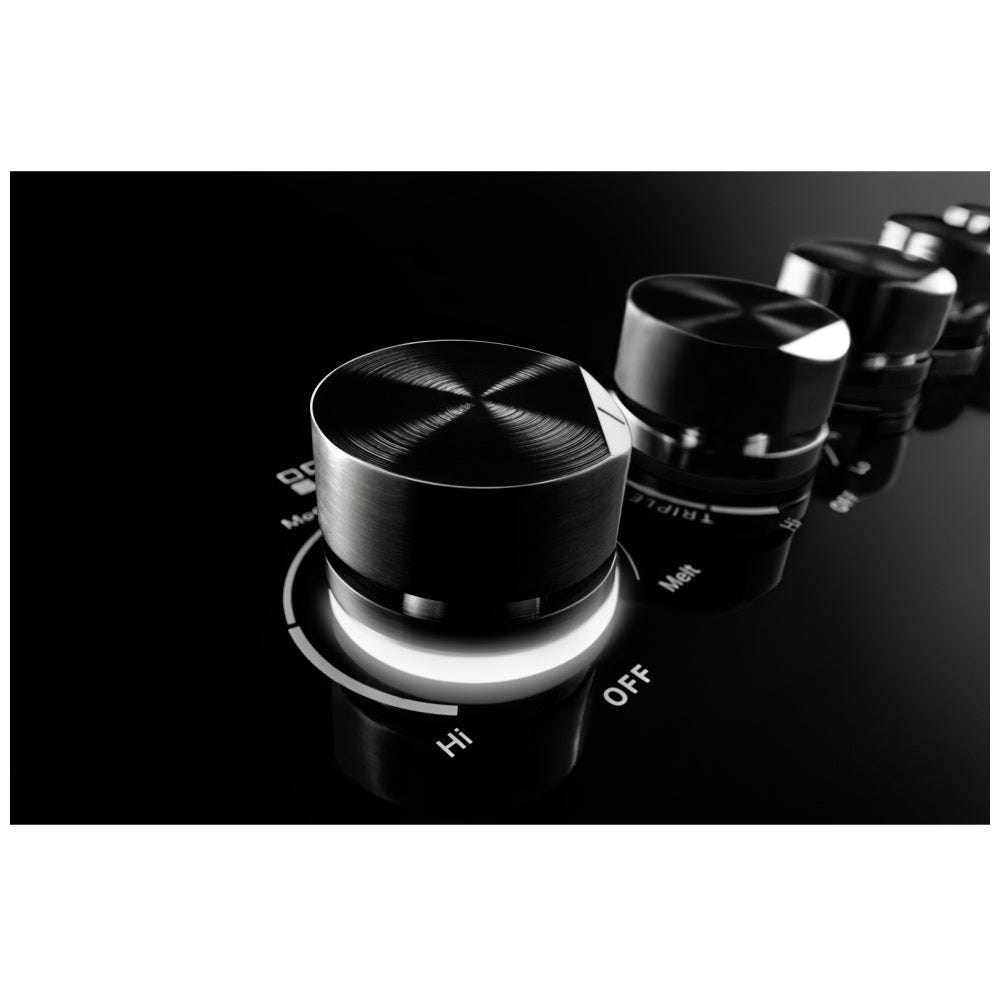

Control Type Knobs
Knob Color Black
Knob Type Metal

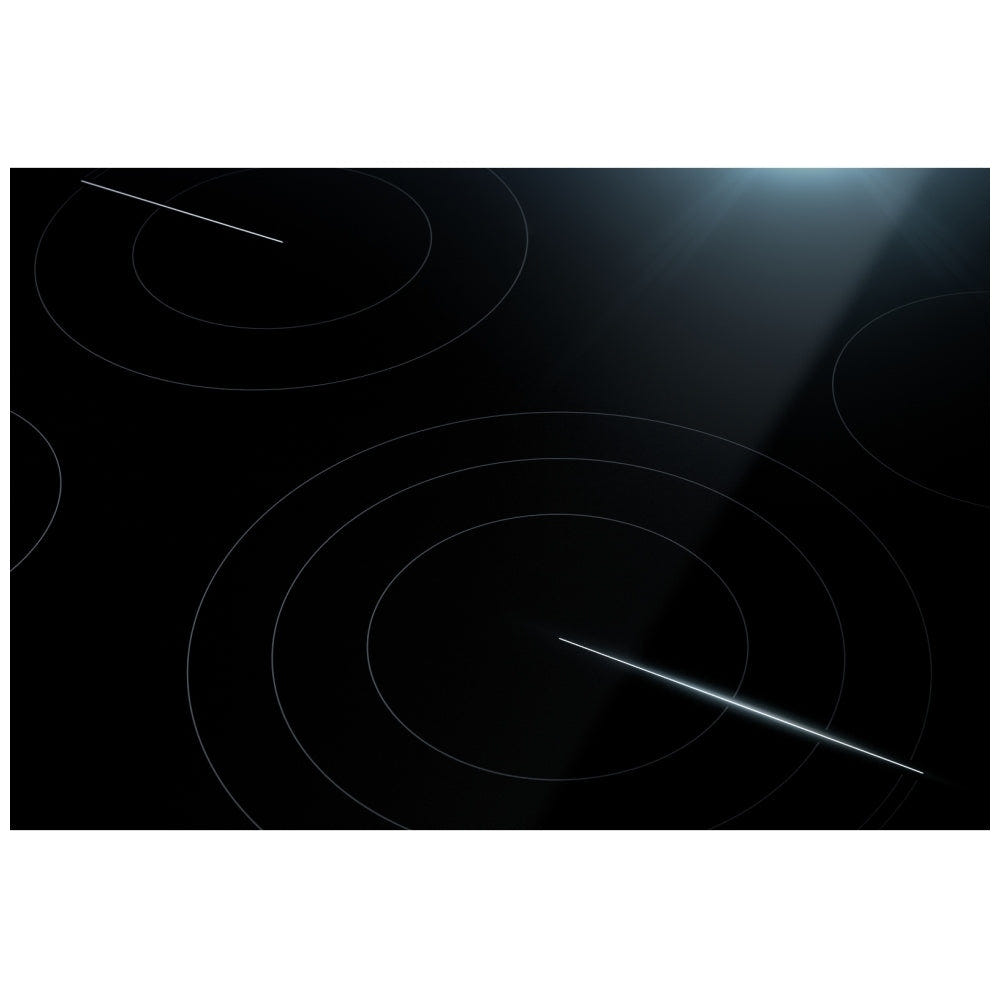

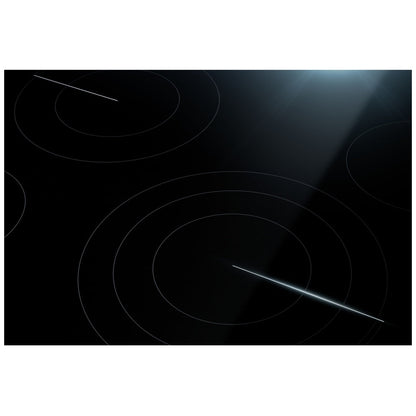

Cooktop Details
Hot Surface Indicator Light Yes

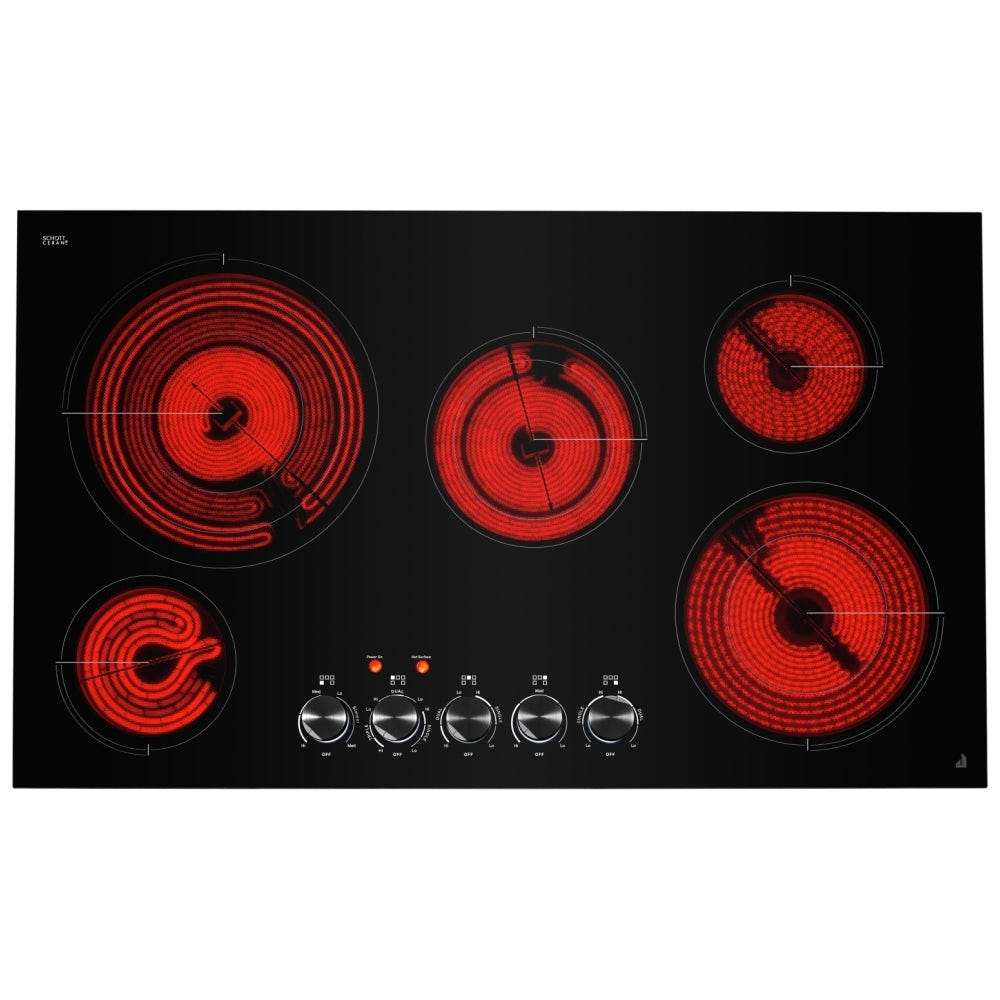

Cooktop Element Style Radiant
Automatic Pan Detection No
Downdraft Vent No
Heating Element On Indicator Light Yes
Cooktop Surface Color Black
Number of Cooking Element-Burners 5
Left Front Element-Burner Size 6"
Cooktop Surface Material Glass
Number of Open Bays NA
Left Front Element-Burner Power 1300W
Center Rear Element-Burner Power 2000/1000W
Center Rear Element-Burner Size 9"/6"
Left Front Element-Burner Type Standard
Right Rear Element-Burner Size 6"
Left Rear Element-Burner Power 3000W/2200W/1100W
Left Rear Element-Burner Size 12"/9"/6"
Left Rear Element-Burner Type Triple

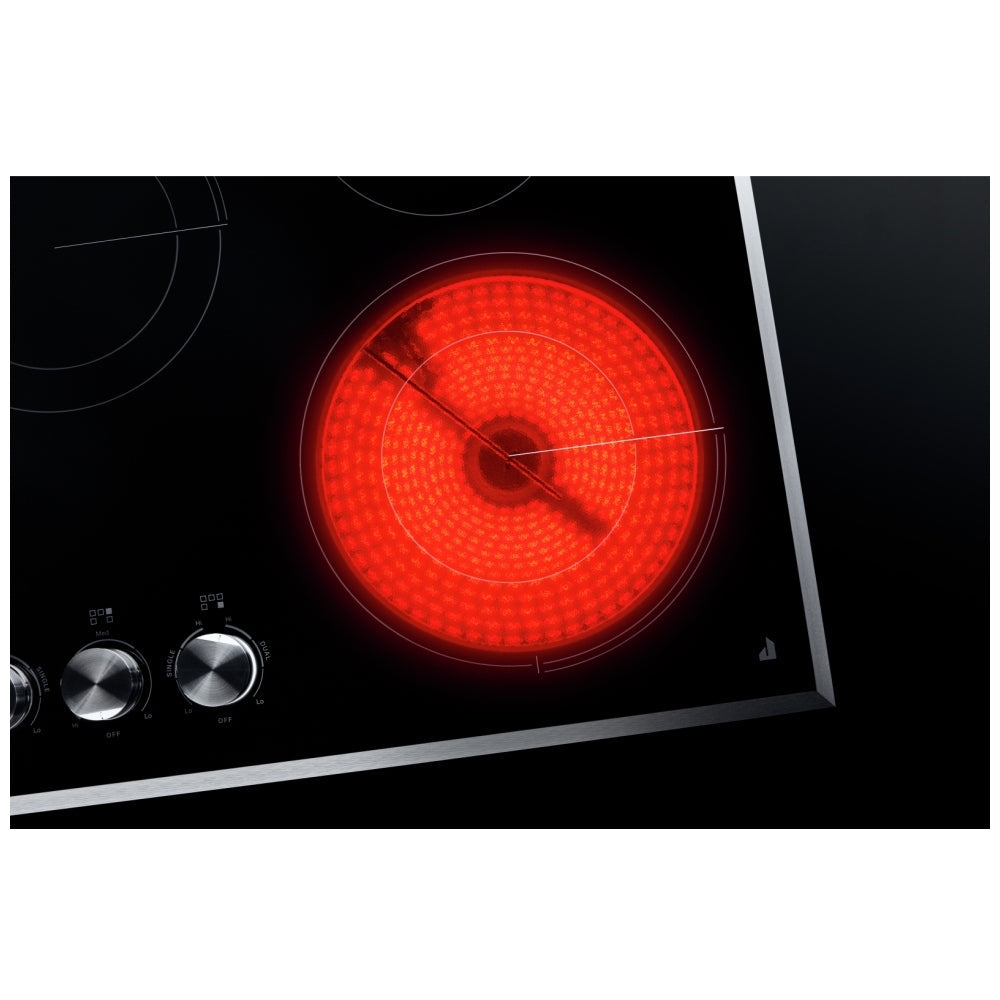

Right Front Element-Burner Power 3000W/1900W
Right Front Element-Burner Size 10"/6"
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Standard
Cooktop Configuration All Burners
Right Front Element-Burner Type Dual

Appearance
Digital Display No

Features
Griddle NA
Power Outage Compatible No

Electrical
Amps 40
Power Cord Included No
Volts 240
208V Compatible Yes
Hz 60

Refinement
Style Cooktops

Design Type
Design Expression Oblivian Glass

Energy
Annual Energy Usage [kWh] 258
