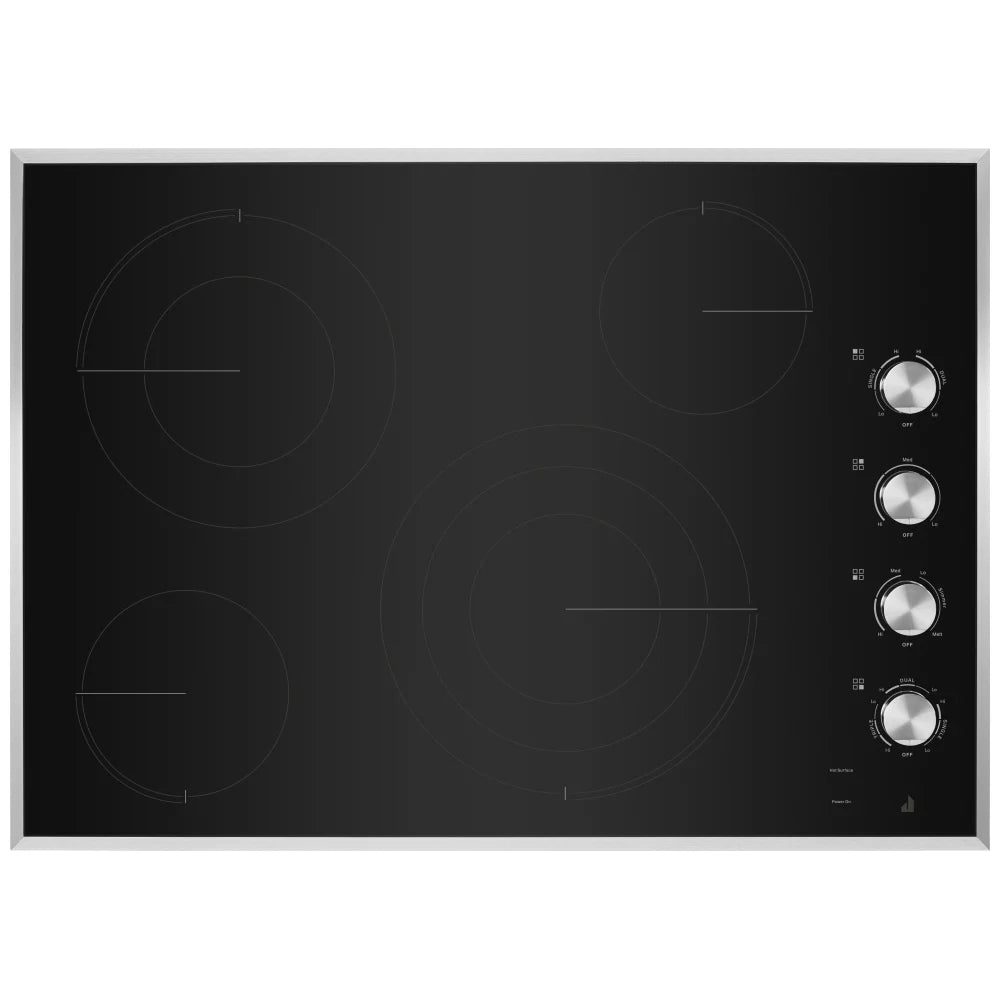

JennAir JEC3430HS 30" Lustre Stainless Radiant Glass Cooktop

Certifications
Ada Compliant ADA Height and Operation Compliant
Prop65 Standard
Ul Yes
Controls
Control Location Right
Control Type Knobs
Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Glass
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Number of Open Bays N/A
Details
Automatic Pan Detection No
Combinations With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Configuration All Burners
Design Expression Lustre Stainless
Fuel Type Electric Radiant
Installation Configuration True Flush
Installs Over Built-in Oven Yes
Lp Convertible No
Power Outage Compatible No
True Flush Installation Yes
Dimensions
Product Height 6.0625
Carton Height 10.25
Gross Weight 46
Carton Width 35
Product Depth 21.75
Cutout Depth Max 20.563
Cutout Width Min 29.063
Cutout Depth 20.563
Carton Depth 25
Cutout Depth Min 20.375
Cutout Width Max 29.563
Net Weight 41
Product Width 30.8125
Electrical
208v Compatible Yes
Power Cord Included No
Element/burner Details
Cooktop Element Style Radiant
Cooktop Type Traditional
Left Front Element-burner Power 1,300W
Left Front Element-burner Size 6in.
Left Front Element-burner Type Standard
Left Rear Element-burner Power 3000/1900W
Left Rear Element-burner Size 10in./6in.
Left Rear Element-burner Type Dual-Stacked Burner
Number of Cooking Element-burners 4
Power Boost No
Right Front Element-burner Power 3000W/2200W/1100W
Right Front Element-burner Size 12in./9in./6in.
Right Front Element-burner Type Triple
Right Rear Element-burner Power 1,200W
Right Rear Element-burner Size 6in.
Right Rear Element-burner Type Standard
Exterior Details
Knob Color Stainless Steel
Knob Type Metal
General
Combination Match With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Ventilation Details
Downdraft Vent No
Ventilation Type Updraft
