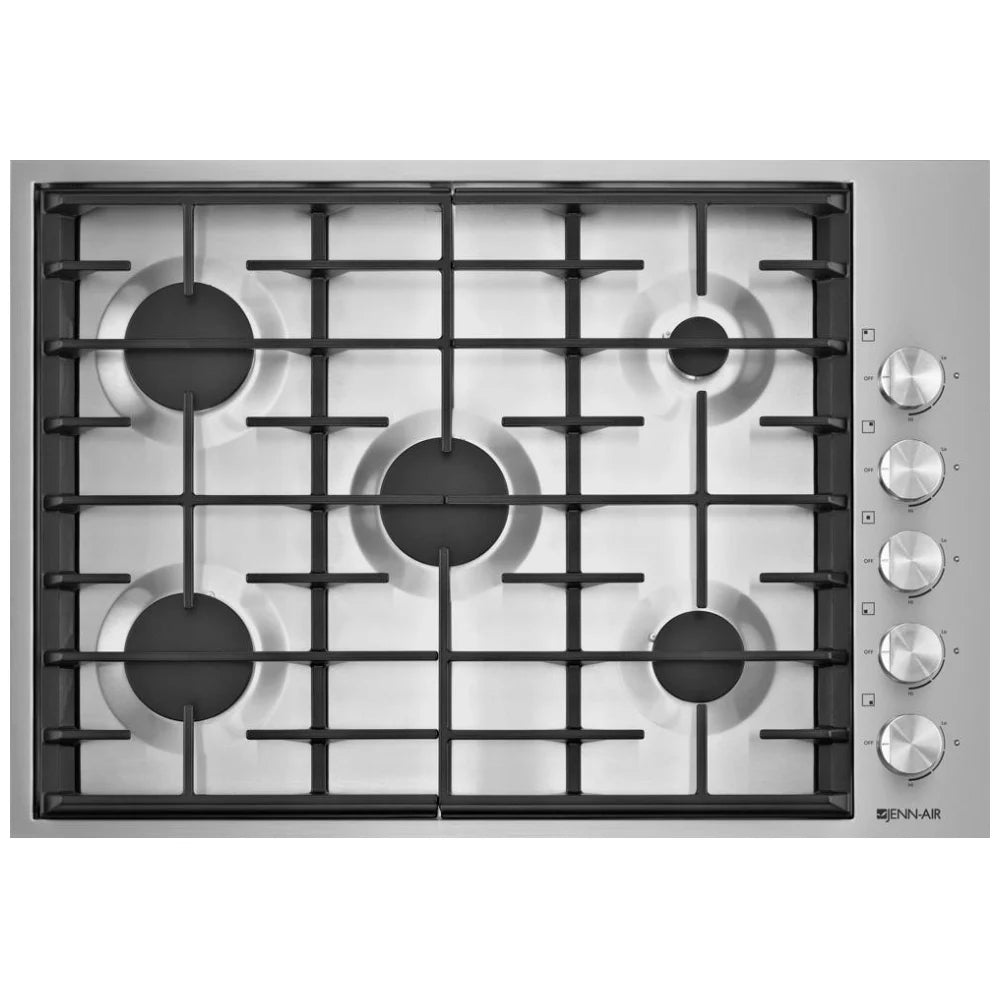

JennAir Euro Style JGC7530BS Ga Cooktop, 30 inch Exterior Width, 5 Burners, 18,000 BTU Highest Burner, Stainless Steel colour

Certifications
Ada Compliant Yes
Prop65 Standard
Ul Yes
Controls
Control Location Right Side
Control Type Knobs
Infinite Heat Controls Yes
Cooktop Details
Cooktop Surface Color Stainless
Cooktop Surface Material Stainless Steel
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light No
Ignition Type Flame-Sensing™ Re-ignition
Details
Automatic Pan Detection No
Combinations With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Selections Simmer
Design Expression Stainless Steel
Fuel Type Gas
Installs Over Built-in Oven Yes
Lp Convertible Yes - Kit Included
Dimensions
Product Height 4.5
Carton Height 3.25
Gross Weight 62
Carton Depth 21
Carton Width 30
Product Depth 21.0
Cutout Width Max 29.375
Net Weight 0
Product Width 30.0
Cutout Depth Max 20.375
Electrical
Power Cord Included Yes
Element/burner Details
Center Front Element-burner Power 15,000 BTU
Cooktop Element Style Sealed Burner
Cooktop Type Traditional
Left Front Element-burner Power 18,000 BTU
Left Front Element-burner Type Power™ Burner
Left Rear Element-burner Power 12,000 BTU
Left Rear Element-burner Type Burner
Number of Cooking Element-burners 5
Power Boost No
Right Front Element-burner Power 9,000 BTU
Right Front Element-burner Type Burner
Right Rear Element-burner Power 6,000 BTU
Right Rear Element-burner Type Simmer
Exterior Details
Knob Color Stainless Steel
Knob Type Metal
General
Combination Match With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Grate Details
Grate Details Dishwasher Safe; Individual; Matte Finish; Steel Grates
Number of Grates 3
Ventilation Details
Downdraft Vent No
Ventilation Type Updraft
Dimensions
Depth 21
Width 30
Height 4 1/2
Carton Depth 21
Carton Height 3 1/4
Carton Width 30
Gross Weight 62

Certifications
Prop 65 Standard
ADA Compliant Yes
UL UL

Configuration and Overview
Fuel Type Gas
Cooktop Type Traditional
Size (IN,inches) 30
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Boost No

Description
Combinations with Oven JJW2427,JJW2430,JJW3430

Controls
Control Type Knobs
Infinite Heat Controls Yes
Knob Color Stainless Steel
Knob Type Metal
Control Location Right Side

GDS
isBaseUnit true
isConsumerUnit true
GPC Code 10001951
IsDispatchUnit .
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623

Appearance
Digital Display No

Cooktop Details
Automatic Pan Detection No
Downdraft Vent No
Hot Surface Indicator Light No
Heating Element On Indicator Light No
Number of Cooking Element-Burners 5
Cooktop Surface Color Stainless
Cooktop Surface Material Stainless Steel
Center Front Element-Burner Power 15,000 BTU
Left Front Element-Burner Power 18,000 BTU
Right Front Element-Burner Power 9000 BTU
Left Front Element-Burner Type Power™ Burner
Right Rear Element-Burner Power 6000 BTU
Left Rear Element-Burner Power 12,000 BTU
Left Rear Element-Burner Type Burner
Grate Details Dishwasher Safe,Individual,Matte Finish,Steel Grates
Right Front Element-Burner Type Burner
Cooktop Element Style Sealed Burner
Ignition Type Flame-Sensing™ Re-ignition
Number of Grates 3
Right Rear Element-Burner Type Simmer

Features
Griddle NA
Selection Heating Element On Indicator Light,Simmer

Electrical
Amps 15
Hz 60
Volts 120
Power Cord Included Yes

Refinement
Style Cooktops

Design Type
Design Expression Stainless Steel
