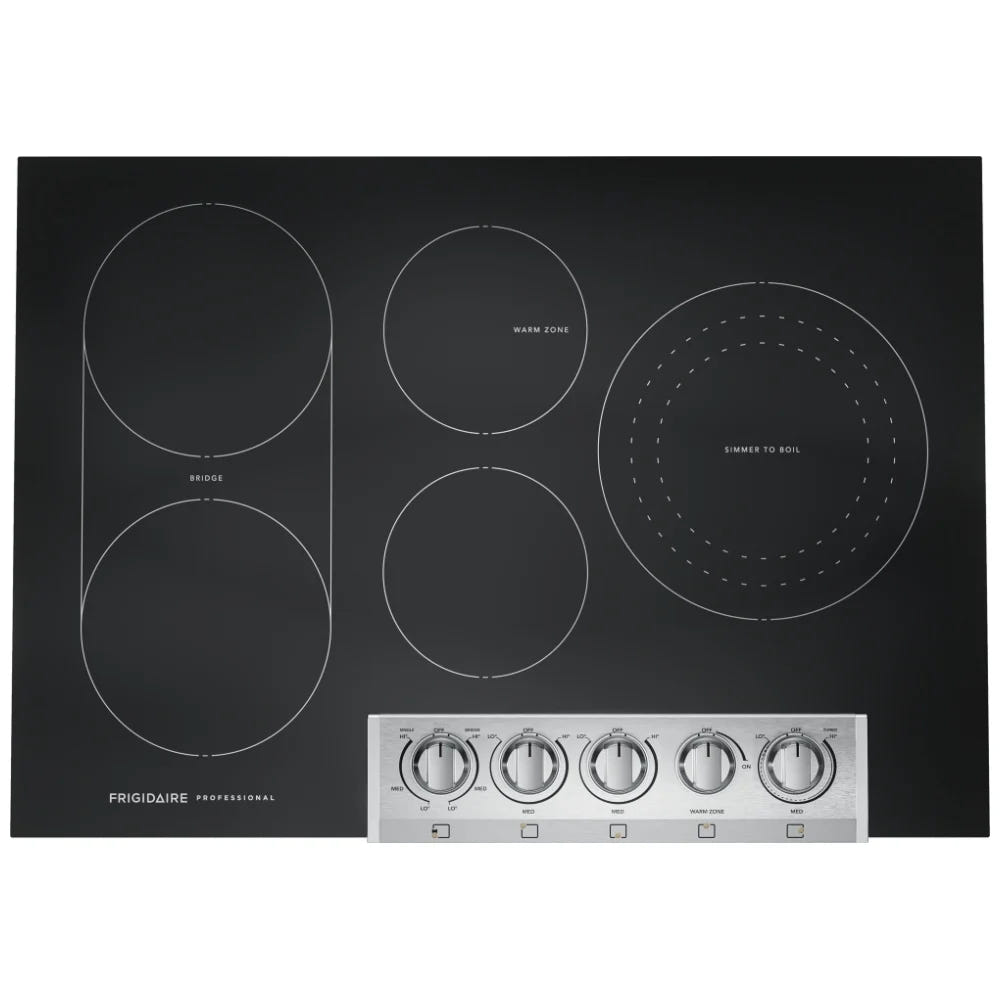

Frigidaire Professional Electric Cooktop 30 inch PCCE3080AF front view
Frigidaire
PCCE3080AF
Frigidaire Professional PCCE3080AF Electric Cooktop, 30 inch Exterior Width, 5 Burners, 3,200 W Highest Element, Black Glass colour
MSRP: $1,799.00
MAP Price MAP Price $1,499.00
Quick Specs
  • WiFi Enabled: No
  • Power Type: Electric Cooktop
  • Burners: 5 burners
Dimensions
W 30in
H 3in
D 22in

Key Features

  • EvenTemp Element
  • Bridge Element
  • Frigidaire Fit Promise
  • Keep Warm Zone
  • Backlit LED Knobs
  • Front Control Design
  • Easy-to-Clean Glass Cooktop
  • Installation over Wall Oven Approved
  • Smudge-Proof Stainless Steel

Cooktop

Bridge Element Yes

Bridge Element Location Left

Cooking Surface Type Smooth

Hot-Surface Indicator Light Yes

Cooktop Performance

Right Front Element Burner Size 9"

Left Front Element Burner Size 7"

Left Rear Element Burner Size 7"

Center Front Element Burner Size 6"

Right Front Element Burner 3200 Watts

Left Front Element Burner 1800 Watts

Left Rear Element Burner 1800 Watts

Center Front Element Burner 1200 Watts

Center Rear Element Burner 100 Watts

Keep Warm Burner Location Center Rear

Display

Control Location Front

Display Type Mechanical

Dimensions and Volume

Height 2 5/8"

Width 30 5/8"

Depth 21 3/8"

Cutout Height 5"

Minimum Cutout Width 28 1/2"

Minimum Cutout Depth 19 5/8"

Maximum Cutout Width 29 7/8"

Maximum Cutout Depth 20 1/2"

Electrical Specifications

Connected Load @ 240V 8.1 kW

Minimum Circuit Required 40 Amps

Voltage Rating 240 V

General Specifications

Frigidaire Fit Promise Yes

Product Weight 34 lbs

Prop 65 Label Yes

Warranty - Labor 1 Year

Warranty - Parts 1 Year

Installation

Installed Over a Wall Oven Yes

Certifications and Approvals

ADA Compliant Yes

CSA Listed Yes

UL Listed Yes

Manuals and installation guides are available upon request.

Standard manufacturer warranty applies. Contact support for details.
