Cooktop

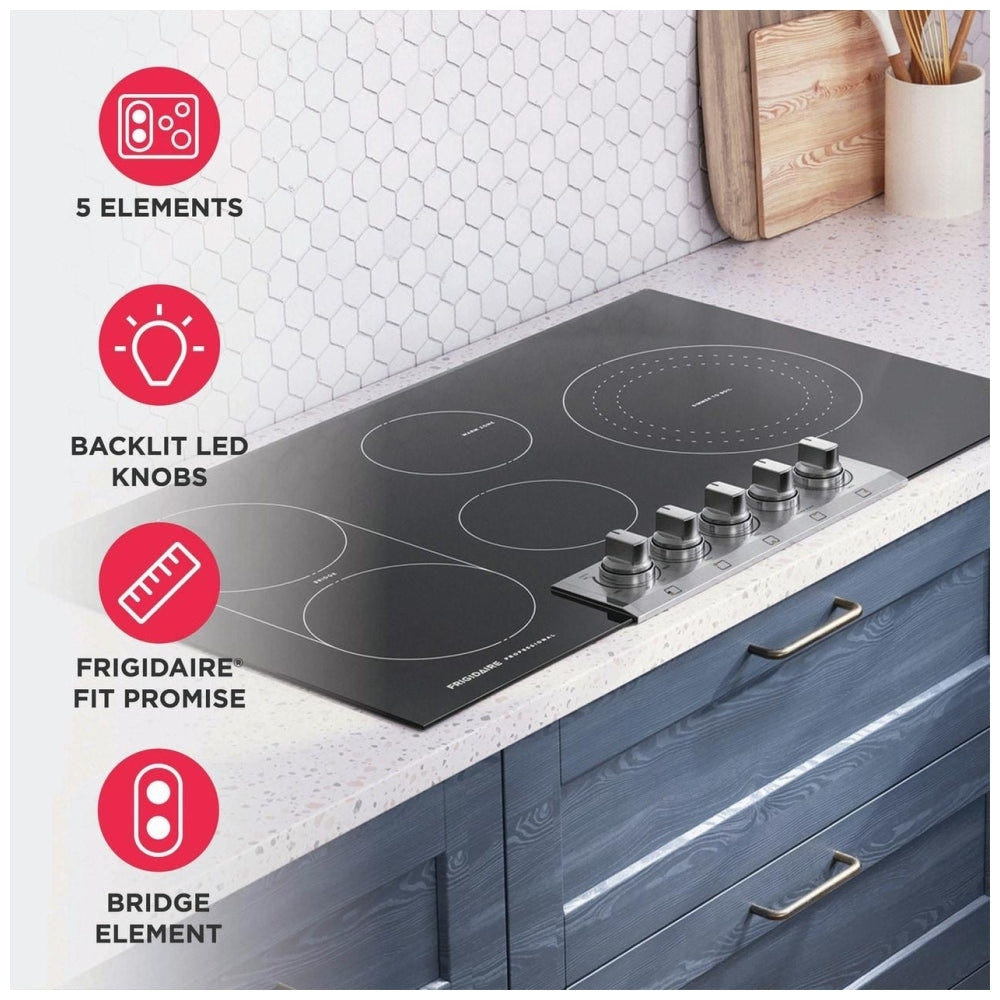

Bridge Element Yes
Bridge Element Location Left
Cooking Surface Type Smooth
Hot-Surface Indicator Light Yes

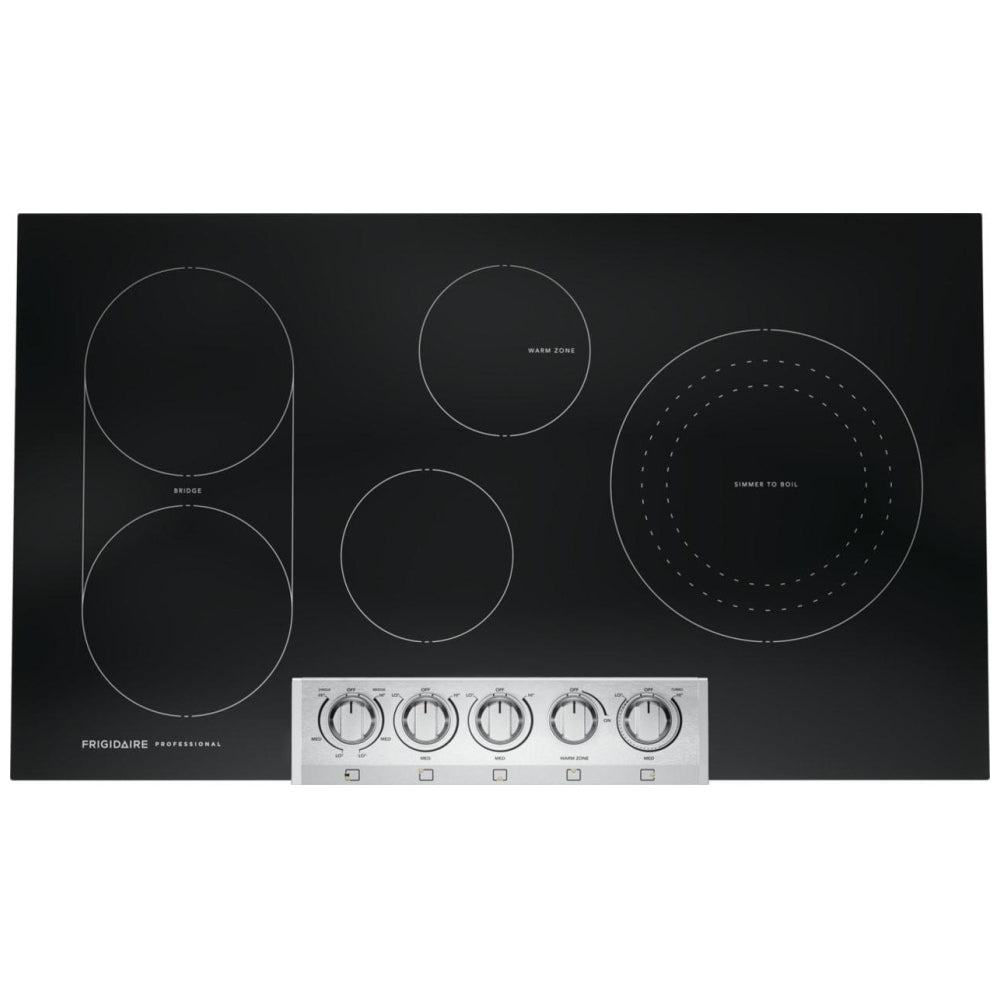

Cooktop Performance
Right Front Element Burner Size 9"
Left Front Element Burner Size 7"
Left Rear Element Burner Size 7"
Center Front Element Burner Size 6"
Right Front Element Burner 3200 Watts
Left Front Element Burner 1800 Watts
Left Rear Element Burner 1800 Watts
Center Front Element Burner 1200 Watts
Center Rear Element Burner 100 Watts
Keep Warm Burner Location Center Rear
Display

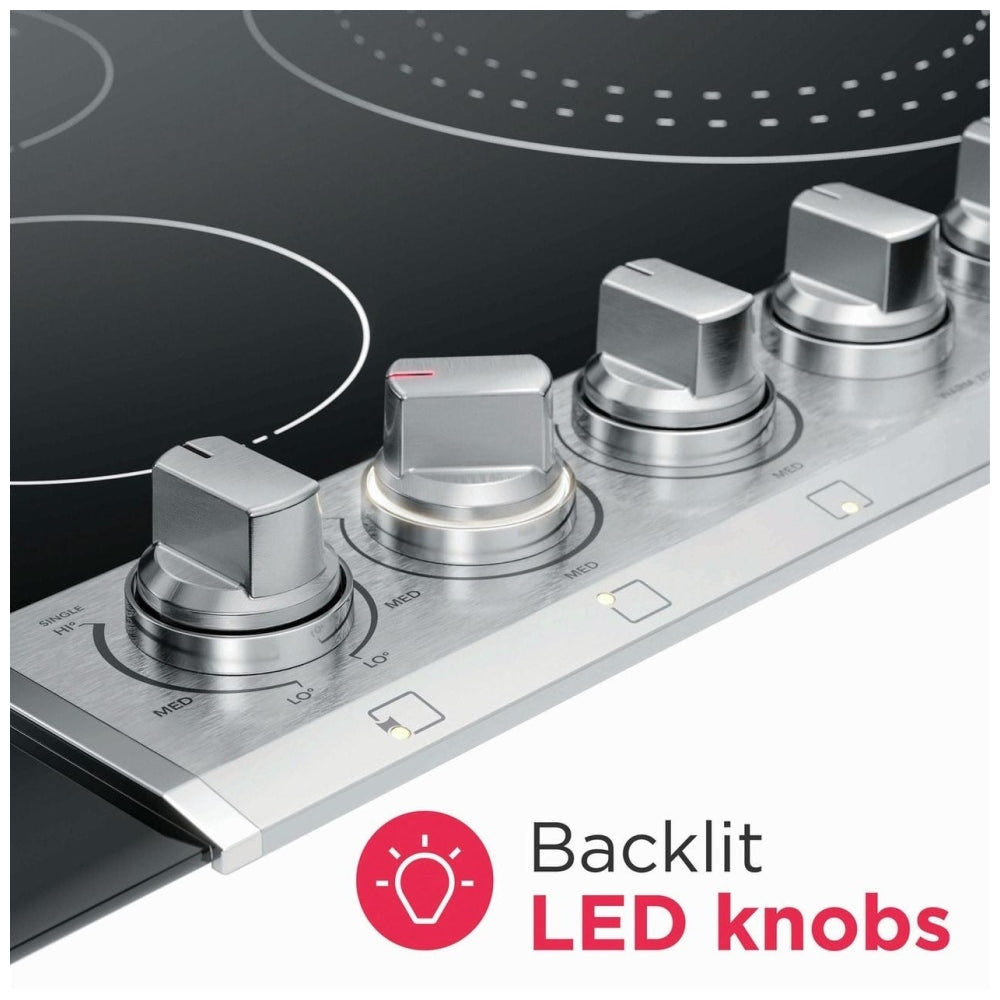

Display Type Mechanical
Dimensions and Volume
Height 2 5/8"
Width 36 3/4"
Depth 21 3/8"
Cutout Height 5"
Minimum Cutout Width 33 7/8"
Minimum Cutout Depth 19 1/8"
Maximum Cutout Width 36 1/8"
Maximum Cutout Depth 20 1/2"
Electrical Specifications
Connected Load @ 240V 8.1 kW
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
General Specifications
Frigidaire Fit Promise Yes
Product Weight 39 lbs
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Installation
Installed Over a Wall Oven Yes
Certifications and Approvals
ADA Compliant Yes
CSA Listed Yes
UL Listed Yes
