Elica

Elica EPR628S1 28" Cabinet Insert Range Hood

Elica EPR628S1 28" Cabinet Insert Range Hood

Just 3-5 Days*
$1,119.00 CAD
$1,279.00 CAD $1,119.00 CAD
View full details
  • brand:
    Elica
  • brand series:
    Elica
  • category:
    Cabinet Inserts
  • cfm:
    600
  • colour:
    Stainless Steel
  • prices:
    $999 - $1499
  • sub categories:
    Cabinet Insert

Key Features

  • 600 CFM blower for powerful ventilation
  • Hush System for reduced noise levels
  • LED lighting for energy efficiency
  • Stainless steel baffle slot filter for easy maintenance

Specifications

Dimension Depth Width Height
10 3/4" 12" 28" 10 3/4"

FAQ

EPR628S1-hood-liner-installation-sheet-30-and-36-canada.pdf
EPR628S1-specification-sheet-canada.pdf
EPR628S1-install-instructions-canada.pdf
EPR628S1-specification-sheet-1.pdf

Technical features
Width 28 , 34
Sones 7
Extraction capacity 600 CFM
Model EPR628SS1
Features
Controls Stainless Steel, Push-Button Controls
Illumination 2 2.5W Premium LED lamps, 1 intensity (bulbs included)
Blower Type 3-speed, 600 CFM
Blower Performance Speed 1, 190 CFM, 2.1 Sones
Speed 2, 350 CFM, 4.7 Sones
Speed 3, 600 CFM, 8.1 Sones
Filter Type 2 Stainless Steel Baffle Filters
Ducting Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition 6” Round with Back Draft Damper (top)
Special features Hush Silence System
Exterior Appearence
Stainless Steel grade 430
Electrical Requirements
Electrical requirements 120V-60 HZ / 260 Watt at 4.6 Amps

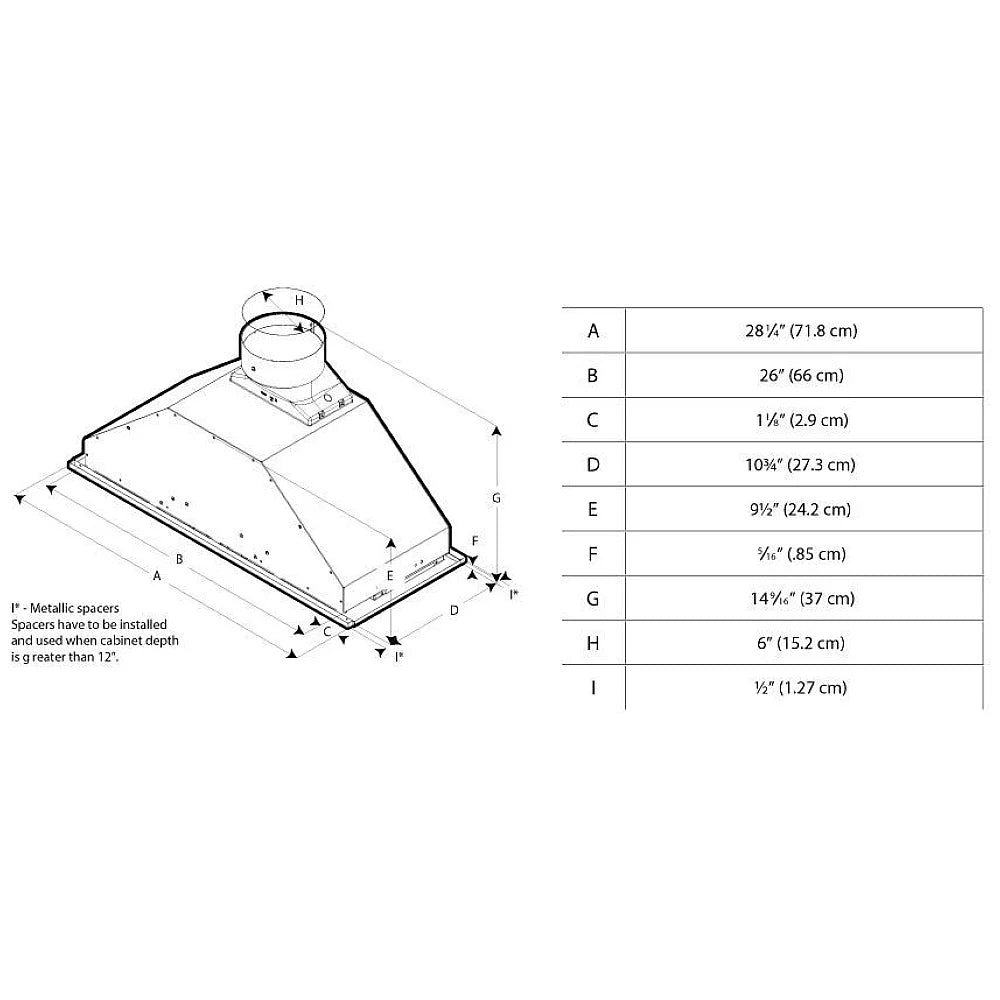

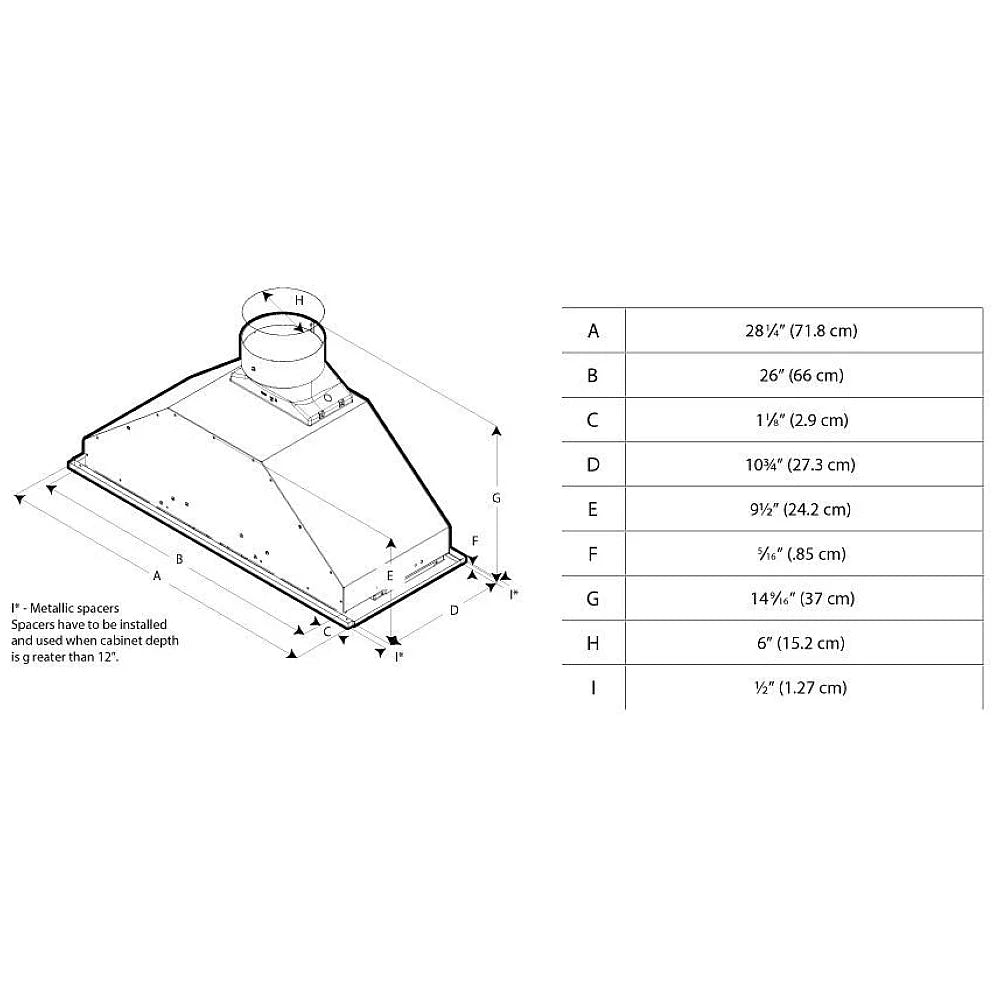

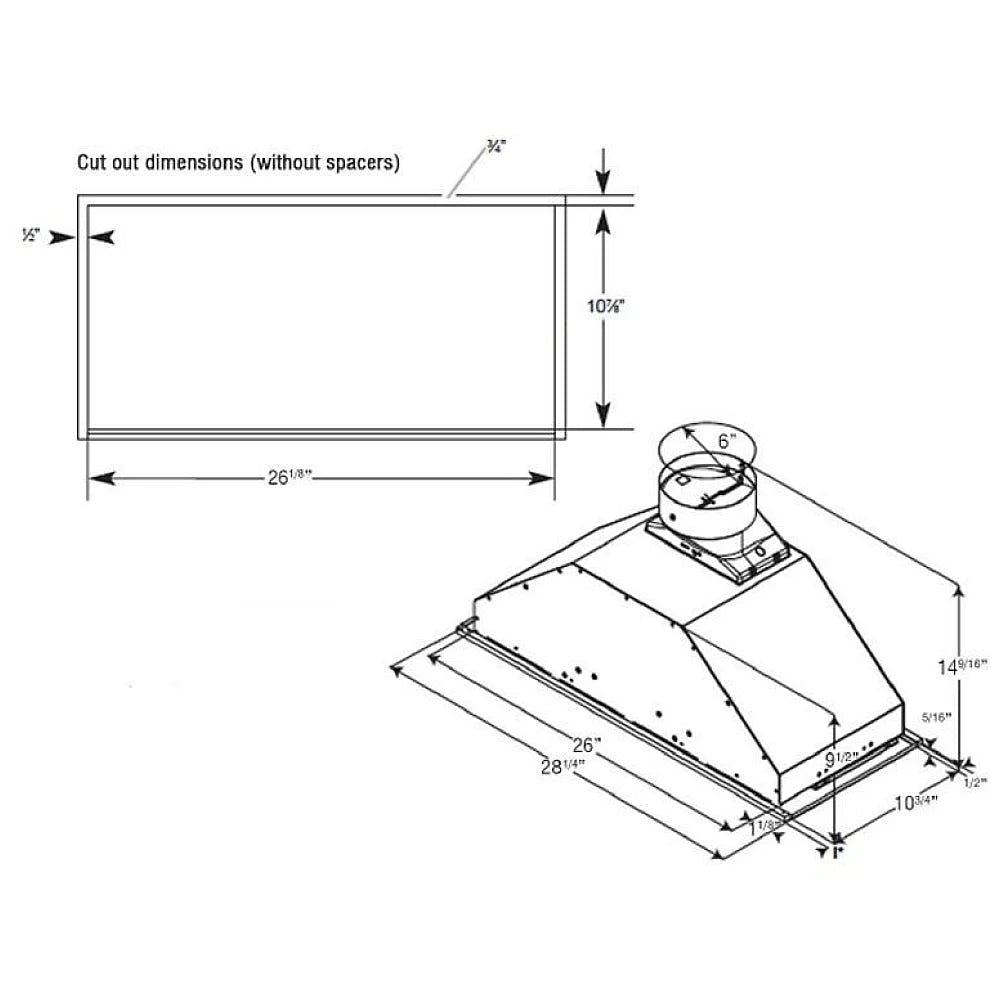

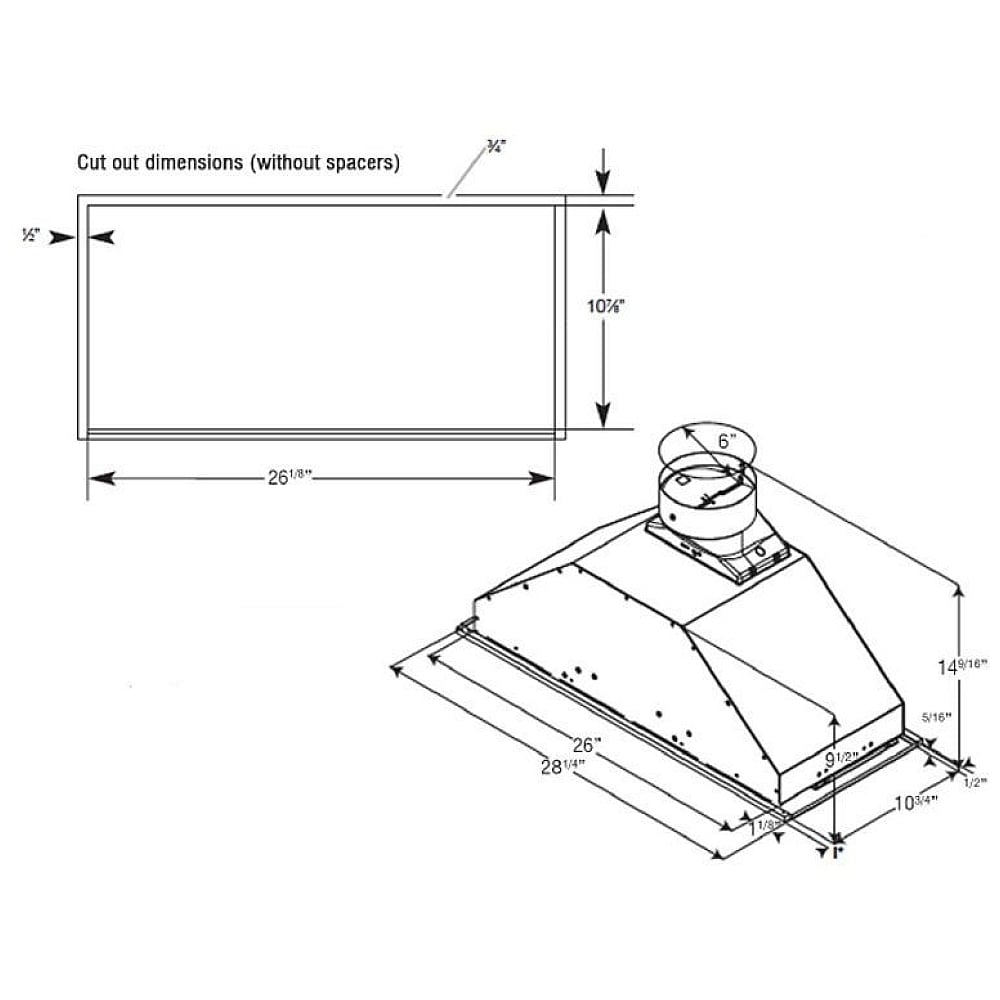

Dimensions
Dimensions 28¼'' (W) X 10¾'' (D) X 9½'' (H)
Accessories (optionnal)
Recirculating Kit KIT02770
EXXHDL30 30'' Hood Liner
EXXHDL36 36'' Hood Liner
