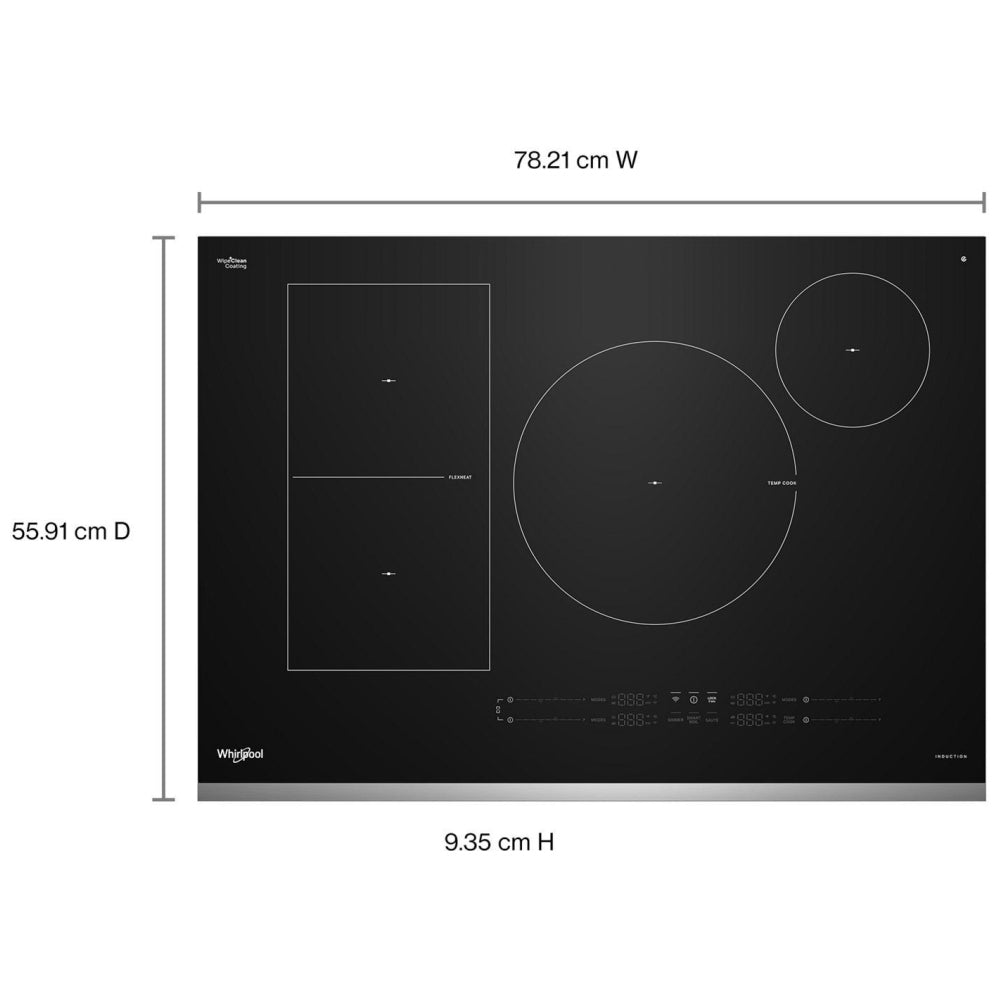

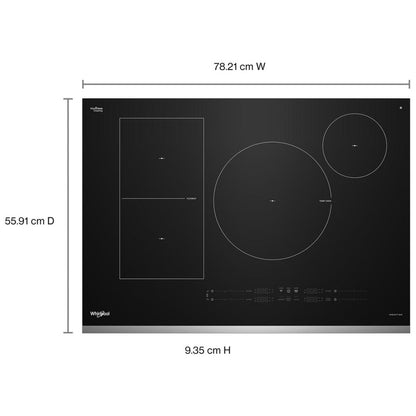

Dimensions
Depth 21.3 "
Width 30.79 "
Height 3.68 "
Net Weight 45.1 lbs
Carton Depth Inch 25.5 "
Carton Height Inch 8.5 "
Carton Width Inch 34.88 "
Cutout Depth 19.6 "
Cutout Width 28.5 "
Cutout Height 3.94 "
Features
Hot Surface Indicator Light Yes
Griddle No, Optional Accessory
Heating Element On Indicator Light Yes
Automatic Pan Detection Yes
Automatic Pan Size Adjustment Yes
Digital Display Yes
Downdraft Vent No
Installs Over Built In Oven Yes
Power Boost Yes

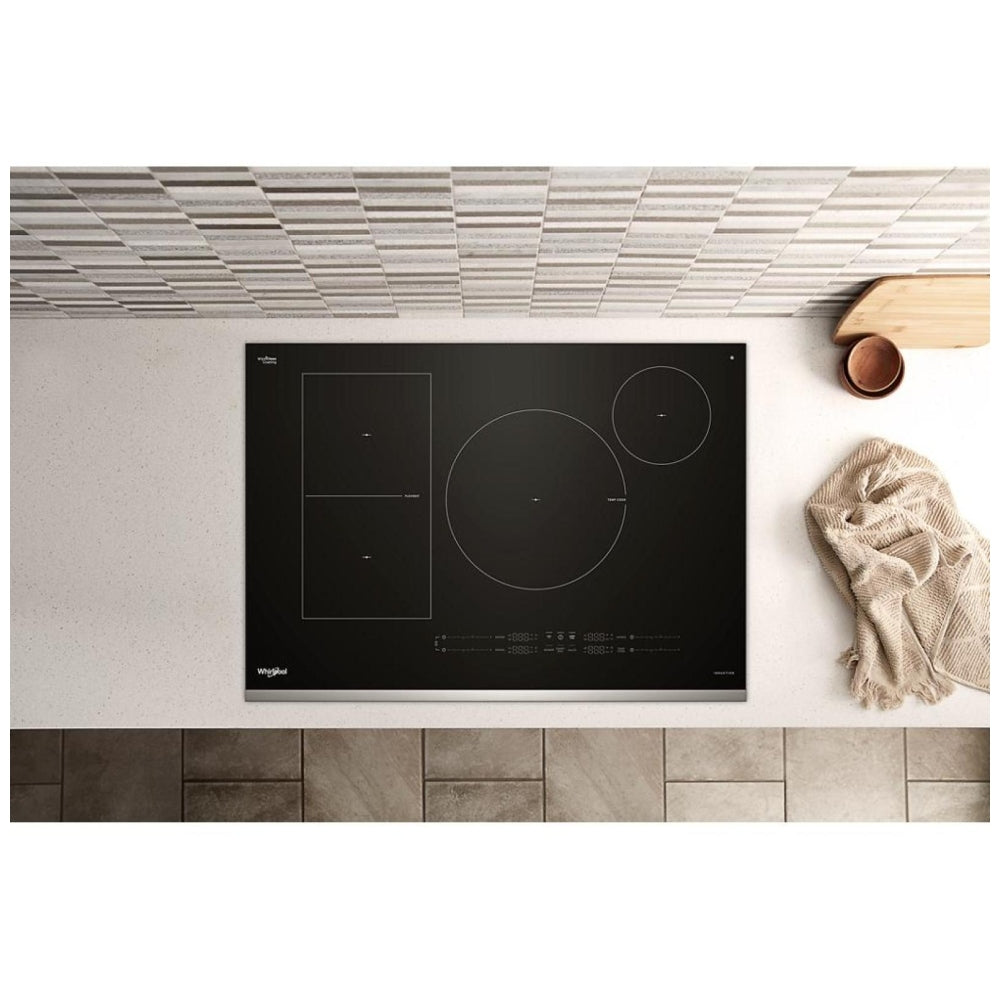

True Flush Installation Yes

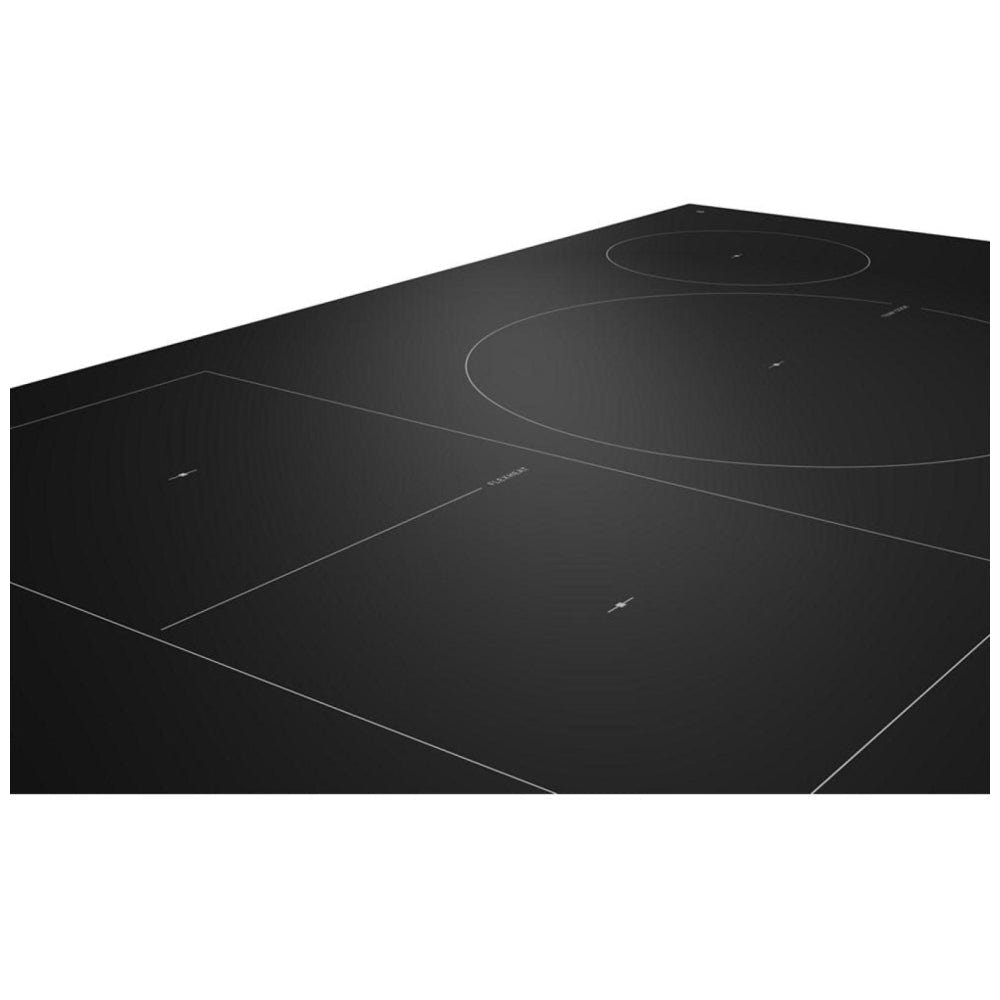

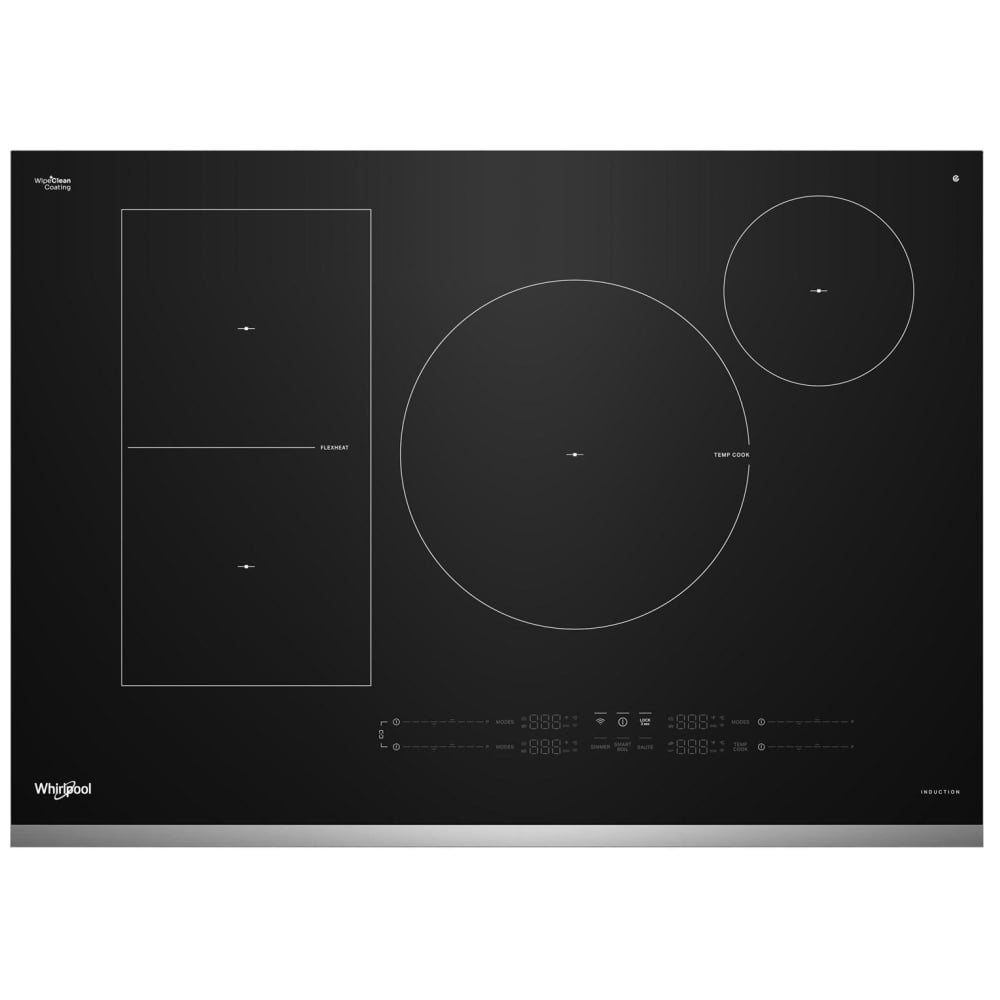

Cooktop Details
Number Of Cooking Element Burners 4
Right Front Element Burner Power 2600/3700watt(Boost)
Right Front Element Burner Size 11in.
Right Front Element Burner Type Temp Cook™
Right Rear Element Burner Power 1500/2200watt(Boost)
Right Rear Element Burner Size 6in.
Right Rear Element Burner Type Standard
Left Rear Element Burner Type Bridge
Cooktop Configuration All Burners
Cooktop Element Style Induction
Left Front Element Burner Power 2500/3700watt(Boost)
Left Front Element Burner Size 7 1/2" Bridge
Left Front Element Burner Type Bridge
Left Rear Element Burner Power 2500/3700watt(Boost)
Left Rear Element Burner Size 7 1/2" Bridge
Description
Cooktop Type Traditional
Size In 30

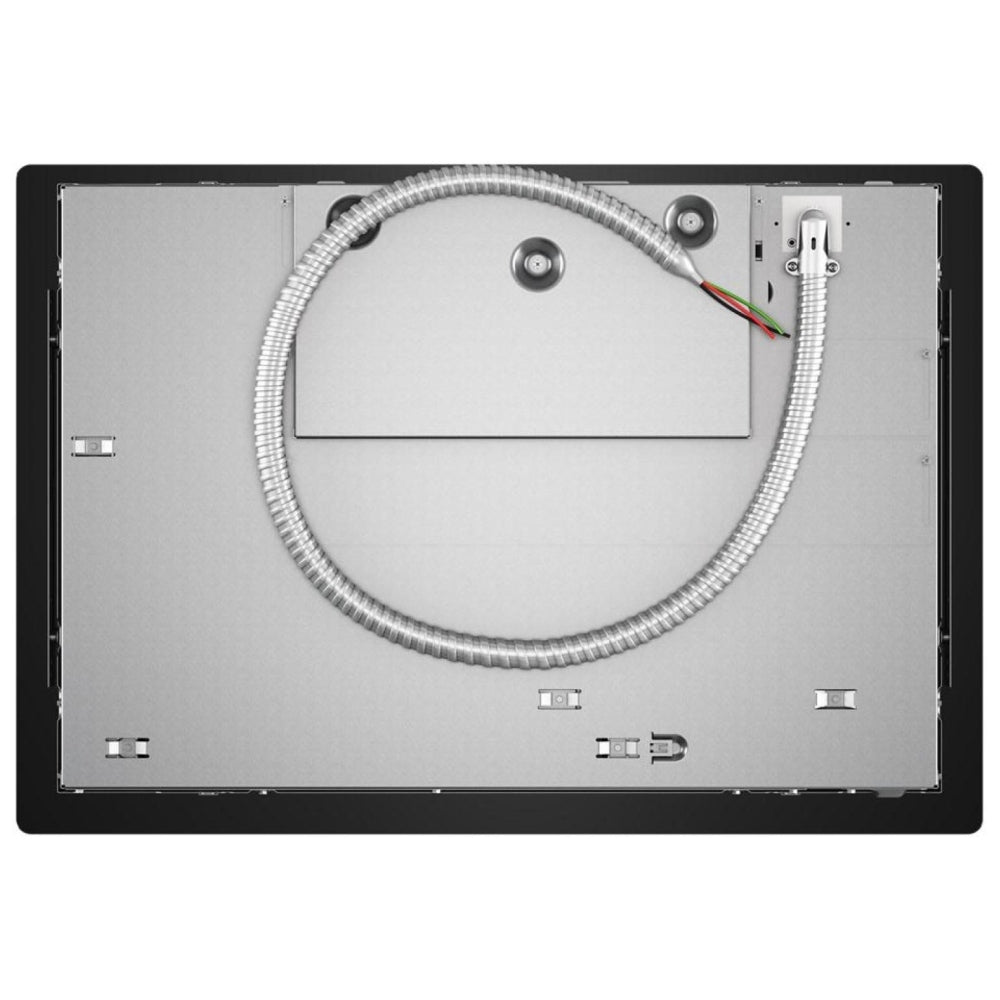

Electrical
208v Compatible Yes
Amps 35
Hz 50
Volts 208
Compatibility
Connectivity App; Bluetooth; Remote Access; Voice Controlled; WiFi

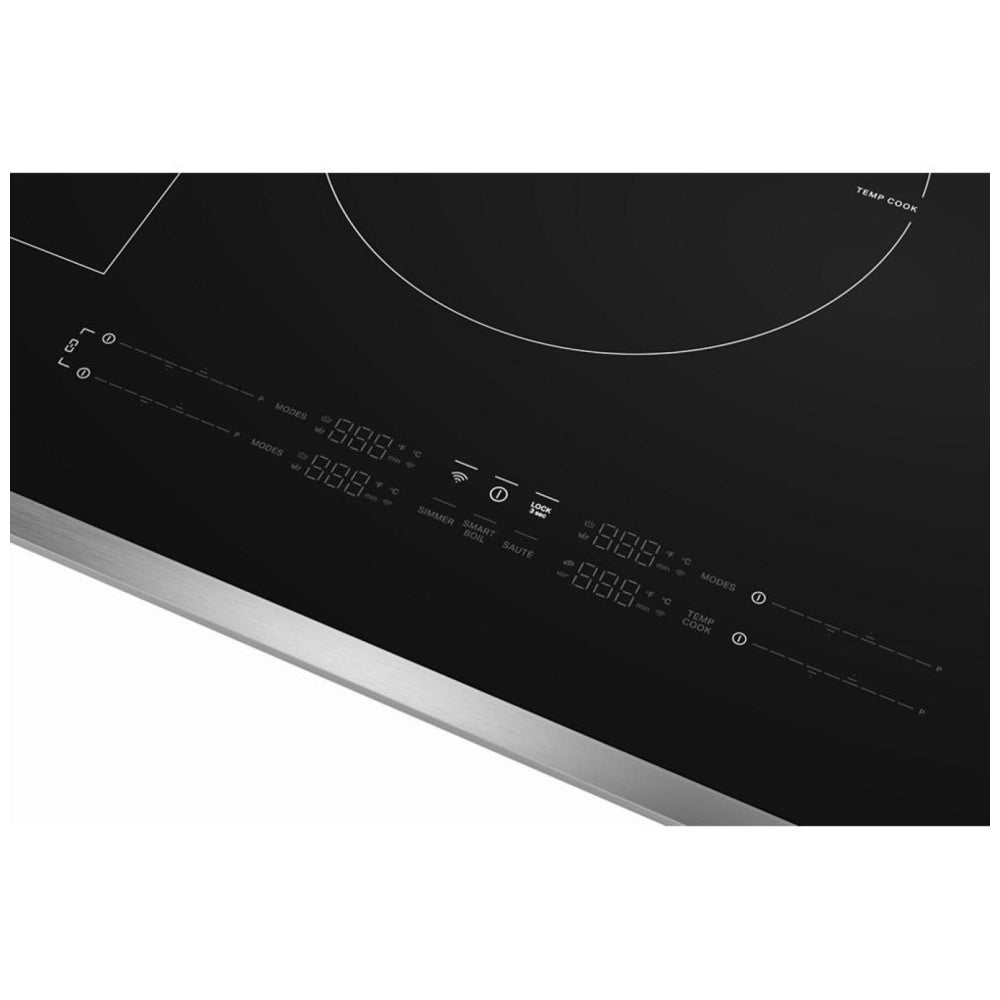

Controls
Control Location Front
Control Type Electronic
Specifications
Country Of Origin USA
Extended Service Plan Parent EW07IW4Y, EW07IW2Y, EW07IW1Y
Certifications
ADA Compliant No
UL Yes
Configuration and Overview
Fuel Type Electric
