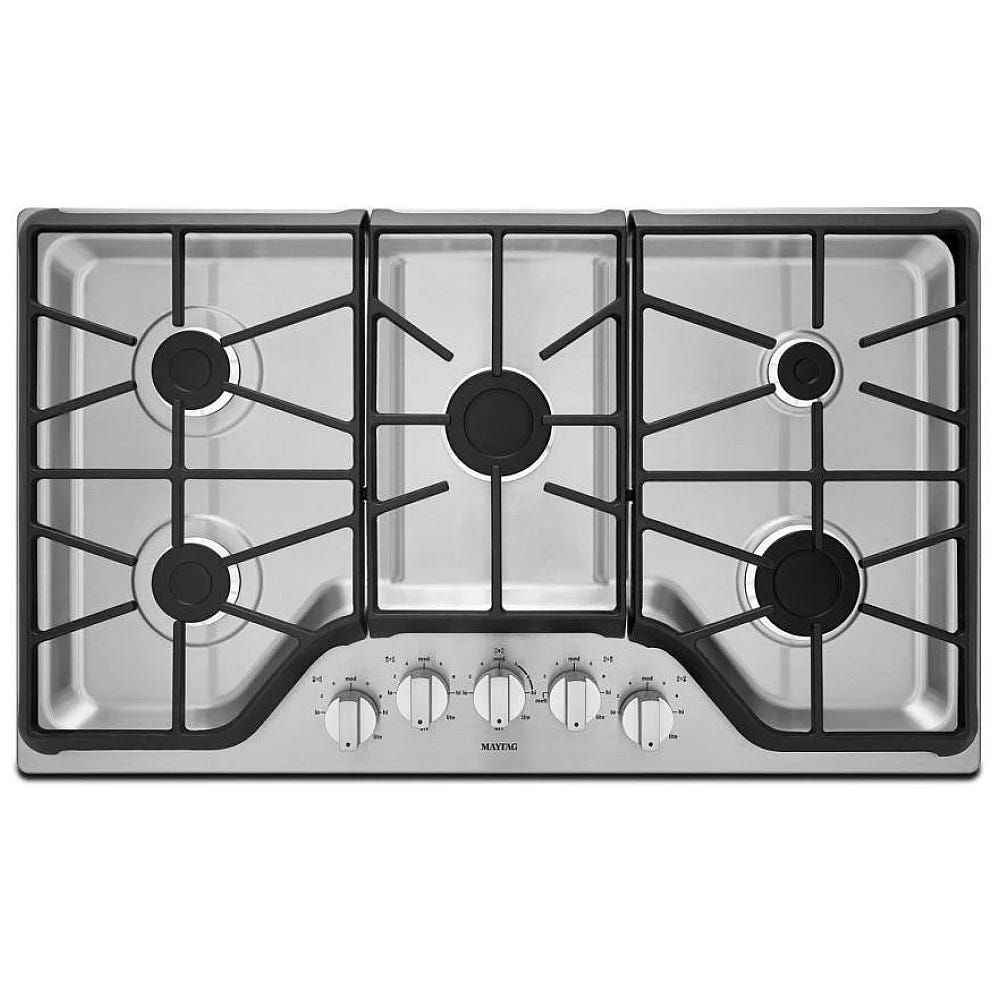

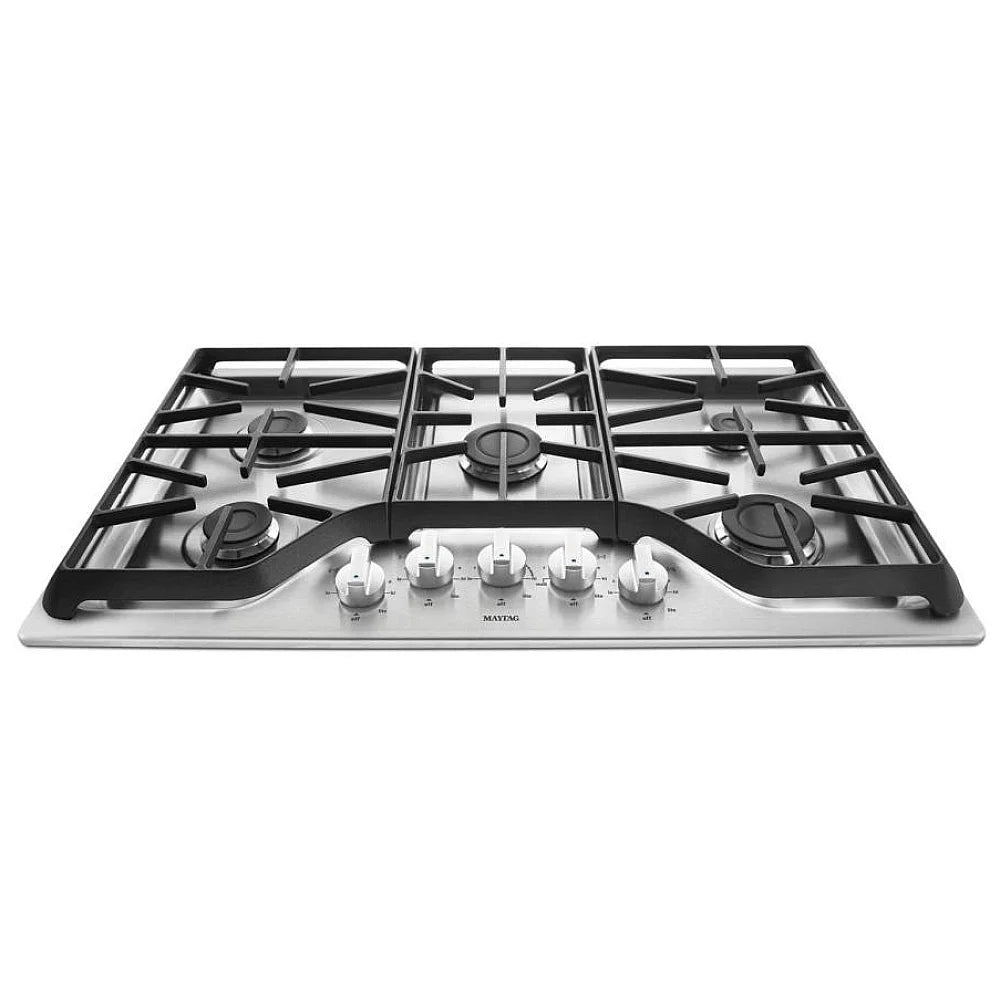

Maytag MGC7536DS Gas Cooktop

Controls

Control Location Front

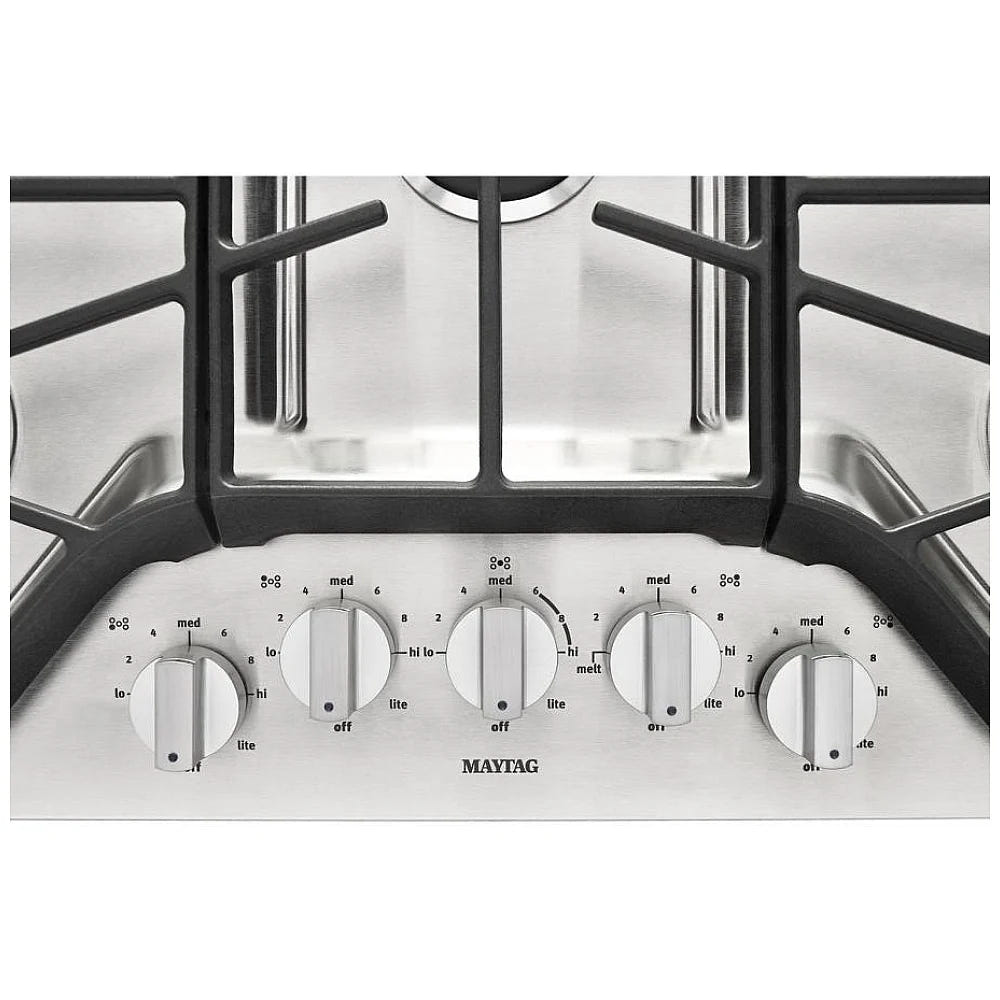

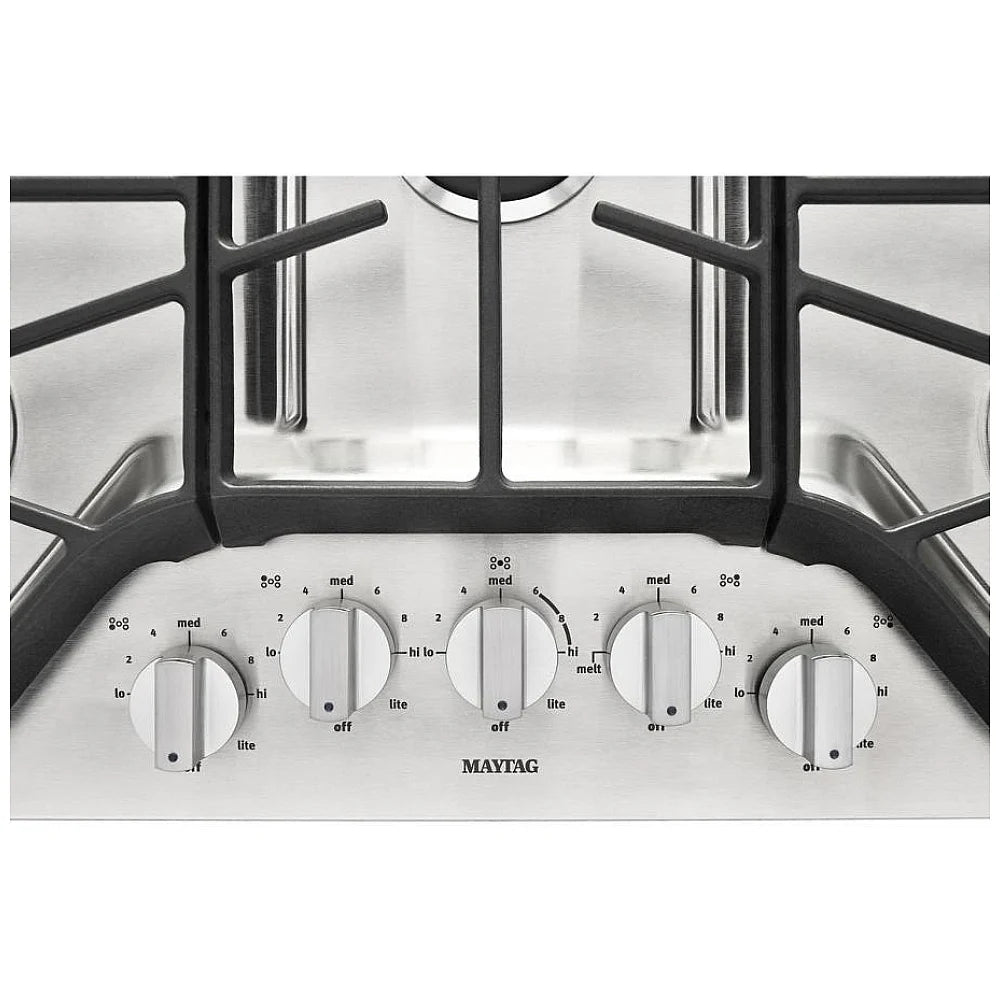

Control Type Knobs

Infinite Heat Controls Yes

Cooktop Details

Cooktop Surface Color Color Coordinated

Cooktop Surface Material Stainless/Porcelain Coated Steel

Digital Display No

Griddle Included N/A

Heating Element On Indicator Light No

Hot Surface Indicator Light No

Ignition Type Direct Spark Ignition

Number of Open Bays N/A

Details

Automatic Pan Detection No

Combinations With Oven MEW9527; MEW9530

Fuel Type Gas

Installs Over Built-in Oven Yes

Lp Convertible Yes - Kit Included

Power Outage CompatibleYes

Dimensions

Product Height 3.6875

Carton Height 12.04

Gross Weight 67.6

Carton Width 44.41

Product Depth 21.0

Cutout Depth Max 20

Cutout Width Min 33.875

Cutout Height 5.25

Carton Depth 25

Cutout Depth Min 19

Cutout Width Max 35.25

Net Weight 59.6

Product Width 36.0

Electrical

Power Cord Included Yes

Element/burner Details

Center Rear Element-burner Power 15,000 BTU

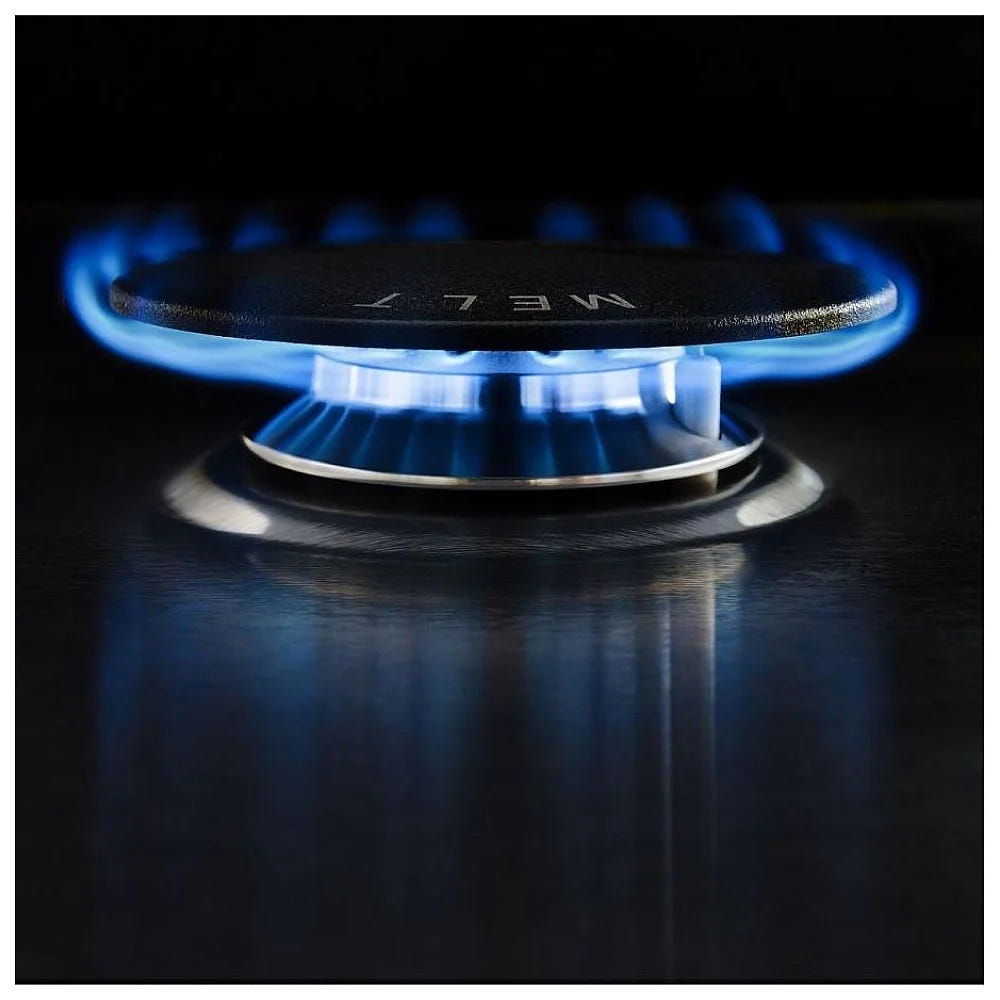

Center Rear Element-burner Type Power™ Burner

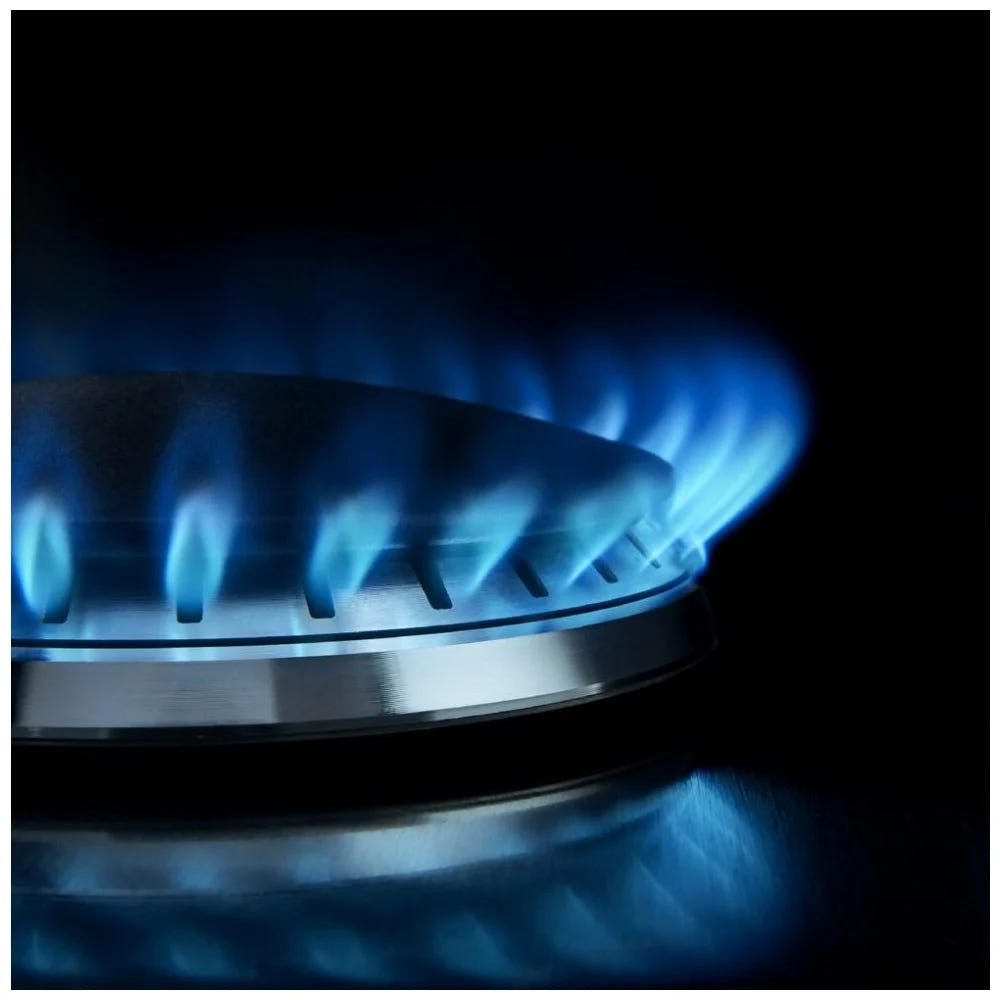

Cooktop Element Style Sealed Burner

Cooktop Type Standard

Left Front Element-burner Power 9,100 BTU

Left Front Element-burner Type Sealed Burner

Left Rear Element-burner Power 9,100 BTU

Left Rear Element-burner Type Sealed Burner

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 12,000 BTU

Right Front Element-burner Type Sealed Burner

Right Rear Element-burner Power 5,000 BTU

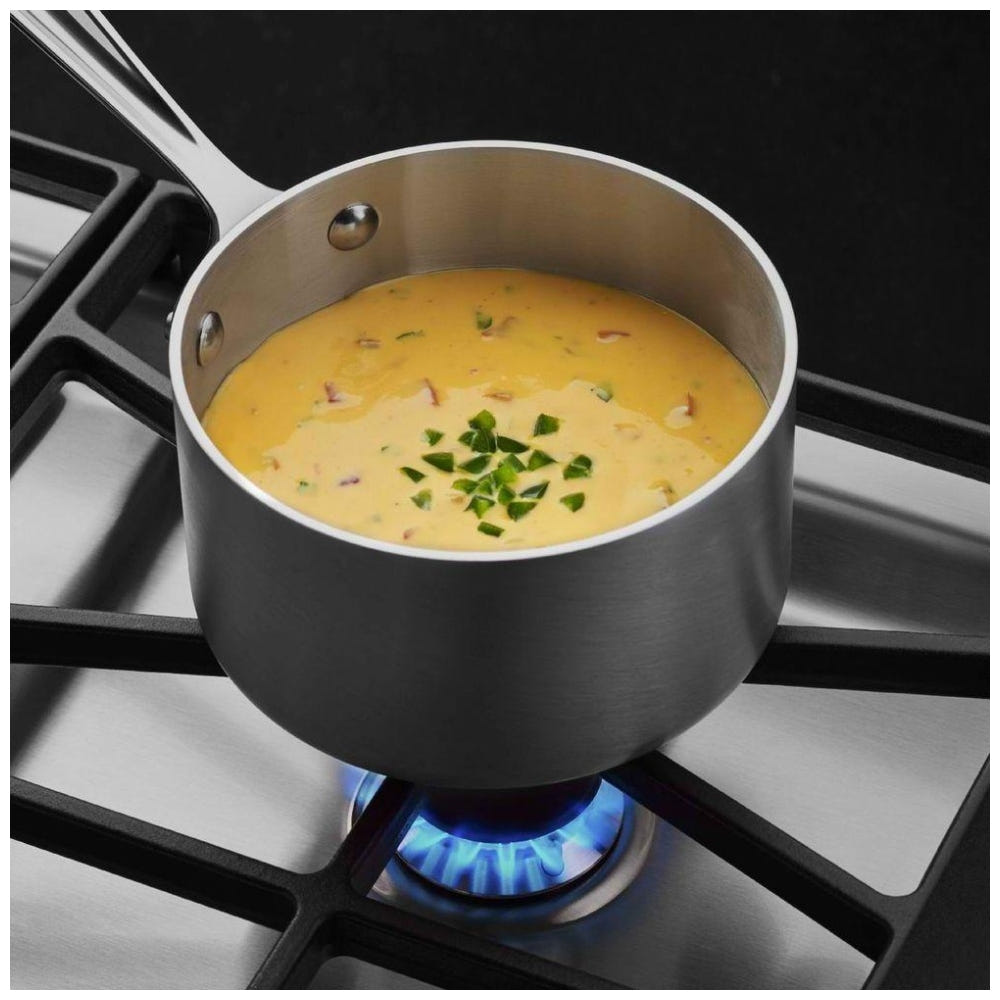

Right Rear Element-burner Type Simmer

Exterior Details

Knob Color Stainless Steel

Knob Type Dishwasher-Safe Plastic

General

Combination Match With Oven MEW9527; MEW9530

Grate Details

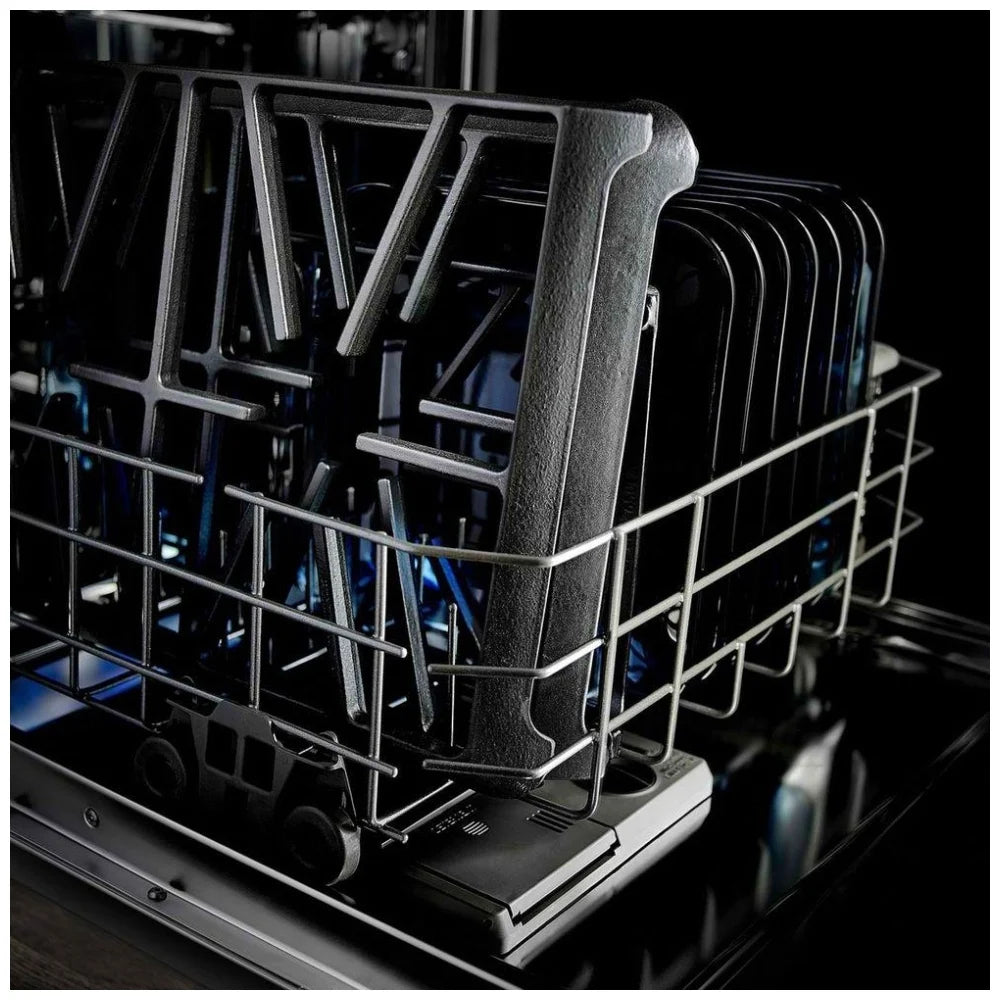

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates 3

Ventilation Details

Downdraft Vent No
