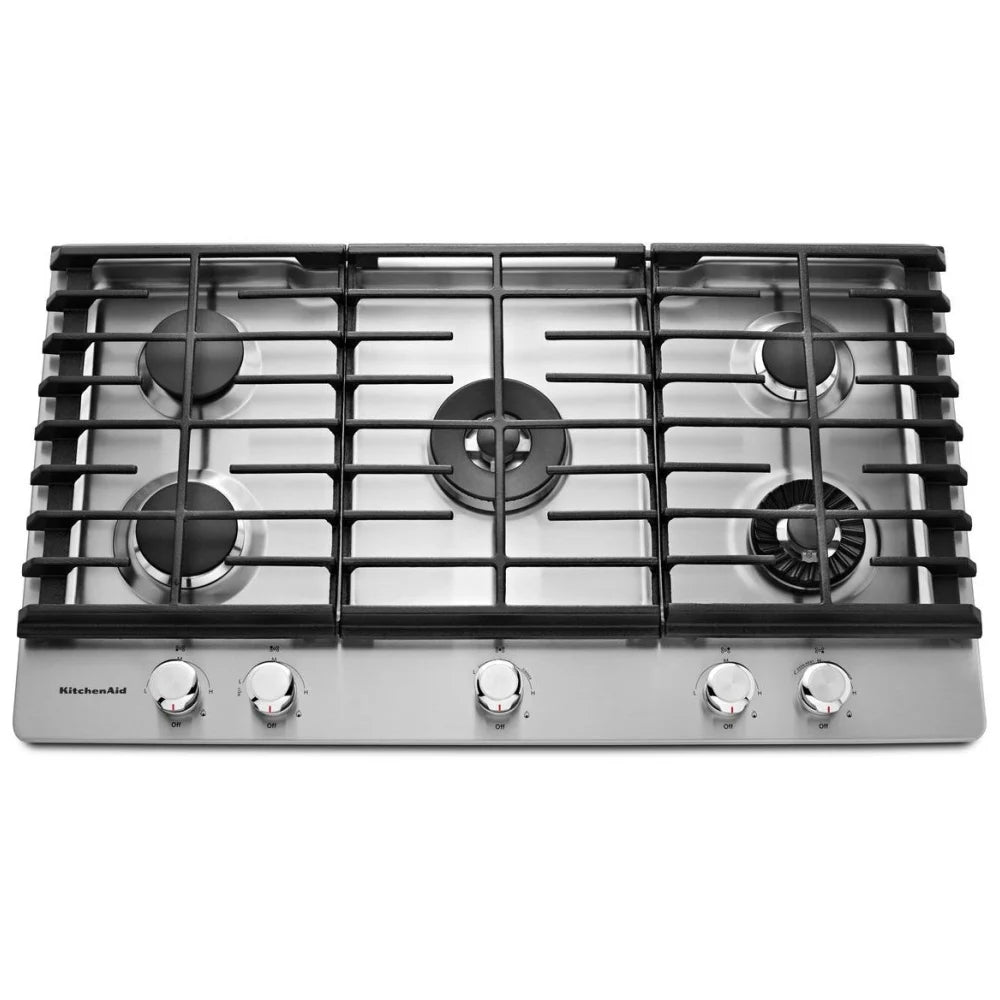

KitchenAid KCGS956ESS Gas Cooktop

Cooktop Details

Cooktop Surface Color Color Coordinated

Cooktop Surface Material Stainless Steel

Digital Display No

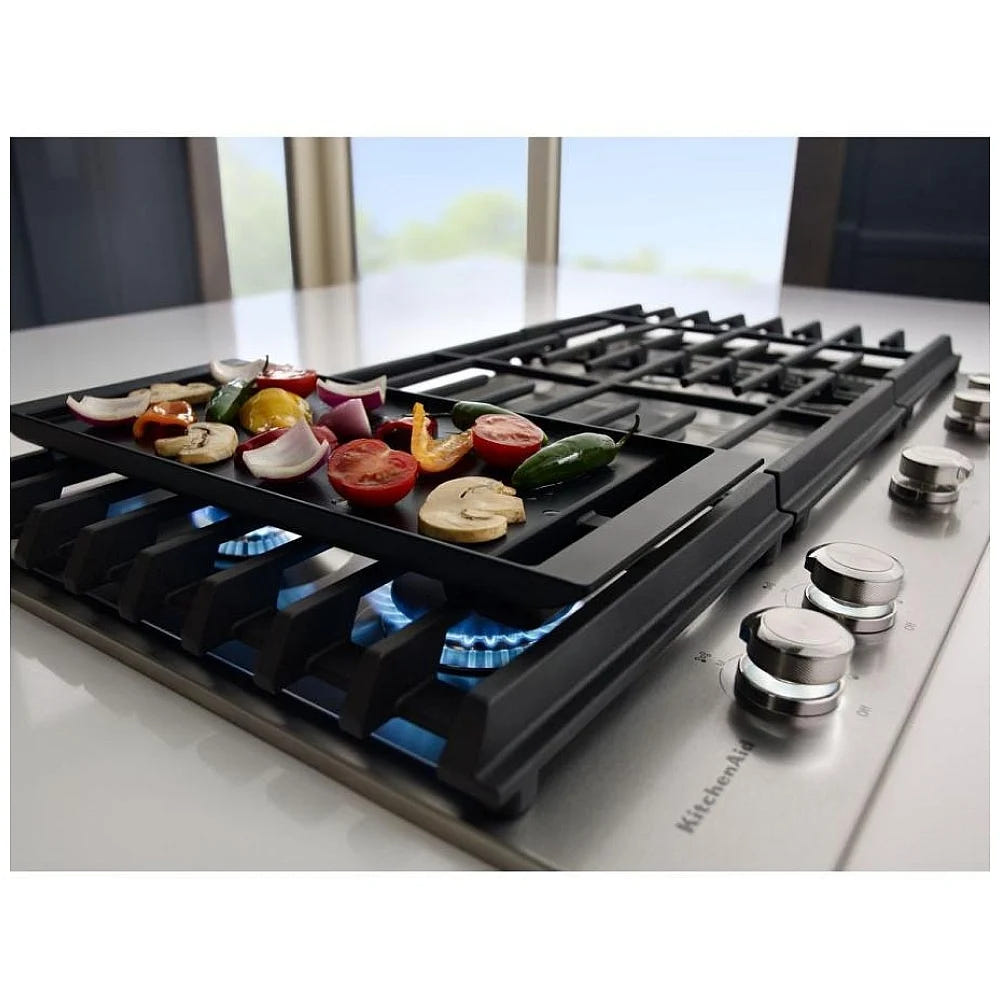

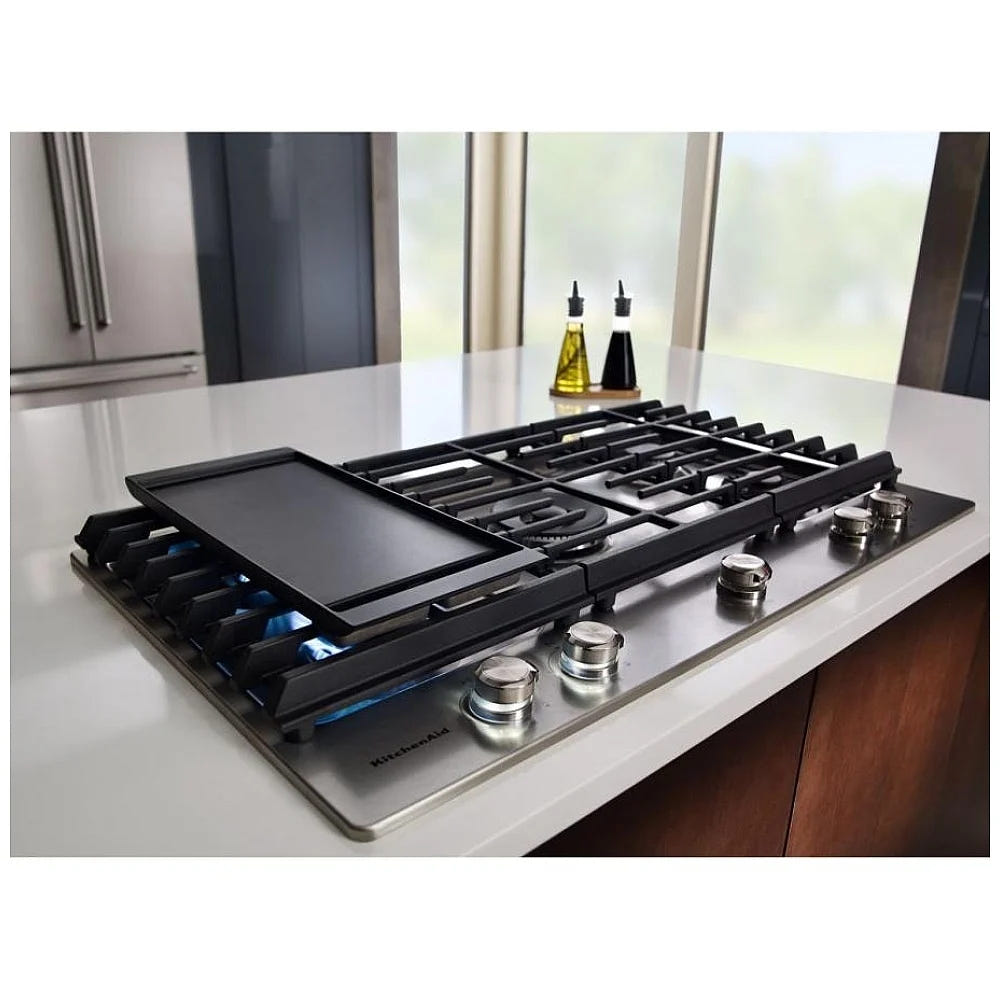

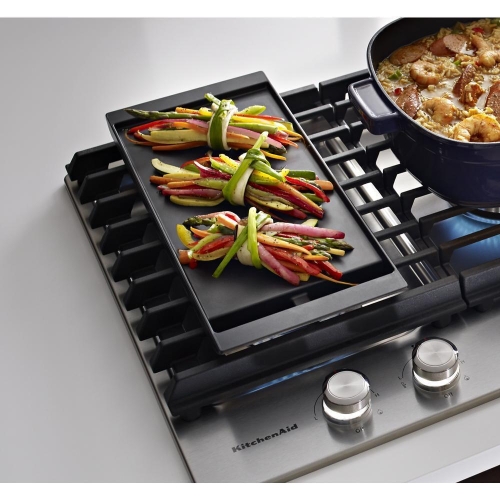

Griddle Included Included

Heating Element On Indicator Light yes

Hot Surface Indicator Light No

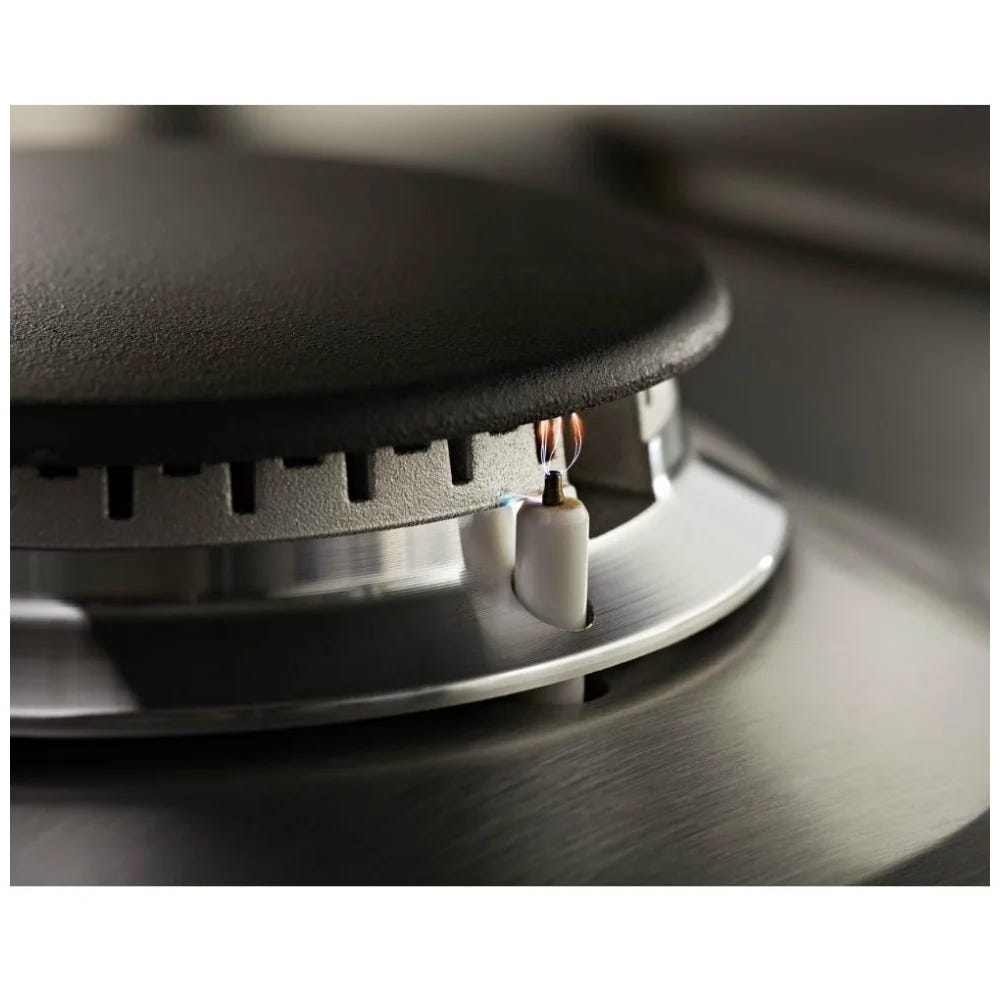

Ignition Type Direct Spark Ignition

Number of Open Bays N/A

Details

Automatic Pan Detection No

Combinations With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Cooktop Selections Automatic Reignition; Simmer

Fuel Type Gas

Installs Over Built-in Oven Yes

Lp Convertible Yes - Kit Included

Power Outage Compatible Yes

Dimensions

Product Height 3.6875

Carton Height 12.04

Gross Weight 74

Carton Width 44.41

Product Depth 21.0

Cutout Depth Max 20

Cutout Width Min 34.875

Cutout Depth 19.813

Cutout Height 5.25

Carton Depth 25

Cutout Width 35.188

Cutout Depth Min 19.5

Cutout Width Max 35.625

Net Weight 0

Product Width 36.25

Electrical

Power Cord Included Yes

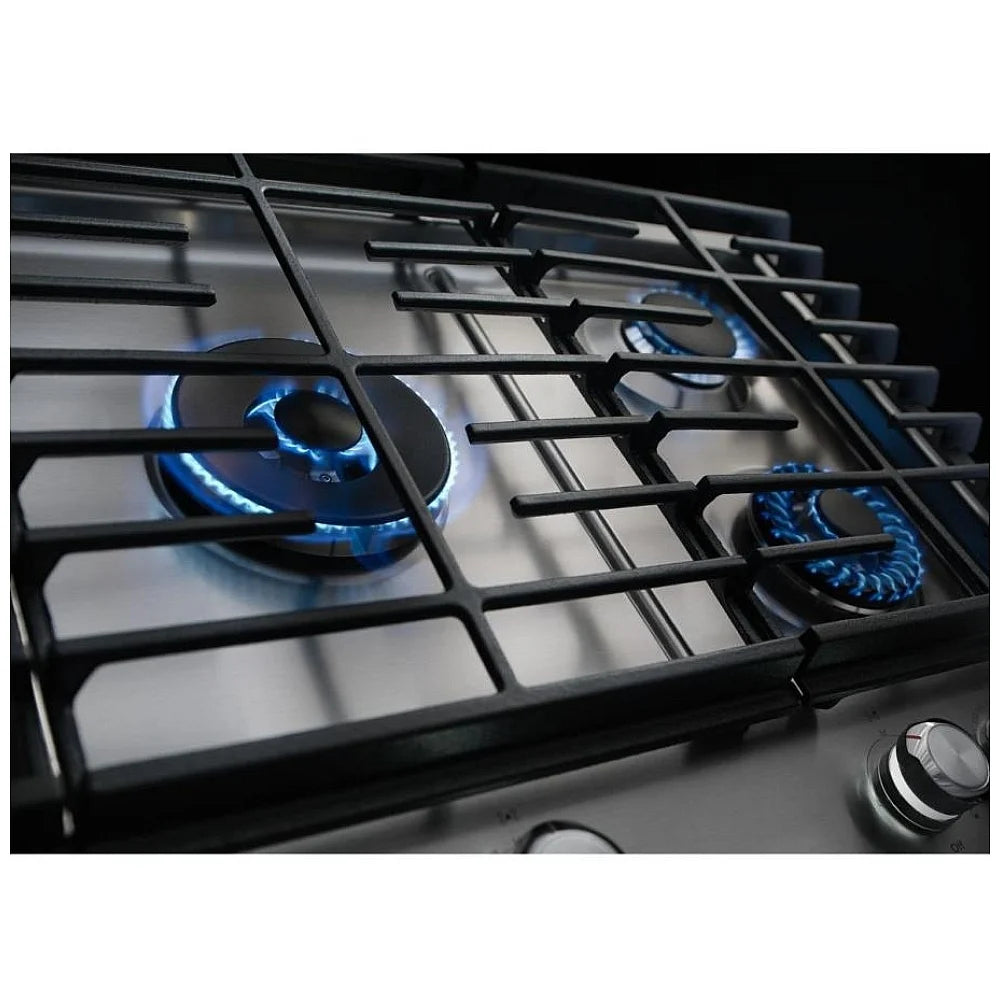

Element/burner Details

Center Rear Element-burner Power 20,000 BTU

Center Rear Element-burner Type Professional Dual Tier

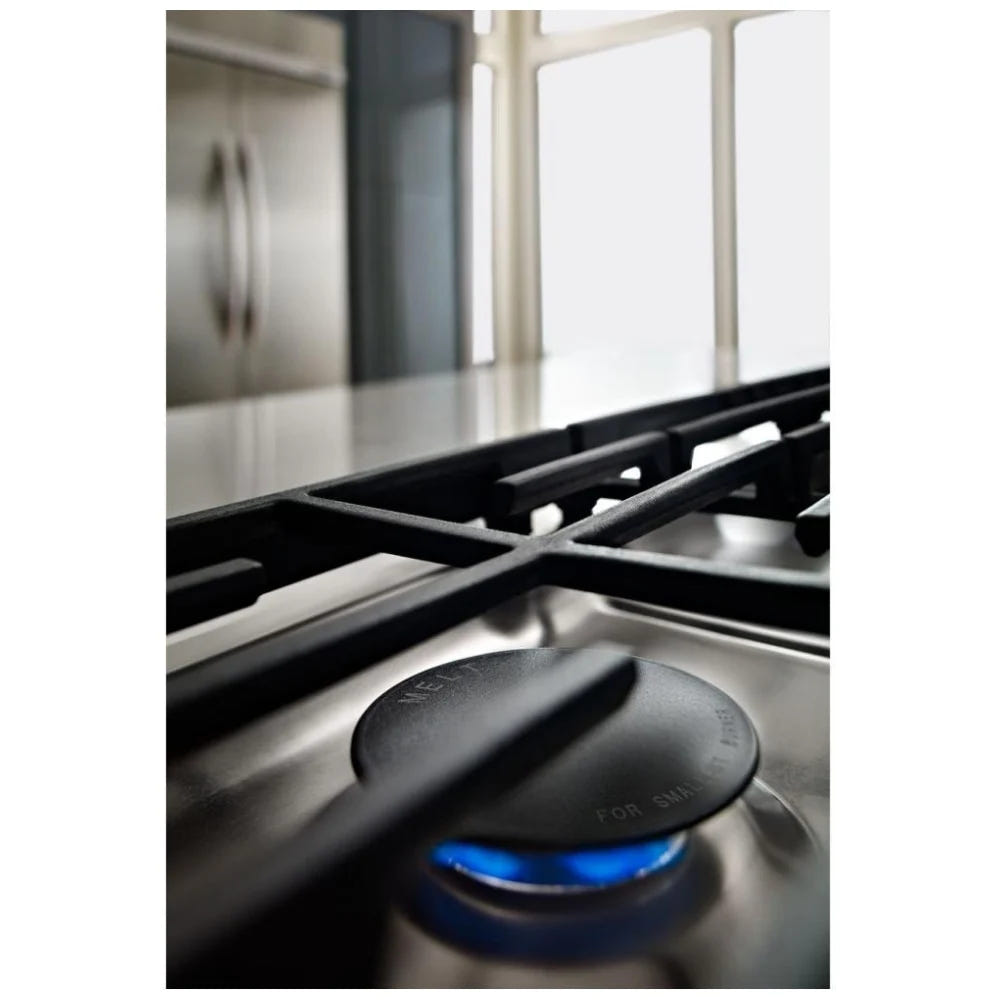

Cooktop Element Style Sealed Burner

Cooktop Type Standard

Left Front Element-burner Power 12,000 BTU

Left Front Element-burner Type Burner

Left Rear Element-burner Power 6,000 BTU

Left Rear Element-burner Type Simmer

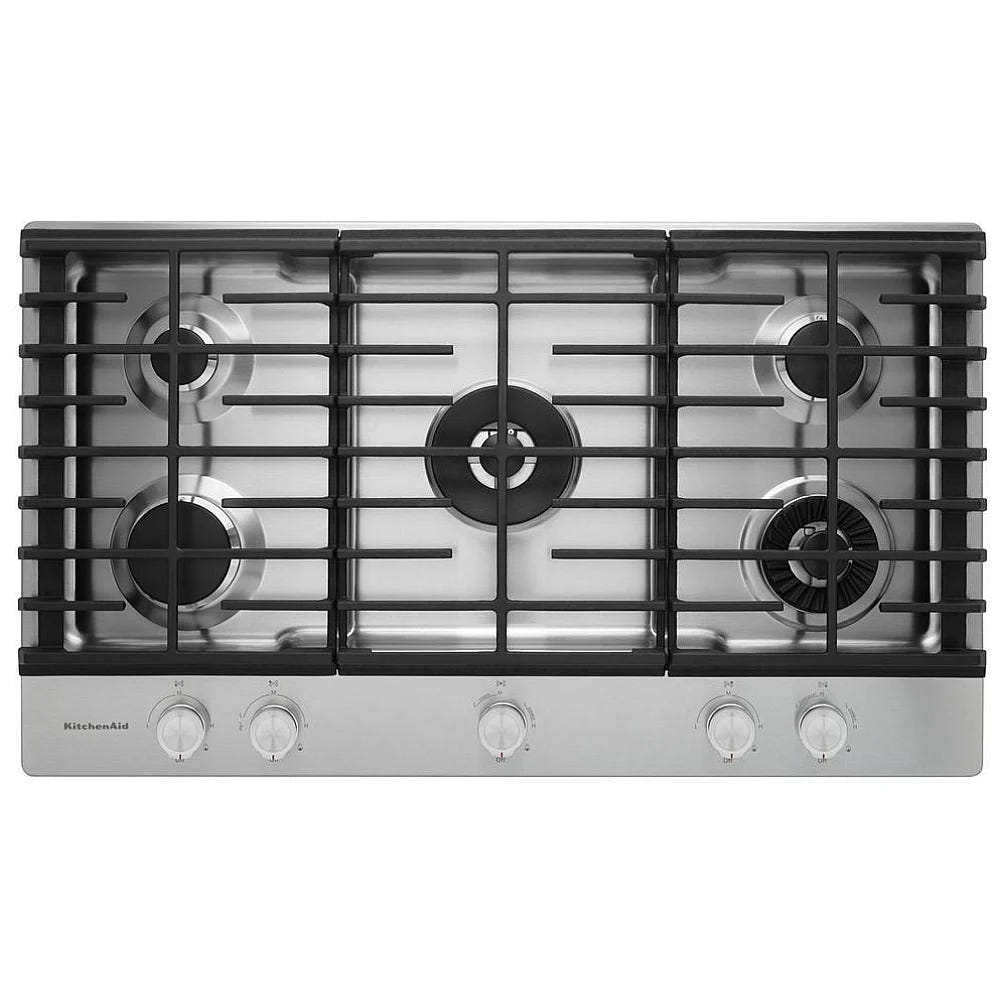

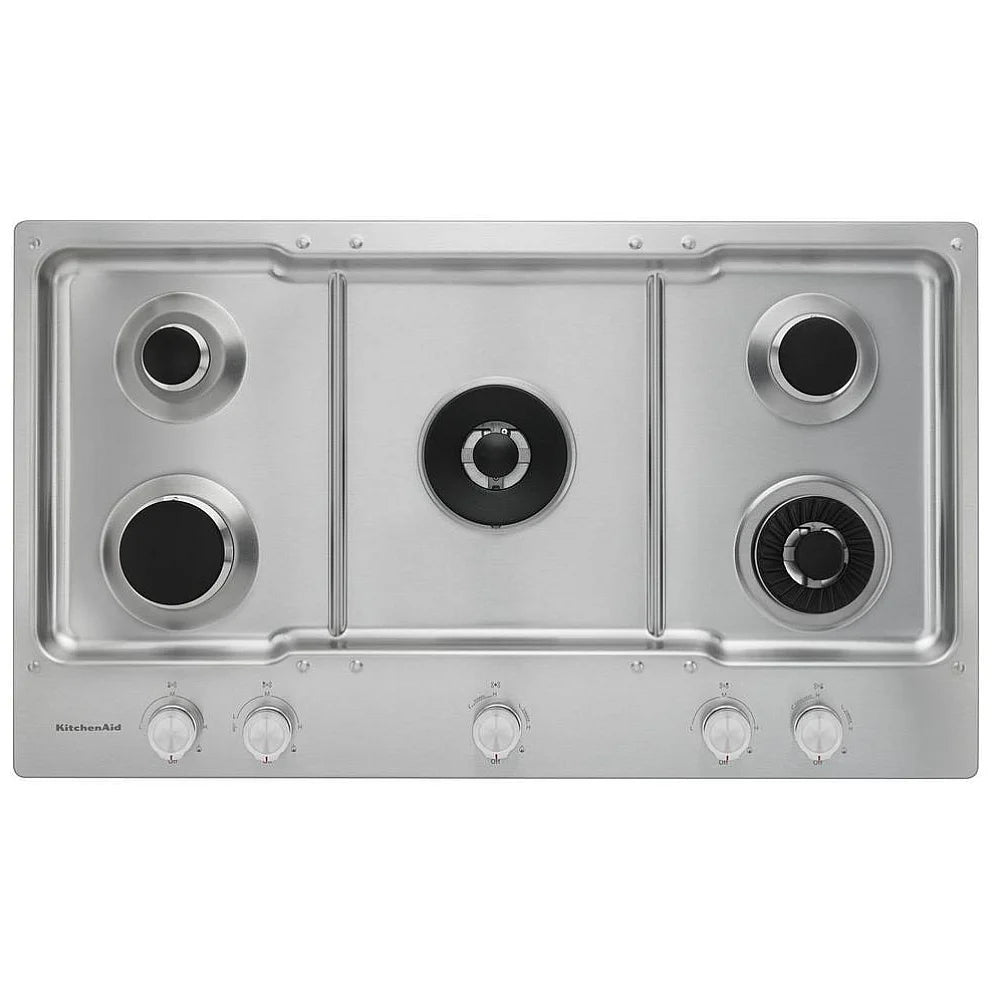

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 10,000 BTU

Right Front Element-burner Type Even-Heat™

Right Rear Element-burner Power 7,000 BTU

Right Rear Element-burner Type Burner

Exterior Details

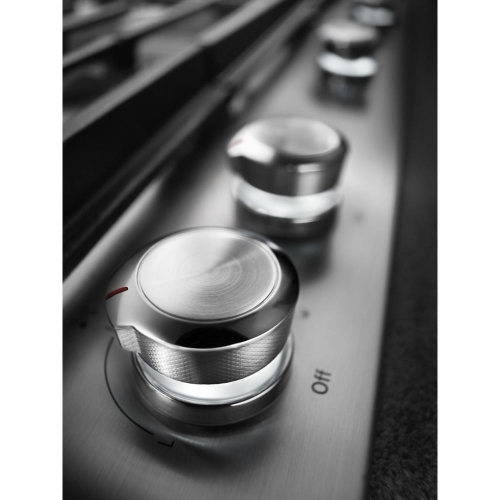

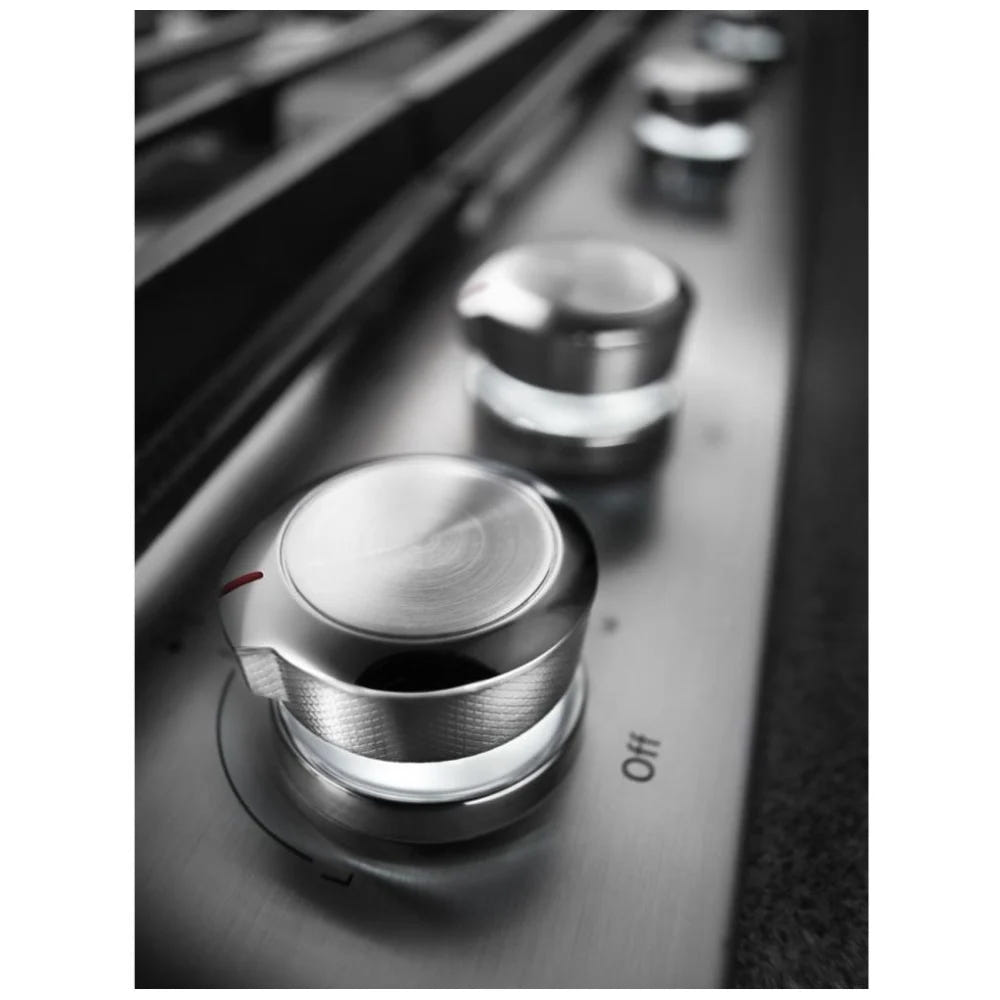

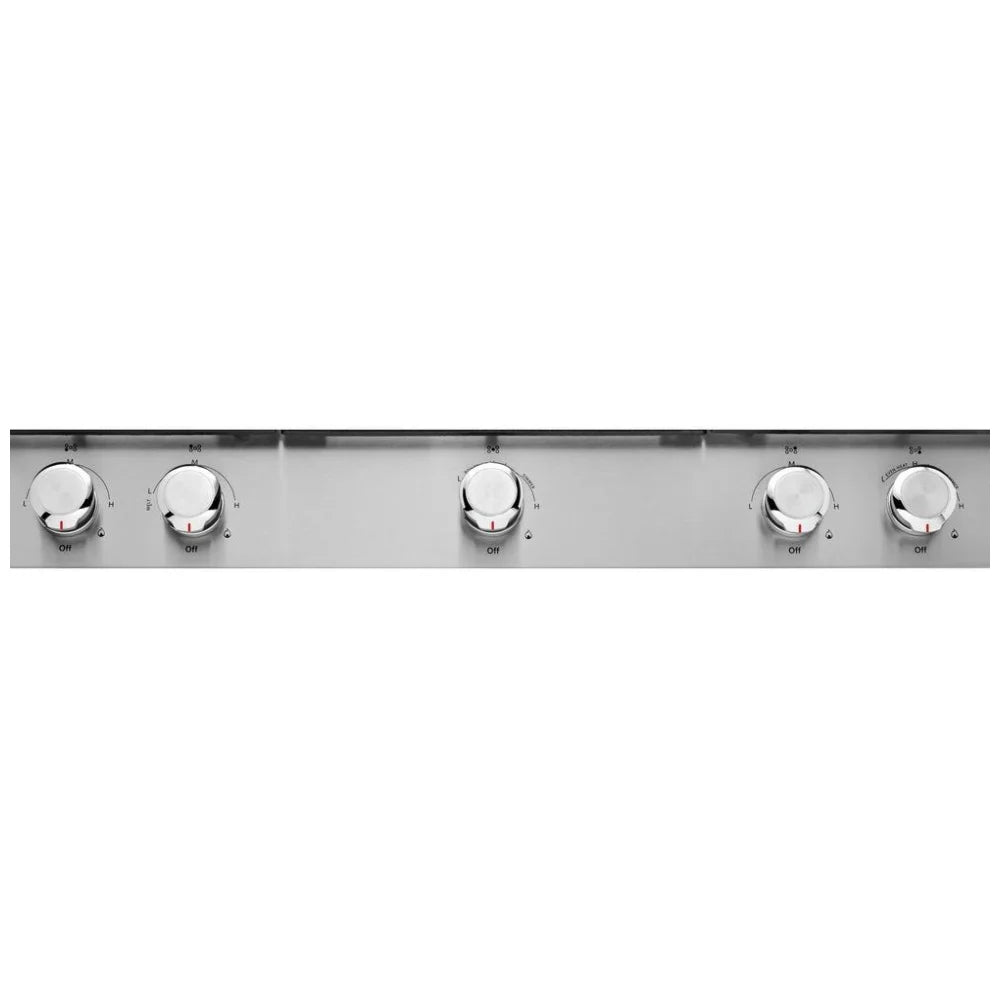

Knob Color Stainless Steel - Lighted Knobs

Knob Type Metal

General

Combination Match With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107Grate Details

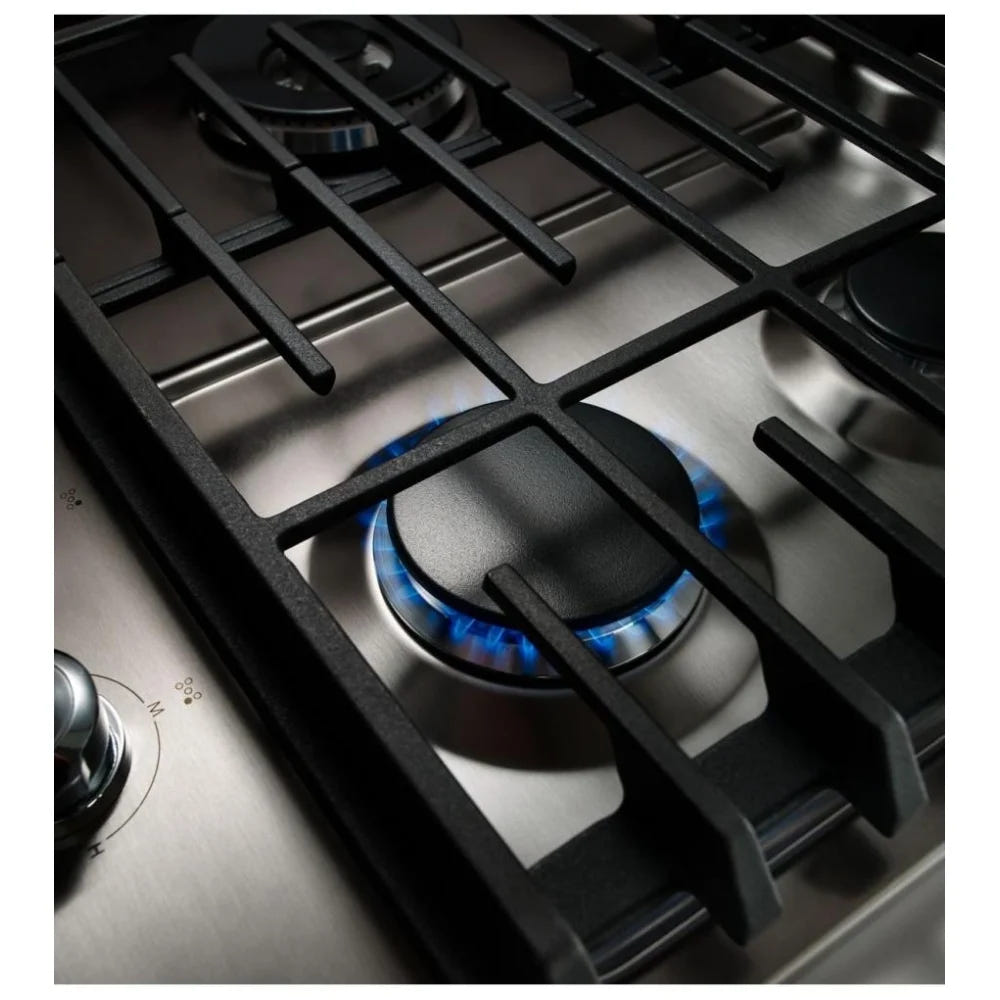

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates 3

Ventilation Details

Downdraft Vent No
