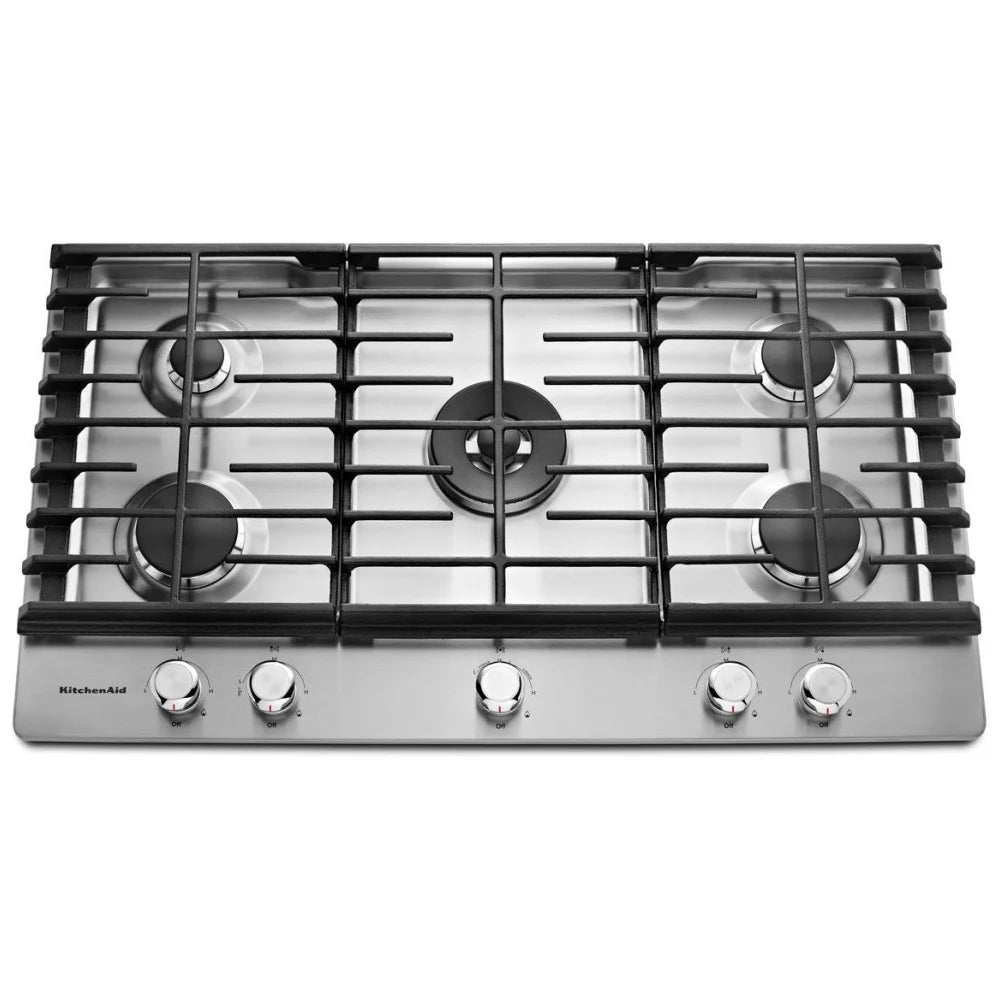

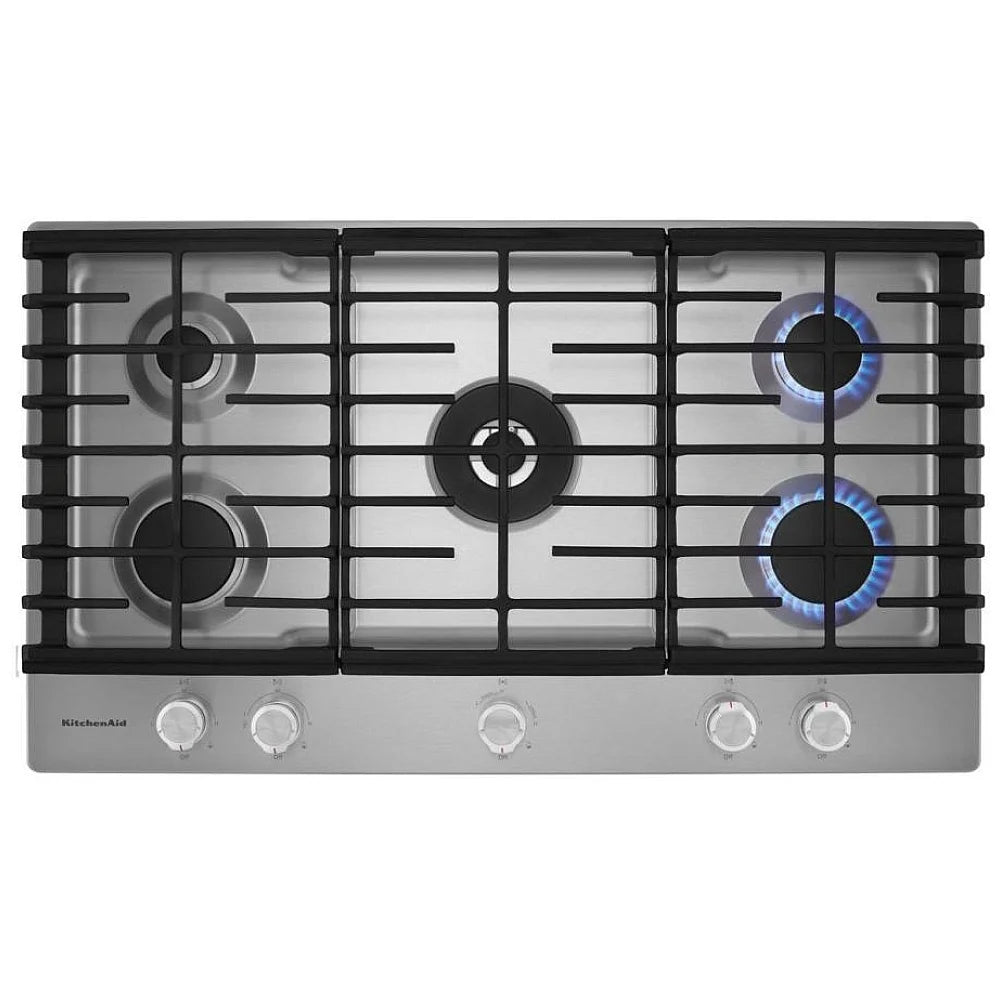

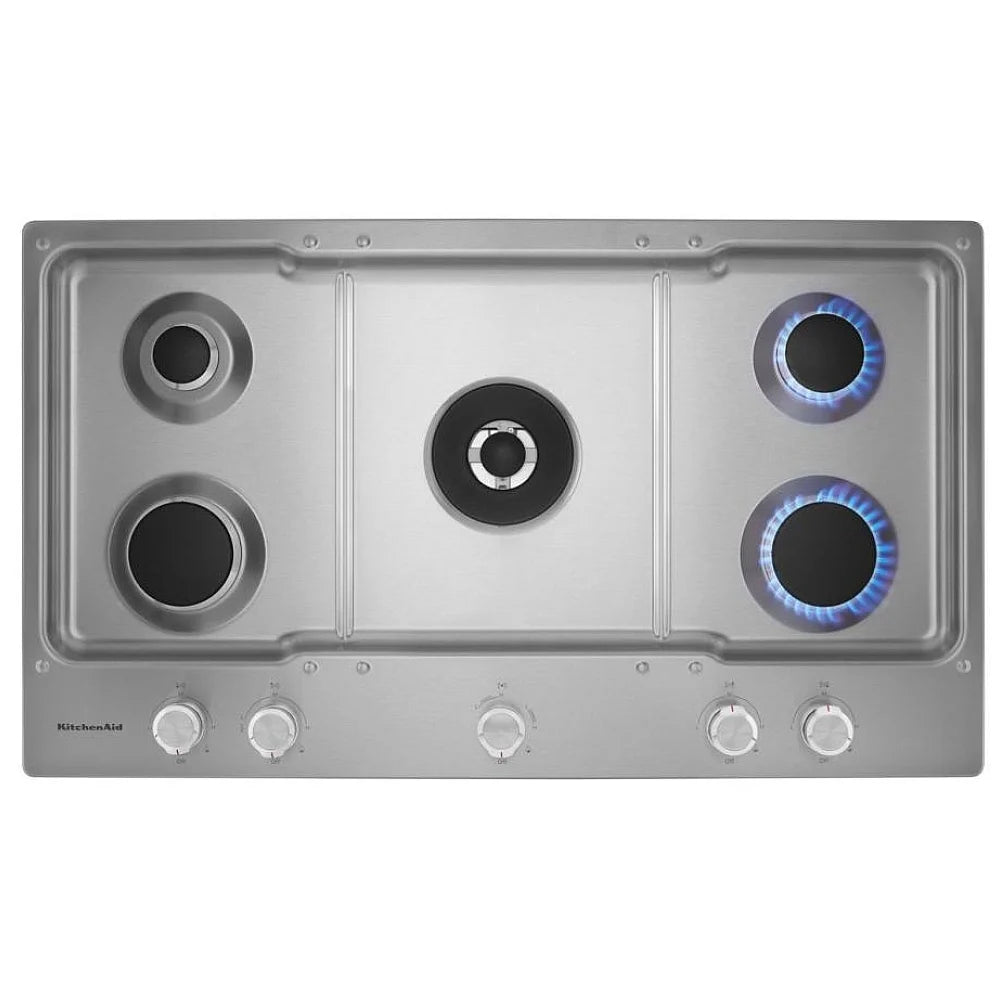

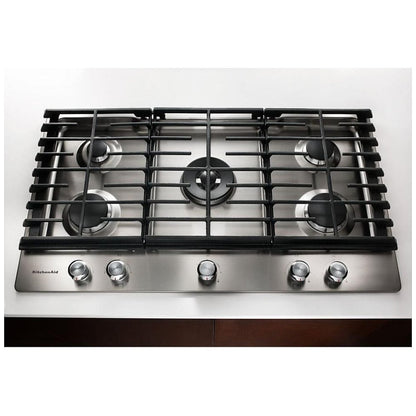

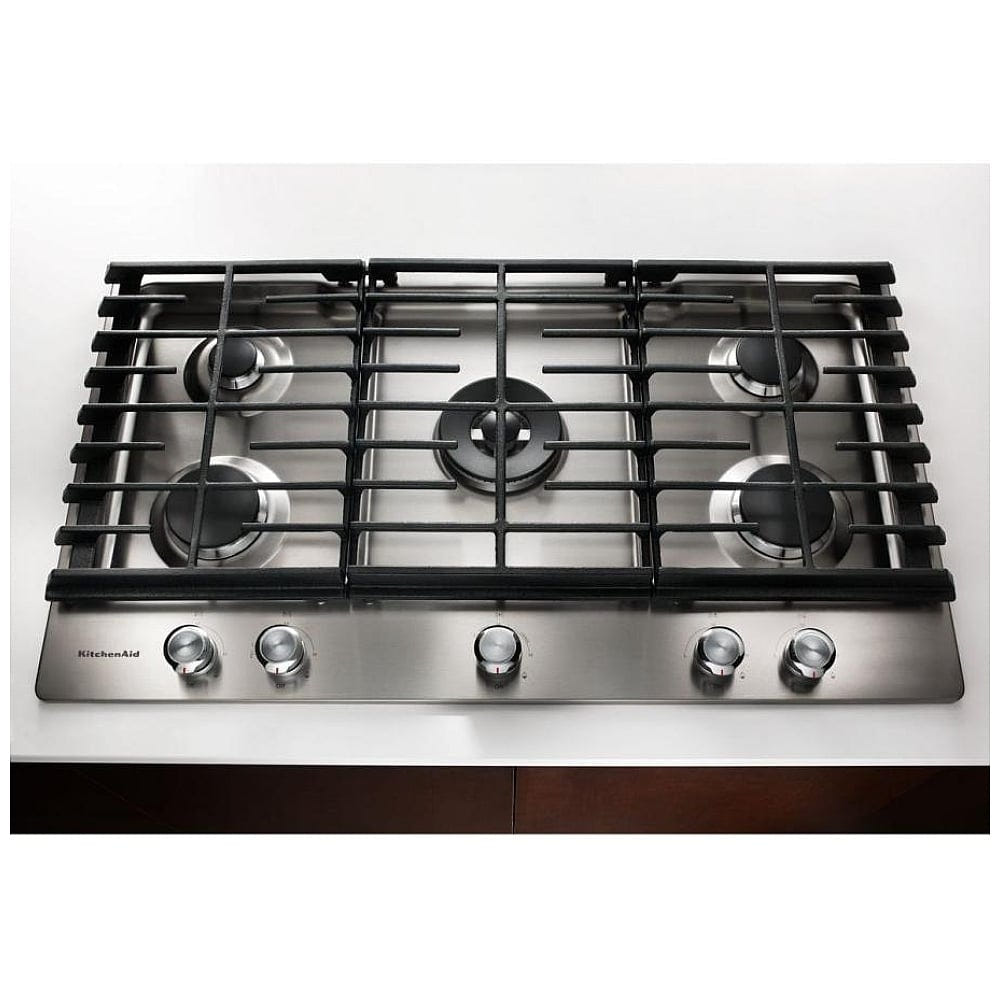

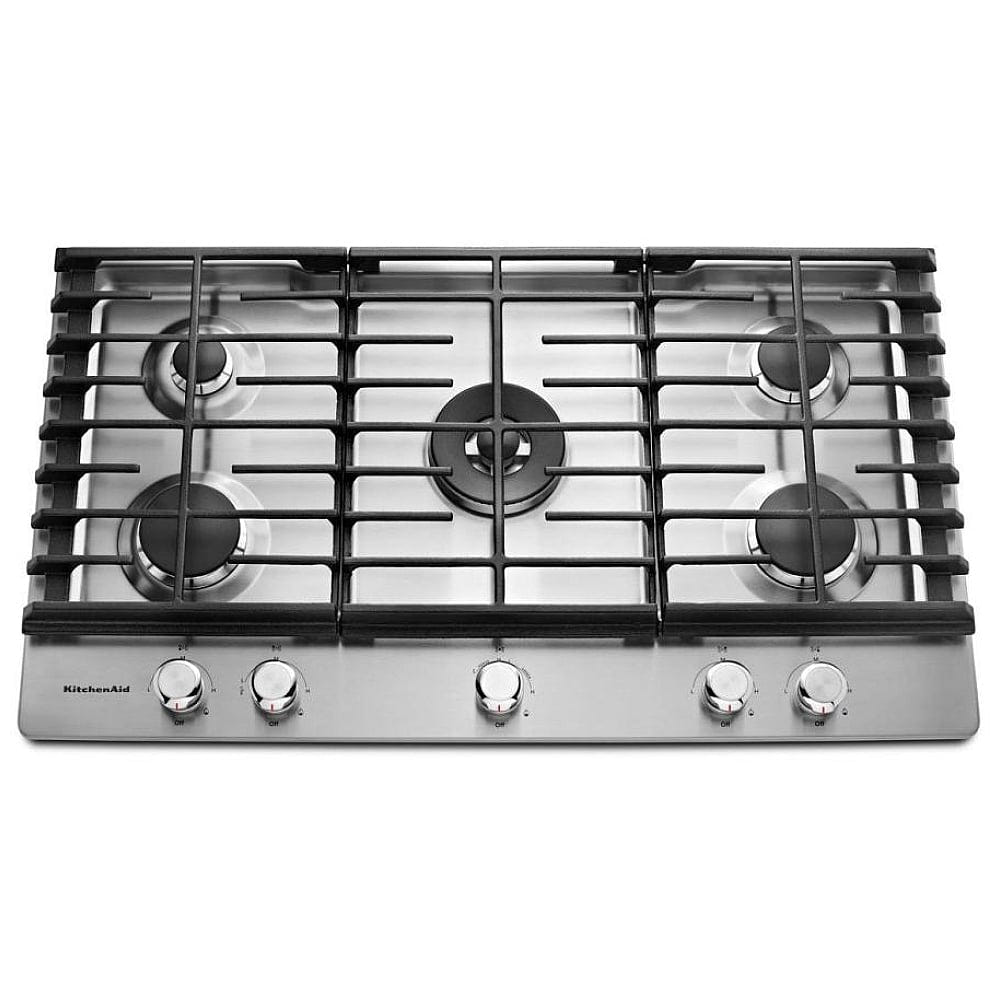

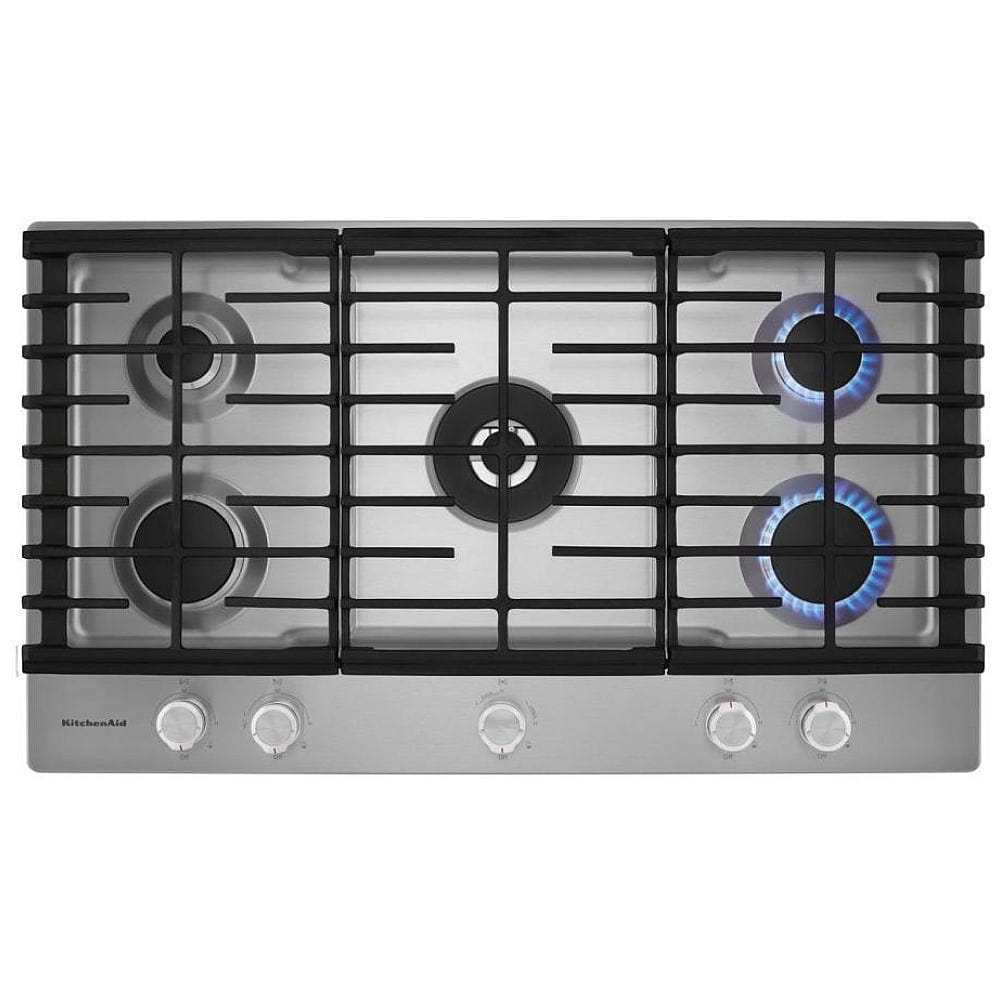

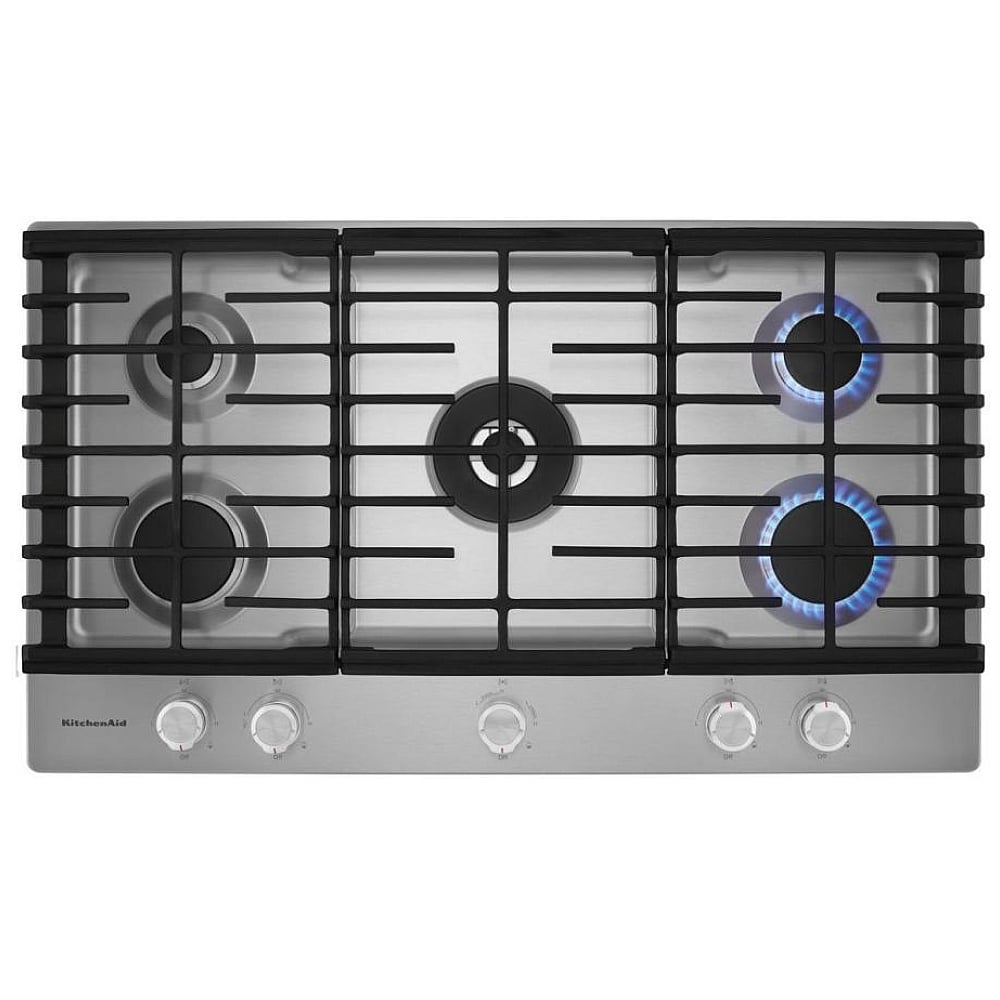

KitchenAid KCGS556ESS Gas Cooktop, 36 inch Exterior Width, 5 Burners, 20,000 BTU Highest Burner, Stainless Steel colour
KitchenAid
KCGS556ESS
KitchenAid KCGS556ESS Gas Cooktop, 36 inch Exterior Width, 5 Burners, 20,000 BTU Highest Burner, Stainless Steel colour
DISCONTINUED
Quick Specs
  • WiFi Enabled: No
  • Power Type: 20000 BTU
  • Burners: 5 burners
Dimensions
W 36in
H 4in
D 21in

Key Features

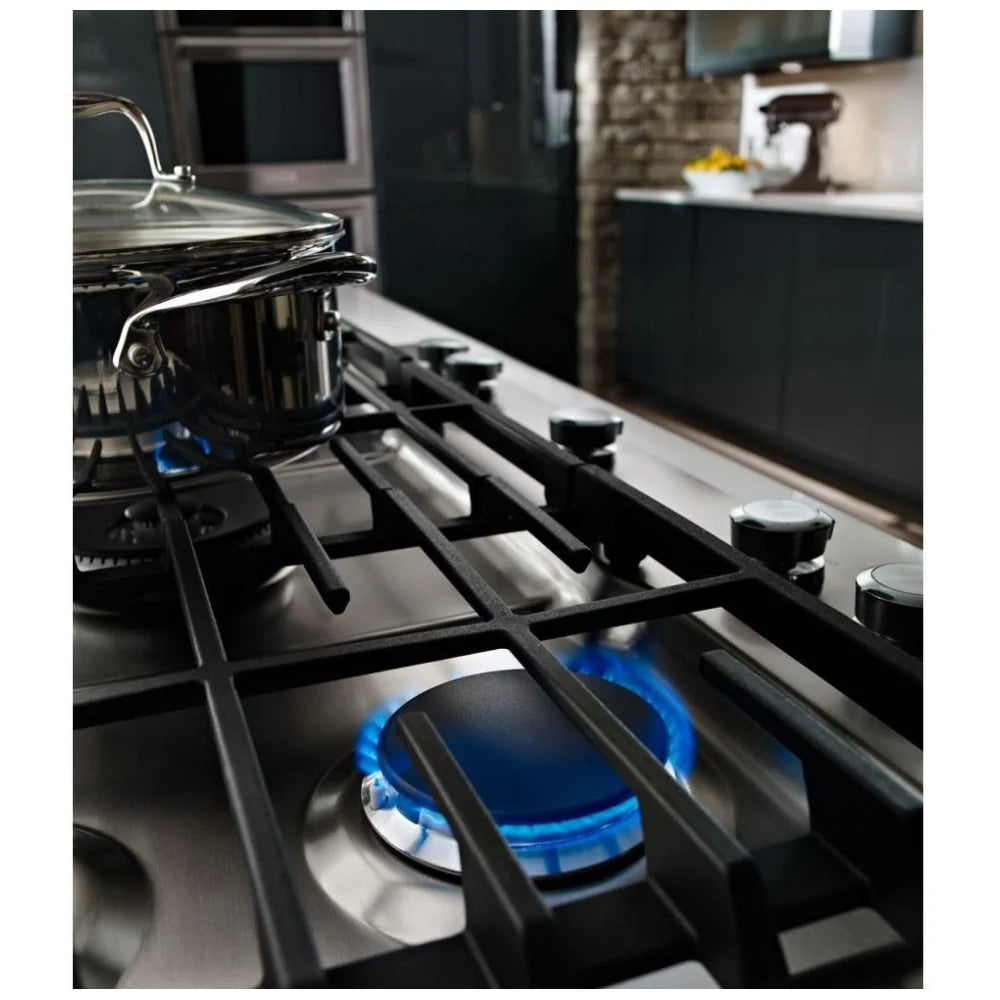

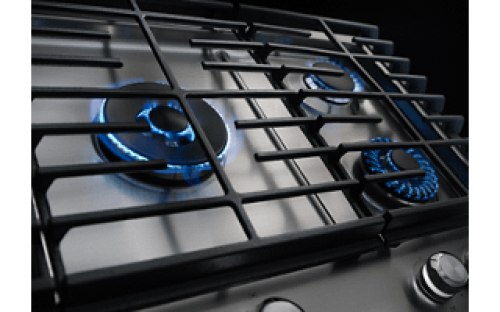

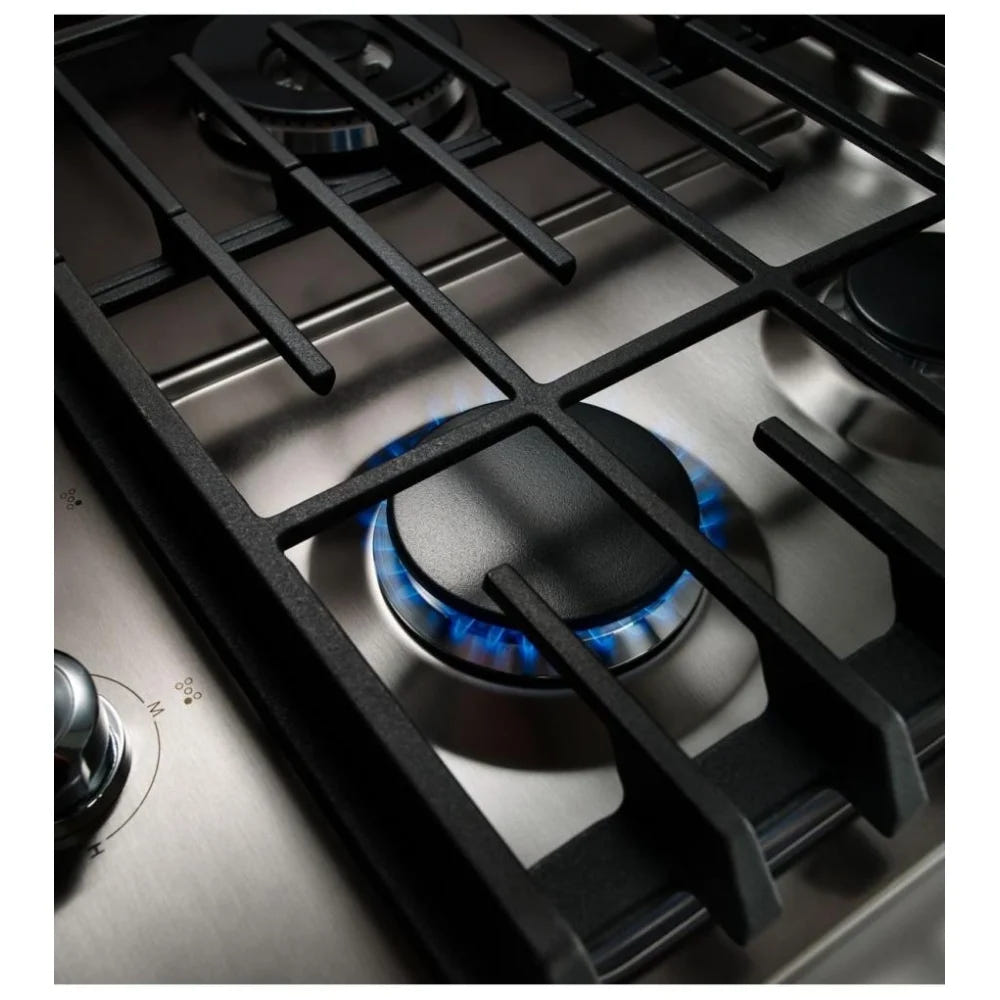

  • 5 burners, including a 20,000 BTU Dual Ring Burner
  • CookShield Finish for stain resistance

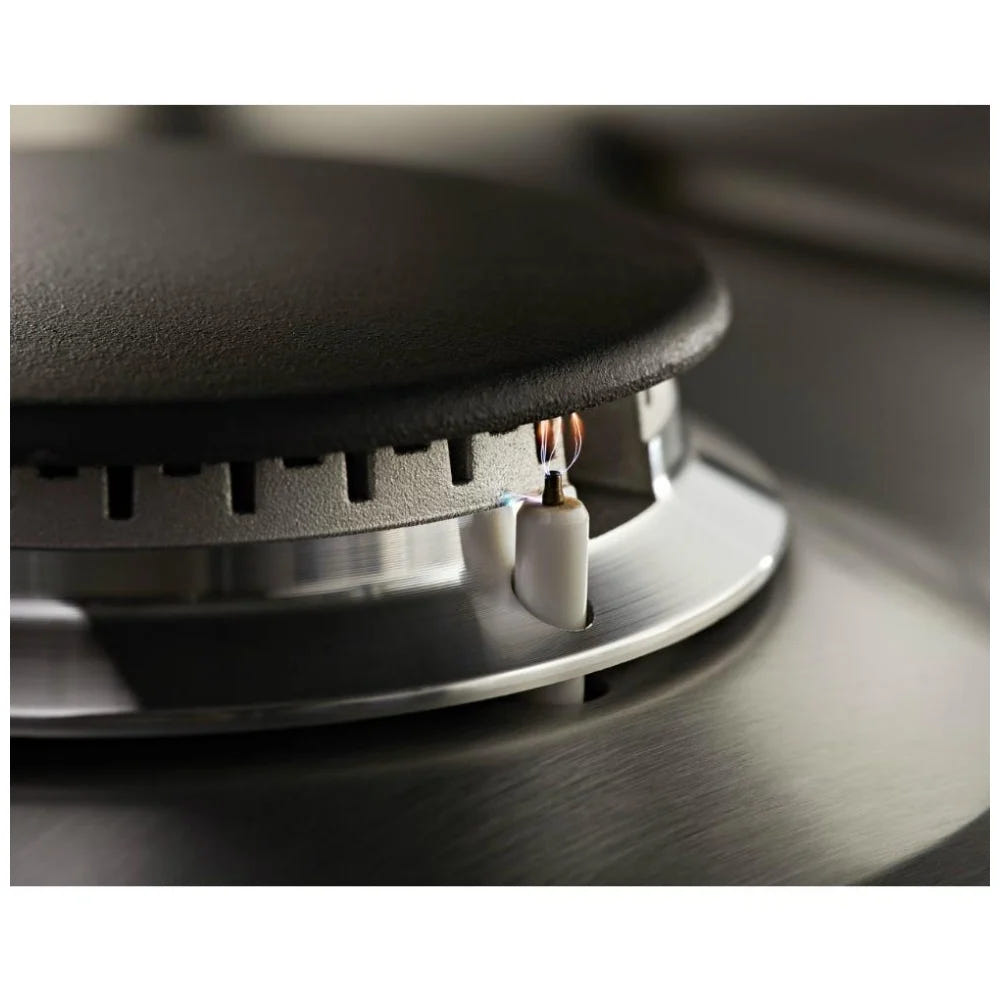

  • Electronic Ignition for automatic burner lighting

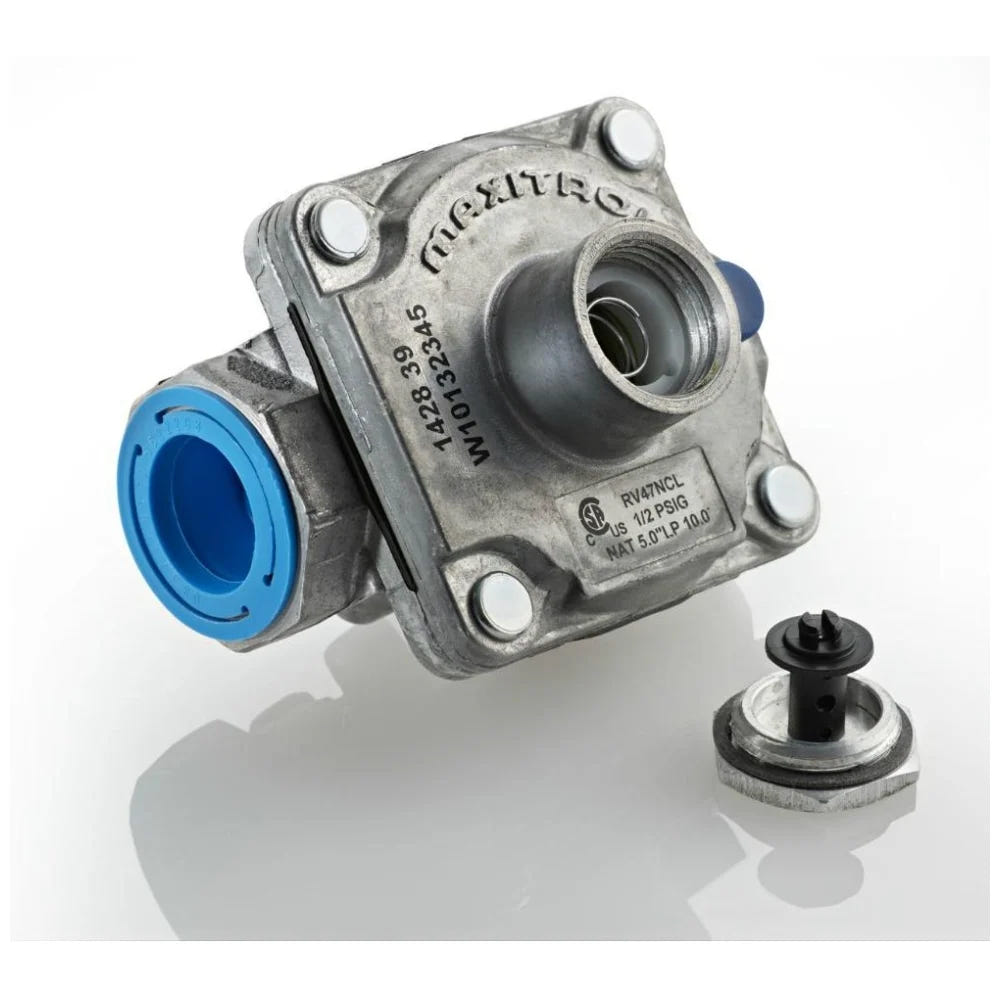

  • LP Conversion Kit for gas conversion

Cooktop Details

Cooktop Surface Color Color Coordinated

Cooktop Surface Material Stainless Steel

Digital DisplayNoGriddle Included Optional Accessory

Heating Element On Indicator Light No

Hot Surface Indicator Light No

Ignition Type Direct Spark Ignition

Number of Open Bays N/A

Details

Automatic Pan Detection No

Automatic Pan Size Adjustment No

Combinations With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Cooktop Configuration All Burners

Fuel Type Gas

Installs Over Built-in Oven Yes

Lp Convertible Yes - Kit Included

Power Outage Compatible Yes

Dimensions

Product Height 3.625

Carton Height 12.04

Gross Weight 69

Carton Width 44.41

Product Depth 21.0

Cutout Depth Max 20

Cutout Width Min 34.875

Cutout Depth 19.813

Cutout Height 5.25

Carton Depth 25

Cutout Width 35.188

Cutout Depth Min 19.5

Cutout Width Max 35.625

Net Weight 0

Product Width 36.0

Electrical

Power Cord Included Yes

Element/burner Details

Center Element Burner Power 20,000 BTU

Center Element Burner Type Even Heat Dual

Center Rear Element-burner Power 20,000 BTU

Center Rear Element-burner Type Professional Dual Tier

Cooktop Type Standard

Left Front Element-burner Power 10000 BTU

Left Rear Element-burner Power 6,000 BTU

Left Rear Element-burner Type Simmer

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 10,000 BTU

Right Rear Element-burner Power 7,000 BTU

Exterior Details

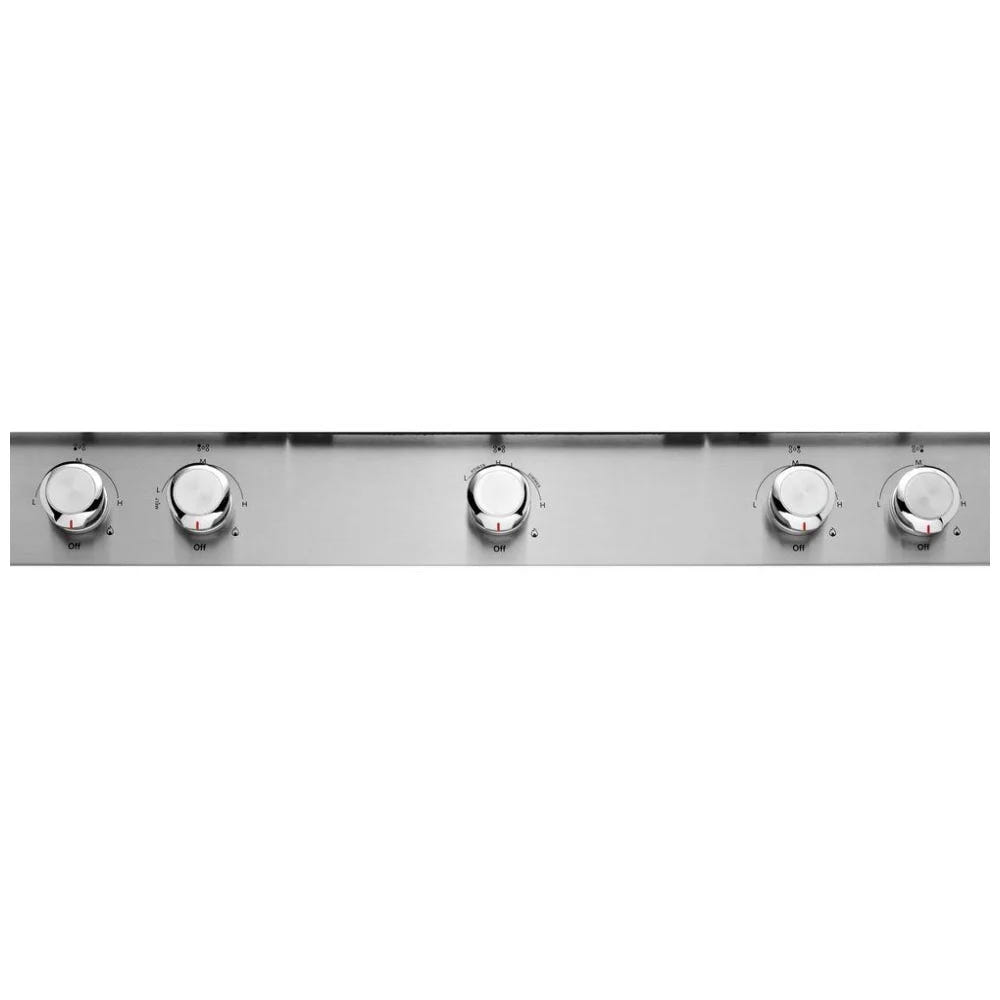

Knob Color Stainless Steel

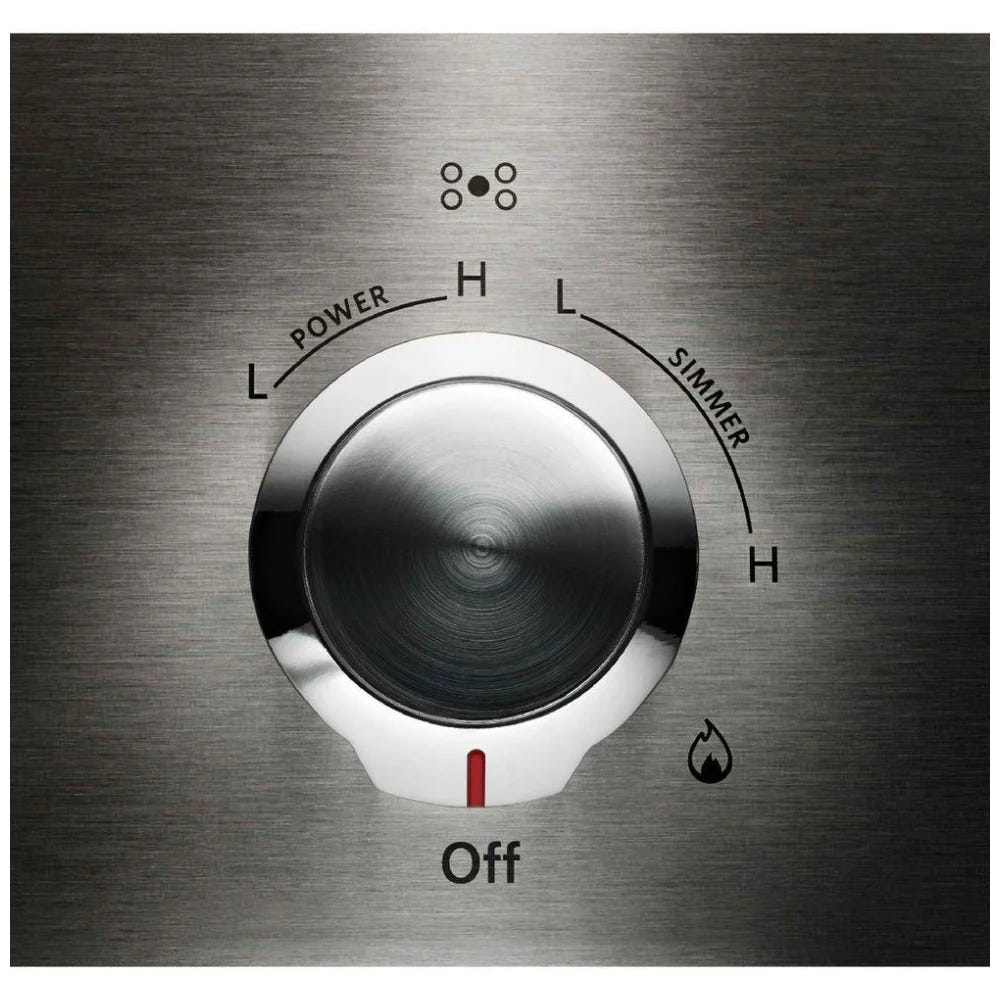

Knob Type Metal

General

Combination Match With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Grate Details

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates 3

Ventilation Details

Downdraft Vent No

Warranty Support

Warranty support and documents in one place.

Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.

Files

Brochure and warranty documents

1 file
