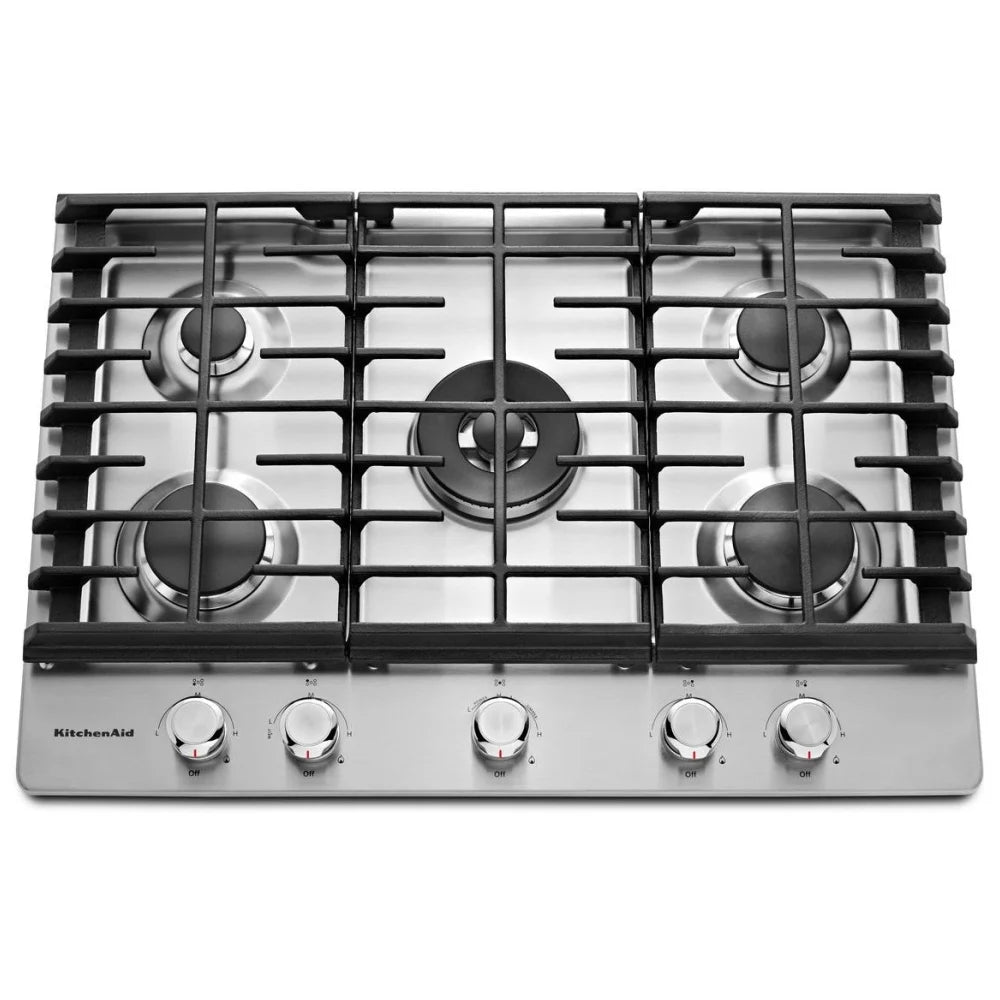

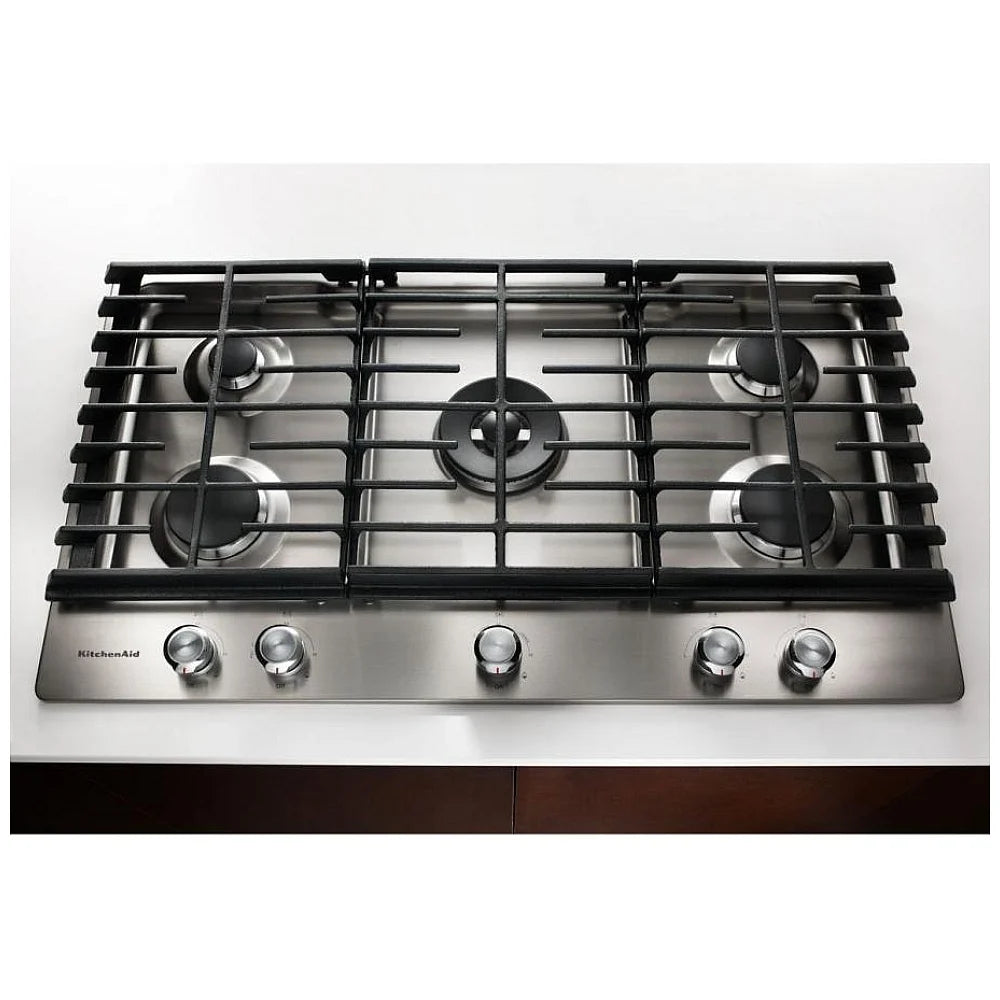

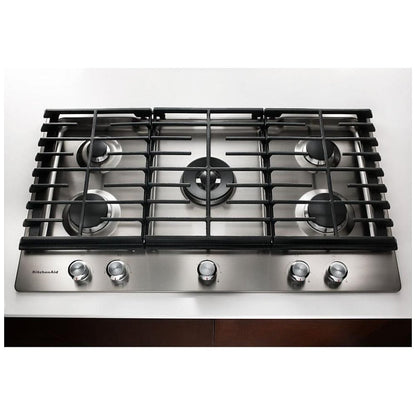

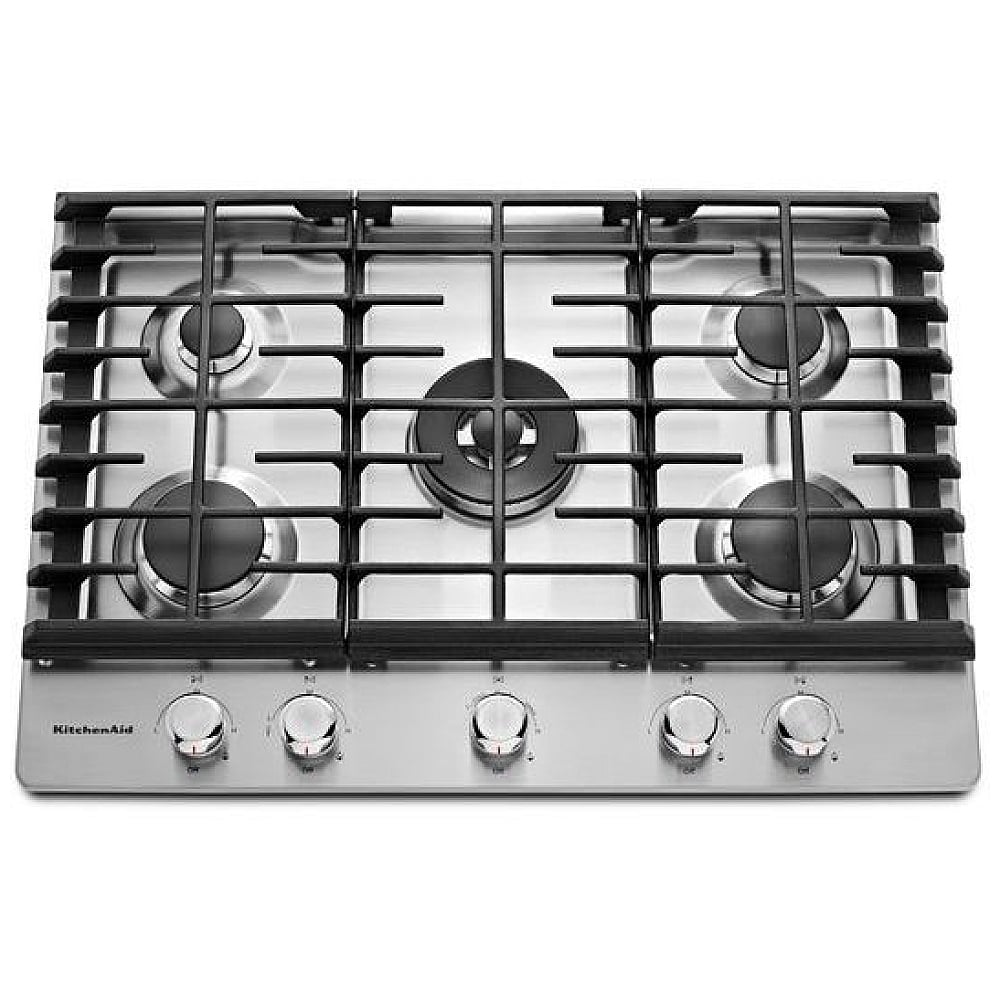

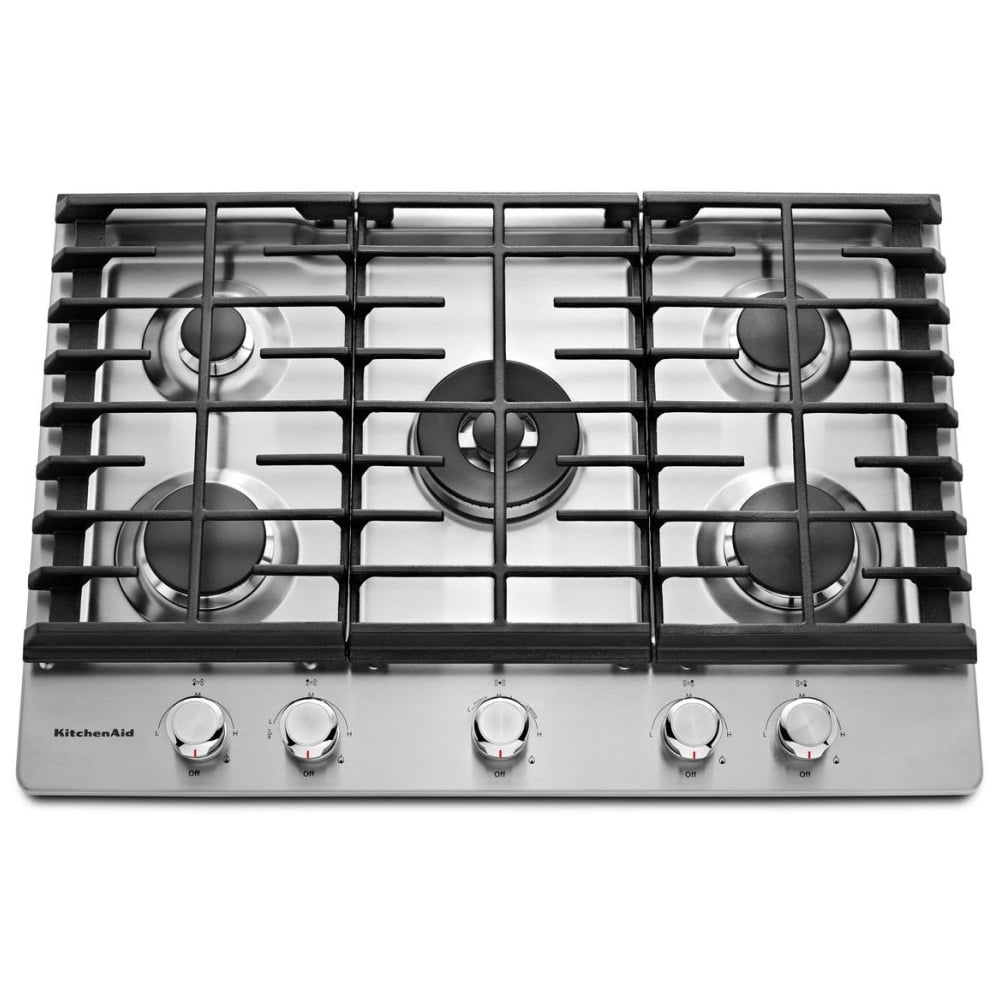

KitchenAid KCGS550ESS Gas Cooktop, 30 inch Exterior Width, 5 Burners, 17,000 BTU Highest Burner, Stainless Steel colour
KitchenAid
KCGS550ESS
KitchenAid KCGS550ESS Gas Cooktop, 30 inch Exterior Width, 5 Burners, 17,000 BTU Highest Burner, Stainless Steel colour
DISCONTINUED
Quick Specs
  • WiFi Enabled: No
  • Power Type: 17000 BTU
  • Burners: 5 burners
Dimensions
W 30in
H 4in
D 21in

Key Features

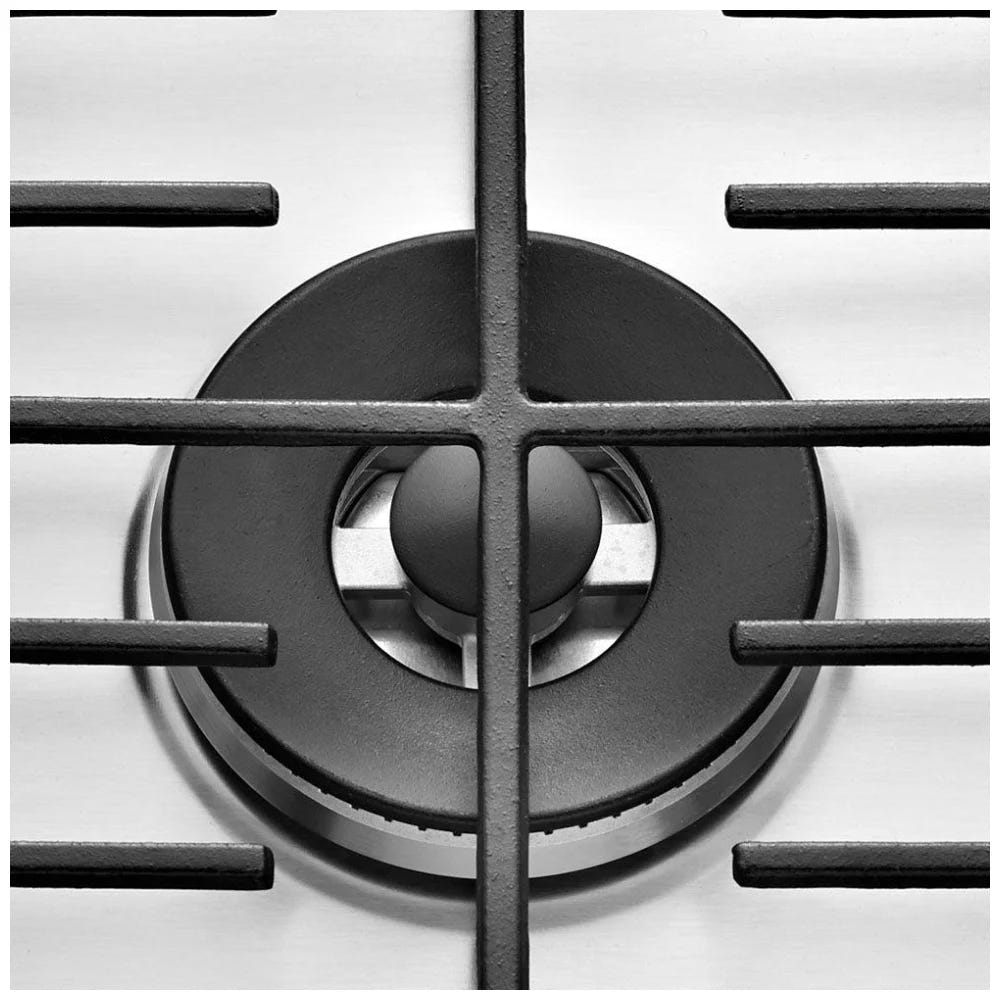

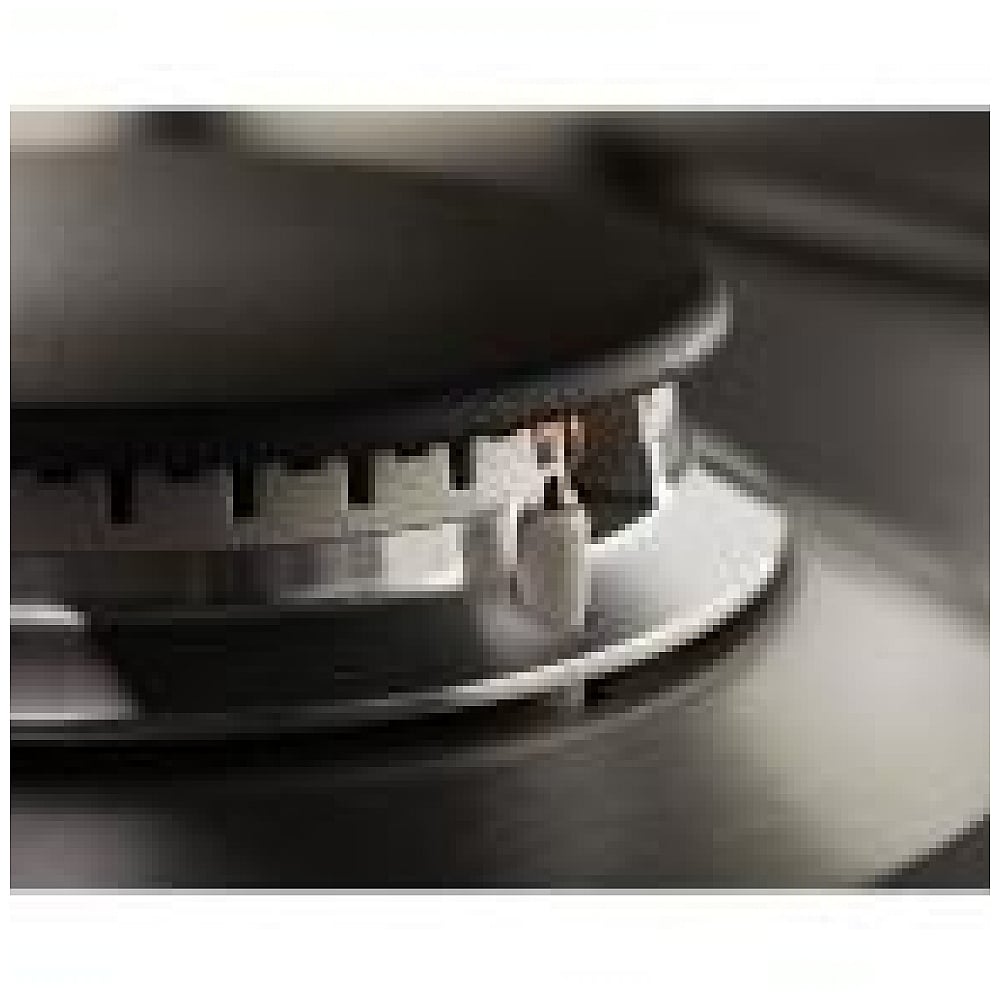

  • 5 individual burners, including a 17,000 BTU Dual Ring Burner

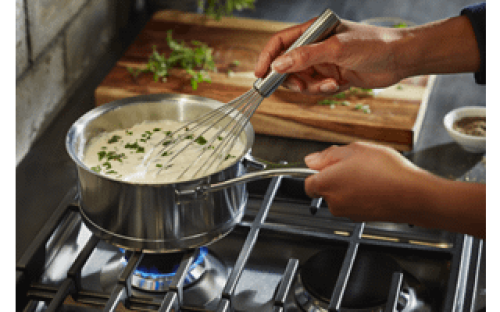

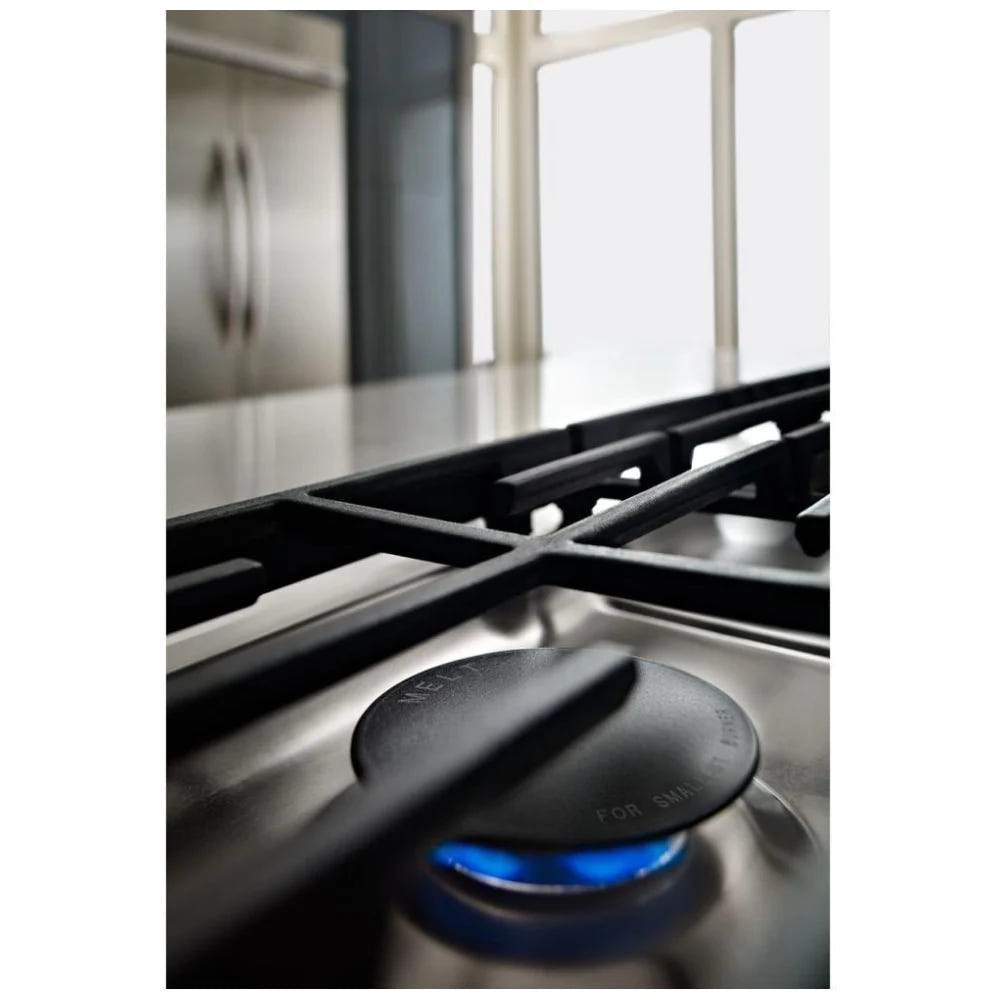

  • 6,000 BTU Even-Heat Simmer Burner
  • CookShield Finish for easy cleaning
  • Electronic Ignition for automatic burner lighting

Cooktop Details

Cooktop Surface Color Color Coordinated

Cooktop Surface Material Stainless Steel

Digital Display No

Griddle Included Optional Accessory

Heating Element On Indicator Light No

Hot Surface Indicator Light No

Ignition Type Direct Spark Ignition

Number of Open Bays N/A

Details

Automatic Pan Detection No

Automatic Pan Size Adjustment No

Combinations With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Cooktop Configuration All Burners

Fuel Type Gas

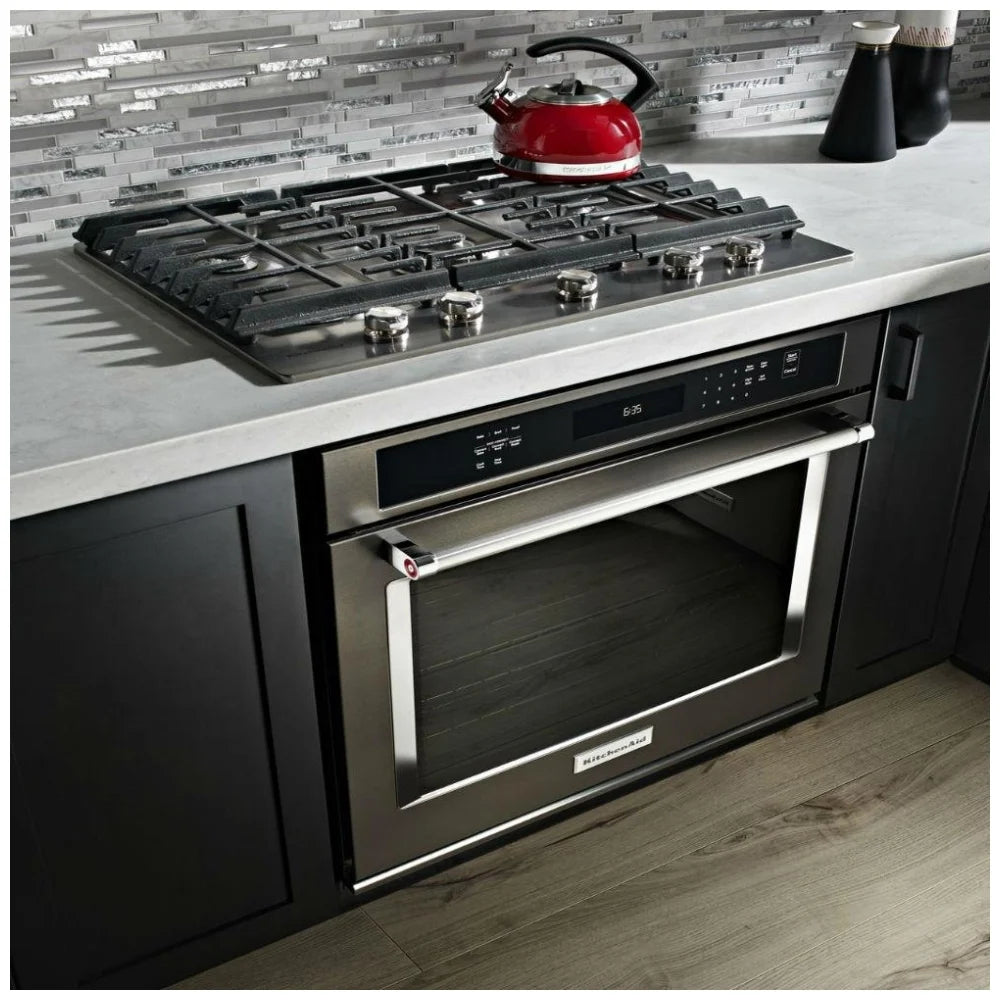

Installs Over Built-in Oven Yes

Lp Convertible Yes - Kit Included

Power Outage Compatible Yes

Dimensions

Product Height 3.0625

Carton Height 12.04

Gross Weight 59.6

Carton Width 34.76

Product Depth 21.0

Cutout Depth Max 20

Cutout Depth 19.813

Cutout Height 5.25

Carton Depth 25

Cutout Width 28.875

Cutout Width Max 29.313

Net Weight 53.6

Product Width 30.0

Electrical

Power Cord Included Yes

Element/burner Details

Center Element Burner Power 17,000 BTU

Center Element Burner Type Even Heat Dual

Center Rear Element-burner Power 17,000 BTU

Center Rear Element-burner Type Professional Dual Tier

Cooktop Type Standard

Left Front Element-burner Power 10000 BTU

Left Rear Element-burner Power 6,000 BTU

Left Rear Element-burner Type Simmer

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 10,000 BTU

Right Rear Element-burner Power 7,000 BTU

Exterior Details

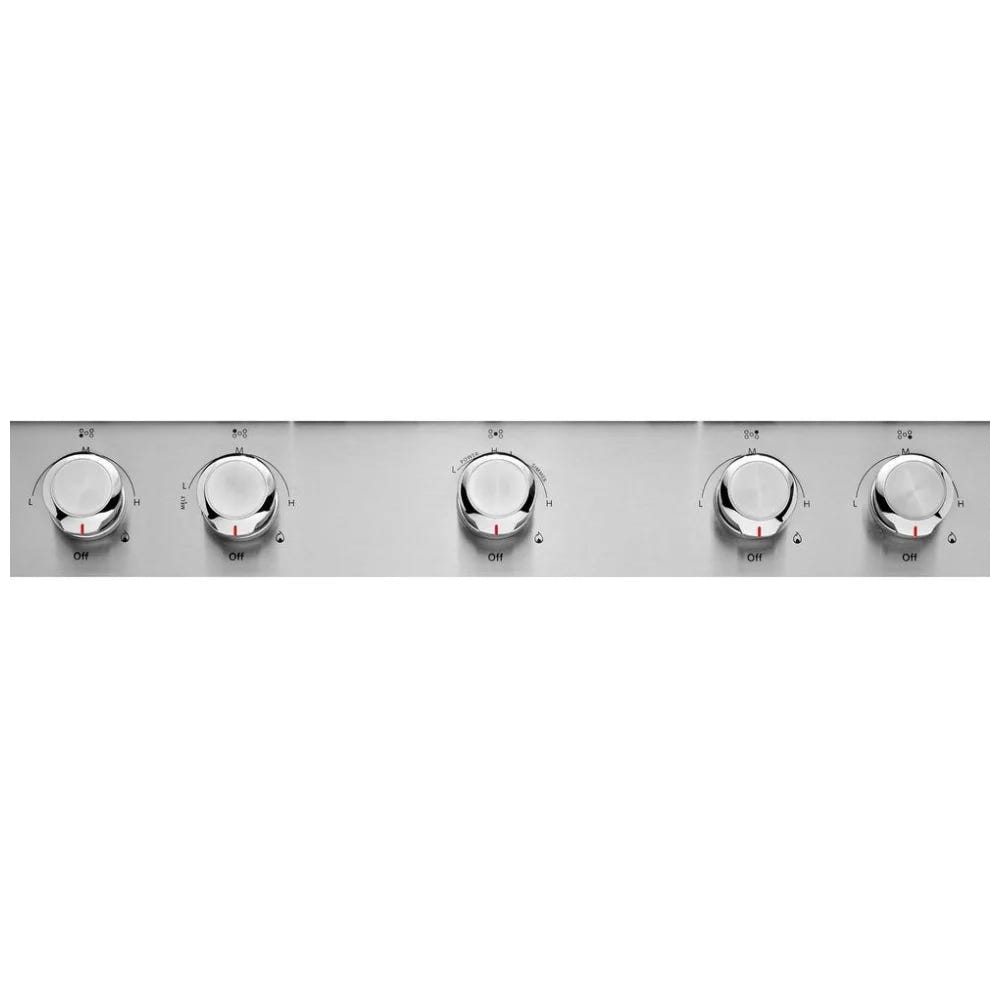

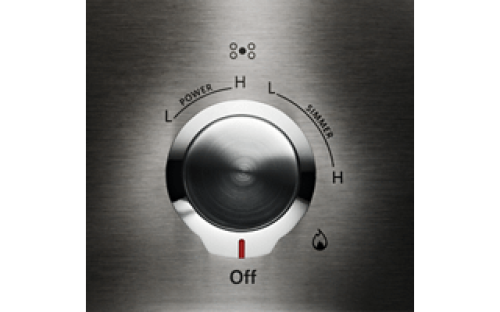

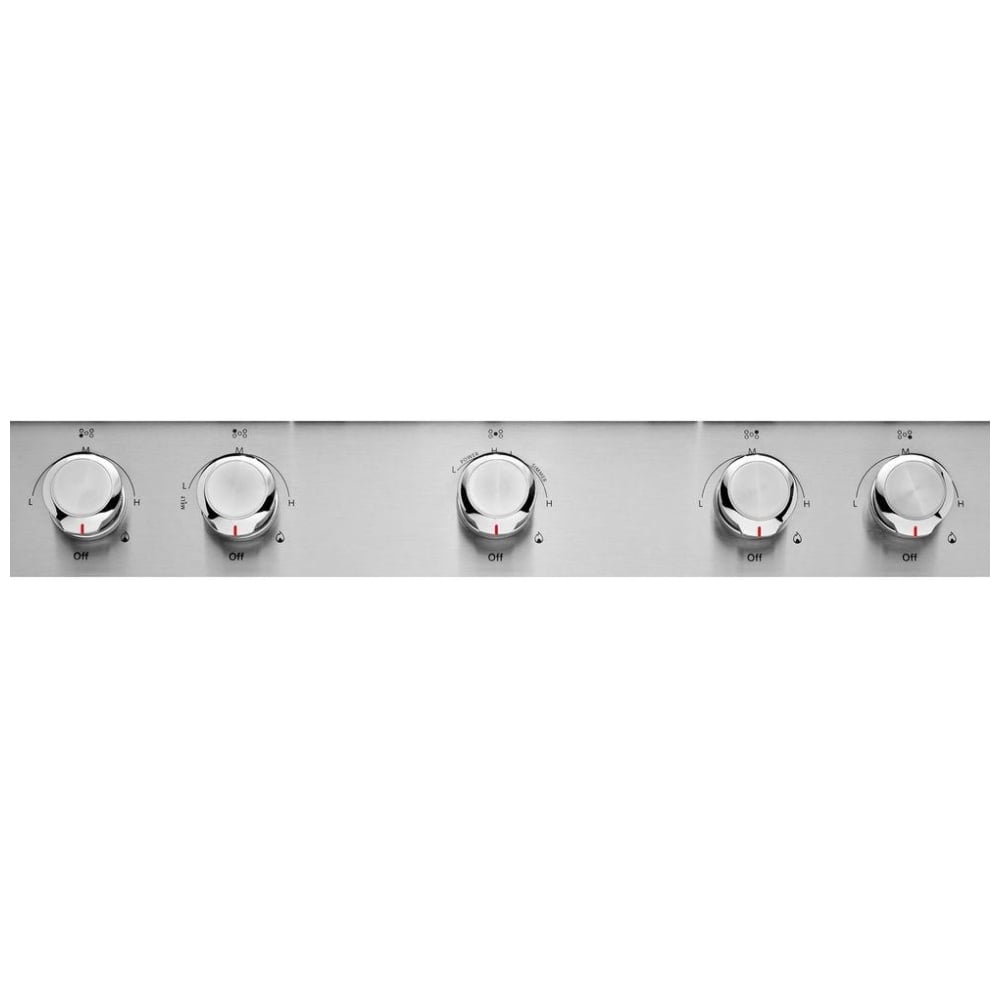

Knob Color Stainless Steel

Knob Type Metal

General

Combination Match With Oven KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Grate Details

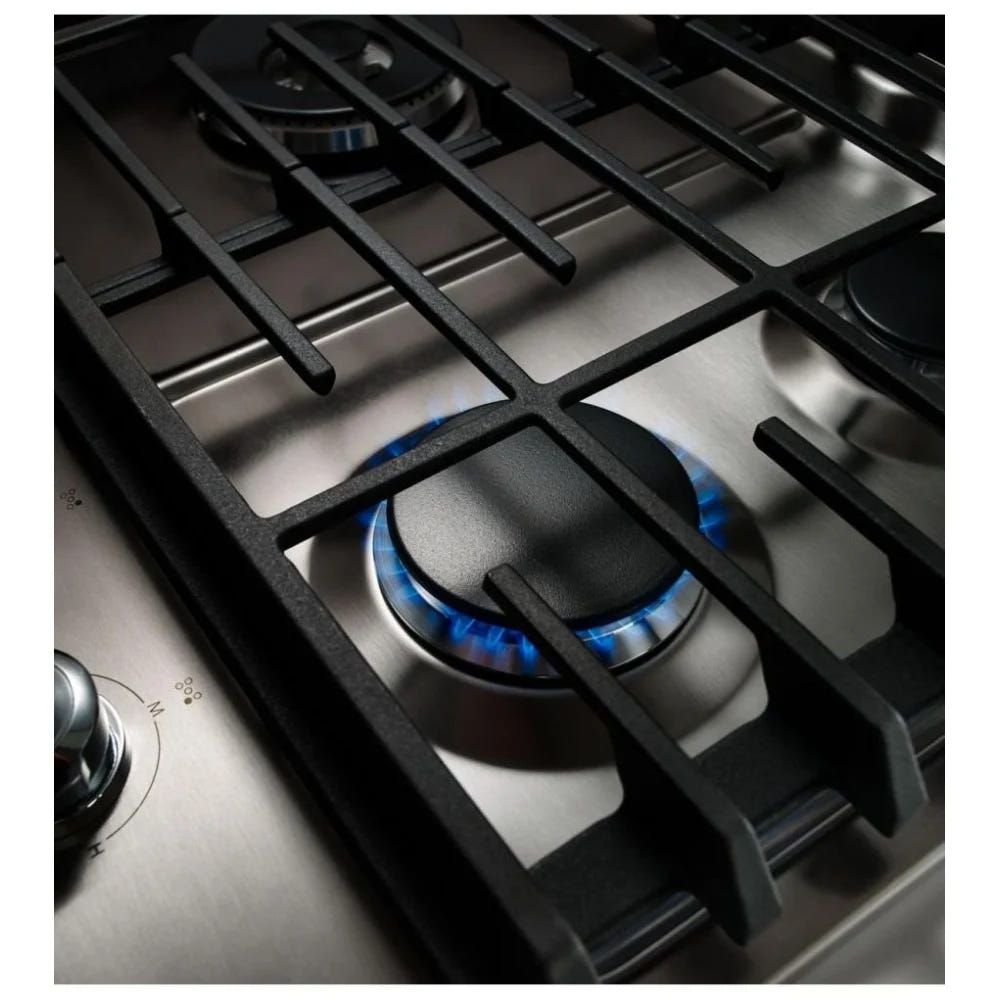

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates 3

Ventilation Details

Downdraft Vent No

Warranty Support

Warranty support and documents in one place.

Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.
