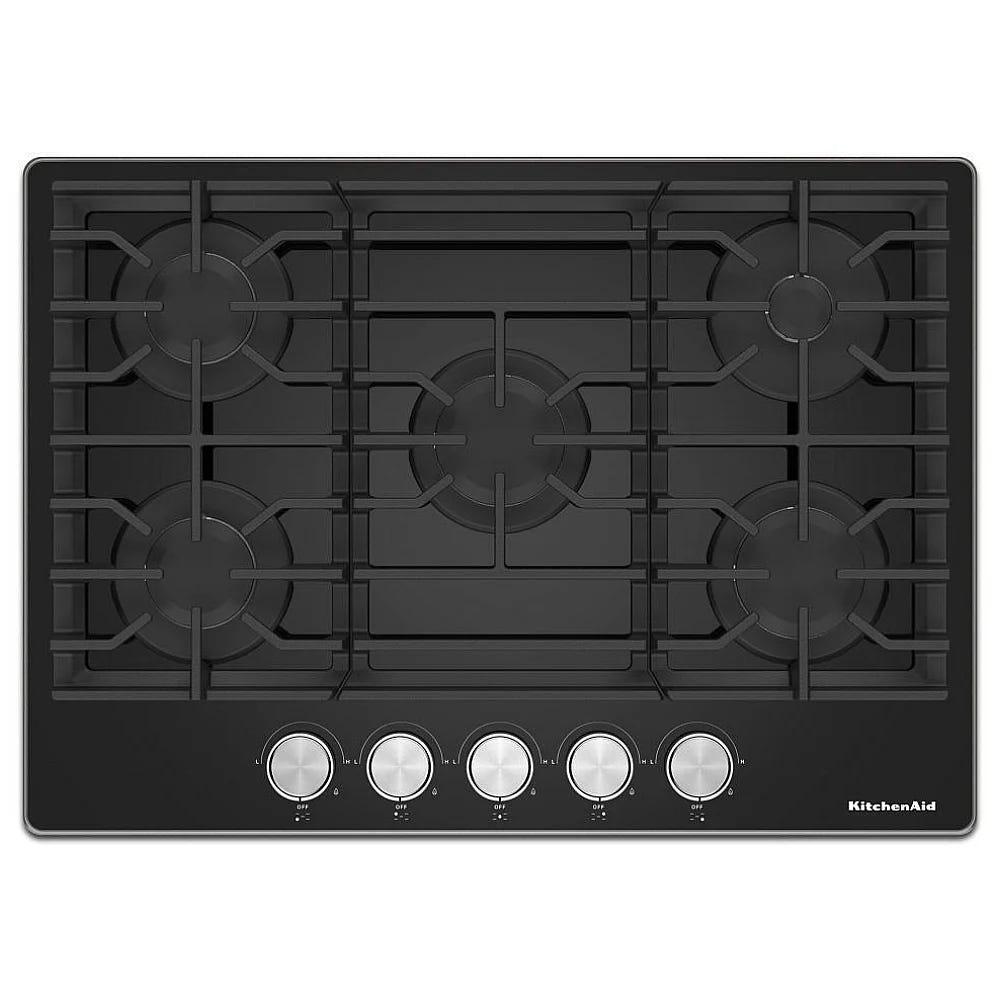

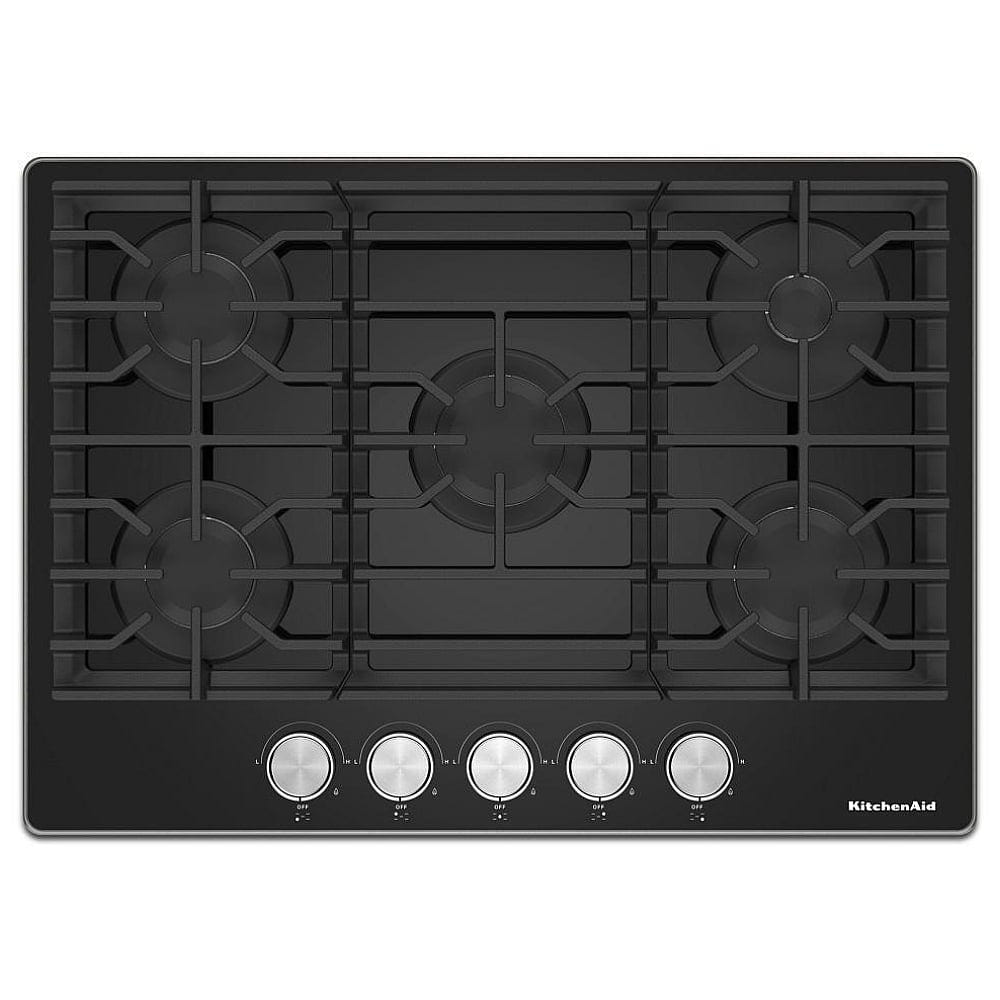

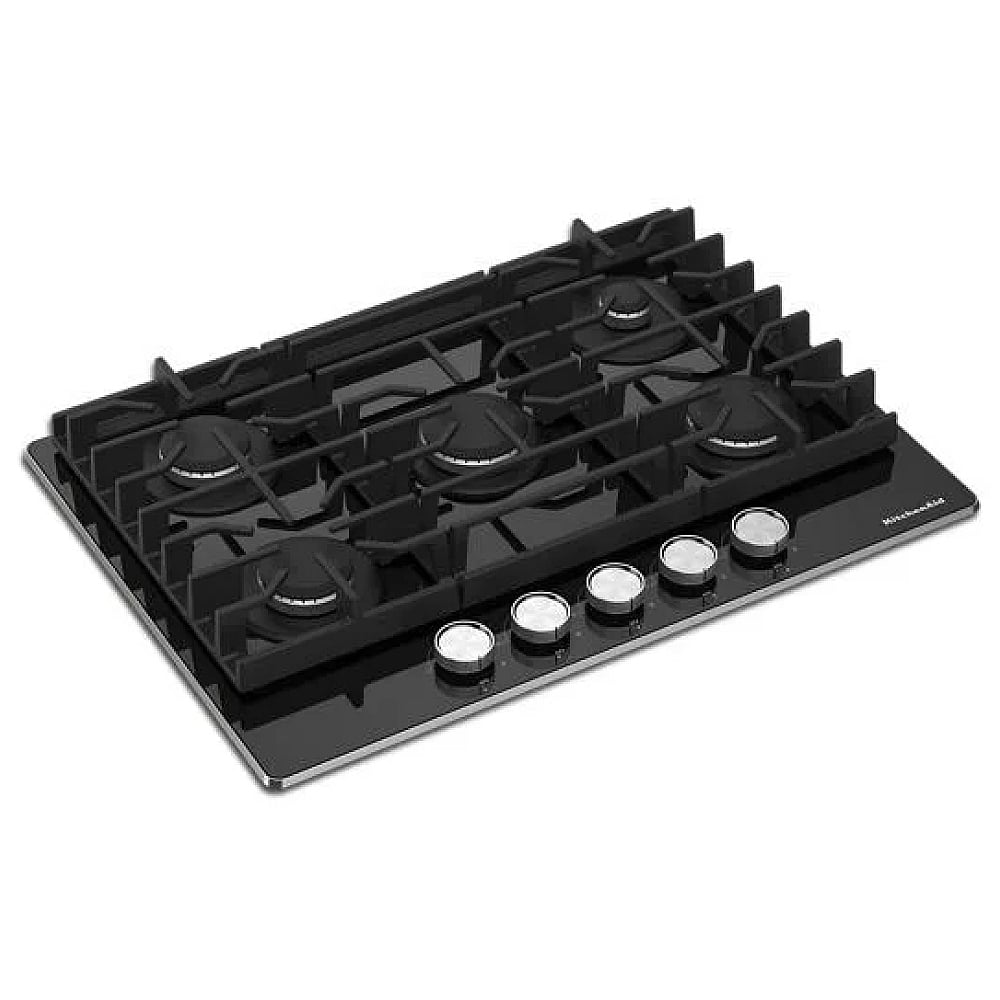

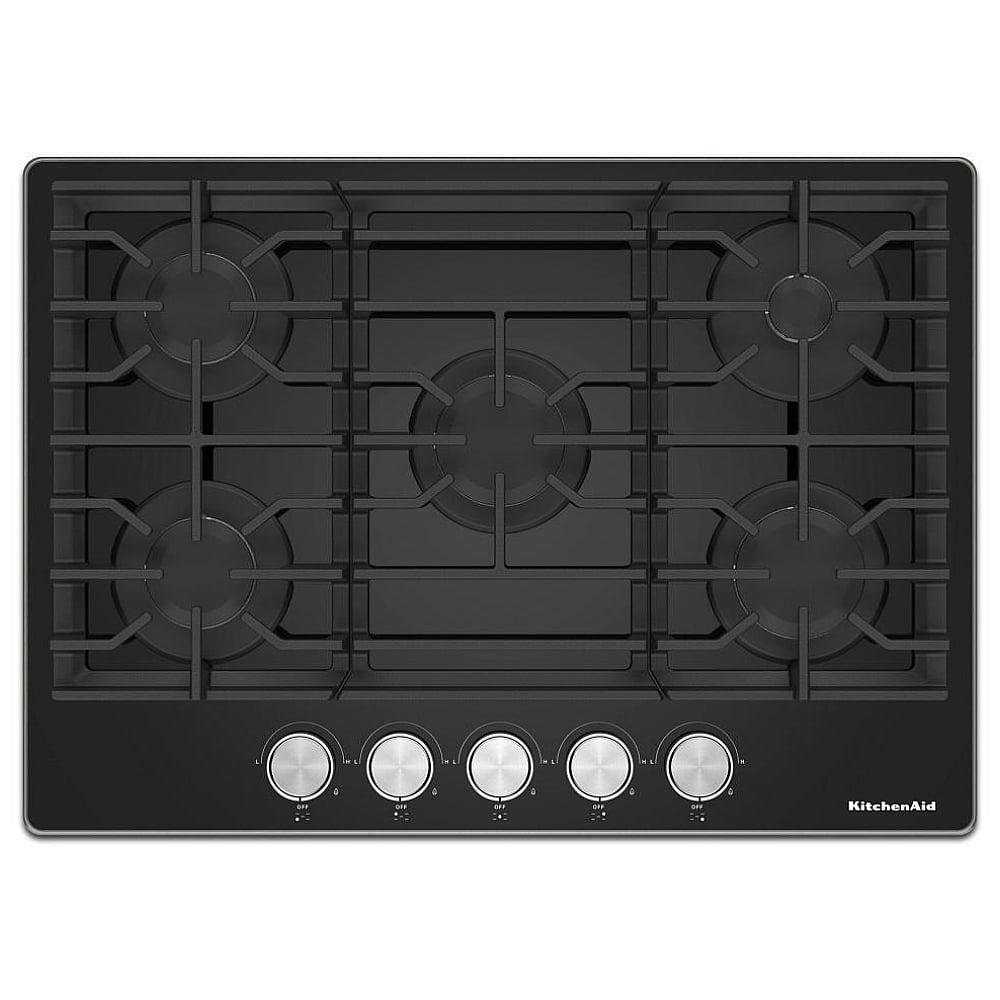

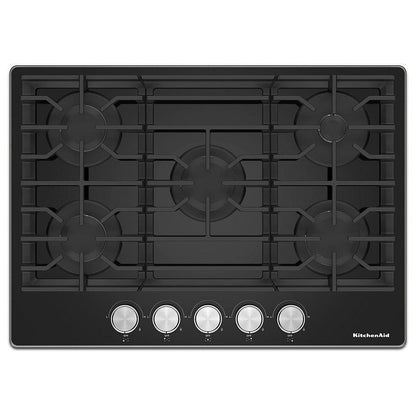

KitchenAid KCGG530PBL Gas Cooktop

KitchenAid KCGG530PBL Gas Cooktop

Just 3-5 Days*
$1,899.99 CAD
$2,649.99 CAD $1,899.99 CAD
View full details
  • brand:
    KitchenAid
  • category:
    Cooktop
  • colour:
    Black
  • depth:
    22
  • height inch :
    6
  • induction cooktop :
    No
  • number of burners:
    5 burners
  • power type:
    18000 BTU
  • prices:
    $1499 - $1999
  • sub categories:
    Gas Cooktop
  • width:
    30
  • wifi enabled:
    No

Key Features

  • 5 individual burners, including a central 18K BTU burner
  • Easy-to-clean glass top surface

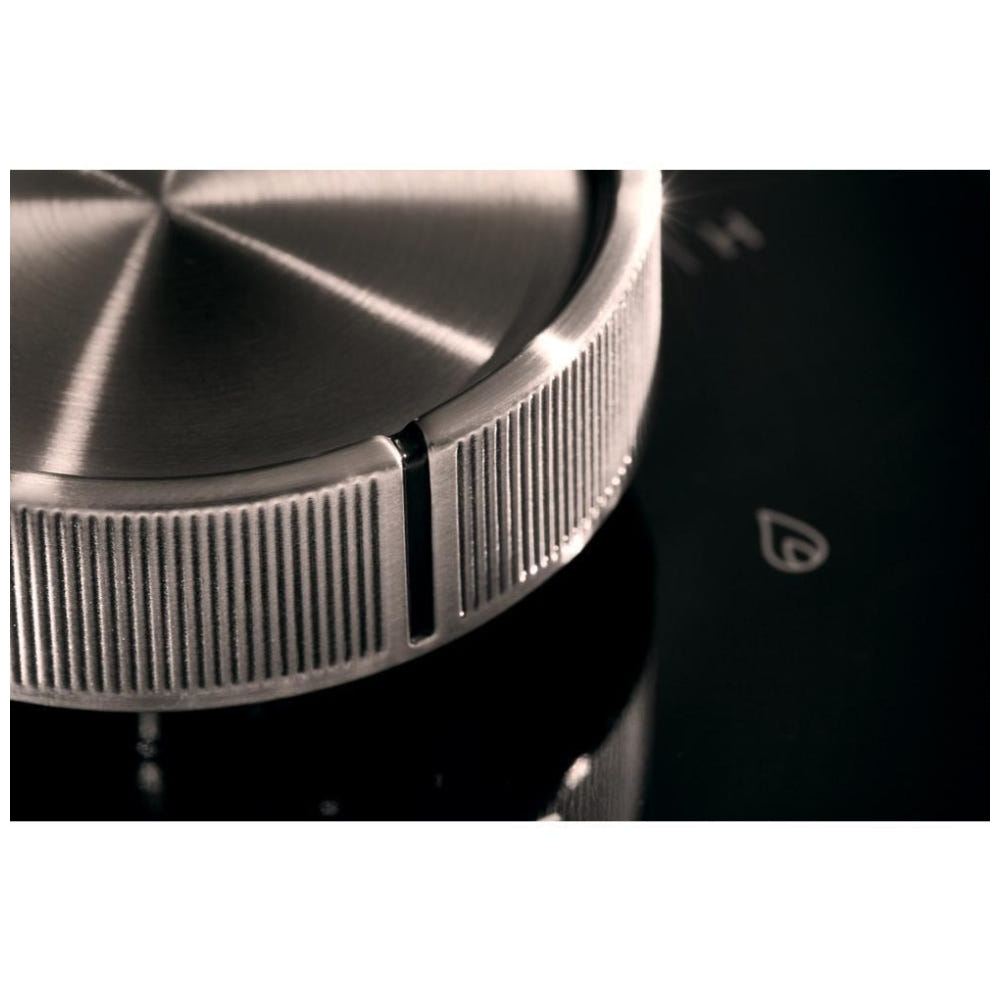

  • Dishwasher-safe metal knobs and full-width cast-iron grates
  • ADA compliant

Specifications

Specification Value
Exterior Width 30 inches
Number of Burners 5
BTU Output 56.2K
Finish Black
warranty-w11655295-revA.pdf
control-guide-w11668752-revA.pdf
dimension-guide-w11671284-revC.pdf
owners-manual-w11613933-revC.pdf
quick-start-guide-w11635508-revB.pdf

Cooktop Details

Cooktop Surface Color Black

Cooktop Surface Material Glass

Digital Display No

Griddle Included N/A

Heating Element On Indicator Light No

Hot Surface Indicator Light No

Ignition Type Direct Spark Ignition

Number of Open Bays N/A

Details

Automatic Pan Detection No

Combinations With Oven KOES127P; KOES130P; KOES527P; KOES530P; KOES730P

Cooktop Configuration All Burners

Fuel Type Gas

Installs Over Built-in Oven Yes

Lp Convertible Yes - Kit Included

Power Outage Compatible Yes

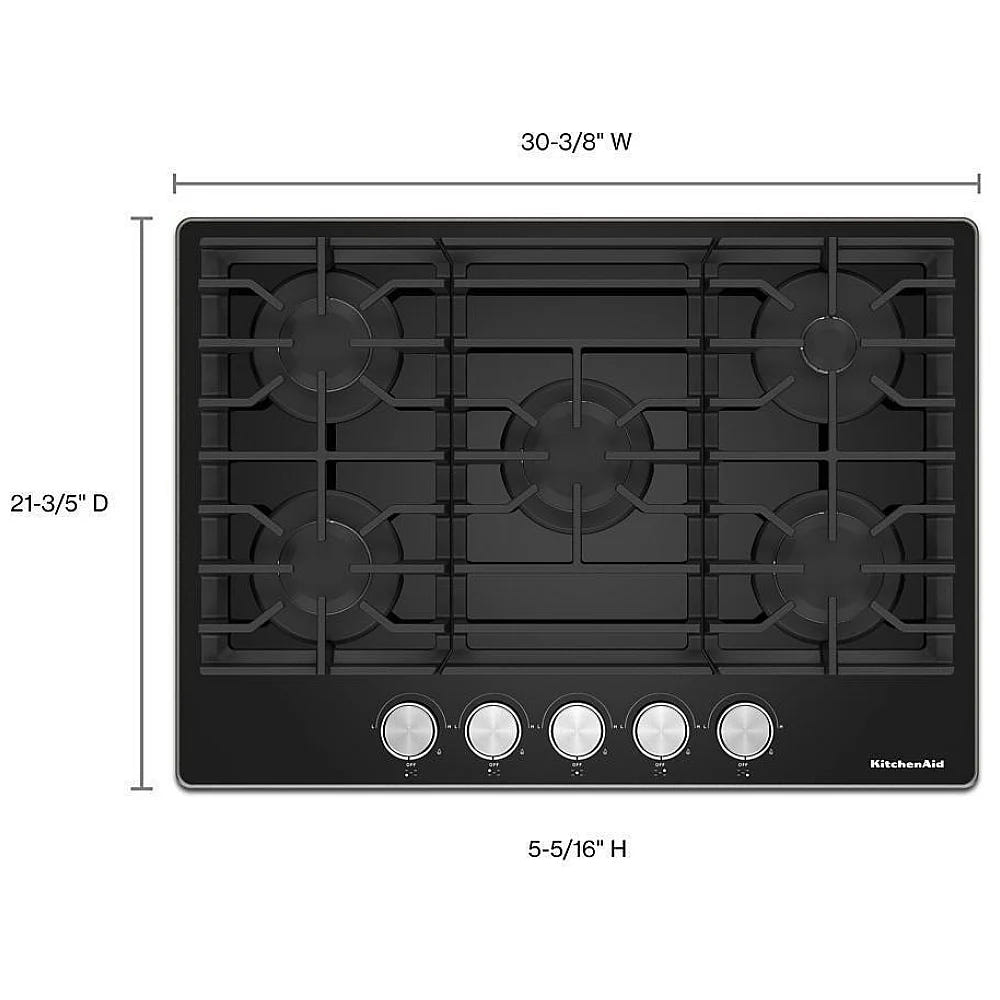

Dimensions

Product Height 5.3125

Carton Height 12.99

Gross Weight 74.96

Carton Width 34.68

Product Depth 21.6

Cutout Depth Max 20

Cutout Width Min 28.125

Cutout Depth 19

Cutout Height 2.875

Carton Depth 24.96

Cutout Width 29

Cutout Depth Min 19

Cutout Width Max 29.313

Net Weight 68.34

Product Width 30.375

Electrical

Power Cord Included Yes

Element/burner Details

Center Element Burner Power 18,000 BTU

Center Element Burner Type Power

Cooktop Element Style Sealed Burner

Cooktop Type Standard

Left Front Element-burner Power 9100 BTU

Left Front Element-burner Type Standard

Left Rear Element-burner Power 9100 BTU

Left Rear Element-burner Type Standard

Number of Cooking Element-burners 5

Power Boost No

Right Front Element-burner Power 15,000 BTU

Right Front Element-burner Type Standard

Right Rear Element-burner Power 5000 BTU

Right Rear Element-burner Type Simmer

Exterior Details

Knob Color Stainless Steel

Knob Type Metal

General

Combination Match With Oven KOES127P; KOES130P; KOES527P; KOES530P; KOES730PGrate Details

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates 3

Smart Compatibility

Works With No

Ventilation Details

Downdraft Vent No

KitchenAid Manufacturer Warranty: 📞 (800) 688-2002

Parts Warranty: 1 Year

Labour Warranty: 1 Year

View in-store for purchase of extended warranties up to 4 years.

📄
