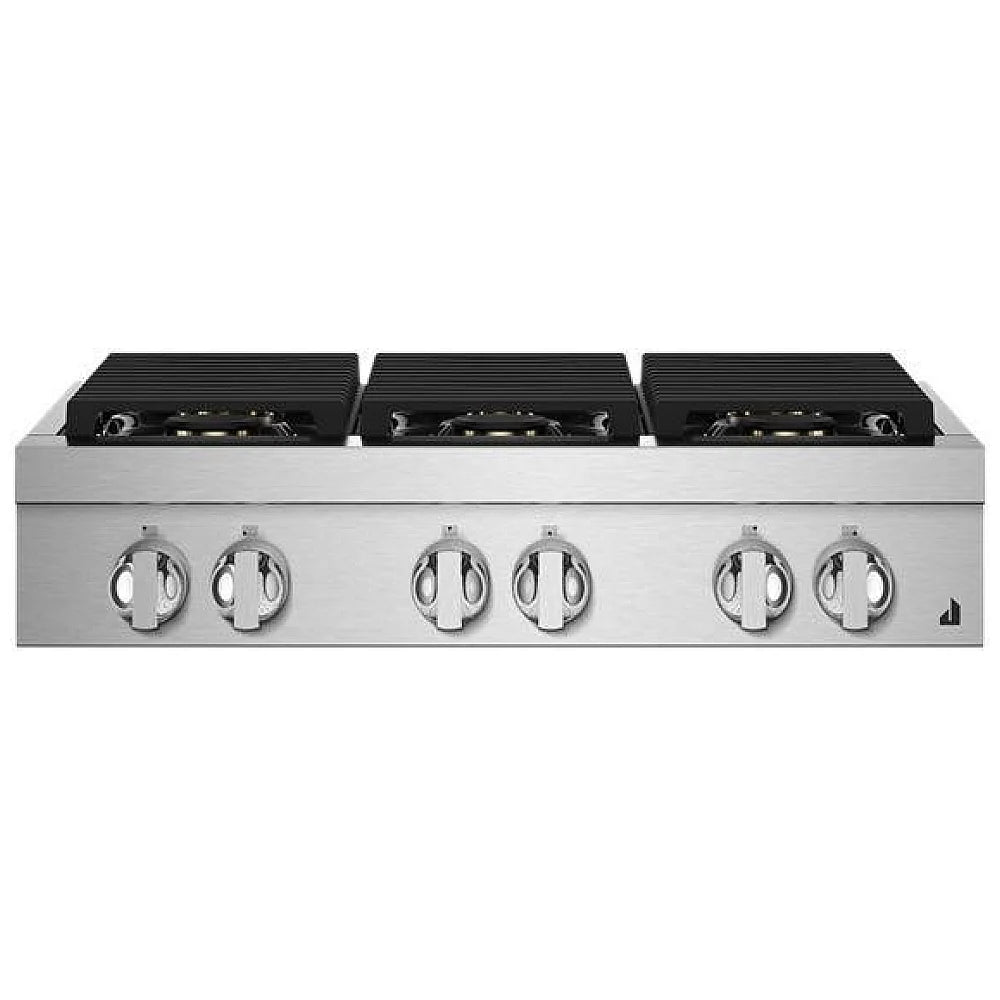

JennAir Noir JGCP436HM Ga Cooktop, 36 inch Exterior Width, 6 Burners, 20,000 BTU Highest Burner, Stainless Steel colour

Certifications
Prop65 Standard
Ul Yes
Controls
Control Location Front
Control Type Knobs
Infinite Heat Controls No
Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Ignition Type Flame-Sensing™ Re-ignition
Details
Automatic Pan Detection No
Cooktop Configuration All Burners
Design Expression NOIR™
Fuel Type Gas
Installs Over Built-in Oven No
Lp Convertible Yes - Kit Included
Power Outage Compatible Yes (Gas Cooktop Burners Only)
Dimensions
Product Height 7.4375
Carton Height 19.5
Gross Weight 126
Carton Width 39.75
Product Depth 27.5
Cutout Width Min 35.25
Cutout Depth 22.25
Carton Depth 34.5
Cutout Width 35.25
Cutout Depth Min 22.25
Cutout Width Max 35.75
Net Weight 104
Product Width 35.75
Electrical
208v Compatible No
Power Cord Included Yes
Element/burner Details
Center Front Element-burner Power 20,000 BTU
Center Front Element-burner Type Dual
Center Rear Element-burner Power 9,000 BTU
Center Rear Element-burner Type Dual
Cooktop Element Style Sealed Burner
Cooktop Type Rangetop
Left Front Element-burner Power 20,000 BTU
Left Front Element-burner Type Dual
Left Rear Element-burner Power 18,000 BTU
Left Rear Element-burner Type Dual-Stacked Burner
Number of Cooking Element-burners 6
Power Boost No
Right Front Element-burner Power 20,000 BTU
Right Front Element-burner Type Dual
Right Rear Element-burner Power 18,000 BTU
Right Rear Element-burner Type Dual-Stacked Burner
Exterior Details
Knob Color Stainless Steel
Knob Type Metal
Grate Details
Grate Details Continuous; Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Ventilation Details
Downdraft Vent No
Dimensions
Depth 27 1/2
Width 35 3/4
Height 7 7/16
Carton Depth 34 1/2
Carton Height 19 1/2
Carton Width 39 3/4
Cutout Depth 22 1/4
Cutout Width 35 1/4
Gross Weight 126
Maximum Height 11 15/16
Net Weight 104.0

Certifications
Prop 65 Standard
UL UL

Configuration and Overview
Fuel Type Gas
Cooktop Type Rangetop
Size (IN,inches) 36
Installs Over Built-In Oven No
LP Convertible Yes - Kit Included
Power Boost No

Controls
Control Location Front
Control Type Knobs
Infinite Heat Controls No
Knob Color Stainless Steel
Knob Type Metal

Appearance
Digital Display No

Cooktop Details
Automatic Pan Detection No
Downdraft Vent No
Hot Surface Indicator Light No
Heating Element On Indicator Light No
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Cooktop Element Style Sealed Burner
Cooktop Configuration All Burners
Grate Details Continuous,Dishwasher Safe,Matte Finish,Porcelain Coated Cast Grates
Ignition Type Flame-Sensing™ Re-ignition
Number of Cooking Element-Burners 6
Number of Grates 3
Left Front Element-Burner Power 20,000 BTU
Center Front Element-Burner Power 20,000 BTU
Left Rear Element-Burner Power 18,000 BTU
Center Front Element-Burner Type Dual
Center Rear Element-Burner Power 9000BTU
Left Rear Element-Burner Type Dual
Center Rear Element-Burner Type Dual
Right Front Element-Burner Power 20,000 BTU
Left Front Element-Burner Type Dual
Right Rear Element-Burner Type Dual
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 18,000 BTU

Features
Griddle NA
Power Outage Compatible Yes (Gas Cooktop Burners Only)

Electrical
Amps 15
208V Compatible No
Hz 60
Volts 120
Power Cord Included Yes

Refinement
Style Cooktops

Design Type
Design Expression NOIR™
