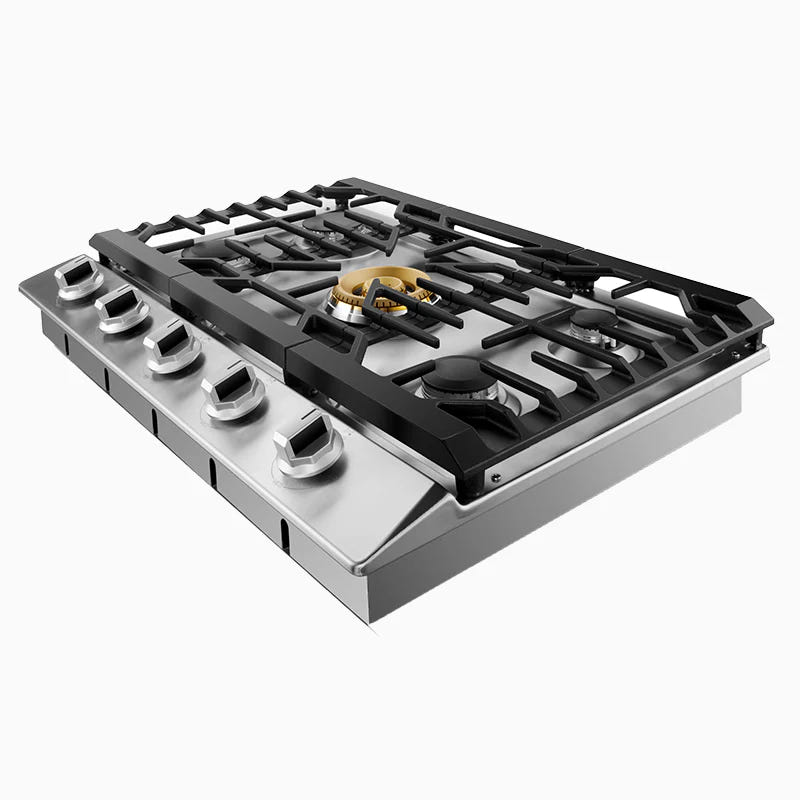

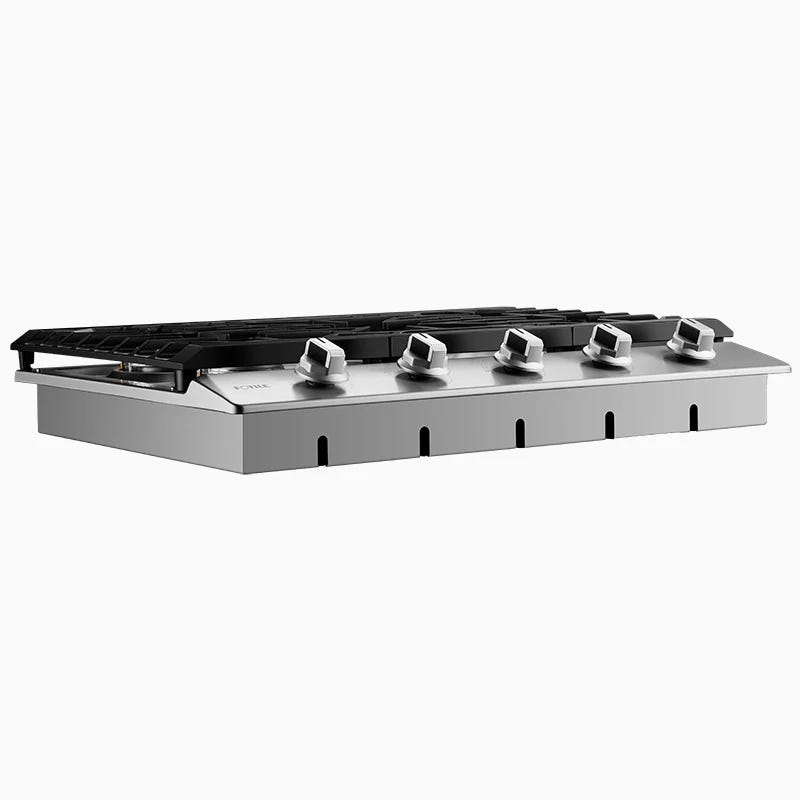

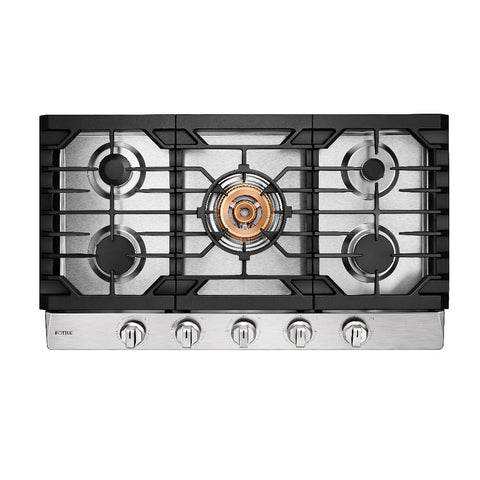

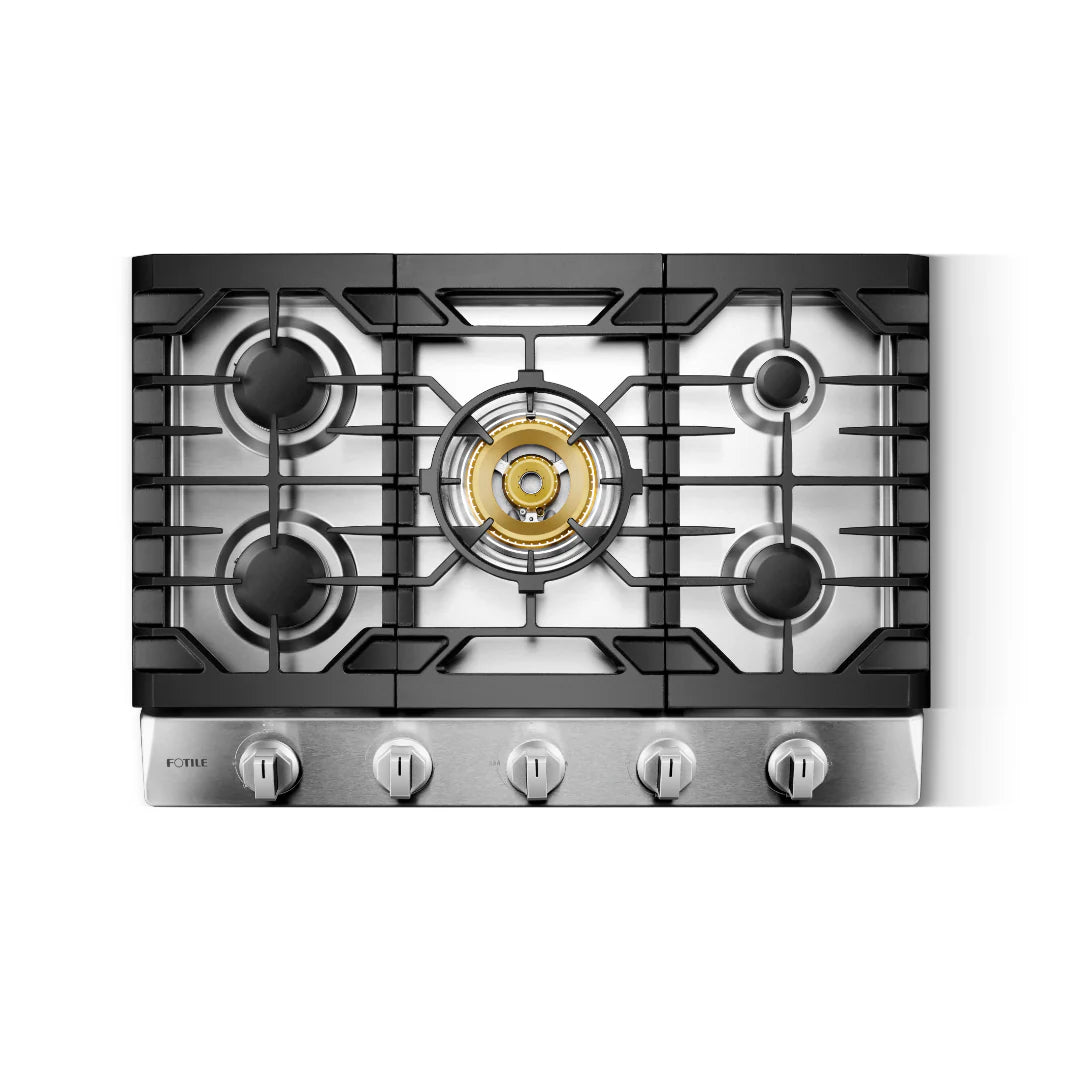

GLS30501 丨 30" Gas Cooktop

Model: GLS30501

Certification: ETL

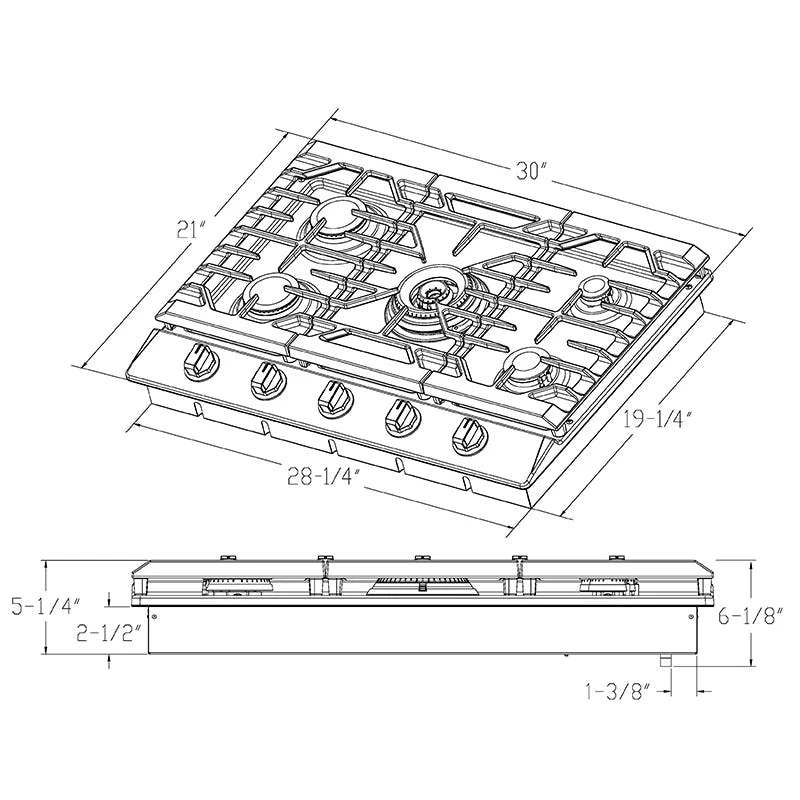

Product Dimensions(W x D x H): 30 x 21 x 4 7/8

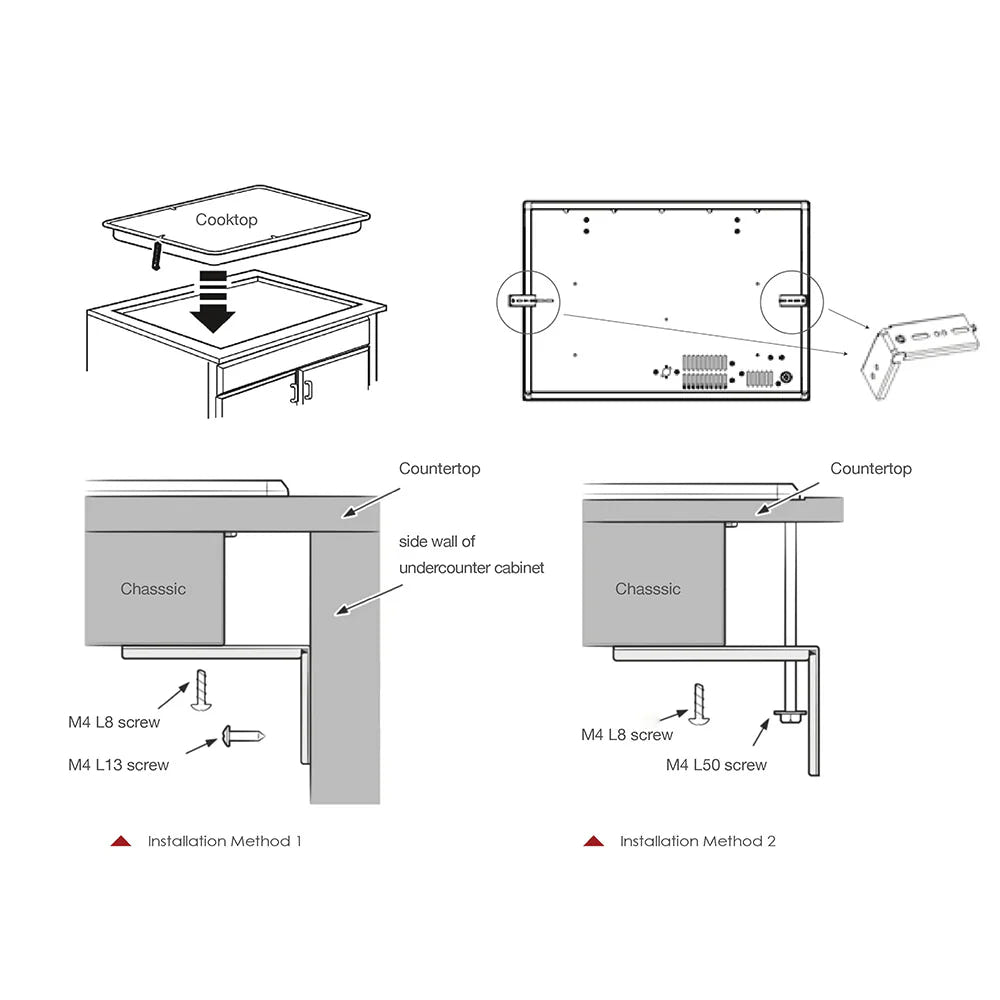

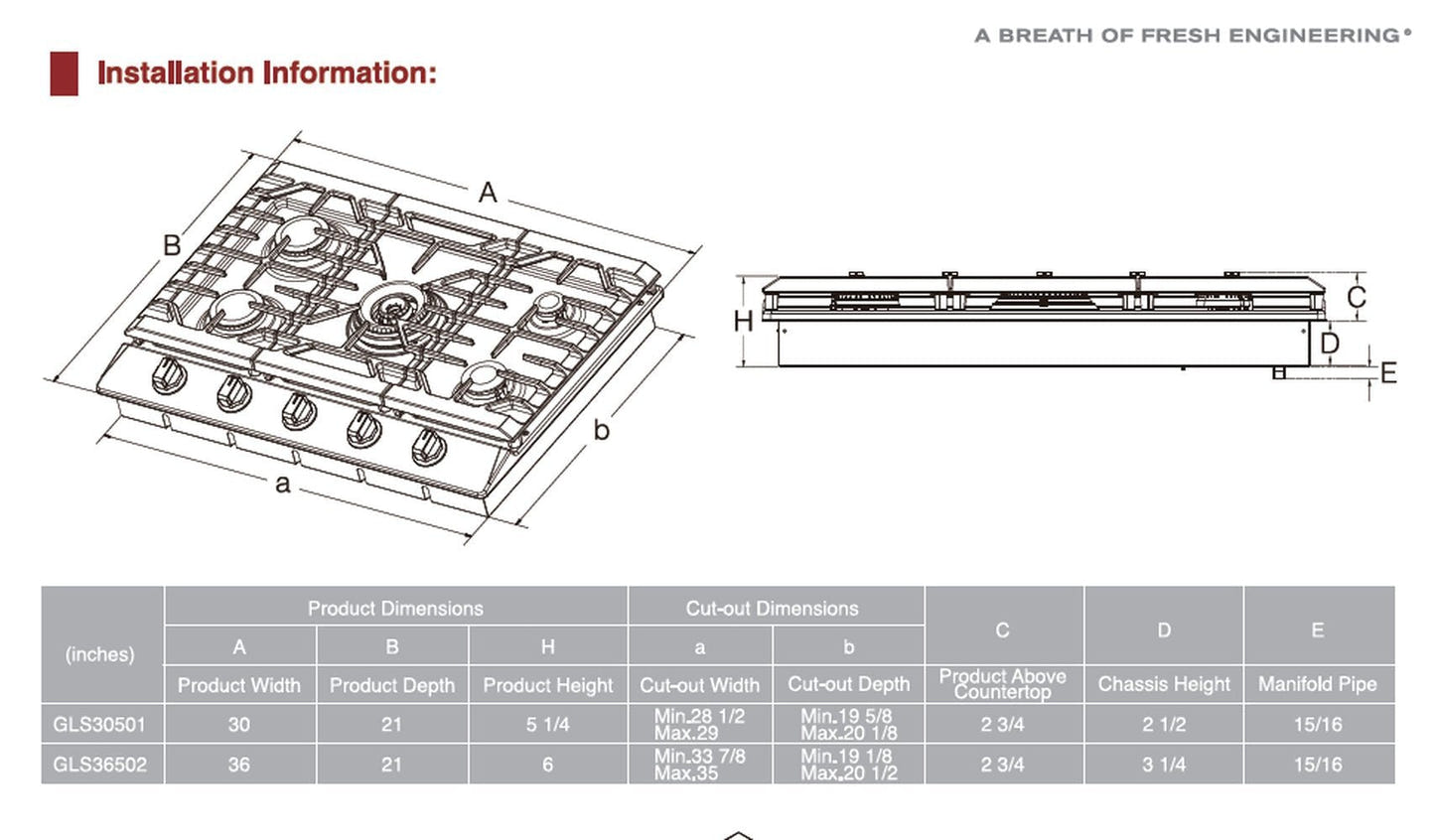

Build-in Size(WxDxH)(inch): 28 1/2 x 19 5/8 x 3 1/8

Cut out dimension (WxD): Min 28 1/2 – Max 29 x Min 19 5/8 – Max 20 1/8

Packing-Box Size (WxDxH)(inch): 34 5/16 x 25 1/4 x 9 11/16

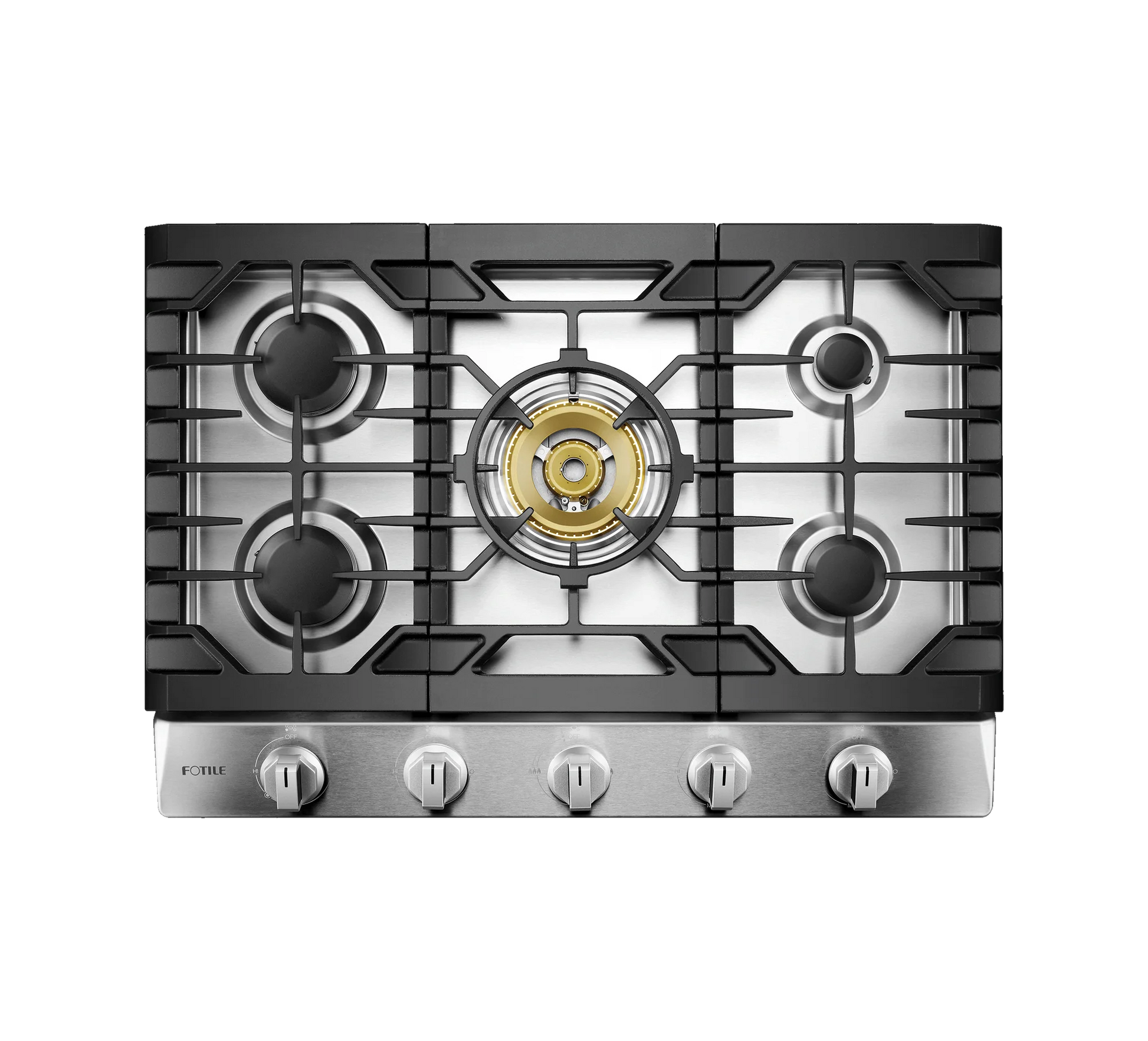

No. of Burner: 5

Colour of frame / surface: Stainless Steel

Grate material: Cast Iron

Gas Type: NG/LPG

Heating Load(BTU): C: 22000 LF/LR: 13000 RR: 3000 RF: 6000

Energy source: Gas

Installation type: Built-In

Commercial/Residential: Residential

Type of grate: Continuous

Propane (LP) Convertible: Yes

Propane Conversion Kit Included: Yes

Power Supply: 120V / 60 Hz

Burner sealness: Sealed Burners

Safety device for gas: Yes

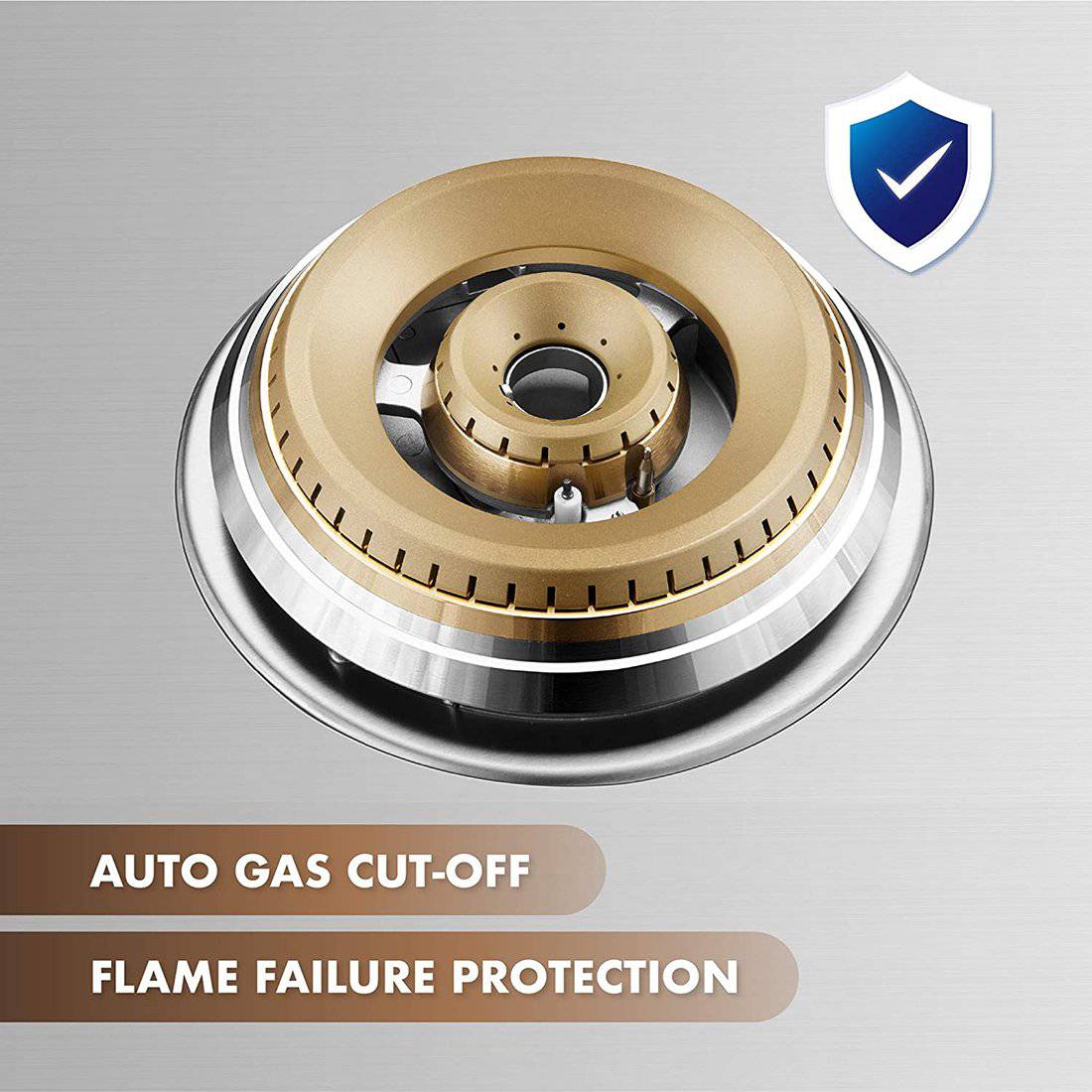

Safety device/ignition type: Flame Failure Device / Fast ignition

Location of gas connection: Bottom

Power Cord Included: Yes

Power Cord Length: 51 3/16 total, 39 3/8 outside (some parts are inside the cooktop bottom)

Net Weight(lb): 48

Gross Weight(lb): 57.5

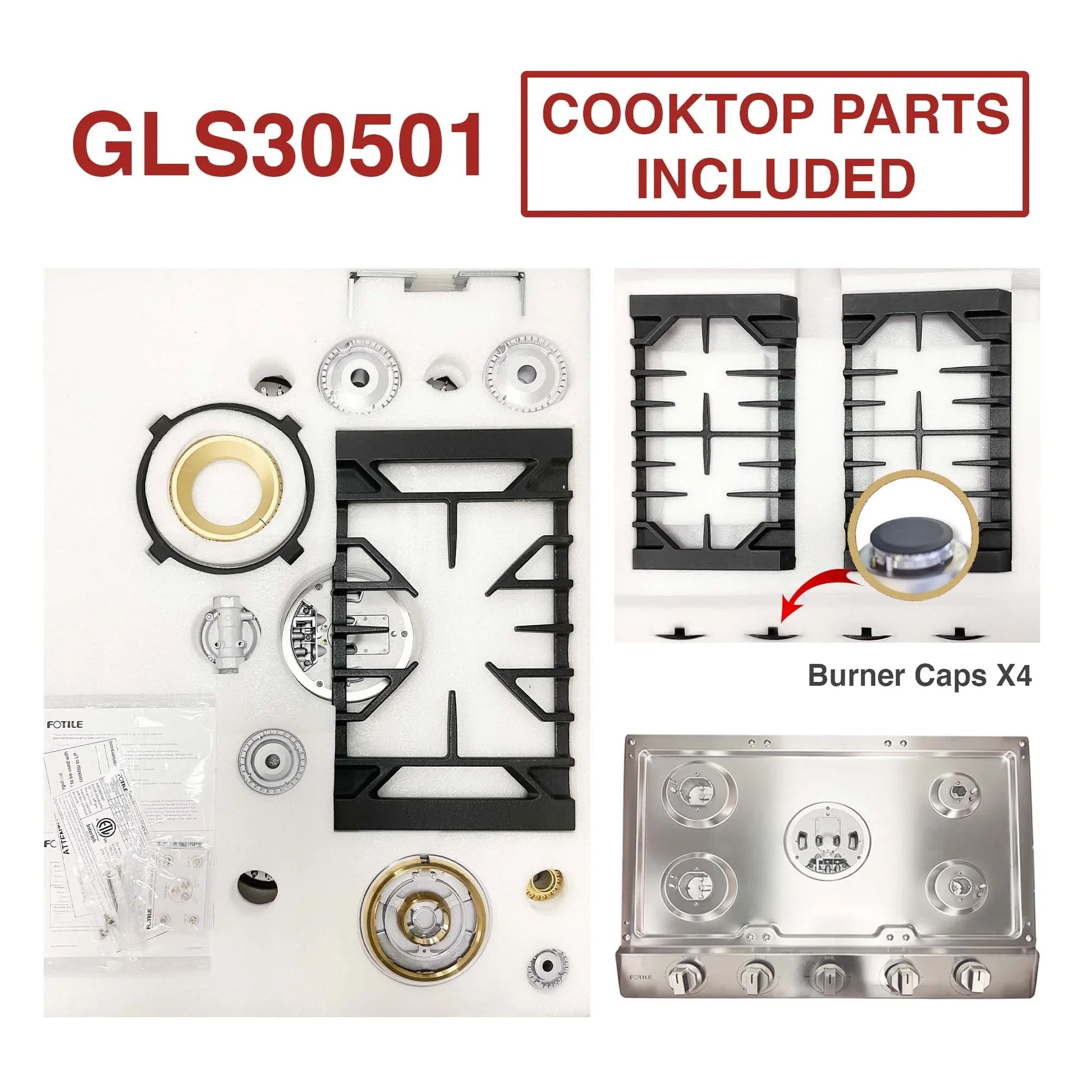

Including Accessories: 3 Cast Iron Pan Support cooktop with 5 burners, wok Ring, manuals, Installation Kit, Propane (LP) Conversion Kit

Warranty: 5 years limited warranty (1 years labor, 5 years parts)
