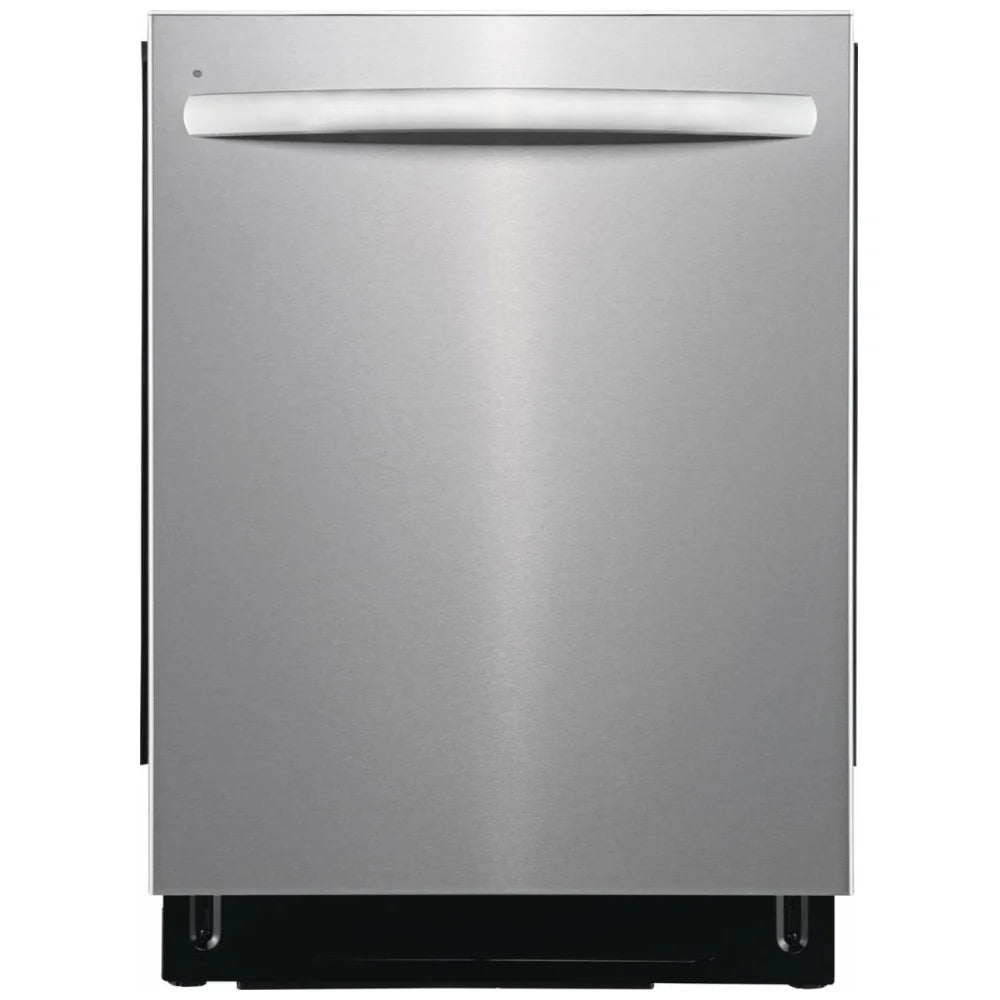

Frigidaire FDSH4502BF Dishwasher, 24 inch Exterior Width, 49 dB Decibel Level, Fully Integrated, Stainless Interior, 5 Wash Cycles, 14 Capacity (Place Settings), 3 Loading Racks, Stainless Steel colour
Frigidaire
FDSH4502BF
Frigidaire FDSH4502BF Dishwasher, 24 inch Exterior Width, 49 dB Decibel Level, Fully Integrated, Stainless Interior, 5 Wash Cycles, 14 Capacity (Place Settings), 3 Loading Racks, Stainless Steel colour
MSRP: $899.00
MAP Price MAP Price $699.00
Quick Specs
  • WiFi Enabled: No
Dimensions
W 24in
H 35in
D 23in
The Frigidaire FDSH4502BF built‑in dishwasher is designed for households that want powerful cleaning performance, efficient drying, and a sleek, modern look in a standard 24" width. Behind its clean, fully integrated top-control panel and fingerprint-resistant stainless-steel finish, this model offers a tall stainless-steel tub that comfortably handles up to 14 place settings, making it a smart choice for busy families or frequent entertainers who need to wash more in a single load without taking up extra space in the kitchen. What really sets the Frigidaire FDSH4502BF apart is its combination of advanced wash and dry technologies that you typically only see on higher-end models. The standout DishSense® sensor technology continuously monitors soil levels and automatically adjusts water pressure and cycle time, so you can skip the pre-rinse and still get a thorough clean while using only the resources needed for each load. For even coverage, the innovative BladeSpray® arm rotates in multiple directions to reach into corners and along the edges of the racks, helping to remove stuck-on food from every angle instead of relying on a traditional single-direction spray bar. At the end of the cycle, the Eco Air Auto Door Open feature automatically props the door open to let fresh air circulate through the tub, enhancing drying performance while reducing reliance on heated drying alone, which can help lower energy use. This model is also ENERGY STAR® certified, so it’s engineered to deliver strong cleaning results with reduced water and electricity consumption over time. Daily use is made more convenient with a quiet 49 dBA sound rating that allows you to run the dishwasher at virtually any time without disrupting conversations, as well as a front-facing status indicator light that lets you see at a glance when the cycle is running or complete. Inside, a third-level rack provides extra space for utensils, spatulas, and small items, freeing up room in the lower racks for larger dishes and cookware. With five versatile wash cycles, including Quick, Heavy, Normal, Eco, and an NSF®-certified sanitize option that helps remove 99.9% of common household bacteria, the Frigidaire FDSH4502BF offers a well-rounded blend of capacity, quiet operation, and premium features tailored to real-world kitchen needs.

 DishSense® Sensor Technology – automatically adjusts wash performance based on how dirty the dishes are, helping skip pre-rinsing while still delivering a thorough clean.

 BladeSpray® Arm – dual-rotation spray arm design improves water coverage to reach every corner of the tub for more even cleaning results.

 Smudge-Proof® / Fingerprint Resistant Stainless Steel – resists fingerprints and smudges so the exterior stays looking clean with minimal wiping.

 NSF® Certified Sanitize Cycle – high‑temperature sanitize option removes 99.9% of common household bacteria for hygienic dishwashing.

 ENERGY STAR® Certified – meets strict energy-efficiency standards to help reduce utility costs and environmental impact.

 Eco Air Auto Door Open – automatically and gently props the door open at the end of the heat dry cycle to let fresh air in for improved drying performance.

 Eco Air Dry function – uses natural air circulation instead of extended heater use to dry dishes more efficiently and help save energy.

 Very quiet 49 dBA operation – low sound level allows you to run the dishwasher any time of day without disrupting conversations or activities.

 Front‑facing status indicator light – exterior light bar shows when the dishwasher is running and when the cycle is complete, so you don’t have to open the door to check.

 Third‑level rack – provides an extra loading level for silverware, utensils, and small tools, freeing space in the lower racks for more dishes.

 5 convenient wash cycles – includes Quick, Heavy, Normal, Eco, and Sanitize cycles to handle everything from lightly soiled glasses to heavily soiled pots.

 Quick Wash cycle (about 60 minutes) – cleans and dries a full load in roughly an hour, ideal when you need dishes ready fast.

 Heavy cycle – targets baked‑on, heavily soiled cookware with more intensive wash action and time.

 Normal cycle – everyday cleaning program optimized for typical mixed loads of plates, glasses, and utensils.

 Eco cycle – energy‑ and water‑saving program designed for lightly to moderately soiled dishes.

 Sanitize option – boosts final rinse temperature to sanitize dishes, ideal for baby items, cutting boards, and food‑prep tools.

 Fully integrated top controls – hidden control panel on the top edge of the door creates a sleek, uninterrupted front appearance.

 Digital display – provides clear feedback on cycle selection, remaining time, and options for easier operation.

 12‑hour delay start – lets you schedule the wash to begin 1–12 hours later, convenient for off‑peak energy times or when you’ll be away.

 Control Lock function – locks the control panel to prevent accidental changes to settings, helpful around children.

 14 place setting capacity – accommodates up to 14 place settings in a single load, suitable for families and entertaining.

 Third‑rack plus adjustable interior layout – combination of upper, middle, and lower racks with dedicated utensil areas helps maximize usable space and flexibility.

 Stainless steel tall tub – durable stainless interior resists staining and odors while allowing higher wash temperatures and improved drying.

 Tall tub design – deeper interior cavity increases vertical space to fit taller plates, stemware, and larger cookware.

 Multi‑level wash system – lower BladeSpray® arm plus bi‑beam middle and upper spray arms deliver water from multiple levels for consistent cleaning.

 Five wash levels – multiple spray zones help ensure water reaches all items, even in tightly packed loads.

 Direct Feed wash system – dedicated water delivery design improves pressure and coverage for better cleaning efficiency.

 Smart soil sensor – monitors soil levels during the cycle and adjusts time and water usage to avoid over‑ or under‑washing.

 Multi‑speed wash motor – variable motor speeds tailor water pressure and flow to the selected cycle for performance and noise control.

 100% filtered wash water – continuous filtration keeps recirculating water cleaner, helping prevent redepositing food particles on dishes.

 Removable stainless steel filter trap – captures food debris and can be easily removed and rinsed to maintain performance.

 Integrated filtration system – combination of filters and water circulation helps protect the pump and maintain cleaning efficiency.

 Rinse aid dispenser – automatically releases rinse aid during the final rinse to reduce spotting and improve drying.

 Rinse aid indicator – alerts you when rinse aid is low so you can refill before performance is affected.

 Detergent dispenser – timed release of detergent ensures optimal mixing and cleaning during the wash cycle.

 Silverware basket – dedicated basket keeps cutlery organized and separated for better cleaning and easier unloading.

 Air Dry option – allows dishes to dry with unheated air to reduce energy use when maximum drying performance is not required.

 Max Dry option – enhances drying performance for plastics and hard‑to‑dry items when you want dishes cabinet‑ready.

 Automatic door open at end of cycle – door automatically opens slightly after the cycle to release steam and accelerate drying.

 Normal wash temperature management – controls water temperature during the Normal cycle for effective cleaning and energy efficiency.

 Built‑in leak detection system – monitors for certain leak conditions and can trigger protective actions to help prevent water damage.

 49 dB silence rating – sound‑insulating design, including a stainless tub and sound‑dampening materials, keeps operating noise low.

 Standard 24" built‑in size – designed to fit most 24‑inch dishwasher cutouts for straightforward replacement or new installation.

 Electric 120V operation – plugs into a standard 120‑volt household electrical supply for typical North American kitchens.

 Energy‑efficient water usage (approx. 3.2 gallons per cycle) – uses relatively low water per cycle to help reduce utility consumption.

 Meets key safety and performance standards – UL, cUL, ETL listings and compliance with ASSE 1006 requirements support safe, reliable operation.

 1‑year parts and labor warranty – limited manufacturer warranty coverage provides peace of mind after purchase.

Specification Value
Product Type Built-In Dishwasher
Model FDSH4502BF
Product Line Dishwasher
Installation Type Built-In
Color / Finish Smudge-Proof Stainless Steel
Door and Handle Design Handle
Door Type StayPut
Door Latch Pull
Control Panel Type Top / Fully Integrated Hidden Controls
Control Location Top
Control Lock Yes
Digital Display Yes
Front Status Indicator Light Yes
Capacity (Place Settings) 14 place settings
Number of Racks 3 (including third-level rack)
Third Level Rack Yes
Silverware Basket 1, standard
Rack Material / Coating Nylon
Upper Rack Features Cup shelf, fold-down tines, rack handles
Lower Rack Features Fold-down tines, standard rack
Tub Material Stainless Steel
Tub Design Tall Tub
Tub Color Stainless Steel
Spray System BladeSpray lower arm, Bi-Beam middle and upper arms
Wash Levels 5
Wash System Direct Feed
Filter Material Stainless Steel
Filter Trap Removable
Filtered Water 100%
Hard Food Disposer No (filtration system instead)
Leak Detection System Yes
Smart Soil / Sensor Technology DishSense / Smart Soil Sensor
Interior Light No
Sound Level 49 dBA
Sound Rating Range Quiet
ENERGY STAR Certified Yes
CEE Tier Tier 2
Annual Energy Consumption 240 kWh
Water Usage (per cycle) 3.2 gallons
Cycles (Number) 5
Wash Cycles Heavy, Normal, Quick, Eco / Energy Saver, Sanitize
Options Air Dry, Dry - Max, Washing Temperature - Normal
Eco Air Dry / Auto Door Open Yes (door props/opens at end of cycle)
NSF Certified Sanitize Cycle Yes (removes 99.9% of common household bacteria)
Delay Start 1–12 hours
Rinse Aid Dispenser Yes
Detergent Dispenser Yes
Motor Speeds Multi-Speed
Leak Protection / Leak Detection Yes
Width 23.86 inches (approx. 23 43/50")
Appliance Fit Width 24 inches
Width (cm) Approx. 59.5–61 cm (varies by retailer rounding)
Minimum Height 33 37/50 inches (approx. 33.75")
Maximum Height 34 1/10 inches (approx. 34.1")
Height (cm) Approx. 86.6–88.7 cm (varies by retailer rounding)
Depth (cabinet, excluding handle) 24.53 inches
Depth Including Handles 26.59 inches
Depth With Door Open 90° 50 inches
Depth (cm) Approx. 62.3 cm (cabinet), 67.5 cm (including handle), 127 cm (door open 90°)
Cut-Out Width 24 inches (approx. 61 cm)
Cut-Out Height Up to 35 inches (approx. 88.9 cm)
Cut-Out Depth Approx. 24.6 inches (62.5 cm)
Product Weight 86 lb (approx. 39 kg)
Voltage Rating 120 V
Amps @ 120 V 8.4 A
Power Type Electric 120 V
Connection Location Bottom Right
Water Inlet Location Left Rear
Number of Leveling Legs 3
Energy Star Qualified / Certified Yes
UL Listed Yes
cUL Listed Yes
ETL Listed Yes
NSF Certified Yes
Meets ASSE 1006 Requirements Yes
Right to Repair Partially Available (per Frigidaire Canada)
Manufacturer Warranty (Parts) 1 Year
Manufacturer Warranty (Labor) 1 Year
Finish Description Fingerprint Resistant / Smudge-Proof Stainless Steel
Handle Type Towel Bar style
Child Lock Yes (Control Lock)
Leak Protection System Yes
Status Indicator Light Front-facing, shows running and cycle complete
Special Technologies DishSense Sensor Technology, BladeSpray Arm, Eco Air Dry / Auto Door Open

Standard manufacturer warranty applies. Contact support for details.
