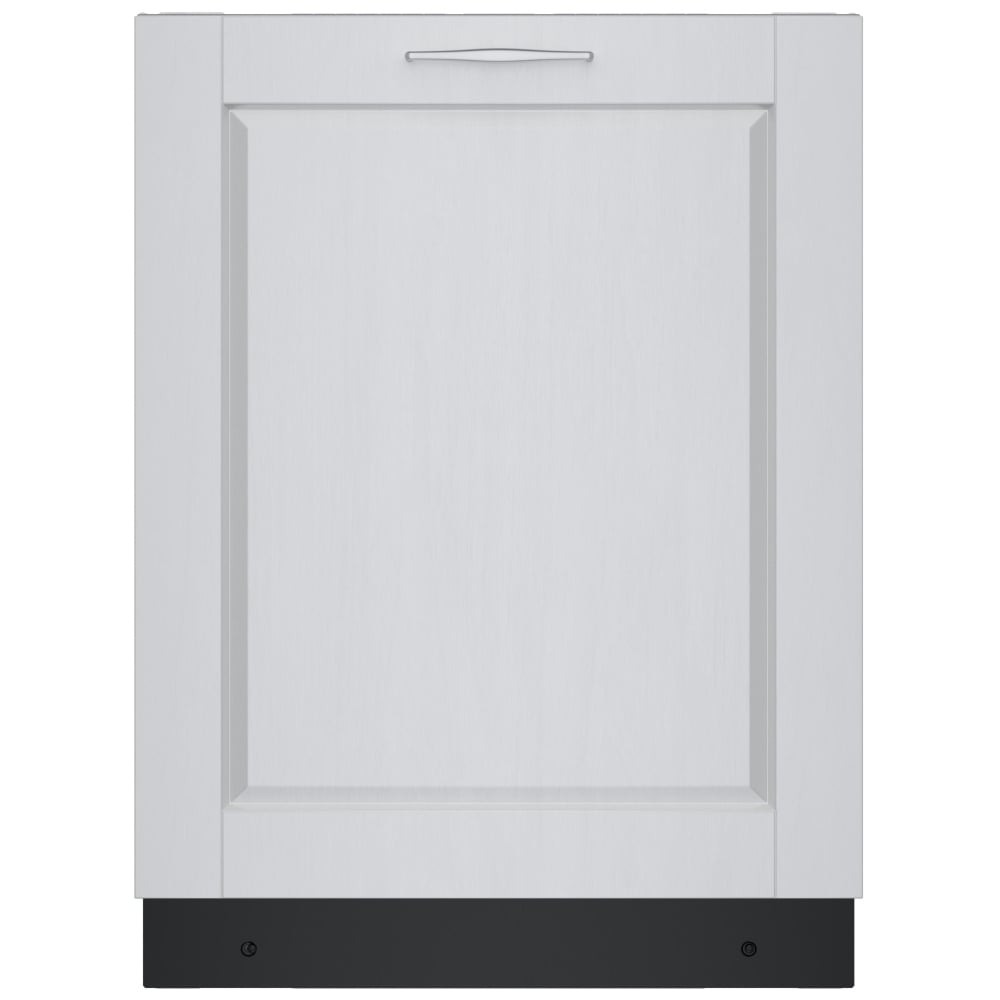

800 Series Dishwasher, 24'' SGV78C53UC

General

Appliance Width (in) 23 9/16

Height 32 1/16

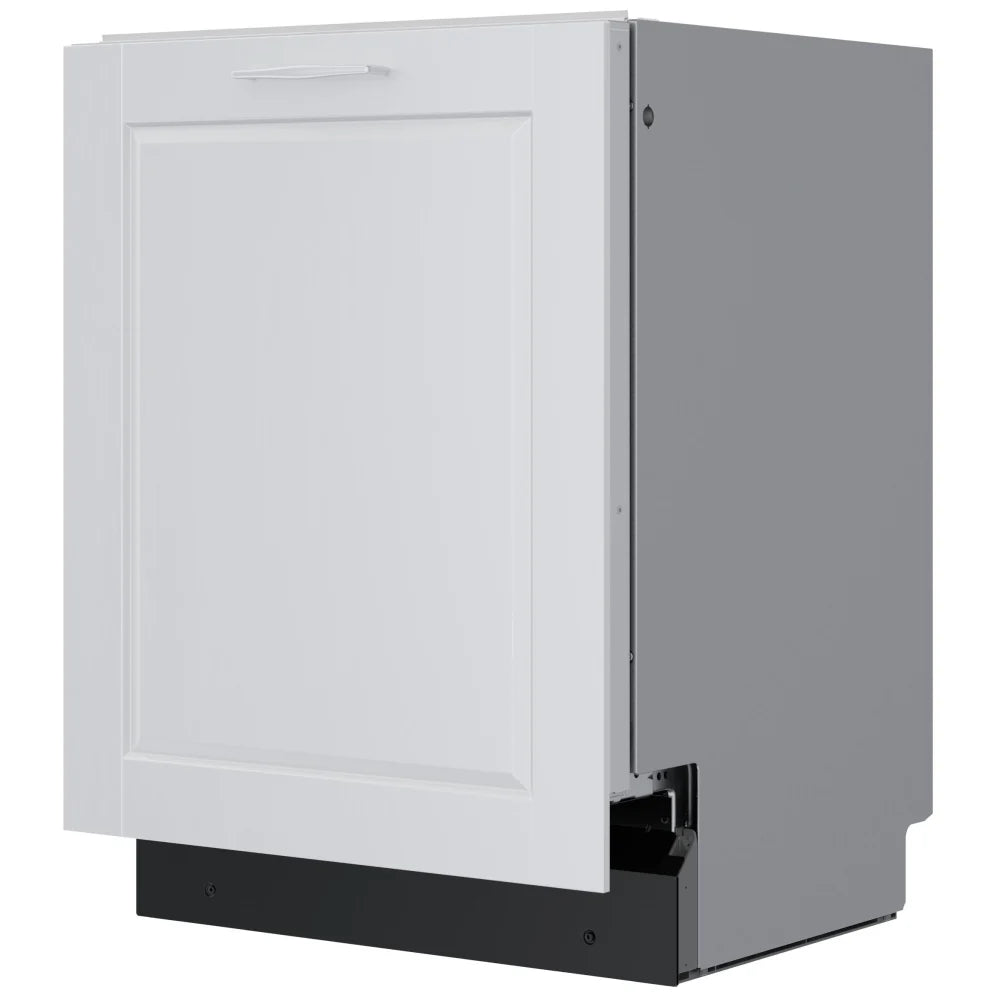

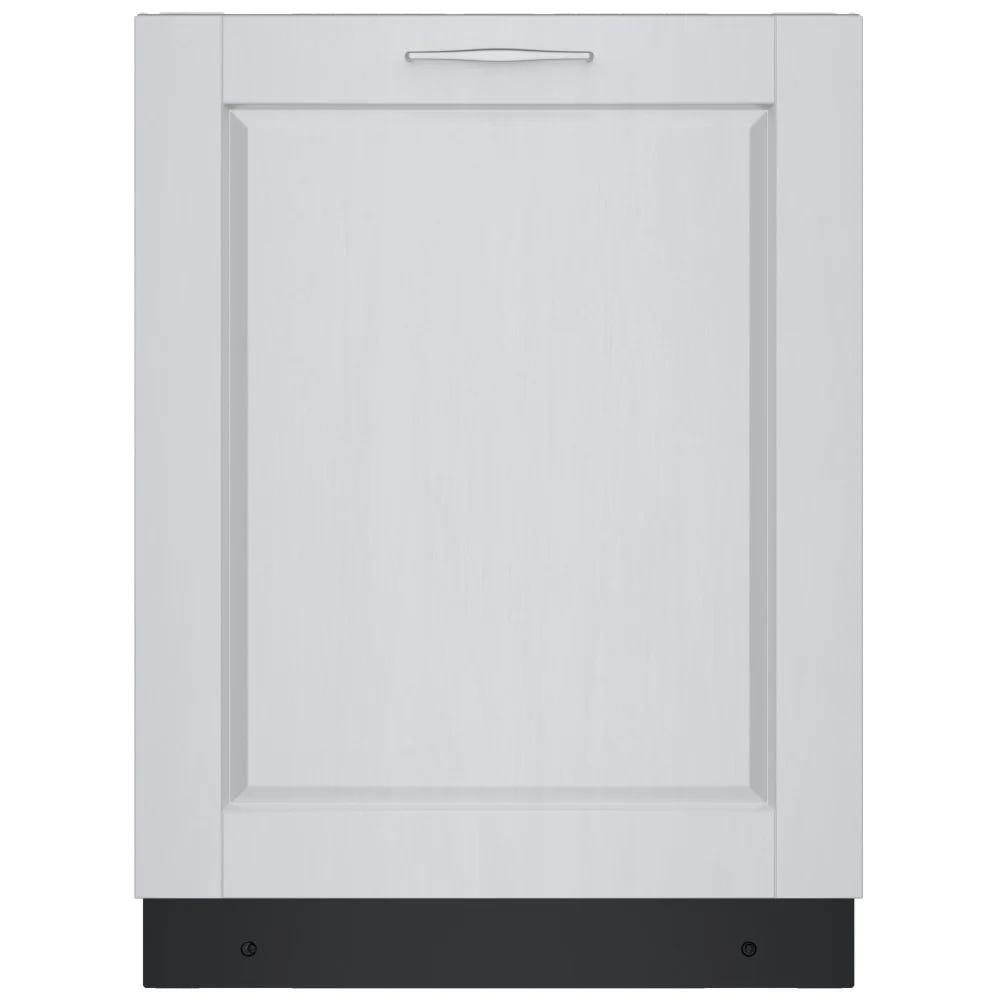

Installation Type Full-integrated

Number of Place Settings 15

List of Programs Auto, Favorite, Hand Wash, Heavy, Normal, Quick Wash 45°C

Special Functions Crystal Dry, Half Load, Machine Care, Remote Start, Sanitize

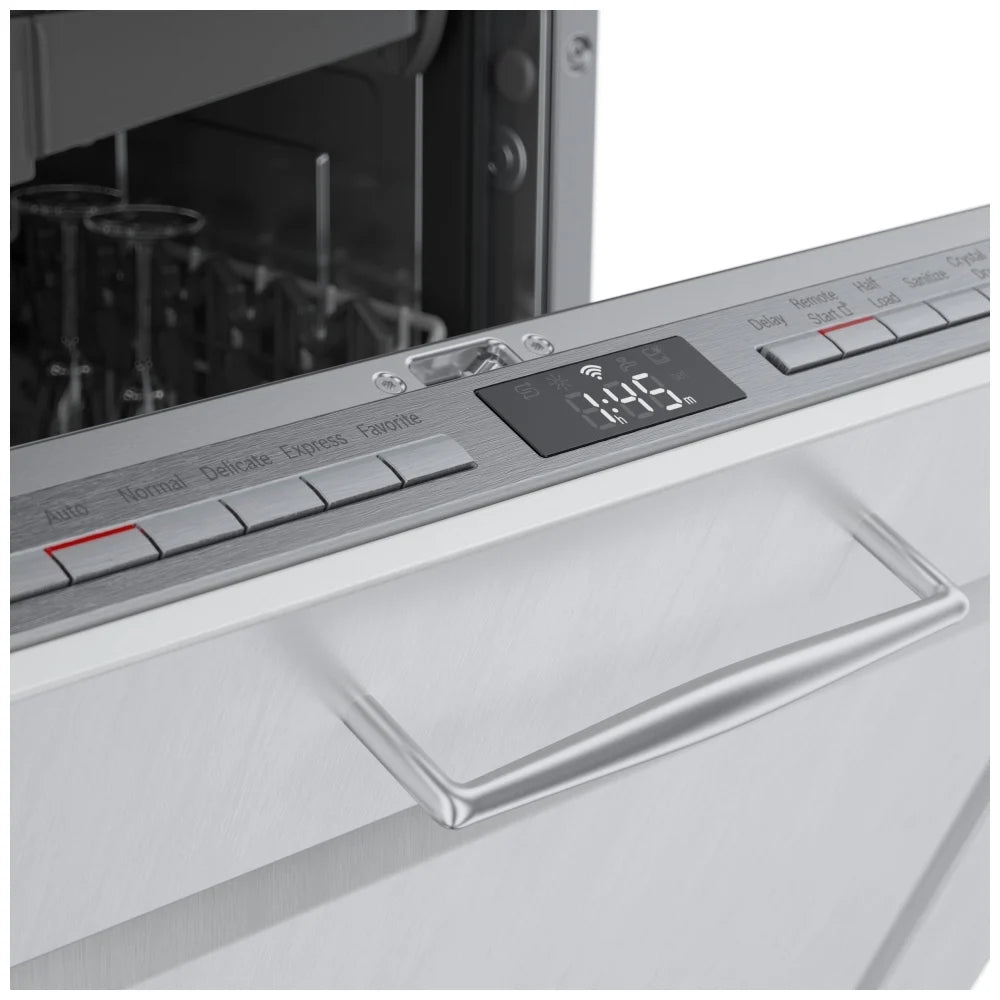

Display Yes

Silence Level 42 dB(A) re 1pW

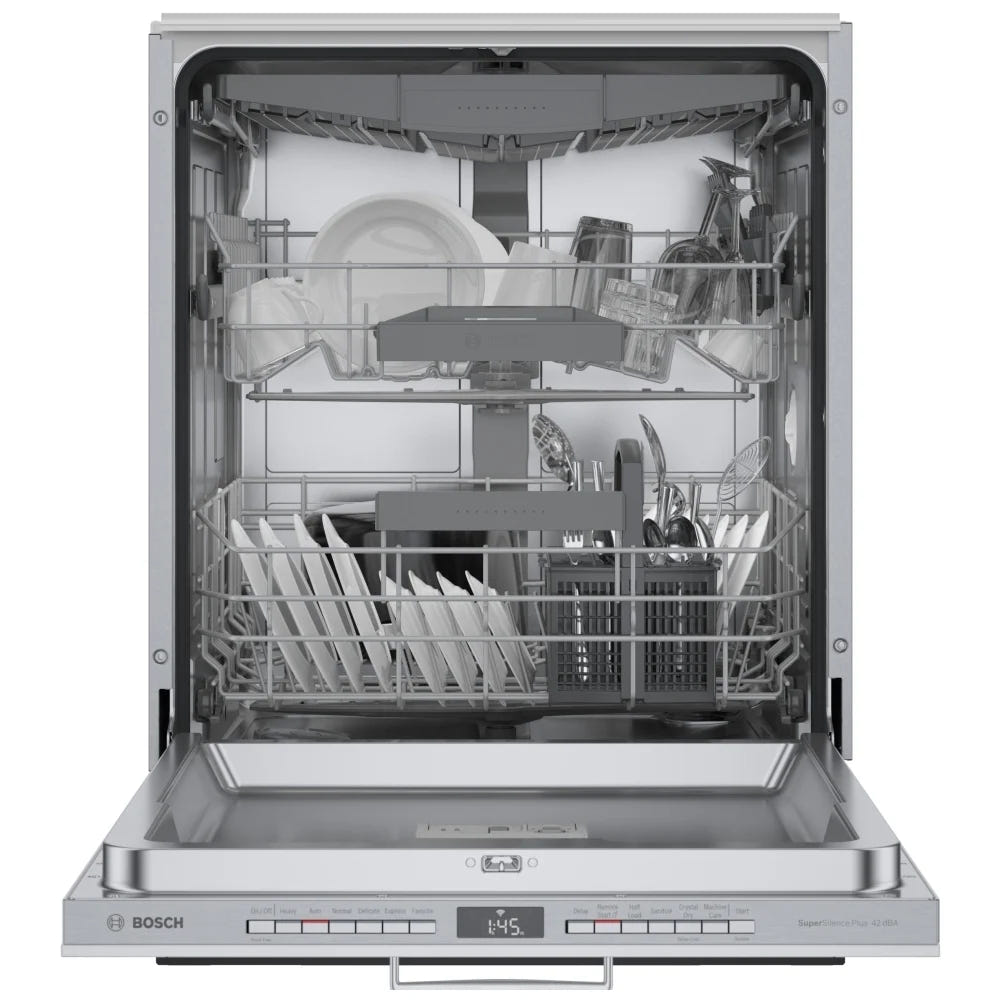

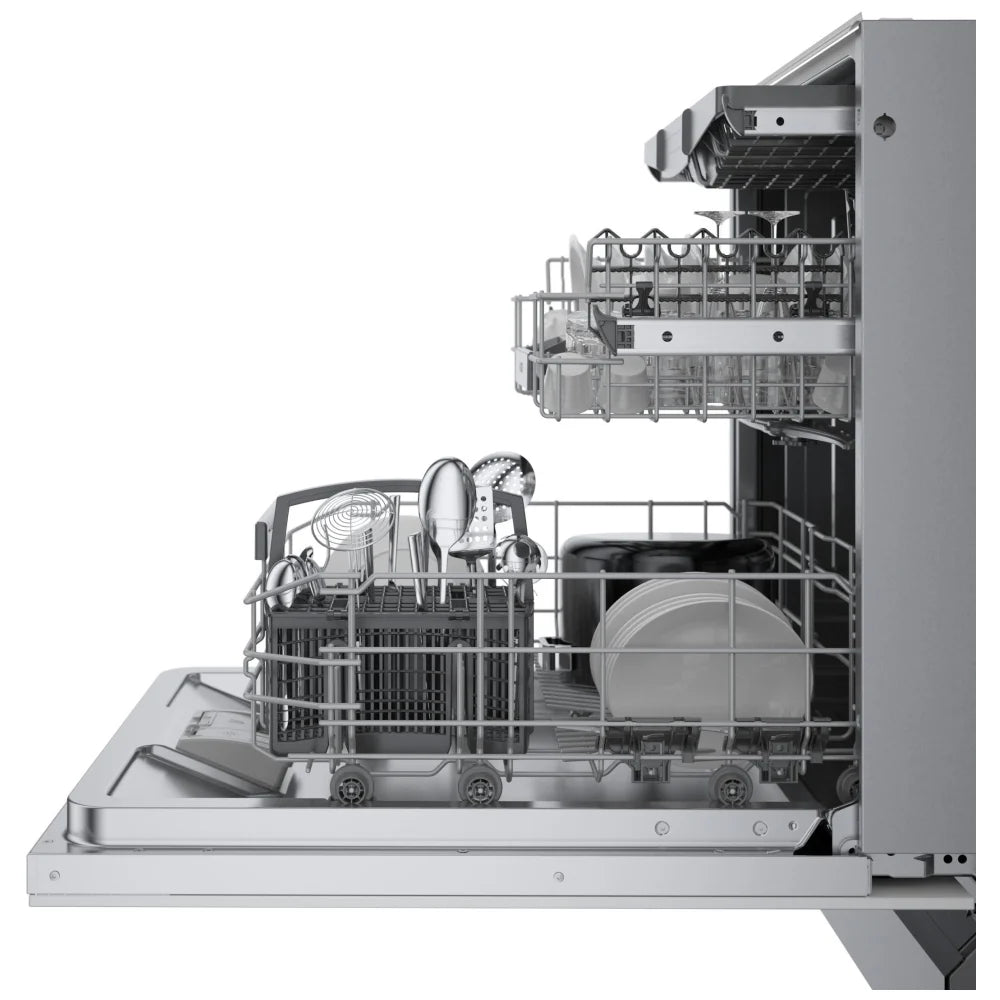

3rd rack Standard 3rd rack

Interior Light No

Removable top No

Power Cord Length 67''

Connectivity

Home Connect™ Yes

Home Connect Features Remote Monitoring and Control

Power consumption standby/network: Please check the user manual for how to switch off the WiFi module. 2.0 W

Time auto-standby/network 2.0 min

Size and weight

Overall Appliance Dimensions (HxWxD) (in) 32 1/16'' x 23 9/16'' x 21 5/8''

Adjustable plinth No

Net Weight 102.000 lbs

Weight furniture front (min - max) 2.5 - 8.5 kg

Programmes

Status Indicator End of program audible, Time remaining indic. internal, Water inlet

List of Programs Auto, Favorite, Hand Wash, Heavy, Normal, Quick Wash 45°C

Program 1 Heavy

Program 2 Auto

Program 3 Normal

Program 4 Hand Wash

Program 5 Quick Wash 45°C

Program 6 Favorite

Reference program Eco

Number of different wash temperatures 8

Temperature program 1 151-160 °F

Temperature program 2 127-140 °F

Temperature program 3 127-136 °F

Temperature program 4 113-122 °F

Temperature program 5 113 °F

Safety

ChildLock No

Consumption values

Glass protection Yes

Water consumption program 1 4.9-6.4 gal

Water consumption program 2 3.4-5.4 gal

Water consumption program 3 2.6-5.6 gal

Water consumption program 4 2.5-3.9 gal

Water consumption program 5 2.7 gal

Water consumption program 6 1.2 gal

Total Annual Water Consumption 557 gal

Maximum temperature for water intake (°C) 60 °C

Connection

Watts 1,440 W

Power Cord Length 67''

Fuse protection 12 A

Length inlet hose 165 cm

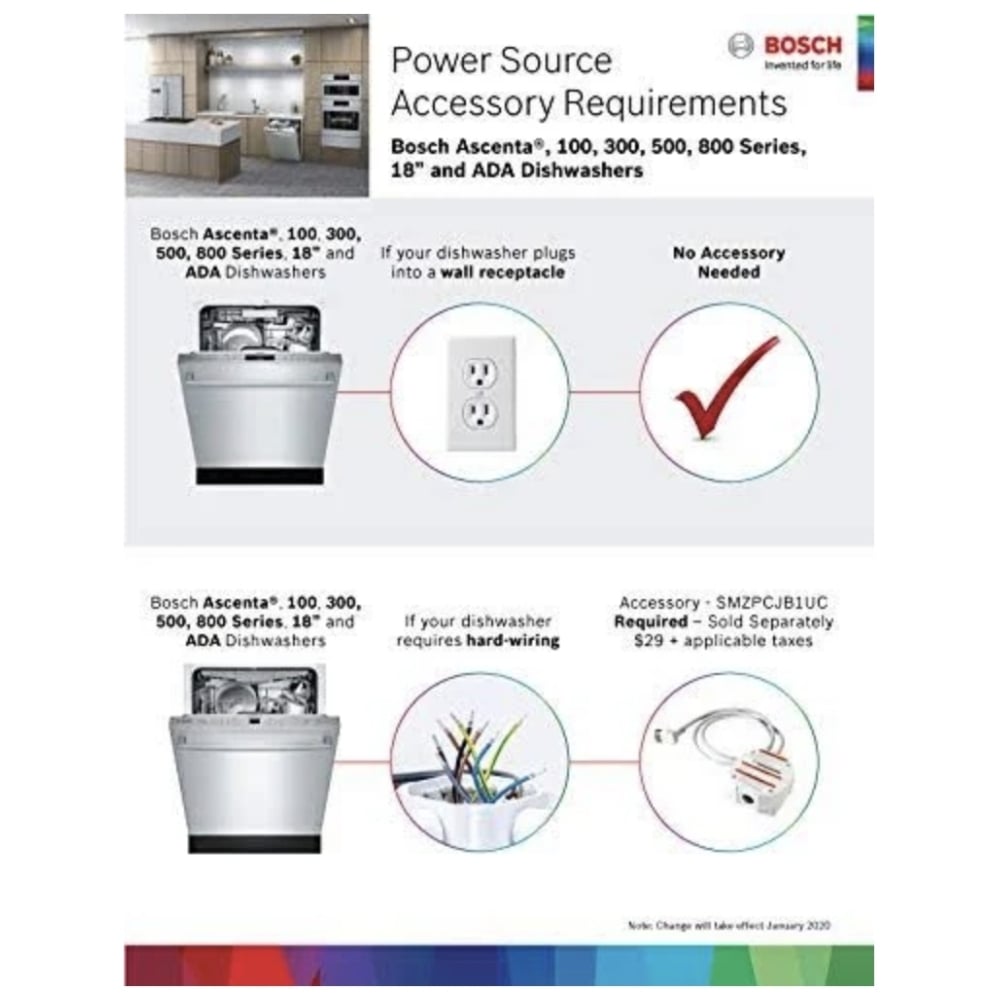

Plug Type Nema5-15P

Construction type

Design Built-in

Drying System CrystalDry®, PureDry®

Height 32 1/16

Concealed heating element Yes

Installation Type Full-integrated

Tub Material Stainless Steel

Water Softener Yes

Appliance Width (in) 23 9/16
