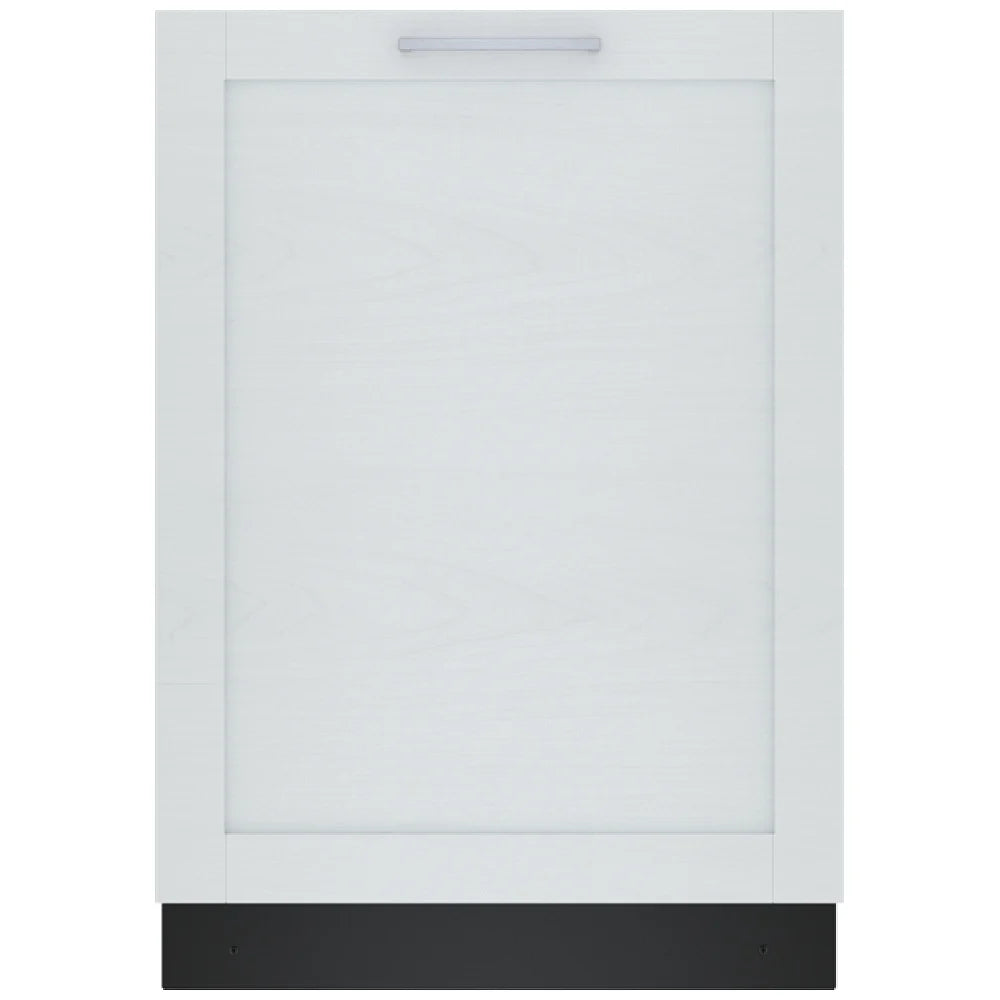

Bosch 300 Series SHV53EM3N Dishwasher, 24 inch Exterior Width, 46 dB Decibel Level, Fully Integrated, Stainless Interior, Custom Panel Ready, 5 Wash Cycles, 15 Capacity (Place Settings), 3 Loading Racks, Wifi Enabled, Panel Ready
Bosch
SHV53EM3N
Bosch 300 Series SHV53EM3N Dishwasher, 24 inch Exterior Width, 46 dB Decibel Level, Fully Integrated, Stainless Interior, Custom Panel Ready, 5 Wash Cycles, 15 Capacity (Place Settings), 3 Loading Racks, Wifi Enabled, Panel Ready
DISCONTINUED
Quick Specs
  • WiFi Enabled: Yes
Dimensions
W N/Ain
H 34in
D 24in

Zone Wash creates an intensive wash focus area, allowing you to wash your challenging dishes and pots with confidence

So quiet at 46 dBA, InfoLight® shines on the floor so you know the dishwasher is running.

The 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below for taller items.

PureDry® is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.

Enhance your cleaning experience with Wi-Fi enabled Home Connect® . Access additional wash cycles and options or choose the right one for your needs using Smart Cycle.

General PropertiesWash cycles (control panel): 5 (Deep Clean, Auto, Normal, Speed60 (1hr Wash), Favorite)
Additional wash cycles (in Home Connect® ): 3 (Express, Rinse, MachineCare)
Options (control panel): 3 (Sanitize, Remote Start, ExtraDry)
Additional options (in Home Connect® ): 5 (Half Load, SpeedPerfect, ExtraScrub, Eco, Zone Wash)
dBA: 46
Wash system: Zone Wash
Drying system: PureDry®
Third rack: Standard 3rd Rack
Rack adjustability: Rackmatic®
Tub material: Stainless Steel
Concealed water heating element: Yes
Leak protection system: 24/7 AquaStop®
Home Connect® (Wi-Fi enabled): Yes
NSF® -certified** sanitize option: Yes
Water softener: No
Five-level wash: Yes
Child Lock button suspension: No
Anti-Fingerprint Finish: No
Special features: InfoLight®, Zone Wash, EasyGlidePlus™

EfficiencyWater usage per cycle: 3.2 gal
ENERGY STAR® Certified: Yes
Total annual energy consumption: 240 kWh

CapacityNumber of place settings: 15

Technical DetailsWatts: 1440 W
Current: 12 Amps
Volts: 120 V
Frequency: 60 Hz
Power cord full length: 67"
Power cord install length from edge of unit when facing the door: Left – 45" , Right – 56"
Minimum water pressure: 14 lb/sin
Lengt outlet hose: 78 3/4"

Dimensions & WeightOverall appliance dimensions (HxWxD): 33 7/8" x 23 9/16" x 23 1/16"
Required cutout size (HxWxD): 33 7/8" x 24" x 24"
Adjustable feet: Yes
Net weight: 85 lbs

Accessories—OptionalJunction Box: SMZPCJB1UC
Junction Box + Supply Hose Kit: SMZ3IN1UC
Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
Drain Hose Extension Kit: SGZ1010UC
Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Stainless Steel Bar Handle: SMZ1008UC

Warranty Support

Warranty support and documents in one place.

Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.

Files

Brochure and warranty documents

1 file

Reviews will appear here once your reviews app is connected.
