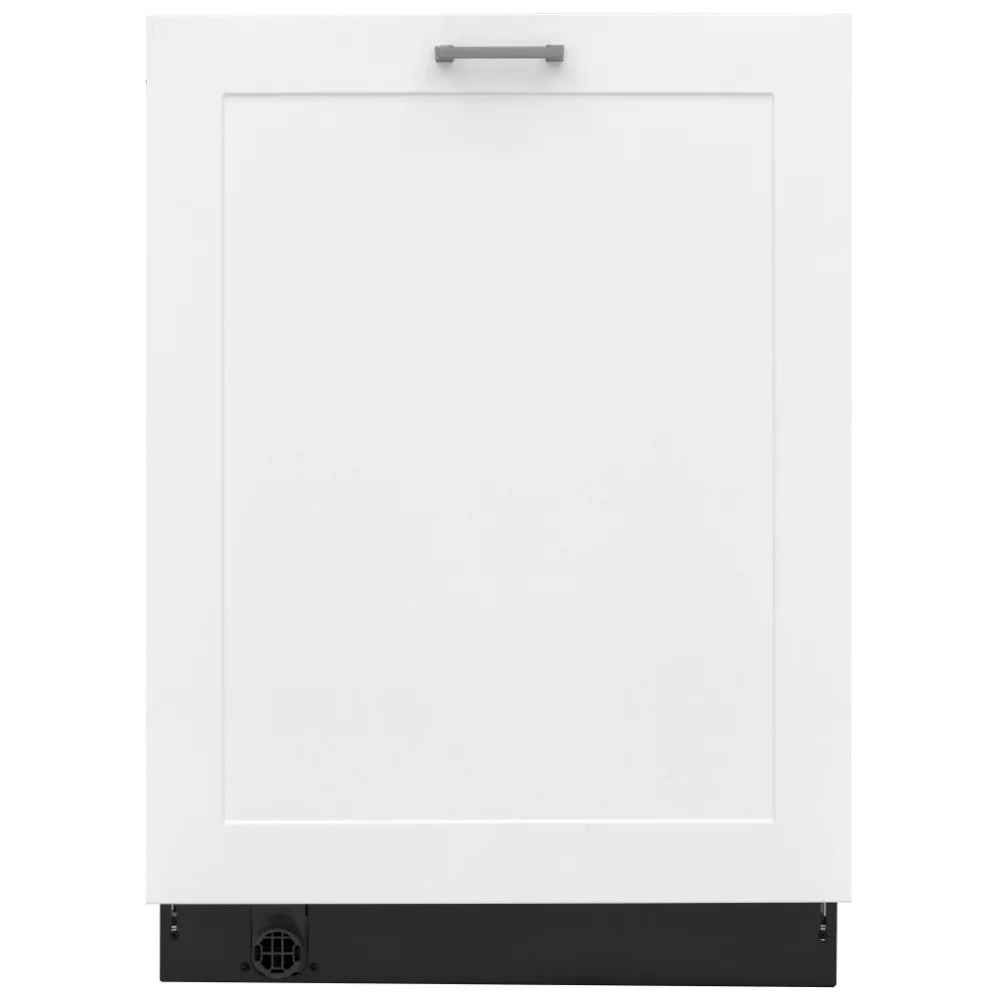

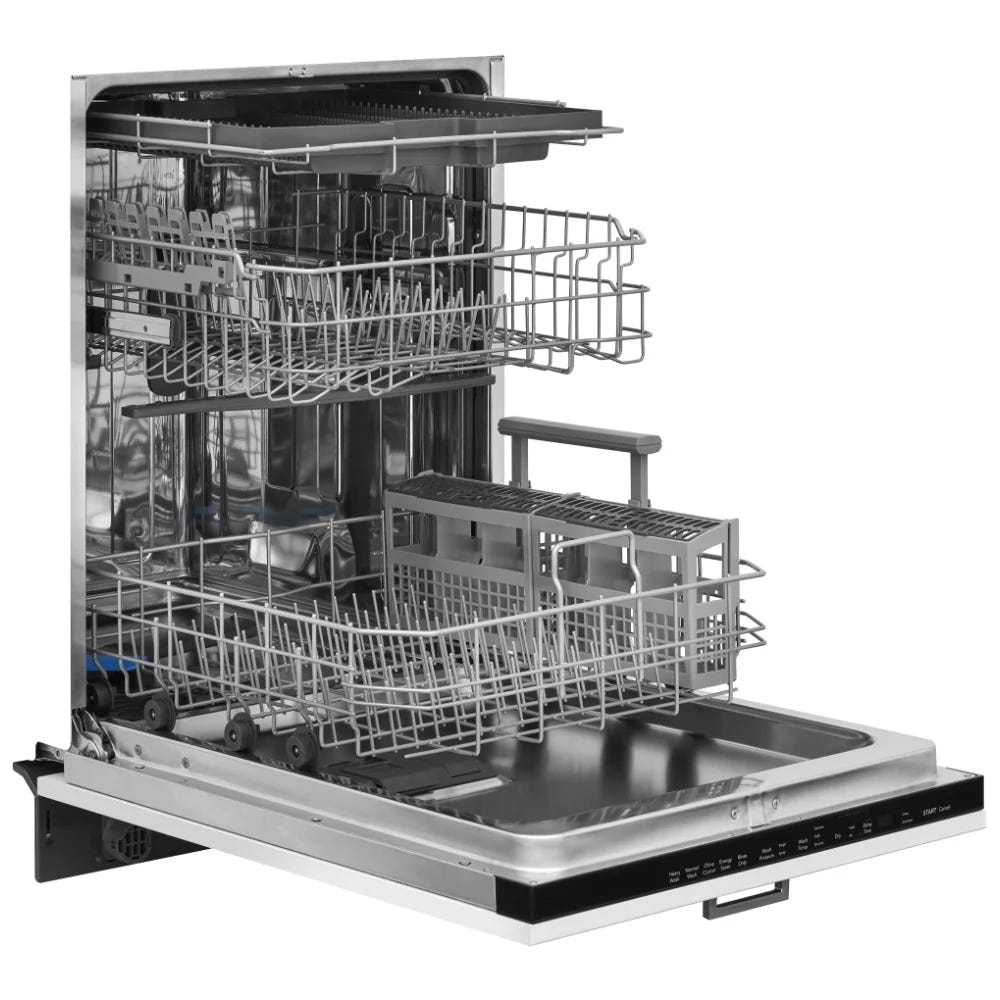

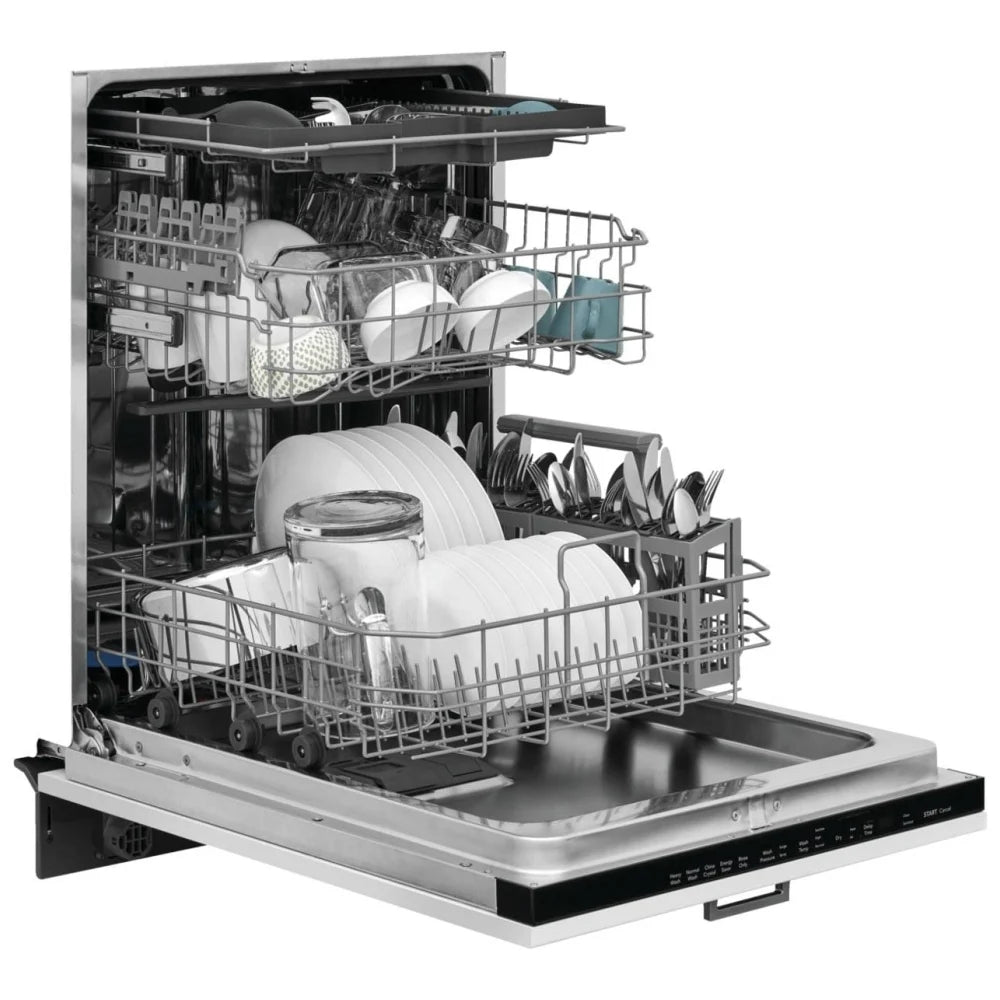

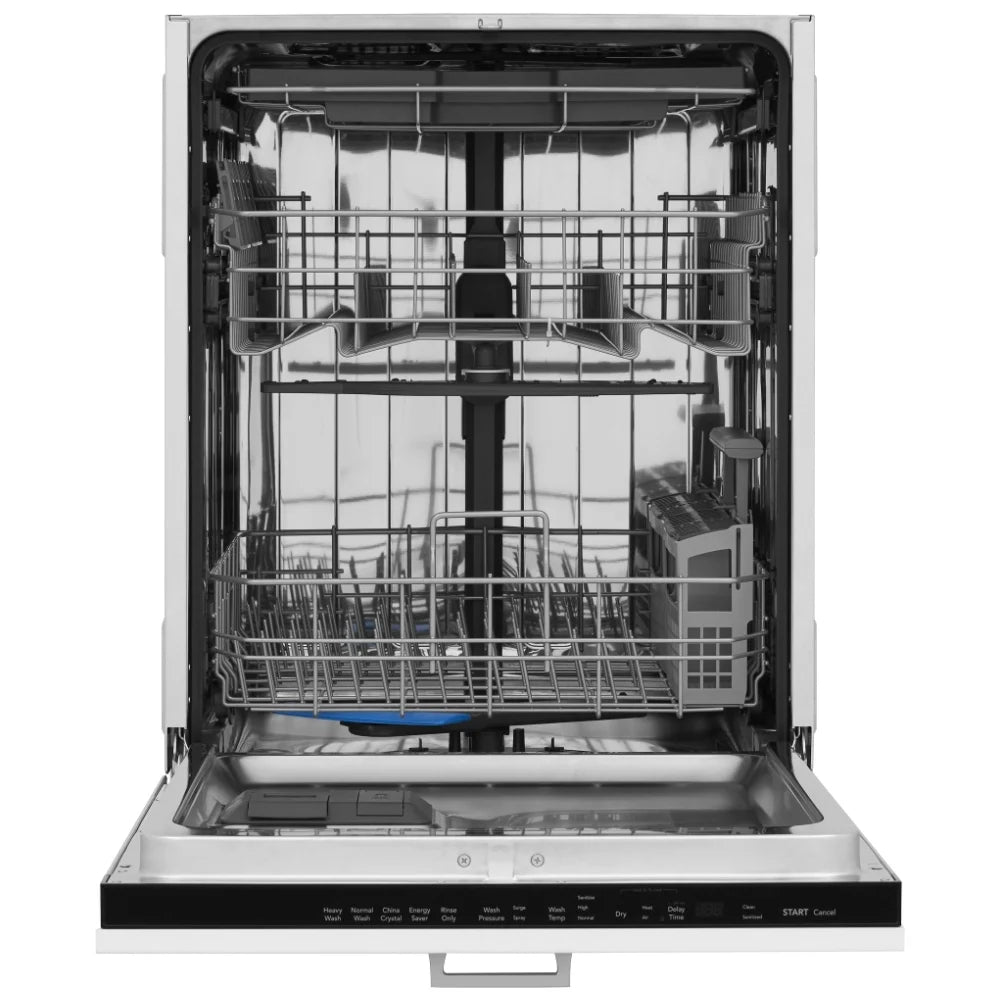

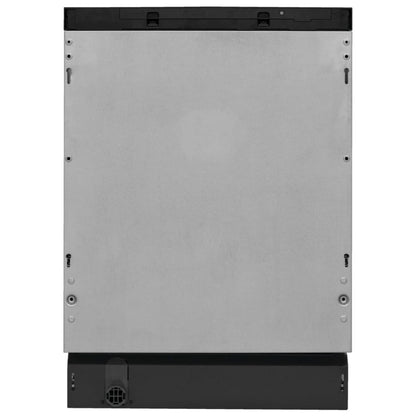

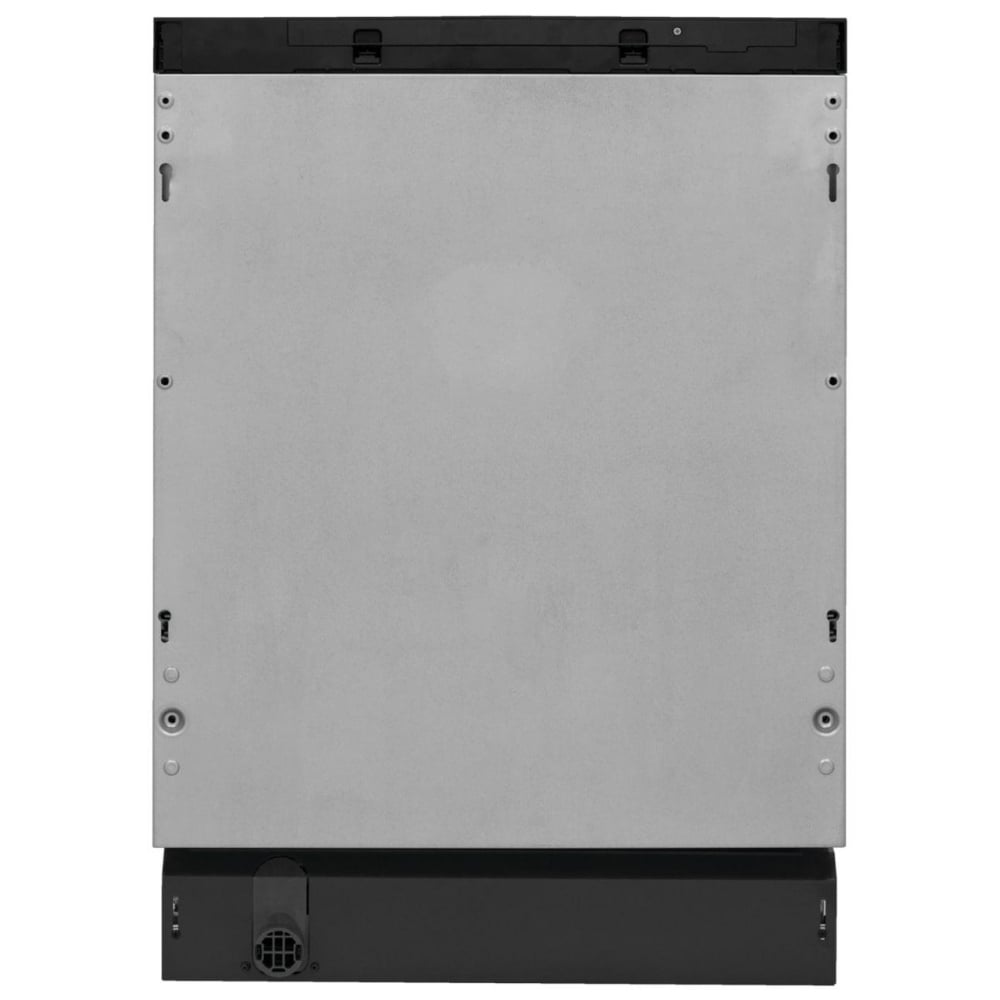

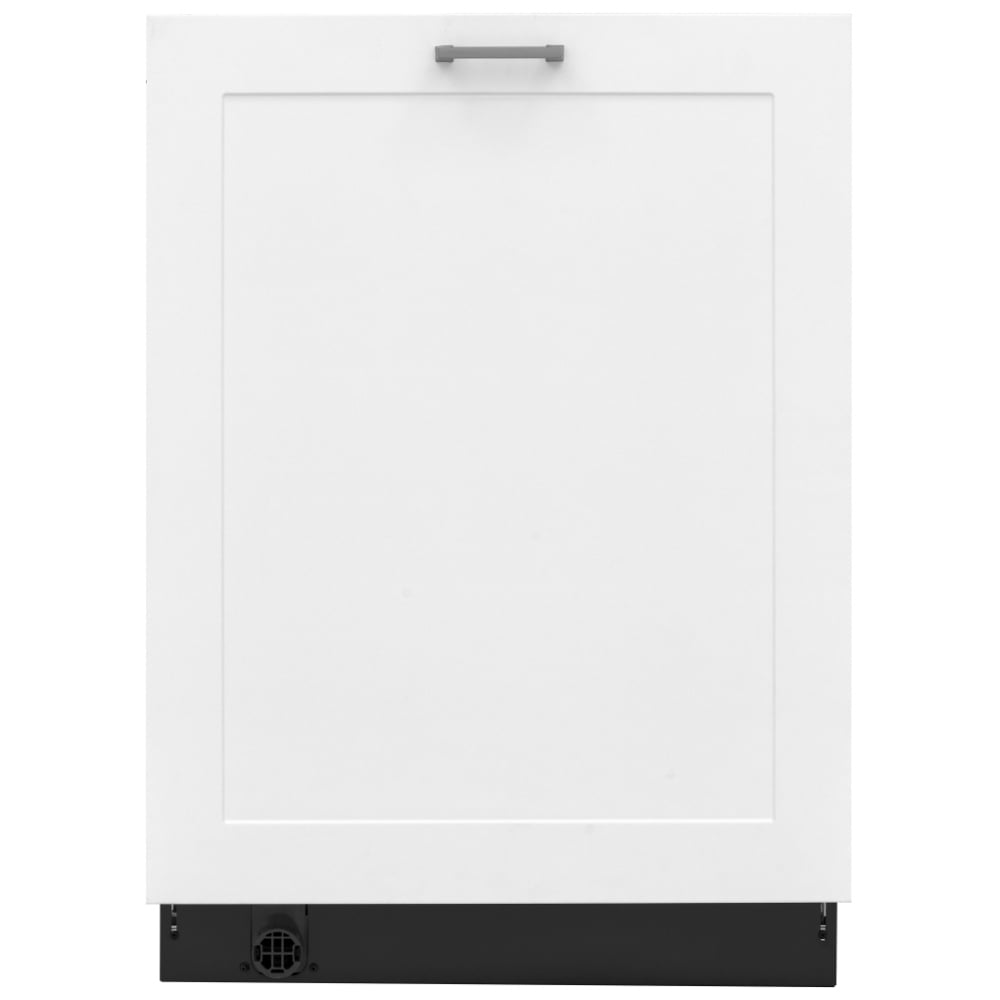

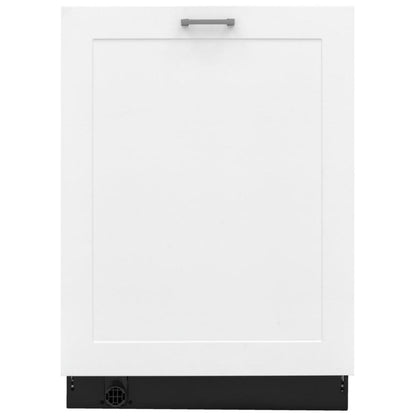

Frigidaire 24" Panel Ready Built-In Dishwasher FDSR4501AP

Product Line Dishwasher

Power Type Electric 120v

Size 24"

Installation Type Built-In

Factory Solaro

Color Panel

Dishwasher

Automatic Temperature Control Yes

Detergent Dispenser Yes

Filter Material Stainless Steel

Filter Trap Removable

Filtered Water 100 %

Hard Food Disposer or Filtration Yes

Motor Speeds Multi-Speed

Place Setting Capacity 14

Rinse Aid Dispenser Yes

Smart Soil Sensor Yes

Lower Spray Arm Blade

Middle Spray Arm Bi-Beam

Upper Spray Arm Spray Arm

Tub Color Stainless Steel

Tub DesignTall Tub

Tub Material Stainless Steel

Wash Levels 5

Wash System Direct Feed

Water Pressure 120 psi

Dishwasher Cycles

China Crystal Yes

Energy Saver Yes

Heavy Yes

Normal Yes

Number of Cycles 5

Rinse Only Yes

Dishwasher Options

Dry - Air Yes

Dry - Heat Yes

Dry - Max No

Drying System Even Dry

High Temperature No

Start/Cancel Yes

Washing Temperature - High Yes

Washing Temperature - Normal Yes

Washing Temperature - Sanitize Yes

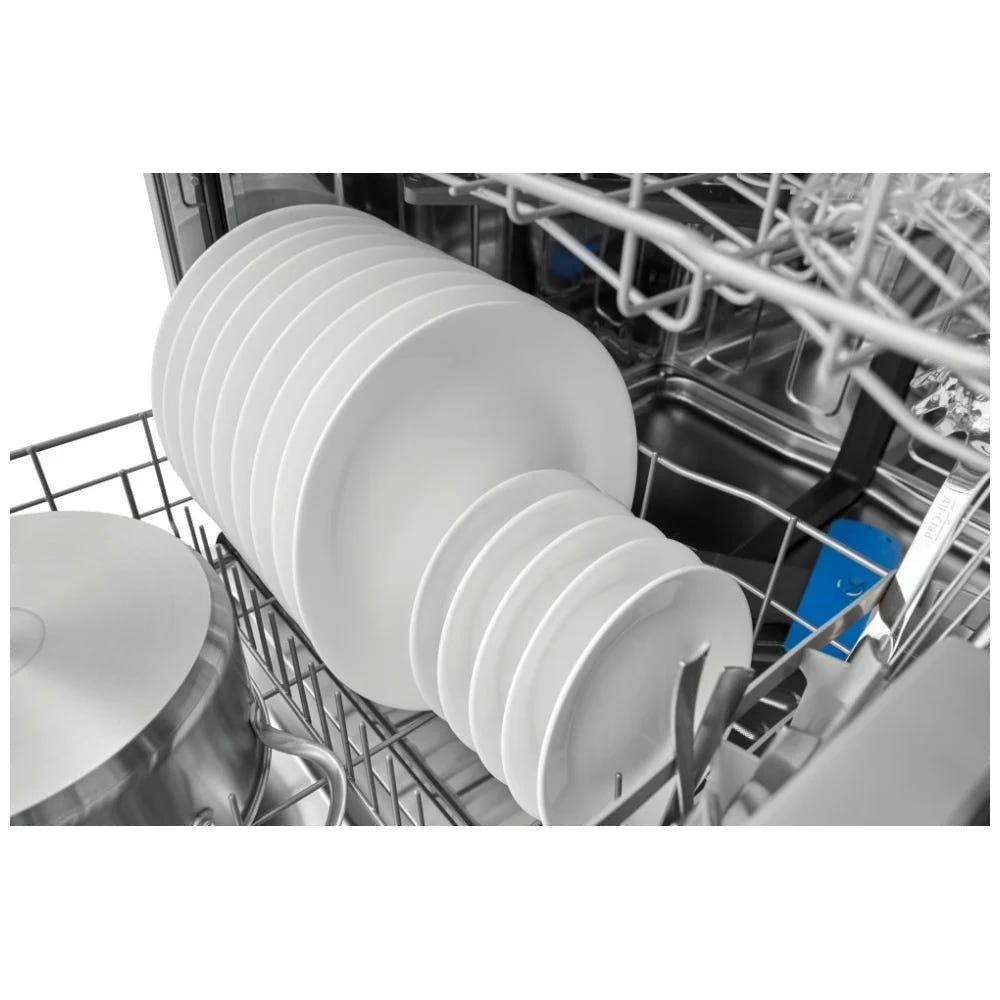

Lower Rack

Number of Silverware Basket 1

Number of Silverware Basket Lids 2

Rack Coating Nylon

Rack Type Deluxe

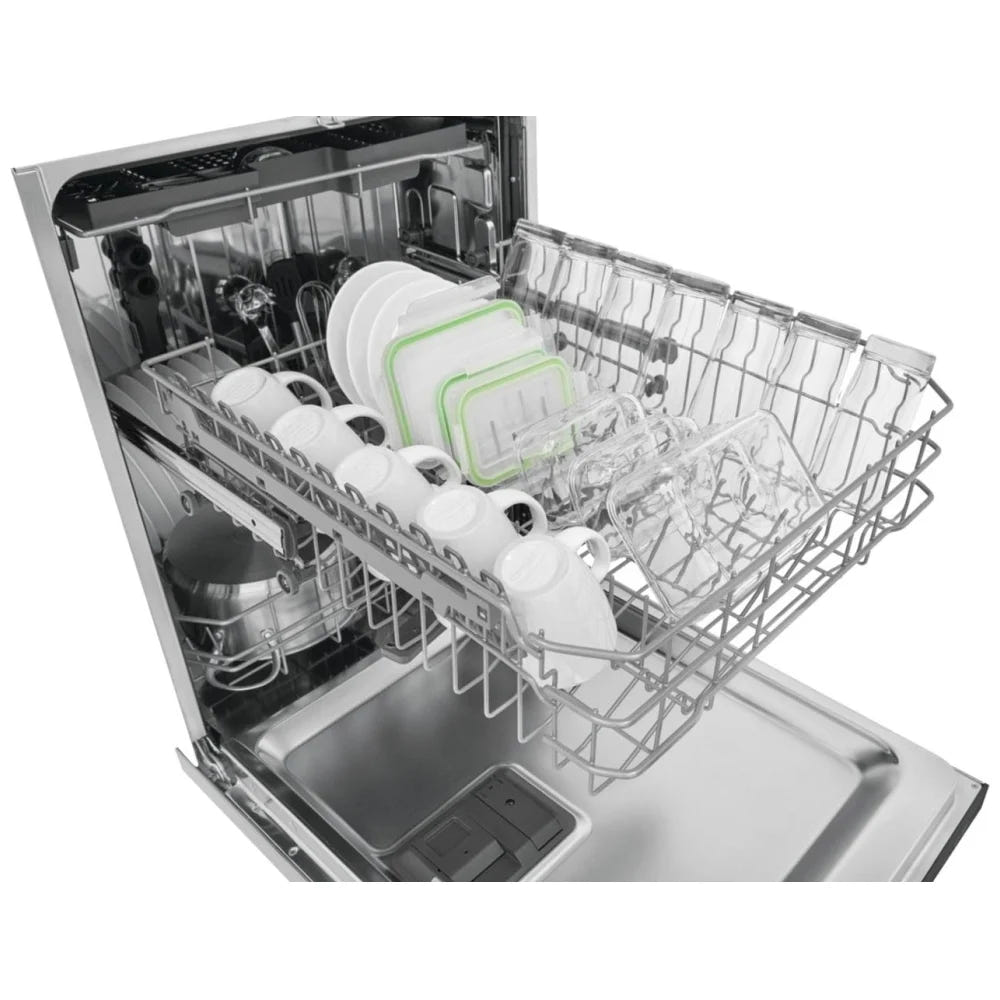

Upper Rack

Cup Shelf Yes

Rack Coating Nylon

Rack Type Deluxe

Stemware Holder Yes

Targeted Wash Zone No

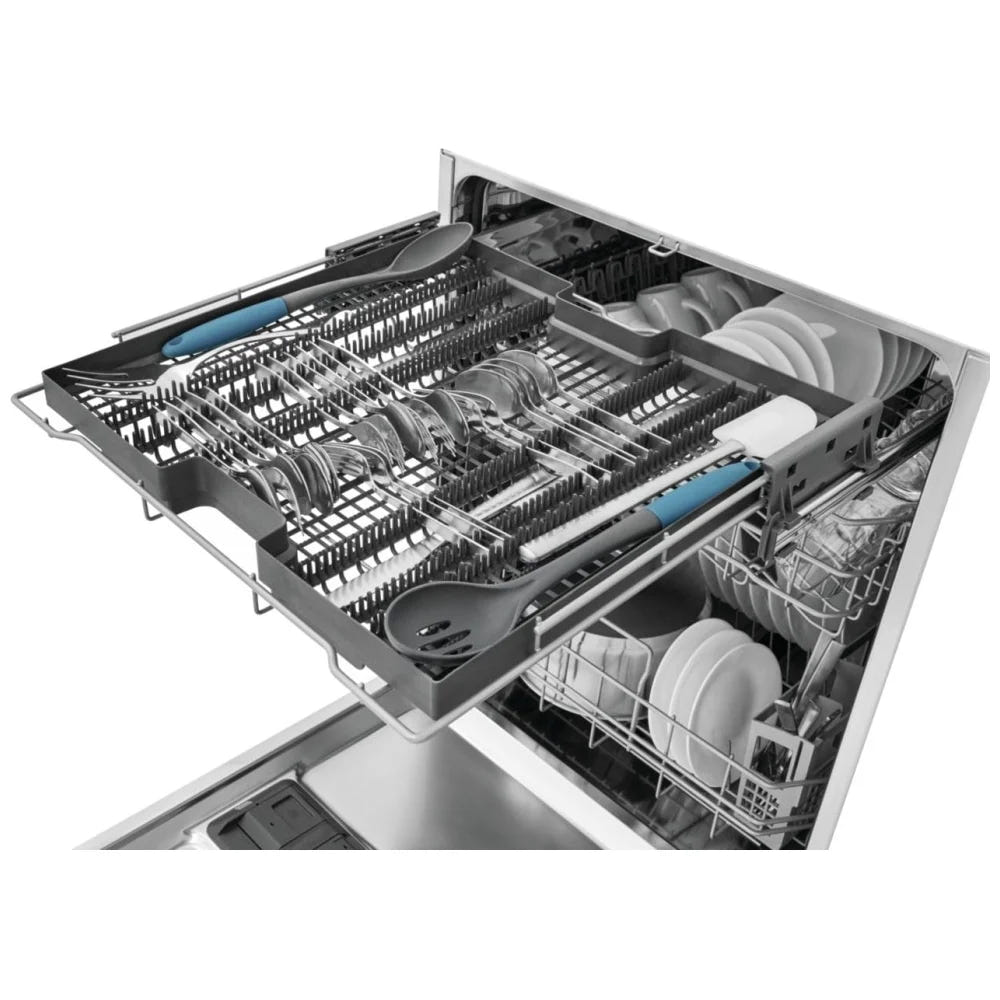

Third Level Rack

Third Level Rack Yes

General Specifications

Sound Level 49 dBA

Annual Energy 240 kWh

Product Weight 85 lbs

Prop 65 Label No

Warranty - Labor 1 Year

Warranty - Parts 1 Year

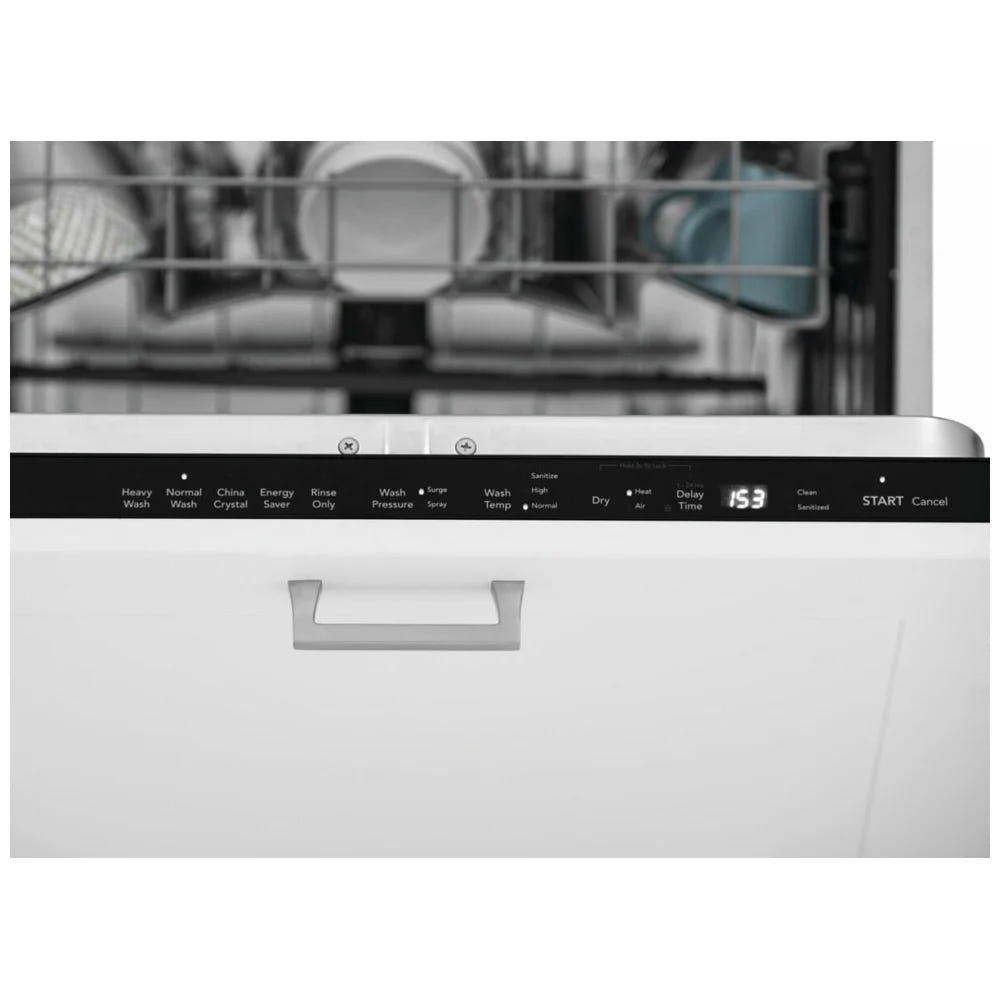

Controls

Control Location Top

Delay Start Hours 1-24 Hours

Digital Display No

Exterior

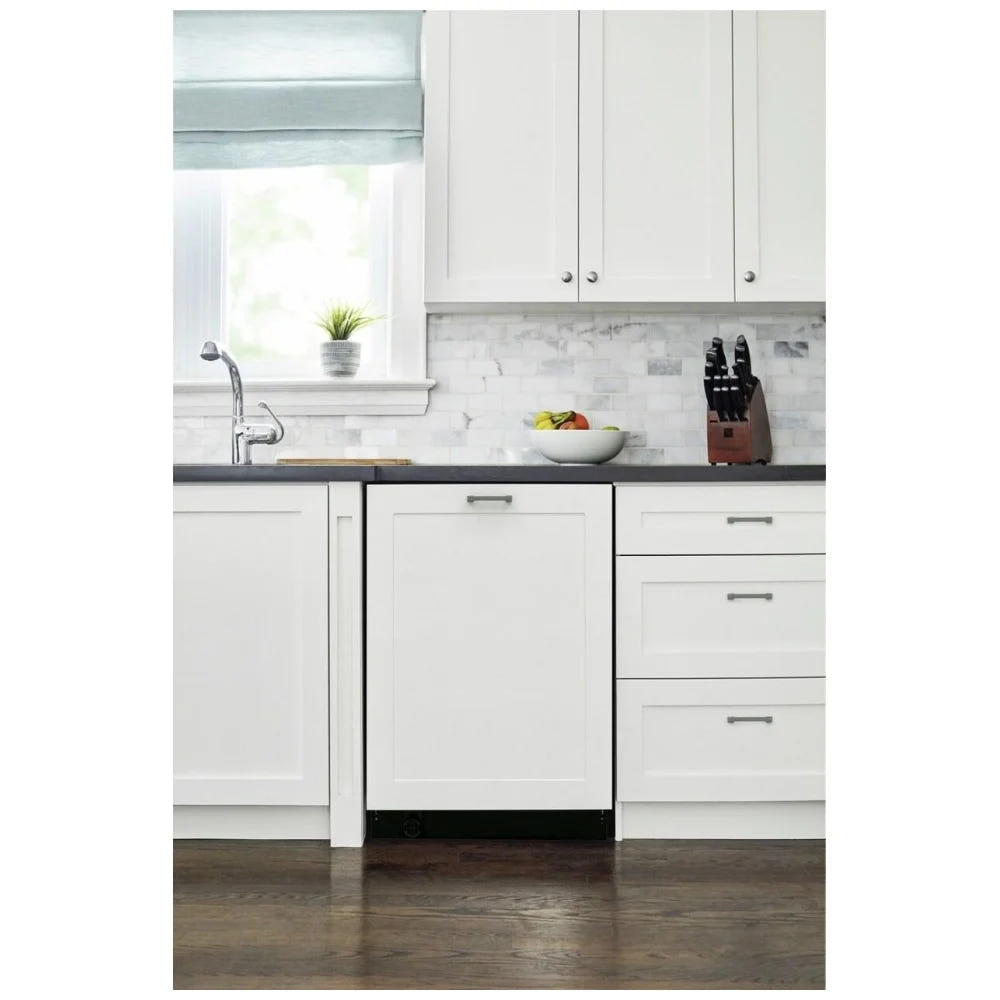

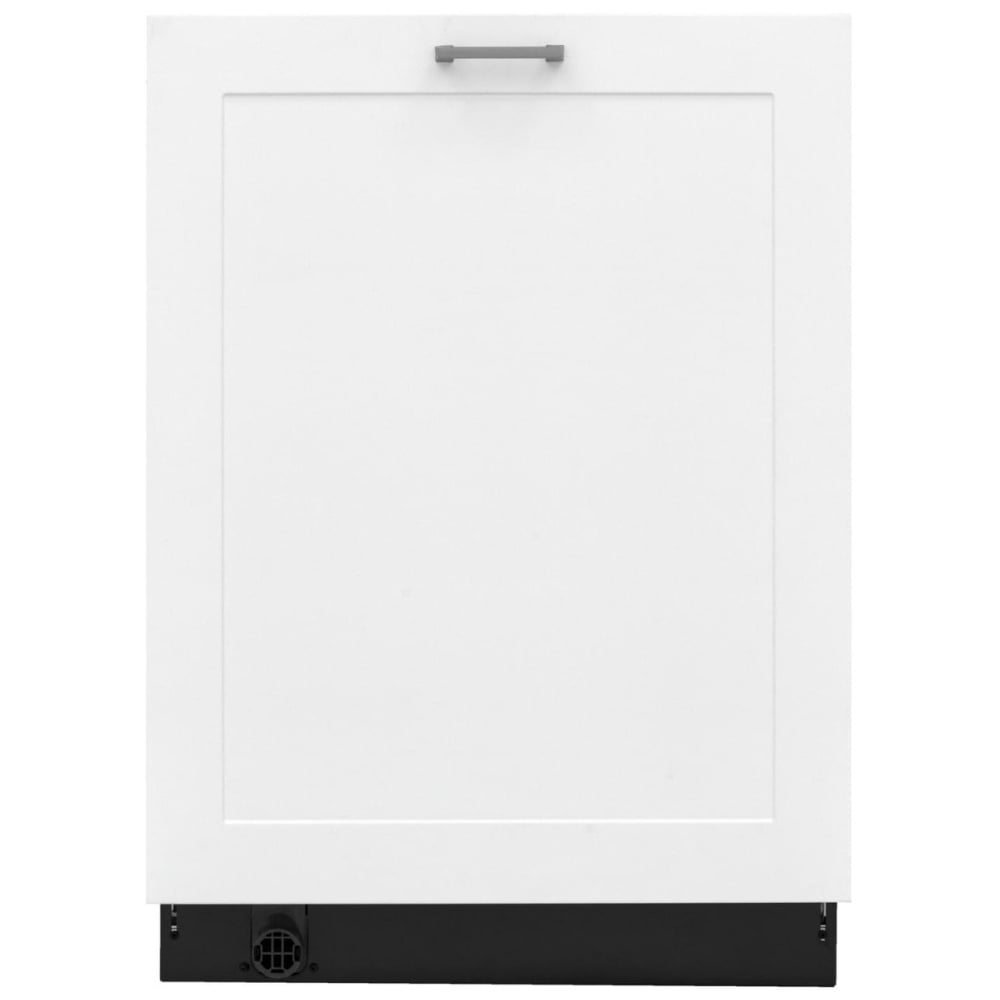

Panel Ready Yes

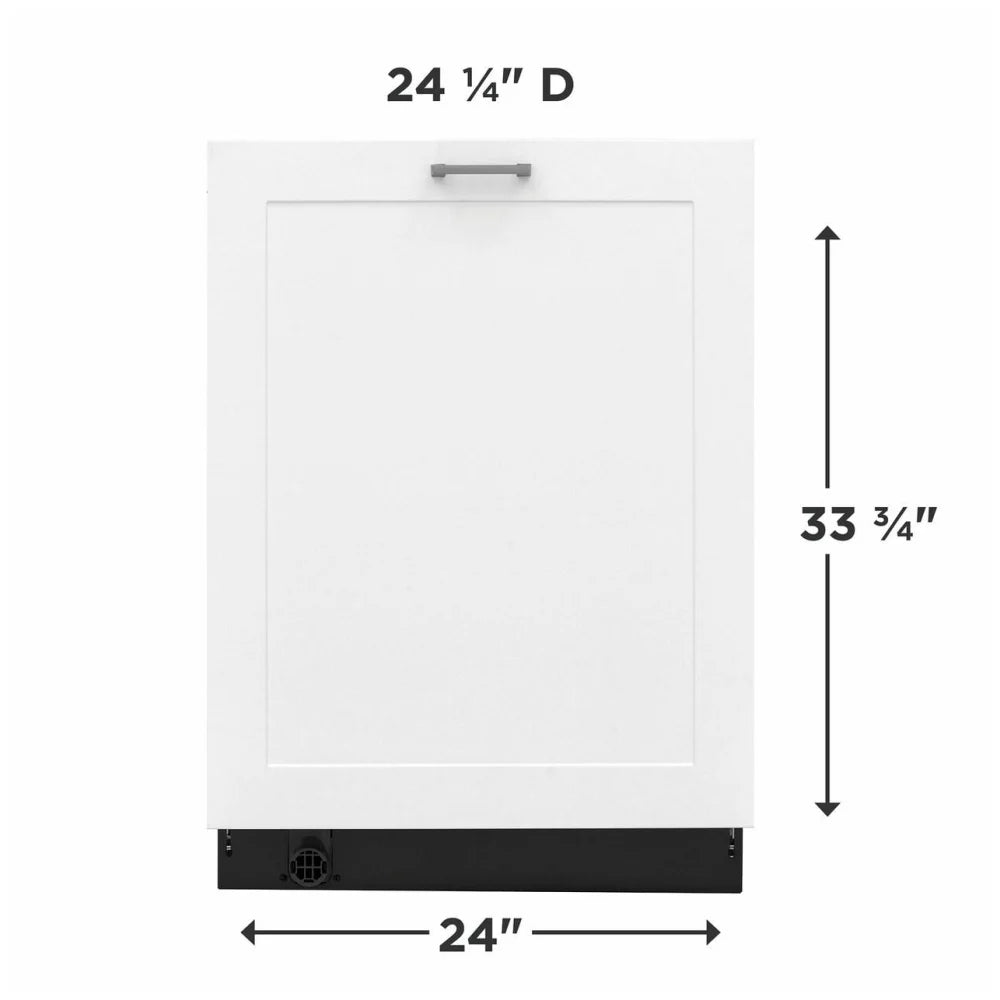

Dimensions and Volume

Minimum Height 33 3/4"

Maximum Height 35 3/4"

Width 24"

Depth 24 1/4"

Depth With Door Open 50 1/4"

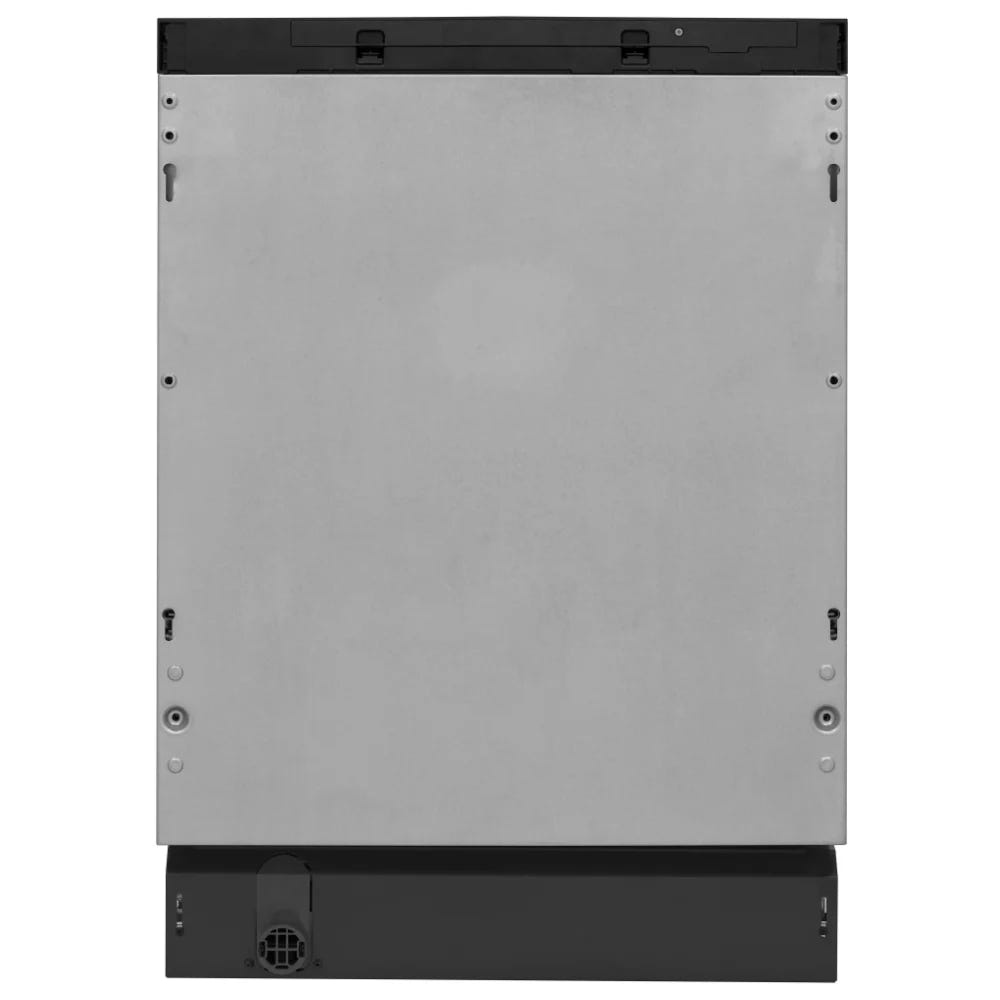

Panel Installation Information

Maximum Height 29 7/8"

Width 23 7/8"

Minimum Thickness 5/8"

Maximum Thickness 7/8"

Minimum Weight 4.4 lbs

Maximum Weight 17.6 lbs

Electrical Specifications

Amps @ 120 Volts 15 Amps

Voltage Rating 120 V

Installation

Number of Leveling Legs 3
