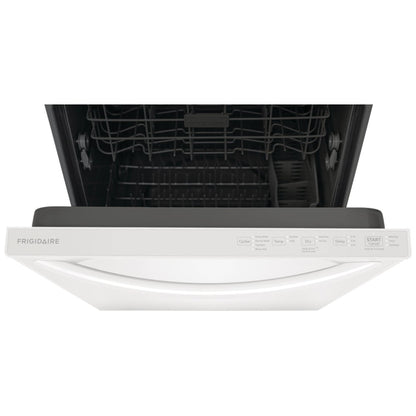

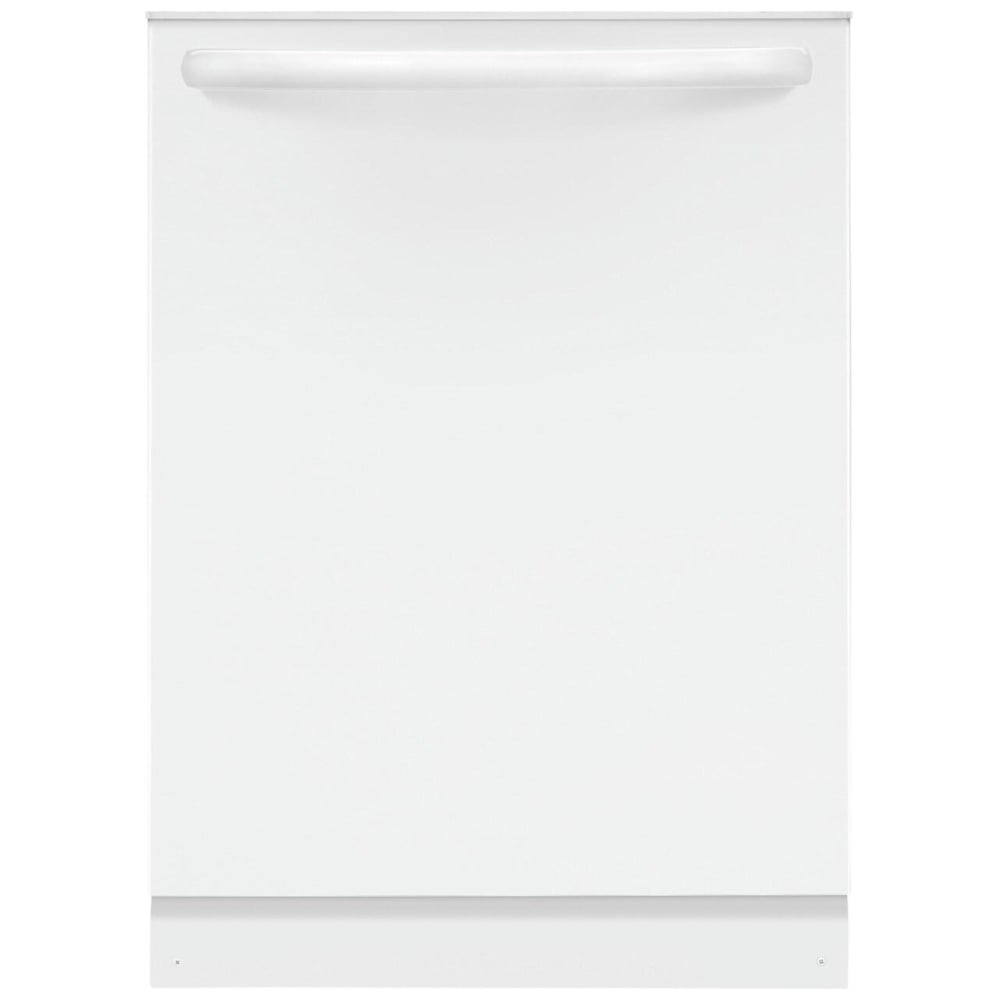

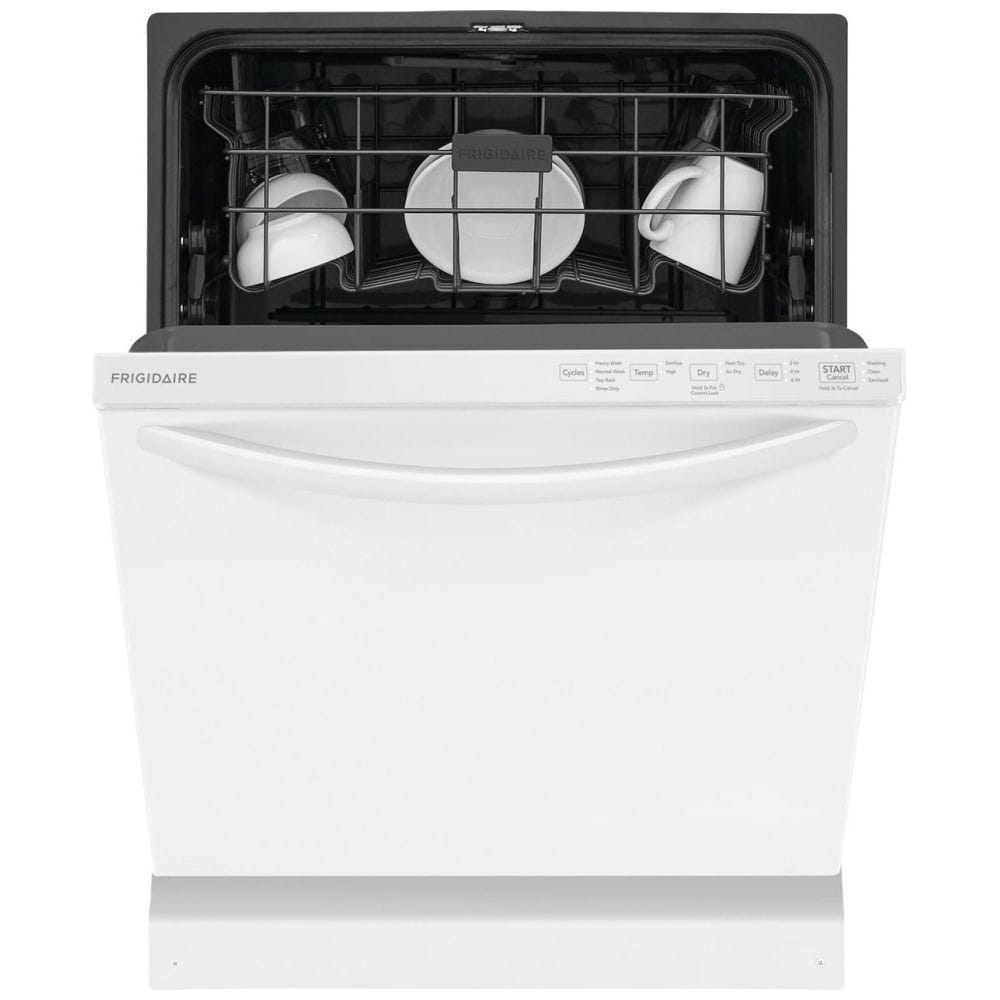

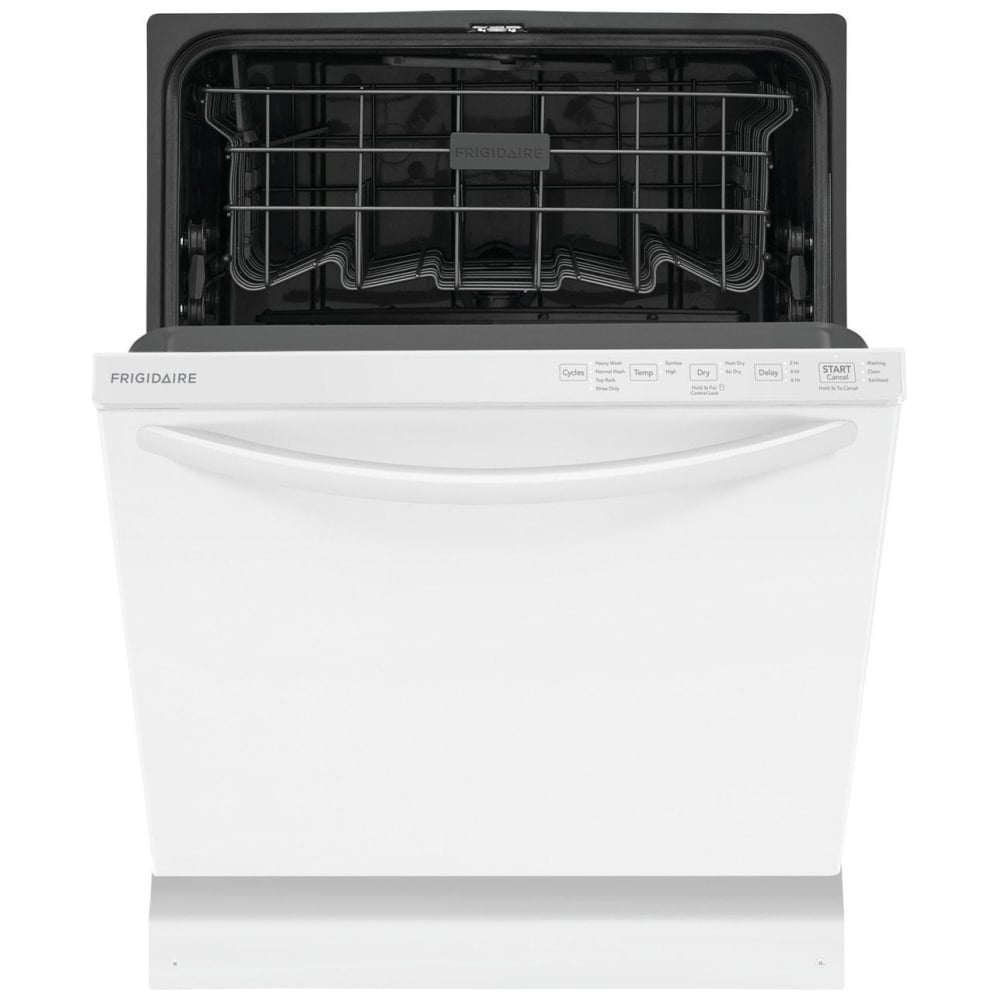

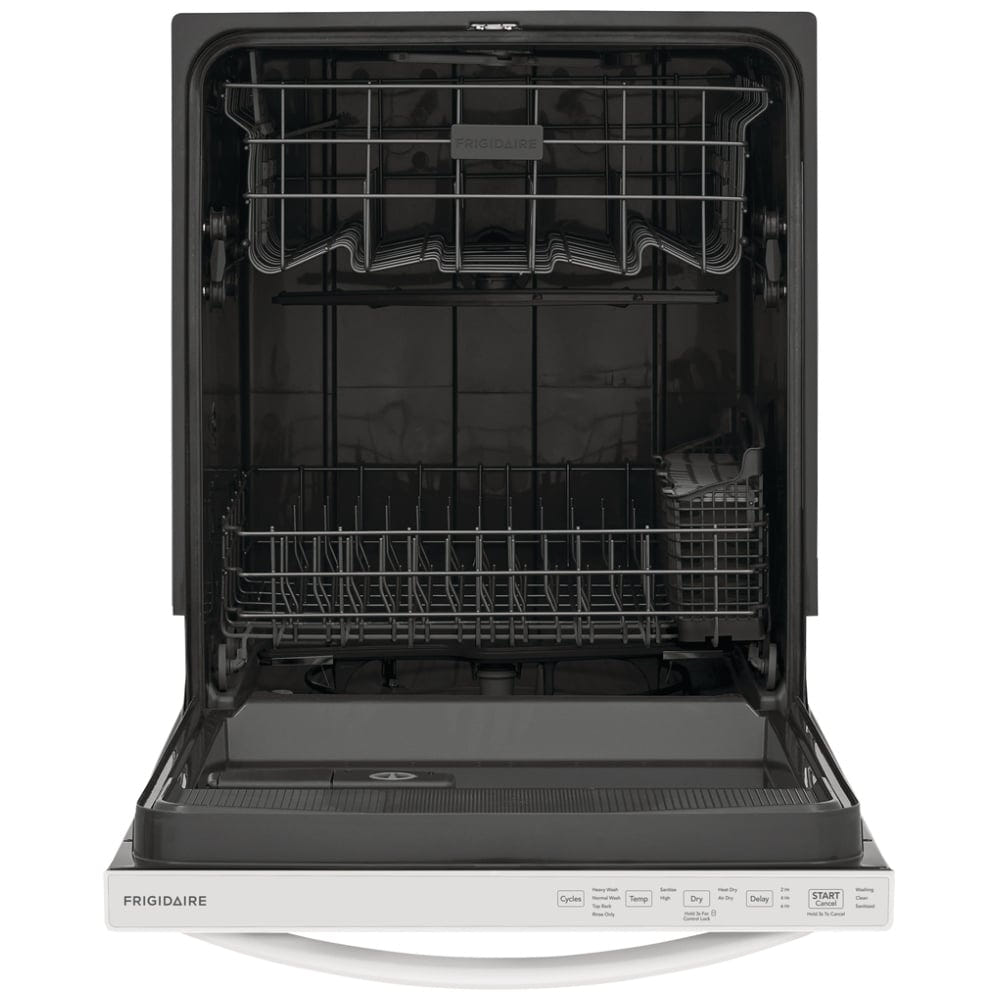

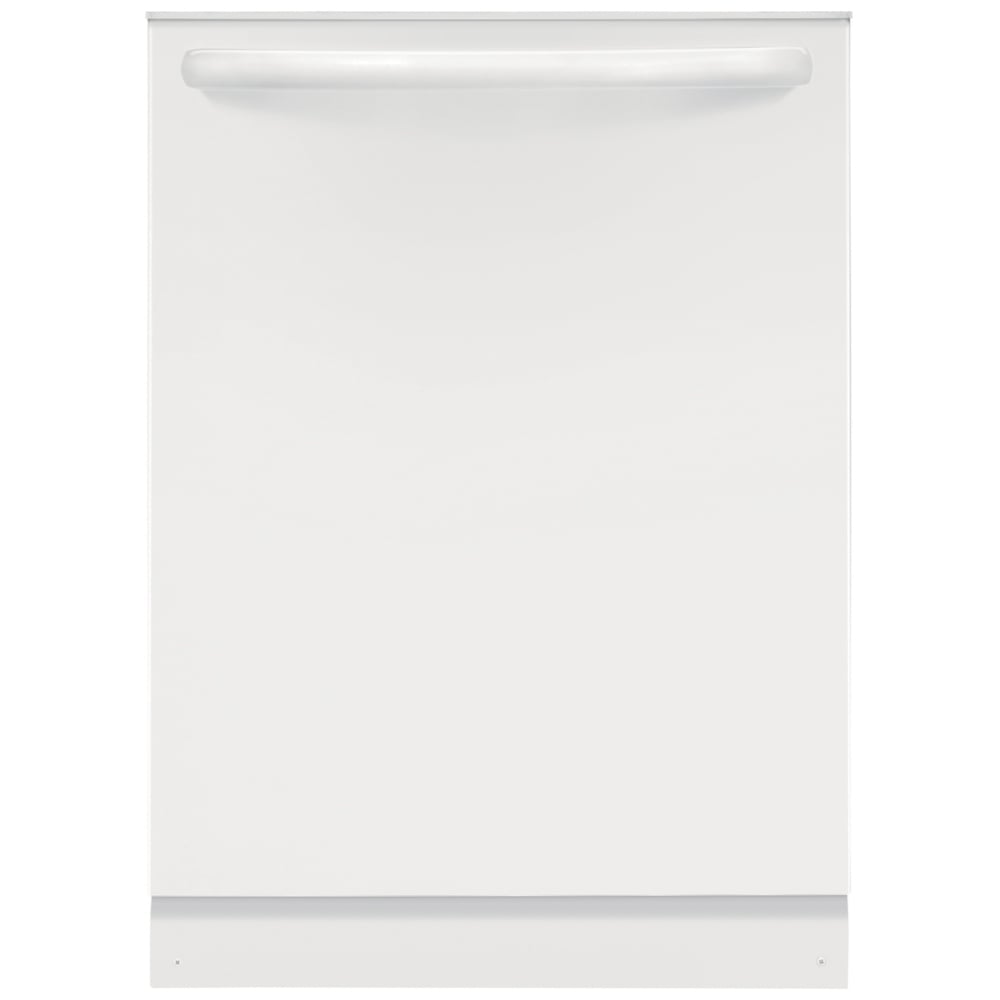

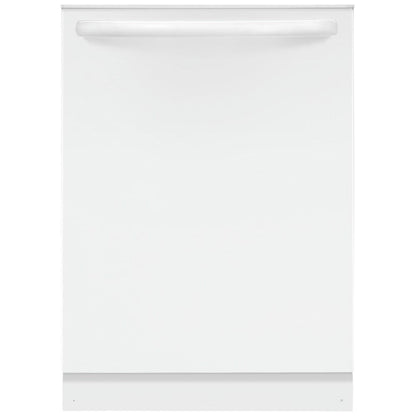

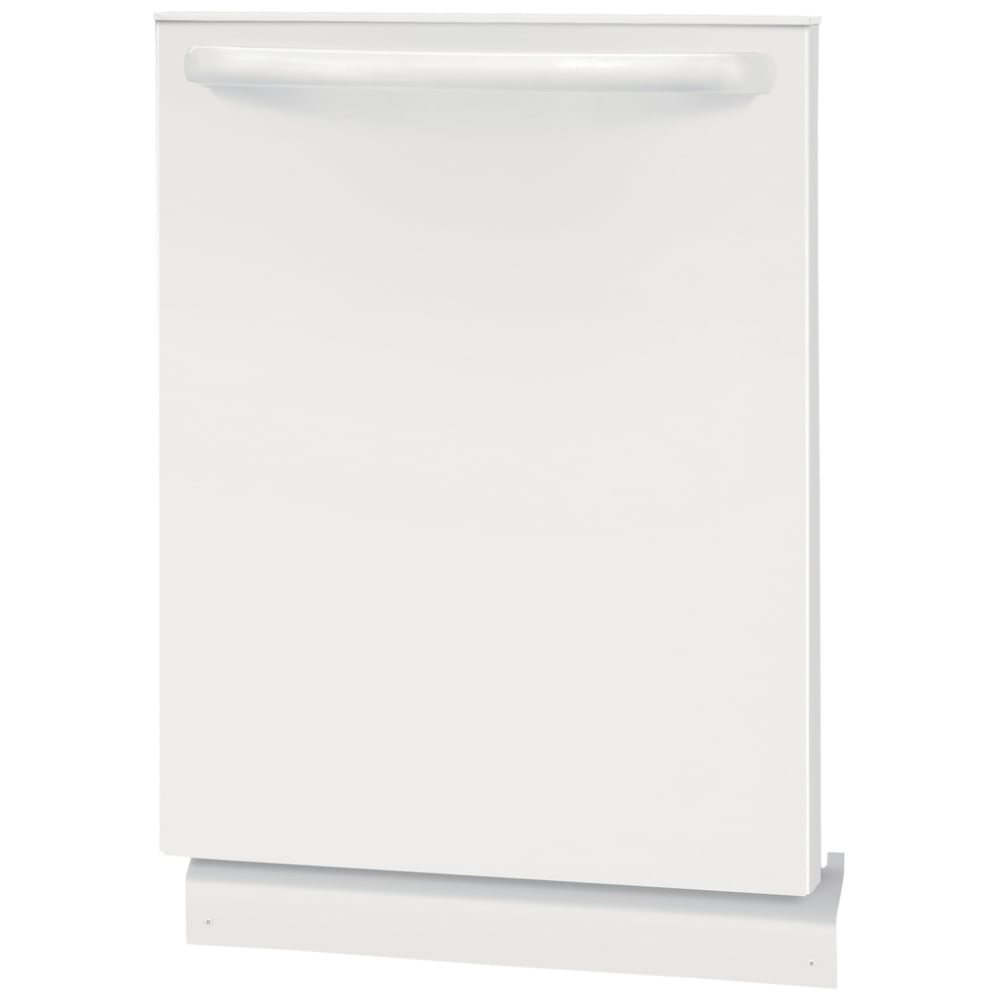

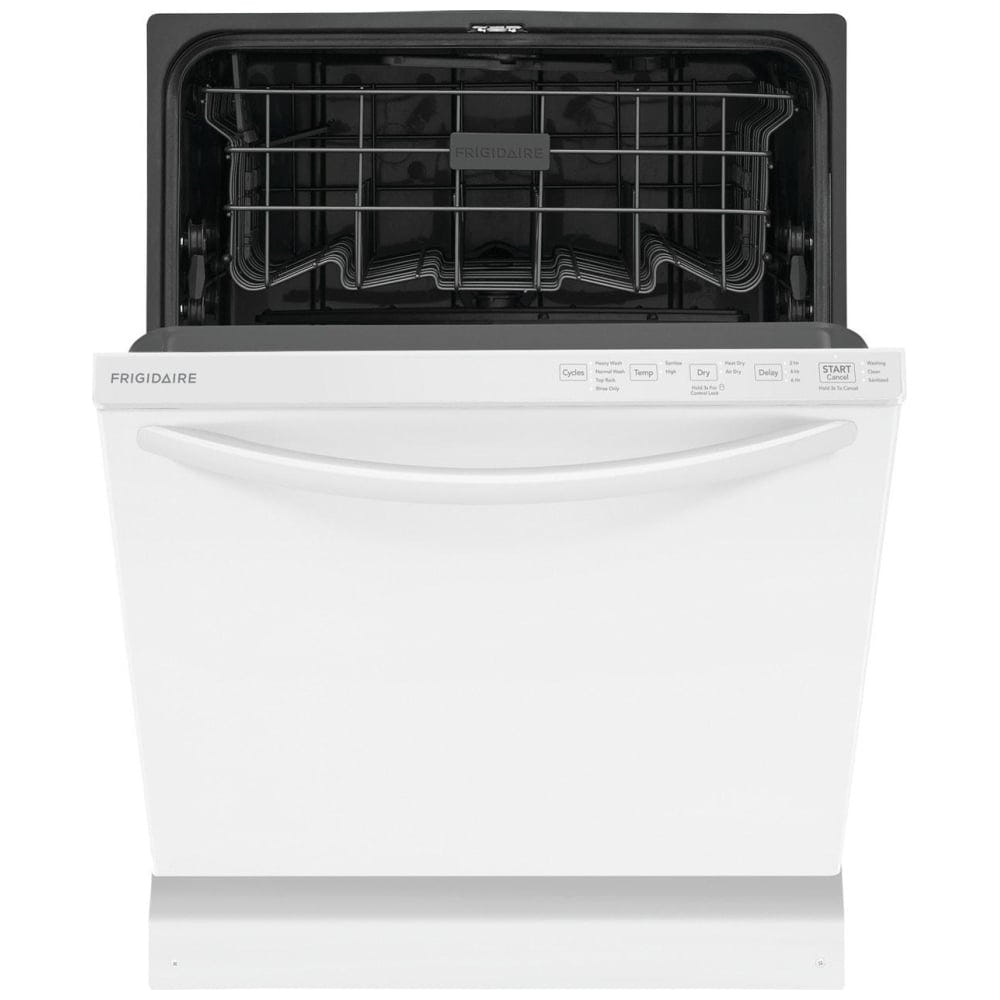

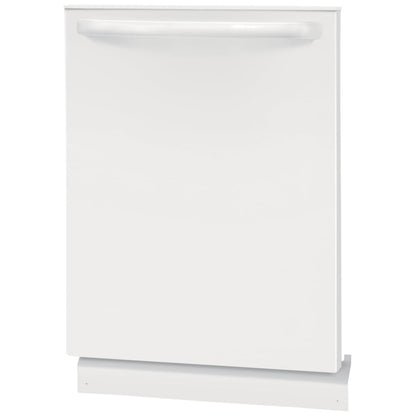

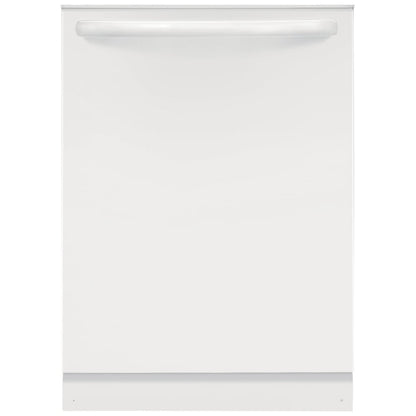

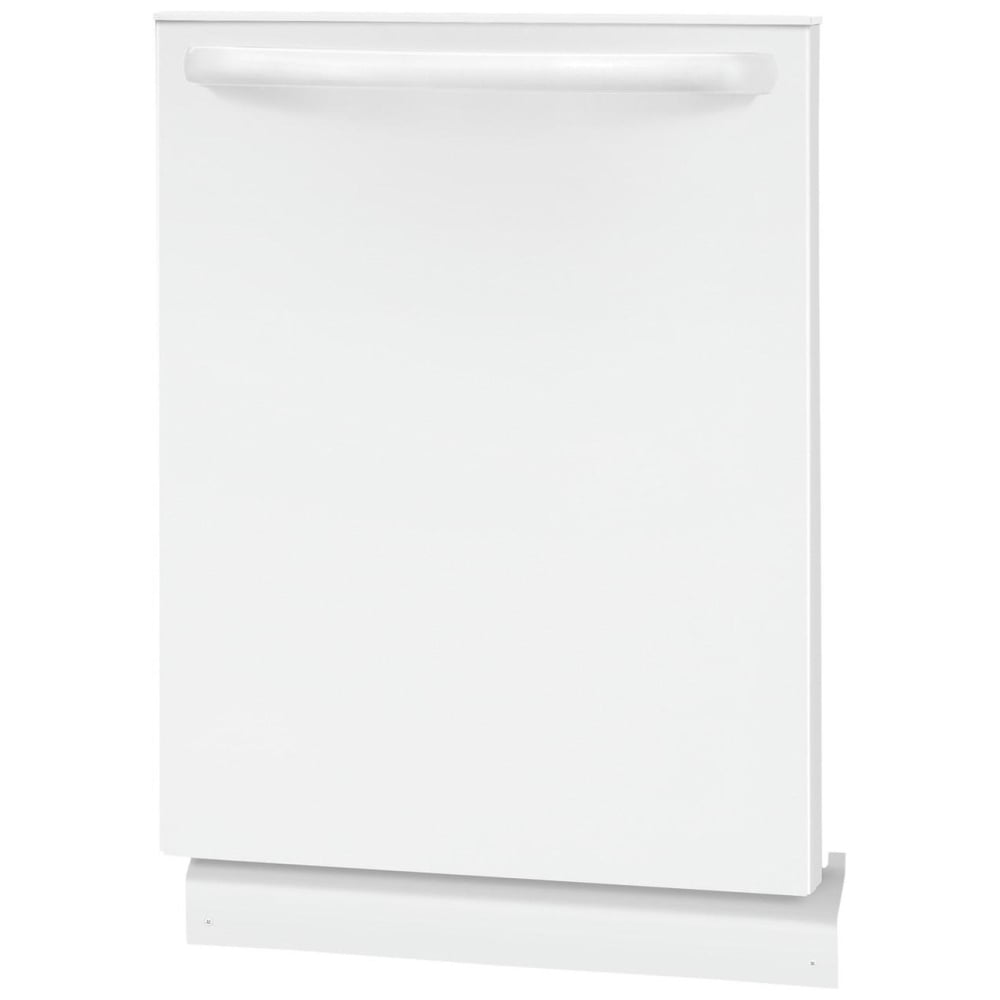

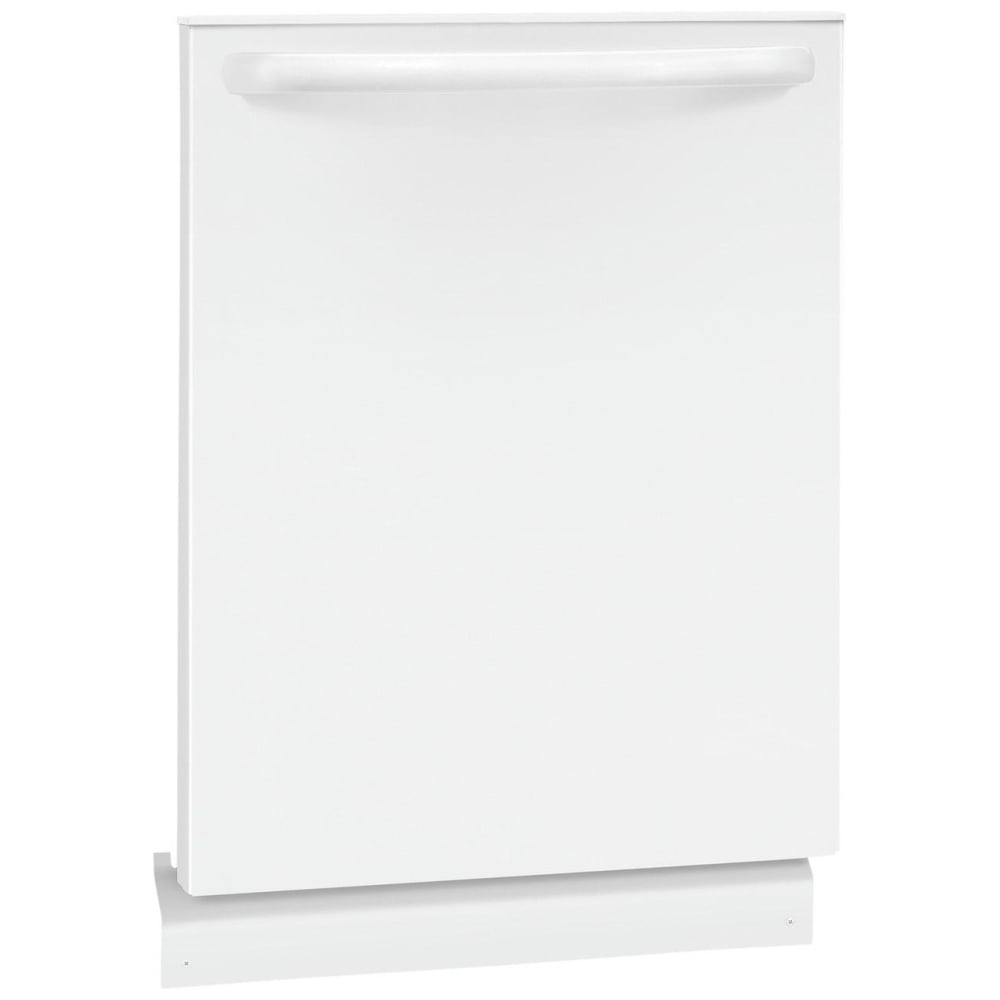

Frigidaire 24" Built-In Dishwasher FDPH4316AW

Product Line Dishwasher

Power Type Electric 120v

Size 24"

Installation Type Built-In

Factory Kinston

Color White

Dishwasher

Automatic Temperature Control Yes

Detergent Dispenser Yes

Filter Material Plastic

Filter Trap Removable

Filtered Water 100 %

Hard Food Disposer or Filtration Yes

Motor Speeds Single-Speed

Place Setting Capacity 14

Rinse Aid Dispenser Yes

Smart Soil Sensor Yes

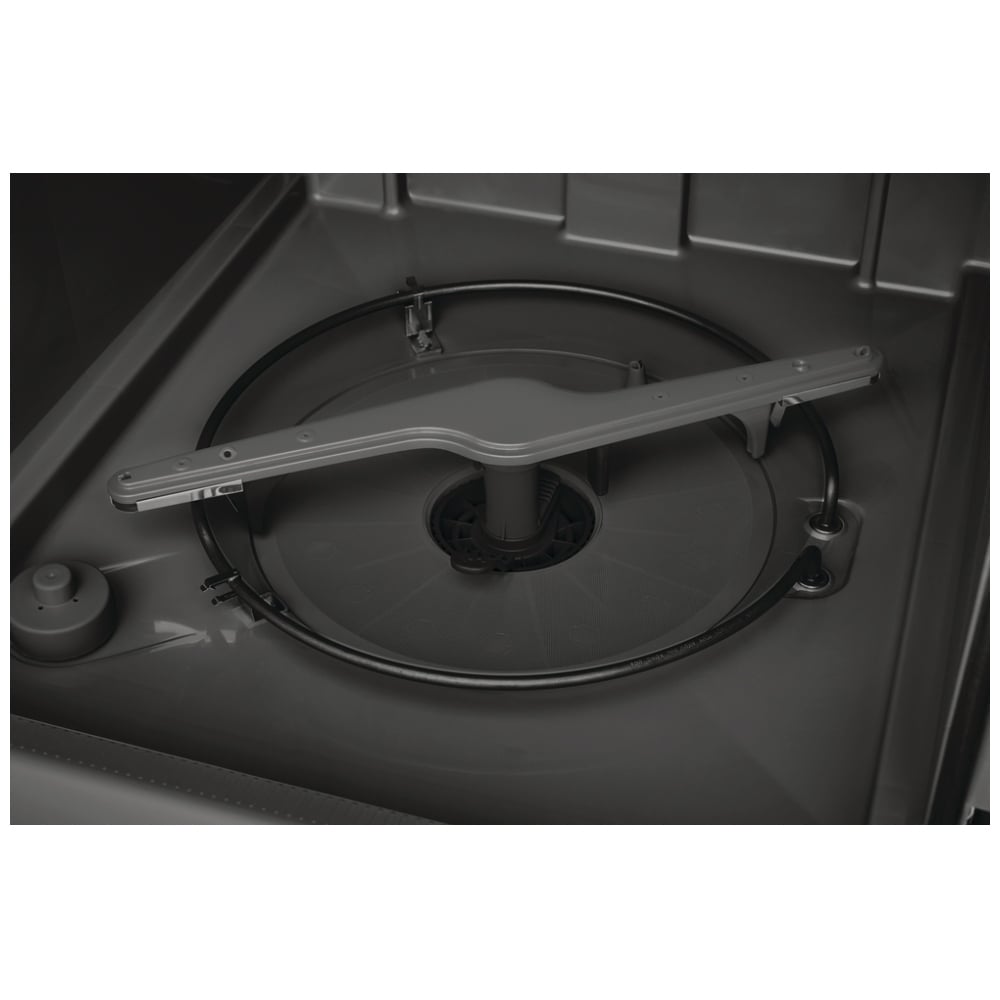

Lower Spray Arm Bi-Beam

Middle Spray Arm Bi-Beam

Upper Spray Arm Spray Arm

Tub Color Midnight Ink

Tub Design Tall Tub

Tub Material Plastic

Wash Levels 5

Wash System Direct Feed

Water Pressure 120 psi

Water Usage 3.2 Gallons

Dishwasher Cycles

Energy Saver Yes

Heavy Yes

Normal Yes

Number of Cycles 4

Quick Yes

Dishwasher Options

Air Dry Yes

Dry - Heat Yes

Dry - Max Yes

Drying System Static Vent

Heated Dry Yes

High Temperature Yes

Start/Cancel Yes

Washing Temperature - High Yes

Washing Temperature - Sanitize Yes

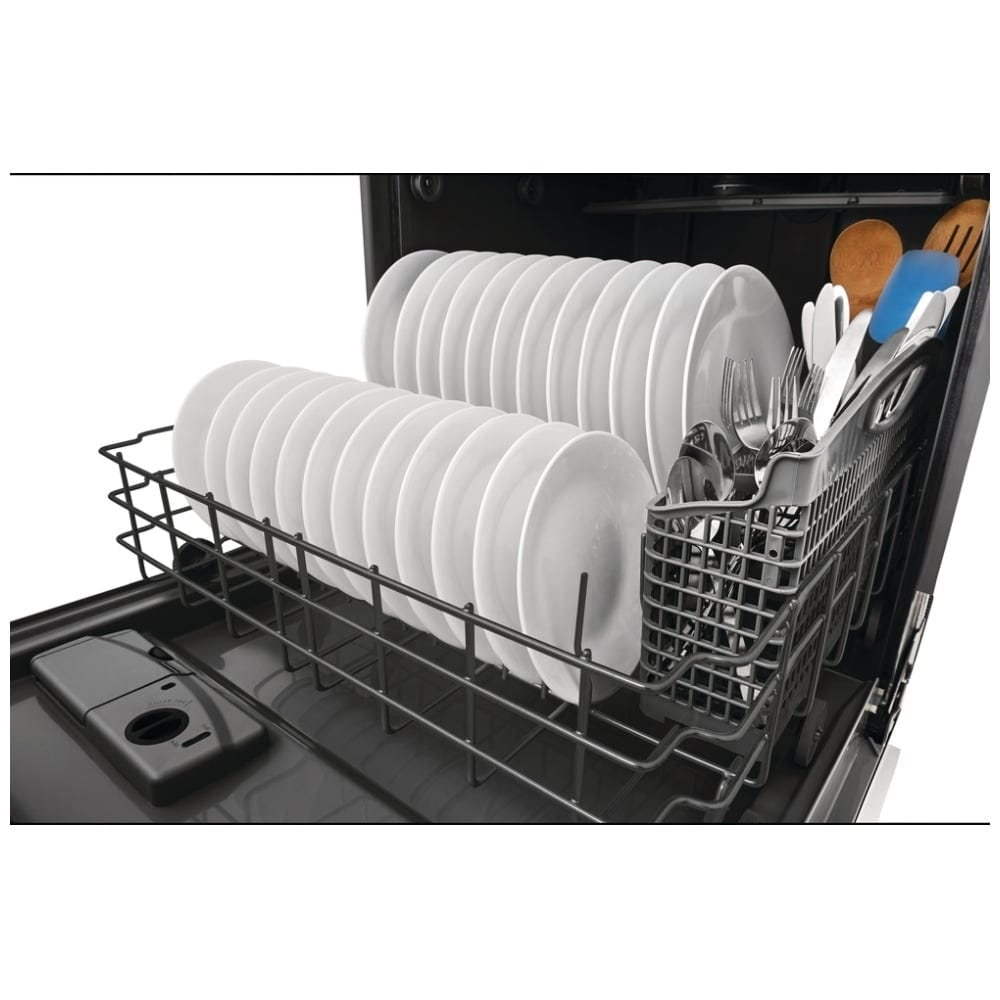

Lower Rack

Maximum Height Clearance 13"

Minimum Height Clearance 11"

Number of Silverware Basket 1

Number of Silverware Basket Lids 3

Rack Coating PVC

Rack Type Standard

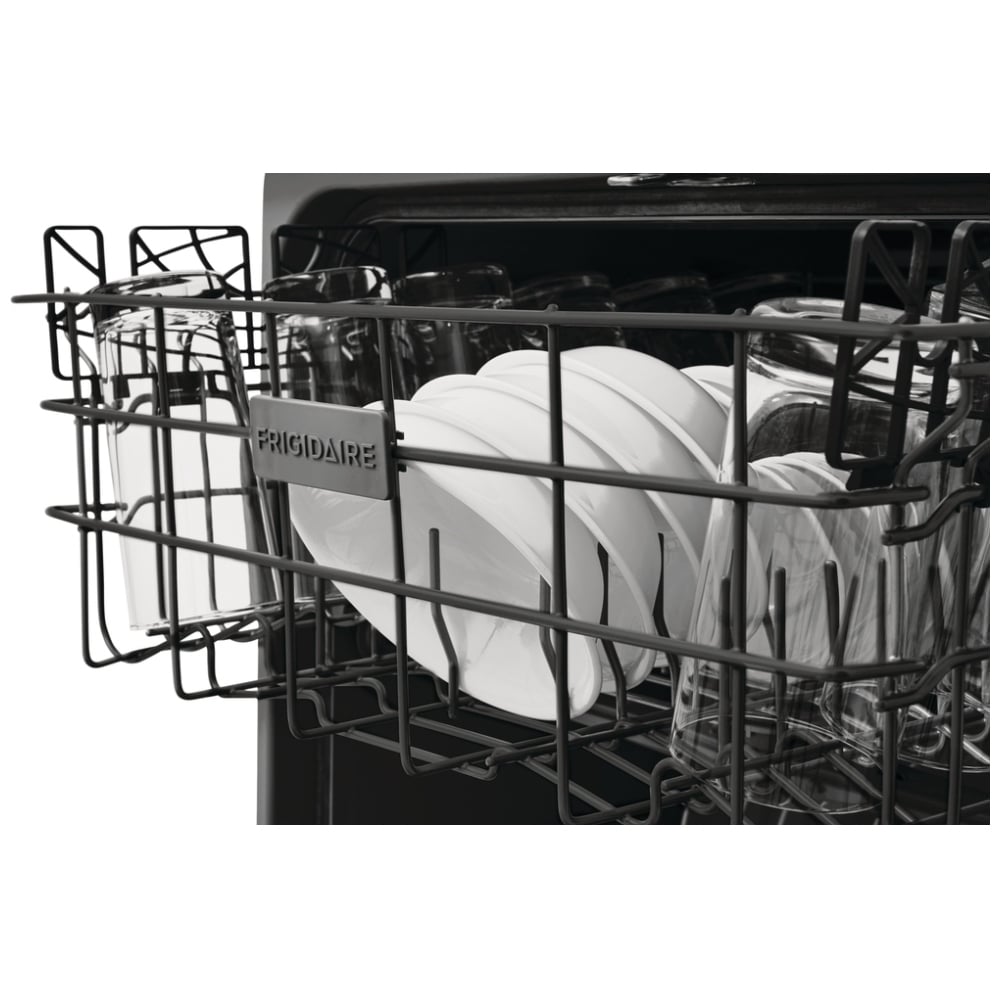

Upper Rack

Cup Shelf Yes

Minimum Height Clearance 8"

Rack Coating PVC

Rack Spacer Yes

Rack Type Standard

General Specifications

Sound Level 52 dBA

Annual Energy 240 kWh

Product Weight 56 lbs

Prop 65 Label Yes

Warranty - Labor 1 Year

Warranty - Parts 1 Year

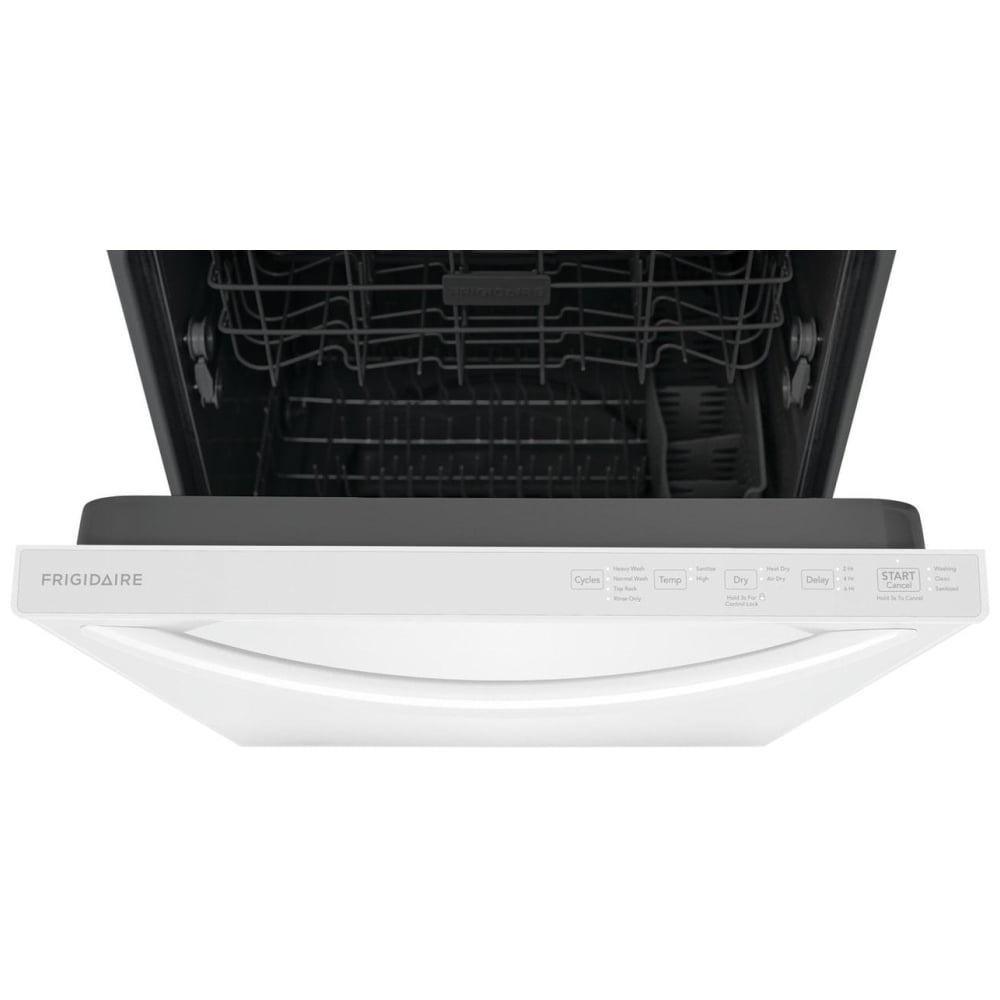

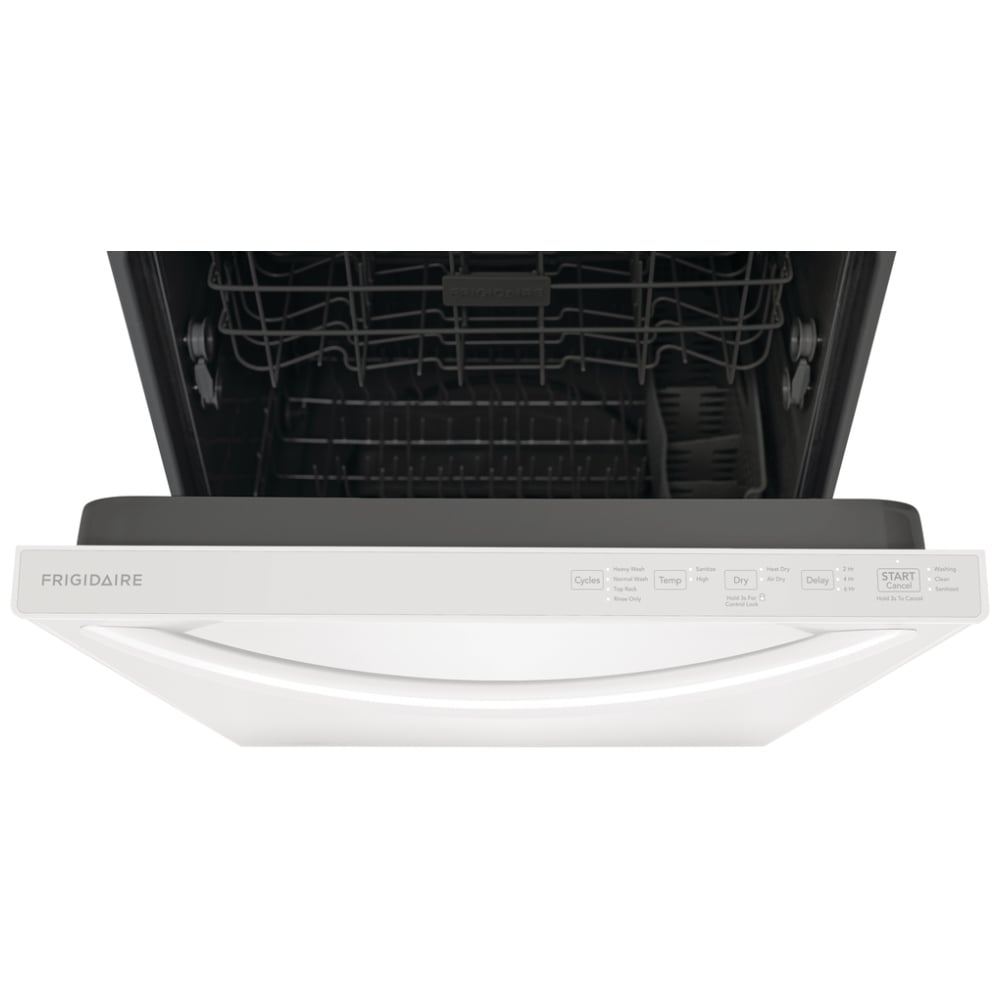

Controls

Control Location Top

Control Lock Yes

Delay Start Hours 2-4-6 Hours

Digital Display No

Rinse Aid Indicator Yes

Exterior

Door and Handle Design Handle

Door Latch Pull

Door Type StayPut

Dimensions and Volume

Minimum Height 33 1/2"

Maximum Height 35"

Width 24"

Depth 25"

Depth With Door Open 49 1/4"

Electrical Specifications

Amps @ 120 Volts 10 Amps

Connected Load @ 120V 1.2 kW

Voltage Rating 120 V

Installation

Connection Location Right Bottom

Number of Leveling Legs 4

Water Inlet Location Left Bottom Front
