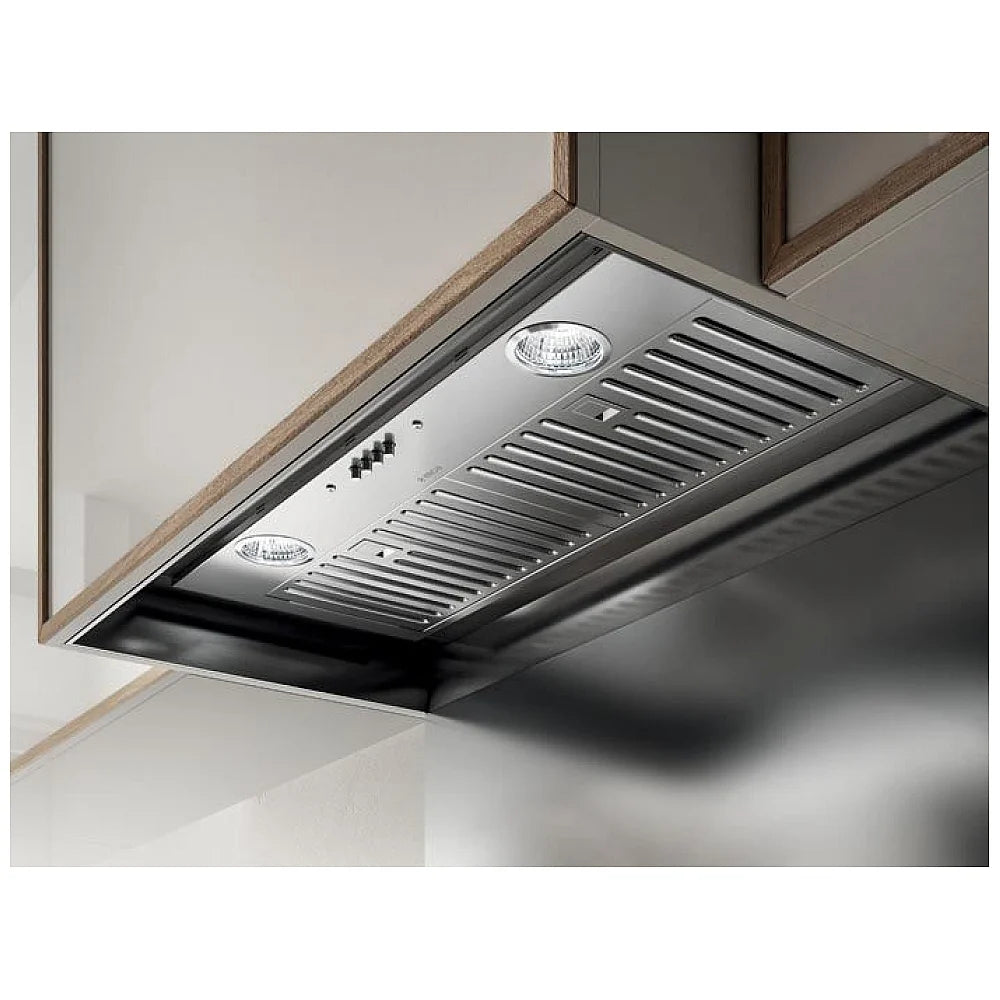

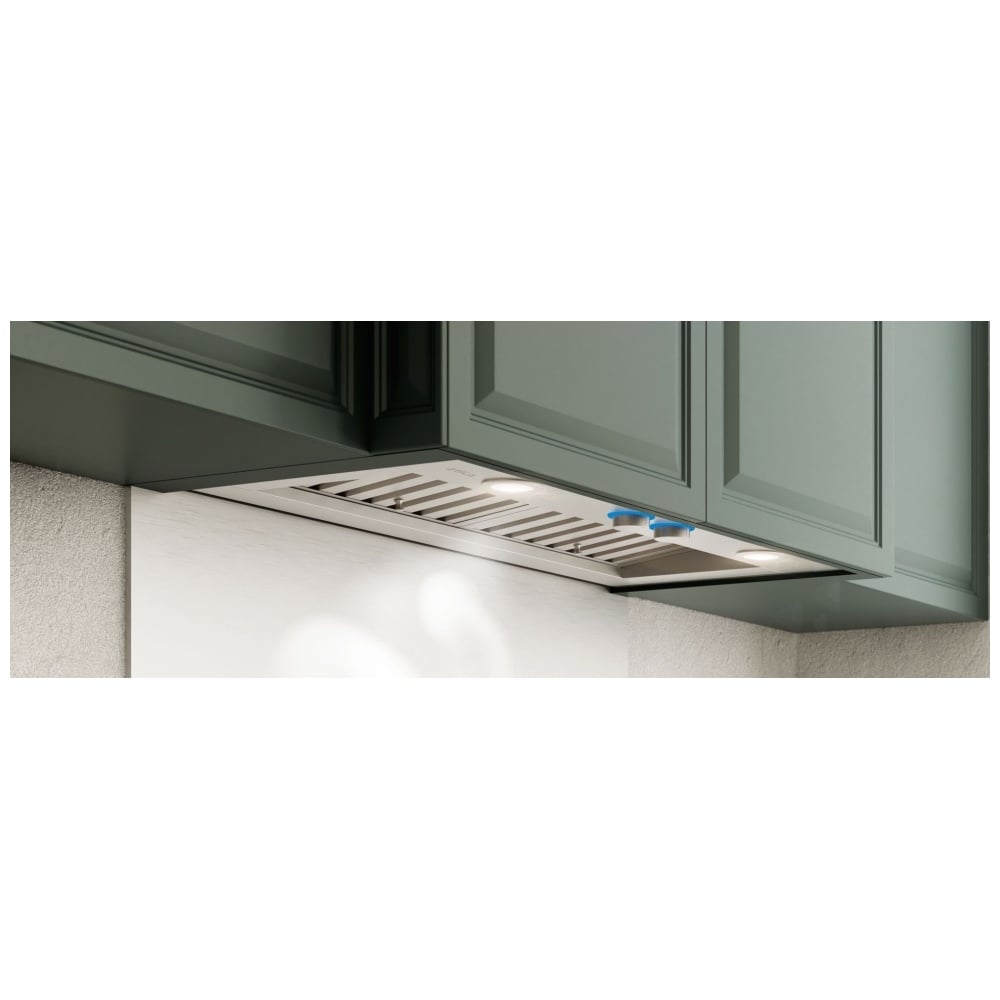

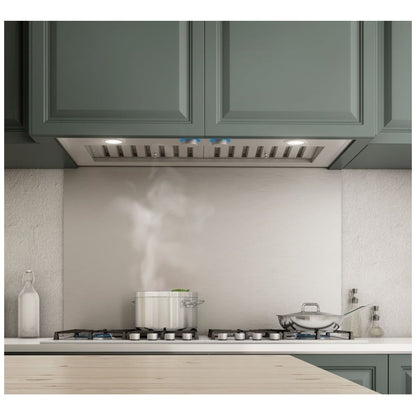

Elica ETR134S1 Cabinet Insert Range Hoods

Elica ETR134S1 Cabinet Insert Range Hoods

• In Stock
$1,679.00 CAD
$1,939.00 CAD $1,679.00 CAD
View full details
  • brand:
    Elica
  • brand series:
    Elica
  • category:
    Cabinet Inserts
  • cfm:
    1200
  • colour:
    Stainless Steel
  • depth:
    18''
  • height inch :
    12
  • prices:
    $1499 - $1999
  • sub categories:
    Cabinet Insert
  • width:
    34

Key Features

  • Professional grade performance
  • Sleek design
  • Exceptional ventilation
ETR134S1-makeup-air-kit-specification-sheet-canada.pdf
ETR134S1-specification-sheet-canada.pdf
ETR134S1-in-line-blower-and-external-blower-spec-sheet-canada.pdf
ETR134S1-install-instructions-canada.pdf
ETR134S1-in-line-blower-instalation-manual-canada.pdf

Technical features
Width 28 , 34 , 46
Sones Min 7 Max 8.2
Extraction capacity 600 CFM / 1200 CFM
Selected Model
Color Stainless Steel
Model number ETR134S1

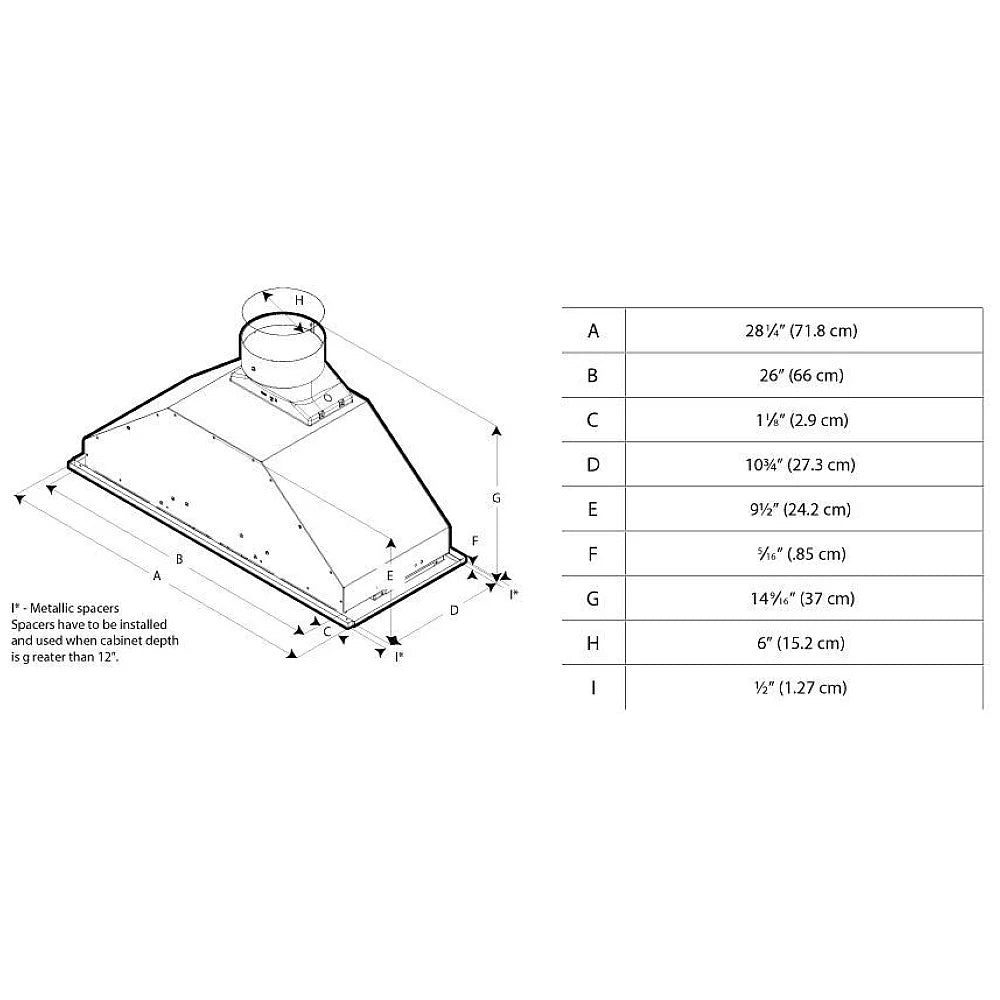

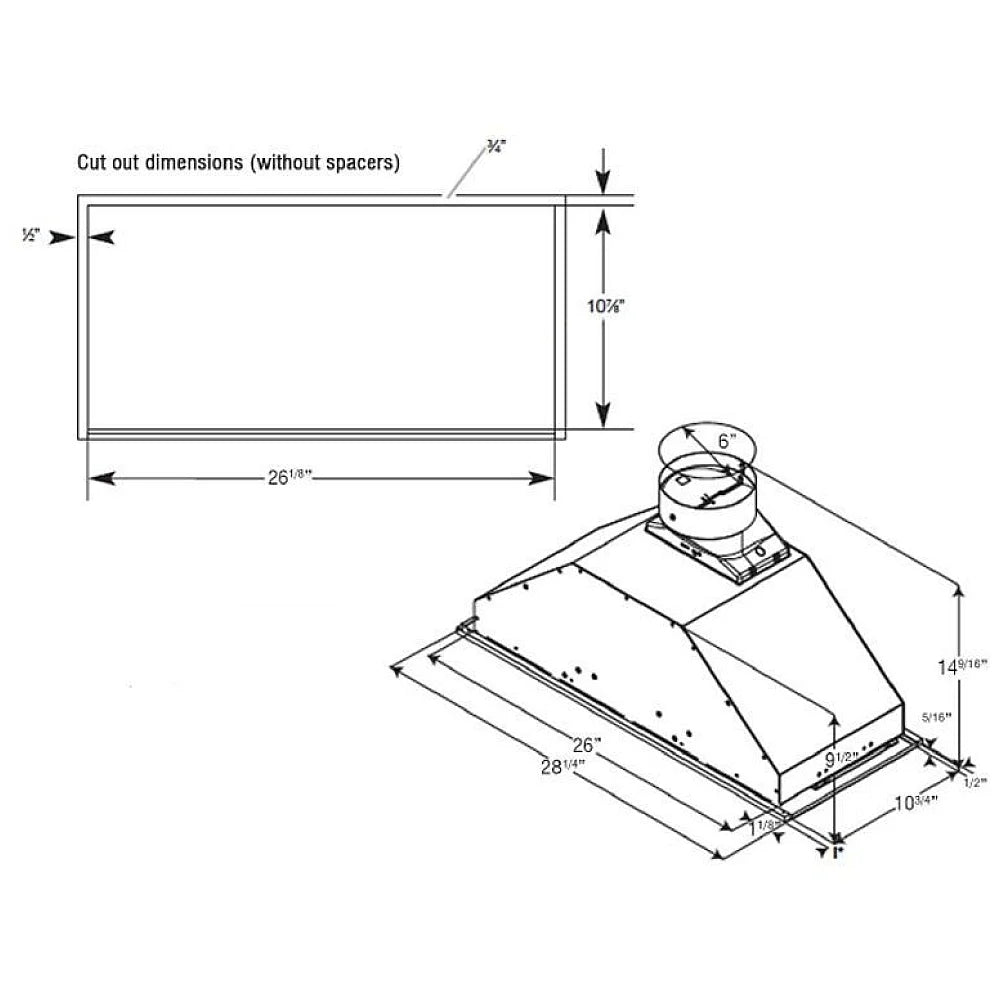

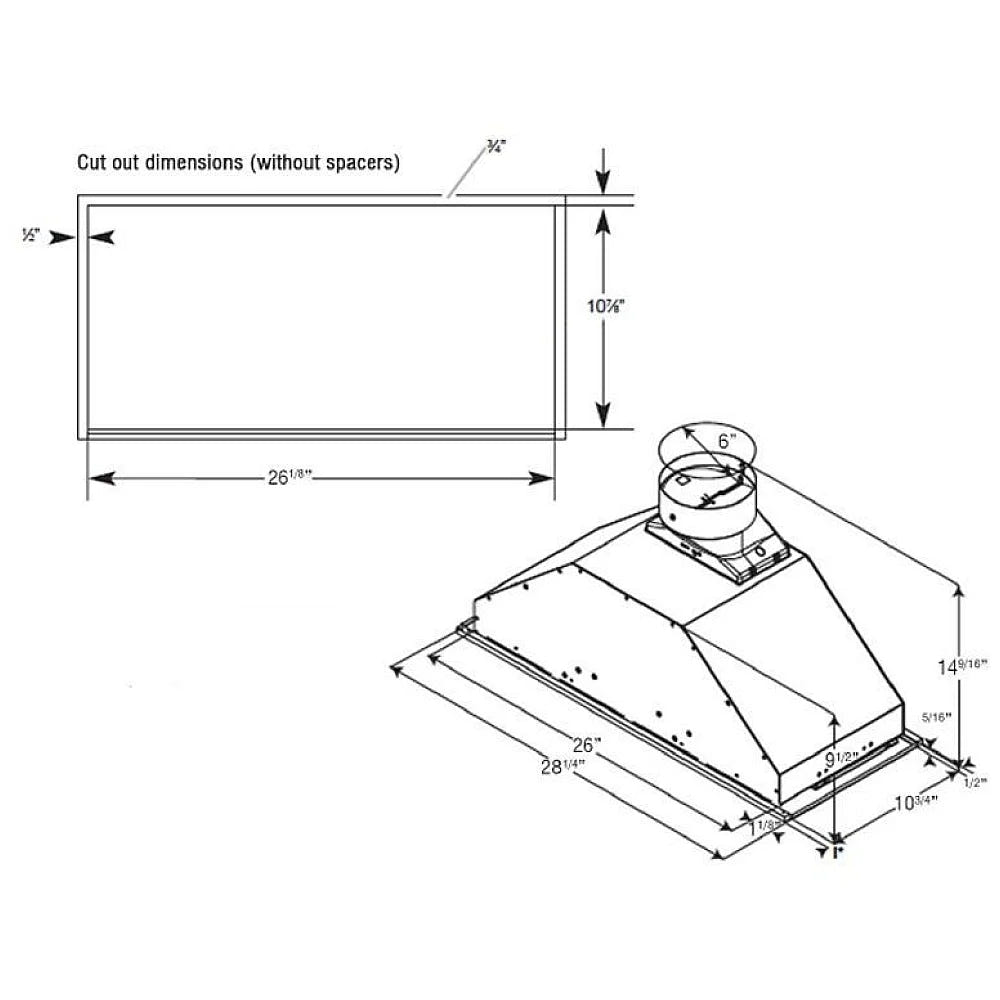

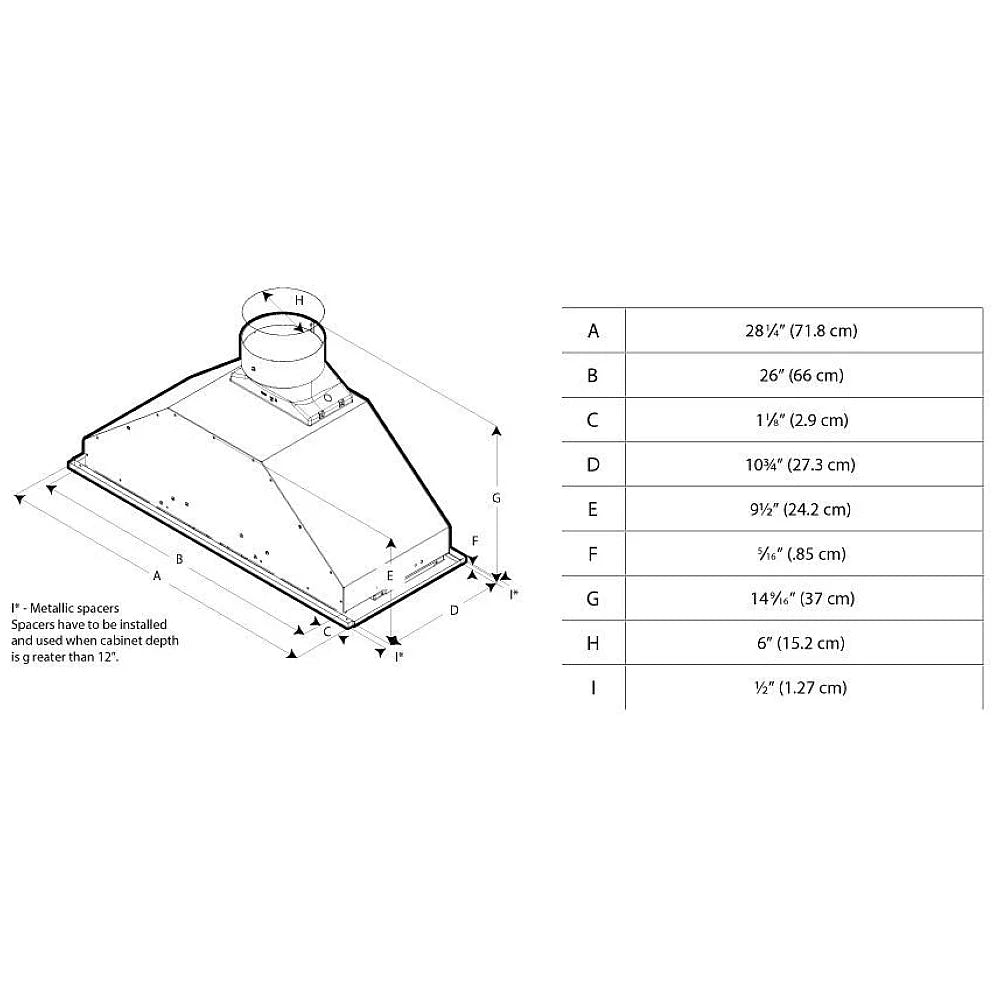

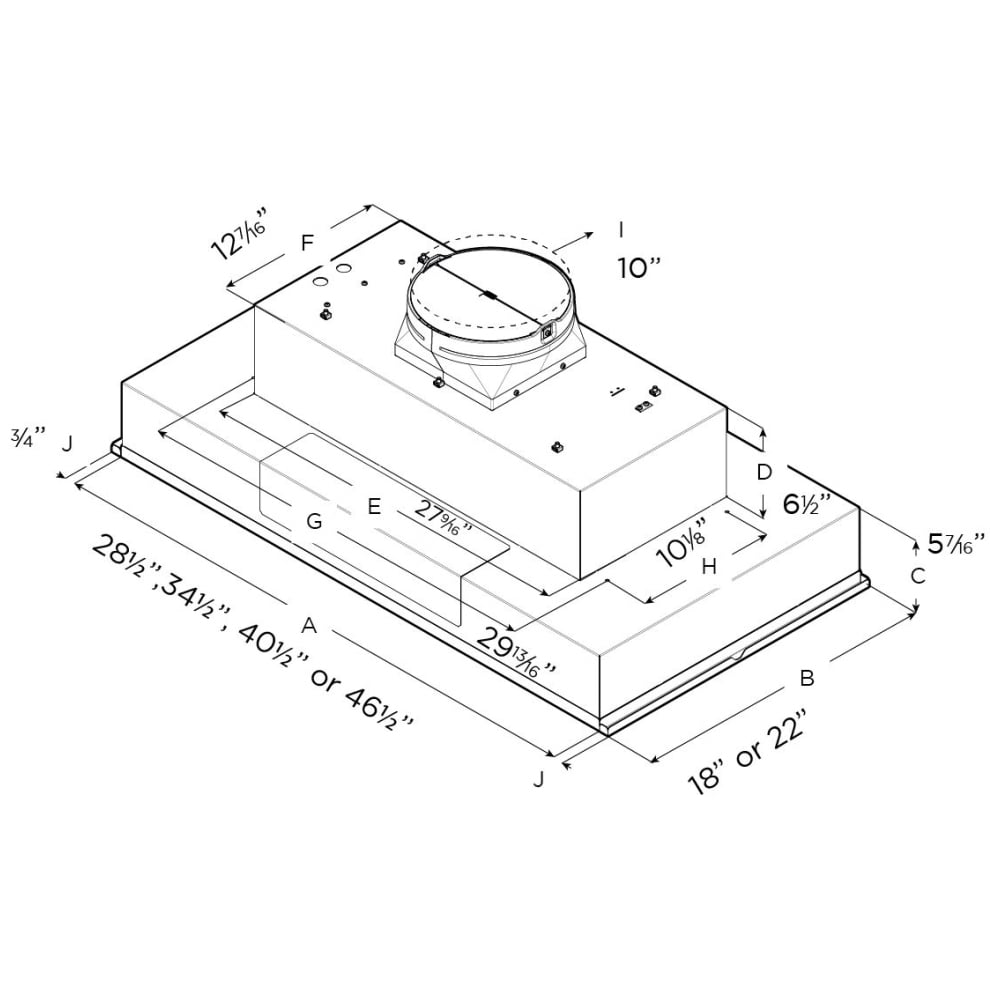

Dimensions
Dimensions 34 1/2'' (W) x 18'' (D) x 11 1/2'' (H)
Features

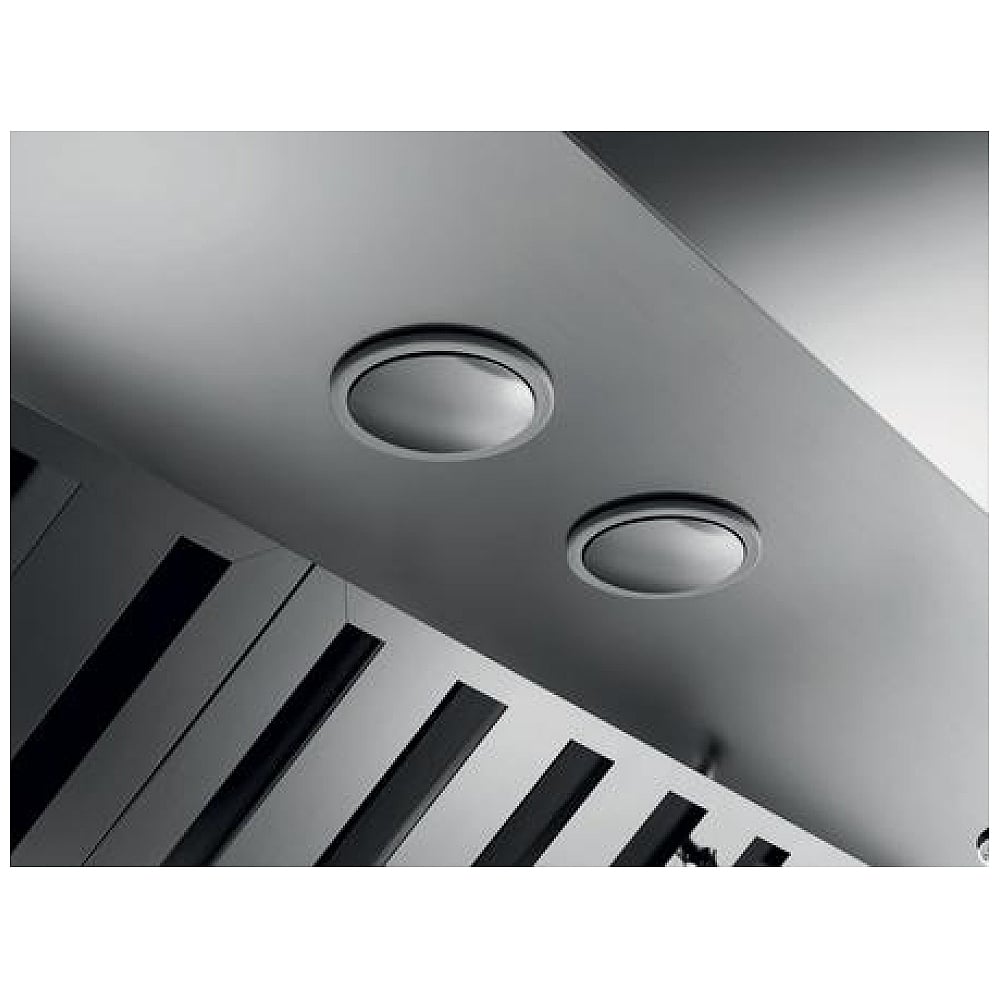

Controls Fully recessing stainless rotating knobs with illumination
Illumination 2 2.5W Premium LED lamps, 1 intensity (bulbs included)
Blower Type 4-speed, 1200 CFM
Blower Performance Speed 1, 380 CFM 2.05 sones
Speed 2, 660 CFM 4.2 Sones
Speed 3, 950 CFM 5.9 Sones
Speed 4, 1200 PCM 7.5 Sones
Filter Type 2 Stainless Steel Baffle Filters
Ducting Ducted Installation Only
Duct transition 10‘‘ Round (Top) | Back Draft Damper included
Special features Hush Silence System
Electrical Requirements
Electrical requirements 120V-60 HZ / 260 Watt at 4.6 Amps
Accessories (optionnal)
External Blower Kit KIT0153054 (1200 CFM compatible 8'' & 10'' duct transition)
Inline blower kit KIT0154387 (1200 CFM compatible 8'' &10'' duct transition)
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
