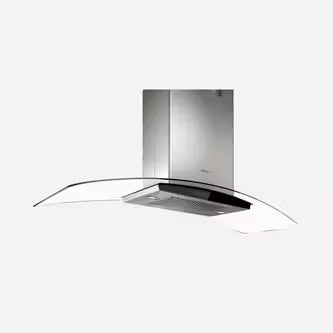

Designed to be suspended above a kitchen island, Cingoli features elegant 36" or 42" arched glass wings that allow natural light to illuminate the surface below. These expansive glass wings are complemented by reflective stainless steel. Cingoli combines beauty with functionality, offering a powerful 600 CFM blower, dishwasher-safe stainless steel micro hole filter, and glass touch controls for convenience and safety. Designed for standard ducted installation, Cingoli can also be installed as a recirculating system using the optional Recirculating Kit.

  • CFM Reduction
    • CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
  • Dim-light
    • The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
  • Hush System
    • An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
  • Top Performance
    • Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
  • CFM reduction system
  • Touch controls
  • Led light

Warranty
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)
41.30
NET WEIGHT (kg)
28.50
CARTON LENGHT (mm)
1040.00
CARTON HEIGHT (mm)
596.00
CARTON WIDTH (mm)
850.00
VOLUMEN (M3)
0.53
SHIPPING WEIGHT (lb)
91.05
NET WEIGHT (lb)
62.83
CARTON LENGHT
40.94
CARTON HEIGHT
23.46
CARTON WIDTH
33.46
COUNTRY OF MANUFACTURE
MX
QTY PACKAGE
1.00
INTENDED APPROVED USE
Residential use
Finish
Stainless Steel + Black Glass
Material
Stainless Steel
Color
inox + glass
Type of Ventilation
Convertible
HOODS FEATURES
Hush system, Dim light, Top performance, CFM reduction system, Touch controls , Led light
WIDTH (IN)
30"
WIDTH (CM)
76.00
AIRFLOW (M3/H)
1020.00
CFM (MAX)
600.00
db (min)
35.65
db (max)
55.00
SONES
1.7 - 6.8
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Round 6"
DUCT SHAPE
Round
EXHAUST LOCATION
Top Only
RECTANGULAR DUCTH HEIGHT
NA
RECTANGULAR DUCT WIDTH
NA
Round duct diameter
6"
ELECTRIC (VOLTS)
120.00
AMPERAGE
3.8 A
HERTZ
60.00
WATTS
394.00
LIGHTING
Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE
LED
BULB INCLUDED
YES
NUMBER OF LIGHTS
2.00
BULB WATTS
2.10
KELVINS
4000.00
GREASE FILTER TYPE
Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER
YES
FILTER MATERIAL
Stainless Steel
BLOWER TYPE
Interior Unit
CONTROL TYPE
Multi-function Electronic with black glass touch display
SPEED CONTROL
YES
NUMBER OF SPEEDS
4.00
REMOTE CONTROL
NO
POWER SOURCE
Hardwired
OUTDOOR USE
NO
SMUDGE RESISTANT
NO
PANEL READY
NO
RECIRCULATION KIT NEEDED
YES
CFM REDUCTION
Yes
DIMENSIONS (CM)
91 x 64 x 74
DIMENSIONS (INCH)
36" x 25 1/4" x 29 3/4"
ADJUSTABLE HEIGHT
YES
Minimum Overall Height - Top to Bottom
29 3/4"
Maximum Overall Height - Top to Bottom
49 1/2"
Overall Height - Top to Bottom
29 3/4"-49 1/2"
Overall Width - Side to Side2
36"
Overall Depth - Front to Back
25 1/4"
Hood Height
1 15/16"
Min - Max Compatible Ceiling Height (Cover electronic cooking)
7'6"
Min - Max Compatible Ceiling Height ( Cover gas cooking)
10'1"
Minimum Height Above Cooktop (ELECTRIC)
24
Minimum Height Above Cooktop (GAS)
30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
13"
Chimney Depth - Front to Back
12"
Chimney Height - Top to Bottom
29 13/32
RECIRCULATION KIT NUMBER
KIT02665
CHIMNEY EXTENTION NUMBER
KIT0100317
TELESCOPIC DUCT COVER
-
DUCT TRANSITION
-
TRANSITION REDUCER KIT
-
BACKDRAFT DAMPER
-
NON RETURN VALVE
-
UPGRADE FILTER
-
CFM REDUCTION KIT
-
BACKSPLASS KIT
-
INTERNAL BLOWER
-
INLINE BLOWER
-
EXTERNAL BLOWER
-
INLINE BLOWER SHELL KIT
-
EXTERNAL BLOWER SHELL KIT
-
HEAT LAMPS
-
SPACER/LINER
-
WALL MOUNT BRACKET
-
HIGH CEILING EXTENSION KIT
-
REMOTE CONTROL KIT
-
ETL
YES
UL listed
YES
AHAM verified
YES
TITLE 24
YES
Prop65 Disclosure
YES
ENERGY STAR
NO
WIFI CAPABLE
NO
COMERCIAL USE APPROVED
NO
ADA COMPLIANT
NO
APP CAPABLE
NO
VENTILATION DIRECTION
HORIZONTAL
SMART COMPATIBLE
NO
FITLER INDICATOR LIGHT
NO
HEAT SENSOR
NO
CHAROCAL FILTER
YES

Standard manufacturer warranty applies. Contact support for details.
