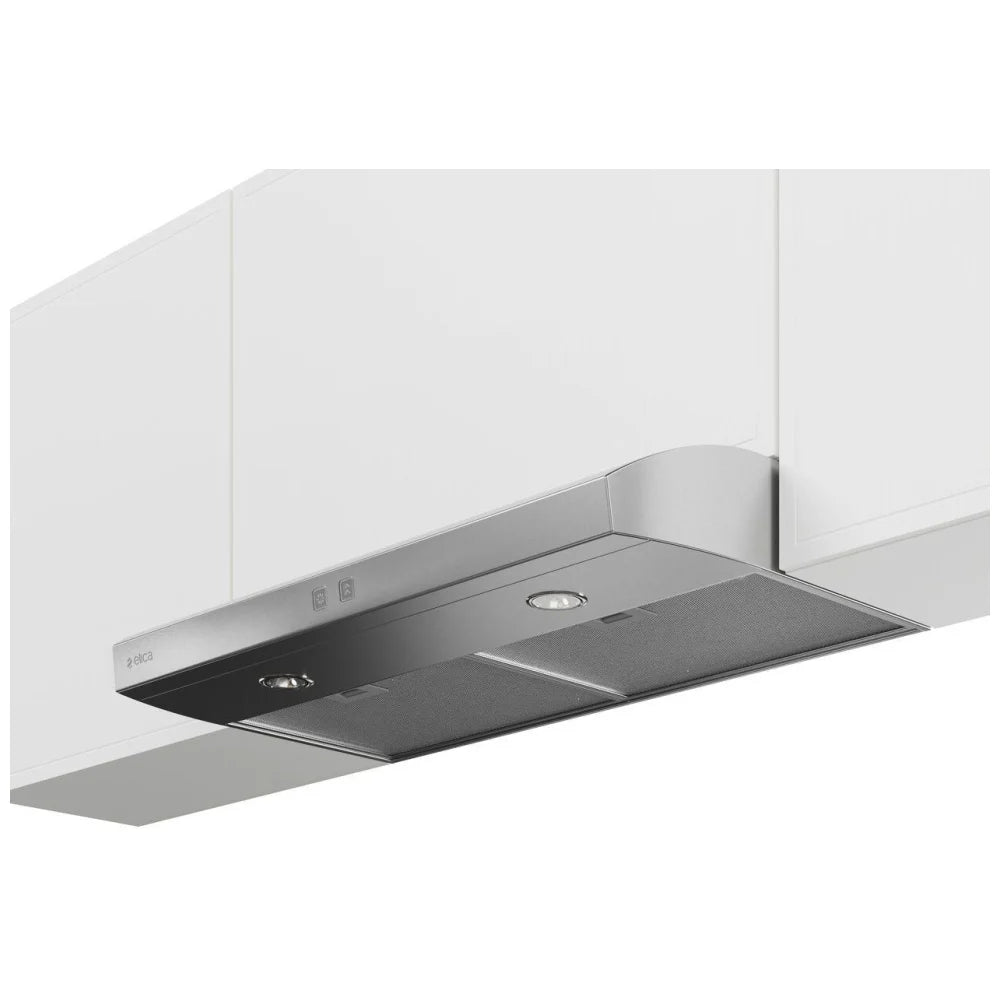

Elica EBL436S2 Range Hood, 36 inch Exterior Width, 4, 430 CFM, LED, Aluminum Mesh Filter, Stainless Steel colour
Elica
EBL436S2
Elica EBL436S2 Range Hood, 36 inch Exterior Width, 4, 430 CFM, LED, Aluminum Mesh Filter, Stainless Steel colour
MSRP: $839.00
MAP Price MAP Price $739.00
Quick Specs
  • WiFi Enabled: No
  • CFM: 430
Dimensions
W 36in
H 5in
D 20in
With a compact 4 3/ height, Bellagio is an ideal choice where under-cabinet space is limited. Equipped with an upgraded 4-speed, 400 CFM internal blower that provides sufficient ventilation power, dishwasher-safe, anodized aluminum mesh filters, and multiple backlight color touch controls illuminated in elegant white, green, blue, or red. Available in 30 or 36 width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

  • 3X Layer Mesh Filter
Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
  • CFM Reduction
CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
  • LED Light
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.

Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 12.50
NET WEIGHT (kg) 10.00
CARTON LENGHT (mm) 864.00
CARTON HEIGHT (mm) 618.00
CARTON WIDTH (mm) 249.00
VOLUMEN (M3) 0.13
SHIPPING WEIGHT (lb) 27.56
NET WEIGHT (lb) 22.05
CARTON LENGHT 34.02
CARTON HEIGHT 24.33
CARTON WIDTH 9.80
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Material Stainless Steel
Color inox
Type of Ventilation Convertible
HOODS FEATURES 3x layer mesh, Led light, CFM reduction system
WIDTH (IN) 30"
WIDTH (CM) 76.00
AIRFLOW (M3/H) 680.00
CFM (MAX) 400.00
db (min) 26.40
db (max) 51.00
SONES 0.9 - 5.0
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Rectangular 10 x 3 1/4" or round 7" (sold separately)
DUCT SHAPE Rectangular or round (sold separately)
EXHAUST LOCATION Top or Rear
RECTANGULAR DUCTH HEIGHT 10"
RECTANGULAR DUCT WIDTH 3.25
Round duct diameter 7"
ELECTRIC (VOLTS) 120.00
AMPERAGE 3A
HERTZ 60.00
WATTS 445.00
LIGHTING LED 2 x 2.1 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 2.00
BULB WATTS 6.50
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Aluminum Mesh
BLOWER TYPE Interior Unit
CONTROL TYPE Electronic Touch Controls with Adjustable Color Backlight
SPEED CONTROL YES
NUMBER OF SPEEDS 4.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
PANEL READY NO
RECIRCULATION KIT NEEDED YES
CFM REDUCTION Yes
DIMENSIONS (CM) 76 x 51 x 12
DIMENSIONS (INCH) 30" x 20" x 4 3/4"
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom 4 3/4"
Maximum Overall Height - Top to Bottom 4 3/4"
Overall Height - Top to Bottom 4 3/4"
Overall Width - Side to Side2 30"
Overall Depth - Front to Back 20"
Hood Height 4 3/4"
Min - Max Compatible Ceiling Height (Cover electronic cooking) NA
Min - Max Compatible Ceiling Height ( Cover gas cooking) NA
Minimum Height Above Cooktop (ELECTRIC) 24
Minimum Height Above Cooktop (GAS) 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT02178
CHIMNEY EXTENTION NUMBER NA
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER KIT02723
NON RETURN VALVE -
UPGRADE FILTER GRI0131086A
CFM REDUCTION KIT -
BACKSPLASS KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT -
EXTERNAL BLOWER SHELL KIT -
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
ETL YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65 Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR NO
CHAROCAL FILTER YES

Standard manufacturer warranty applies. Contact support for details.
