Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 31.70
NET WEIGHT (kg) 22.70
CARTON LENGHT (mm) 1354.00
CARTON HEIGHT (mm) 421.00
CARTON WIDTH (mm) 699.00
VOLUMEN (M3) 0.40
SHIPPING WEIGHT 69.89
NET WEIGHT 50.04
CARTON LENGHT 53.31
CARTON HEIGHT 16.57
CARTON WIDTH 27.52
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Color inox
Type of Ventilation Vented
HOODS FEATURES Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN) 46
WIDTH (CM) 117.00
AIRFLOW (M3/H) 2040.00
CFM (MAX) 1200.00
db (min) 36.00
db (max) 59.00
SONES 1.7 - 8.5
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 8"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 10"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 7.6 A
HERTZ 60.00
WATTS 926.00
LIGHTING Premium LED 4 x 6.5 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 4.00
BULB WATTS 6.50
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Stainless Steel
BLOWER TYPE Interior Unit
CONTROL TYPE Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL YES
NUMBER OF SPEEDS 4.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED NO
CFM REDUCTION Yes w/kit

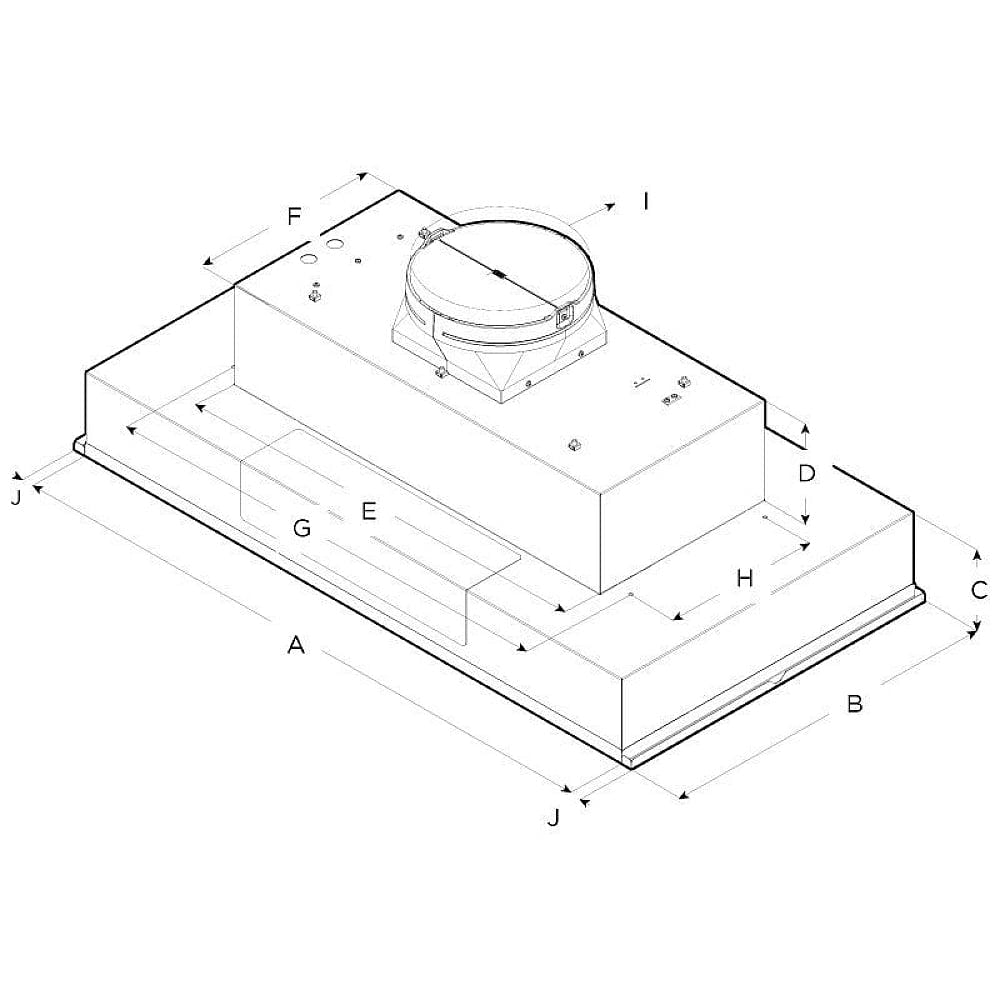

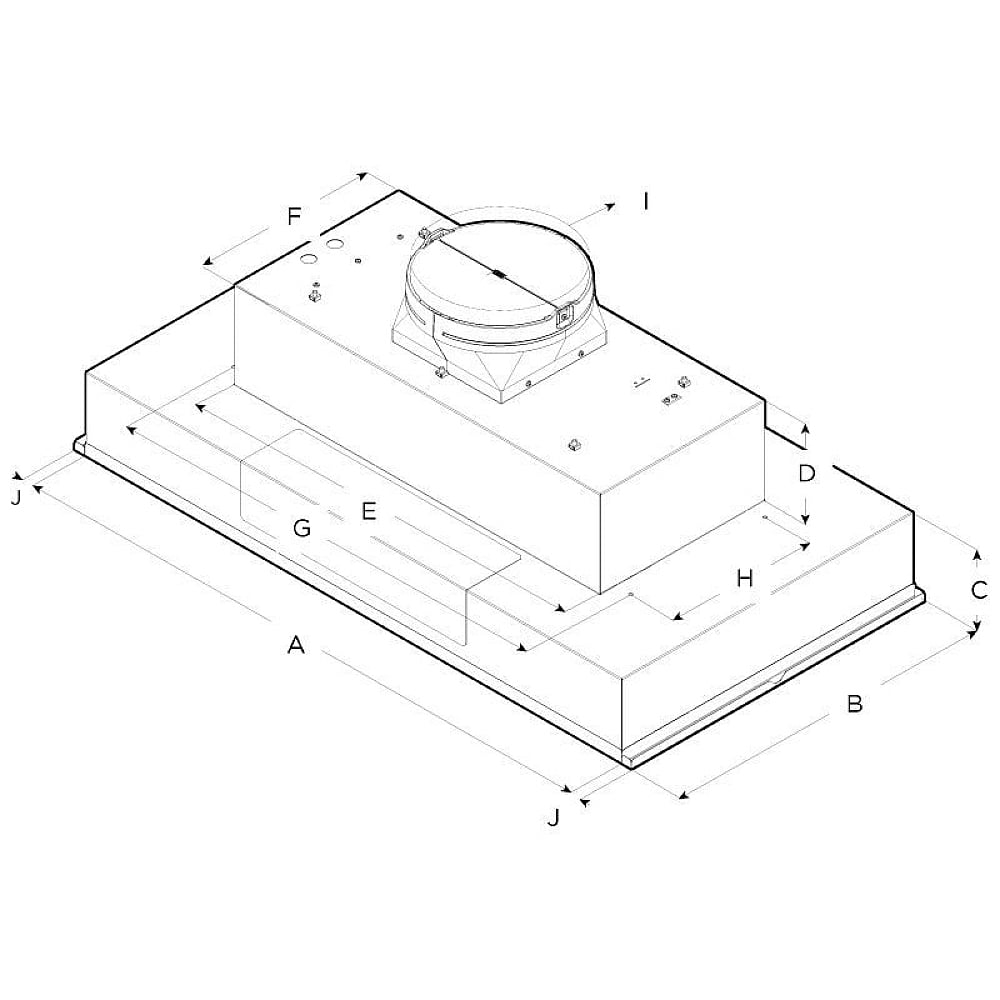

DIMENSIONS 118 x 56 x 30
DIMENSIONSinches 46 1/2 x 22" x 11 7/8
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom 11 7/8
Maximum Overall Height - Top to Bottom 17 /16
Overall Height - Top to Bottom 11 7/8
Overall Width - Side to Side2 46 1/2
Overall Depth - Front to Back 22"
Hood Height 11 7/8
Minimum Compatible Ceiling Height NA
Maximum Compatible Ceiling Height NA
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT0192765 + KIT0192763
CHIMNEY EXTENSION NUMBER NA
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT KIT0185099
BACKSPLASH KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT KIT0179549
EXTERNAL BLOWER SHELL KIT KIT0179547
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR YES
CHAROCAL FILTER NO
CERTIFICADO NOM Activo

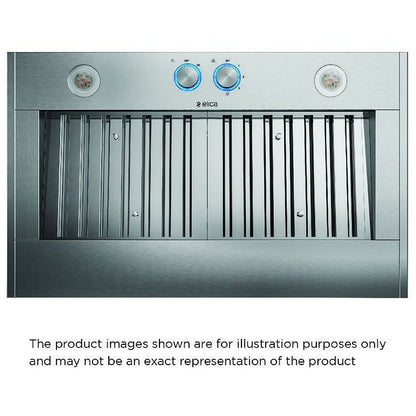

Selected Model
Model number EAR146S2
Dimensions
Dimensions 46½'' (W) X 22'' (D) X 11½'' (H)
Exterior Appearence
Stainless Steel grade 430
Features

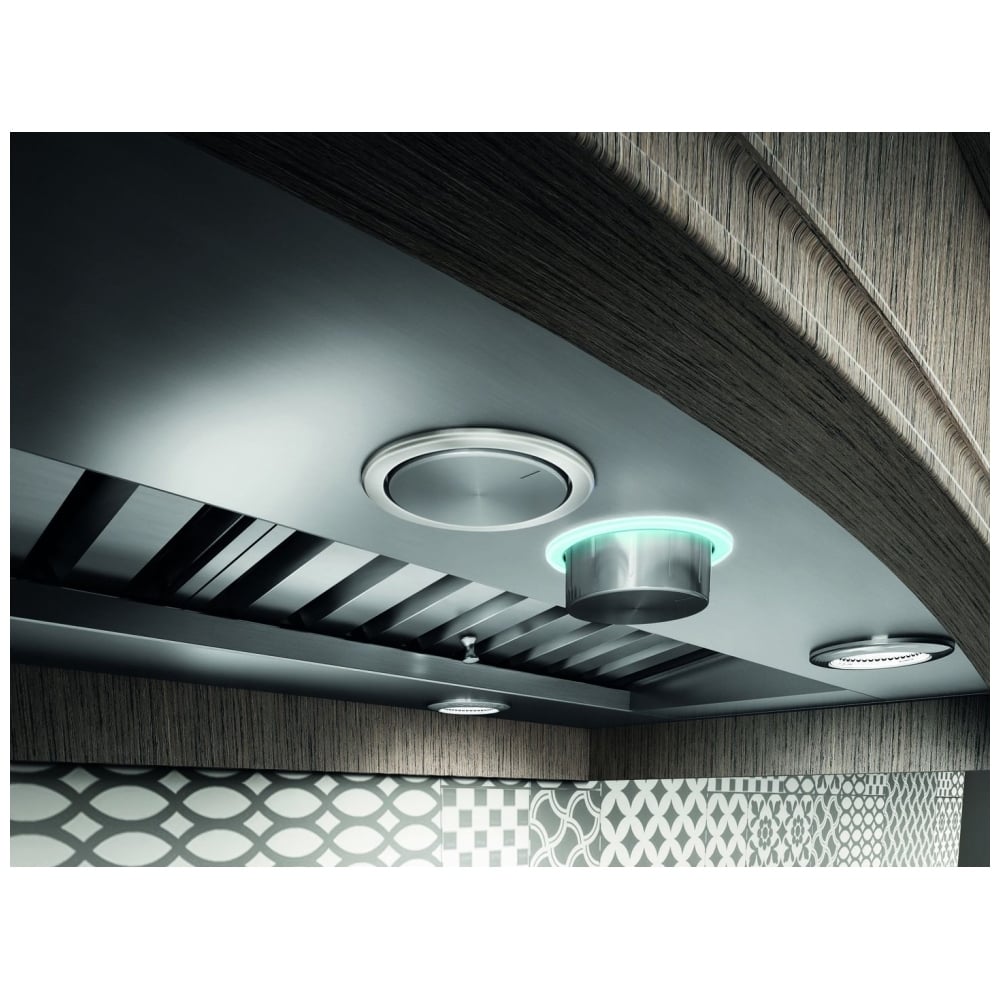

Controls Fully recessing stainless rotating knobs with illumination
Illumination 4 2.5W LED, 1 intensity (bulbs included)
Blower Type 4-speed, 1200 CFM
Blower Performance Speed 1, 380 CFM, 2.8 Sones
Speed 2, 660 CFM, 6.7 Sones
Speed 3, 950 CFM, 8.5 Sones
Speed 4, 1200 CFM, 14.3 Sones
Filter Type Stainless Steel Baffle filters (4X)
Ducting Ducted Installation Only
Duct transition 10‘‘ Round (Top) | Back Draft Damper included
Special features Hush Silence System
Electrical Requirements
Electrical requirements 120V-60 HZ / 1000 Watt at 8.3 Amps
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
