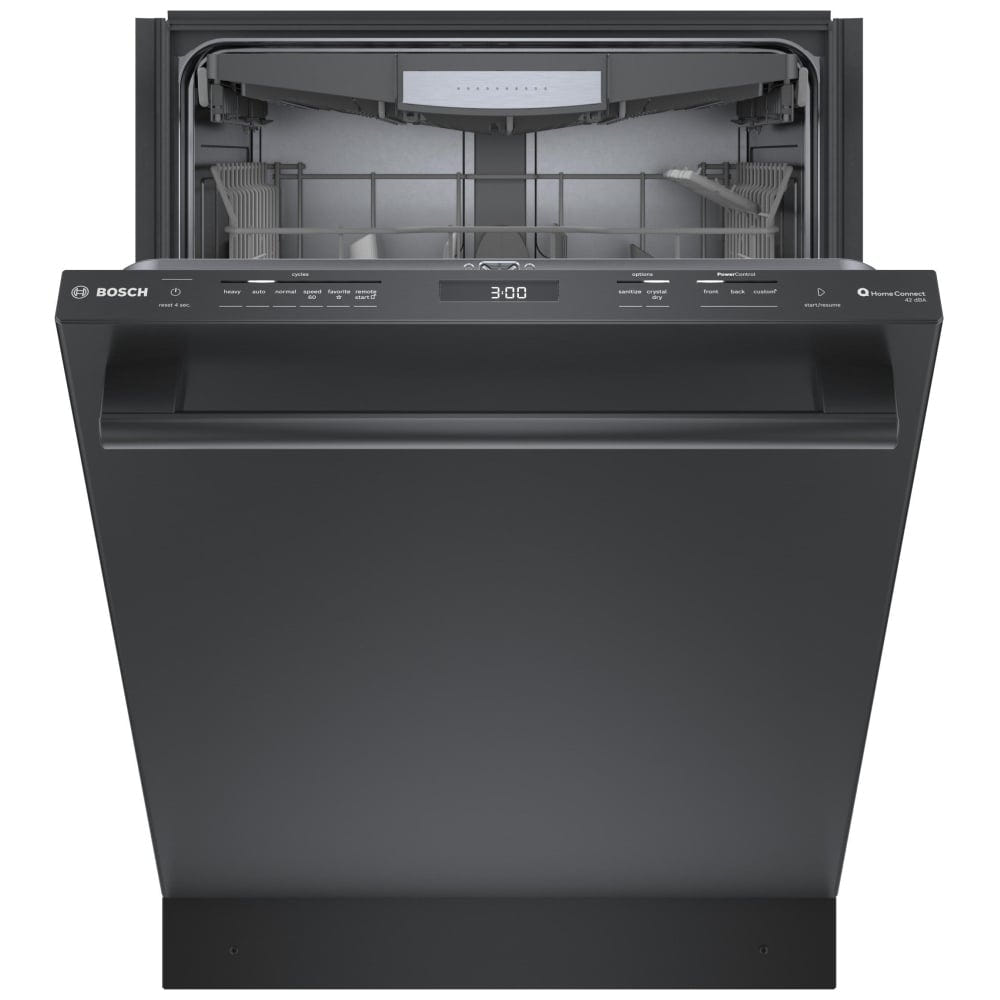

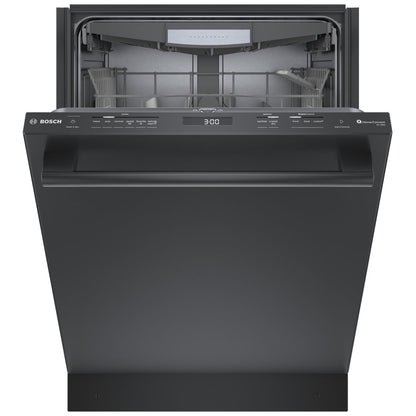

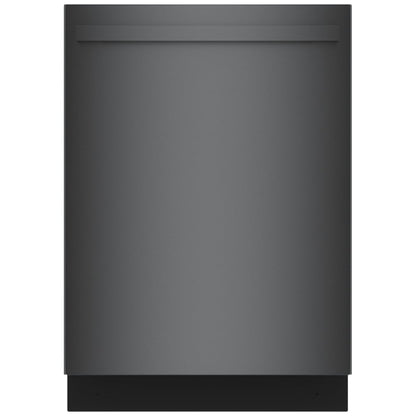

800 Series Dishwasher, 24", Brushed black steel anti-fingerprint SHX78CM4N

General

Appliance Width (in) 23 9/16

Height 33 7/8

Installation Type Built-under

Number of Place Settings 16

List of Programs Auto, Favorite, Heavy, Normal, Speed 60

Special Functions Crystal Dry, Remote Start, Sanitize, ZoneControl™ Back, ZoneControl™ Custom, ZoneControl™ Front

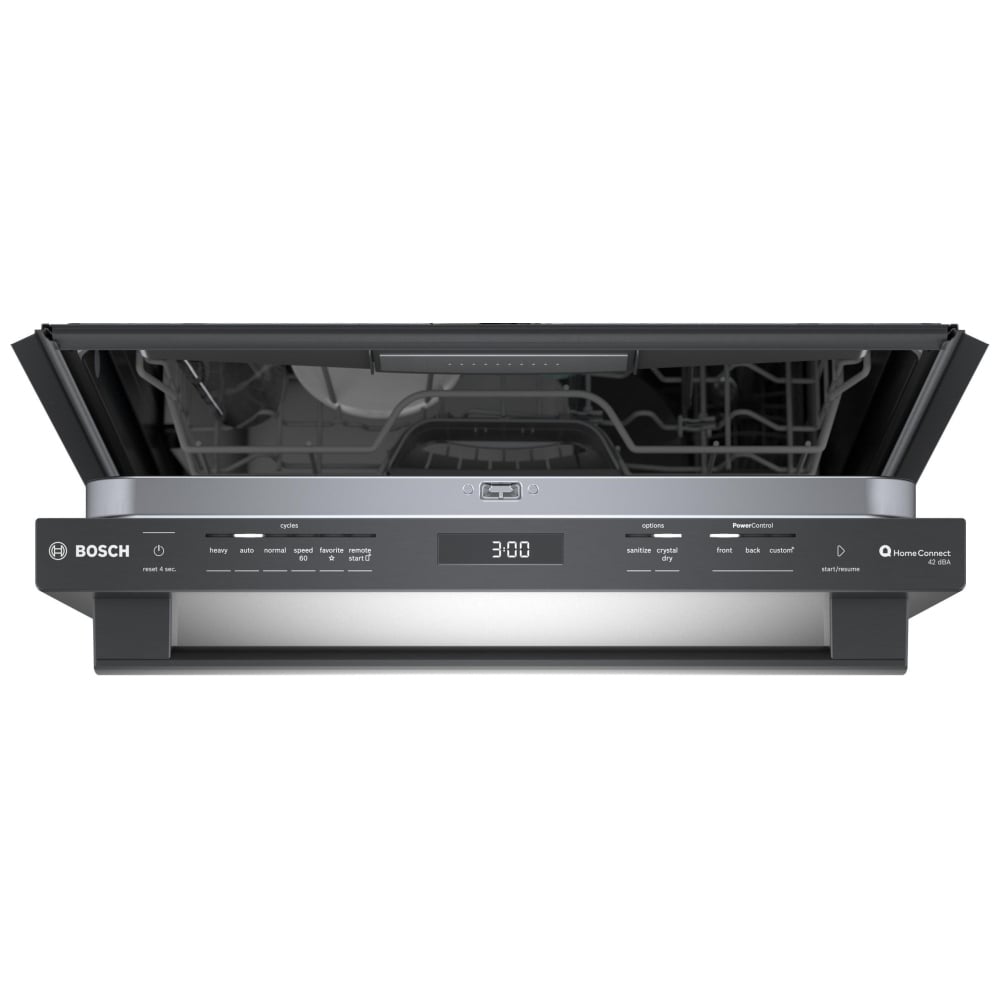

Display Yes

Silence Level 42 dB(A) re 1pW

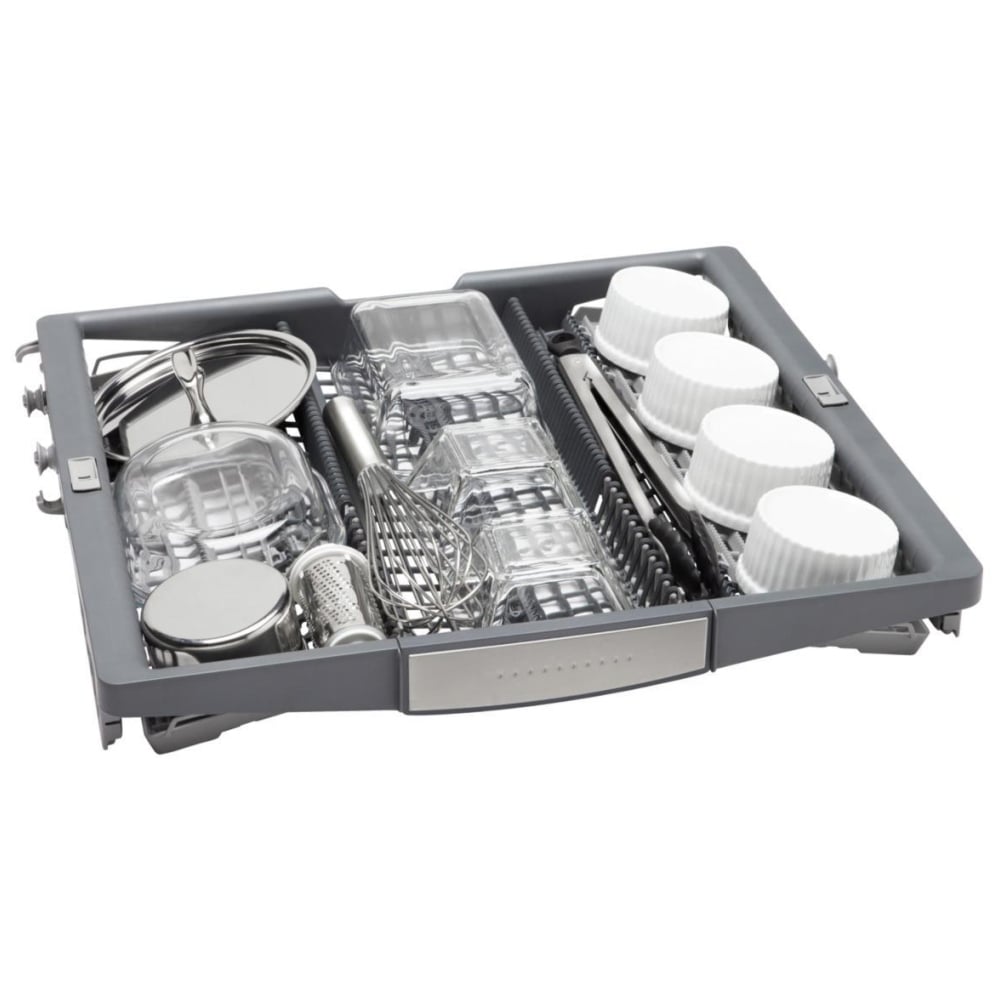

3rd rack Flexible 3rd rack

Interior Light No

Removable top No

Power Cord Length 67''

Connectivity

Home Connect™ Yes

Home Connect Features Remote Monitoring and Contro

lSize and weight

Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''

Adjustable plinth No

Net Weight 92.000 lbs

Programmes

Status Indicator End of program audible, Time remaining indic. internal, Water inlet

List of Programs Auto, Favorite, Heavy, Normal, Speed 60

Program 1 Heavy

Program 2 Auto

Program 3 Normal

Program 4 Speed 60

Program 5 Favorite

Reference program Eco

Number of different wash temperatures 6

Temperature program 1 151-160 °F

Temperature program 2 127-140 °F

Temperature program 3 127-136 °F

Temperature program 4 122 °F

Temperature program 5 127-140 °F

Safety

ChildLock No

Consumption values

Glass protection No

Water consumption program 1 4.9-6.4 gal

Water consumption program 2 3.4-5.4 gal

Water consumption program 3 2.3-5.5 gal

Water consumption program 4 3.8 gal

Water consumption program 5 3.4-5.4 gal

Total Annual Water Consumption 688 gal

Maximum temperature for water intake (°C) 60 °C

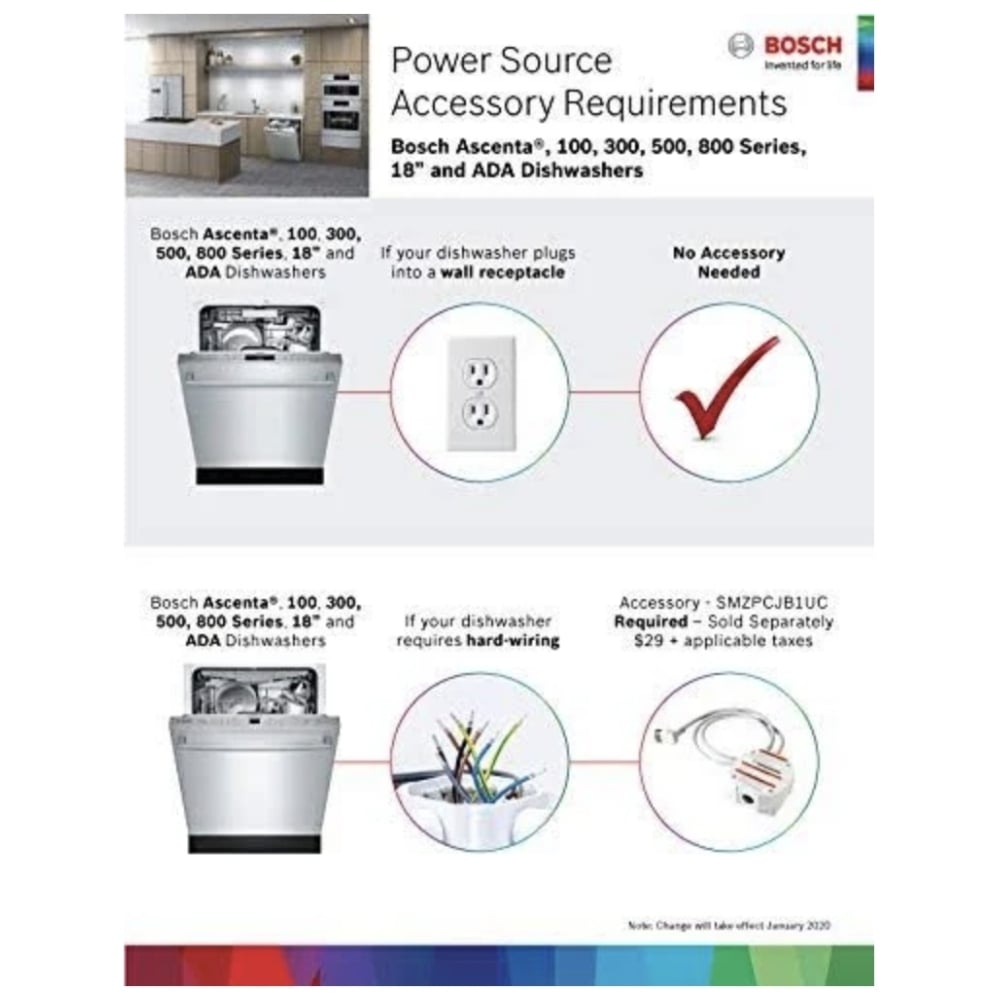

Connection

Watts 1,440 W

Power Cord Length 67''

Fuse protection 12 A

Plug Type Nema5-15P

Construction type

Color / Material Housing Lacquered

Design Built-in

Drying System CrystalDry®, PureDry®

Height 33 7/8

Concealed heating element Yes

Installation Type Built-under

Tub Material Stainless Steel

Water Softener No

Appliance Width (in)23 9/16
