Key Features

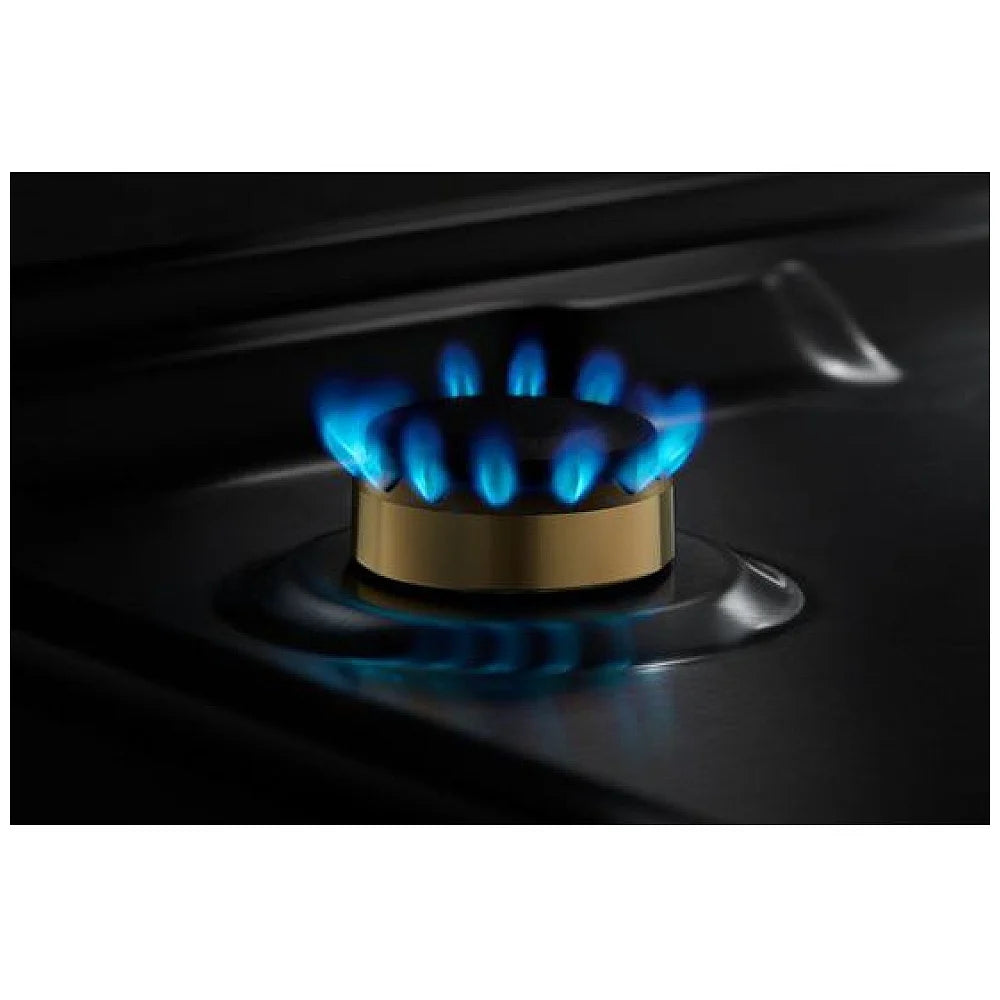

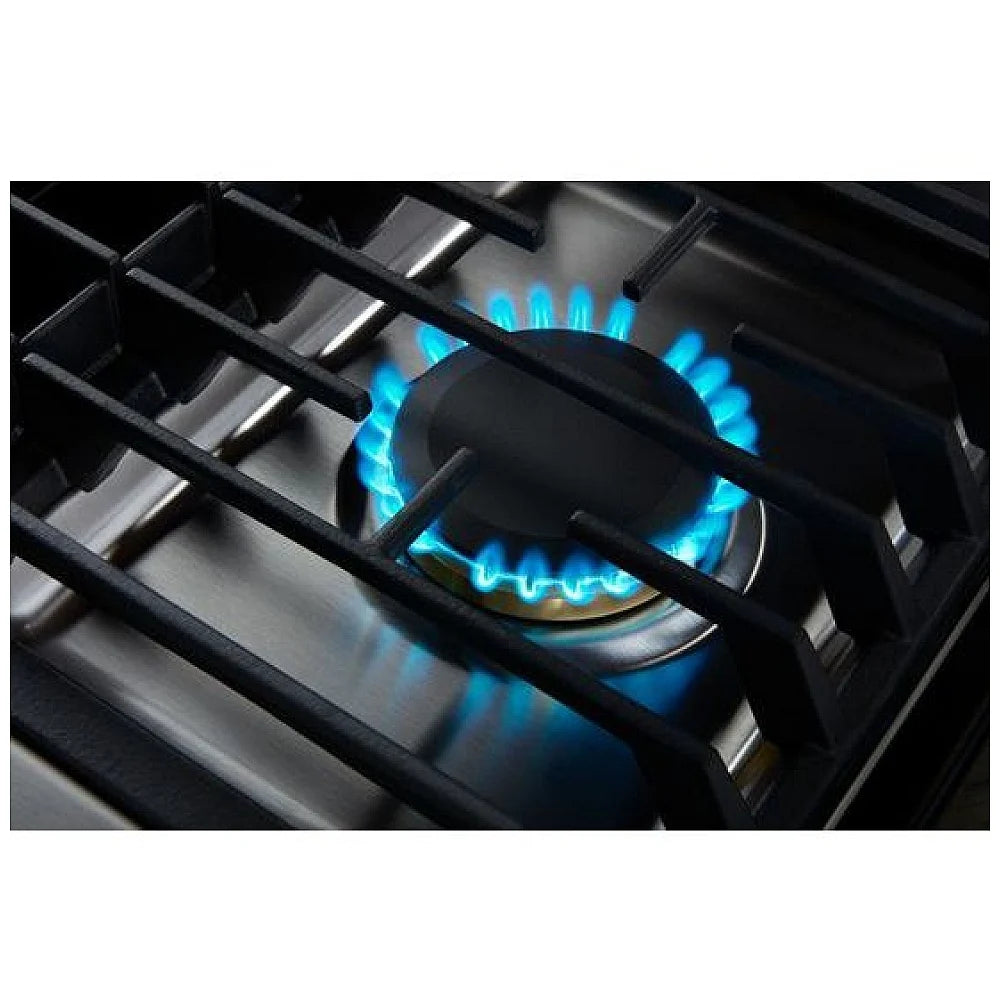

- 4 sealed burners, including a 17,000 BTU ultra-high output burner

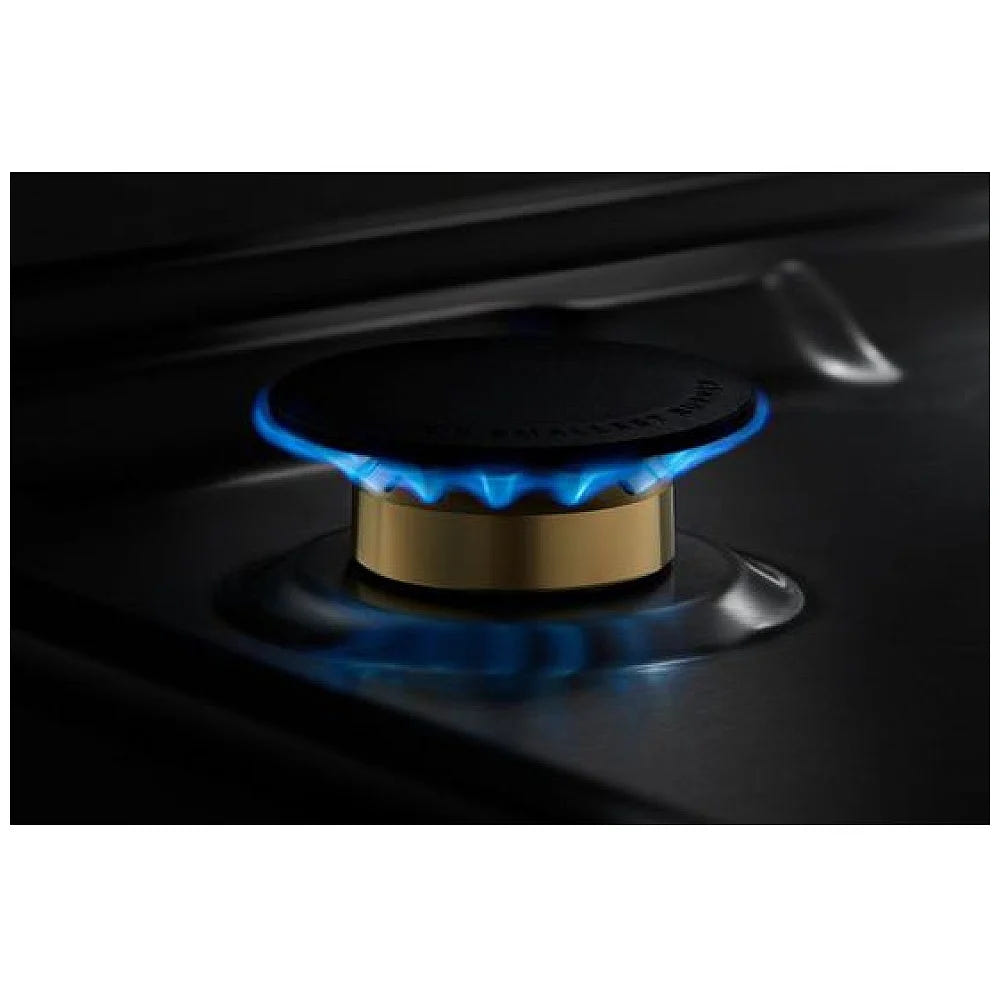

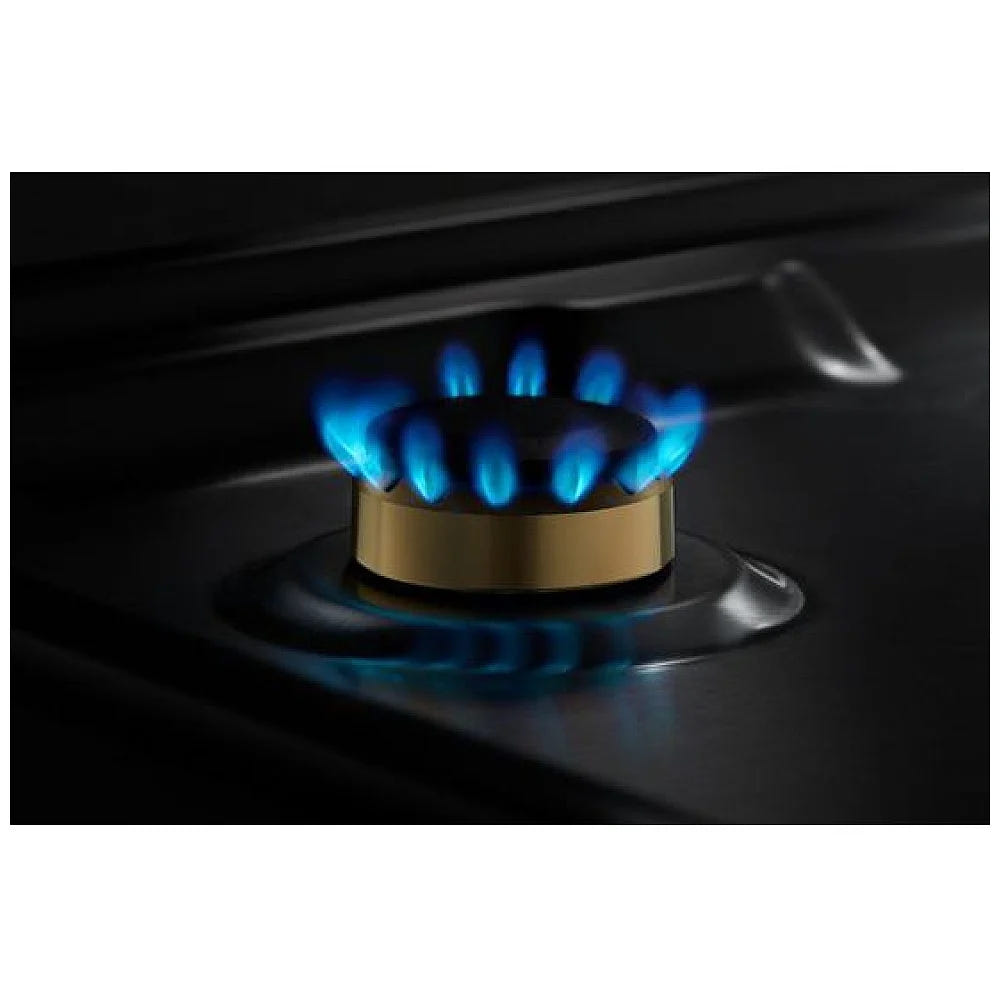

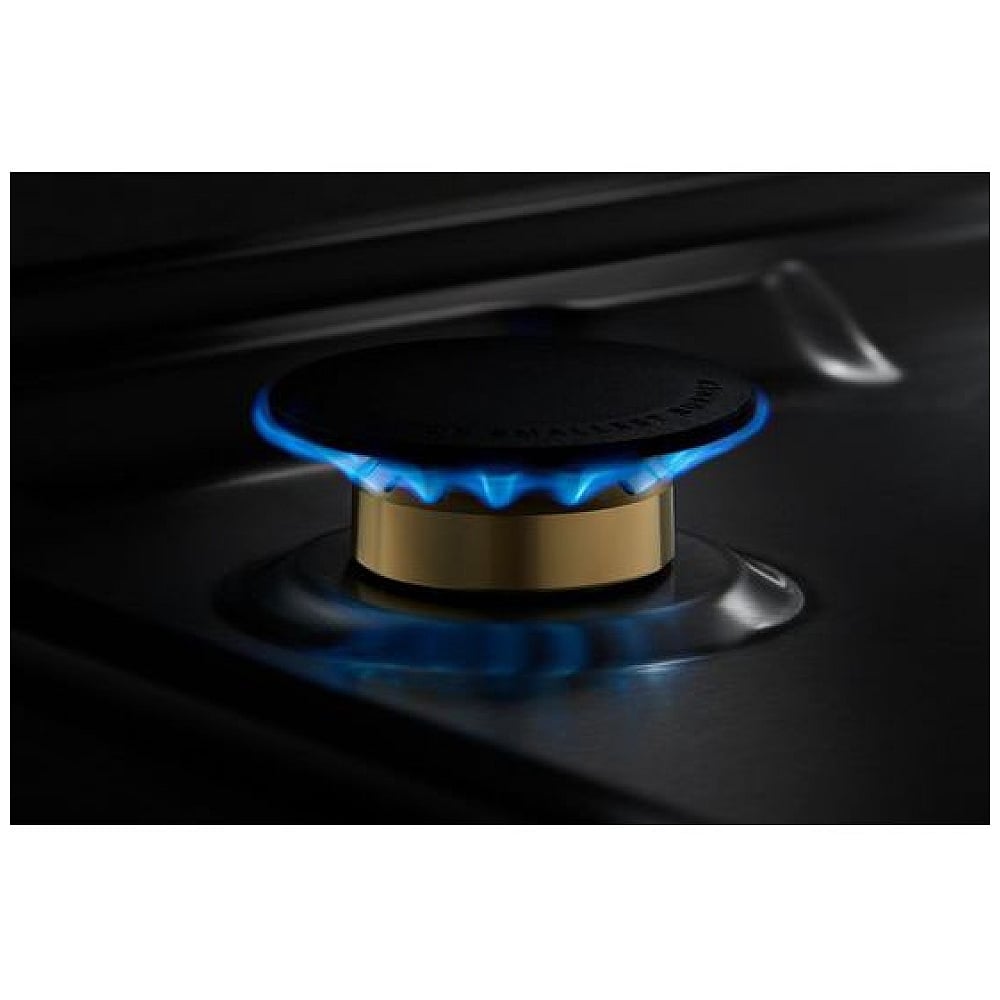

- 5,000 BTU ultra-low output burner with melt cap

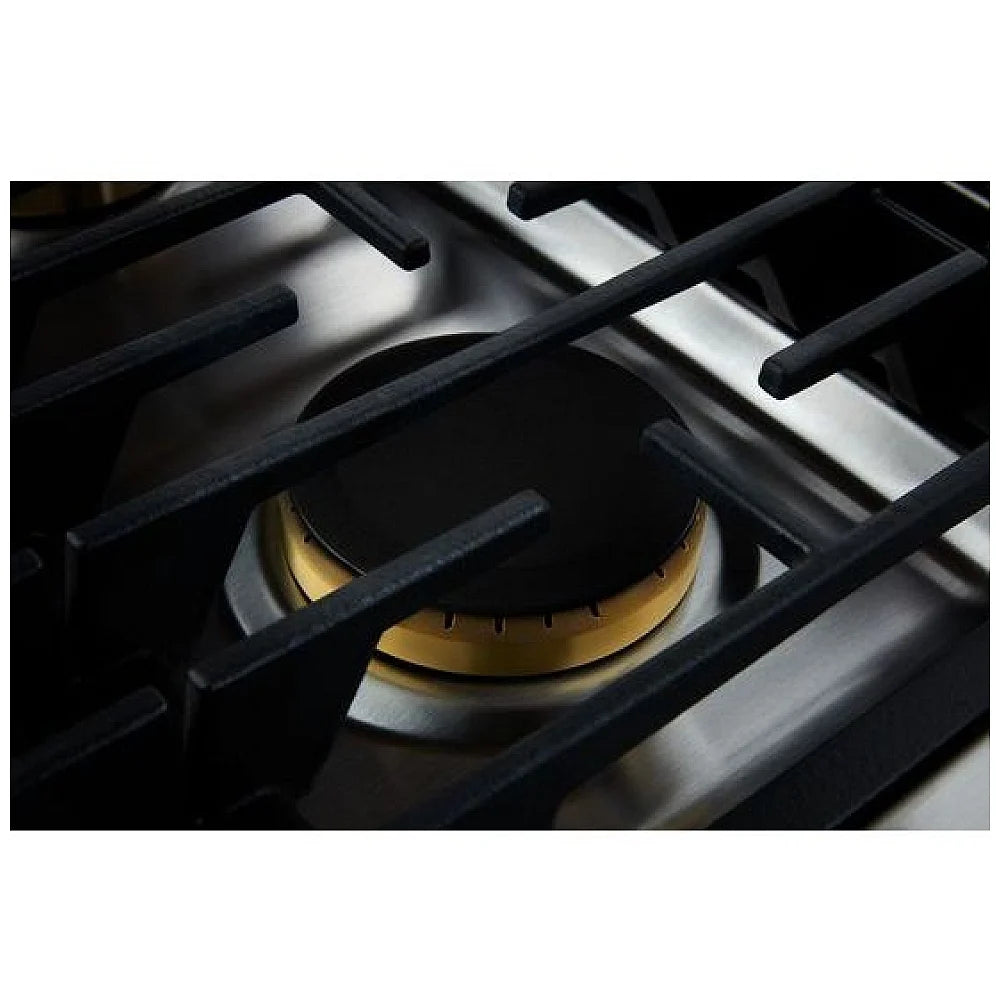

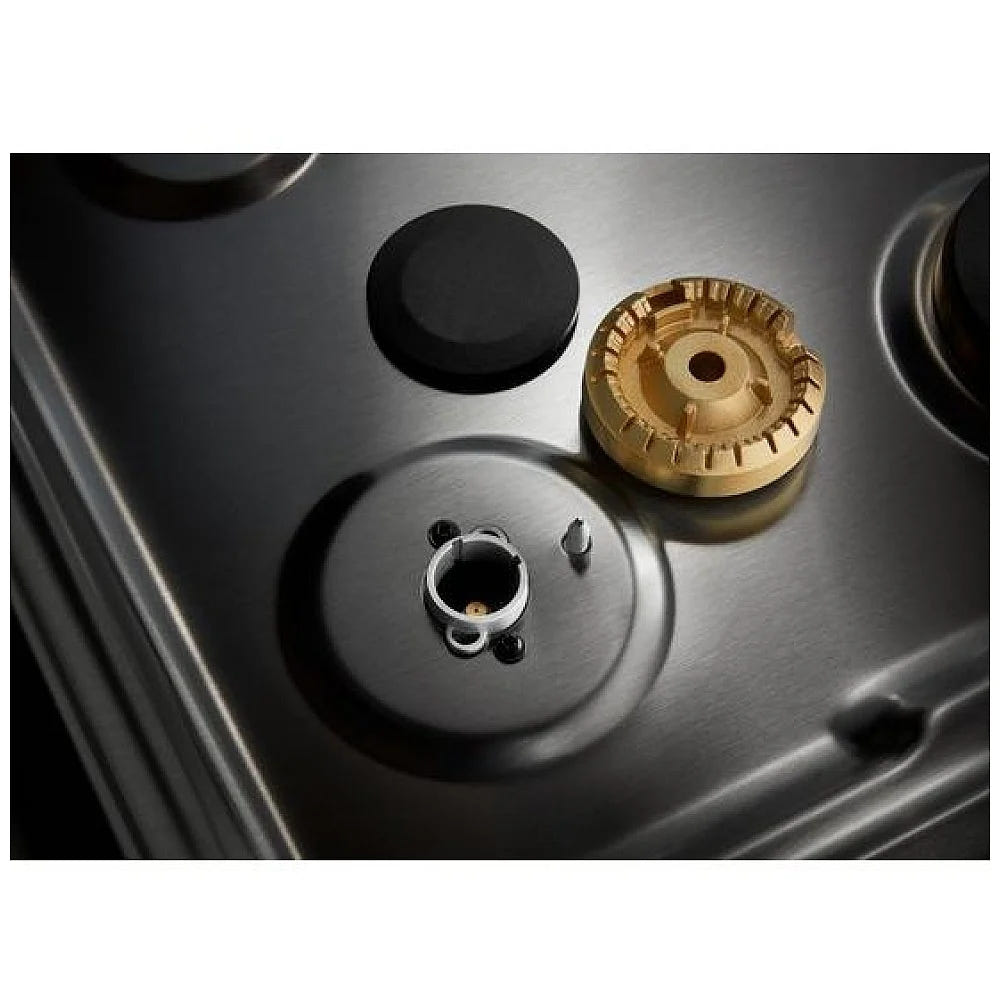

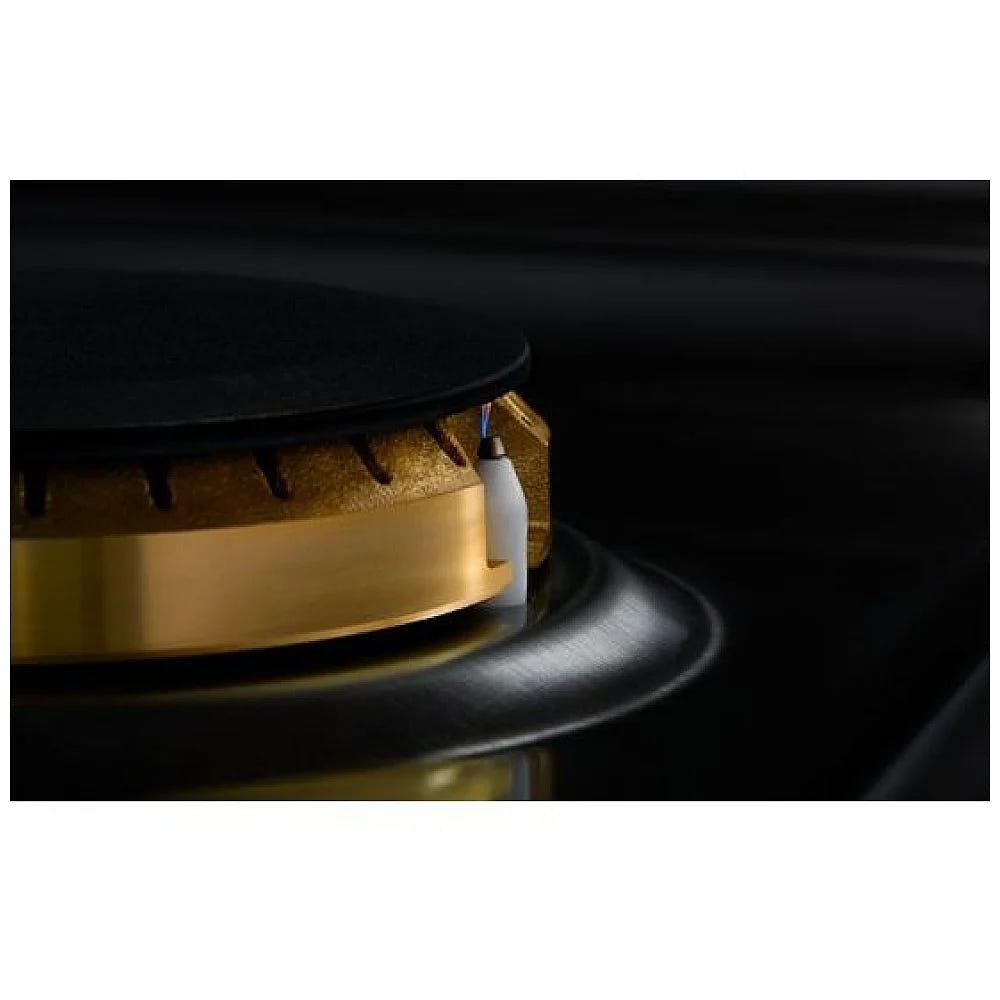

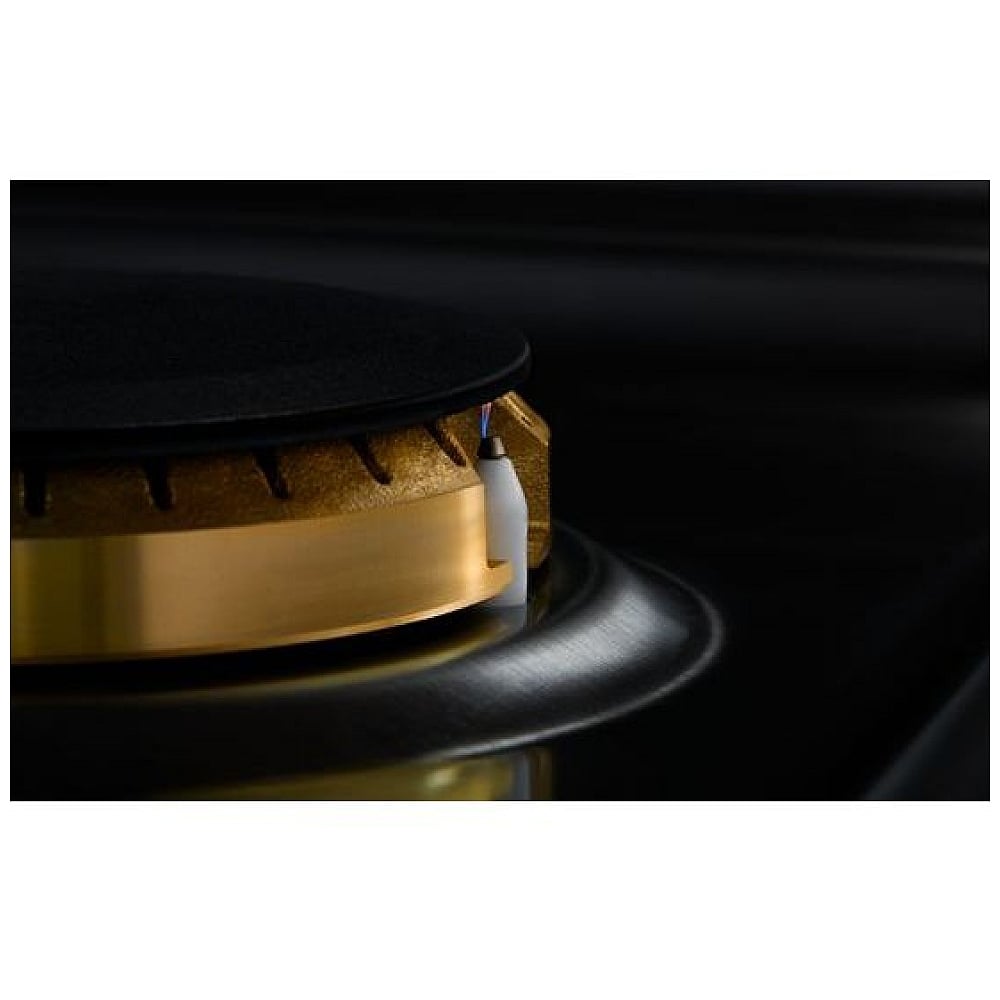

- Brass burners with removable base
- Convertible to duct-free ventilation
- DuraFinish Protection

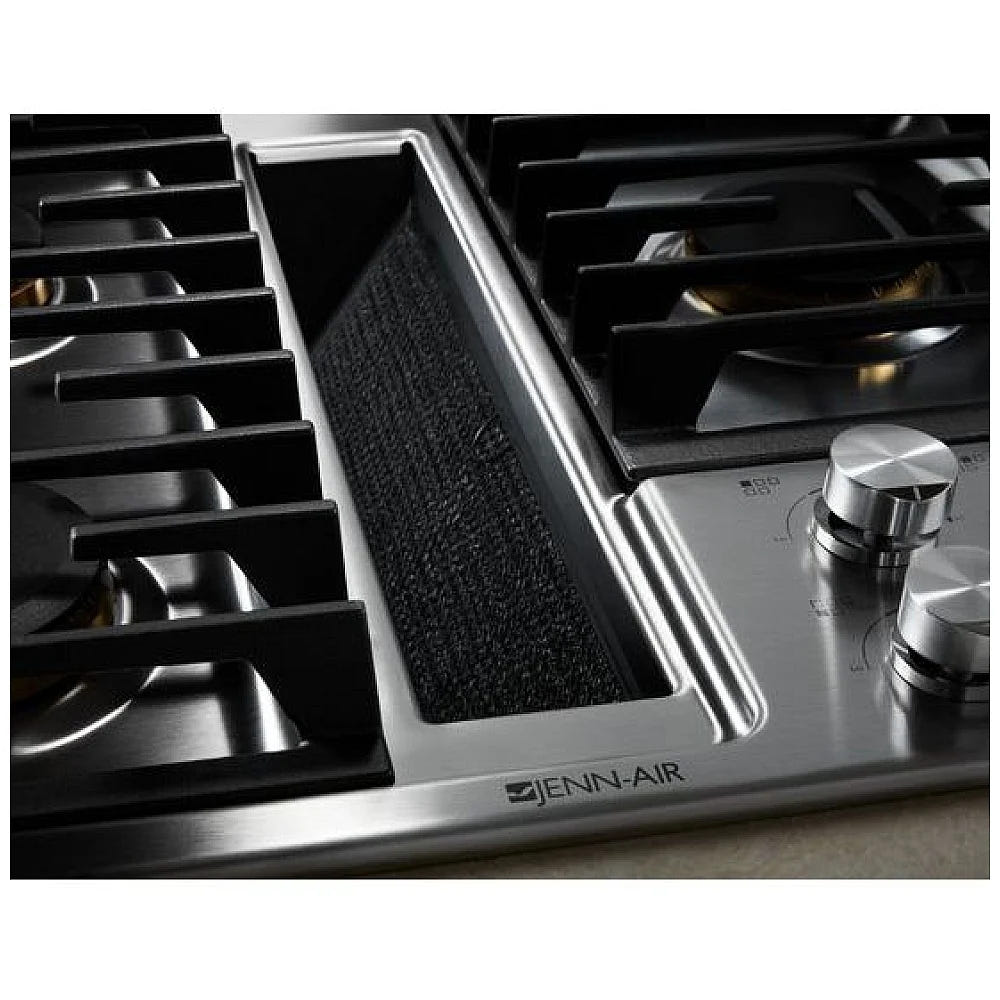

- JX3 Downdraft Ventilation System with 3 speeds
Specifications
| Dimension |
Value |
| Cutout Depth (in) |
19 15/16 |
| Cutout Width (in) |
28 5/8 |
| Depth (in) |
21 1/2 |
| Height (in) |
4 |
| Maximum Height (in) |
18 7/16 |
| Gross Weight (lb) |
58 |
| Net Weight (lb) |
46.0 |
Delivery & Installation
Our team will deliver and install your new JennAir Euro Style JGD3536GS 36" Gas Cooktop 17K BTU. We offer free shipping and installation in Canada.
FAQ
- What are the dimensions of the JennAir Euro Style JGD3536GS 36" Gas Cooktop 17K BTU?
The dimensions of the JennAir Euro Style JGD3536GS 36" Gas Cooktop 17K BTU are 19 15/16" cutout depth, 28 5/8" cutout width, 21 1/2" depth, 4" height, and 18 7/16" maximum height.
- What are the features of the JennAir Euro Style JGD3536GS 36" Gas Cooktop 17K BTU?
The features of the JennAir Euro Style JGD3536GS 36" Gas Cooktop 17K BTU include 4 sealed burners, including a 17,000 BTU ultra-high output burner, 5,000 BTU ultra-low output burner with melt cap, brass burners with removable base, convertible to duct-free ventilation, and DuraFinish Protection.
Certifications
Ada Compliant Yes
Prop65 Standard
Ul Yes
Controls
Control Location Right Front
Control Type Knobs
Infinite Heat Controls Yes
Cooktop Details
Cooktop Surface Color Stainless
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Ignition Type Flame-Sensing™ Re-ignition
Number of Open Bays N/A
Details
Automatic Pan Detection No
Cooktop Selections Convertible to Duct Free Ventilation; Melt Cap
Design Expression Stainless Steel
Fuel Type Gas
Installs Over Built-in Oven No
Lp Convertible Yes - Kit Included
Number of Vent Speeds 3
Power Outage Compatible Yes
Dimensions
Product Height 4.0
Cutout Depth 19.938
Carton Height 23.78
Gross Weight 93.6
Carton Depth 26.38
Carton Width 41.5
Cutout Width 34.75
Product Depth 21.5
Net Weight 80.6
Product Width 36.0
Electrical
Power Cord Included Yes
Element/burner Details
Center Front Element-burner Power 15,000 BTU
Center Front Element-burner Type Sealed Burner
Center Rear Element-burner Power 12,500 BTU
Center Rear Element-burner Type Sealed Burner
Cooktop Element Style Sealed Burner
Cooktop Type Downdraft
Left Front Element-burner Power 10000 BTU
Left Front Element-burner Type Sealed Burner
Left Rear Element-burner Power 5,000 BTU
Left Rear Element-burner Type Even-Heat™
Number of Cooking Element-burners 5
Power Boost No
Right Rear Element-burner Power 17,000 BTU
Right Rear Element-burner Type Sealed Burner
Exterior Details
Knob Color Stainless Steel
Knob Type Metal
Grate Details
Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Number of Grates 4
Ventilation Details
Cfm Motor Class 310
Downdraft Vent Yes
Ventilation Type Downdraft
Dimensions
Depth 21 1/2
Width 36
Height 4
Carton Depth 26 7/16
Carton Height 23 13/16
Carton Width 41 1/2
Cutout Depth 19 15/16
Cutout Height 4
Cutout Width 34 3/4
Gross Weight 94
Maximum Height 17 7/16
Net Weight 80.6
Certifications
Prop 65 Standard
ADA Compliant Yes
UL UL
Configuration and Overview
Fuel Type Gas
Cooktop Type Downdraft
Size (IN,inches) 36
Installs Over Built-In Oven No
LP Convertible Yes - Kit Included
Power Boost No
Controls
Control Type Knobs
Infinite Heat Controls Yes
Knob Color Stainless Steel
Knob Type Metal
Control Location Right Front
Appearance
Digital Display No
Cooktop Details
Automatic Pan Detection No
Downdraft Vent Yes
Hot Surface Indicator Light No
Heating Element On Indicator Light No
Number of Cooking Element-Burners 5
Cooktop Surface Color Stainless
Cooktop Surface Material Stainless Steel
Number of Open Bays NA
Center Front Element-Burner Power 15,000 BTU
Left Rear Element-Burner Power 5000 BTU
Center Front Element-Burner Type Sealed Burner
Center Rear Element-Burner Power 12,500 BTU
Center Rear Element-Burner Type Sealed Burner
Left Front Element-Burner Power 10,000 BTU
Left Front Element-Burner Type Sealed Burner
Left Rear Element-Burner Type Even-Heat™
Right Rear Element-Burner Power 17,000 BTU
Grate Details Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish
Right Rear Element-Burner Type Sealed Burner
Cooktop Element Style Sealed Burner
Number of Grates 4
Ignition Type Flame-Sensing™ Re-ignition
Features
Griddle NA
Power Outage Compatible Yes
Selection Brass Burners,Convertible to Duct Free Ventilation,JX3™ Downdraft Ventilation System with 3-Speed Fan,Melt Cap
Electrical
Amps 40
Watts 60
Volts 120
Power Cord Included Yes
Refinement
Style Cooktops
Ventilation System
CFM Motor Class 310
Number of Speeds 3
Design Type
Design Expression Stainless Steel
