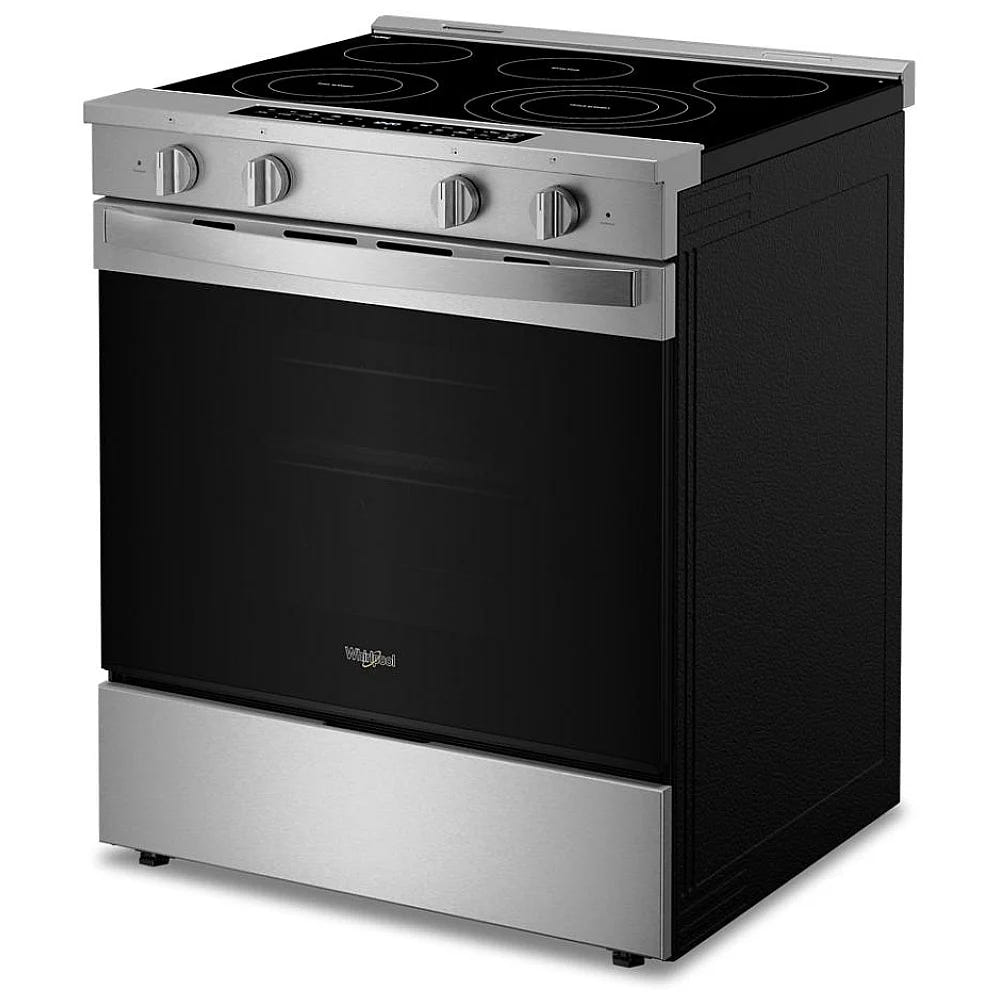

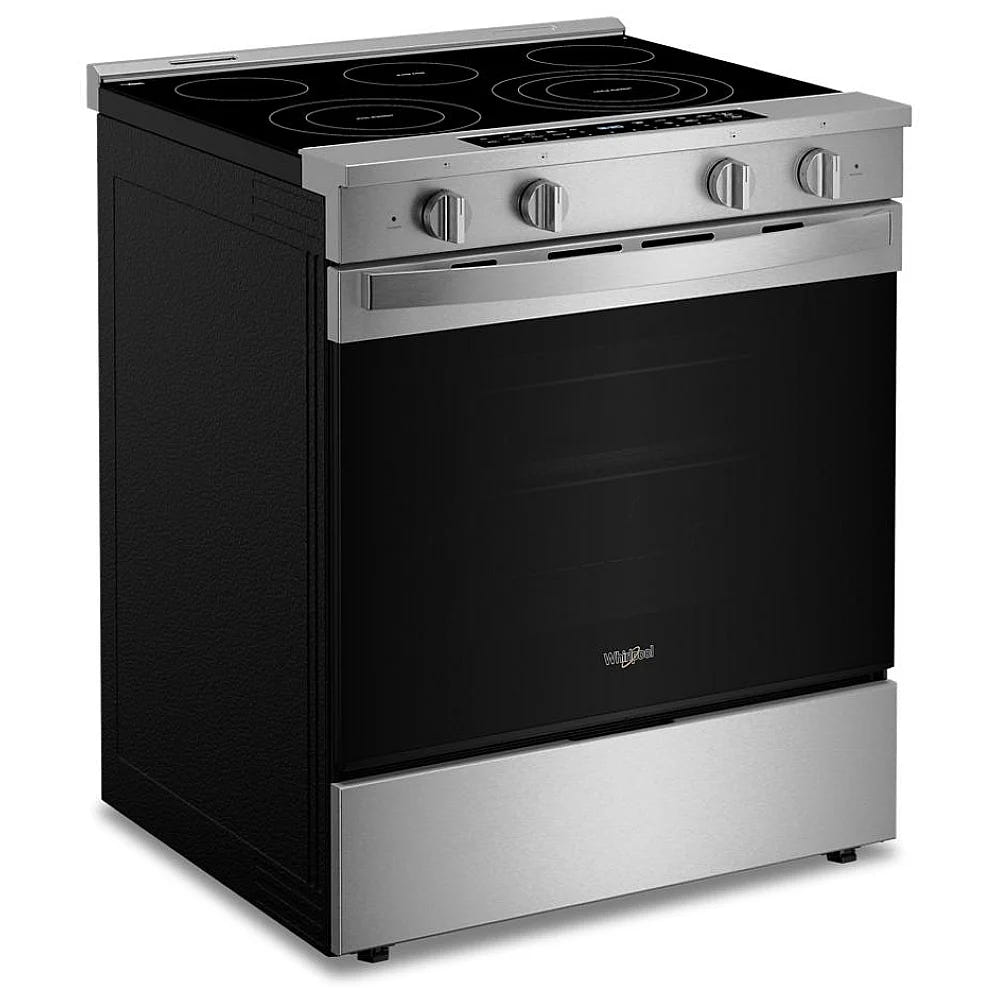

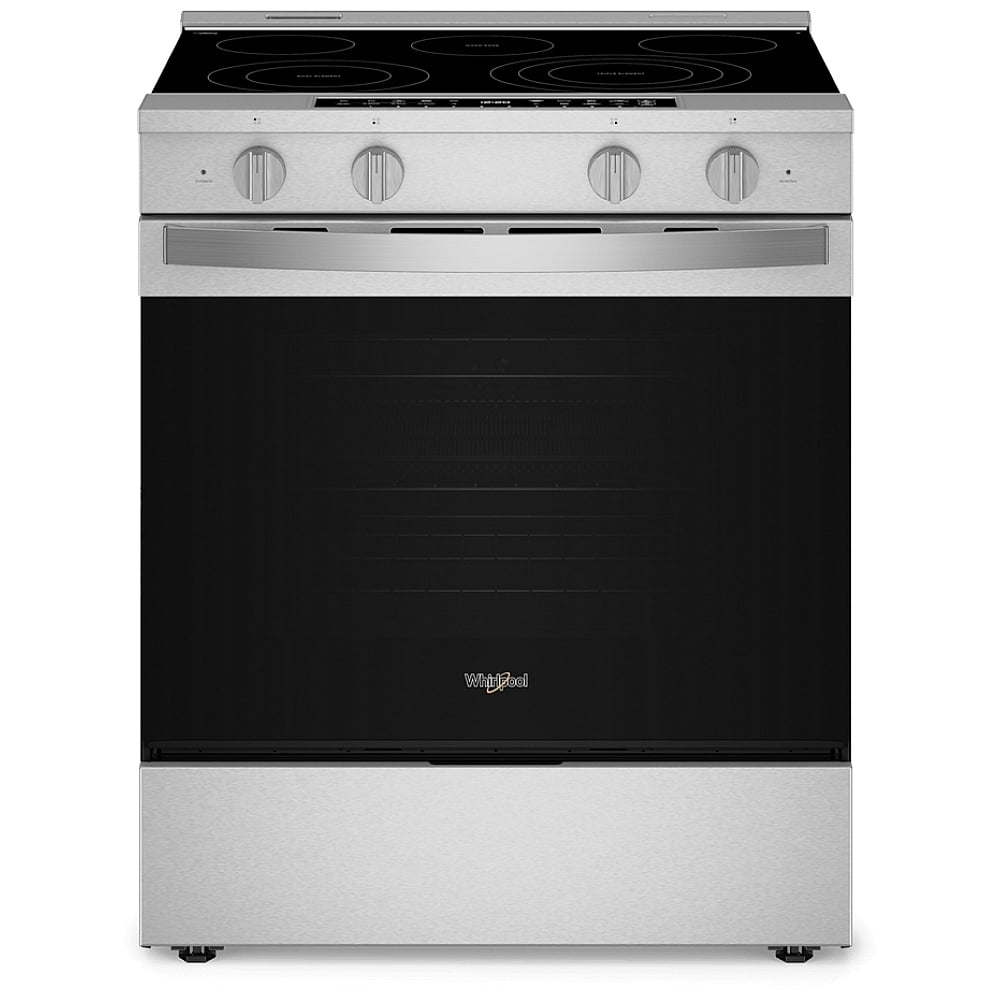

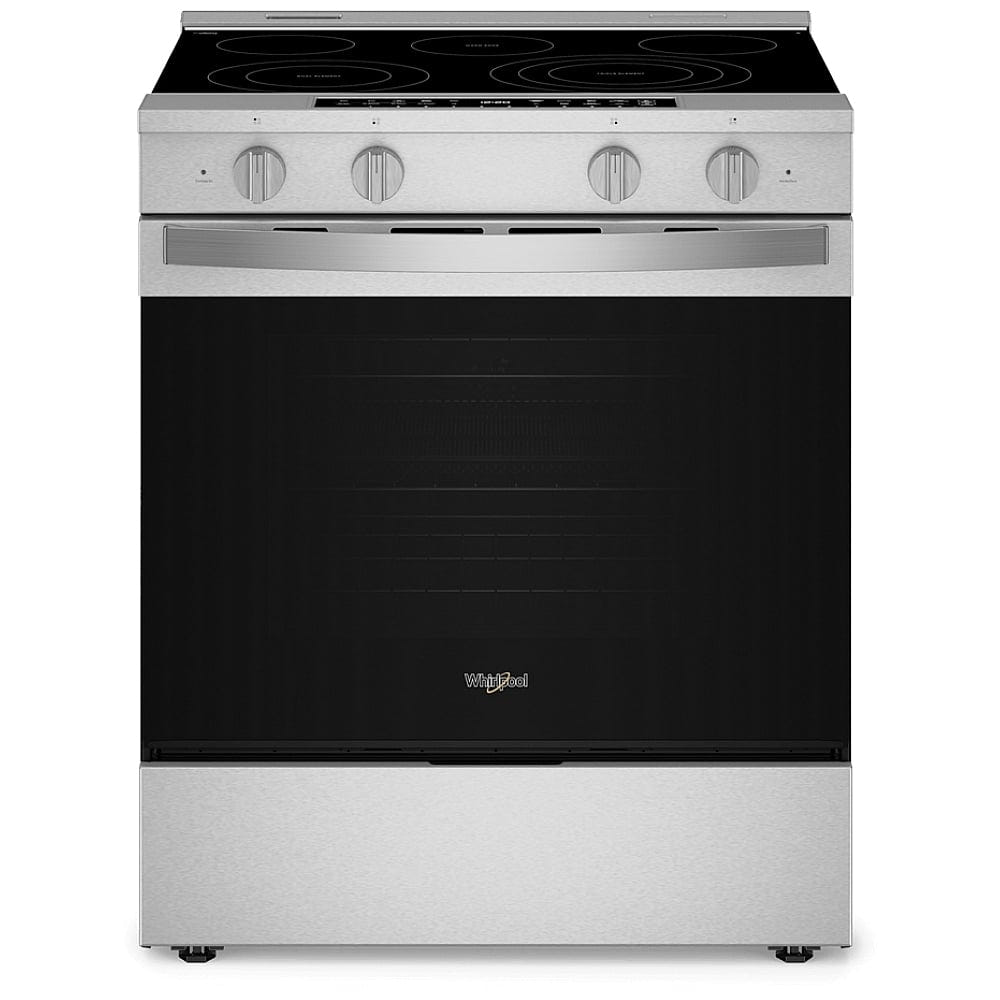

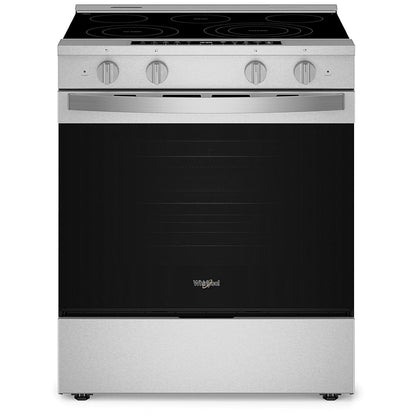

Whirlpool YWSES7530RZ Electric Ranges

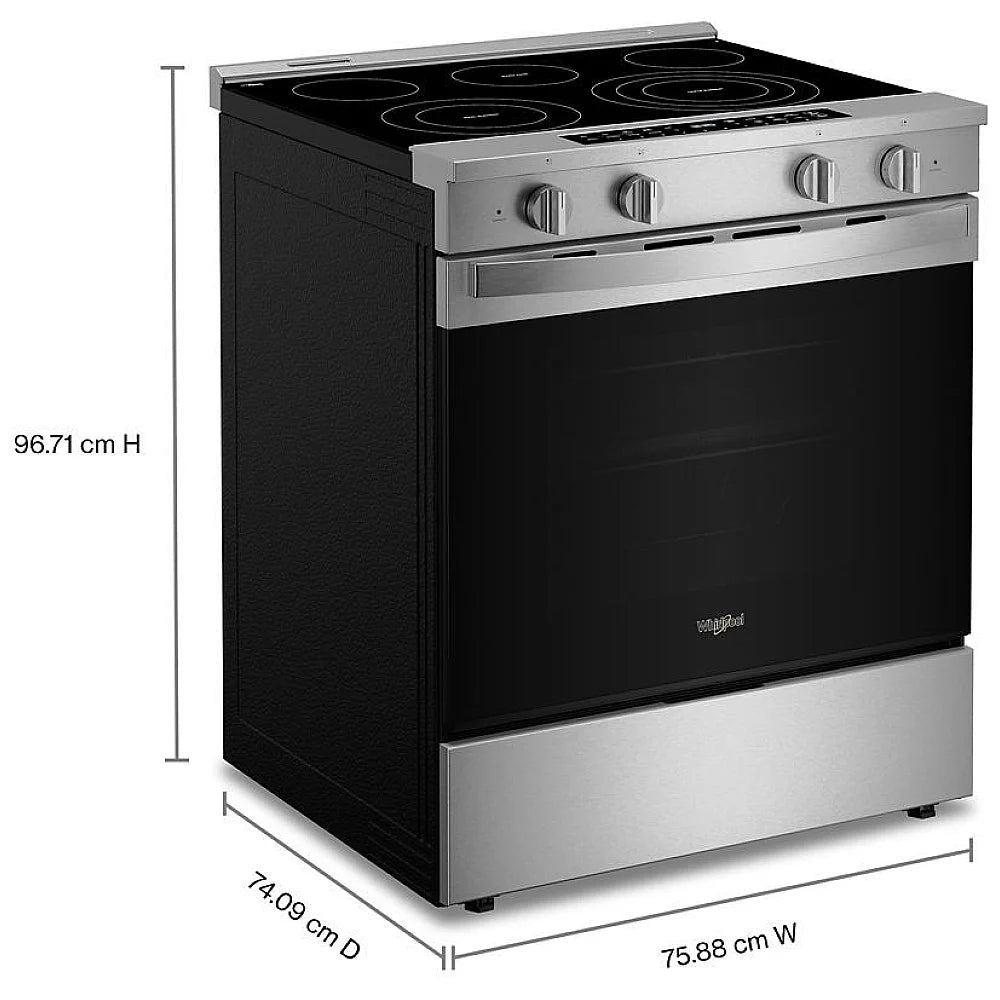

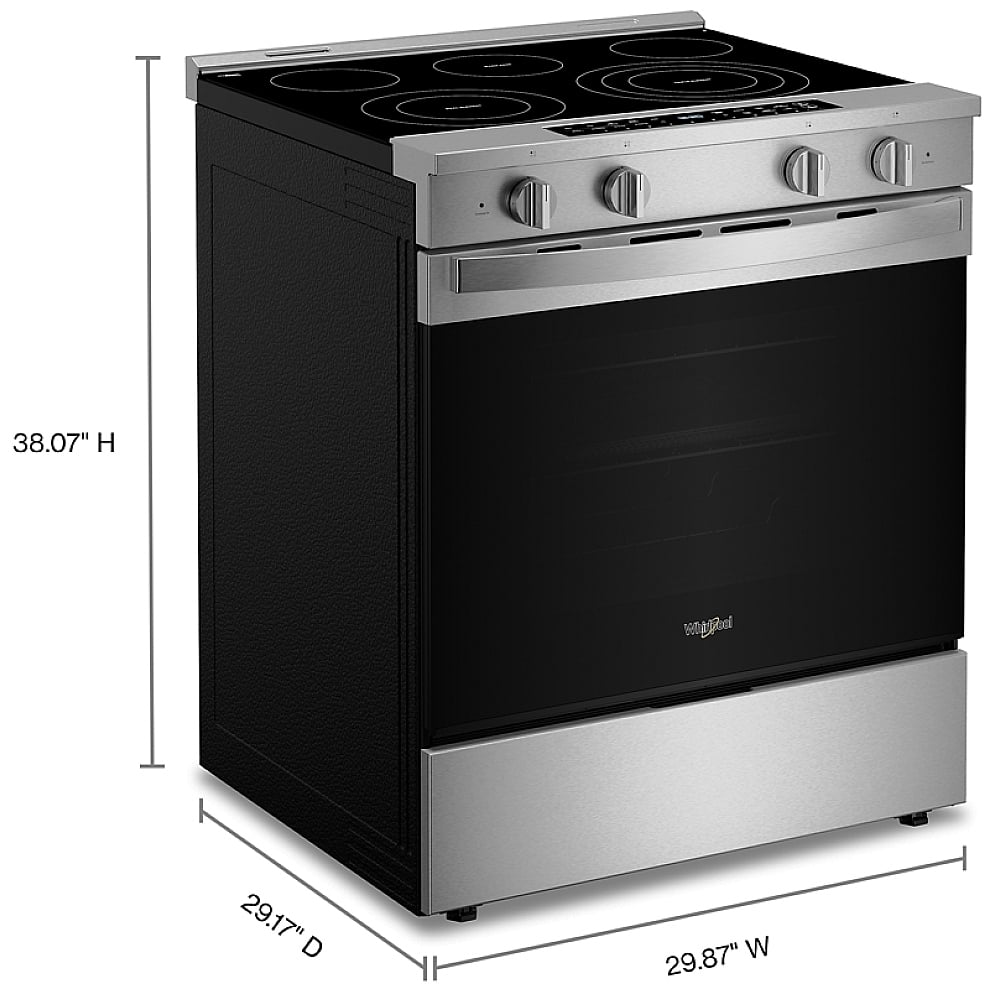

Dimensions

Adjustable Height Yes

Cutout Depth 60.96 cm, 24 in

Cutout Height 91.44 cm, 36 in

Cutout Width 76.20 cm, 30 in

Depth 74.09 cm, 29-17/100 in

Depth Closed Excluding Handles 67.49 cm, 26-57/100 in

Depth Closed Including Handles 74.09 cm, 29-17/100 in

Depth Excluding Doors 64.62 cm, 25-11/25 in

Depth With Door Open 90 Degree 121.18 cm, 47-71/100 in

Gross Weight 88.90 kg, 196 lbs

Height 96.70 cm, 38-7/100 in

Net Weight 81.65 kg, 180 lbs

Oven Interior Depth 57.78 cm, 22-3/4 in

Oven Interior Height 59.37 cm, 23-3/8 in

Oven Interior Width 66.99 cm, 26-3/8 in

Width 75.87 cm, 29-87/100 in

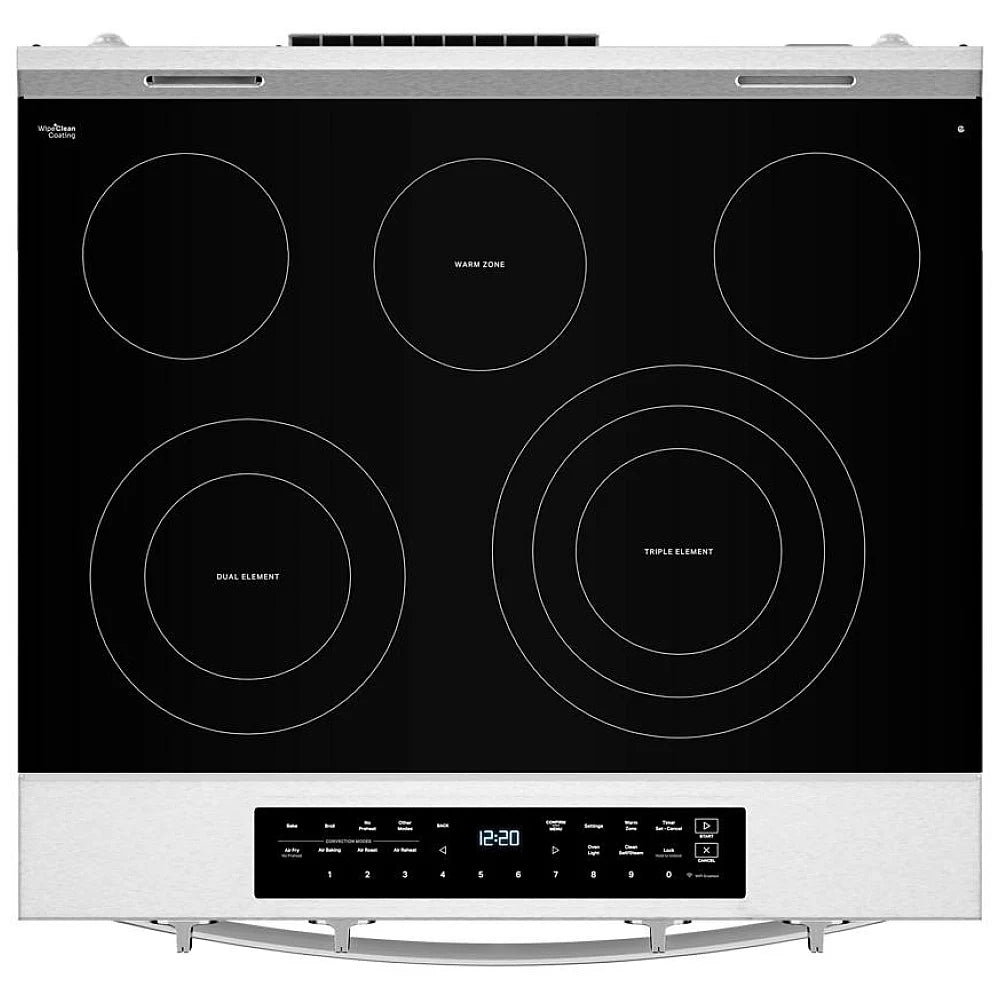

Element/Burner Details

Center Rear Element-Burner Power 100W

Center Rear Element-Burner Size 6in.

Center Rear Element-Burner Type Warming

Cooktop Element Style Radiant

Left Front Element-Burner Power 3000W/1400W

Left Front Element-Burner Size 9in./6in.

Left Front Element-Burner Type Dual

Left Rear Element-Burner Power 1200W

Left Rear Element-Burner Size 6in.

Left Rear Element-Burner Type Single

Number of Cooking Element-Burners 5

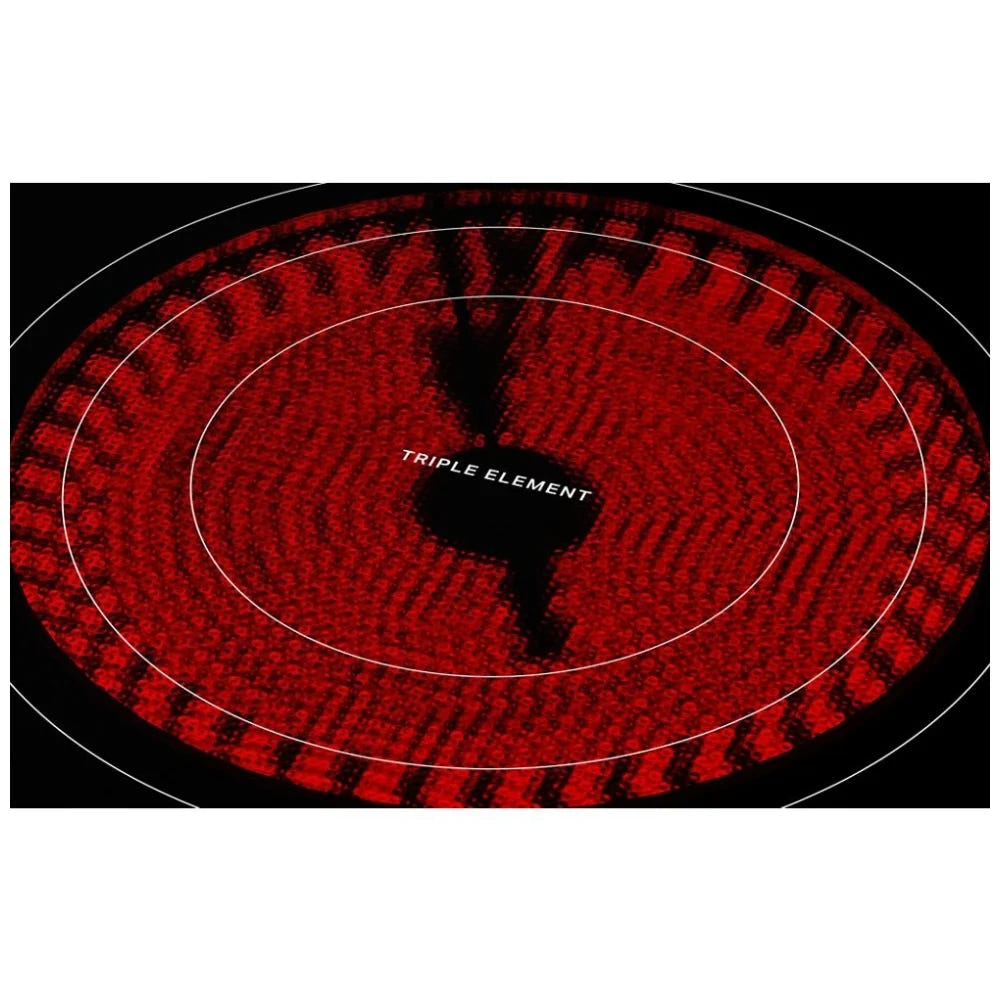

Right Front Element-Burner Power 900W, 1950W, 3000W

Right Front Element-Burner Size 12in./9in./6in.

Right Front Element-Burner Type Triple

Right Rear Element-Burner Power 1200W

Right Rear Element-Burner Size 6in.

Right Rear Element-Burner Type Single

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust No

Bake Element Power 2400W

Broiler Element Power 3400W

Broiler Location Top Center

Convection Element Type True Convection

Convection Functions Bake, Broil

Door Removable Yes

Hidden Bake Element Yes

Number of Oven Lights 1

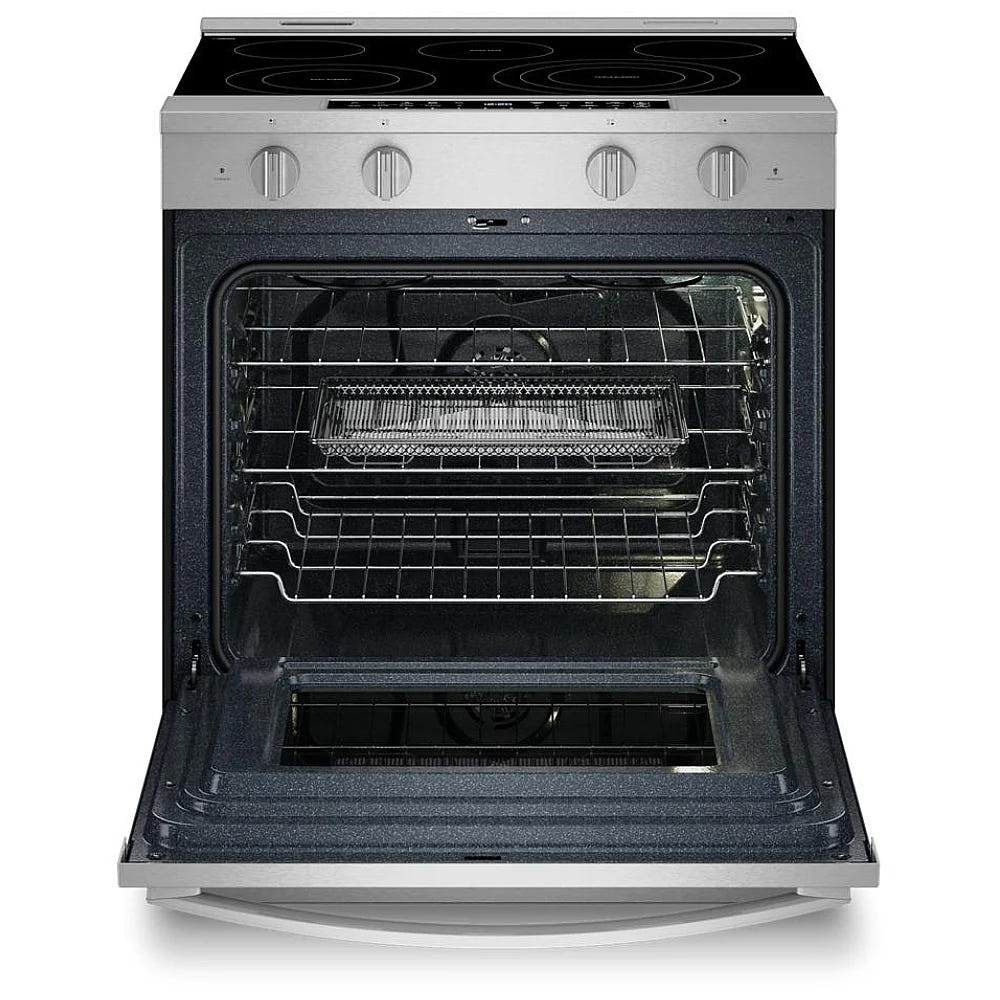

Number of Oven Racks 3

Number of Rack Guides 5

Oven Cleaning Type Self Clean + Steam Clean

Oven Cooking System True Convection

Oven Light Switch Location Oven Control

Oven Light Type Halogen

Oven Rack Type 2 Standard and 1 Max Capacity

Temperature Sensor No

Details

Cooktop Configuration All Burners

Fuel Type Electric

LP Convertible N/A

Natural Gas Convertible N/A

Oven Automatic Shut-Off Yes

Oven Configuration Single Oven

Oven Selections Air Baking, Air Reheat, Air Roast, Auto On, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, No Preheat - Air Fry, Proofing, Rapid Preheat, Sabbath Mod

Power On Indicator Light Yes

Power Outage Compatible Yes

Range Configuration Slide-In

Range Type Slide-in

Temperature Probe No

Exterior Details

Door Type Glass

Oven Control Knob Type N/A

Oven Control Location Front

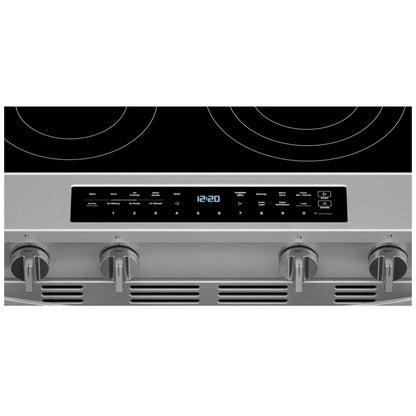

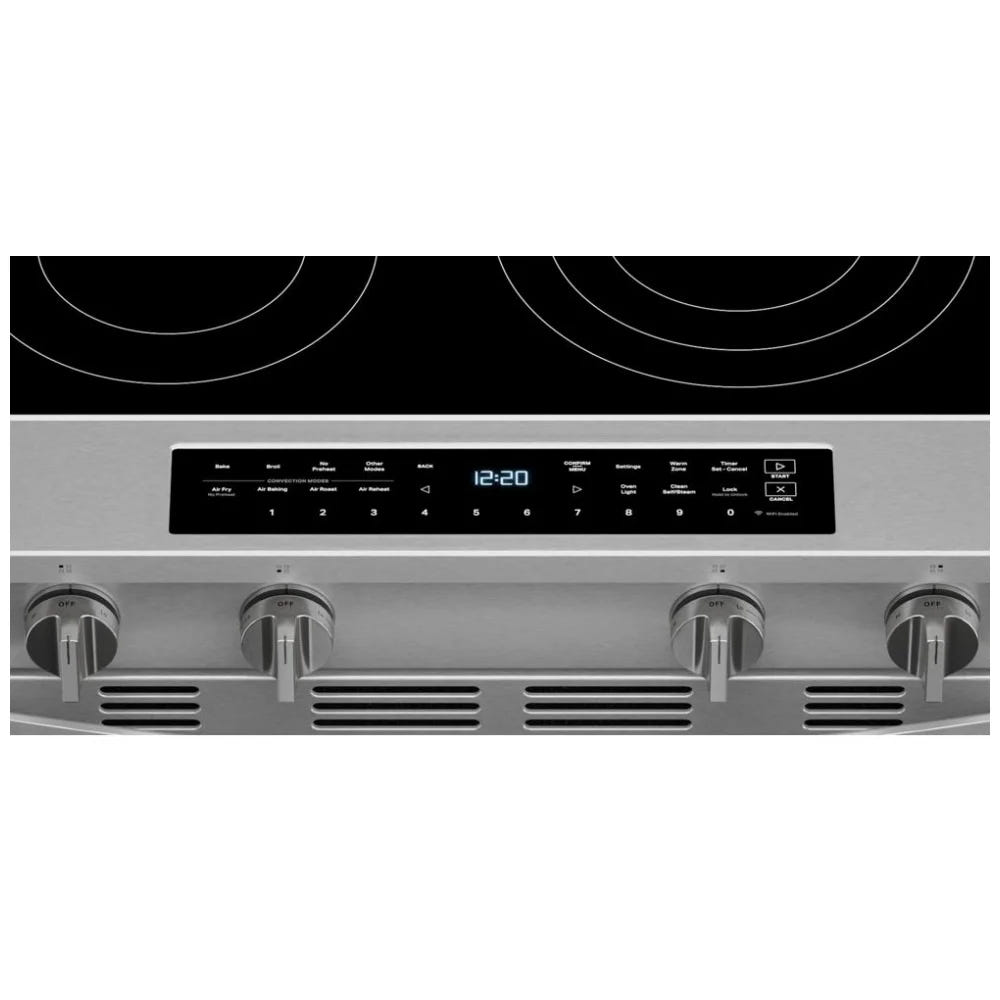

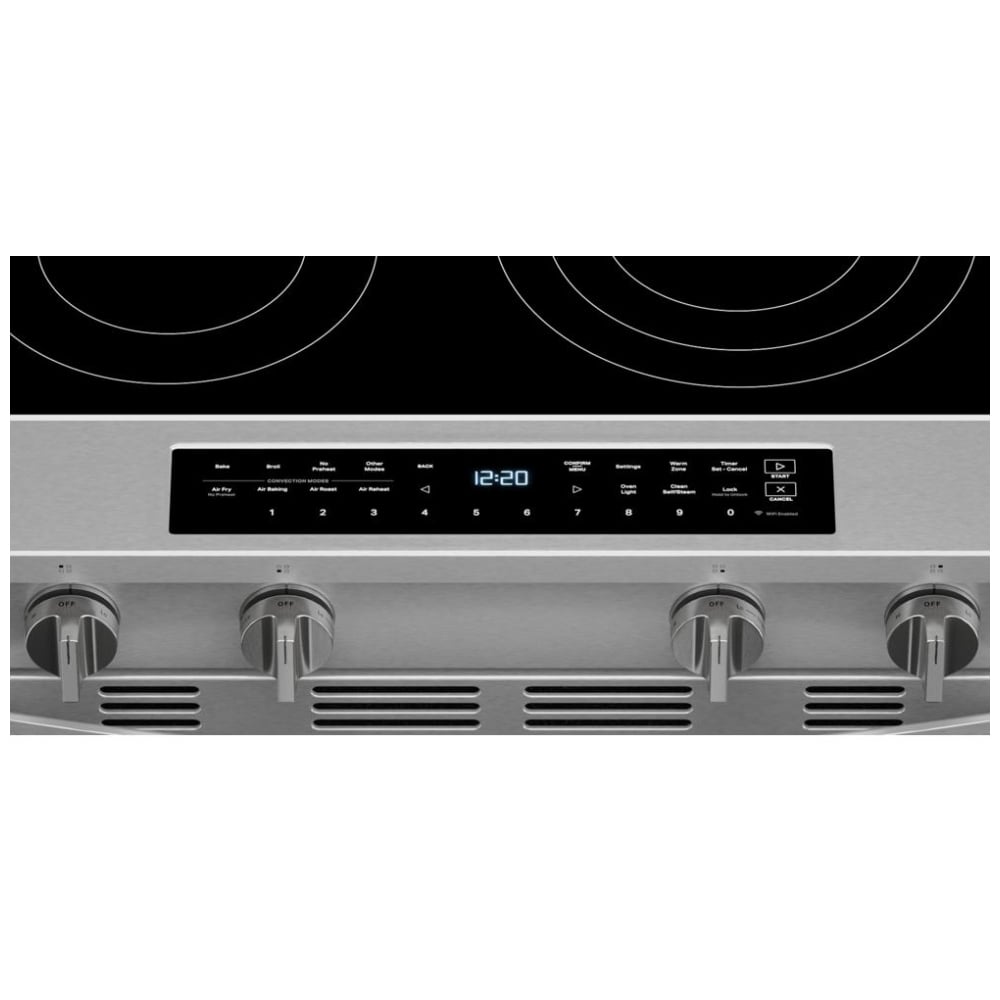

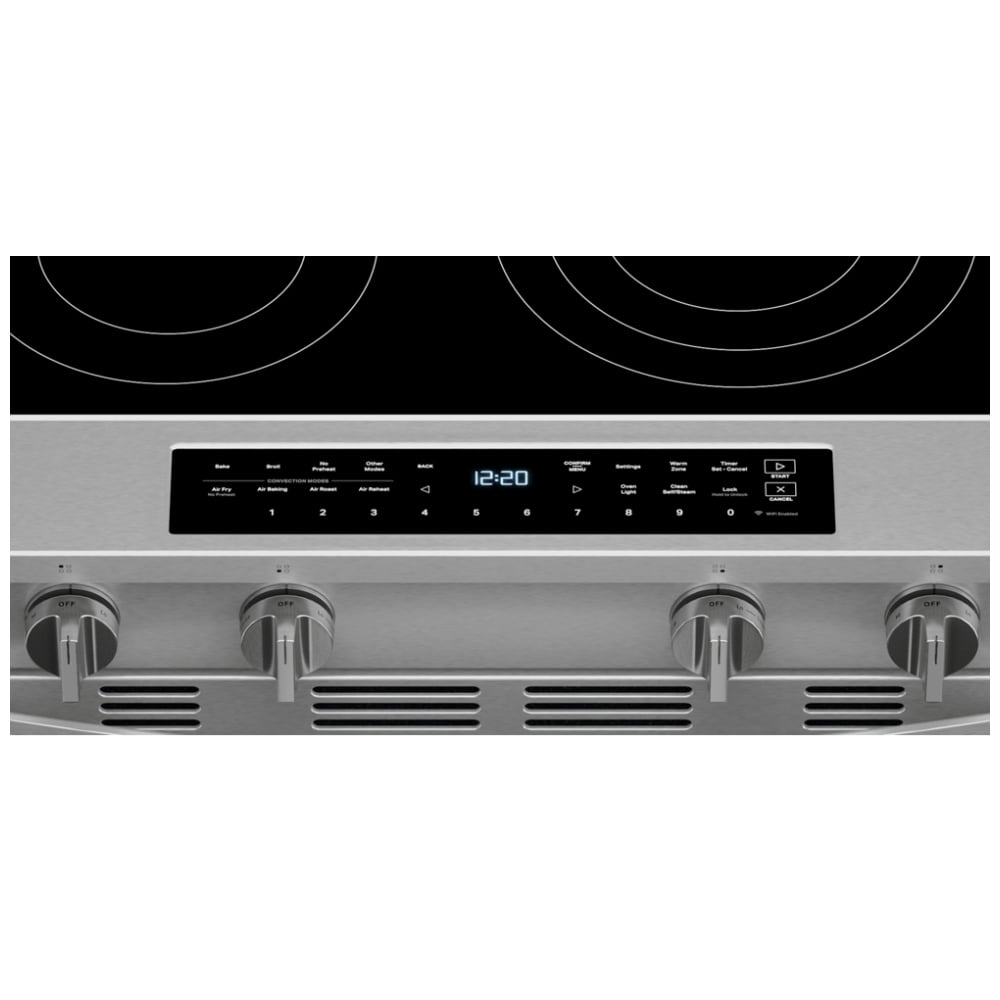

Oven Control Type Tap Touch

Oven Window Size Large

Smart Compatibility

Connectivity Amazon Alexa, Android, Google Assistant, Nest, iOS

Smart Appliance Yes

Works With App, Bluetooth, Remote Access, Voice Controlled, WiFi

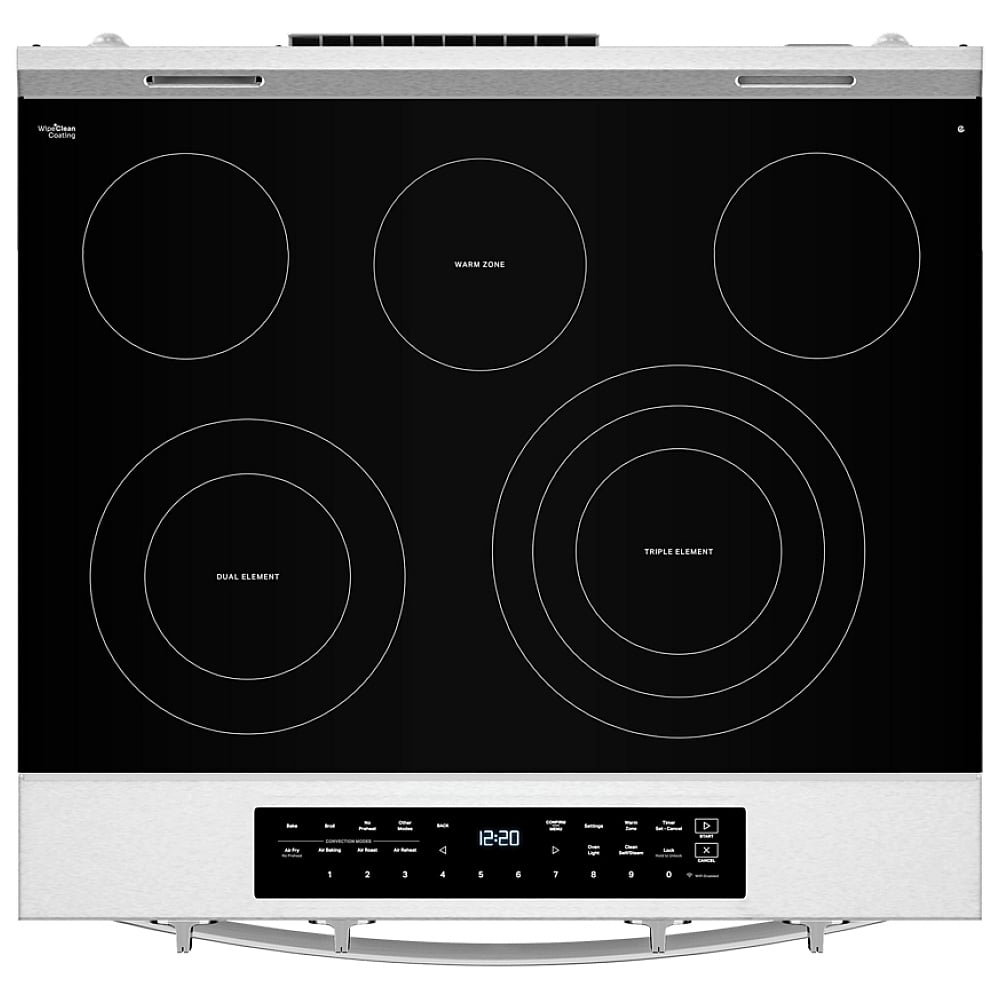

Cooktop Details

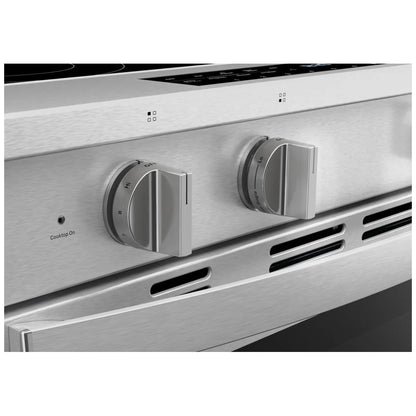

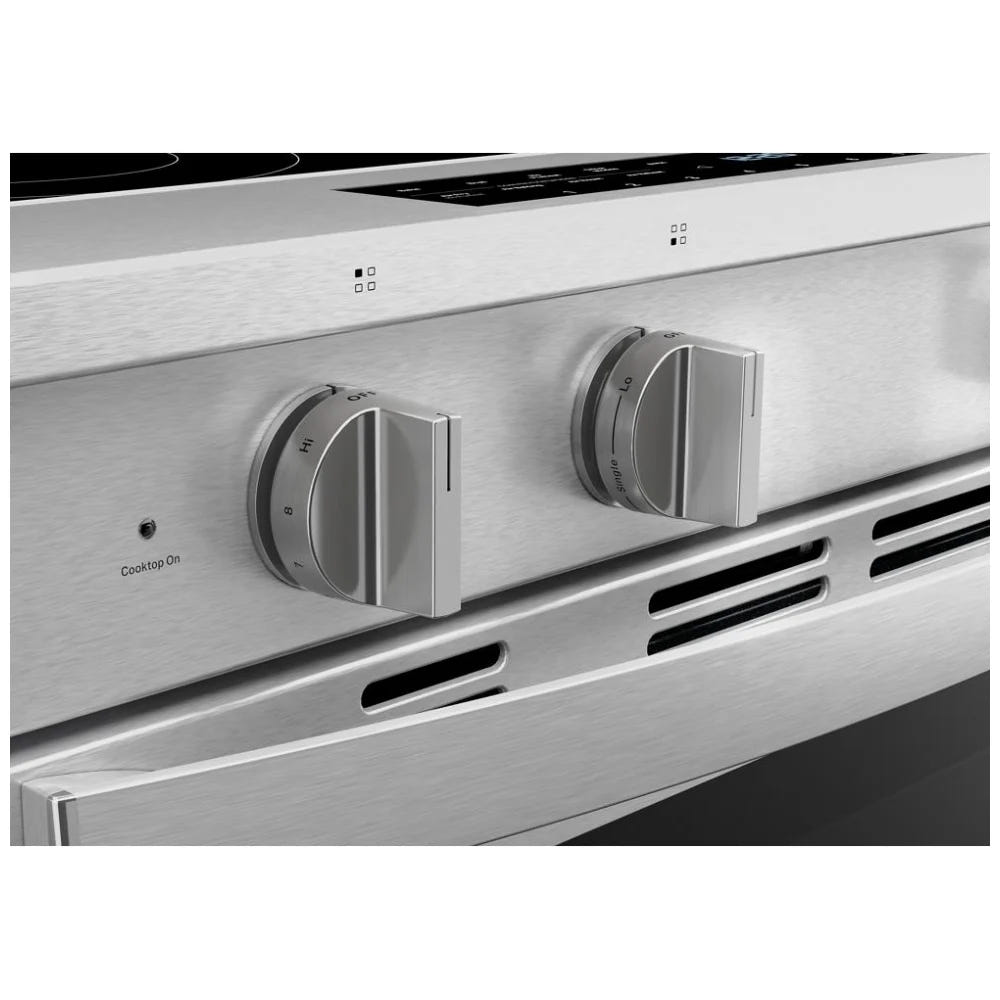

Cooktop Control Knob Type Weighted-Plastic

Cooktop Control Location Front

Cooktop Control Type Knobs

Cooktop Surface Material Glass with WipeClean™ Coating

Griddle Included Optional Accessory

Heating Element On Indicator Light Yes

Hot Surface Indicator Light Yes

Ignition Type N/A

Controls

Display Color Full Color, White

Electrical

Power Cord Included Yes
