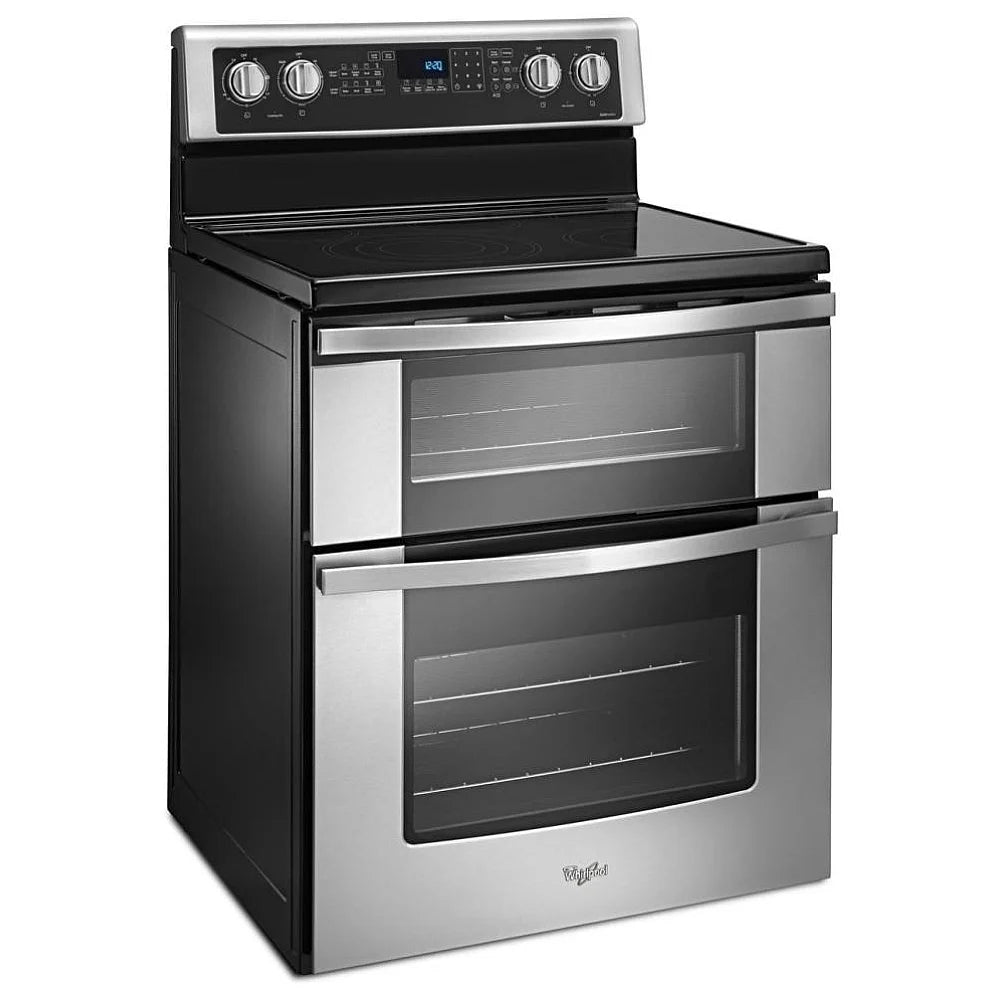

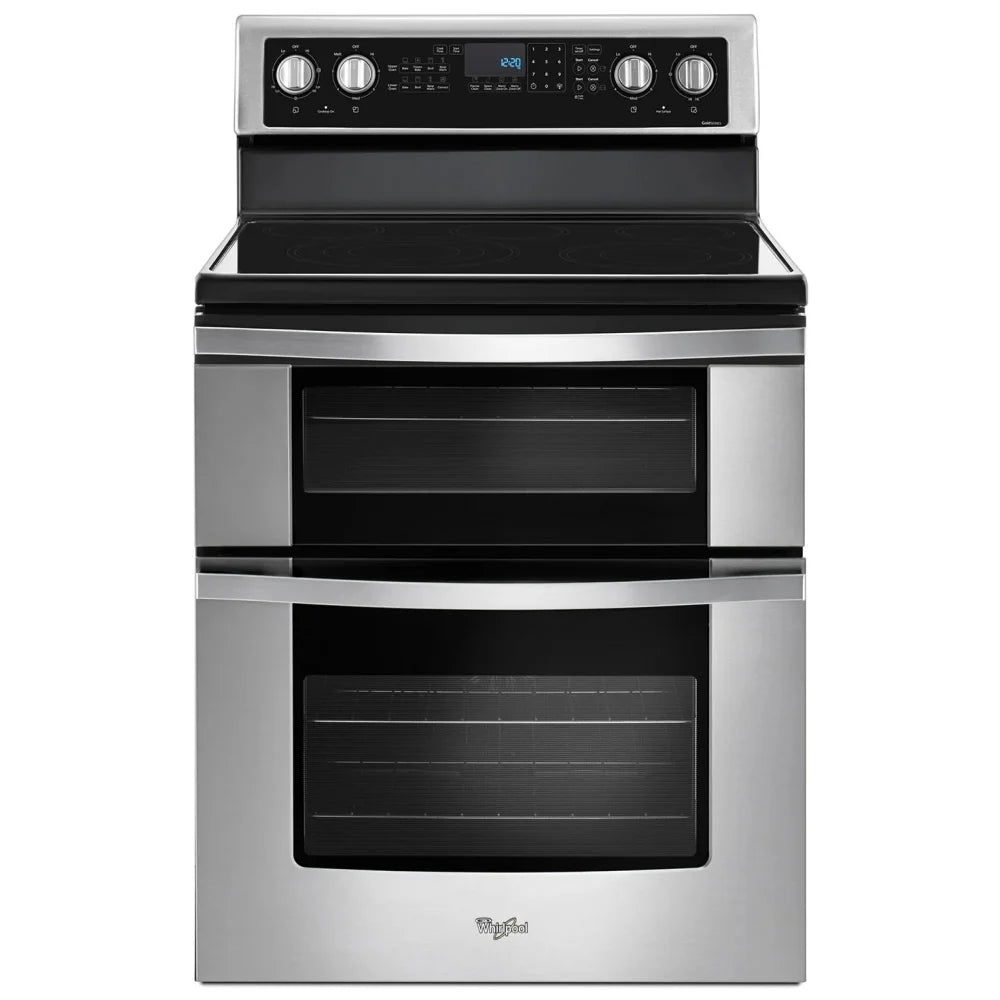

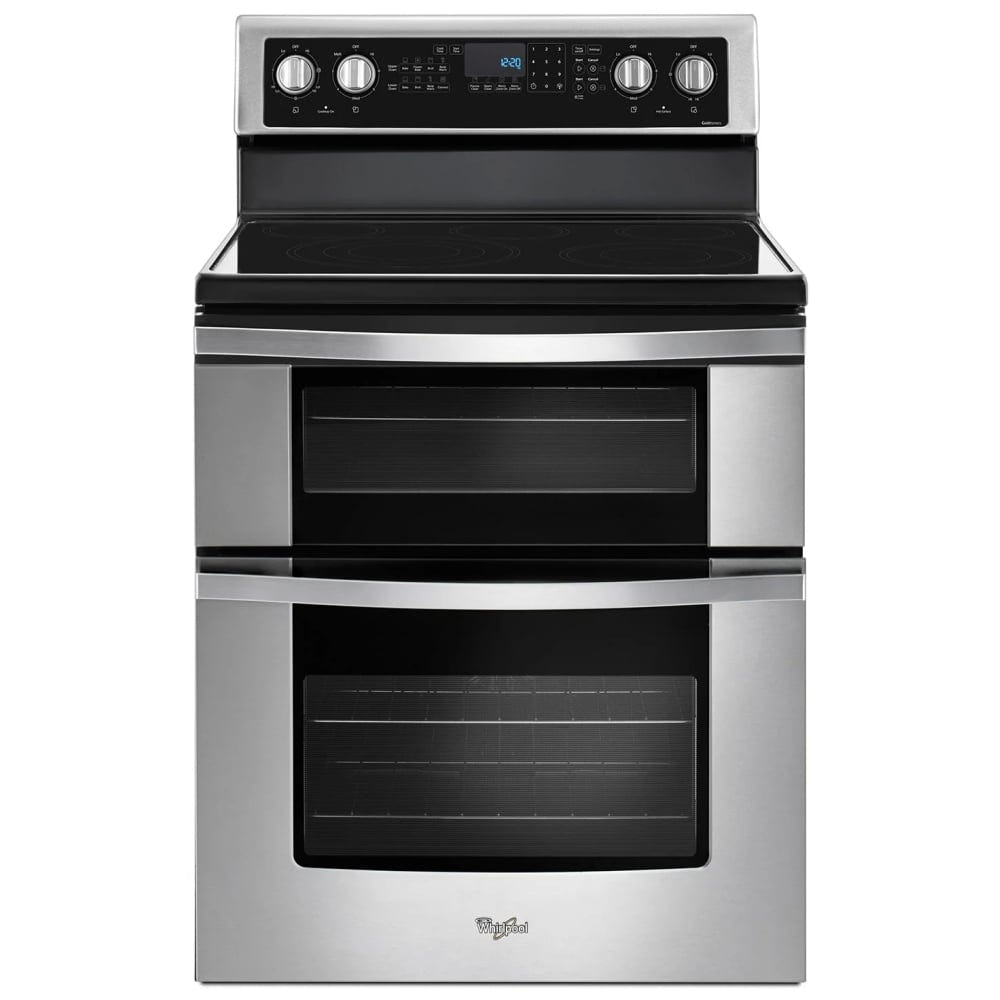

Whirlpool YWGE745C0FS - Electric Ranges

Exterior Details

Door Type Metal & Glass

Handle Color Stainless Steel

Handle Material Metal

Handle Type Towel Bar

Knob Color Color Coordinated/Black on Stainless

Knob Type Weighted-Plastic

Oven Control Location Backguard

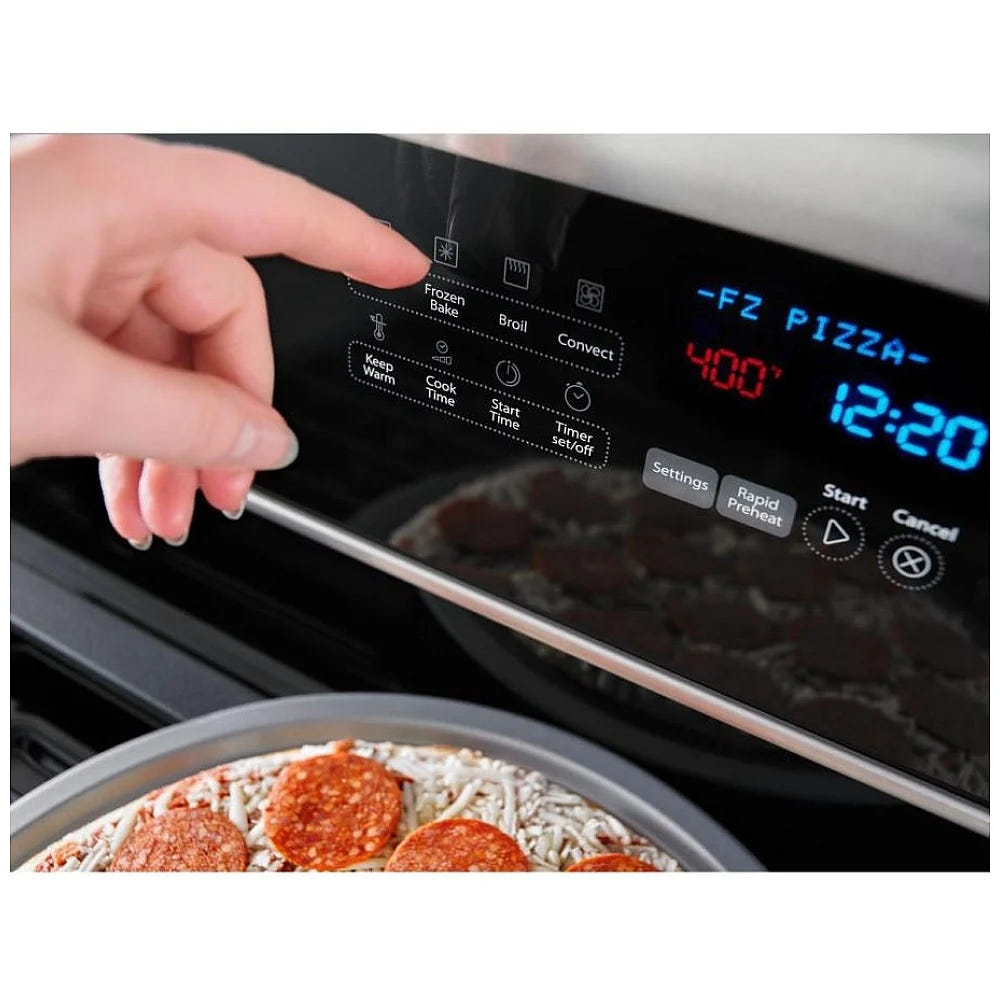

Oven Control Type Electronic Touch

Oven Window Size Extra Large Lower/Large Upper

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust Yes

Bake Element Power 2000W Both

Broiler Element Power 3600W

Broiler Location Top of Oven

Convection Element Power 1600 W, 1600 W, 1600 W, 1600 W

Convection Element Type True

Convection Functions Bake Lower, Broil Lower, Roast Lower

Door Removable Yes

Hidden Bake Element Yes Both

Interior Color Grey

Lower Oven Capacity 118.86 l, 4.2 cu. ft.

Number of Oven Lights 1

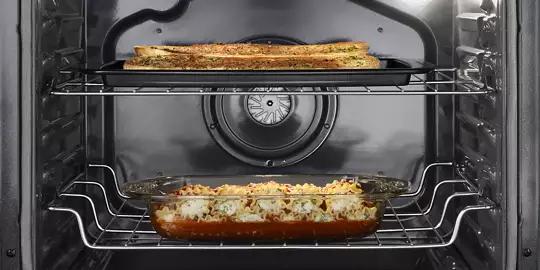

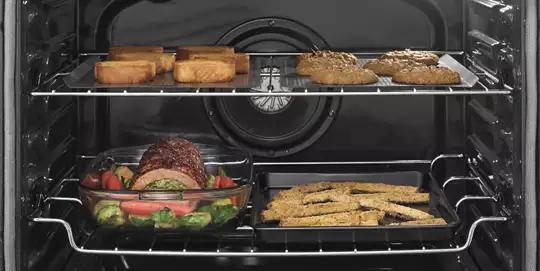

Number of Oven Racks 1 Upper-2 Lower

Number of Rack Guides 2 Upper-5 Lower

Oven Cleaning Type Steam-Clean

Oven Cooking System Thermal Upper-Convection Lower

Oven Light Type Incandescent

Oven Rack Type Standard (Both)

Upper Oven Capacity 70.75 l, 2.5 cu. ft.

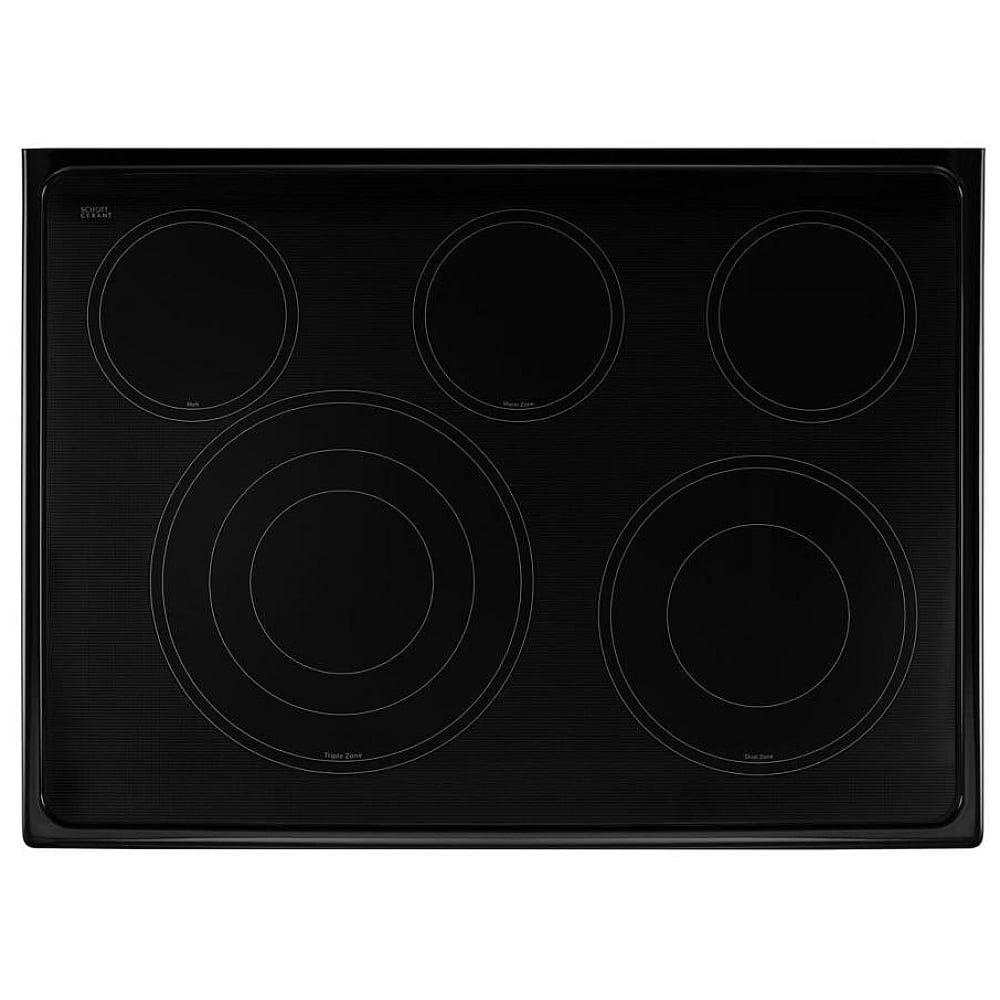

Element/Burner Details

Center Rear Element-Burner Power 100W

Center Rear Element-Burner Size 6in.

Center Rear Element-Burner Type Radiant

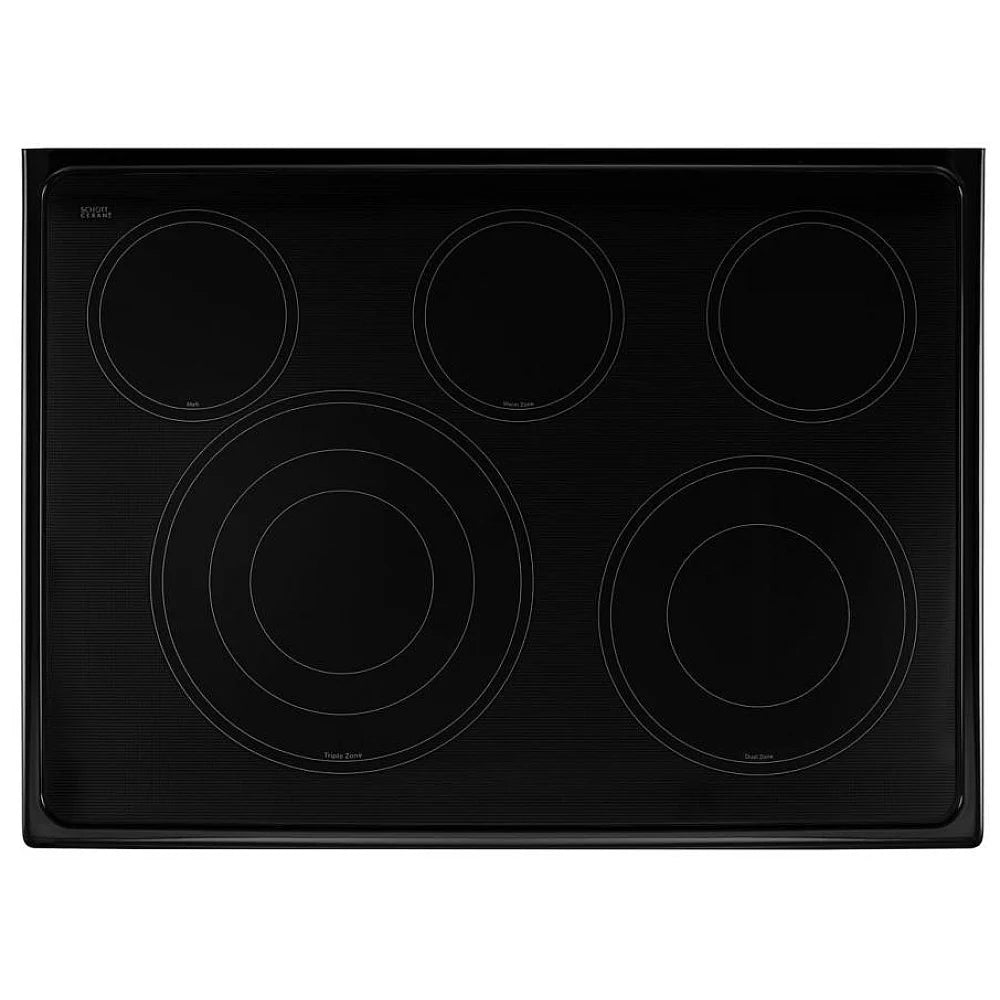

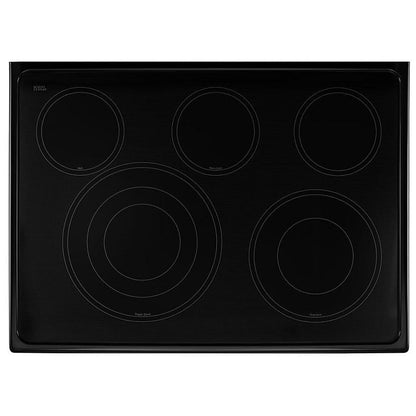

Cooktop Element Style Smoothtop

Left Front Element-Burner Power 3000W

Left Front Element-Burner Size 12in./9in./6in.

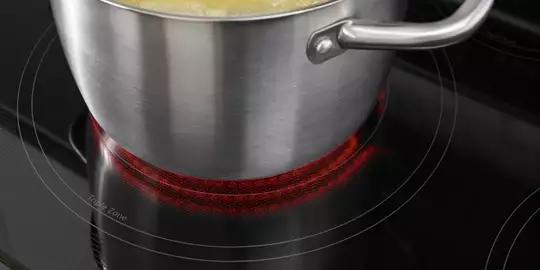

Left Front Element-Burner Type Triple

Left Rear Element-Burner Power 300W/1300W

Left Rear Element-Burner Size 6in.

Left Rear Element-Burner Type Radiant Melt

Number of Cooking Element-Burners 5

Right Front Element-Burner Power 3000W

Right Front Element-Burner Size 9in./6in.

Right Front Element-Burner Type Radiant

Right Rear Element-Burner Power 1200W

Right Rear Element-Burner Size 6in.

Right Rear Element-Burner Type Radiant

Cooktop Details

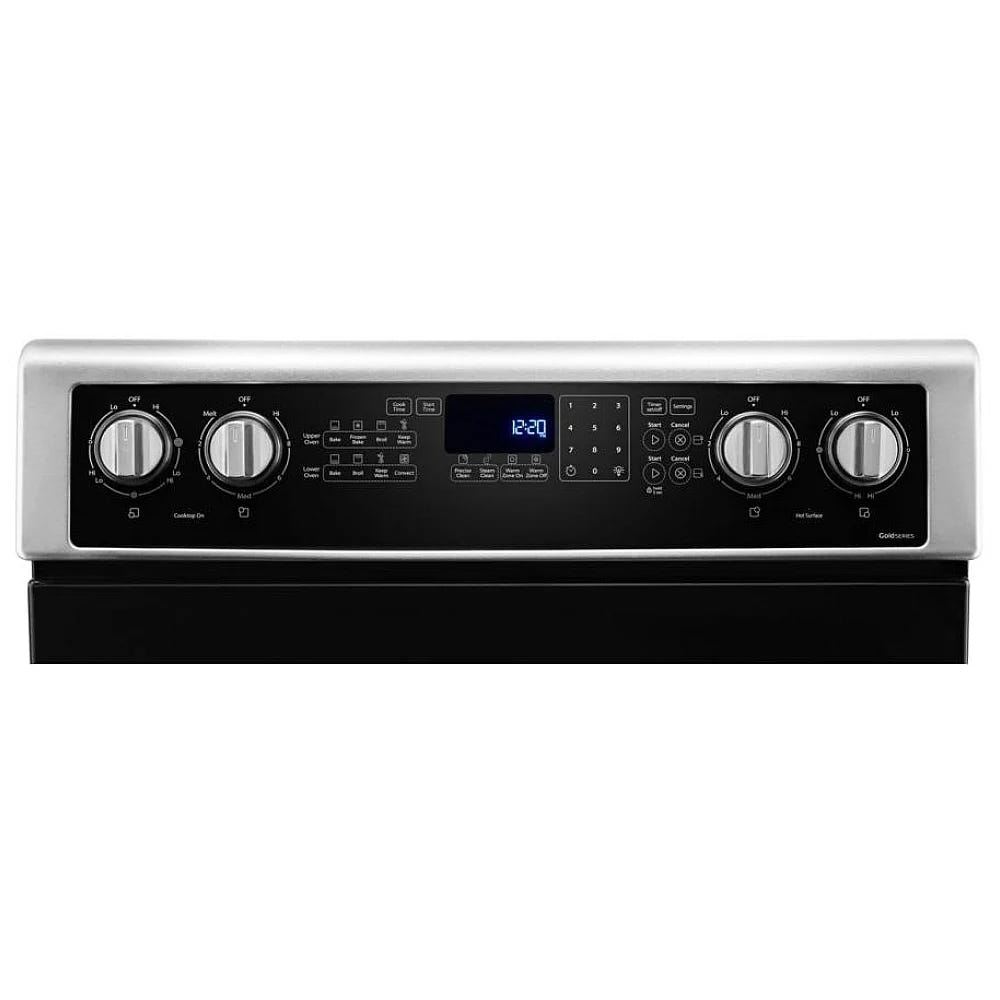

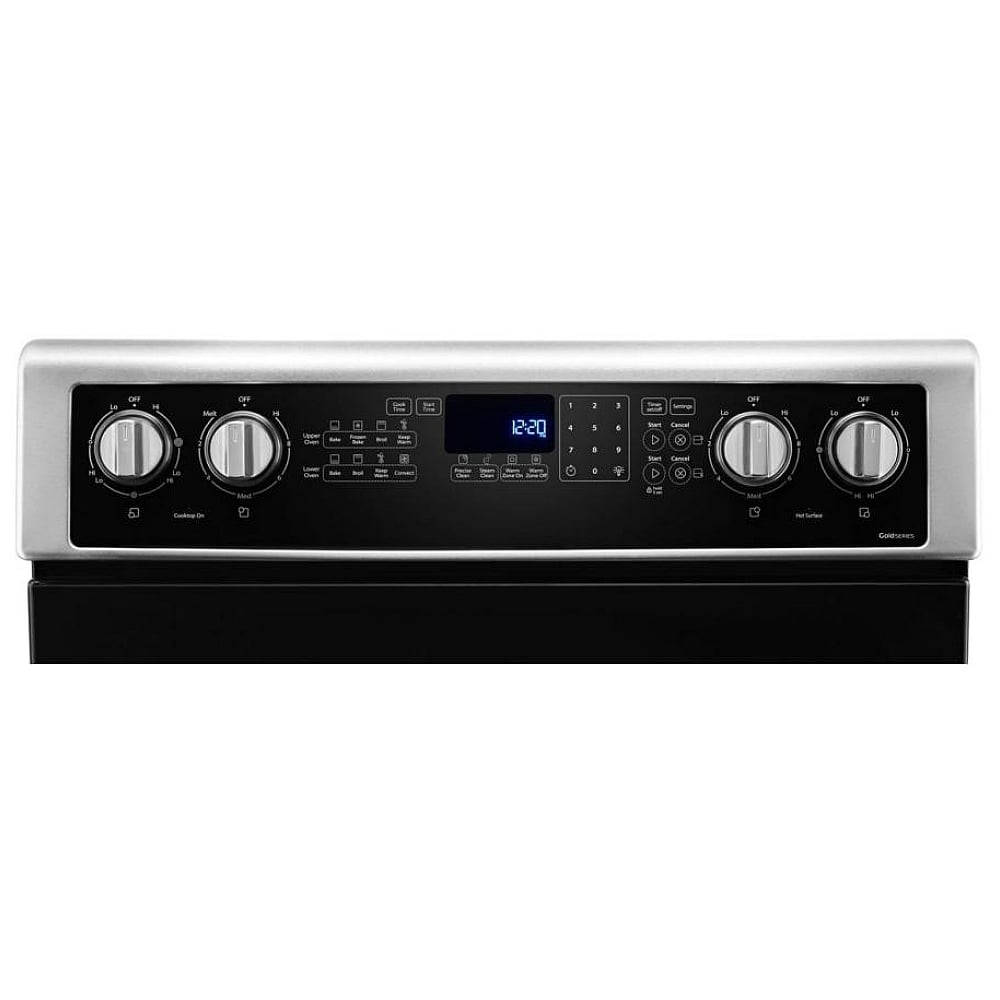

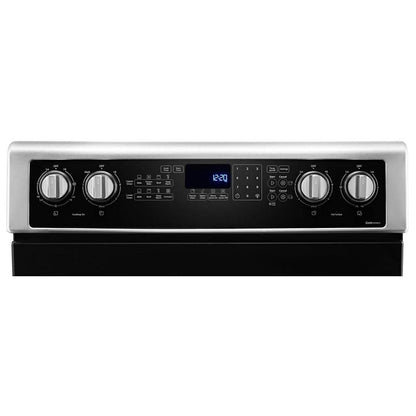

Cooktop Control Location Backguard

Cooktop Control Type Knobs

Cooktop Surface Color Black

Cooktop Surface Material Ceramic Glass

Heating Element On Indicator Light Yes

Hot Surface Indicator Light Yes

Dimensions

Cutout Height 91.44 cm, 36 in

Cutout Width 76.52 cm, 30-1/8 in

Depth 66.36 cm, 26-1/8 in

Depth Closed Excluding Handles 69.22 cm, 27-1/4 in

Depth With Door Open 90 Degree 116.84 cm, 46 in

Gross Weight 102.06 kg, 225 lbs

Height 119.70 cm, 47-1/8 in

Lower Oven Interior Depth 46.99 cm, 18-1/2 in

Lower Oven Interior Height 40.64 cm, 16 in

Lower Oven Interior Width 63.50 cm, 25 in

Net Weight 0.00 kg, 0 lbs

Upper Oven Interior Depth 46.99 cm, 18-1/2 in

Upper Oven Interior Height 23.50 cm, 9-1/4 in

Upper Oven Interior Width 63.50 cm, 25 in

Width 76.04 cm, 29-15/16 in

Details

Fuel Type Electric

LP Convertible No

Oven Configuration Double Oven

Oven Selections Auto On, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Delay Start, Frozen Bake, Keep Warm Setting, Language Conversion, Melt, Rapid Preheat, Sabbath Mode, Timer, Warm Hold

Power On Indicator Light Yes

Power Outage Compatible No

Range Configuration Double Oven

Range Type Freestanding Double Oven

Controls

Display Color Blue, Red

Electronic Display Type Digital

Refinements

Features Frozen Bake™ Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle

Electrical

Power Cord Included Yes
