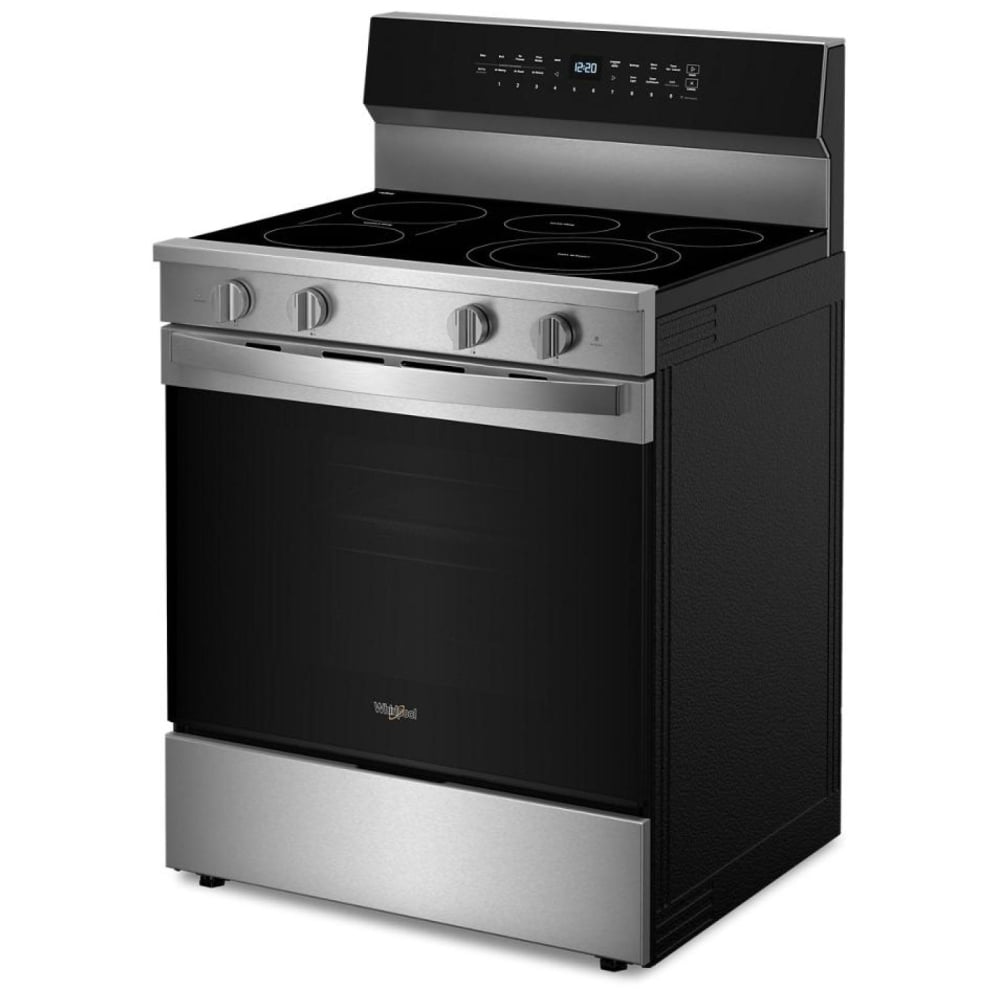

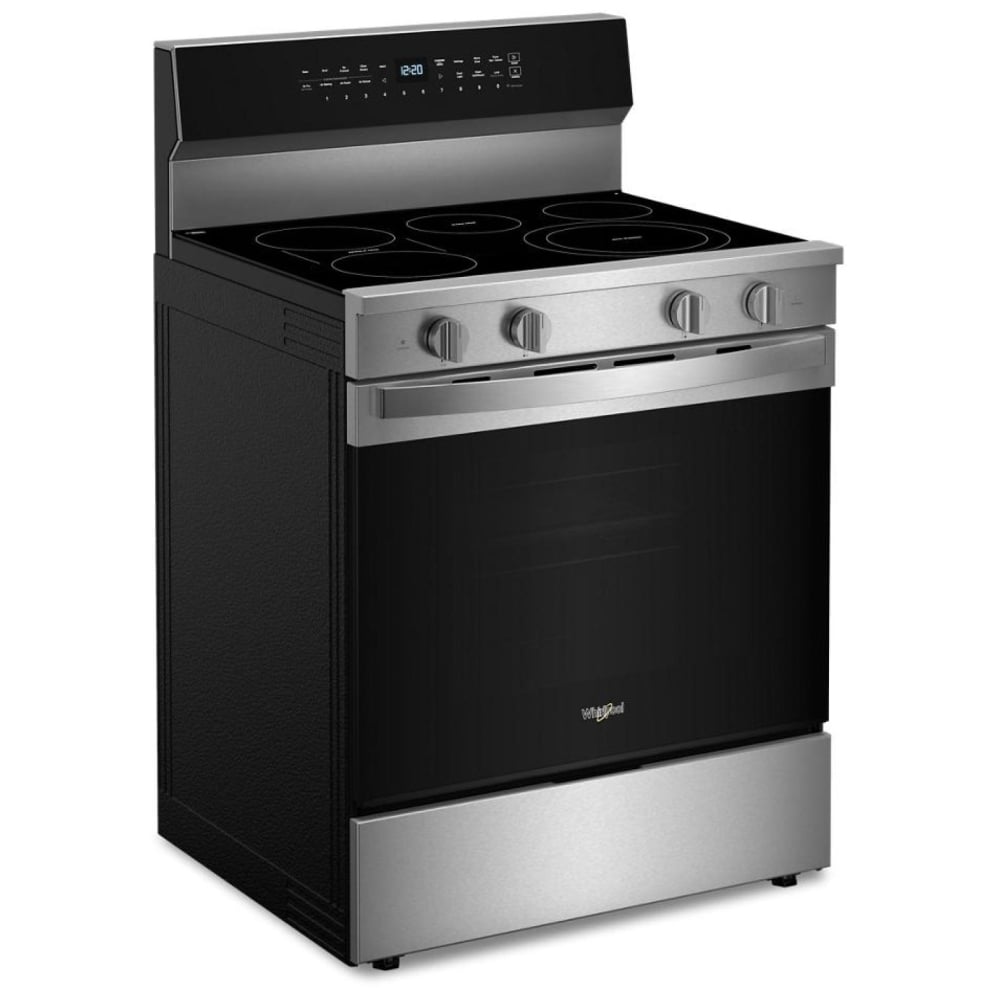

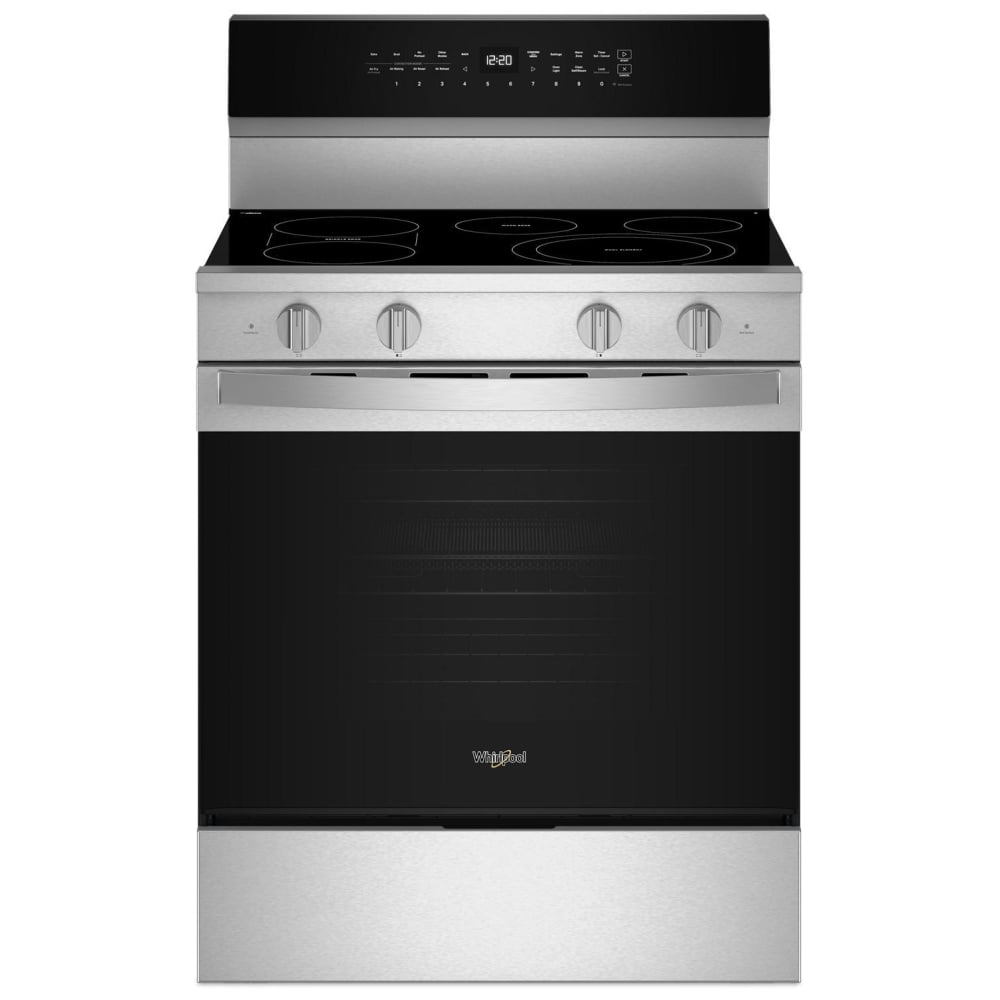

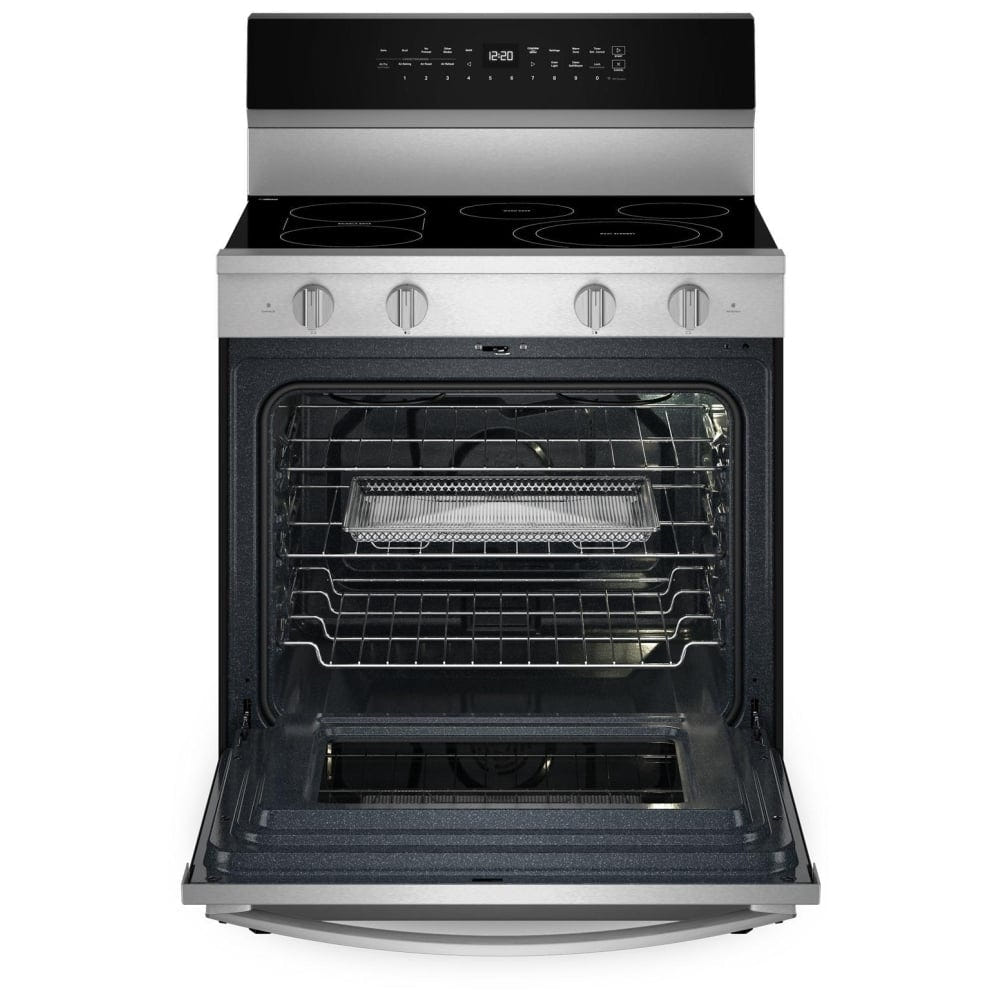

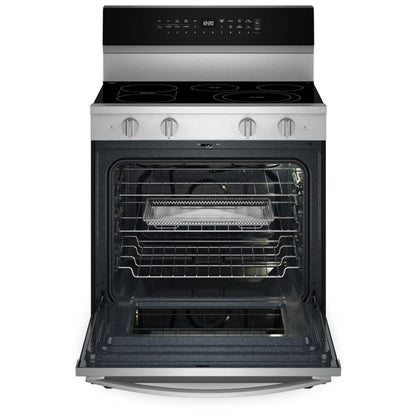

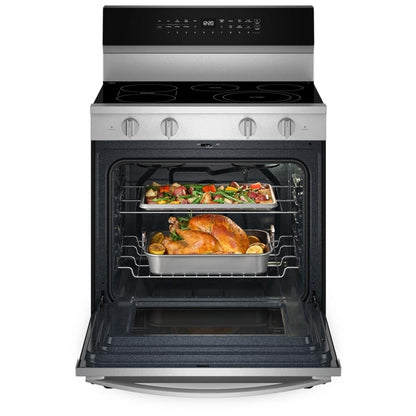

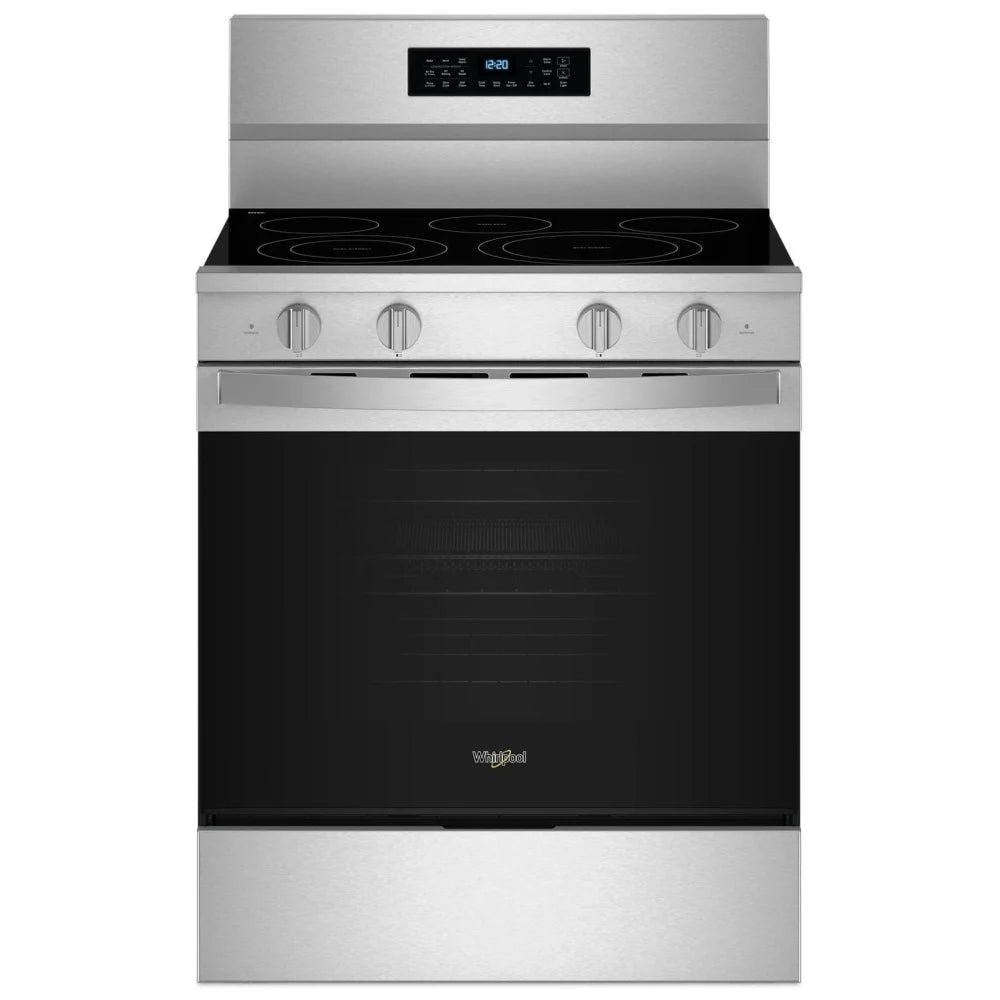

Whirlpool YWFES7030SZ Electric Range, 5.3 cu. ft. Capacity, 30 inch Exterior Width, True Convection, 5 Burners

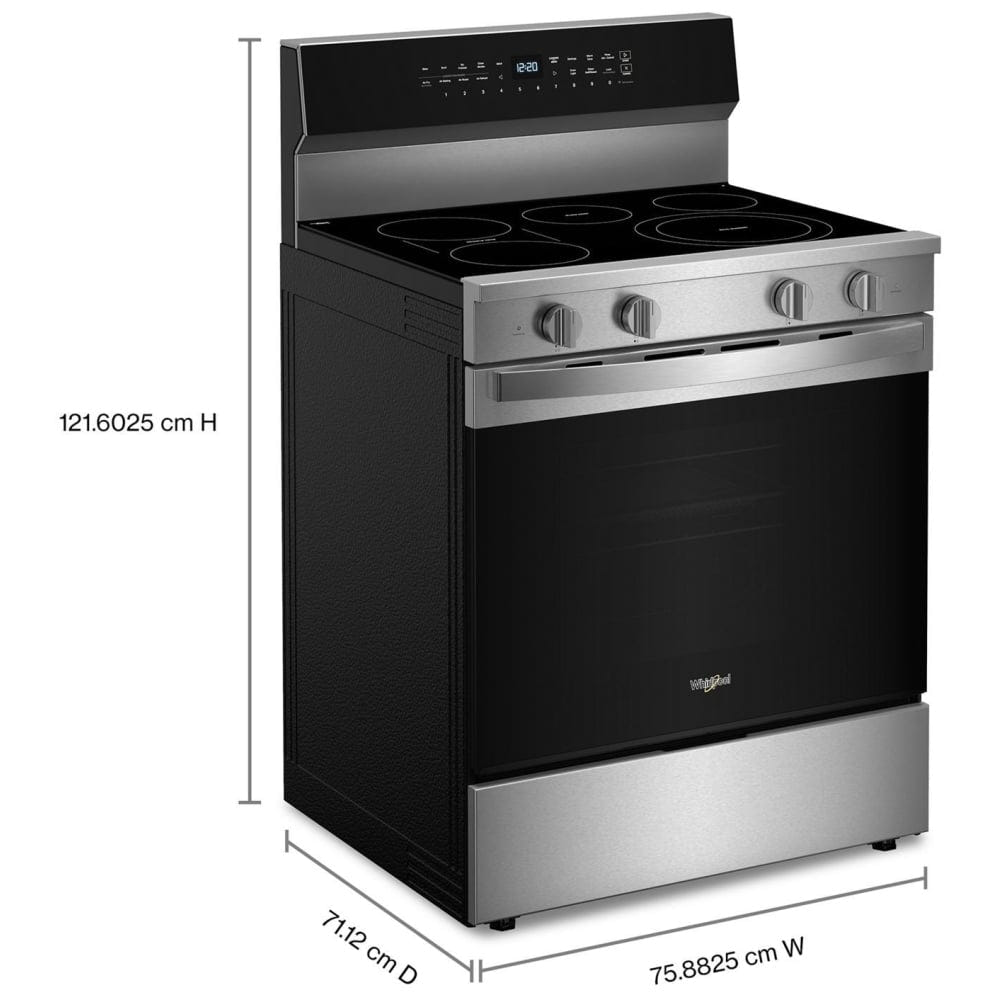

Dimensions
Depth 24.5 "
Width 29.9 "
Height 46.7 "
Carton Depth 29.0 "
Carton Height 49.0 "
Carton Width 32.0 "
Gross Weight 185.0 lbs
Depth With Door Open 90 Degree 46.8 "
Cutout Depth 24.0 "
Cutout Height 36.0 "
Cutout Width 30.0 "
Depth Closed Excluding Handles 26.1 "
Depth Closed Including Handles 29.1 "
Maximum Height 52.2 "
Minimum Height 46.7 "
Capacity FT3 (cubic feet) 5.3

Details
Oven Control Location Rear Control
Rack Guide Type Embossed
Oven Rack Type 2 Standard
Oven Light Type Halogen
Oven Light Switch Location Oven Control
Oven Interior Width In Inches 24.2
Oven Interior Depth In Inches 19.7

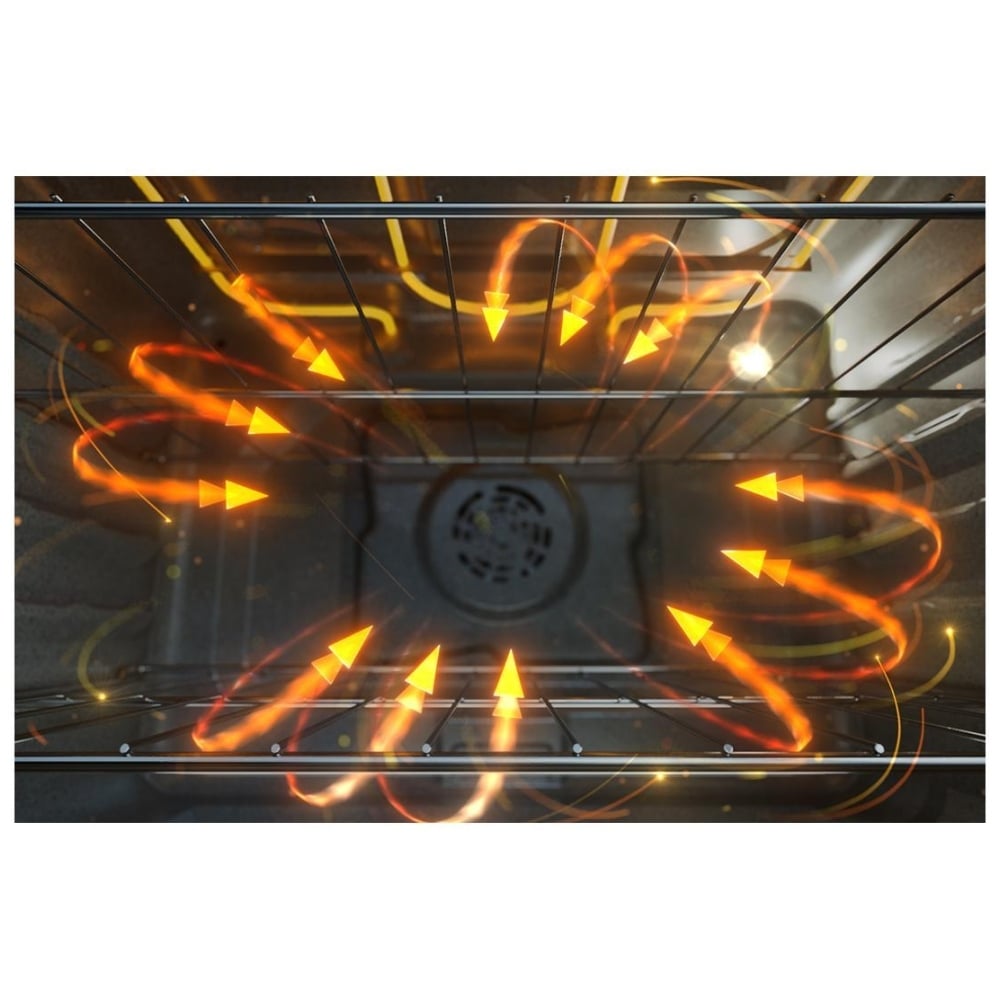

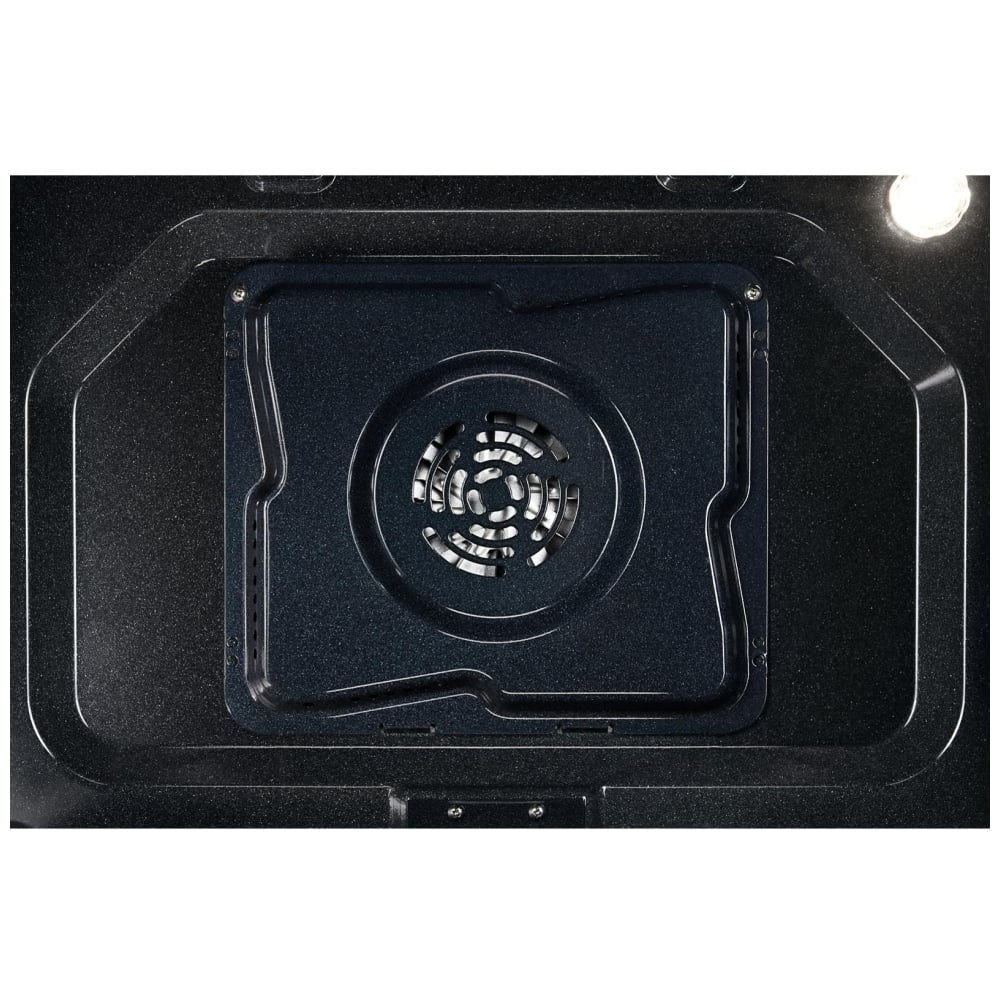

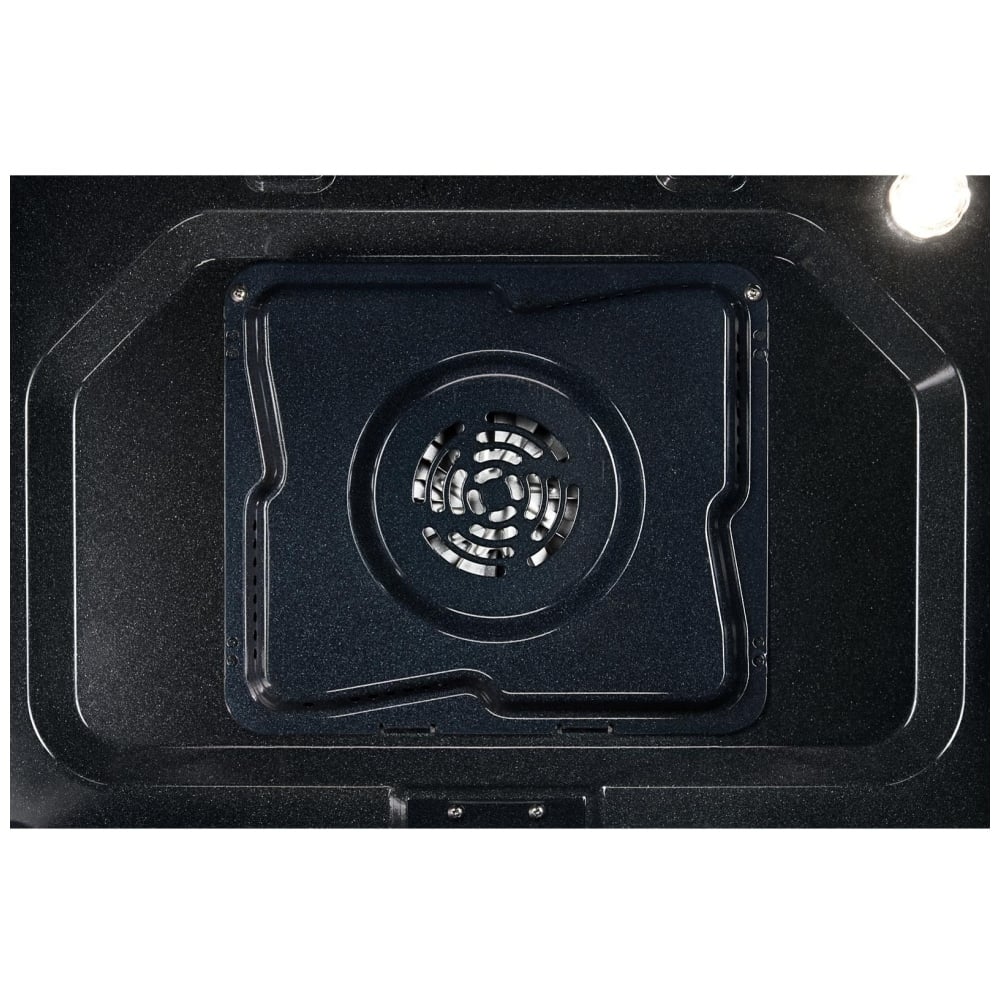

Oven Cooking System True Convection
Oven Control Type Tap Touch
Oven Control Knob Type N/A
Oven Cleaning Type Self-Clean
Number Of Rack Guides 5
Number Of Oven Racks 2
Number Of Oven Lights 1
Interior Color Blue
Hidden Bake Element Hidden
Cooktop Surface Material Glass
Convection Functions No
Convection Element Type True

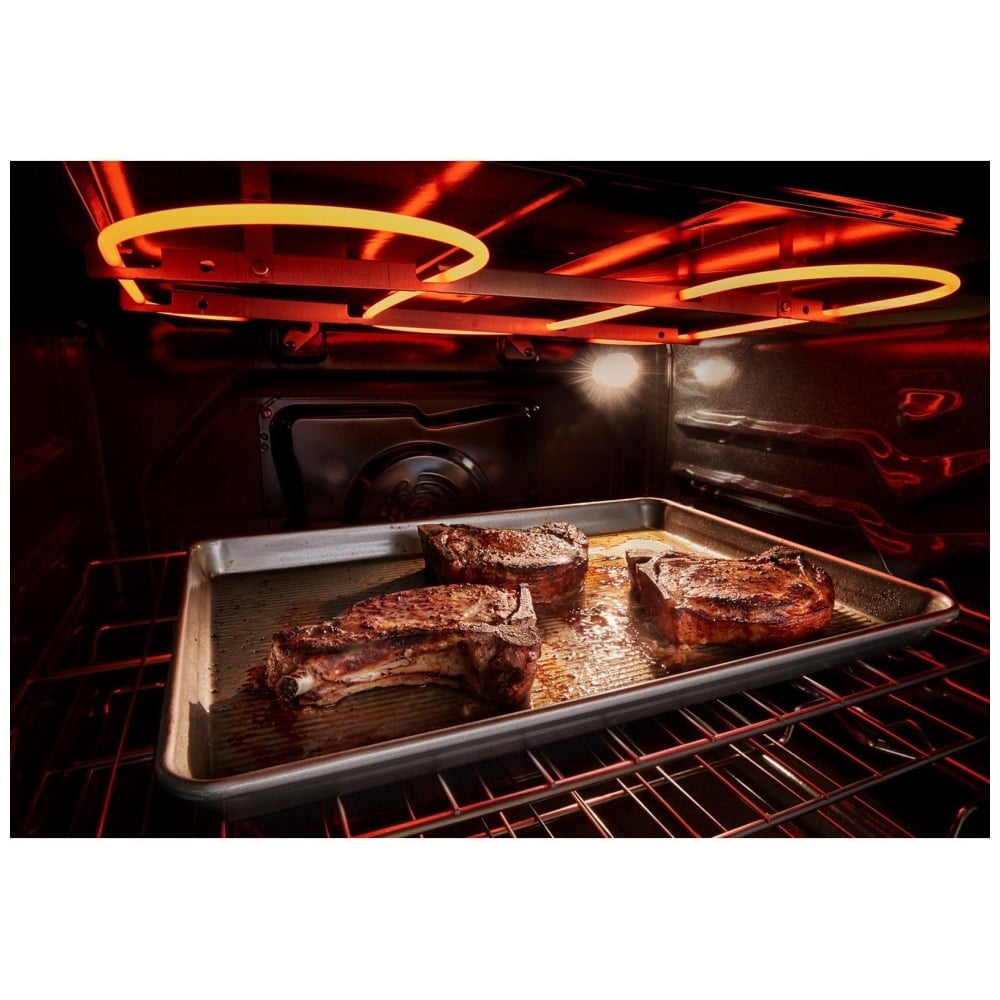

Broiler Location Top Center

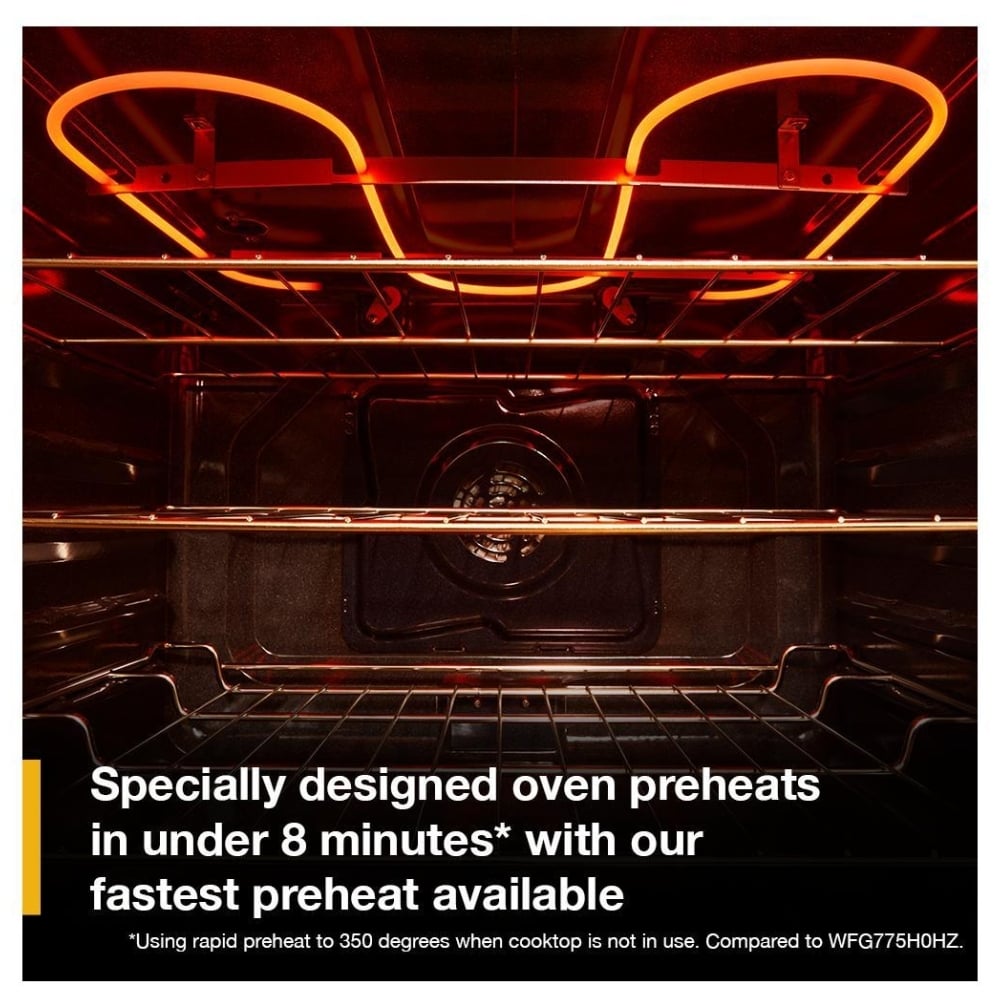

Broiler Element Power 3400W
Bake Element Power 2400W

Electrical
Amps 40
Hz 60
Watts 12000
Volts 208
Power Cord Included Yes

Exterior
Handle Type Reach-Through Handle
Handle Material Metal
Handle Color Stainless Steel
Drawer Type Storage Drawer
Door Removable Yes

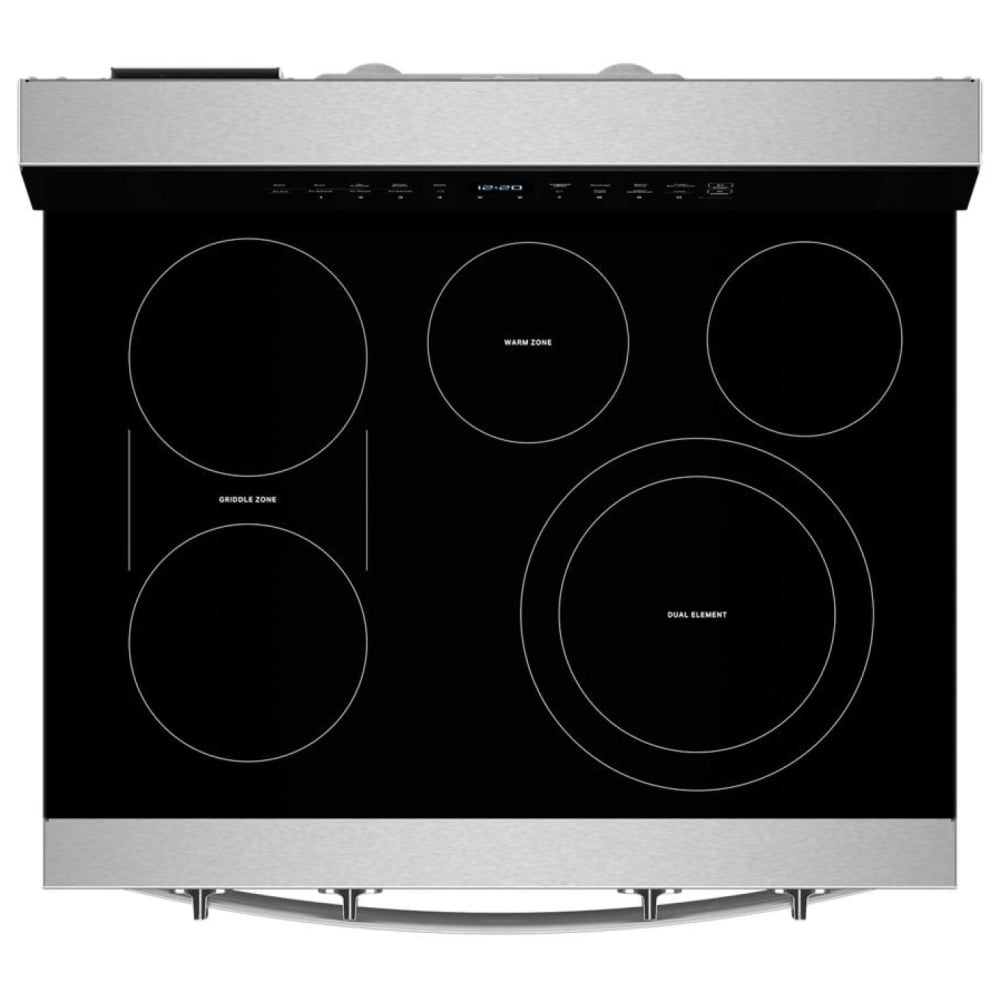

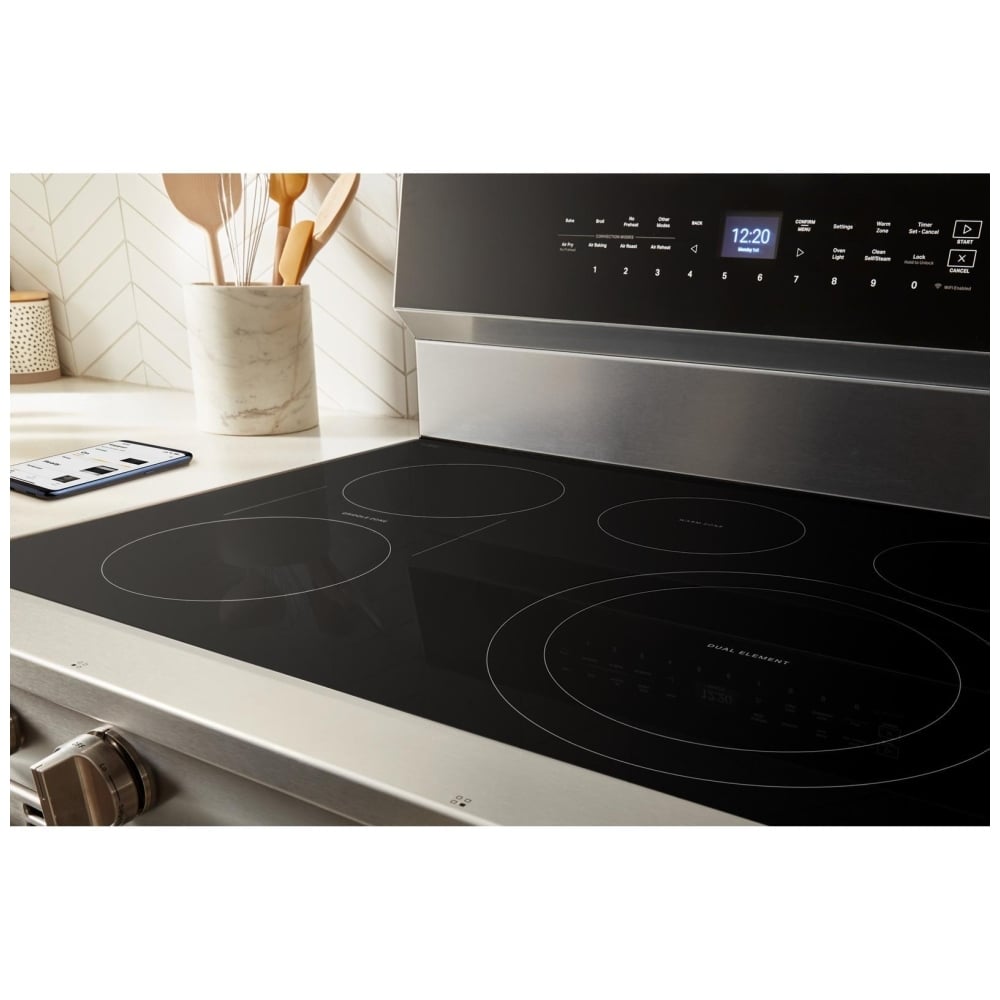

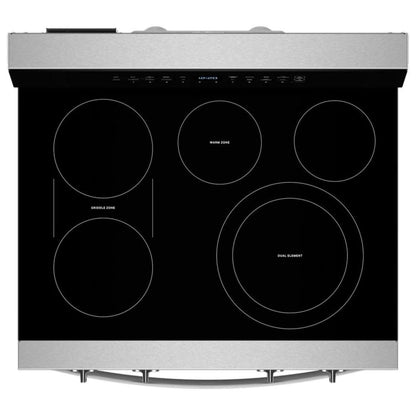

Cooktop Details
Center Rear Element Burner Size 6in.
Cooktop Element Style Ceran
Cooktop Control Type Knobs
Cooktop Control Location Backguard
Cooktop Configuration All Burners
Center Rear Element Burner Type Warming
Center Rear Element Burner Power 100W
Left Front Element Burner Power 3000W

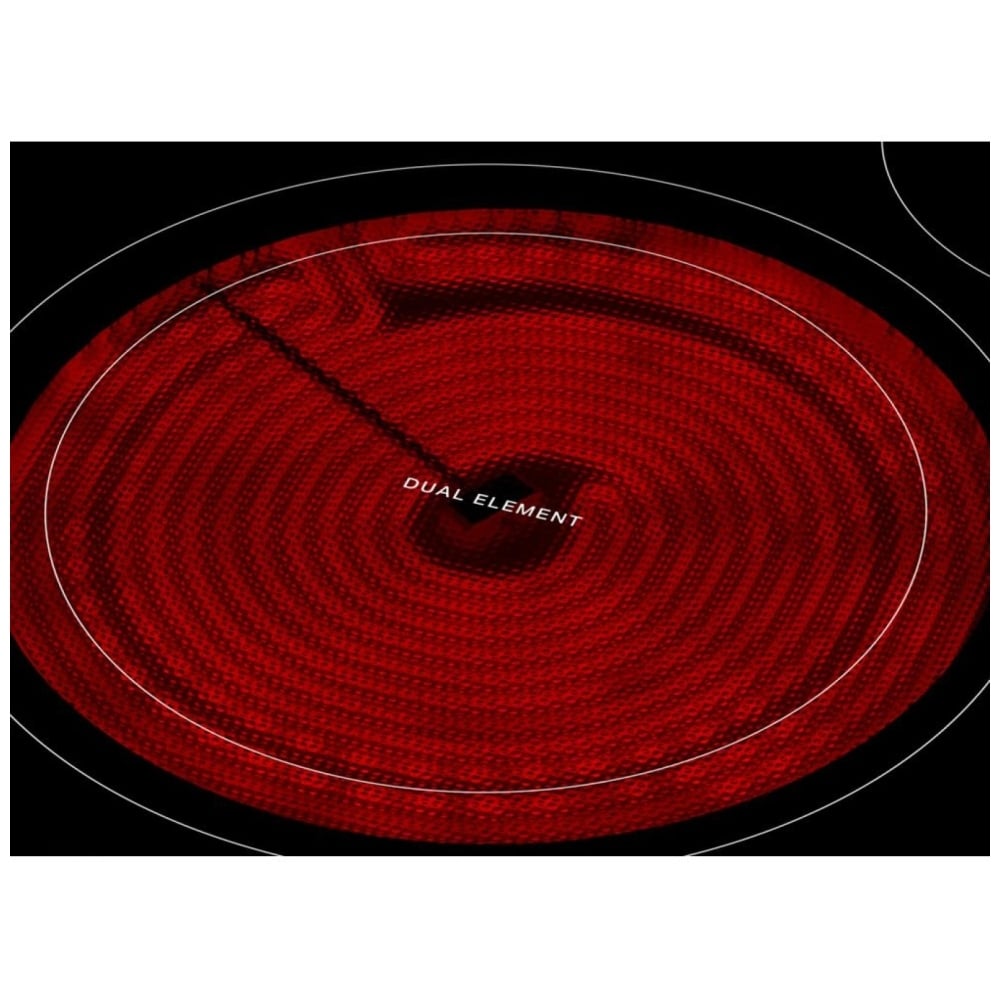

Right Front Element Burner Type Dual
Right Rear Element Burner Type Standard
Right Rear Element Burner Size 6in.
Right Rear Element Burner Power 1200W
Right Front Element Burner Size 12in./9in.
Right Front Element Burner Power 3000W
Number Of Cooking Element Burners 5
Left Rear Element Burner Type Standard
Left Rear Element Burner Size 6in.
Left Rear Element Burner Power 1200W

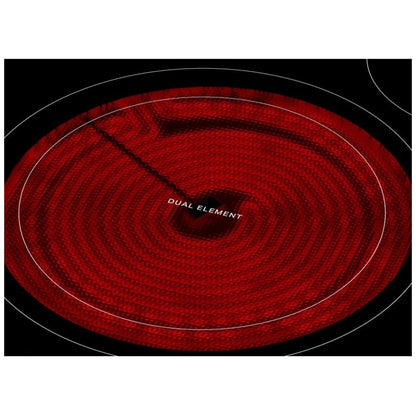

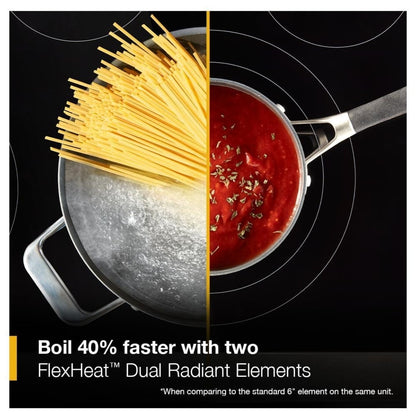

Left Front Element Burner Type Dual
Left Front Element Burner Size 9in./6in.

Controls

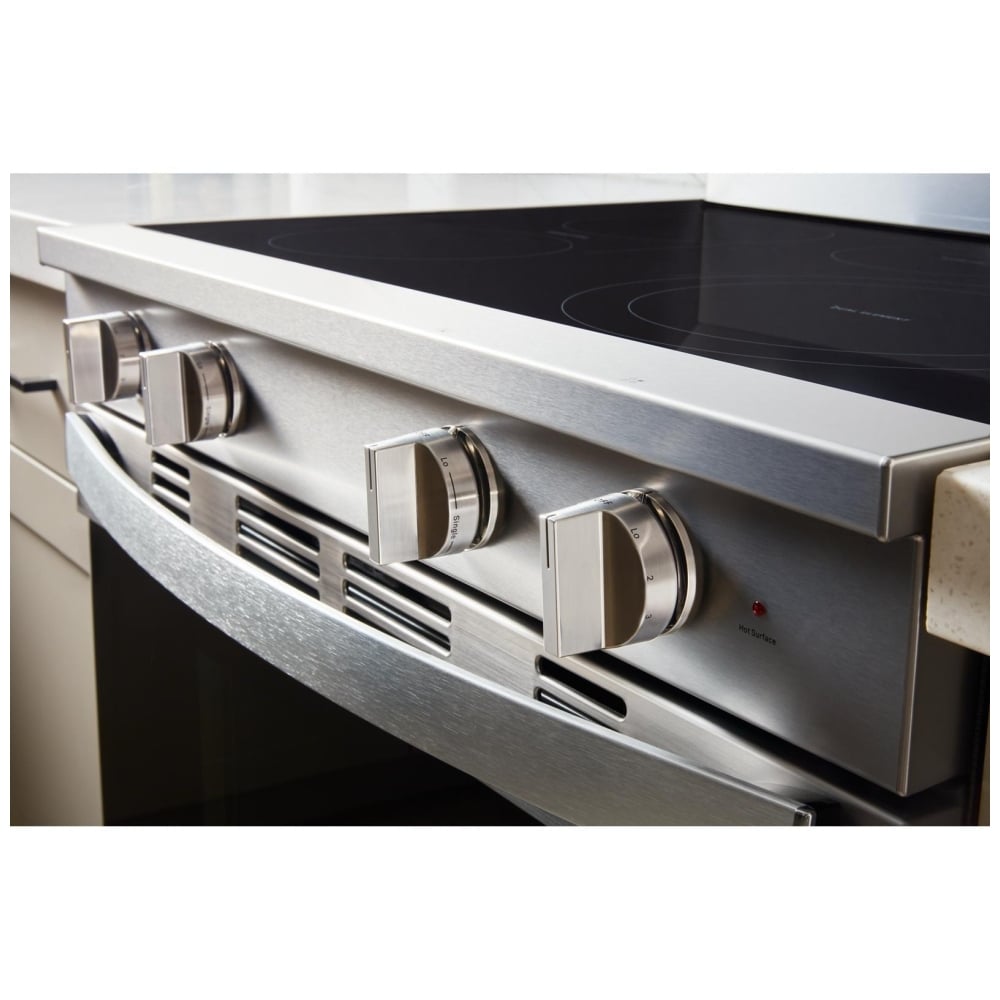

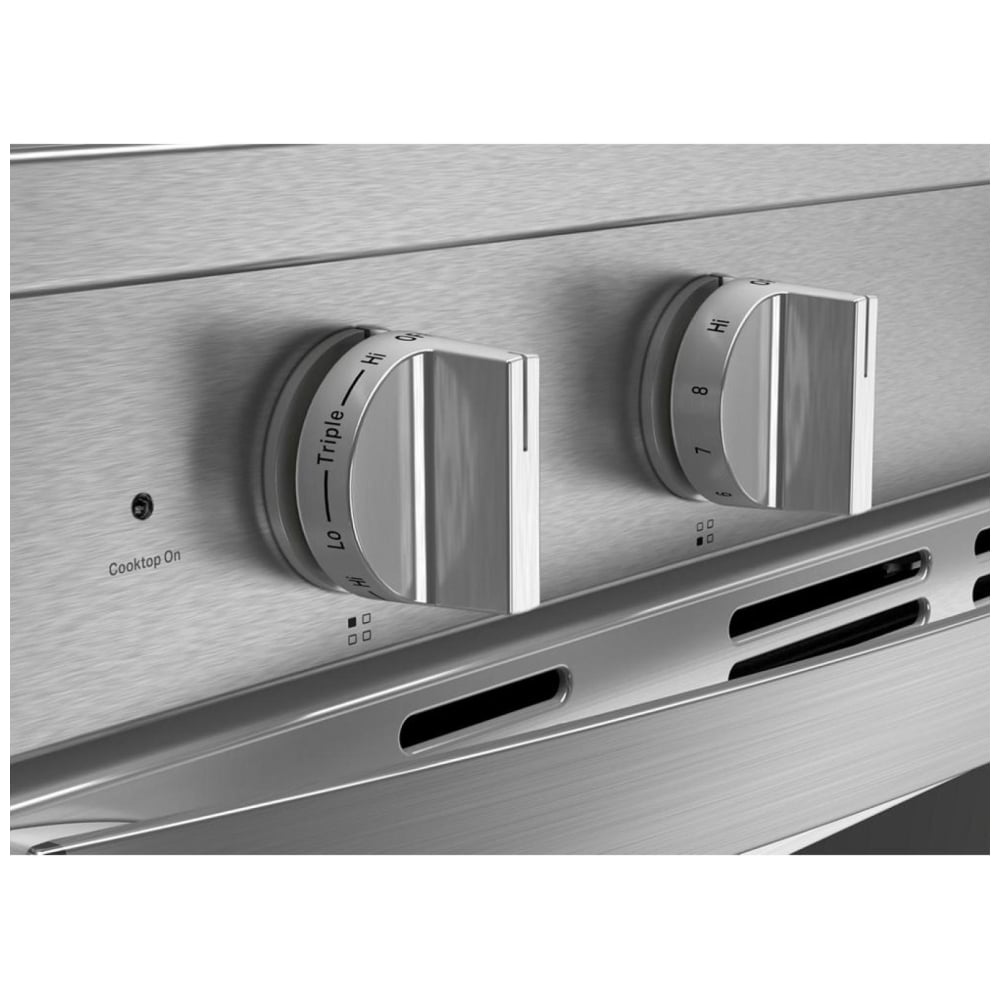

Control Type Knobs
Knob Type Weighted
Knob Color Stainless Steel

Specifications
Extended Service Plan Parent EW07IW1Y, EW07IW2Y, EW07IW4Y

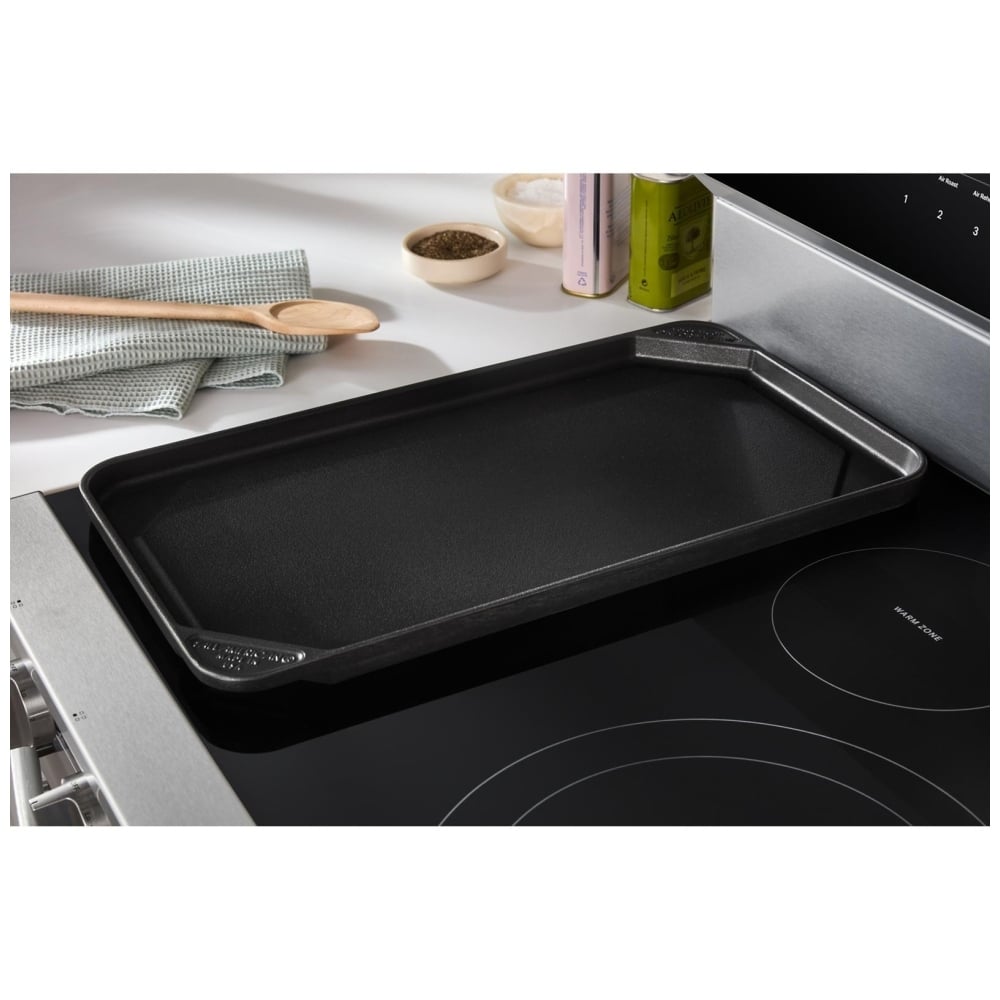

Optional Accessories 4396096RB, W11692811
Dishwasher Safe No
Country Of Origin USA

Features
Power Outage Compatible Yes
Hot Surface Indicator Light Yes
Heating Element On Indicator Light Yes
Griddle No
Automatic Convection Conversion Temperature Adjust No

Energy
Annual Energy Usage Kwh 565

Configuration
Range Configuration Freestanding
Oven Configuration Single Oven

Configuration and Overview
Fuel Type Electric

Compatibility
Works With Amazon Alexa; Android; Google Assistant; Nest; iOS

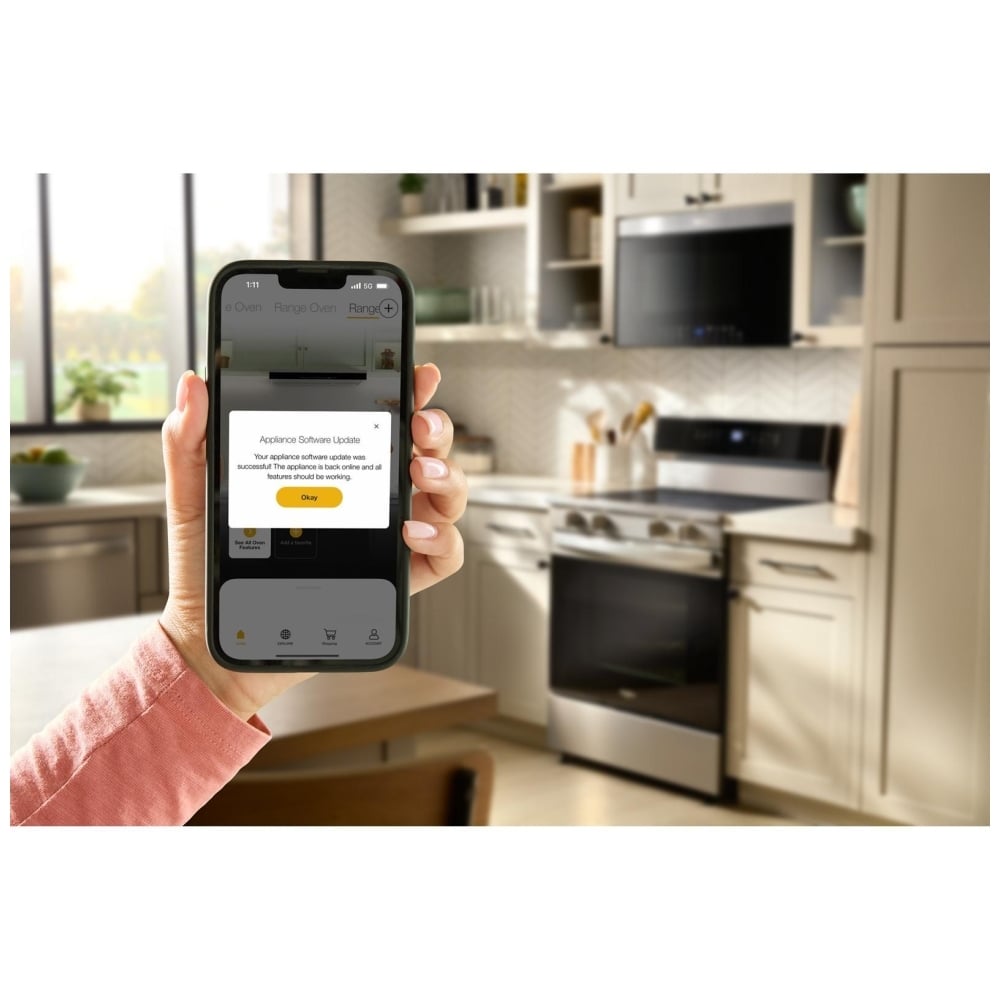

Connectivity App; Bluetooth; Remote Access; Voice Controlled; WiFi

Certifications
UL Yes
Star K Certified Star K Certified
Energy Rating Kwh Year 565
CUL Yes
ADA Compliant No

Description
Size In 30
Range Type Freestanding
