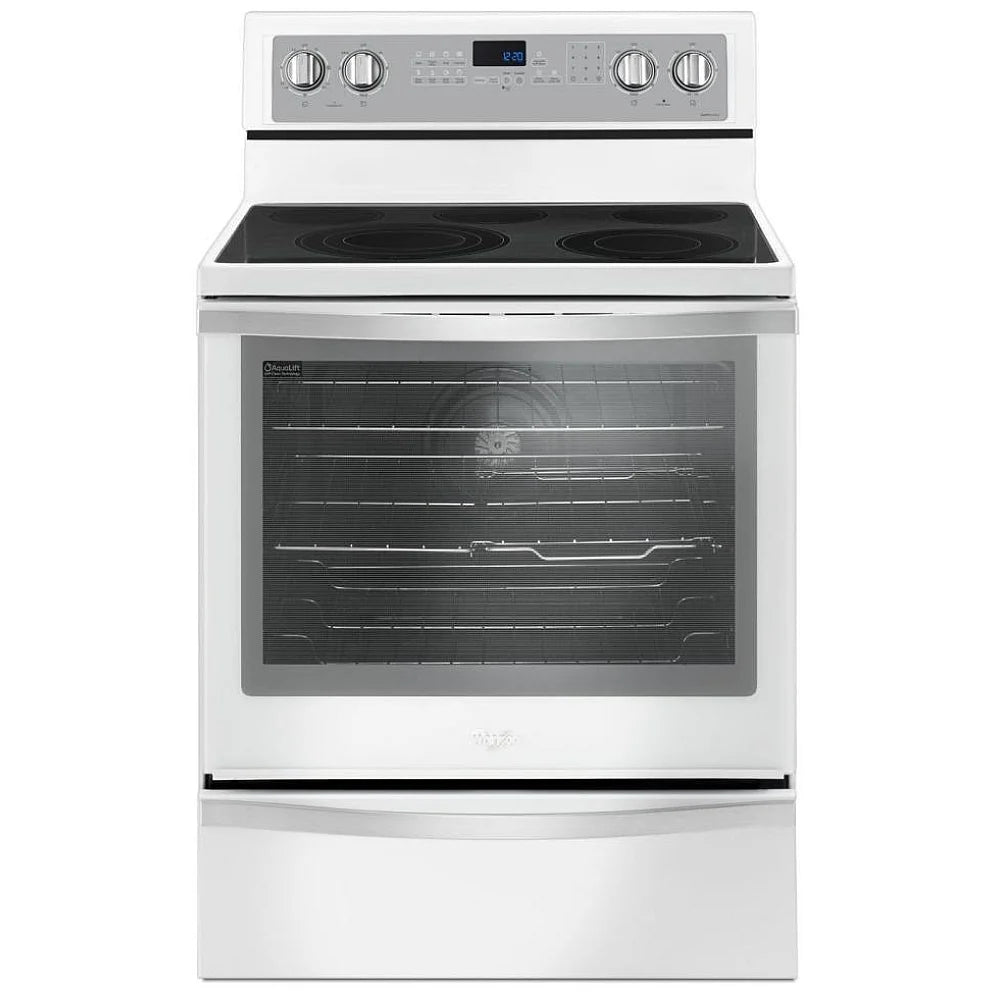

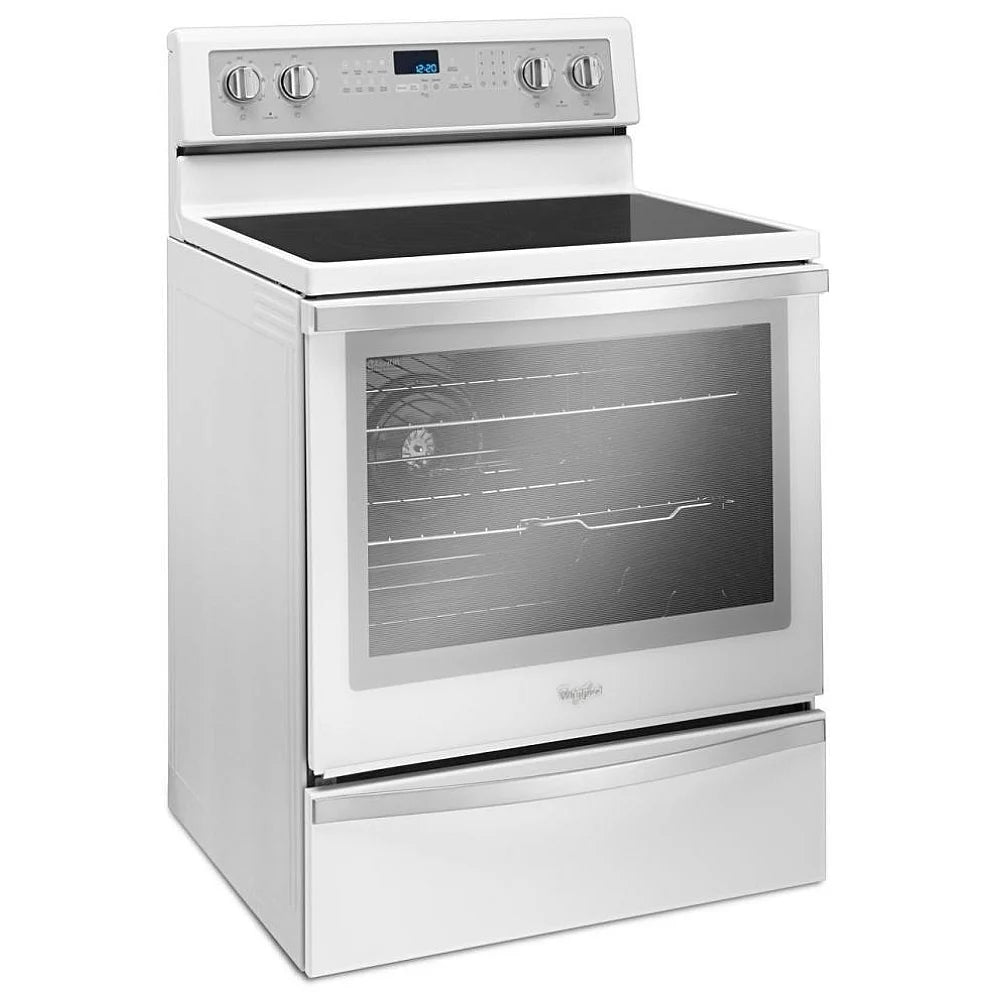

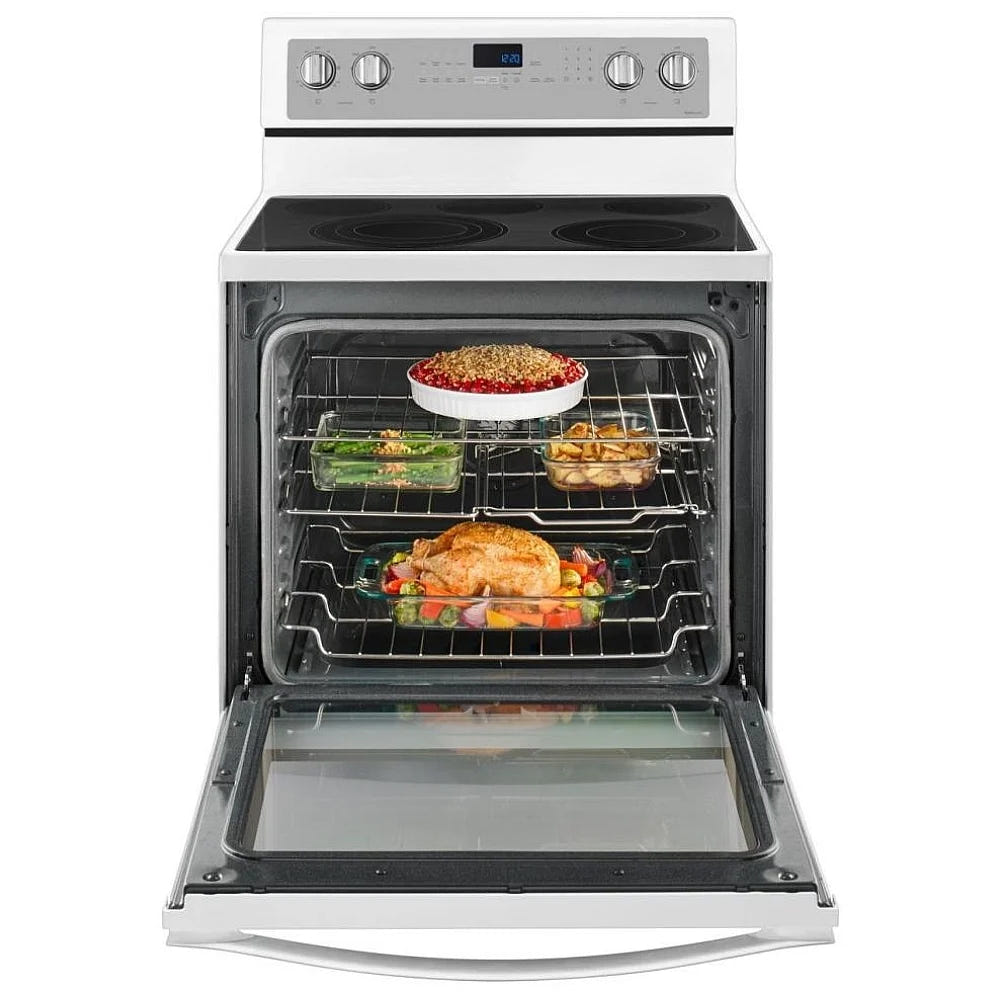

Whirlpool YWFE745H0FH Electric Ranges

Exterior Details

Door Type Metal & Glass

Handle Color Stainless Steel

Handle Material Metal

Handle Type Reach-Through Handle

Knob Color Color Coordinated

Knob Type Dishwasher-Safe Weighted

Oven Control Knob Type Plastic

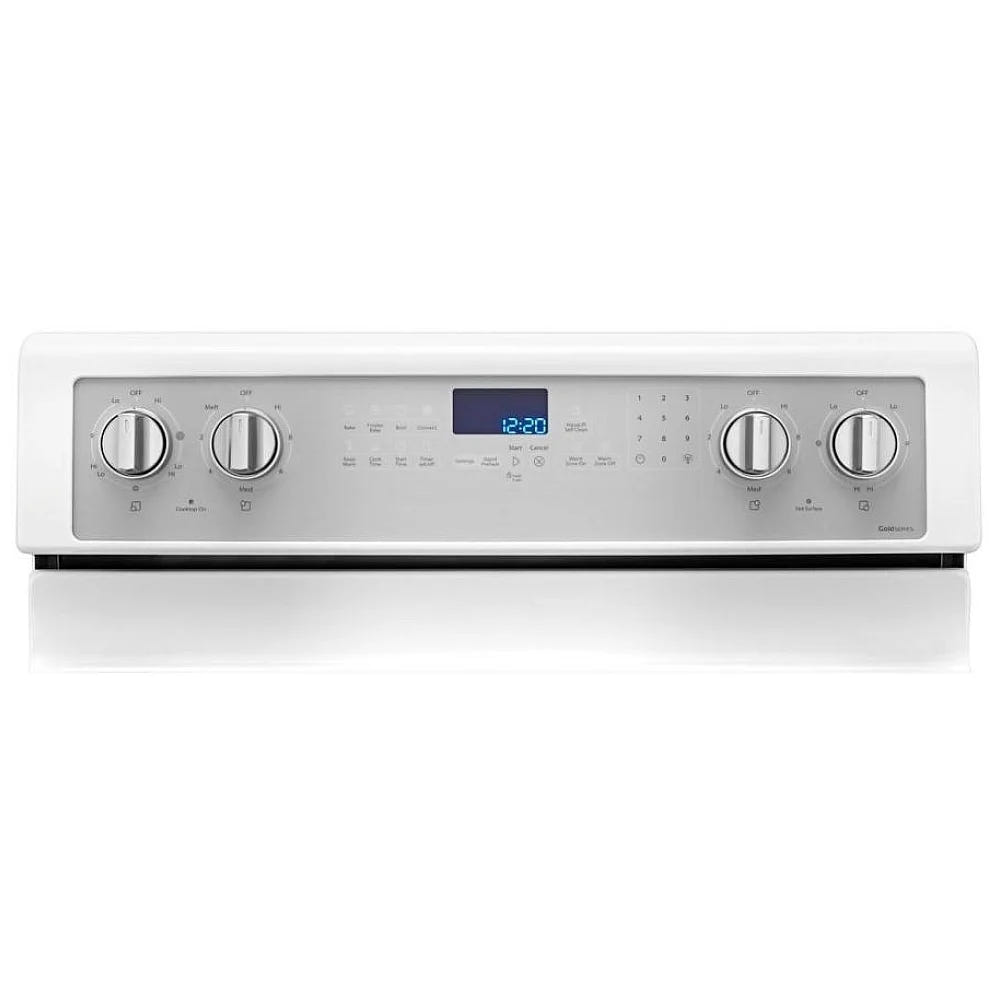

Oven Control Location Backguard

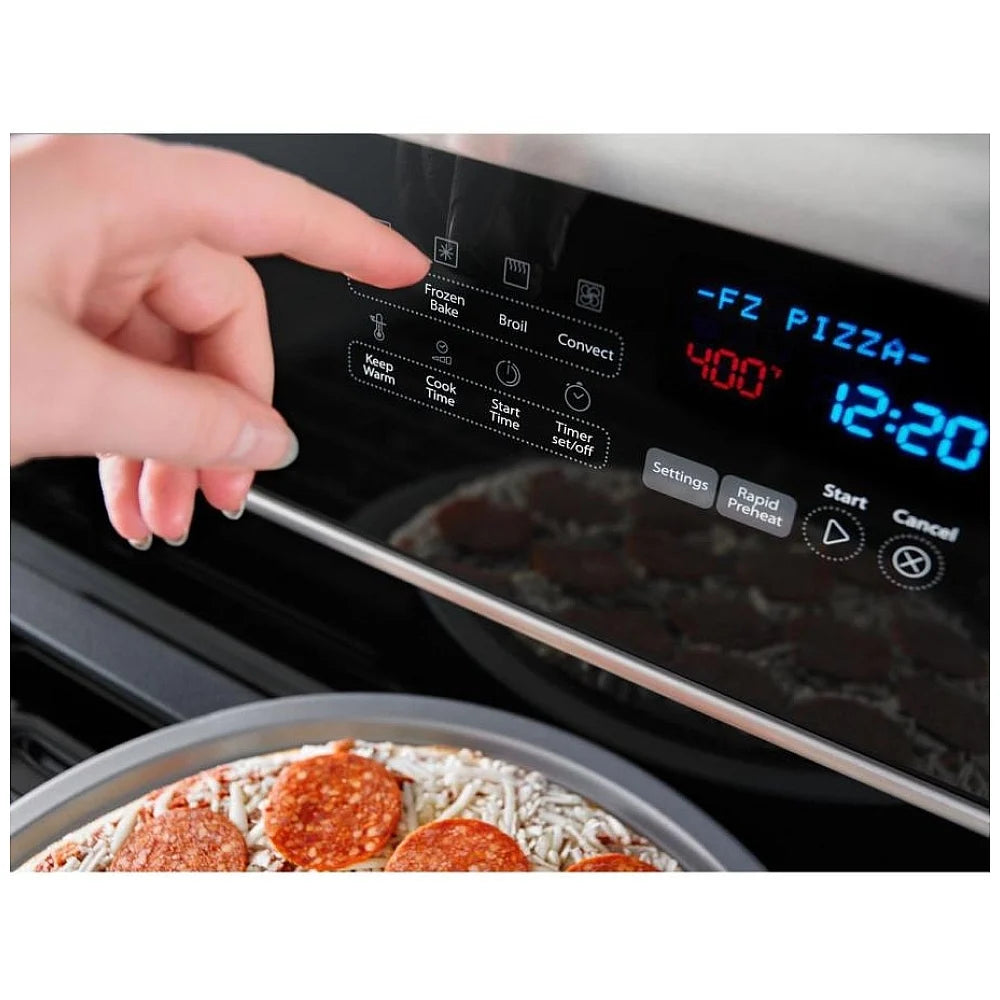

Oven Control Type Electronic Touch

Oven Window Size Large

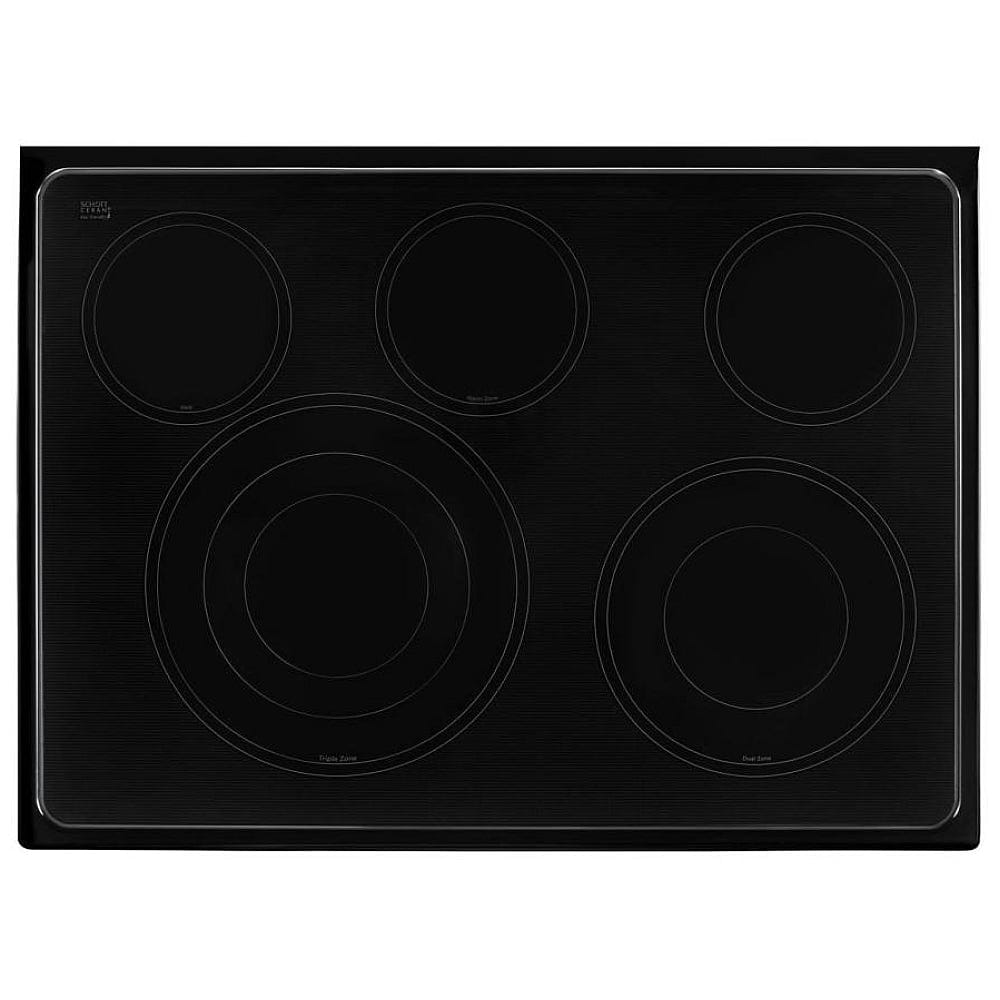

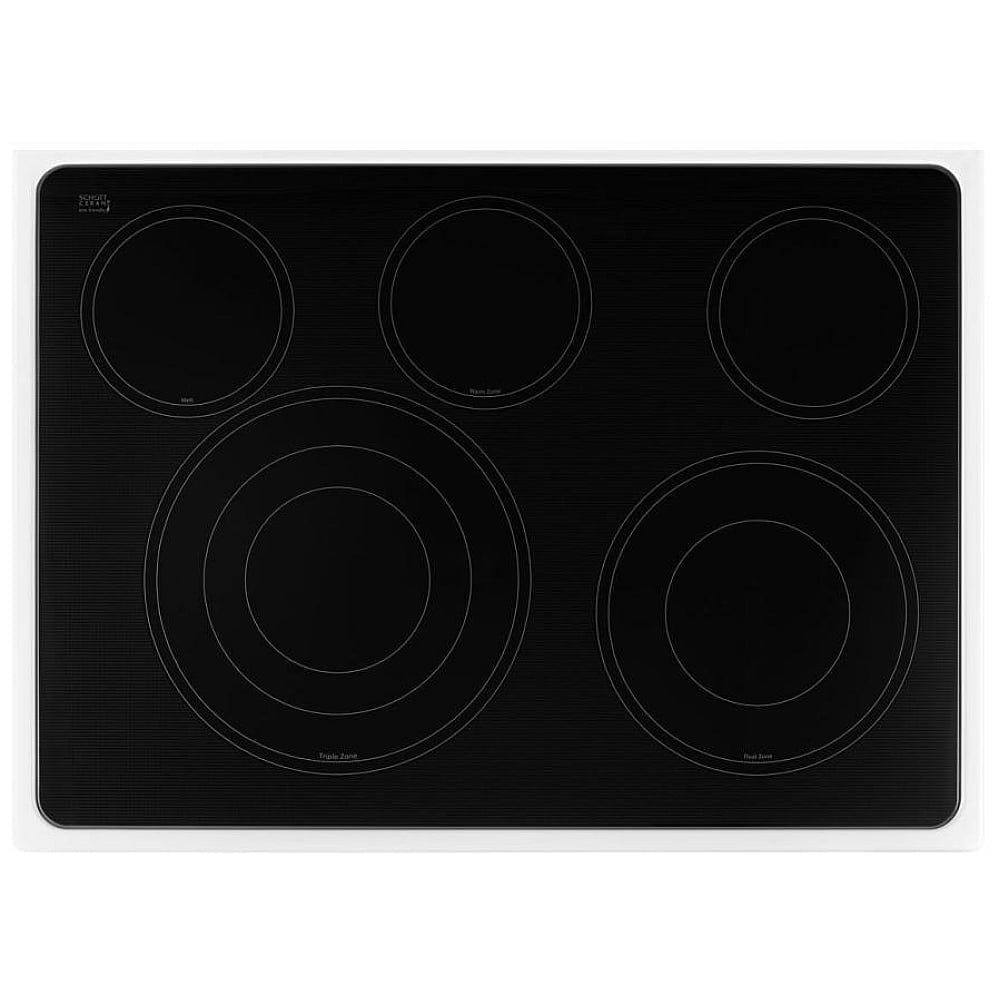

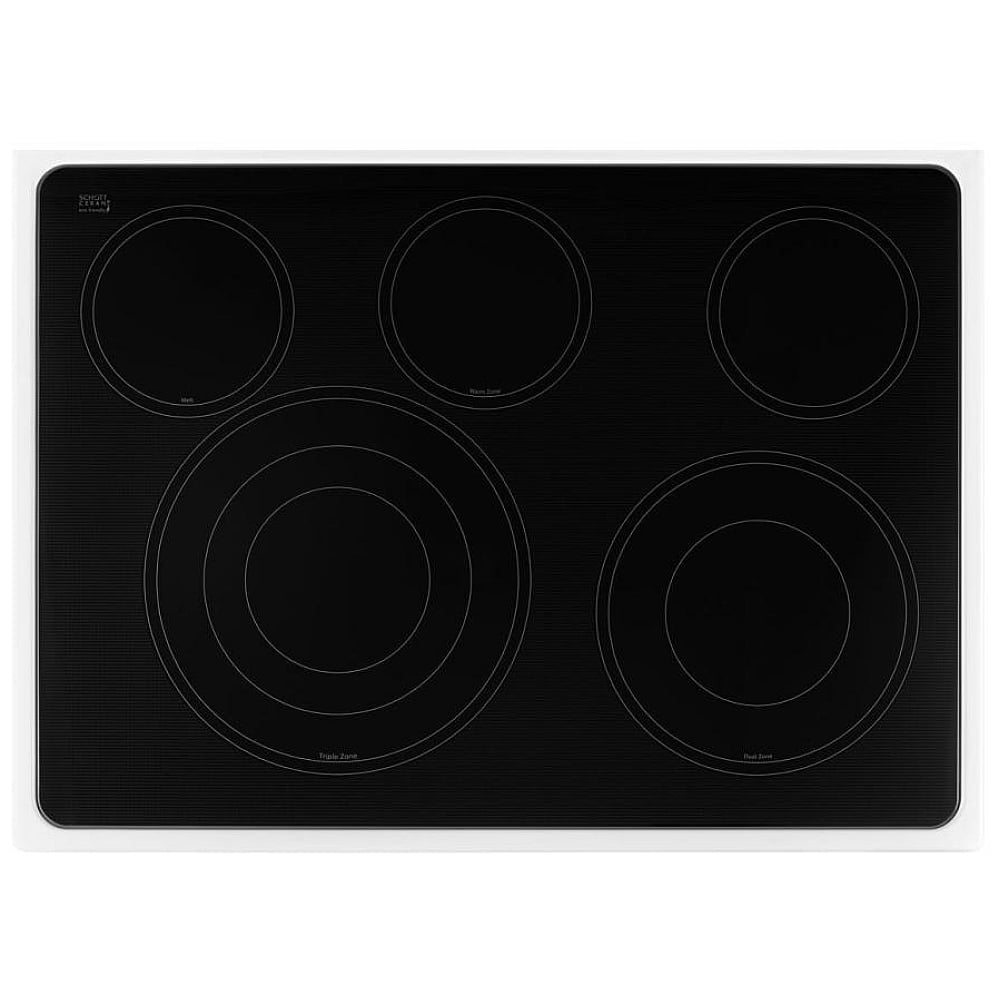

Cooktop Details

Cooktop Control Knob Color Silver/Chrome

Cooktop Control Location Backguard

Cooktop Control Type Knobs

Cooktop Surface Color Black

Cooktop Surface Material Glass

Heating Element On Indicator Light Yes

Hot Surface Indicator Light Yes

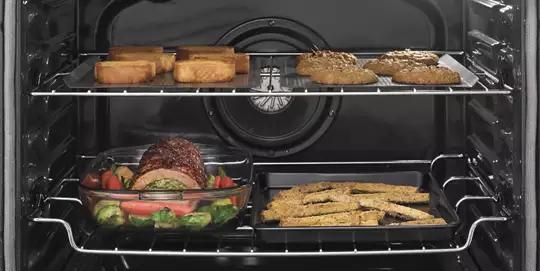

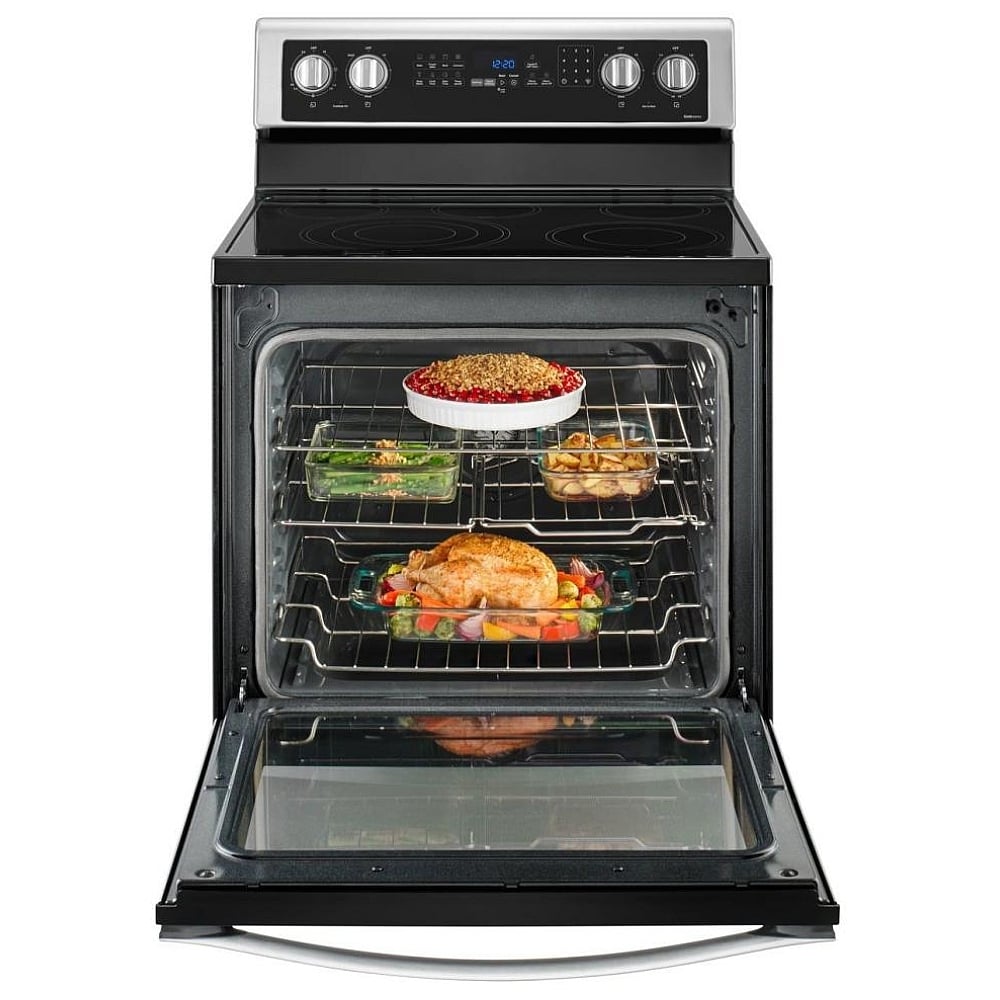

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust No

Bake Element Power 3600W

Broiler Element Power 3600W

Broiler Location Top of Oven

Convection Element Power 925 W, 925 W, 925 W, 925 W

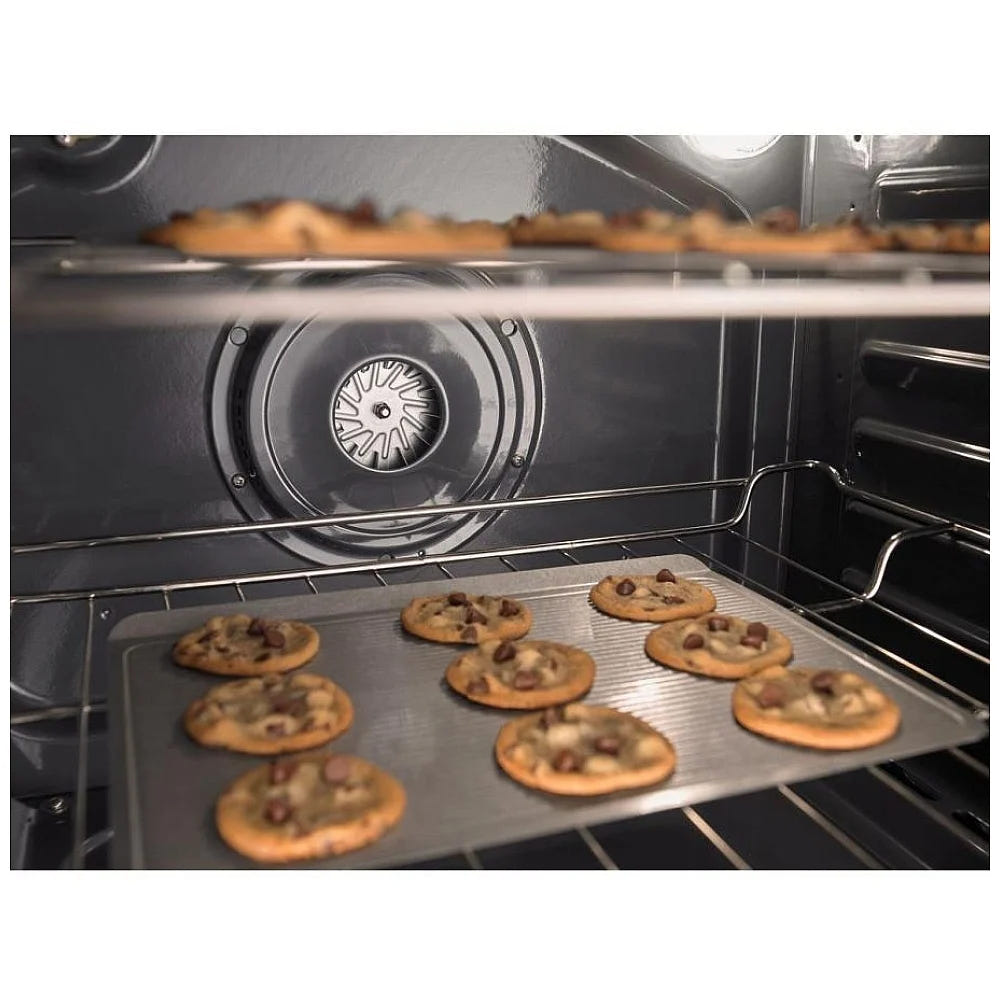

Convection Element Type True

Convection Functions Bake, Broil, Roast

Door Removable Yes

Hidden Bake Element Yes

Interior Color Grey

Natural Gas Convertible No

Number of Oven Lights 1

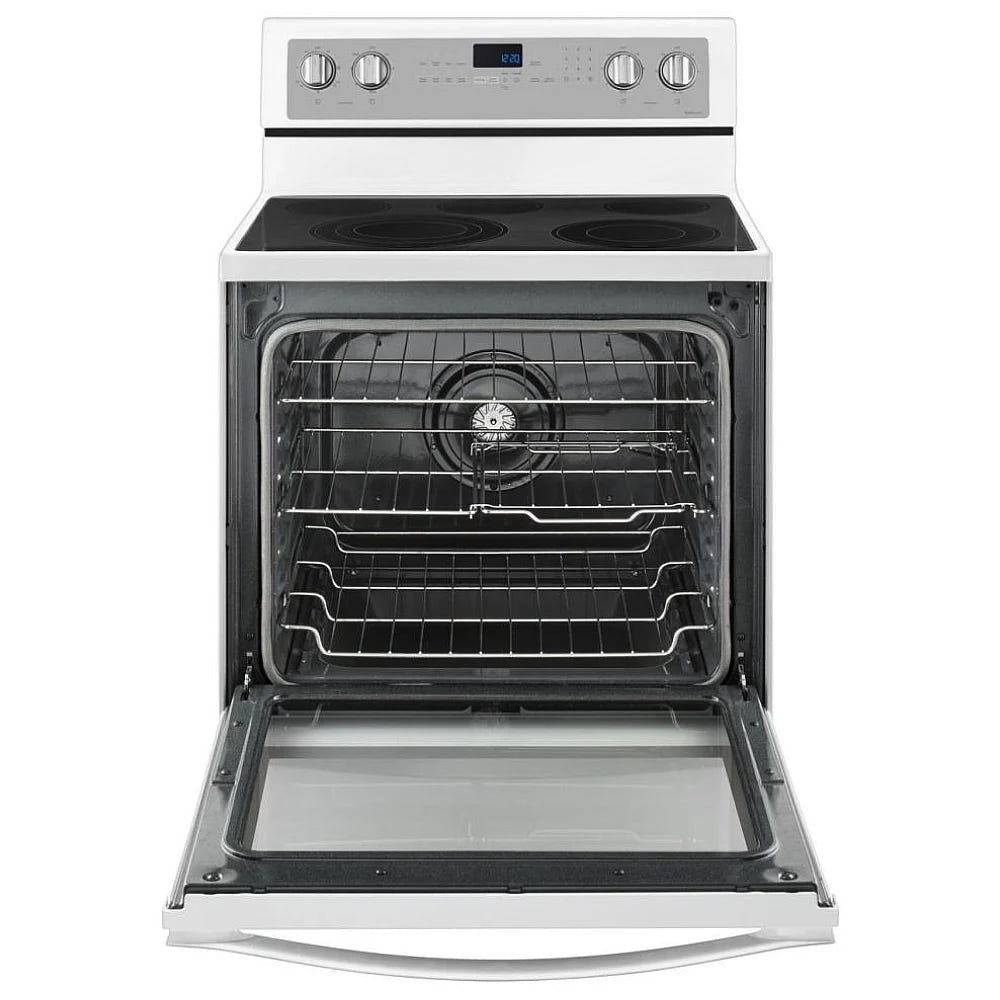

Number of Oven Racks 3

Number of Rack Guides 7

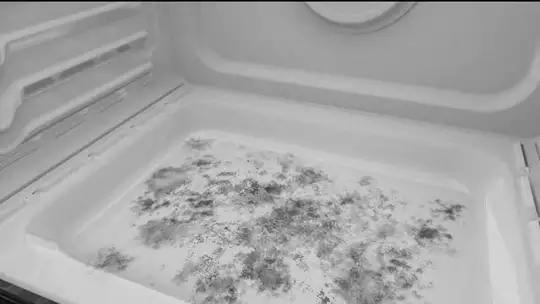

Oven Cleaning Type AquaLift® Self Clean

Oven Light Switch Location Oven Control

Oven Light Type Incandescent

Oven Rack Type 2 Standard and 1 Max Capacity

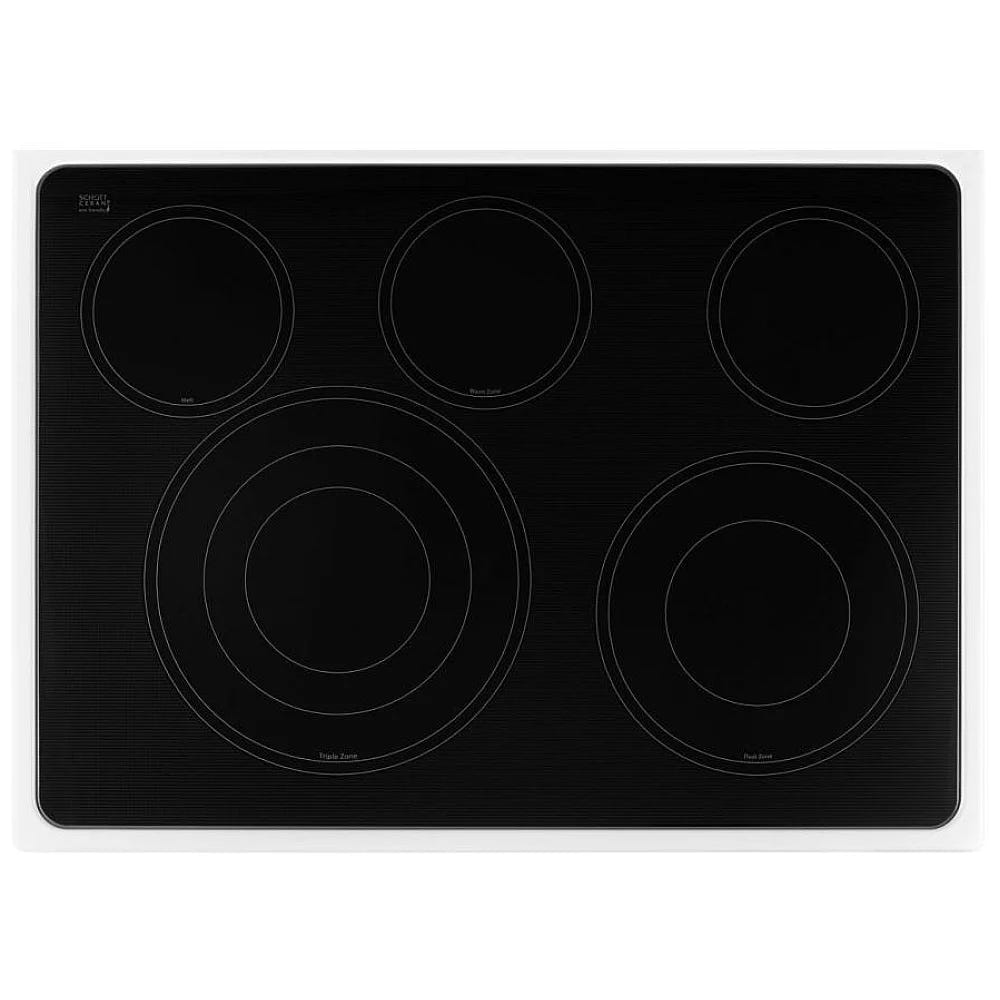

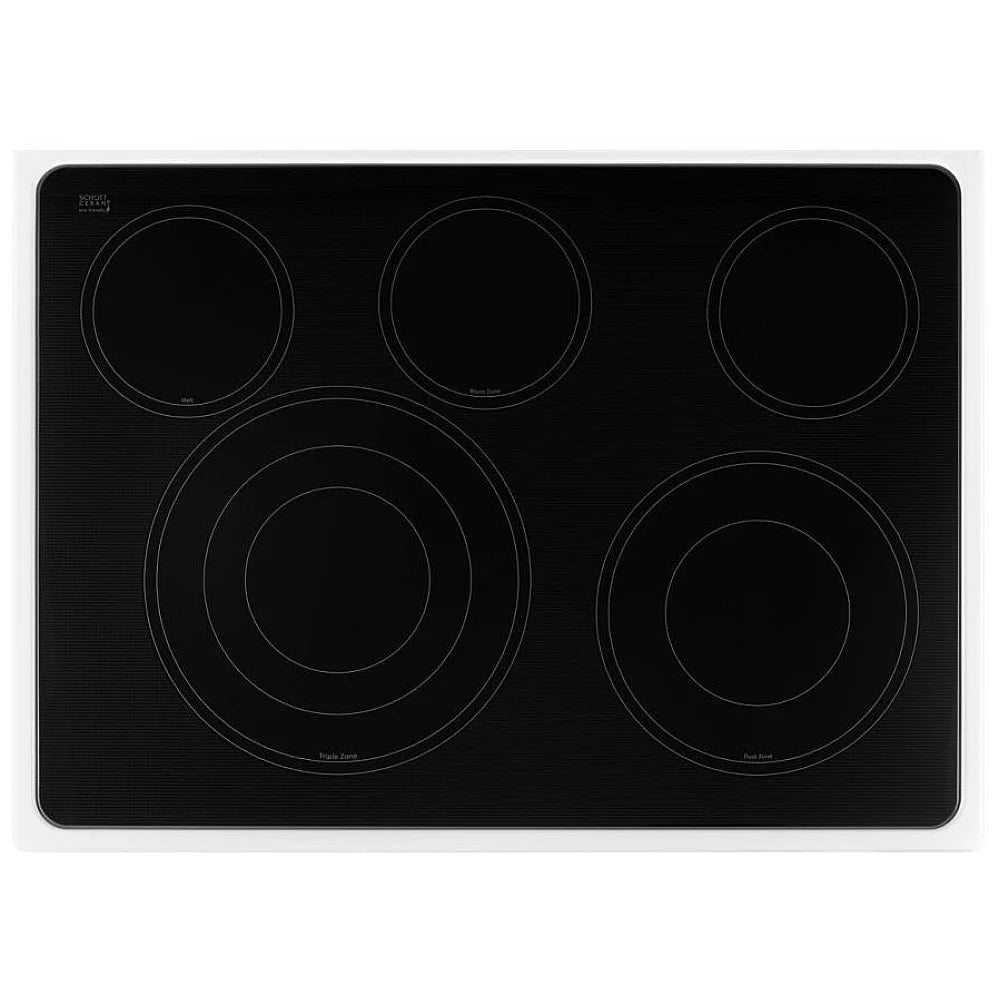

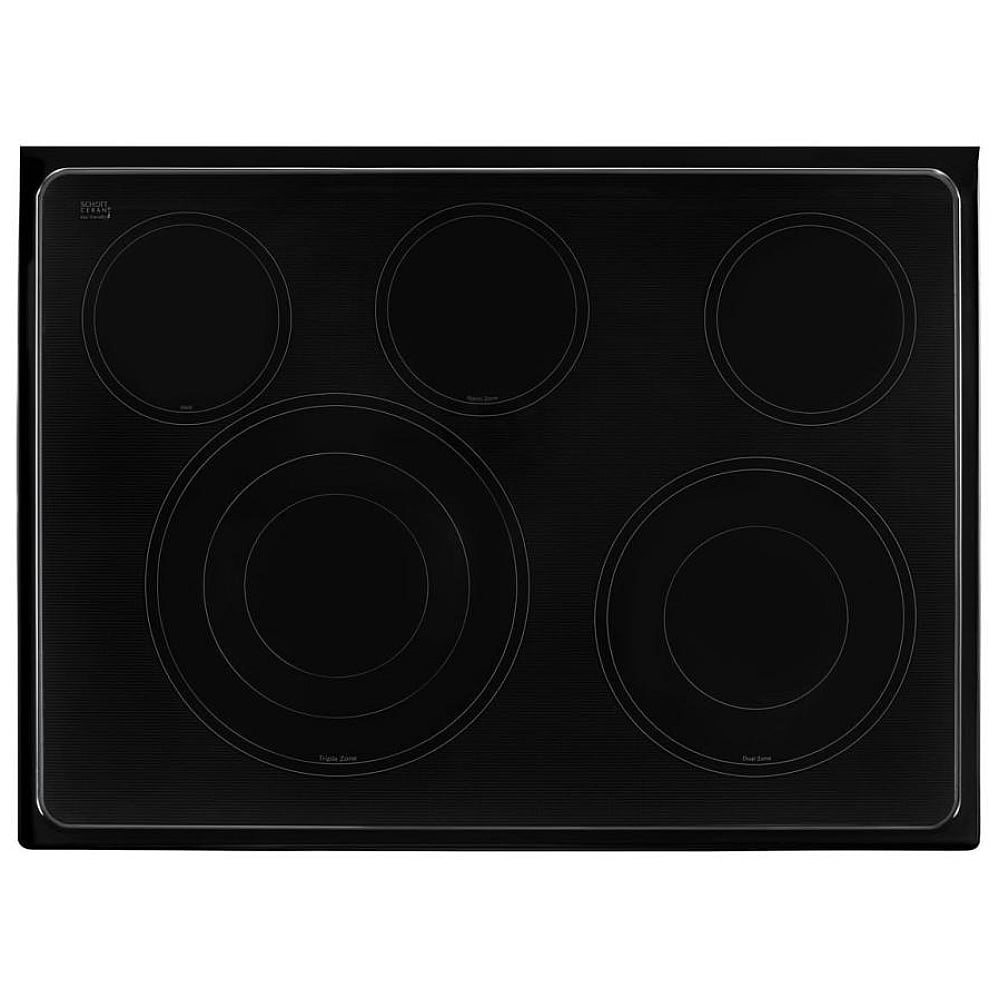

Element/Burner Details

Center Rear Element-Burner Power 100W

Center Rear Element-Burner Size 6in.

Center Rear Element-Burner Type Radiant

Cooktop Element Style Smoothtop

Left Front Element-Burner Power 3000W

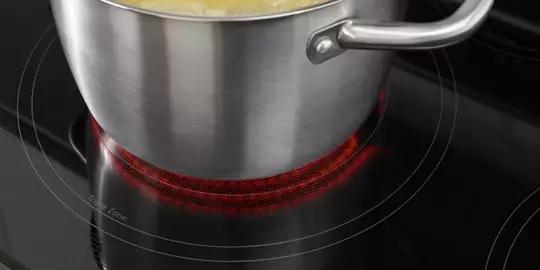

Left Front Element-Burner Size 12in./9in./6in.

Left Front Element-Burner Type Radiant

Left Rear Element-Burner Power 300W/1300W

Left Rear Element-Burner Size 6in.

Left Rear Element-Burner Type Radiant Melt

Number of Cooking Element-Burners 5

Right Front Element-Burner Power 3000W

Right Front Element-Burner Size 9in./6in.

Right Front Element-Burner Type Radiant

Right Rear Element-Burner Power 1200W

Right Rear Element-Burner Size 6in.

Right Rear Element-Burner Type Radiant

Dimensions

Capacity 181.12 l, 6.4 cu. ft.

Common Size 76.20 cm, 30 in

Cutout Height 91.44 cm, 36 in

Cutout Width 76.20 cm, 30 in

Depth 70.48 cm, 27-3/4 in

Depth Closed Excluding Handles 64.30 cm, 25-313/1000 in

Depth With Door Open 90 Degree 121.45 cm, 47-813/1000 in

Gross Weight 84.82 kg, 187 lbs

Height 119.06 cm, 46-7/8 in

Maximum Height 121.60 cm, 47-7/8 in

Minimum Height 119.06 cm, 46-7/8 in

Net Weight 0.00 kg, 0 lbs

Oven Interior Depth 52.70 cm, 20-3/4 in

Oven Interior Height 54.29 cm, 21-3/8 in

Oven Interior Width 61.91 cm, 24-3/8 in

Width 75.88 cm, 29-7/8 in

Details

Fuel Type Electric

LP Convertible No

Natural Gas Convertible No

Oven Automatic Shut-Off No

Oven Configuration Single Oven

Oven Selections Control Lock, Cook Time Indicator, Delay Start, Energy Save Mode, Frozen Bake, Keep Warm Setting, Rapid Preheat, Sabbath Mode

Power On Indicator Light Yes

Power Outage Compatible No

Range Configuration Freestanding

Range Type Freestanding

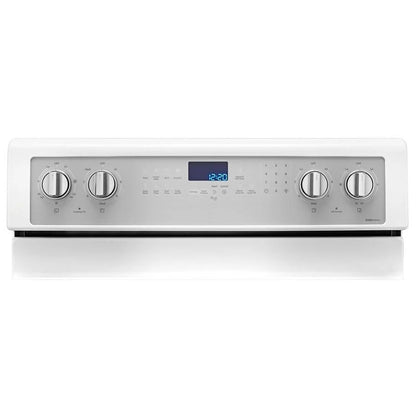

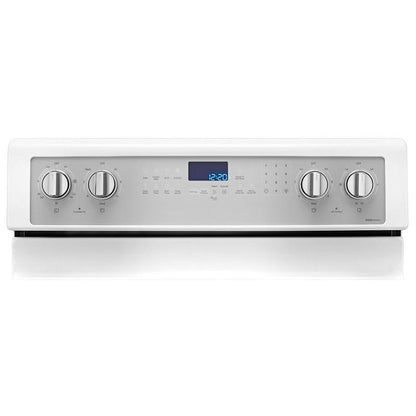

Controls

Display Color Blue

Electronic Display Type VFD

Electrical

Amps 40

Hz 60

Power Cord Included Yes

Volts 120

Refinements

Features Frozen Bake™ Technology, True Convection, Self-Cleaning, EZ-2-Lift™ Hinged Grates, FlexHeat™ Dual Element, FlexHeat™ Triple Radiant Element, Sabbath Mode/Star-K Certification, Bladed Knob, Whirlpool Handle
