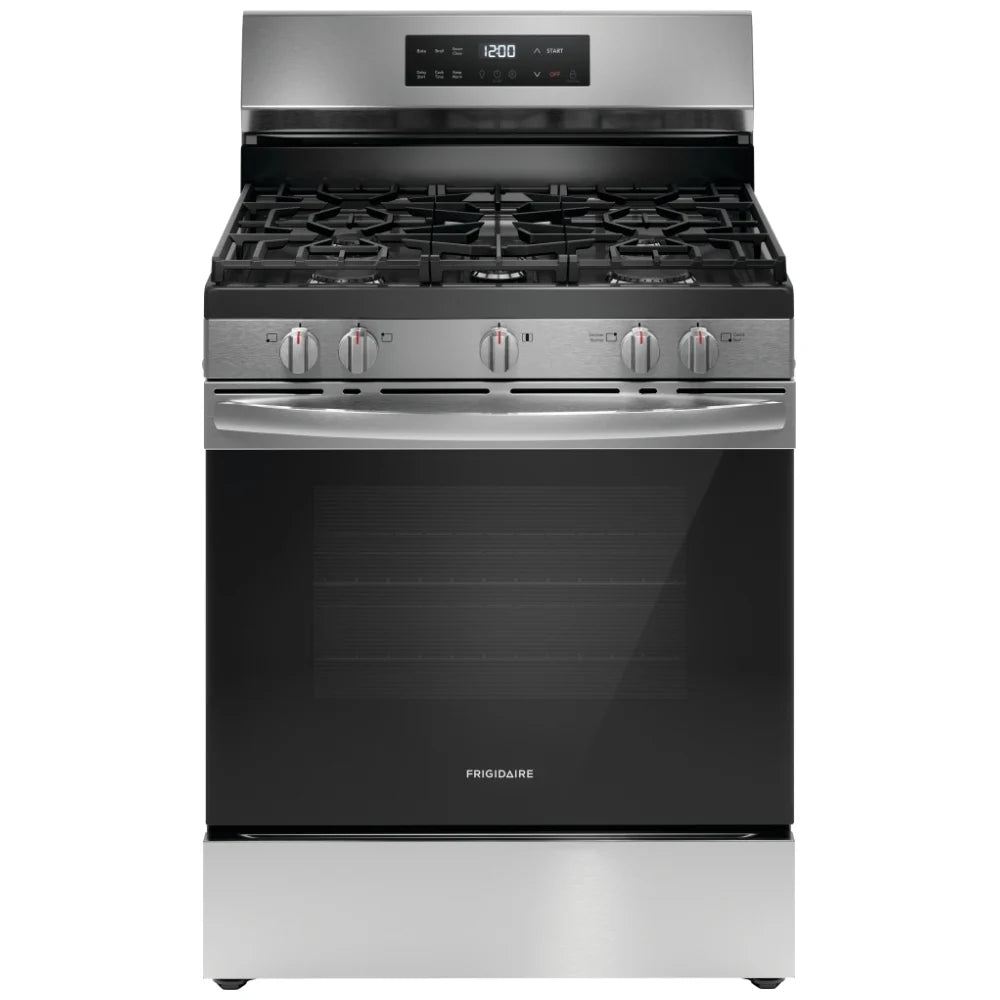

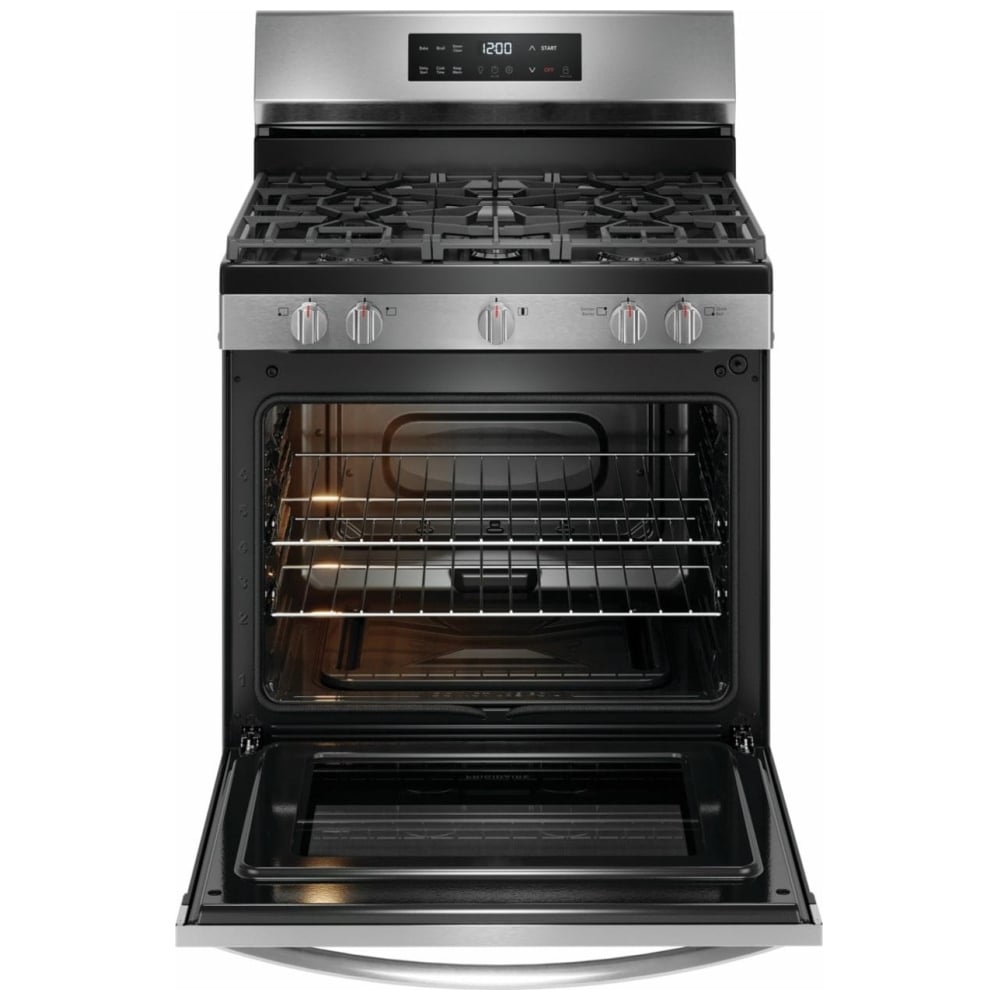

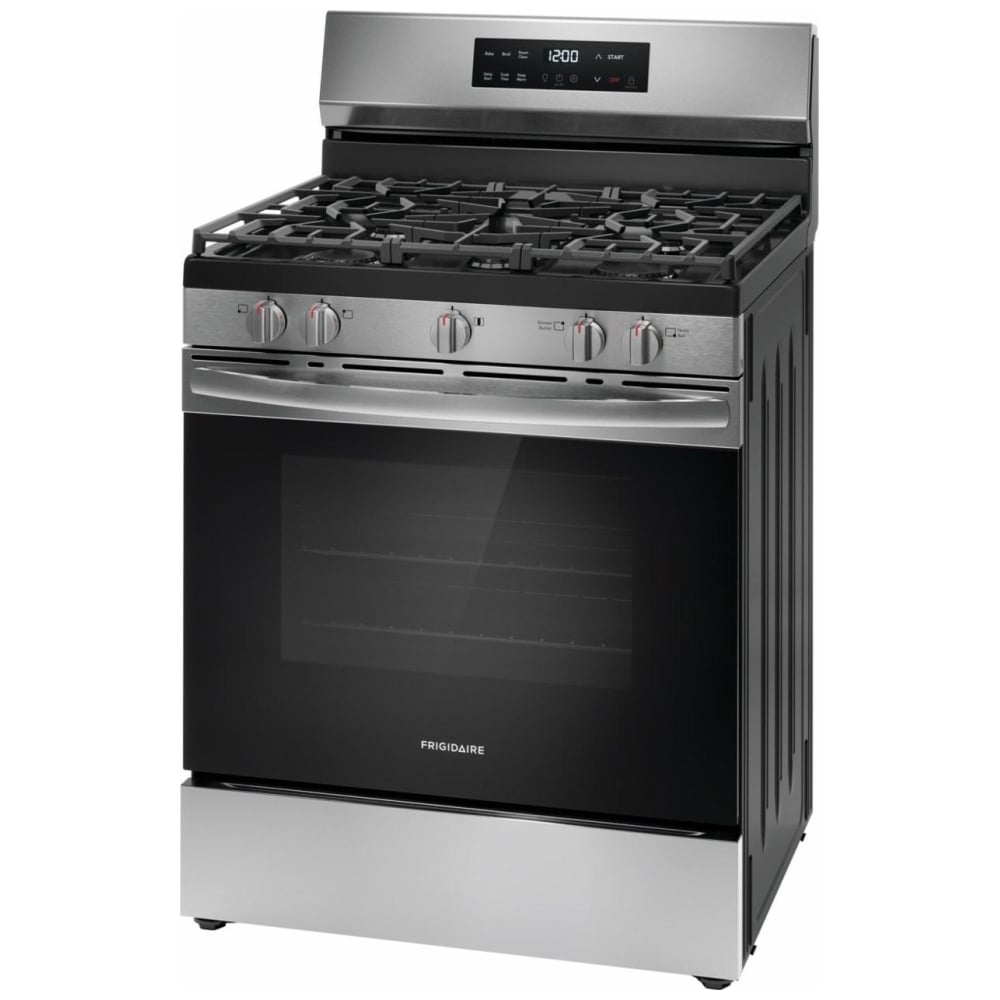

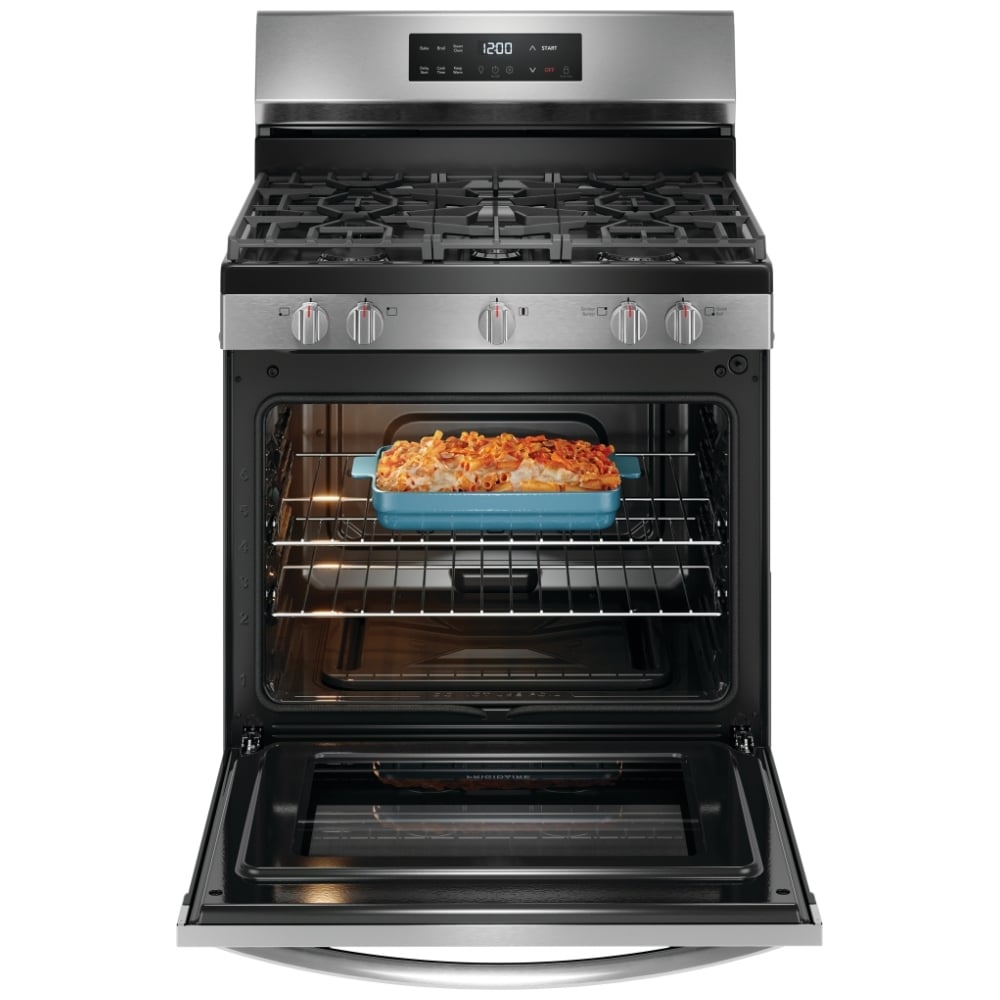

Frigidaire 30" Gas Ranges with Quick Boil FCRG3062AS

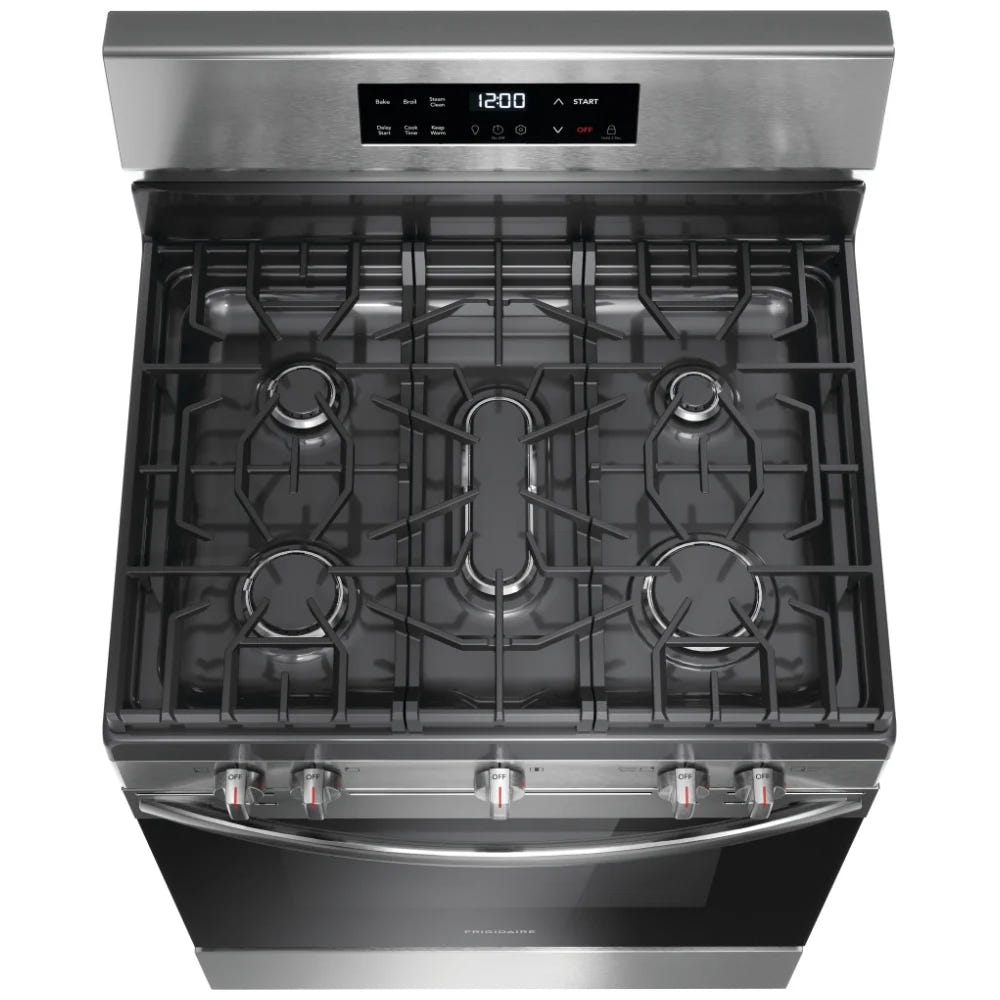

Cooktop

Cooking Surface Type Gas

Grate Material Cast Iron

Grate Quantity 3

Grate Style Continuous

Cooktop Performance

Right Front Element Burner 18000 BTU

Right Rear Element Burner 5000 BTU

Left Front Element Burner 14000 BTU

Left Rear Element Burner 10000 BTU

Center Rear Element Burner 10000 BTU

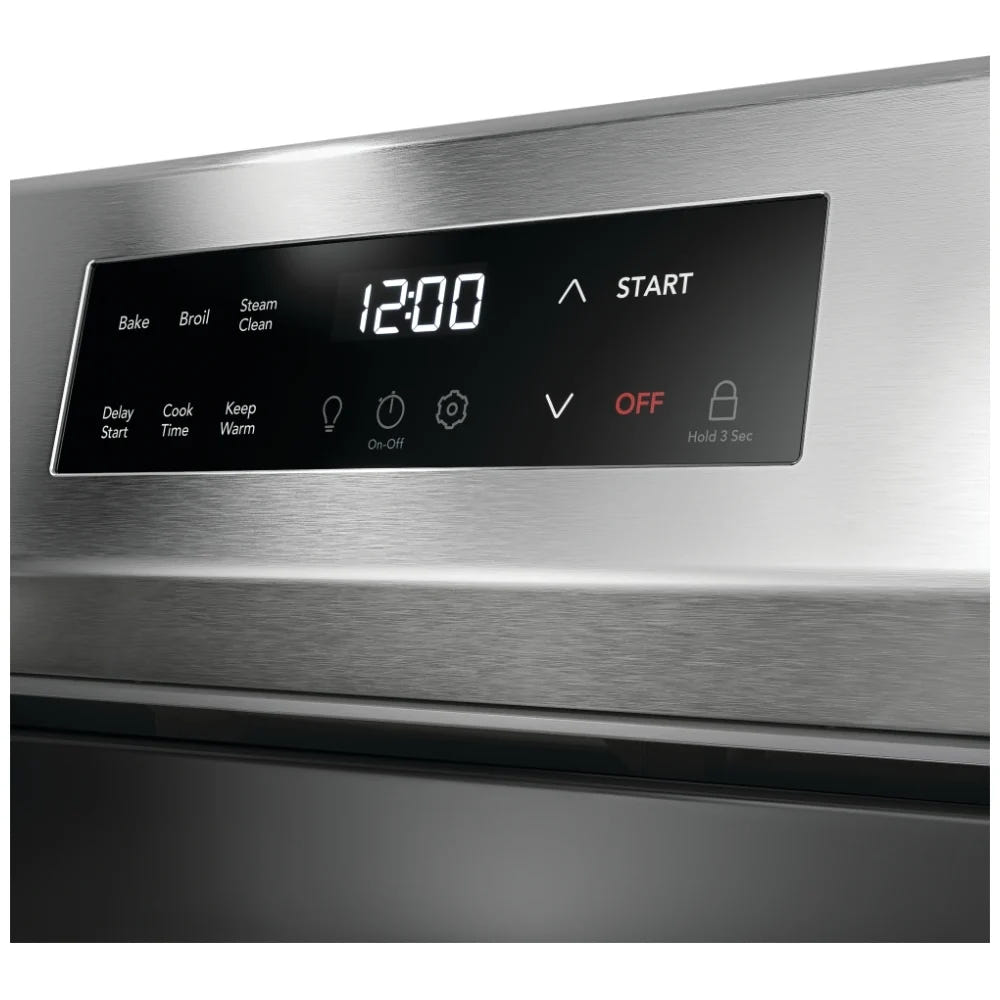

Cooking Controls

Bake Yes

Broil Yes

Clock Yes

Cook Time Yes

Delay Clean Yes

Delay Start Yes

Keep Warm Yes

Kitchen Timer Yes

Light Yes

LockoutYes

Off Yes

Oven Light Yes

Set Clock Yes

Start Yes

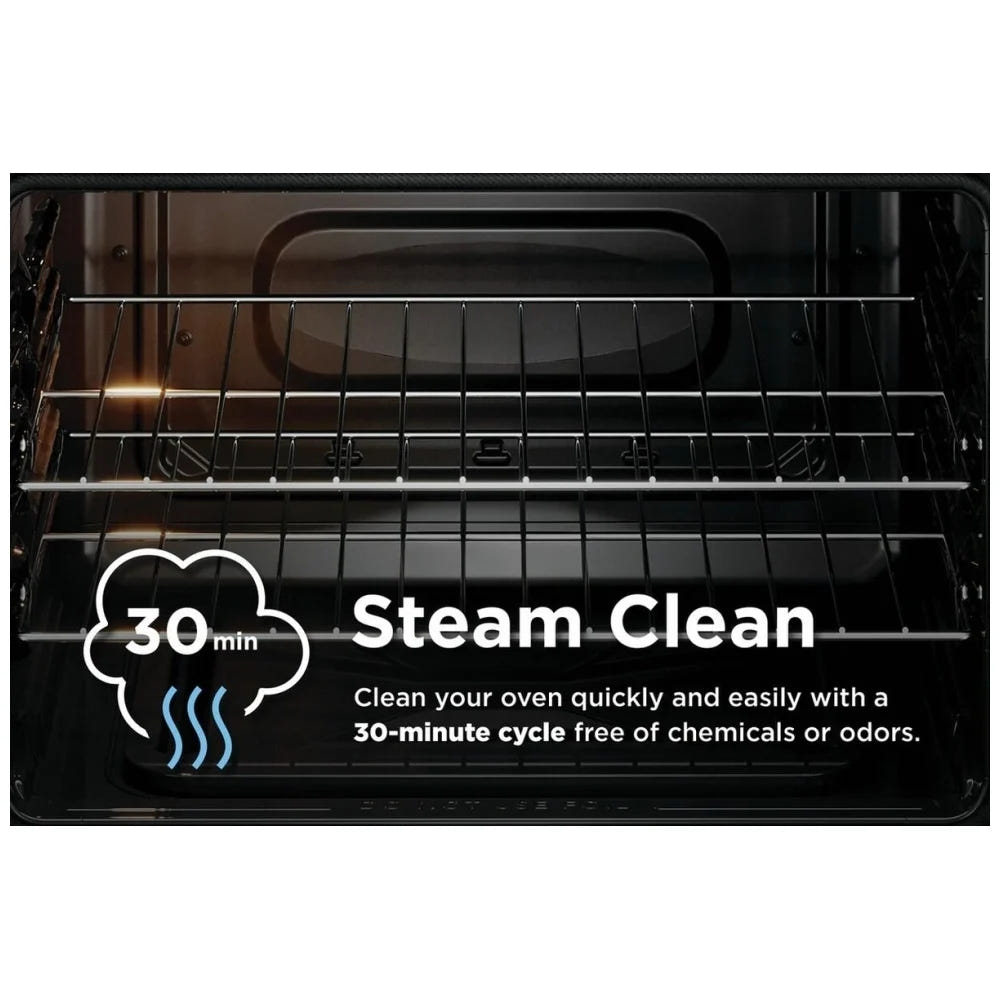

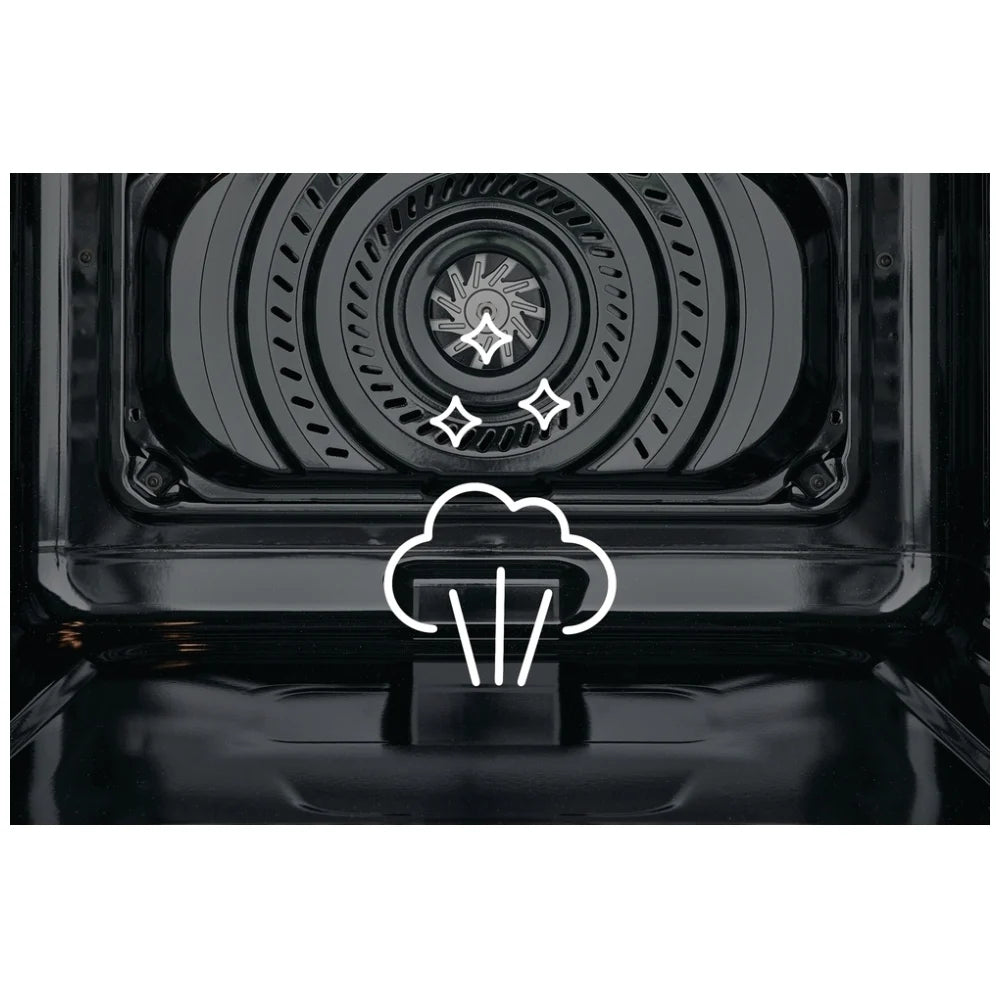

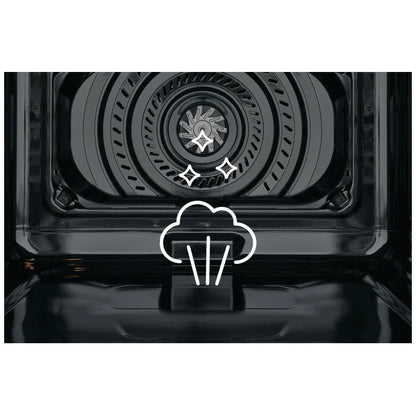

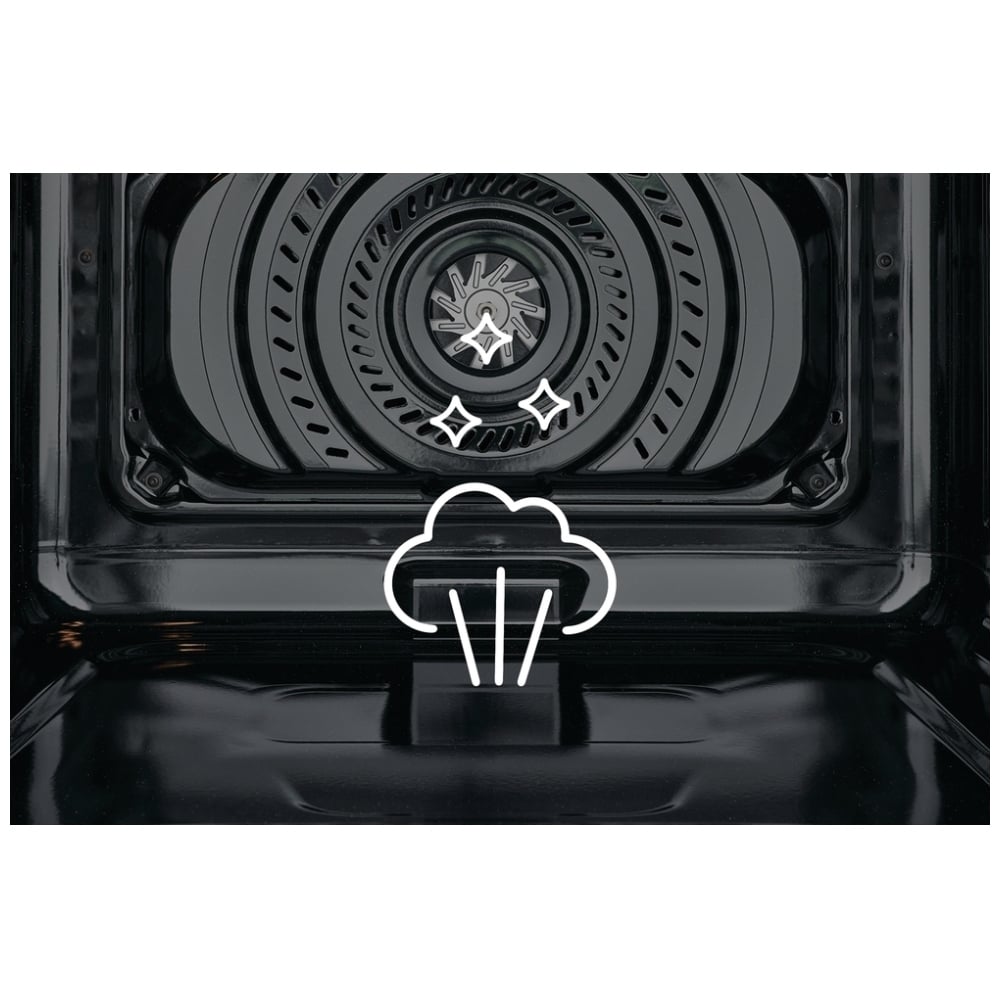

Steam Clean Yes

Temperature Display Yes

Timer On / Off Yes

Up / Down Arrow Yes

User Preferences Yes

Cooking Controls Function

Adjustable Volume Feedback Yes

Change between Continuous Bake Setting or 12-Hour Energy Saving Feature Yes

Delayed Bake Yes

Program Fahrenheit or Celsius Yes

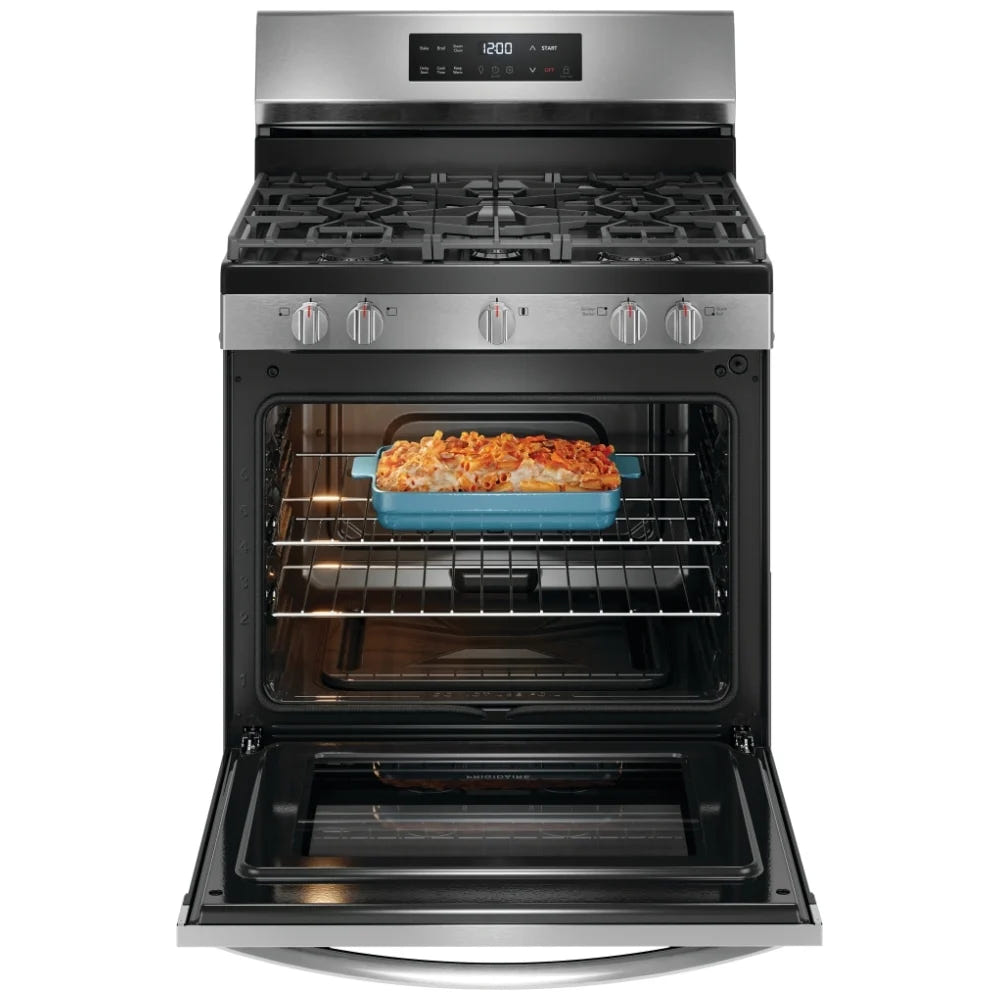

Oven

Bake Element 17000 BTU

Broil Element 1400 Watts

Broil Element Pass 6

Number of Rack Positions 6

Oven Interior Color Midnight Black

Oven Light Quantity 1

Oven Light Type Halogen

Oven Light Watts 40 Watts

Rack Position Type Embossed

Rack Type 1 Flat

Rack Type 1 Quantity 2

Drawer

Drawer Handle Style Integrated

Drawer Type Storage

Controls

Control Lock Yes

Display

Control Location Rear

Display Interface Color White

Display Type Membrane

Dimensions and Volume

Minimum Height 46 3/4"

Maximum Height 47 3/4"

Width 30"

Depth 26"

Depth With Door 90° Open 47 5/16"

Depth With Handle 28 1/2"

Oven Interior Height 17 5/8"

Oven Interior Width 25 3/16"

Oven Interior Depth 19 7/8"

Oven Capacity 5.1 Cu. Ft.

Electrical Specifications

Minimum Circuit Required 12 Amps

Voltage Rating 120 V

Installation

Adjustable Leveling Legs Yes

Power Cord Included Yes

General Specifications

Product Weight 180 lbs

Prop 65 Label Yes

Warranty - Labor 1 Year

Warranty - Parts 1 Year

Safety Certifications and Approvals

CSA Listed Yes
