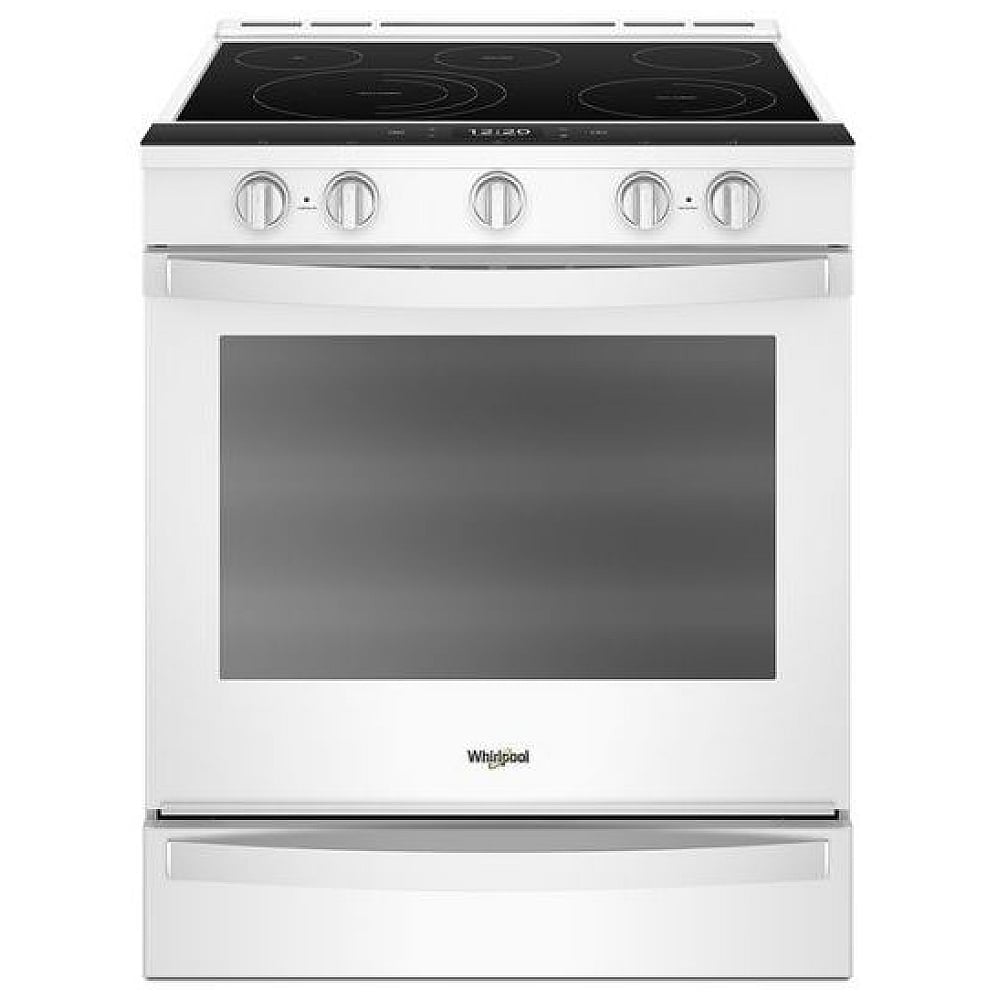

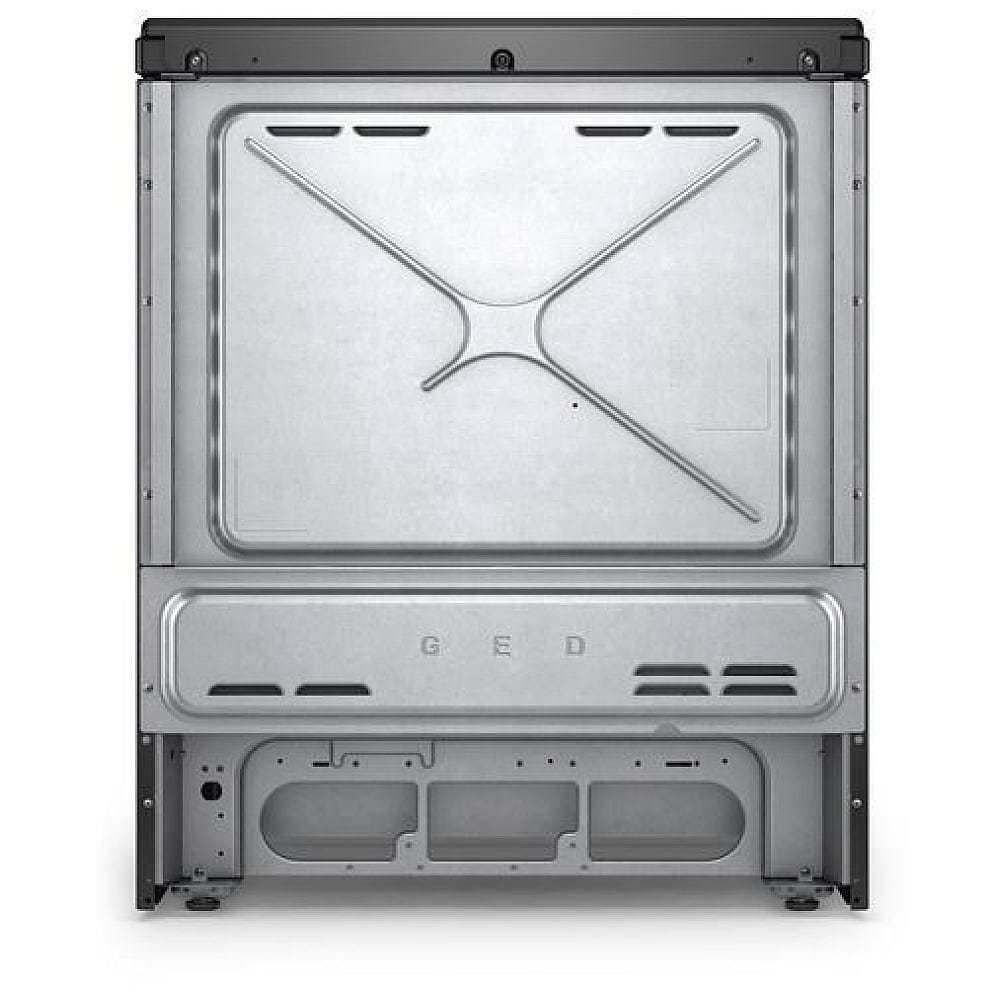

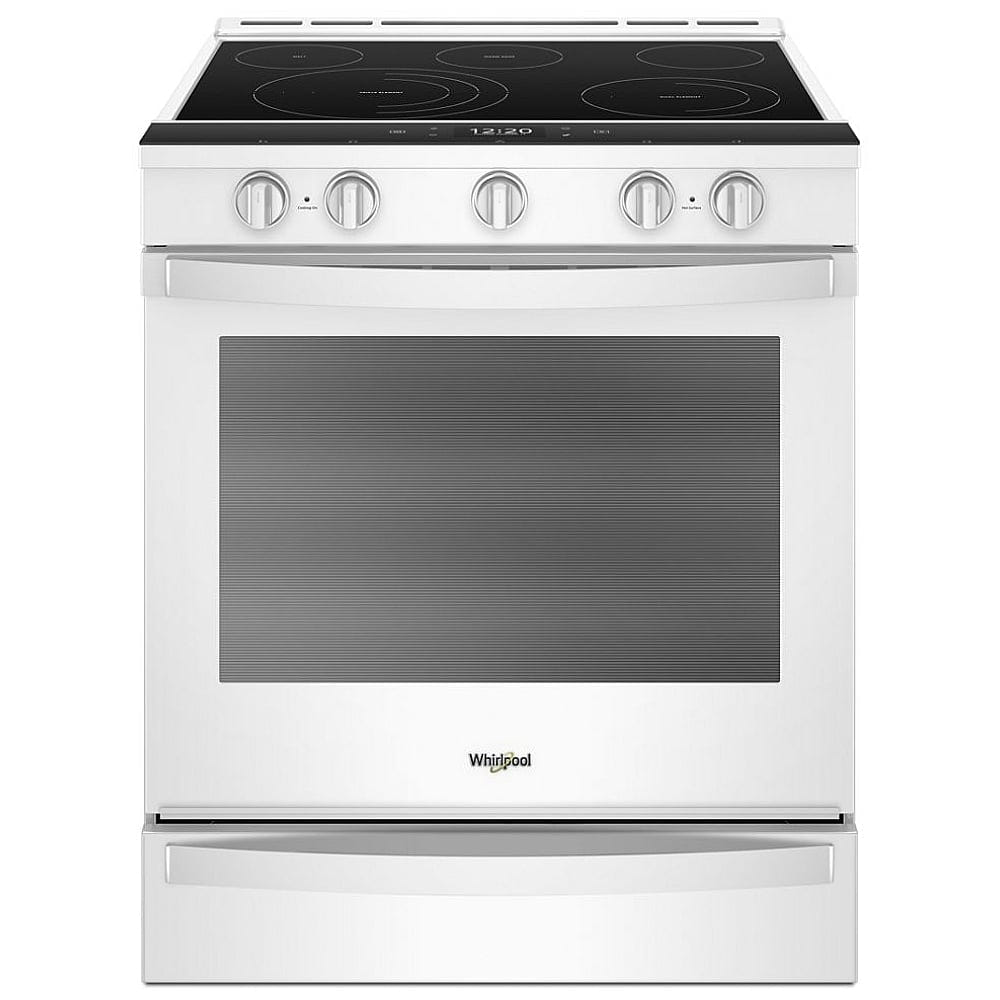

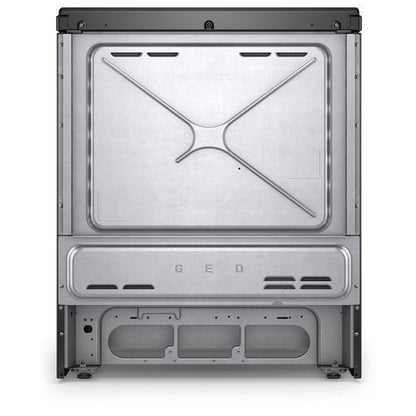

Whirlpool YWEE750H0HW Electric Range

Certifications

ADA Compliant ADA Height and Operation Compliant

CUL No

Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .

UL Yes

Exterior Details

Door Type Glass Window

Handle Color Black

Handle Material Metal

Handle Type Reach-Through Handle

Oven Control Location Front

Oven Control Type Electronic Touch

Oven Window Size Extra Large

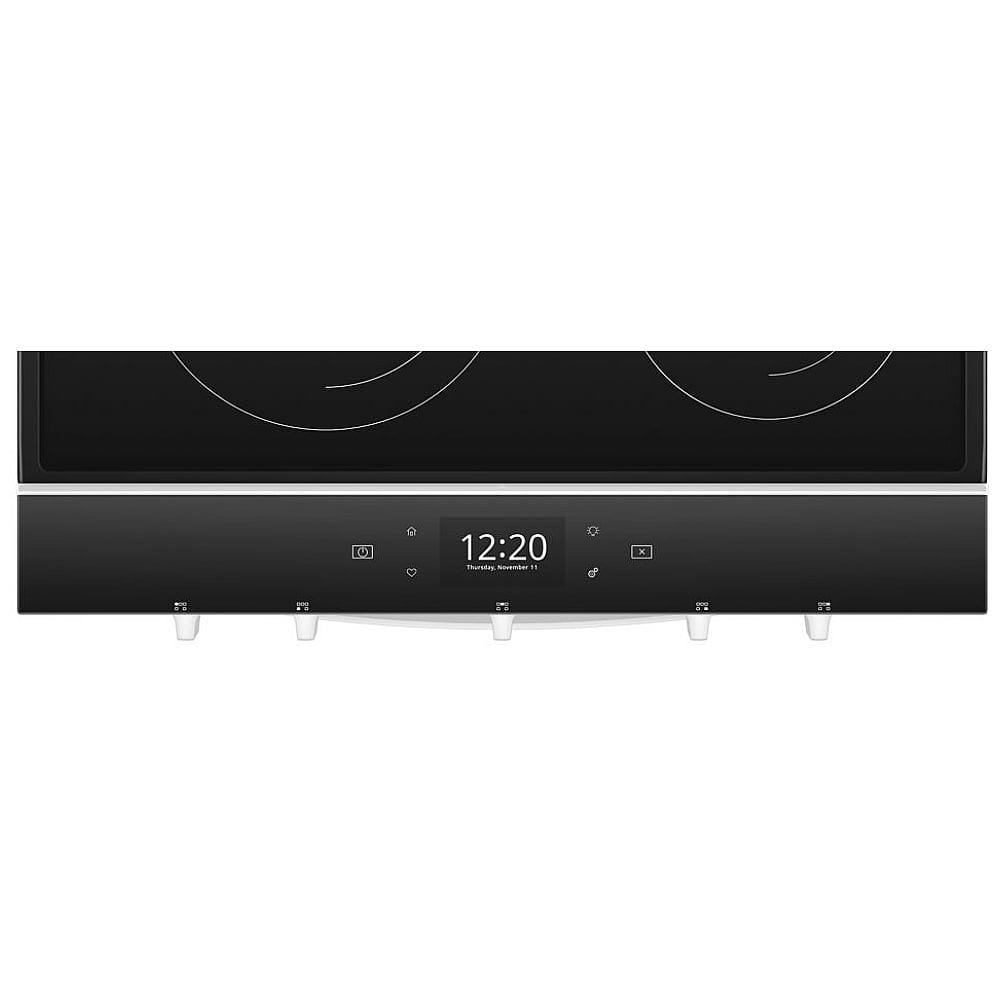

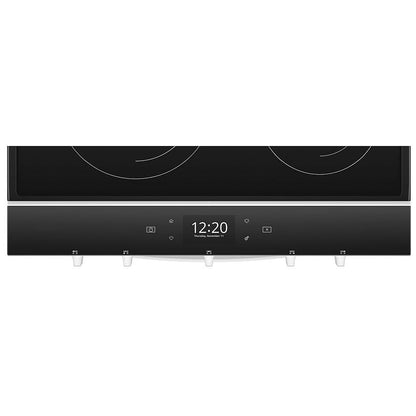

Cooktop Details

Cooktop Control Knob Color Black

Cooktop Control Knob Type Weighted

Cooktop Control Location Front

Cooktop Control Type Knobs

Cooktop Surface Color Black

Cooktop Surface Material Ceramic Glass

Griddle Included N/A

Heating Element On Indicator Light Yes

Hot Surface Indicator Light Yes

Dimensions

Cutout Height 91.44 cm, 36 in

Cutout Width 76.20 cm, 30 in

Depth 72.71 cm, 28-5/8 in

Depth Closed Excluding Handles 68.58 cm, 27 in

Depth Closed Including Handles 72.71 cm, 28-5/8 in

Depth With Door Open 90 Degree 124.14 cm, 48-7/8 in

Gross Weight 91.17 kg, 201 lbs

Height91.44 cm, 36 in

Net Weight 82.10 kg, 181 lbs

Oven Interior Depth 52.70 cm, 20-3/4 in

Oven Interior Height 54.29 cm, 21-3/8 in

Oven Interior Width 61.91 cm, 24-3/8 in

Width 75.88 cm, 29-7/8 in

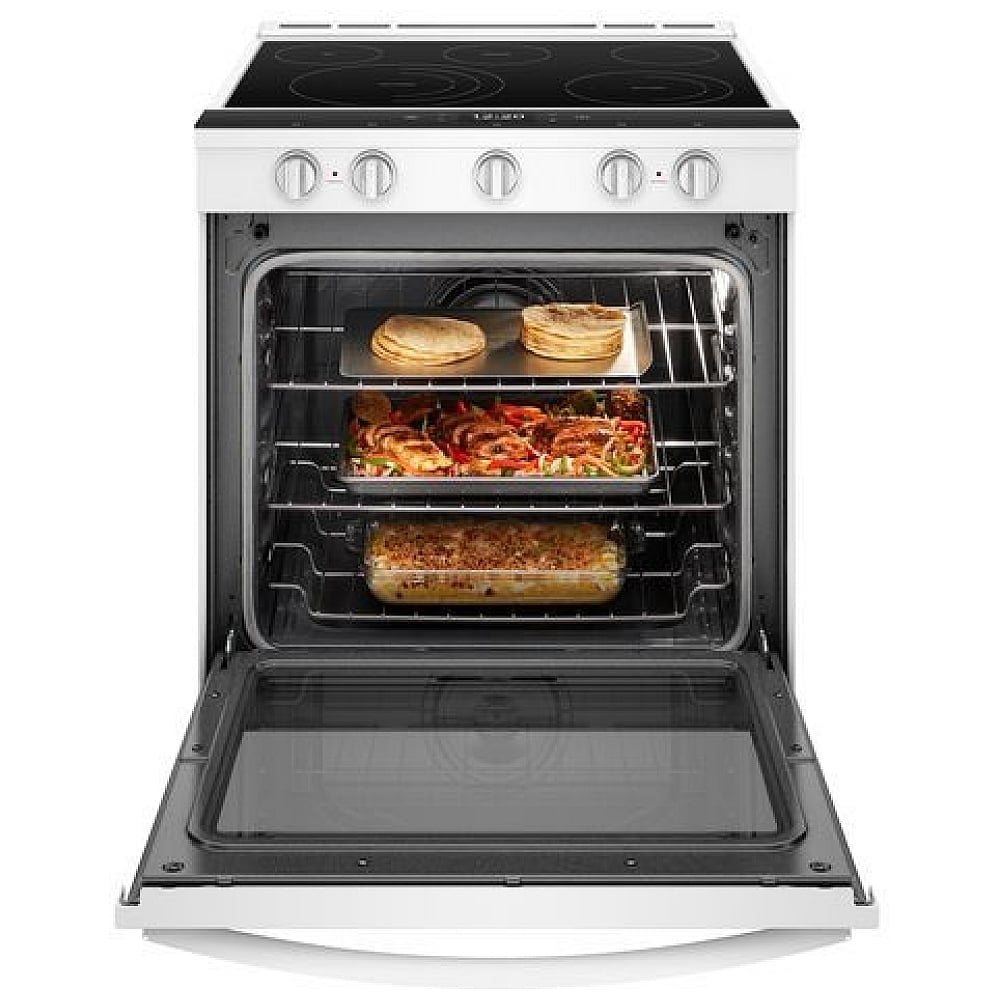

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust Yes

Bake Element Power 3600W

Broiler Element Power 3600W

Broiler Location Top of Oven

Convection Element Power 900 W, 900 W, 900 W, 900 W

Convection Element Type True

Convection Functions Bake, Broil, Roast

Door Removable Yes

Hidden Bake Element Yes

Interior Color Grey

Number of Oven Lights 1

Number of Oven Racks 3

Number of Rack Guides 7

Oven Cleaning Type AquaLift® Self Clean

Oven Cooking System Convection

Oven Light Switch Location Top of Console

Oven Light Type Incandescent

Oven Rack Type 2 Standard and 1 Max Capacity

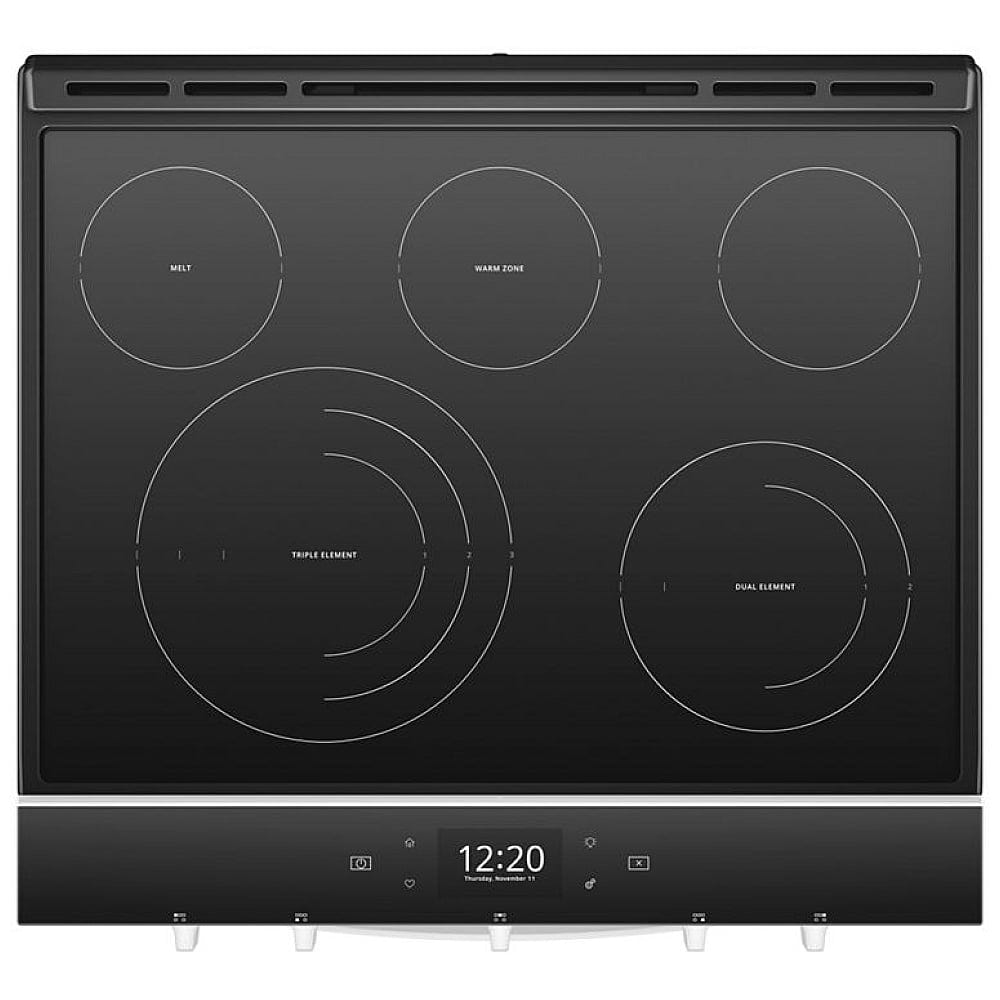

Element/Burner Details

Center Rear Element-Burner Power 100W

Center Rear Element-Burner Size 6in.

Center Rear Element-Burner Type Warming

Cooktop Element Style Radiant

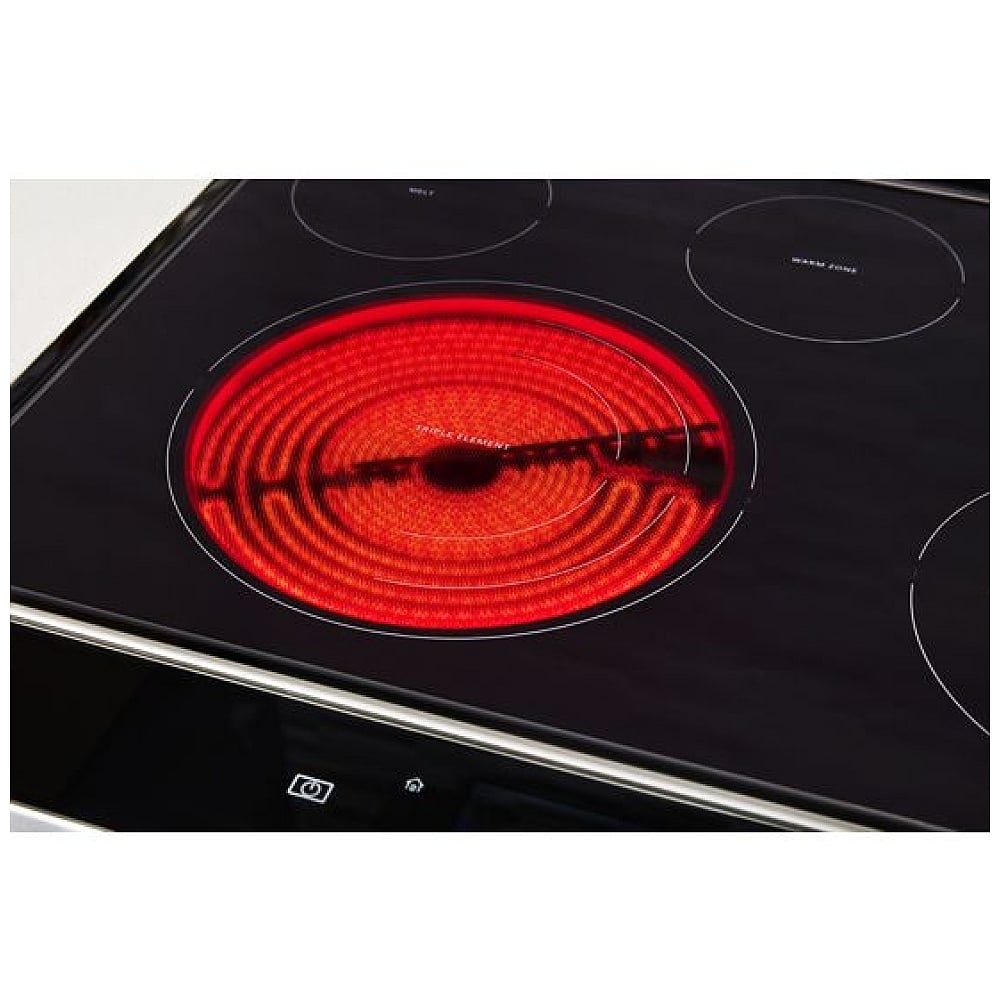

Left Front Element-Burner Power 3000W

Left Front Element-Burner Size 12in./9in./6in.

Left Front Element-Burner Type Triple

Left Rear Element-Burner Power 1300/300W

Left Rear Element-Burner Size 6in.

Left Rear Element-Burner Type Single

Number of Cooking Element-Burners 5

Right Front Element-Burner Power 3000W

Right Front Element-Burner Size 9in./6in.

Right Front Element-Burner Type Dual

Right Rear Element-Burner Power 1200W

Right Rear Element-Burner Size 6in.

Right Rear Element-Burner Type Single

Controls

Display Color Full Color

Electronic Display Type LCD

Details

Fuel Type Electric

Oven Automatic Shut-Off No

Oven Configuration Single Oven

Oven Selections Auto On, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Energy Save Mode, Favorites, Frozen Bake, Full Meal Cook, Keep Warm Setting, Language Conversion, R

Power On Indicator Light No

Power Outage Compatible No

Range Configuration Slide-In

Range Type Slide-inElectrical

Power Cord Included Yes

Refinements

Features Air Fry
