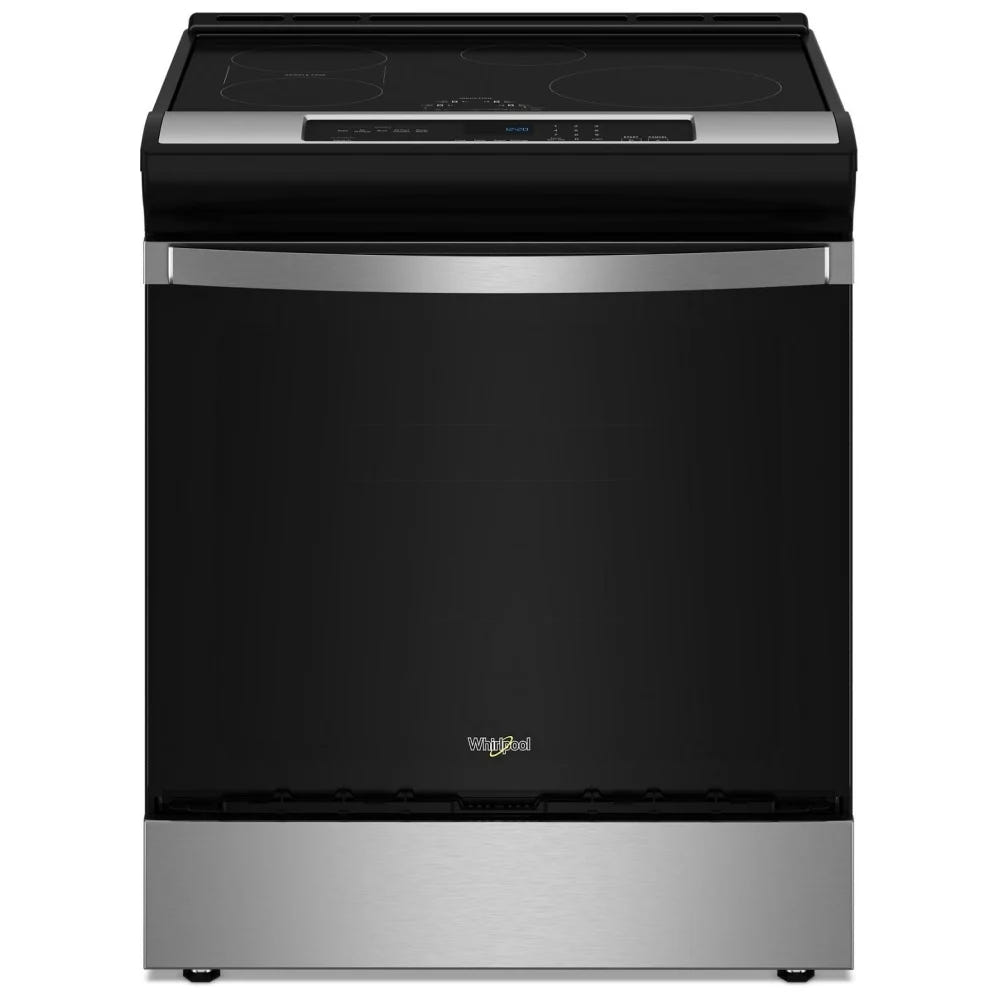

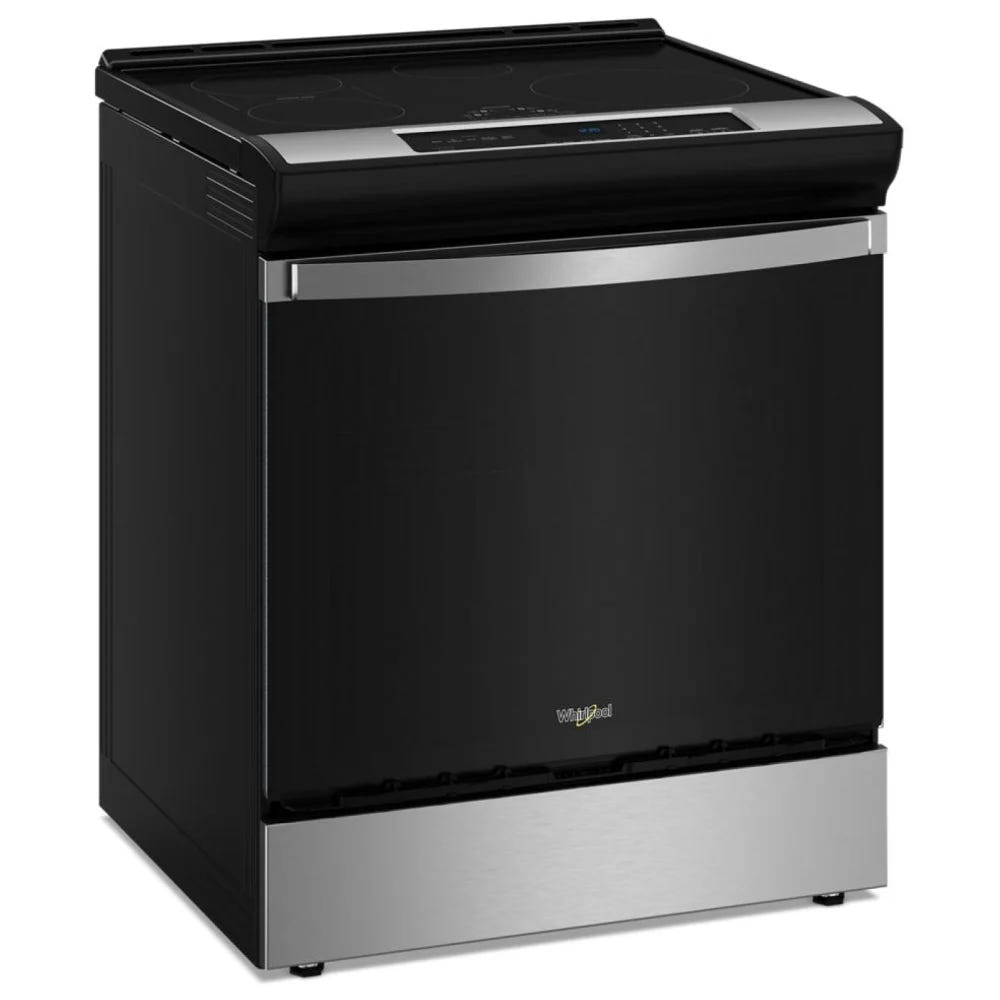

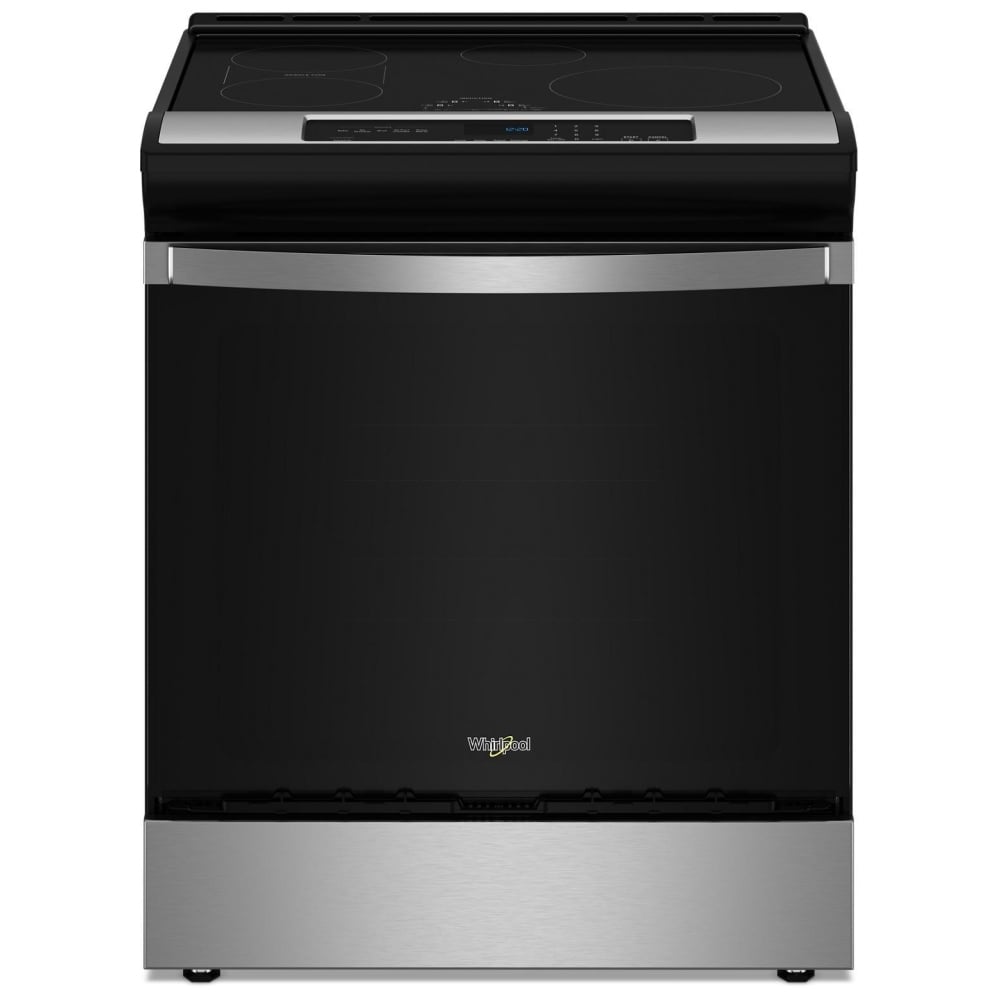

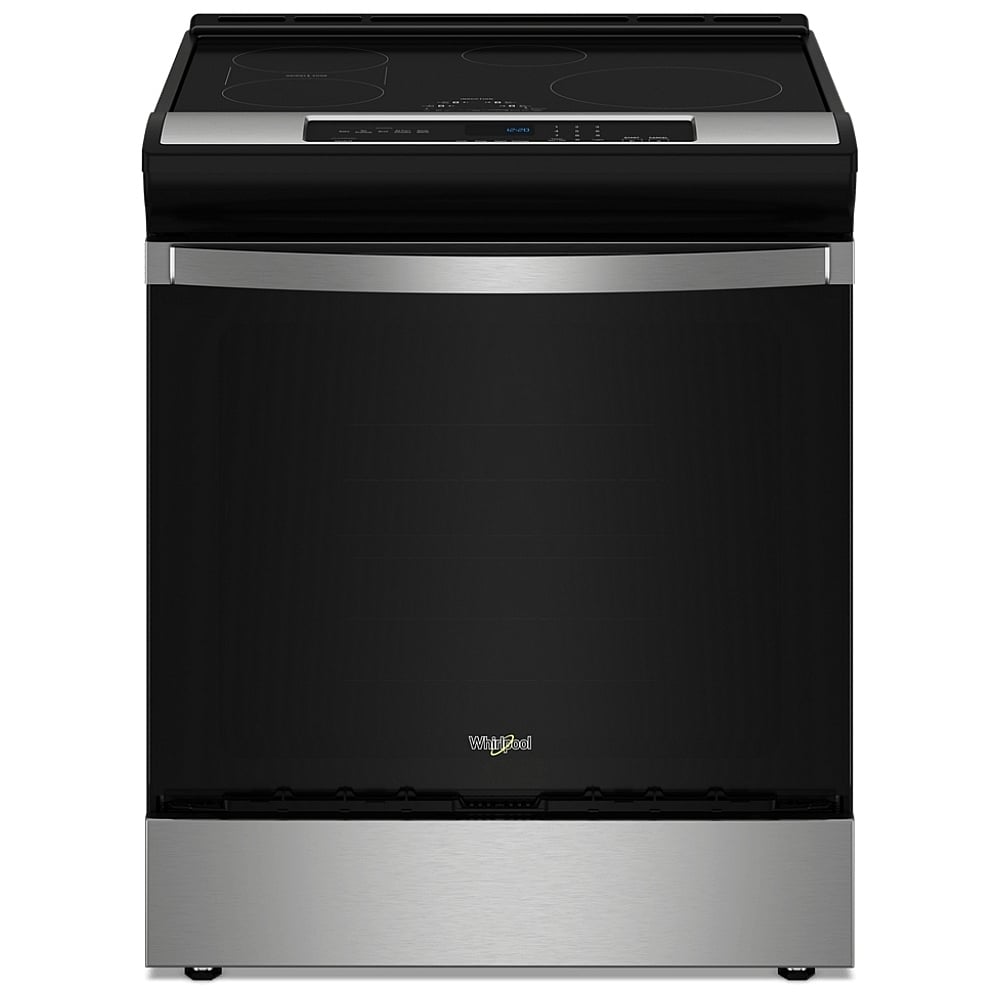

Whirlpool WSIS5030RZ Induction Range

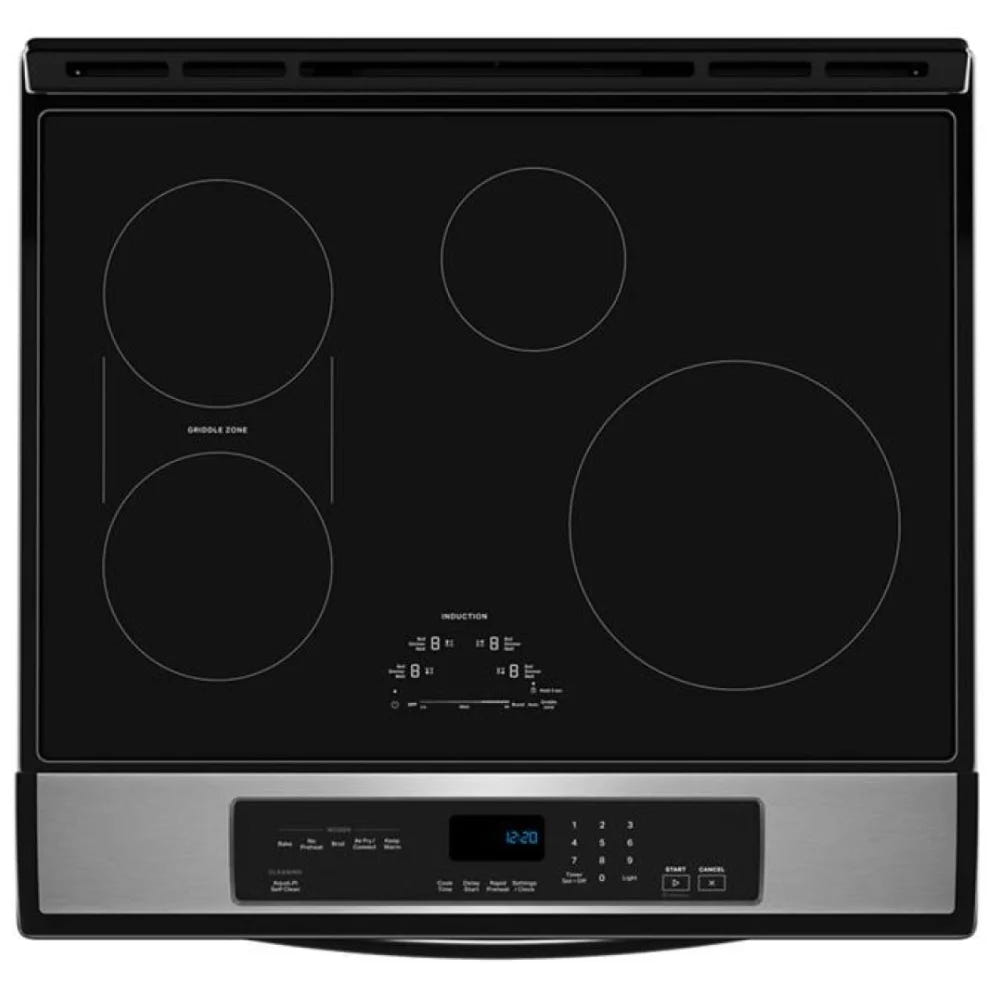

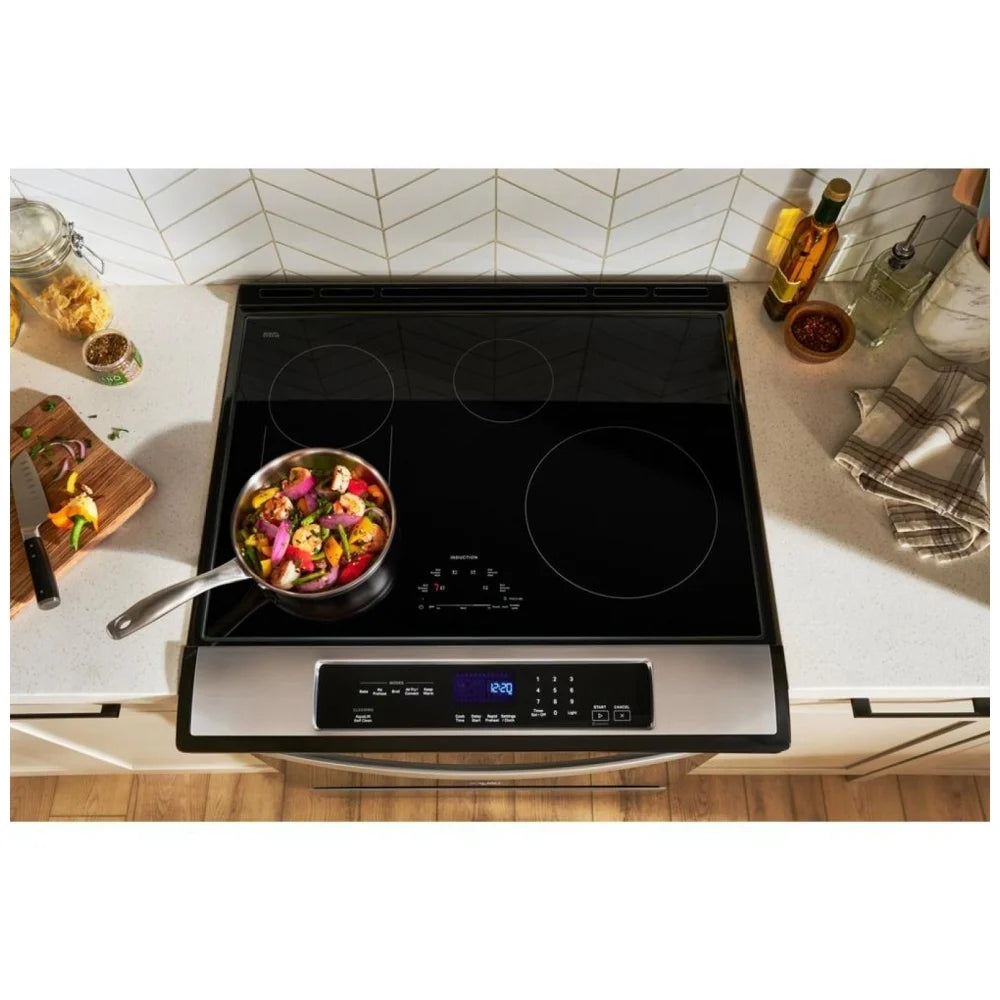

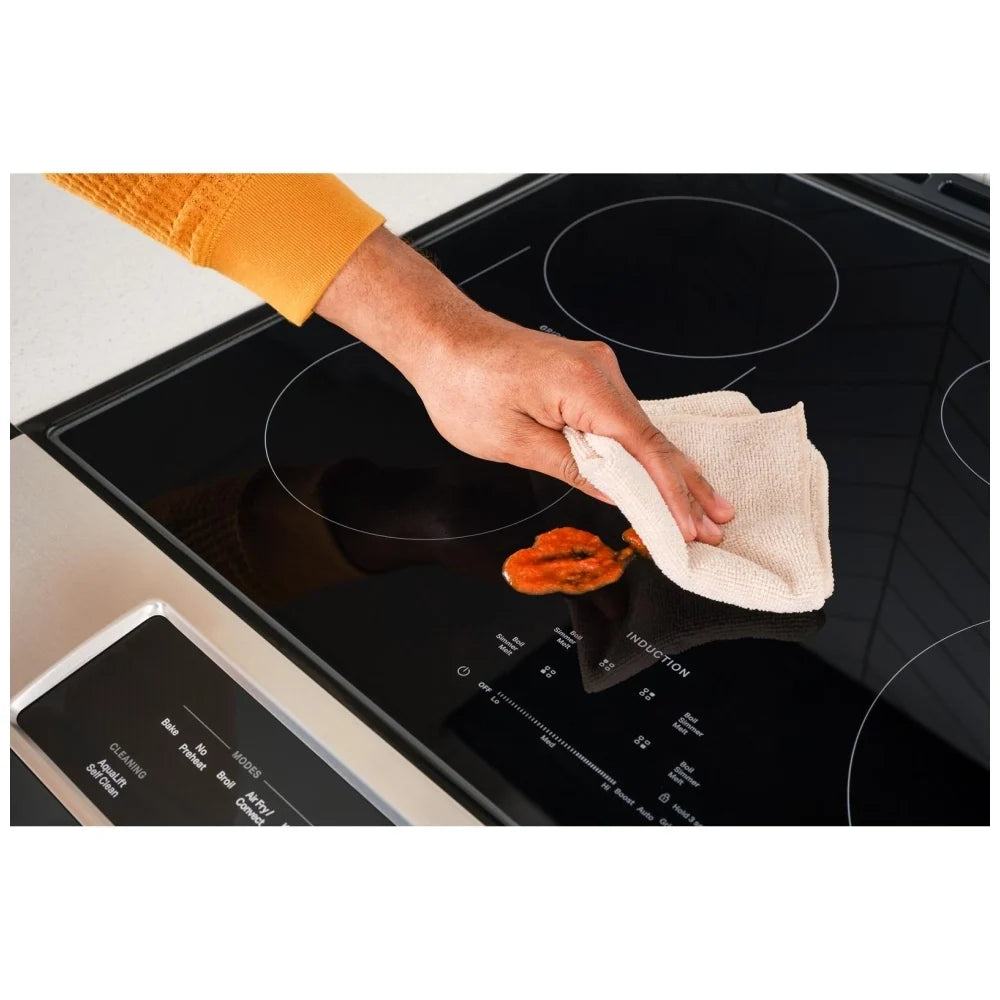

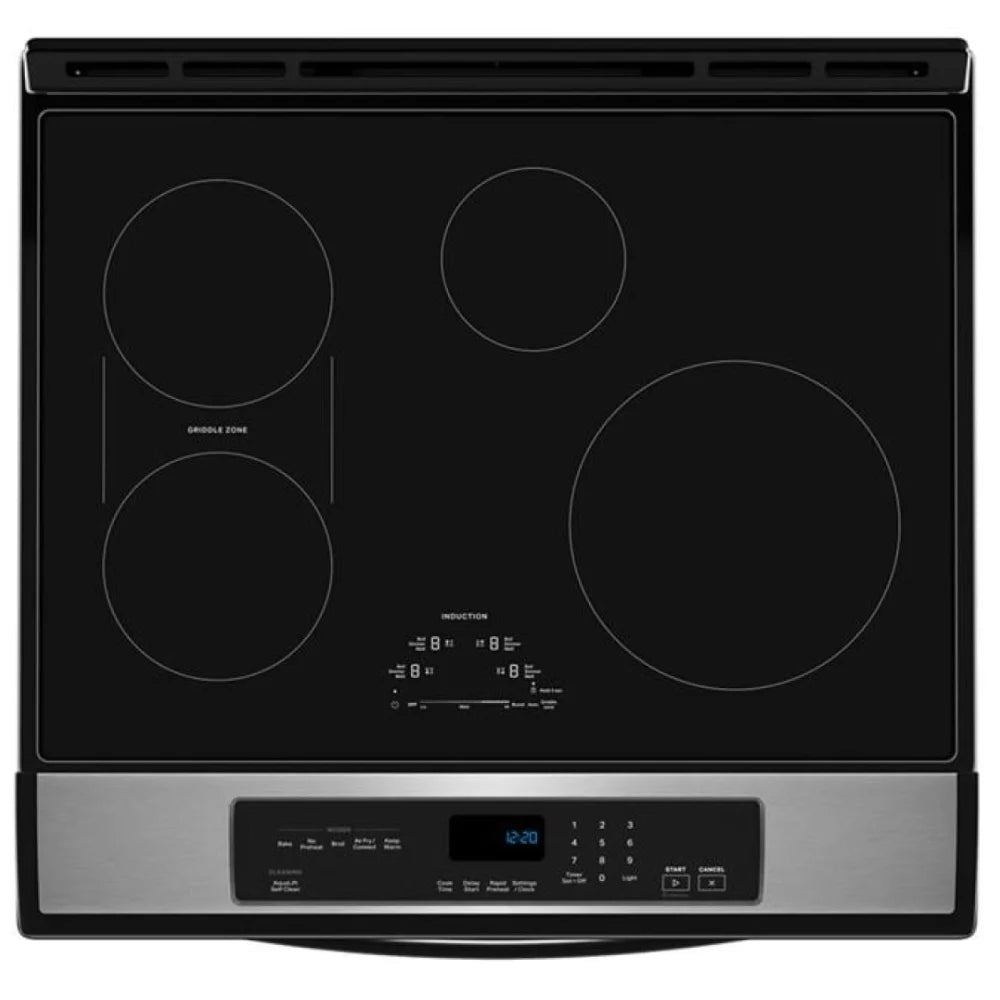

Cooktop Details

Cooktop Control Location Front

Cooktop Control Type Electronic Touch

Cooktop Surface Color Black

Cooktop Surface Material Glass

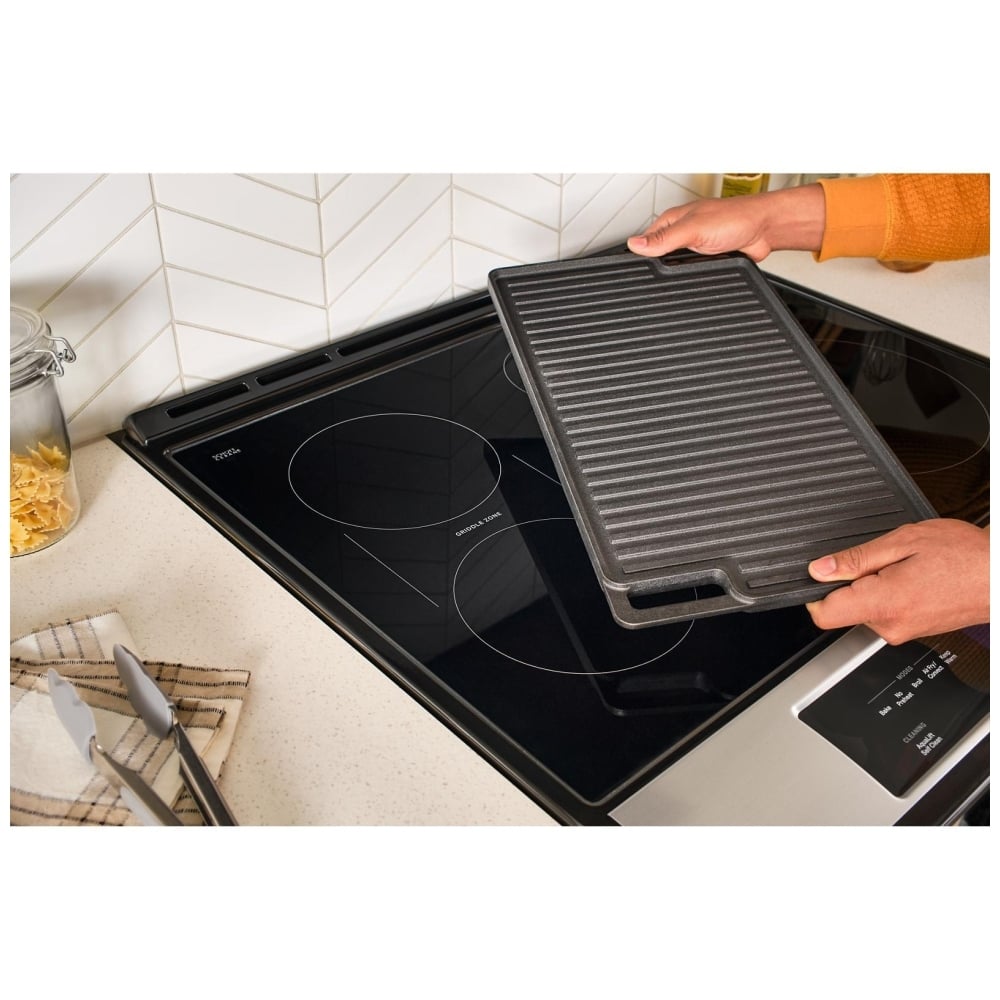

Griddle Included No

Heating Element On Indicator Light Yes

Hot Surface Indicator Light Yes

Details

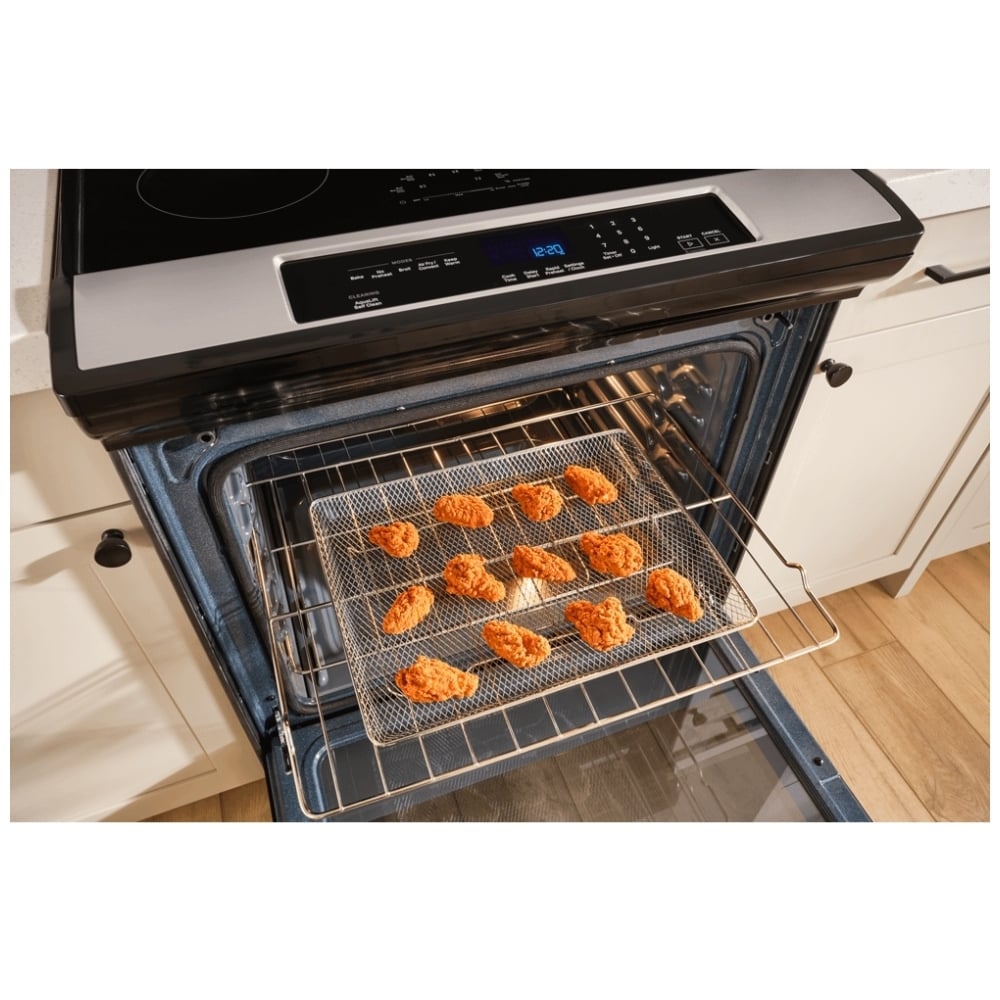

Air Fry Yes

Automatic Convection Conversion Temperature Adjust Yes

Cooktop Configuration All Burners

Fuel Type Electric

Installation Configuration Freestanding

Oven Automatic Shut-off Yes

Oven Light Switch Location Top of Console

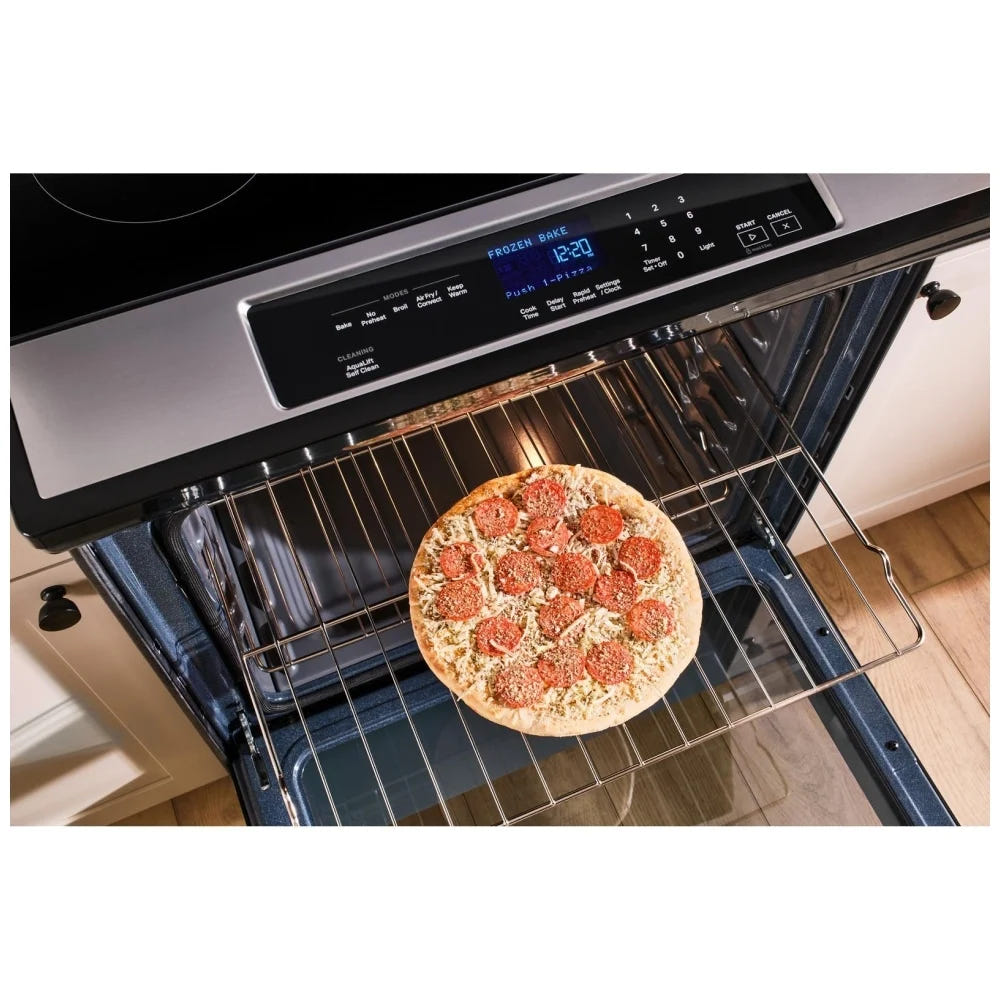

Oven Selections Air Fry; Audible Signal; Bake; Bake-No Preheat; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm Setting; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Rapid Preheat; Sabbath Mode; Stop Time; Timer

Power On Indicator Light Yes

Power Outage Compatible No

Range Configuration Slide-In

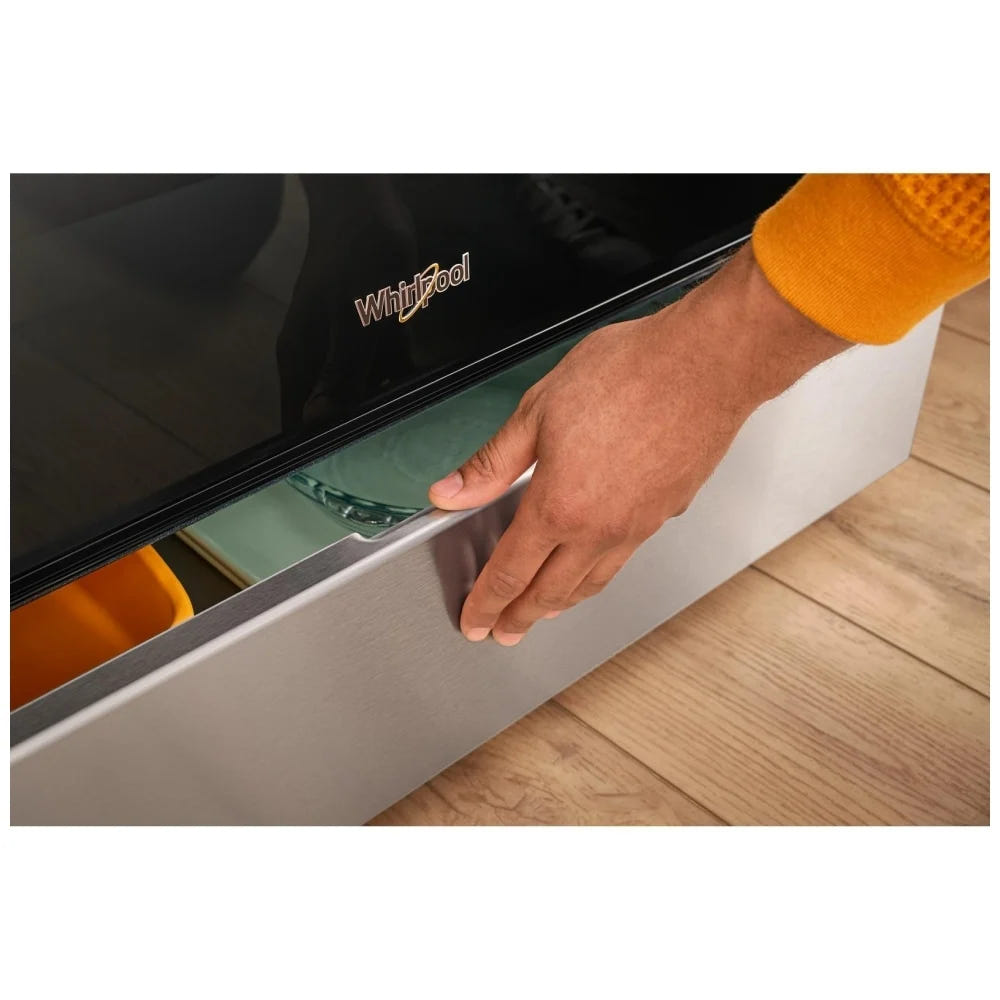

Range Drawer Type Storage Drawer

Range Type Slide-in

Dimensions

Product Height 36.0

Carton Height 43

Gross Weight 229

Oven Interior Height 22.125

Carton Width 32

Product Depth 28.5

Oven Interior Depth 20.625

Depth With Door Open 90 Degree 48.5

Cutout Depth 24

Cutout Height 36

Depth Closed Excluding Handles 27.875

Depth Closed Including Handles 28.875

Carton Depth 31

Cutout Width 30

Oven Interior Width 24.125

Net Weight 211

Product Width 29.875

Electrical

Power Cord Included Yes

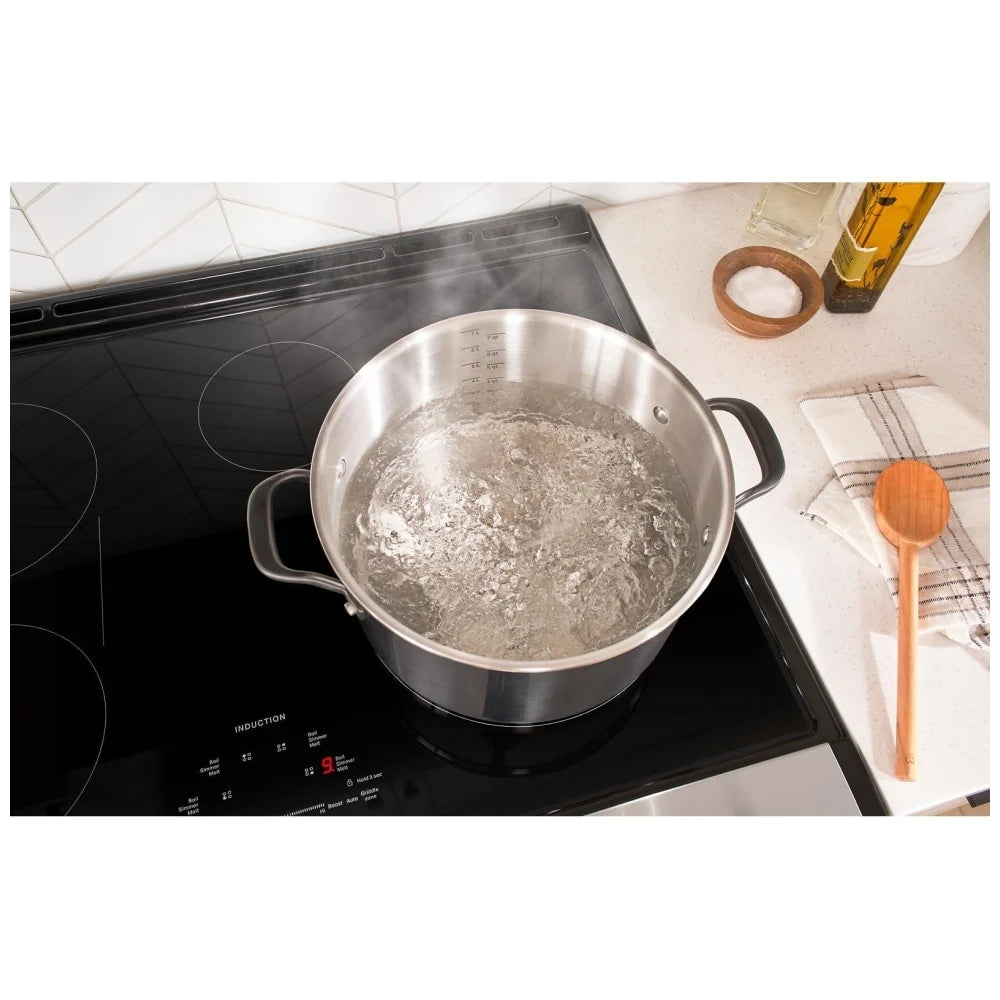

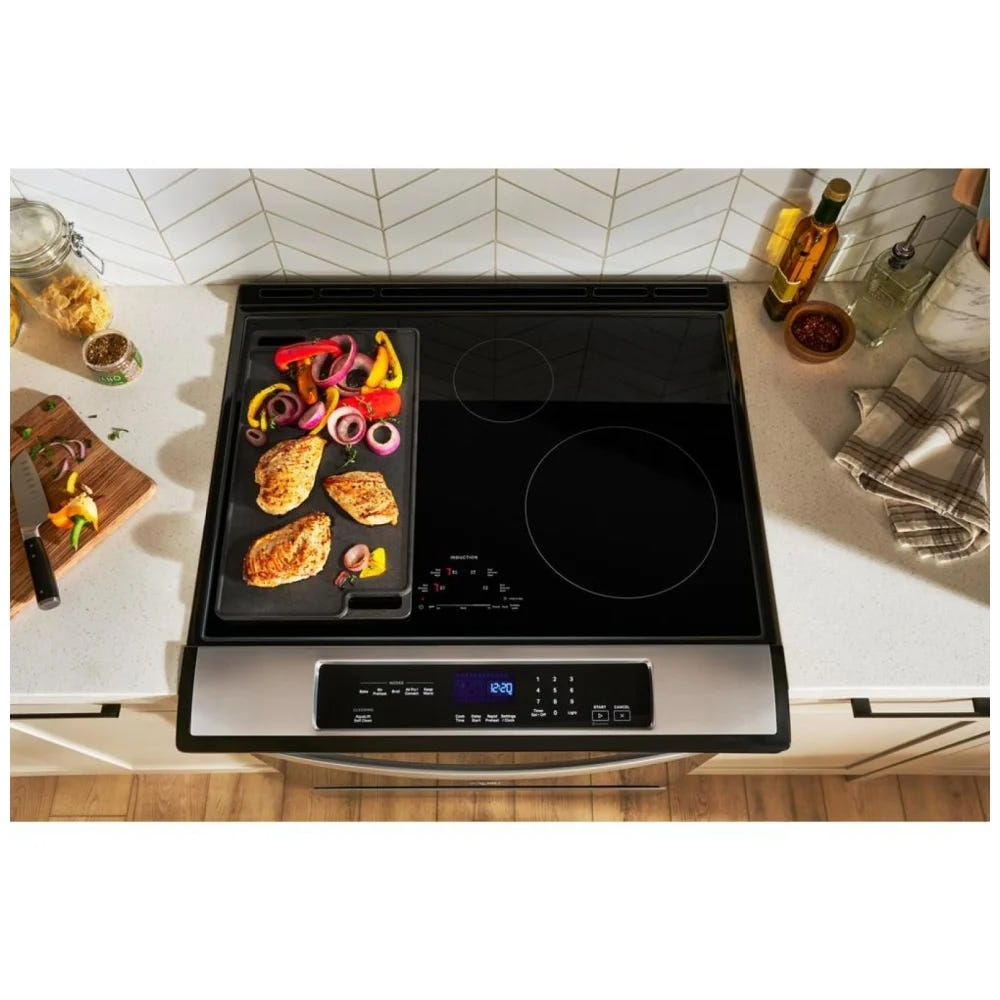

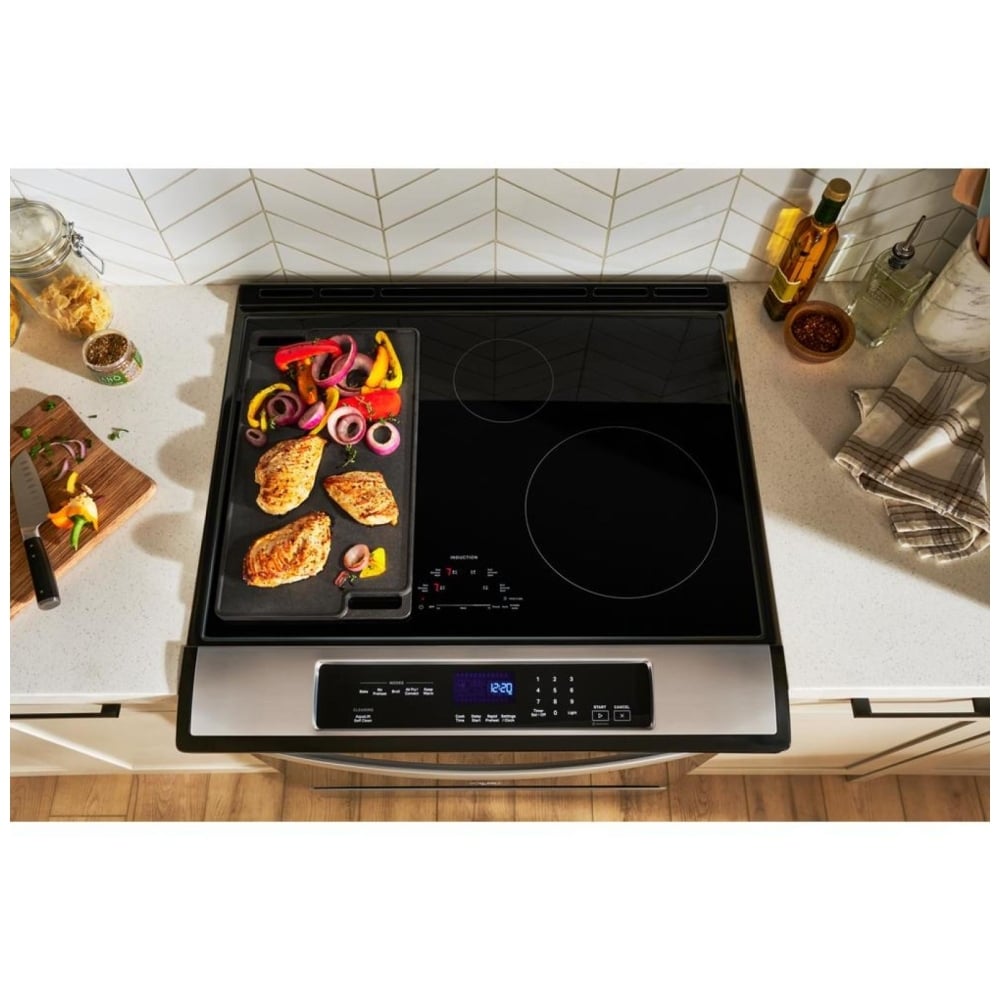

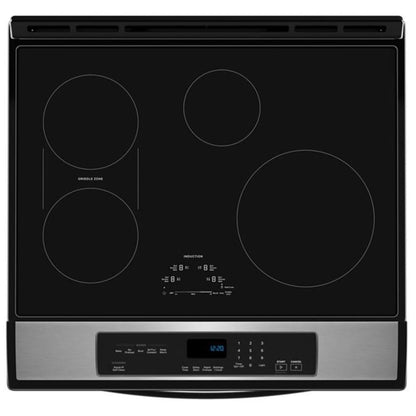

Element/burner Details

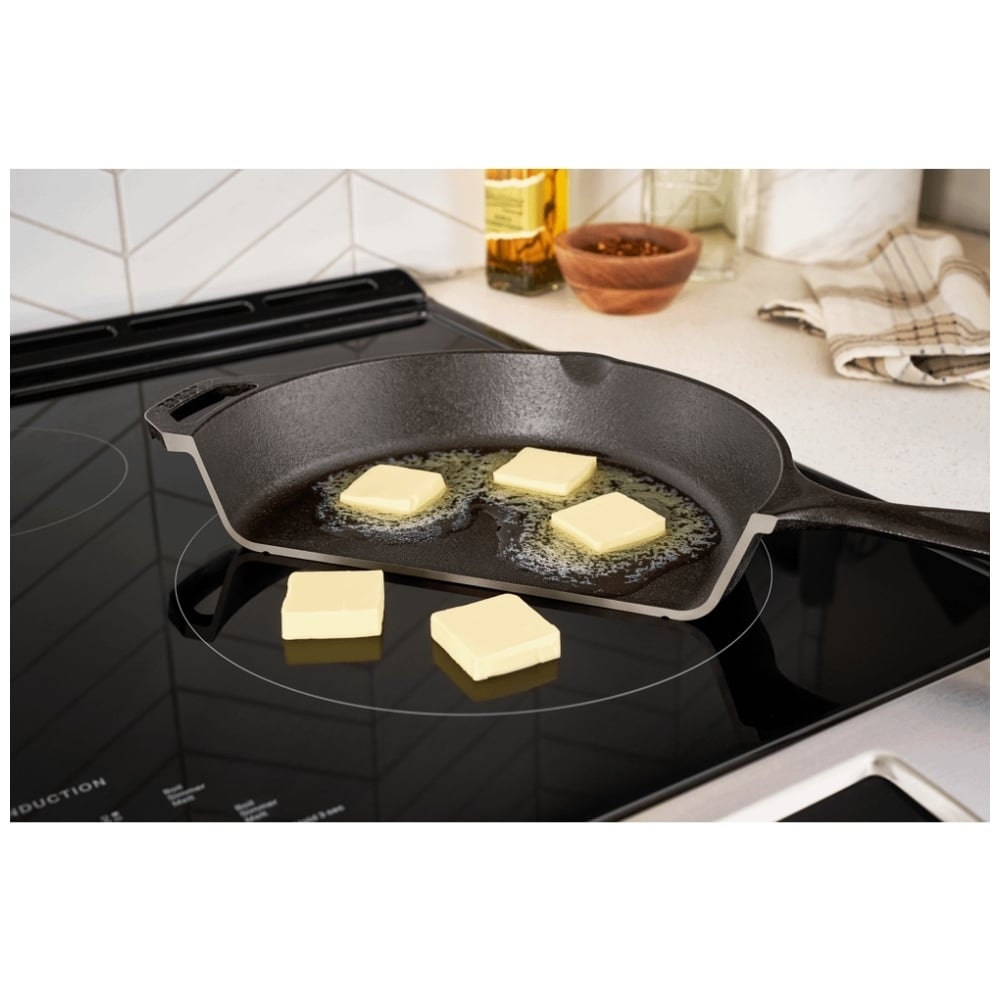

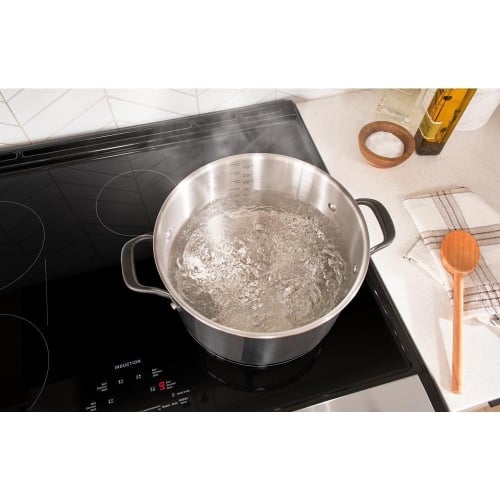

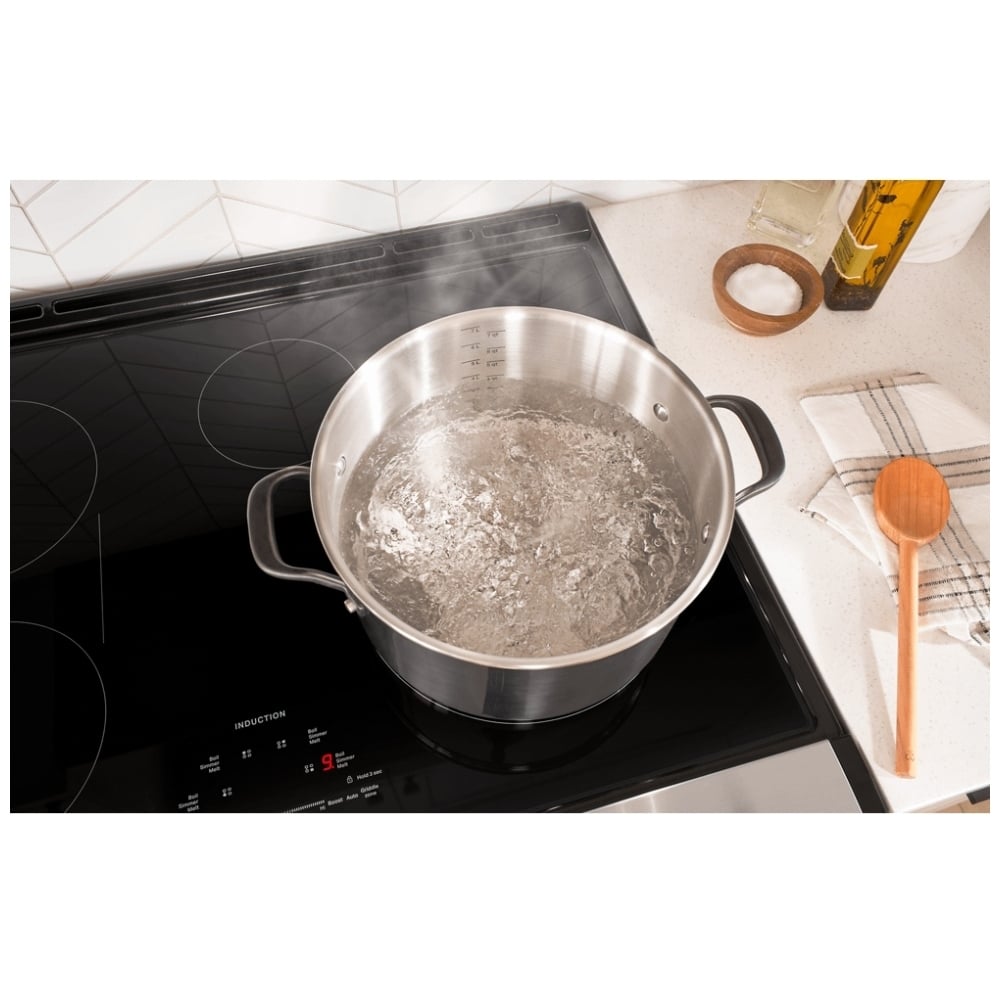

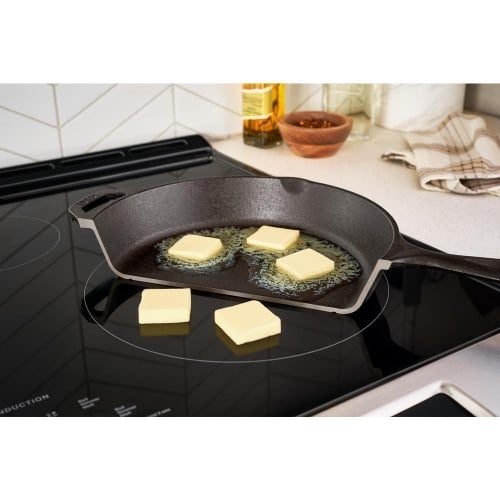

Cooktop Element Style Induction

Left Front Element-burner Power 3,000W

Left Front Element-burner Size 7in.

Left Front Element-burner Type Induction Bridge

Left Rear Element-burner Power 3000W/1400W

Left Rear Element-burner Size 7in.

Left Rear Element-burner Type Induction Bridge

Number of Cooking Element-burners 4

Right Front Element-burner Power 3700W

Right Front Element-burner Size 10in.

Right Front Element-burner Type Power

Right Rear Element-burner Power 2200W

Right Rear Element-burner Size 5 1/2 in.

Right Rear Element-burner Type Standard

Exterior Details

Door Type Glass

Handle Color Stainless Steel

Handle Material Metal

Handle Type Reach Through Handle

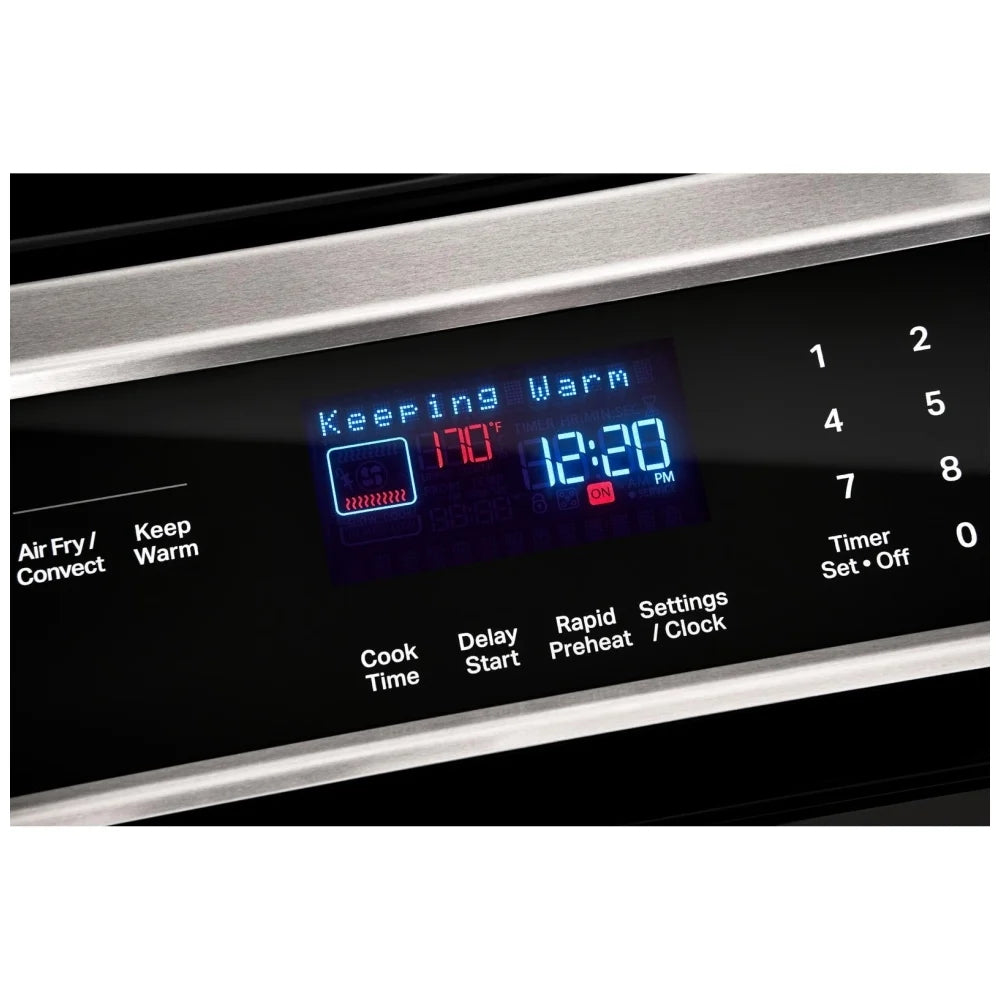

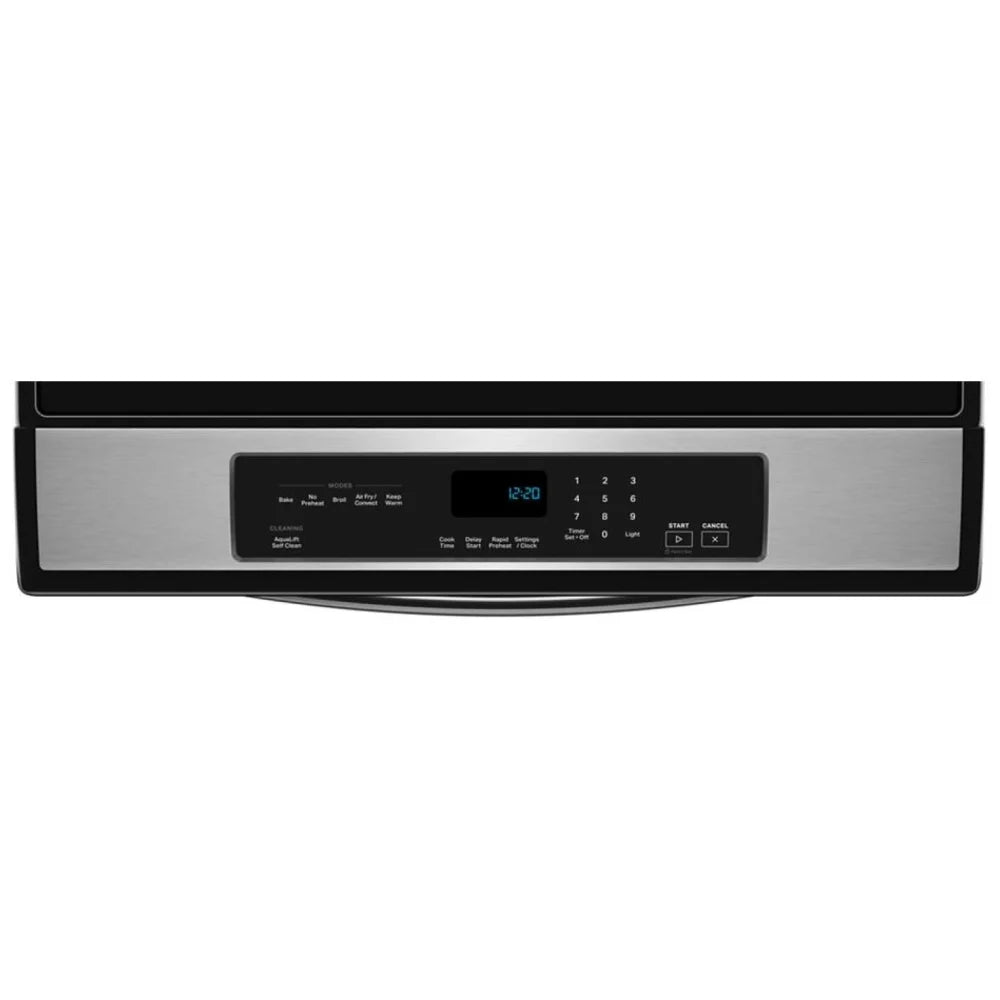

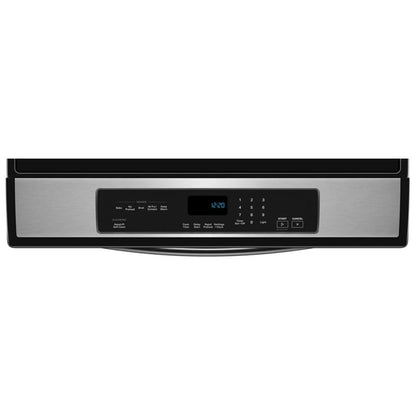

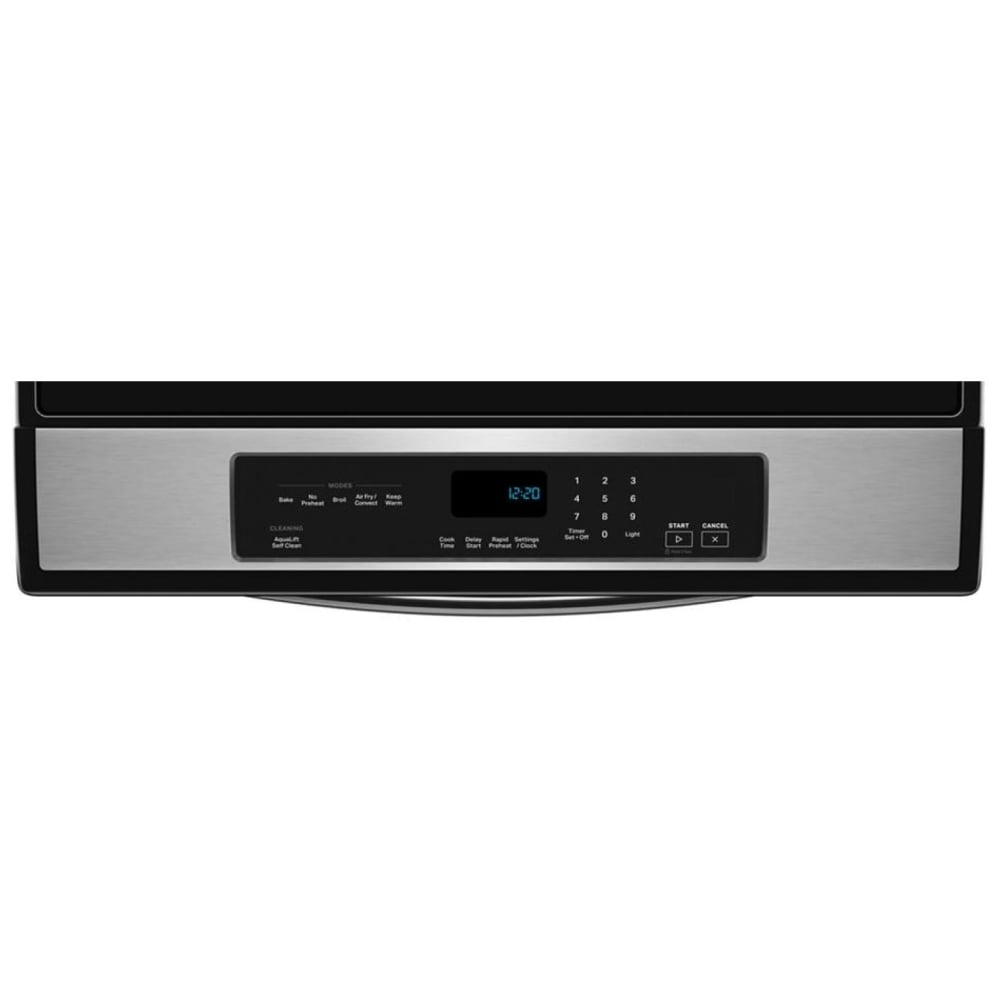

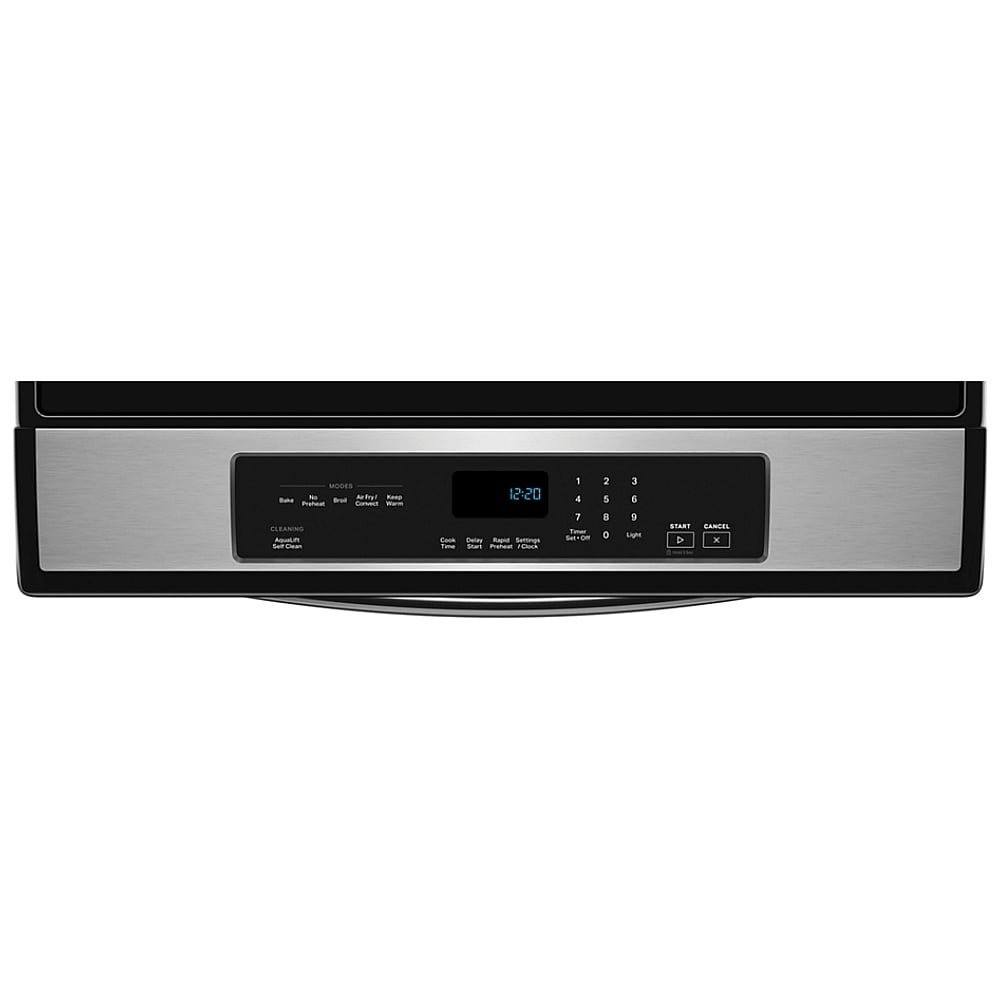

Oven Control Location Front

Oven Control Type Electronic Touch

Oven Window Size Extra Large

General

Console Language English

Energy Rating(s) (kwh/year) 195 (US), 377 (Canada - oven portion only)

Energy Ratings (kwh/year) 195 (US), 377 (Canada - oven portion only)

Literature Language English

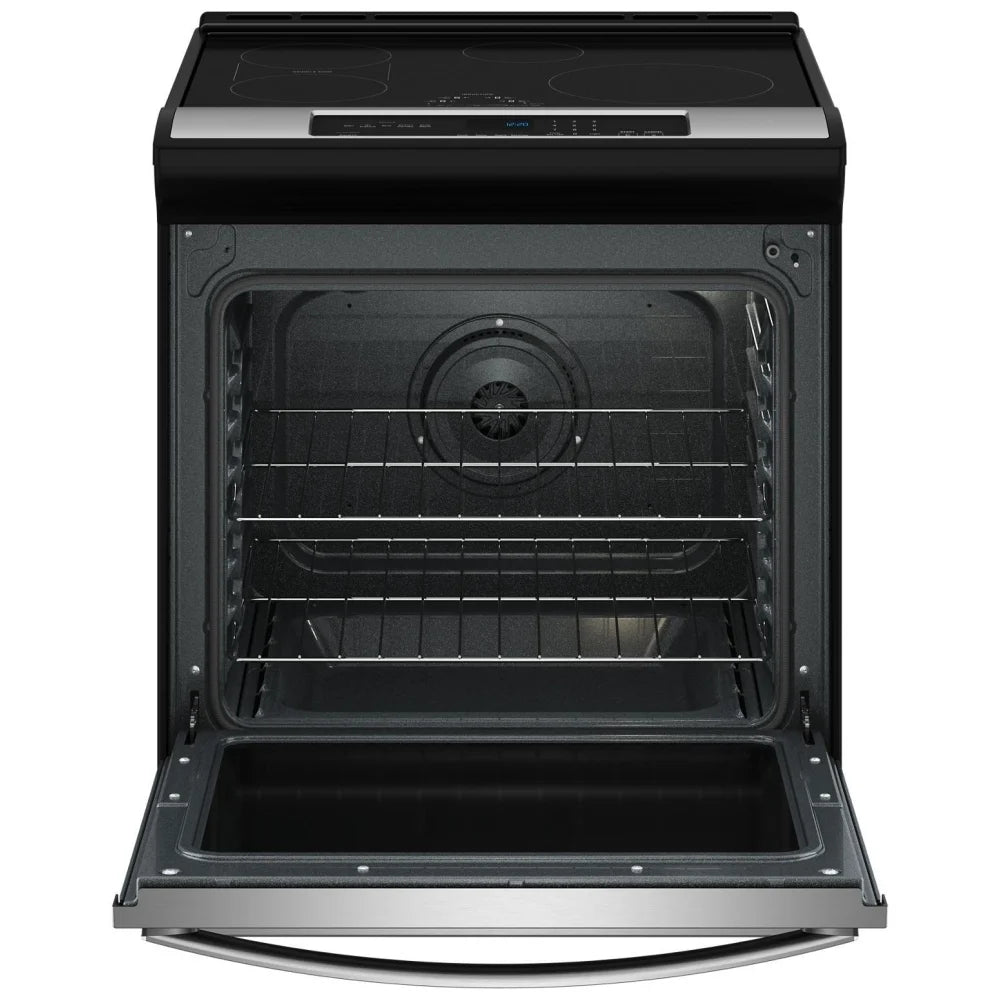

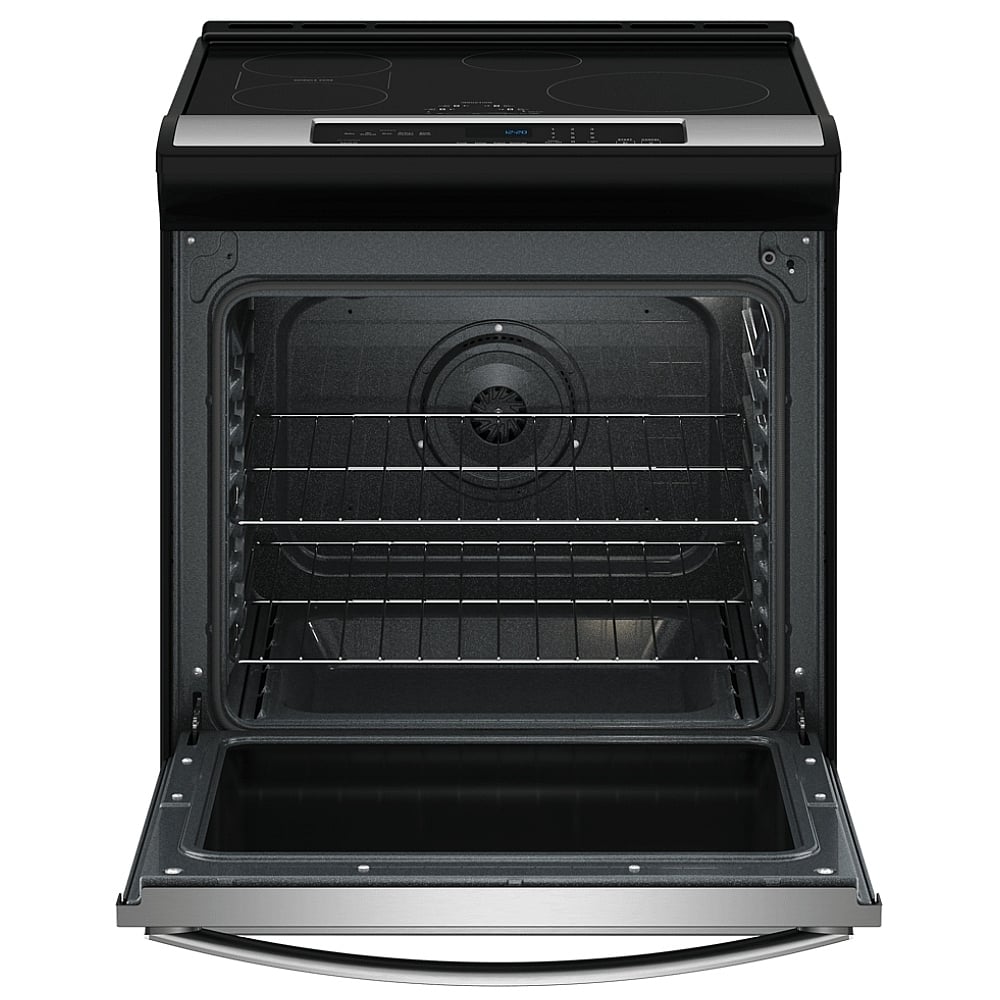

Oven Details

Bake Element Power 3,600 W

Broiler Element Power 4,000 W

Broiler Location Top of Oven

Convection Element Power 925

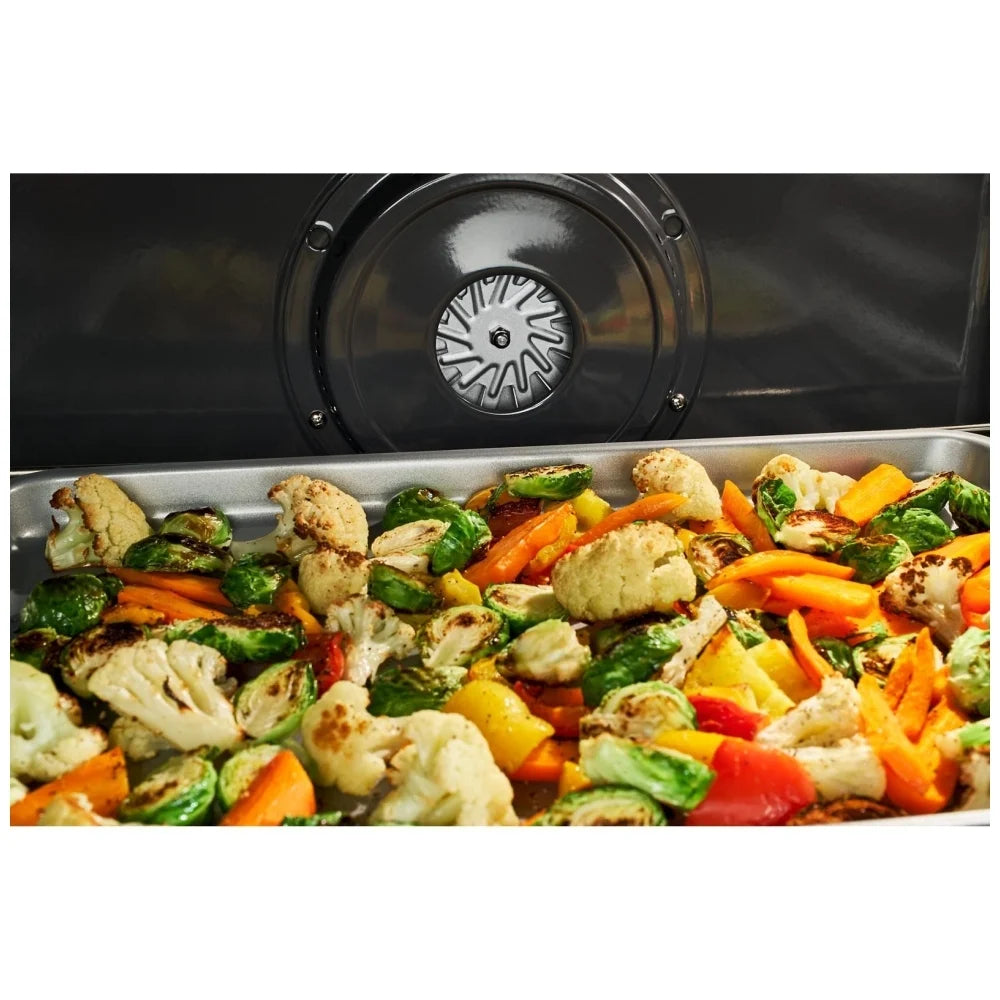

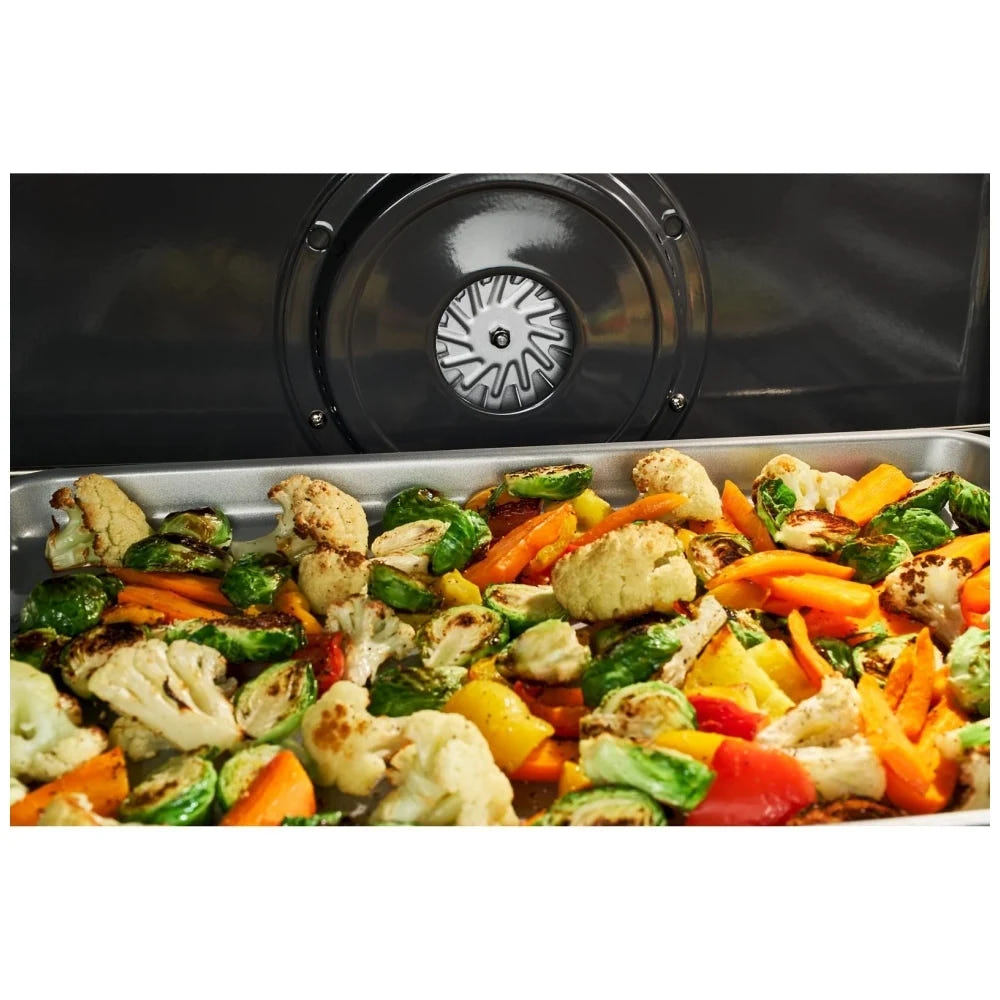

Convection Element Type True Bow Tie

Convection Functions Air Fry; Bake; Broil

Door Removable Yes

Hidden Bake Element Yes

Interior Color Grey

Number of Oven Lights 1

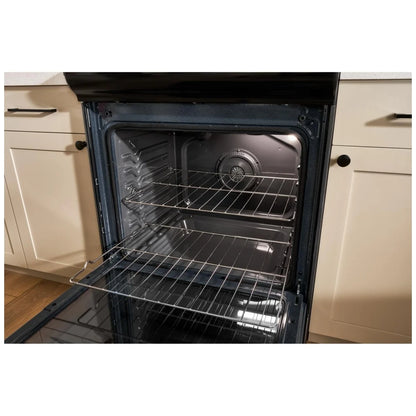

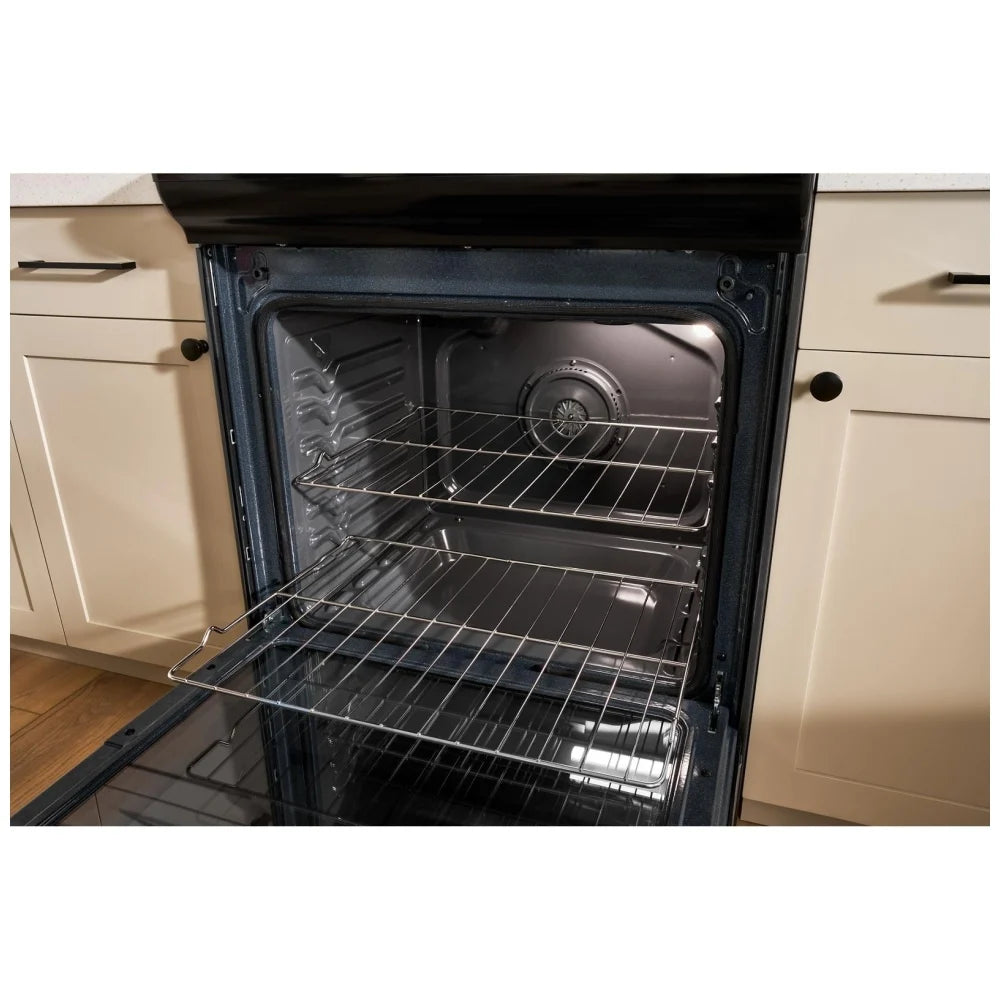

Number of Oven Racks 2

Number of Rack Guides 7

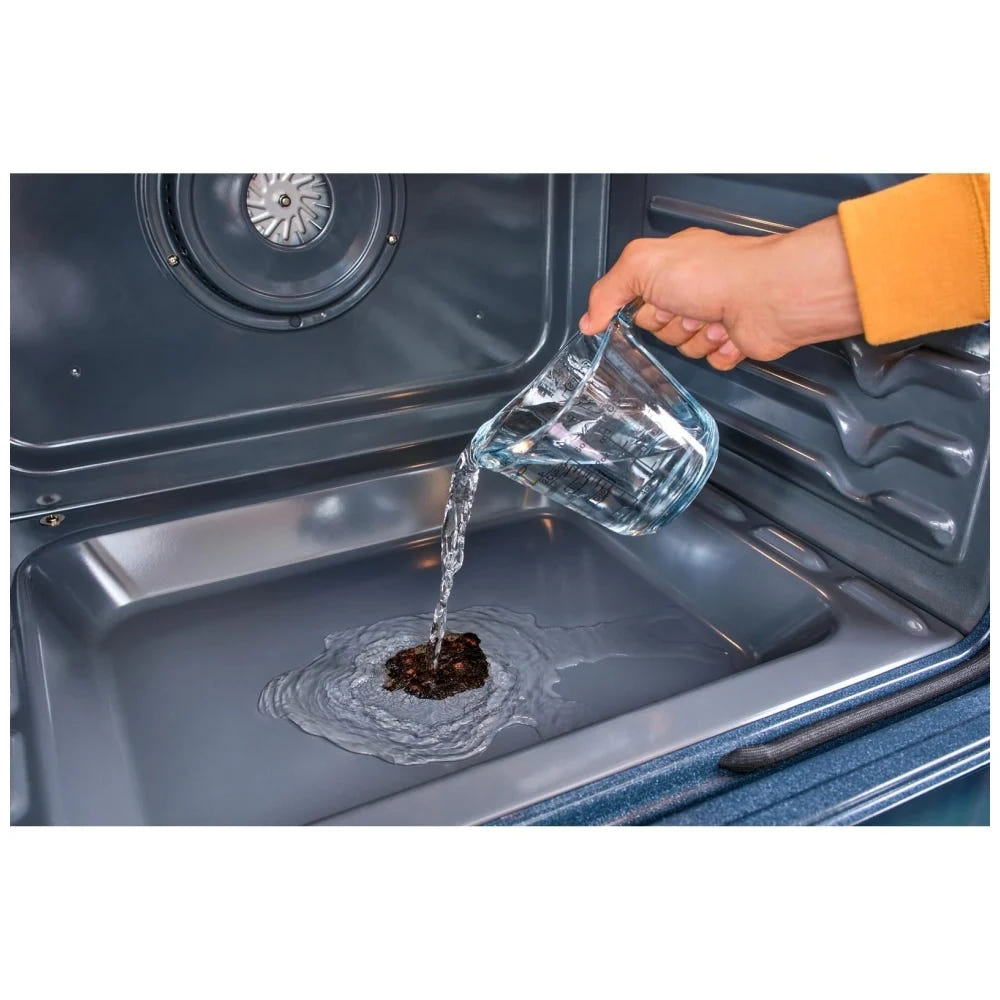

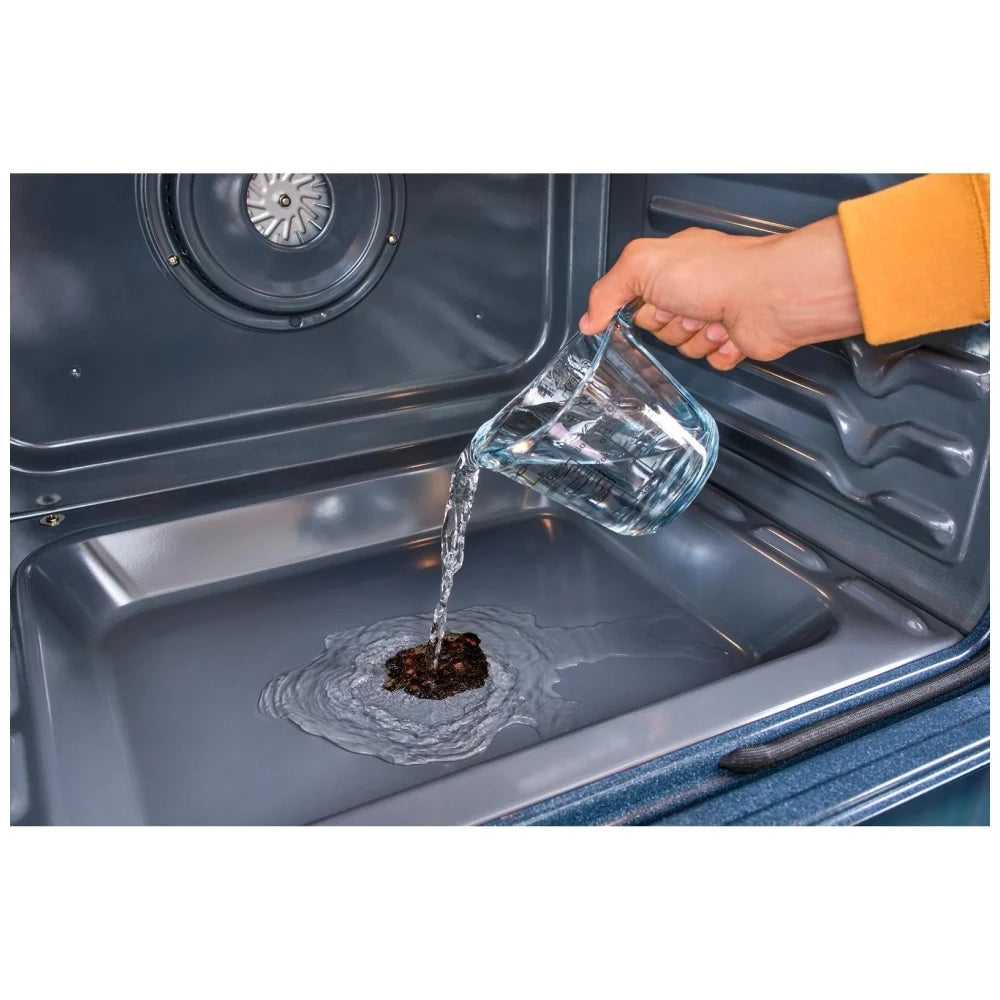

Oven Cleaning Type AquaLift® Self Clean

Oven Cooking System True Convection

Oven Light Type Incandescent

Oven Rack Guide Type Molded

Oven Rack Type 2 Standard

Smart Compatibility

Connectivity No

Works WithNo
